Drinkwell Platinum PWW00-13703 User manual

p. 1
IMPORTANT SAFETY
INSTRUCTIONS
WARNING - When using electric appliances, basic
precautions should always be followed, including the following:
1) Read all the instructions before using appliance.
2) To reduce the risk of injury, close supervision is necessary when
an appliance is used near children.
3) Only use attachments recommended or sold by the
manufacturer.
4) Do not use outdoors. FOR INDOOR USE ONLY.
5) Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
6) Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. Return appliance to the nearest authorized
service facility for examination, repair, or electrical or mechanical
adjustment.
7) For a portable appliance - To reduce the risk of electrical shock,
do not place or store appliance where it can fall or be pulled into
a tub or sink.
8) Always unplug any appliance when not in use, before putting on
or taking off parts, and before cleaning. Never yank a cord to
remove from the outlet.
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO;
RISK OF FIRE, ELECTRIC SHOCK OR
HARM TO PERSONS
www.petfountain.com

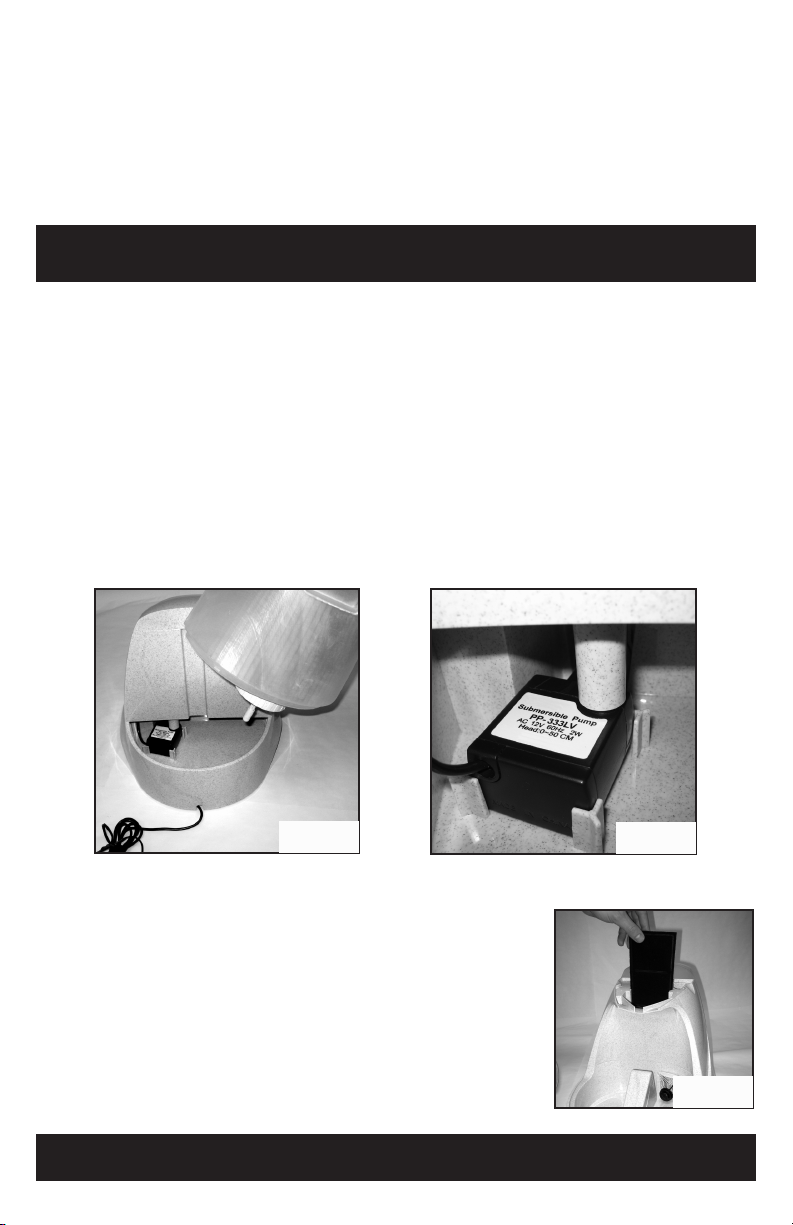

Your fountain will come fully assembled and ready for use.
1) As with any electrical device, check the electrical cord for any tears, or
damage before use.
2) Make sure the inline plug is connected. (No silver showing)
3) Removethehousingcover(lid)byplacingyourindexngersintotheinset
groves on either side of the lid. Lift up. Set the lid aside.
4) Lift up the reservoir and check to make sure the intake tube is properly
inserted into the motor. (Fig. 1a &1b)
DRINKWELL®
OPERATING INSTRUCTIONS
5)Insertthecharcoallter.Thelterwilltintothetwotriangularslotsinthe
centerofthehousing.Theltertsnarrowside
down and the black side faces the front of the
fountain.Thelterwillslideeasilyintoplace.
a. Note:Rinsethelterthoroughlyundercool
water before placing into the housing. This
will remove any loose charcoal dust, which
is harmless. A small amount of charcoal
dustmayshedforthelifeofthelter.Thisis
normal and not harmful to your pet.
U.S. Patents No. 5,799,609 and 5,842,437
D O N O T R U N D R Y
FOR INDOOR USE ONLY
www.petfountain.com p. 2
Fig. 1a Fig. 1b
Fig. 1c
Platinum
TM

6) Place fountain in desired location. If placing on carpet, tile or wood
ooringuseaprotectivesurfacesuchasatowelorplacemattoprotect
youroorfromsplashingordrippingfromyourpet.
7) Fillthefountainunitwithwater.Thisincludesthebowlandthelter
housing. This will prime the pump. Replace the lid and snap into place.

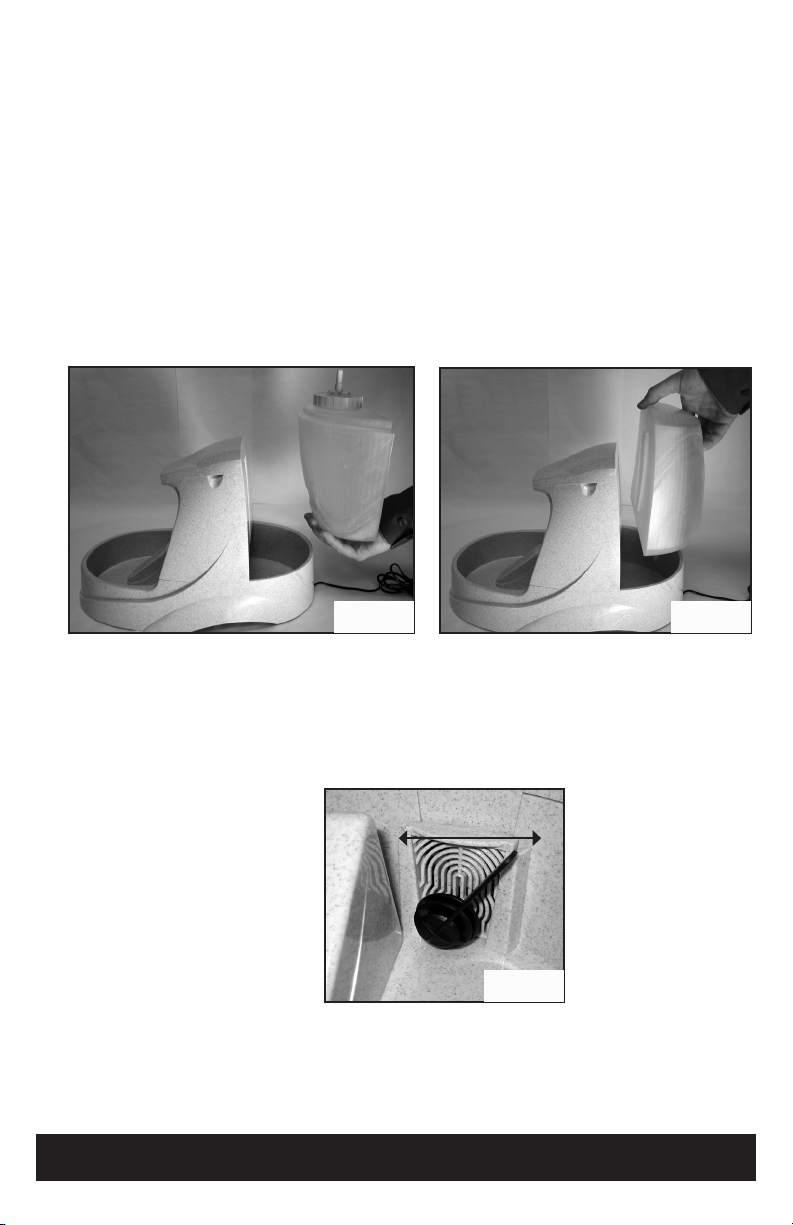

8) Remove the reservoir by lifting up and away from the fountain. Turn the
reservoir upside-down and unscrew the reservoir cap. Fill the reservoir
with water and screw on the cap. Holding the reservoir upside-down
and backwards to the fountain (Fig. 1d), quickly turn the reservoir
right side up and slide into place (Fig. 1e). Water level will equalize to
approximately 1/2 inch below the rim of the bowl.
9) Before you plug in the fountain make sure the cord and your hands are
dry. Plug the fountain in.
10)Setyourdesiredowratewiththeowcontrolknob,locatedtotheright
of the splash ramp. In the 10 O’clock position for a smaller stream or in
the 2 O’clock position for a strong stream. (Fig. 1f)
11) Addwaterasneeded.Donotletthewaterlevelfalllowerthantheow
control knob or you may burn out the motor. Do not pick up a full fountain
bythelterhousing.Onlyusethehandleslocatedonthebottomofthe
bowl on either side of the fountain. (For replacement parts please call
866-322-2530)
Min. Max
Shown at MAX
owposition.
p. 3
Fig. 1f
Fig. 1eFig. 1d
www.petfountain.com

FOUNTAIN:
1) Unplug fountain, remove cover and pull out
lter.
2) Remove the reservoir (See Operating
Instructions # 8)
3) Empty the water out of the fountain.

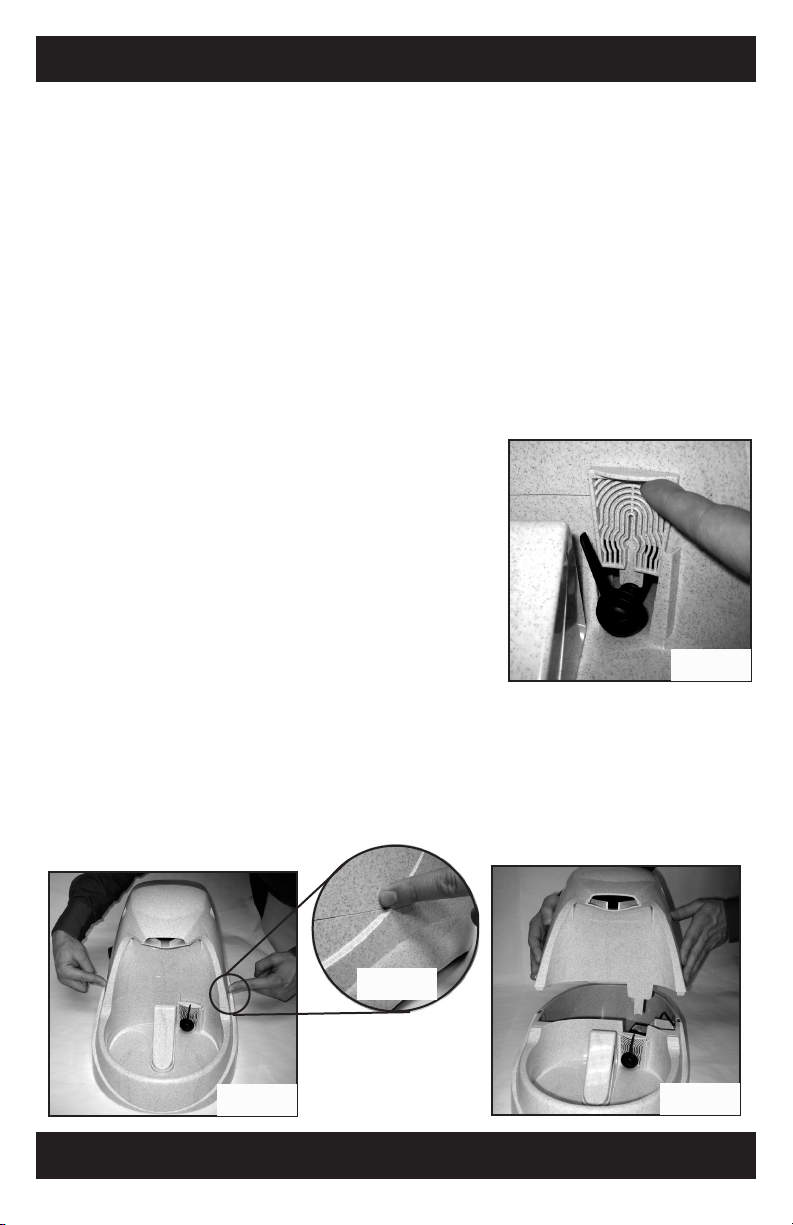

4) Removethepre-lterbygentlypullingup
onthetoplipofthepre-lterandwashwith
soap and water. (Fig. 2a)
FOUNTAIN DISASSEMBLY & CLEANING
The Fountain Must Be Cleaned To Continue Working Normally!
FILTERS:
1) Filtersshouldbechangedeveryfourtosixweeks.Replaceltersmore
frequently when using the fountain for multiple pets or pets that produce a
lot of saliva.
2) Filters are an added feature of the fountain. Their use is not required for
normal operation.
3) Filters may be rinsed out when the fountain is cleaned. Do not wash with
soapy water since you cannot remove all the soap residue.
4) Forreplacementlters,visitapetstorenearyouorcall866-322-2530.
5)Removethelterhousingbygentlypushinginoneithersideofthe
fountain where the curve meets the seam. Gently lift up. (Fig. 2b-d)
a. Note: You will notice the right side of the housing will offer some
resistance as the water intake tube pulls away from the motor.
p. 4
Fig. 2b
Fig. 2c
Fig. 2d
Fig. 2a
www.petfountain.com

REASSEMBLY OF YOUR DRINKWELL

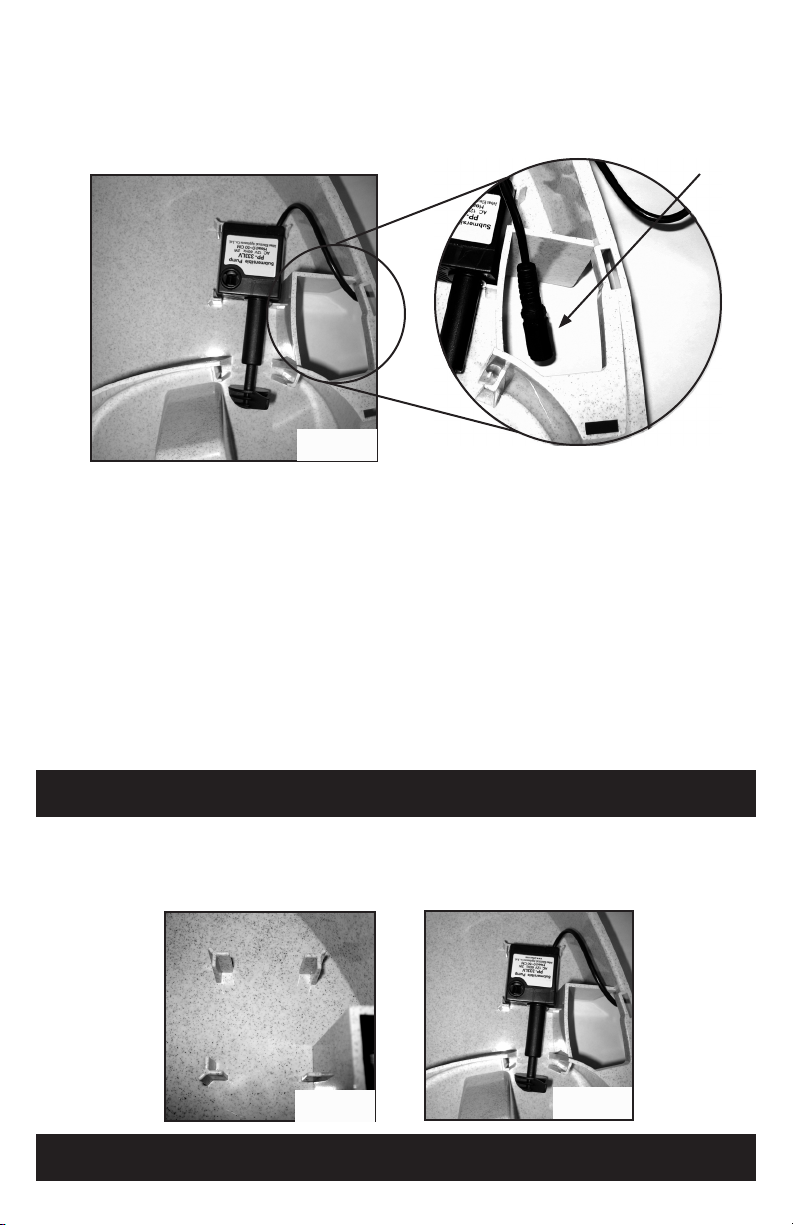

6) You can then remove the motor by disconnecting the inline plug, (Fig.
2f) then lift it out of the fountain. Clean away any hair or kibble that may
haveaccumulatedaroundtheowcontrolknobandtheintakeplateof
the pump. (See “Motor Maintenance”)
7) Clean the fountain parts with warm water and soap. You can also put
the fountain in the top rack of the dishwasher. Remove the pump before
placing the fountain in the dishwasher. It is recommended that you turn
down the heat of the water inside the dishwasher if you can.
8) If you have troubles reaching certain spots or getting hard-to-reach
corners, try using a cotton swab (Q-Tip) or get the Drinkwell®Cleaning
Kit (a 3-Brush Kit). For information on how to order one please call 866-
322-2530 or visit www.petfountain.com
9) Once the fountain is completely disassembled you will have 6 plastic
parts (See “ Understanding the Drinkwell Parts”).
1) Replace the motor into its location in between the 3 one-inch posts on
the right side of the fountain. Gently push down to engage the suction
cups. (Fig. 3b)
Fig. 2f
p. 5
Inline plug
Fig. 2e
Fig. 3a Fig. 3b
www.petfountain.com

4) Replacethepre-lterovertheow
control knob by sliding the narrow end in
rst.Theliponthetopofthepre-lterwill
be facing the front of the fountain, push
downtosnapitintoplaceovertheow
control knob.
5) Replacethelterandlid(SeeOperating
Instructions #5 & 7)
6) Replace the reservoir (See Operating
Instructions #8)
2) Thread the plug through the opening next to the motor. Under the arch
you can tuck the cord into “cord channels”, then thread the cord along
the back of the fountain to the cord notch (Fig. 3d). Use this pass-through
to keep the cord from showing.
Cord Channels Cord Pass-Through
3) Lineupthelterhousingunitoverthemotorandthenthebowl.Youwill
wanttolineuptheintaketubetotdirectlyintothemotor.Onceinplace,
gentlypushdown,lockingthelterhousingintoplace.(Fig.3f)
Intake Tube
p. 6
Fig. 3c Fig. 3d
Fig. 3f
Fig. 3e
Fig. 3g
www.petfountain.com

1) RemovethePre-lterandHousingfromthebowl(See“Fountain
Disassembly and Cleaning”)
2) Gently lift the motor out of its resting place. Suction cups on the bottom
of the motor will hold it in place. A small amount of force may be
necessary.
3) Oncethemotorisoutofthefountain,withyourthumbandforenger,
gently squeeze on either side of the intake plate, and pull off. It may be
necessarytoinsertangernailintotheseamoftheinletplatetopryitoff.

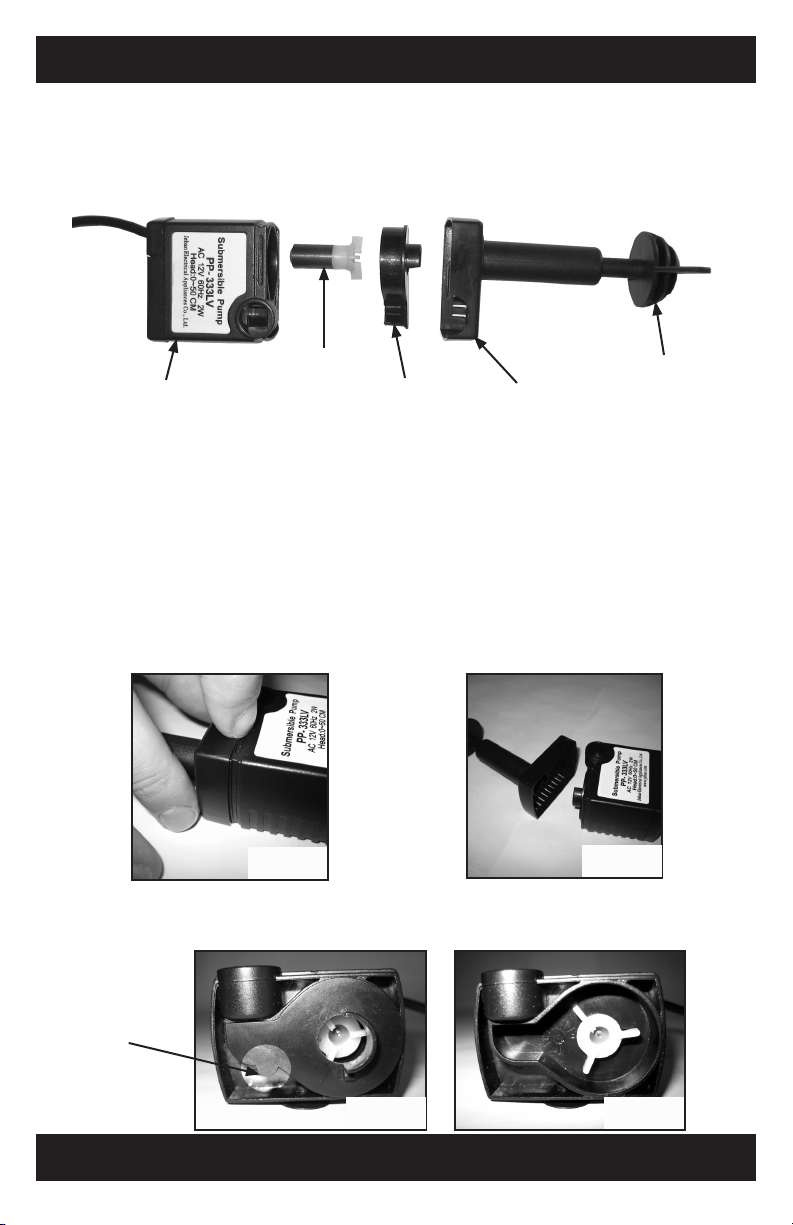

MOTOR MAINTENANCE
4) Nextyouwillwanttoremovethestatorbyplacingyourngernailunder
the small lip located on the narrow side of tear drop shaped stator and
pull out.
Stator
Pull-Tab
Cleaning the motor is essential to the longevity of the fountain as well as
the cleanliness of the water.
IMPORTANT: Warranty may be voided if the motor is not cleaned.
Motor/Pump
Impeller
Stator Intake Plate
Flow Control
Knob
Fig. 4a
p. 7
Fig. 4c
Fig. 4b
Fig. 4d Fig. 4e
www.petfountain.com

7) Once the parts are clean you can reassemble the motor for use.
a) Replace the impeller
b) Replace the stator
 c)Replacetheintakeplatewiththeowcontrolknobattachedtoit.
6) Once the motor is disassembled you
can clean the parts with warm soapy
water. Use a cotton swab
(Q-Tip) or the Drinkwell®Cleaning
Kit “Motor Brush” to get into the motor
cavity and remove any build-up. For added disinfecting and hard water
removal clean the motor with white vinegar.

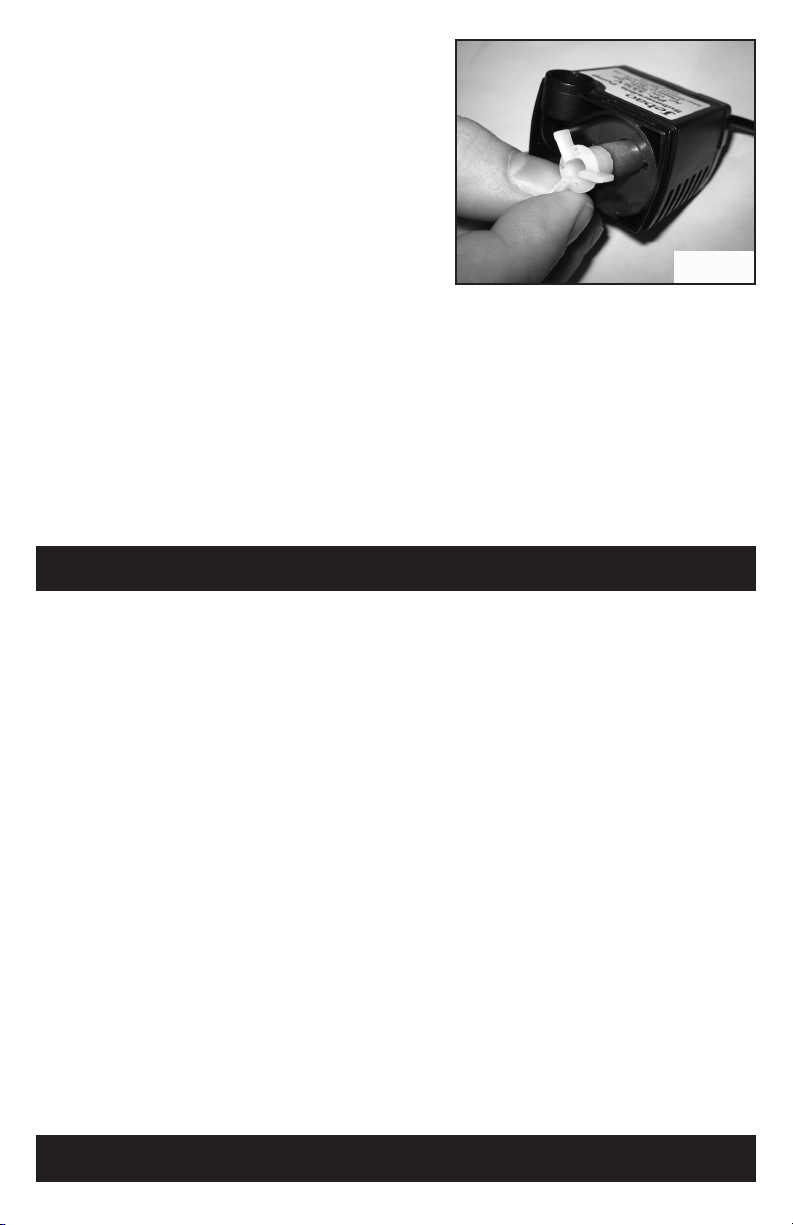

5) Once the stator is removed you can
also remove the impeller (3 white-
bladed propeller) which is held in
place magnetically. To remove the
impelleruseangernailtogetunder
a blade and lift out.
THE FOUNTAIN AND YOUR ENVIRONMENT
If you live in a humid environment and have problems with mold or algae, (the
parts may feel “slimy”), simply soak all of the parts in a diluted bleach solution for
about 10 minutes after regular cleaning. (Use one or two cups of bleach in a sink
full of water). Pour some of the bleach solution down into the motor cavity, too.
This is also an excellent way to disinfect the fountain. You must be sure to rinse all
the parts very well to remove all the chlorine. The best way to rinse out the motor
cavity is to hold it under a weak stream of water.
If you have “hard water” you may start to see white mineral deposits on or down
inside the motor. This may eventually prevent the impeller from turning properly.
To avoid having to replace the motor:
A. Clean the motor more frequently than you have in the past; or
B. Clean with regular white vinegar and let the vinegar soak for
several minutes down inside the cavity; or
C. Use bottled water.
p. 8
Fig. 4f
www.petfountain.com

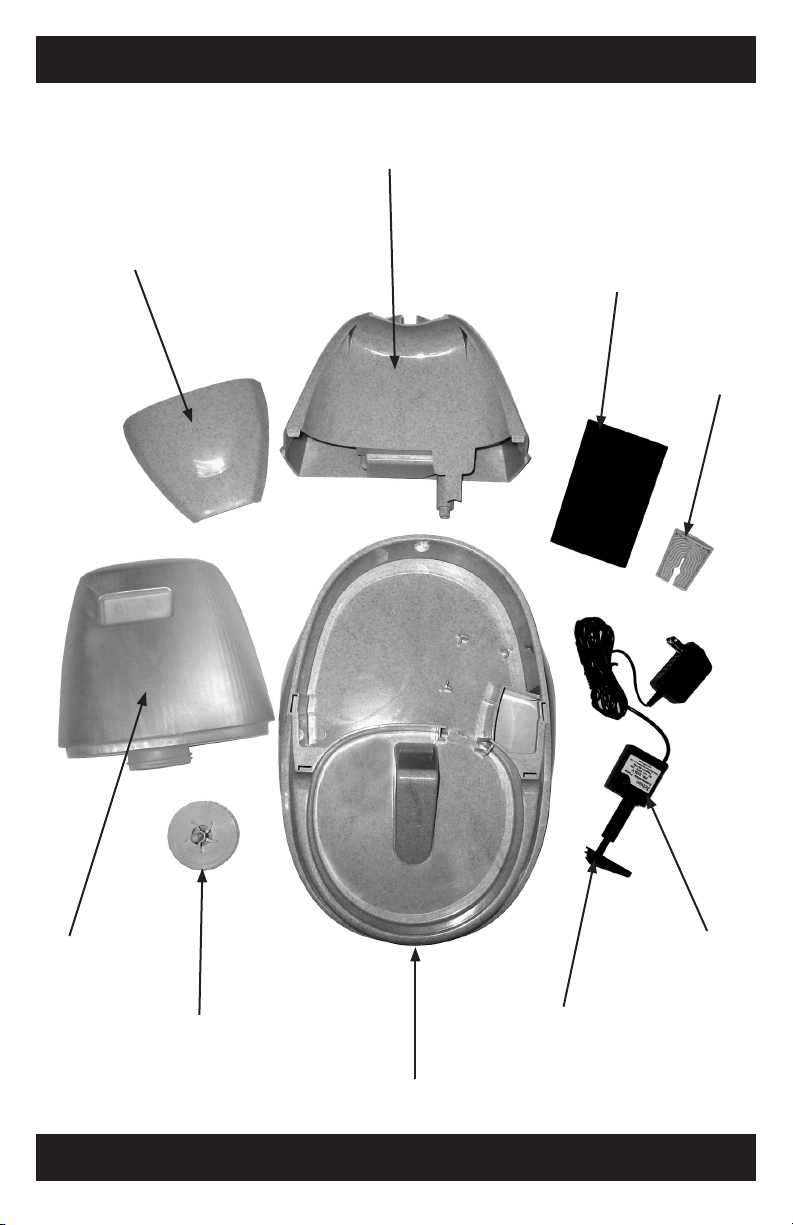

UNDERSTANDING THE DRINKWELL PARTS
Housing Lid/Cover
Housing/Filter Housing
Replaceable
Charcoal Filter
Pre-lter
Reservoir
Reservoir Cap
Bowl
Flow Control
Knob
Motor/Pump
p. 9
www.petfountain.com

1) Housing Cover:thecoverorlidsnapsinplaceoverthelter
housingwell,keepingpetsoutofthecharcoallter.
2) Housing: here the water is pumped up through the housing to
cyclethroughthecharcoallterandoutthespouttocreatealong
ve-inchwaterfallintothebowl.
3) Pre-lter: a small intake grate that will catch large particles such
ashairandkibblebeforetheyreachthelter.Thepre-ltercanbe
removed by pulling up on the lip at the top. To replace, slide back
intoplaceovertheowcontrolknobandpushdownuntilitclamps
around the knob.
4) Bowl: the Drinkwell®bowl is the foundation of the fountain. It
features two handles on either side of the fountain as well as a
“cord channel” to hide the cord from view.
5) Flow Control Knob: the black knob that attaches to the motor
whichwilladjusttherateofwaterow.Thepre-lterwillsnap
aroundtheneckoftheowcontrolknobwhichwilllockitinto
place. The knob is attached to the motor and can be removed by
taking the motor apart (See section “Motor Maintenance”).
6) Motor or Pump: a small submersible aquarium pump that can
be dismantled for cleaning. THE PUMP IS NOT DISHWASHER
SAFE! Remove pump from fountain before cleaning (See “Motor
Maintenance”) The pump cord also features a removable in-line
plug for easy attachment.
7) Reservoir: the extra capacity reservoir holds over a half gallon of
water.Thepluggingcapwillhelptominimizespillswhenyourell
the reservoir.
There are several parts to the Drinkwell®Platinum that will be
described here in detail.
UNDERSTANDING THE DRINKWELL PARTS
p. 10
www.petfountain.com

MANUFACTURER’S SAFETY INSTRUCTIONS
The electrical use of this appliance is 2
watts.
Close supervision is necessary when any
appliance is used by or near children.
Always unplug any appliance when not in
use, before putting on or taking off parts,
and before cleaning. Never yank a cord to
remove from the outlet.
Do not use appliance for anything other than
intended use. The use of attachments not
recommended or sold by the manufacturer
may cause an unsafe condition. Do not
modify the unit.
Do not install or store appliance where it
will be exposed to weather or temperatures
below freezing.
FOR INDOOR USE ONLY.
Read and observe all important notices on
the appliance.
Do not attempt repairs on the motor
yourself. Return it under the cover of the
warranty.
If the plug of this device gets wet, turn off
the electricity to that outlet. Do not attempt
to unplug.
To avoid the possibility of the plug or outlet
getting wet, the outlet should always be
above the level of the fountain.
Examine this appliance after installation. It
should not be plugged in if there is water
on the cord or plug.
Do not operate any appliance if it
has a damaged cord or plug, or if it is
malfunctioning or has been damaged.
If an extension cord is necessary, a cord
with a proper rating should be used.
1) While the capacity of the Drinkwell®Platinum Fountain has been increased, it is not
recommended that any appliance be left running unattended for a prolonged period of
time as the water may get consumed or evaporate and cause the motor to run dry.
2) Do not allow pets or children to chew on or swallow any parts. If you are concerned
about the power cord, purchase a cord conduit (a hard plastic protector) at any hardware
store.
3) Standard Safety Precautions
4) Some animals have been known to be sensitive to plastic food and water containers.
If your animal shows signs of an allergic reaction to the plastic, please discontinue use
until you have consulted with your veterinarian.
p. 11
www.petfountain.com
Instructions pertaining to a risk of re,
electric shock, or injury to persons.

Motor and Fountain Parts
The motor assembly and fountain parts are warranted to be free of defects in
material and workmanship for one (1) year from the date of purchase. Retain
your dated sales receipt as proof of purchase. If defective, please call, write or
email:
Veterinary Ventures, Inc.
P.O. Box 19717
Reno, NV 89511
866-322-2530 (toll free)
775-322-2530 (outside the U.S.)
[email protected]
This warranty does not cover damage from accident,
misuse or abuse.  It also specically excludes incidental or
consequential damages as allowed by law. LOSS OF FUNCTION AS A RESULT
OF LACK OF CLEANING, DEBRIS OR MINERALIZATION FROM “HARD” WATER
DOES NOT QUALIFY under this warranty. (Refer to cleaning instructions and
environmental notes).
WARRANTY
TIPS ON USE
When being introduced to the Drinkwell® Platinum Fountain, your pet may
be cautious of this new and unusual object. After beginning operation of your
fountain, simply allow your pet to adjust at his or her own pace. Some pets take
several days or longer to begin use.
Your pet may prefer that the fountain be placed away from their normal feeding
area. Try plugging it in somewhere else, like the laundry room, a bathroom or
another corner of the kitchen.
Add ice cubes to the bowl for refreshing, ice-cold running water!
www.petfountain.com p. 12
