Drive.web smarty dw240 User manual

drive.web automation
Installation & Operation Manual
Contents!!!!!!!!!! !!!Page
Design Statements, Warnings!!!!!!!!1, 2
smarty Models, Standard Features!!!!!!2
Carrier Ratings and Features!!!!!!!!2, 3
smarty Software and XIO Options!!!!!!!3
smarty Installation and Front Panel!!!!!!4
Carrier Terminals, Dimensions, and Data!!!!!4, 5, 6
smarty Terminals, Ratings, and IO Functions !!!7
Get savvy®, USB Plug and Play, Ethernet Networking!!8, 9
Get started with savvy engineering & design software !9, 10
Upgrade savvy and smarty,savvy-SFD Upgrade 10
savvyPanel®Touch Screen Operator Station!!!!10, 11
smarty Precision Motion Functions and Connections! ! 12
smarty Comms Interfaces, Modbus, EIP ! ! ! !! 12
Free"drive.web!Online Training Seminars!!!!!12
Certification Statements
This process control equipment to be supplied by Class2, LPS, limited power supply.
Design Statements
EMC Standard, EN 61326-1: 2006, Electrical Equipment for Measurement, Control and
Laboratory Use.
"Emissions Class A, Commercial Equipment.
"Immunity Table 2, Industrial Equipment.
LVD Standards, EN 61010-1: 2010, Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use and;
"EN 61010-2-030: Particular Requirements for Testing and Measuring Circuits.
smarty is an industrial controller designed for permanent installation by qualified professionals.
If it is used in a manner not specified herein the protection provided may be impaired.
smarty and its packaging contain recyclable materials
This device is designed to comply with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation.
This Class [A] digital apparatus is designed to comply with Canadian ICES-003. Cet appareil numerique de la
classe [A] est conforme à la norme NMB-003 du Canada.
Warning! It is essential that you read and understand this entire manual and the entire contents of the savvy
software Help menu before proceeding with your installation and configuration. See page 6 for savvy installation
instructions. For more information and to download manuals and software, go to www.driveweb.com or contact
us. See page 12.
Warning! Your use of savvy software and drive.web devices may cause motors and machinery to power up
with high Voltages or start or operate in an unexpected, dangerous or lethal way. It is essential that you are
completely familiar with all of the equipment and the system design before attempting to program or edit a
program or connect to any live device. It is also essential that a risk assessment is conducted to identify hazards.
Risks must be reduced to tolerable levels.!
smarty HG503894Beta13"www.driveweb.com Page #/121
drive.web
SMARTY, SAVVY, SAVVYPANEL, SPEEDY, BARDAC, and DRIVE.WEB are trade marks of Bardac
Corporation, registered in the U.S. and other countries.
®
Universal Automation Controller
dw240, dw241,
dw244,
dw248, & dw249
models
smarty

drive.web automation
Warning! You are entirely responsible for the configuration or use of any drive.web product. By configuring
or using these products you agree to indemnify and hold harmless Bardac Corporation, its employees, directors,
officers, distributors, and resellers against the consequences of your configuration or use of the products.
Warning! Information in this manual is subject to change without notice. You are responsible for verifying the
proper operation of your smarty. Special care must be taken after loading new firmware or installing new options.
Warning! Avoid permanent damage to your smarty, never exceed any min or max values. Do not connect
any smarty terminal to mains circuits. See page 5 for IO ratings.
lwIP is incorporated into smarty firmware. lwIP Copyright (c) 2001-2004 Swedish Institute of Computer Science. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or
other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Product Identification - smarty Cassette Models
smarty is a programmable device using drive.web distributed
control over Ethernet for industrial process automation. To
program and use smarty you must get the savvy software
tools from www.driveweb.com. See pages 6-9.
Find smarty firmware version. Use savvy, Get Detailed
Info from smarty contextual menu. Page 6.
dw240 Universal automation controller.
dw241 Basic automation controller for carrier C1 only.
dw244 for P2 industrial vector drive.
dw248 for E3 open-loop vector drive.
dw249 Universal automation controller for CANopen server devices.
These smarty cassette modules install into terminal block carriers.
Warning! Avoid permanent damage to smarty. Disconnect all
power sources prior to inserting or removing the cassette.
Product Identification - Part Number Extensions
Model number dw24x is appended with a two or six character extension.
Standard Builds A, B, C, and D- Software Options
A=04 and 26, Badds 05 and 25, Cadds 06 and 39, Dadds 10 and 29.
04 ModbusTCP/IP - Slave/server. See page 12.
05 Process Control - Recommended for most applications.
06 Winder Control - Diameter Calc., Taper Tension, Torque Comp.
10 Math - With advanced math functions.
25 EIP/PCCC - Slave/server. See page 12.
26 savvyPanel - Operator station interface. See pages 8, 9.
29 Solar -Calculates sun position azimuth and zenith.
39 Precision Motion -With event, length, position, shaft-lock,
indexing, motion control, cam profile, and more. Page 12.
smarty HG503894Beta13"www.driveweb.com Page #/122
Typical Example; dw240-DM-C4CD
Standard Build, see below.
ModbusRTU Type, see page 12.
Carrier, page 3.
Terminal Type; C=Cage-
Spring, S=Screw-Clamp,
P=Pluggable Screw-Clamp
Mounting Type; D=DINrail,
F=Foot, A=Spacer, 4=NEMA4X

drive.web automation
smarty C1 Carrier 1 Ratings and Features (dw241 only)
drive.web distributed process control.
10BaseT / 100baseTX Ethernet. See page 4.
USB peripheral, micro B.
Eight bipolar analog inputs: -11VDC to +11VDC, 100kΩ, 1kHz.
Eight unipolar analog outputs: ~0.2VDC to 10.5VDC, 10mA.
Can be used as reference Voltage.
Eight digital inputs: 50VDCmax, 8VDC threshold, 3V hysteresis.
1kHz. Can be used as event inputs. Page 5.
Eight digital outputs: 24VDC source, up to 350mA, shared. Overcurrent
protection and software indication. Maximum Voltage is 25.2VDC.
Extra terminals for cabinet-side power; +24VDC, 0V.
smarty C2 Carrier 2 Ratings and Features adds to C1
Battery backup for realtime clock: standard CR2032.
Bipolar analog outputs replace unipolar: -10.5VDC to +10.5VDC.
CANopen and ModbusRTU serial ports jack.
XIO port jack for extended IO modules. Up to ten modules.
smarty C3 Carrier 3 Ratings and Features adds to C2
Four FT frequency/timing channels, multi-function; Frequency/
event/digital input, 5VDC max, 100kHz. Frequency/stepper/
digital output, 5V sinking, 350mA shared, 500kHz.
Differential, incremental, quadrature encoder input. 5.5VDC max,
-0.5VDC min., 0.3VDC minimum differential Voltage. Up to 1MHz.
ModbusRTU serial port is brought out to terminals instead of the jack in C2.
smarty C4 Carrier 4 Ratings and Features adds to C3
Two 4-20mA current inputs. Also 0-20mA, 20-4mA, and 20-0mA.
100Ωinput impedance. Maximum input is 25mA, 2.5VDC.
Six frequency/event/digital inputs, 30Vmax, 100kHz. Replaces FT on C3.
Seven frequency/stepper/digital outputs, sinking with connectable TPW pull-
up rail, 350mA shared, 30VDC max., 500kHz max. Replaces FT on C3.
Two differential, incremental, quadrature encoder inputs with markers, ABZ,
Replaces single, A, B, encoder input on C3 with same Voltage ratings.
Encoder 1, 2; A, B, reconnect terminals.
smarty XIO Digital IO Module Options (Available Soon)
Up to 10 modules may be added.
DINrail modules must be mounted directly to the right of the
smarty carrier or the next XIO module in line.
Easy 4P4C plug-in, 60mm cable is included.
Module dimensions are the same as C1, page 4.
Separate manuals are supplied with each module.
XIO-8H-6H - Eight 120VAC/240VAC in and six 120VAC/240VAC, 0.2A out.
XIO-16H-0 - Sixteen 120VAC/240VAC inputs.
XIO-0-8HC - Eight 120VAC/240VAC, 2A outputs.
XIO-8-8 - Eight 24VAC/DC in and eight 24VAC/DC, 20mA (50Ω) out.
XIO-16-0 - Sixteen 24VAC/DC inputs.
smarty HG503894Beta13"www.driveweb.com Page #/123

drive.web automation
smarty Installation
smarty is designed for permanent installation by qualified professionals.
Install smarty in metal enclosure with no RF noise source.
DIN rail mounting - Use 35x7.5mm rail per IEC 60715 or EN50022.
Environment - UL/IEC Pollution Degree 2.
Operating temperature, 0°C min., 50°C max.
Storage temperature, -20°C to 60°C.
Altitude 3000m max.
Humidity 95% max. non-condensing.
Clearances must be provided around cassette to promote airflow, 25mm (1”).

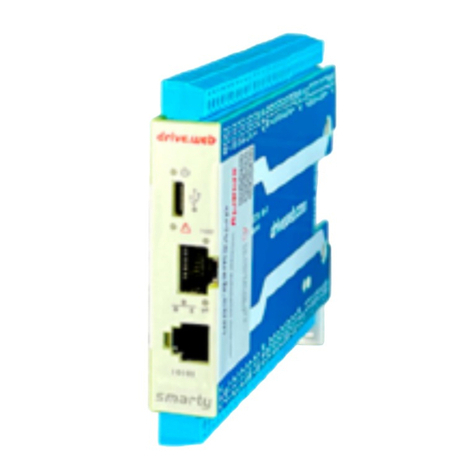

smarty Cassette Front Panel
USB port - Peripheral-type micro-B jack. Can be used
for backup power to maintain the realtime clock.
Ethernet port - MDI 8P8C, “RJ45” jack, 100baseTX and 10BaseT,
Full Duplex, Auto Negotiation, Auto-MDIX, IEEE 802.3ab.
Indicator LEDs in front panel:
Status - Blue LED. Status heartbeat pulses twice a second.
Fault - Red LED. Check power supply, connect with savvy,
or contact us at drive.web for more information.
Ethernet link/activity - Orange LED indicates Ethernet
connection and blinks for activity.
100BaseTX - Green LED when 100BaseTX connection is made.
Carriers C1 and C2 Terminals and Dimensions
!
