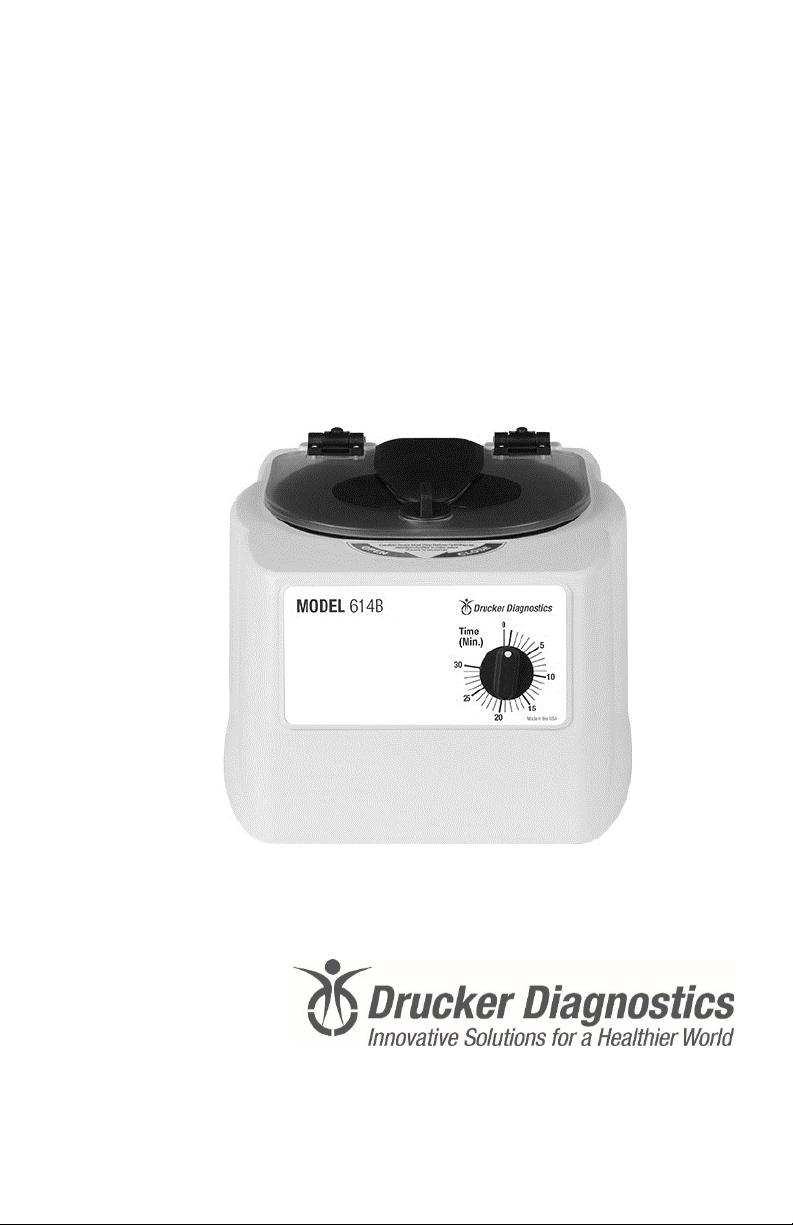

Drucker Diagnostics 614B User manual

614B
Operator’s Manual
P/N 03-0-0002-0040 Rev. G

This page intentionally left blank.

TABLE OF CONTENTS
Model Description ....................................................................................... 1
Intended Use: .............................................................................................. 1
Supplied Equipment .................................................................................... 2
Features....................................................................................................... 2
Warranty ..................................................................................................... 2
General Specifications ................................................................................. 3
Setup Location............................................................................................. 3
Initial Setup Procedure................................................................................ 4
Operation .................................................................................................... 5
Spinning Balanced Loads ............................................................................. 5
Rotor Removal And Installation................................................................... 6
To remove the rotor:............................................................................... 6
To install the rotor: ................................................................................. 6
Care And Preventative Maintenance .......................................................... 7
Cleaning and Disinfection ............................................................................ 8
Troubleshooting .......................................................................................... 9
Calibration Testing..................................................................................... 10
Safety......................................................................................................... 10
Replacement Parts .................................................................................... 11
Available Accessories................................................................................. 11

This page intentionally left blank.

Page | 1 Drucker Diagnostics [phone] - [e-mail]
WARNING: This device is intended to be operated by properly trained
personnel who have carefully read the operating manual and are
familiar with the function of the device. [Refer to the clinical
laboratory method specified by the specimen receptacle
manufacturer or established by the medical technology for the
products applications.]
WARNING: For the safety of both the operator and service personnel, care
should be taken when using this centrifuge if handling substances that are
known to be toxic, radioactive or contaminated with pathogenic
microorganisms. When Risk Group II materials are used, (as identified in
the World Health Organization “Laboratory Bio-Safety Manual”), a Bio-
Seal should be employed. The Bio-Seal accessory for the model is the non-
aerosol shield cap with appropriate tube holders (contact Drucker
Diagnostics to purchase). In the event that materials of a higher risk group
are being used, more than one level of protection must be provided.
The use of flammable or explosive materials as well as those materials
which have a vigorous chemical reaction is prohibited.
For your safety and the durability of your machine, never transport or
store centrifuge with tube holders inside machine.
MODEL DESCRIPTION
The Model 614B is a continuous duty centrifuge designed for the small lab
or doctor’s office for the purposes of separating laboratory fluids. The unit
is controlled by a mechanical timer settable from 1 to 30 minutes.
Samples can be safely viewed through the transparent lid. In the event
that the lid is opened during a run, the power to the motor is
disconnected.
For warranty information, see page 2 of this manual.
INTENDED USE:
General purpose laboratory centrifuge, intended for the density-based
separation of fluids through centripetal acceleration.
Users should also comply with the specimen receptable manufacturer’s
specific instructions for use, in addition to any other protocols established
by the testing organization.

Drucker Diagnostics [phone] - [e-mail] Page | 2

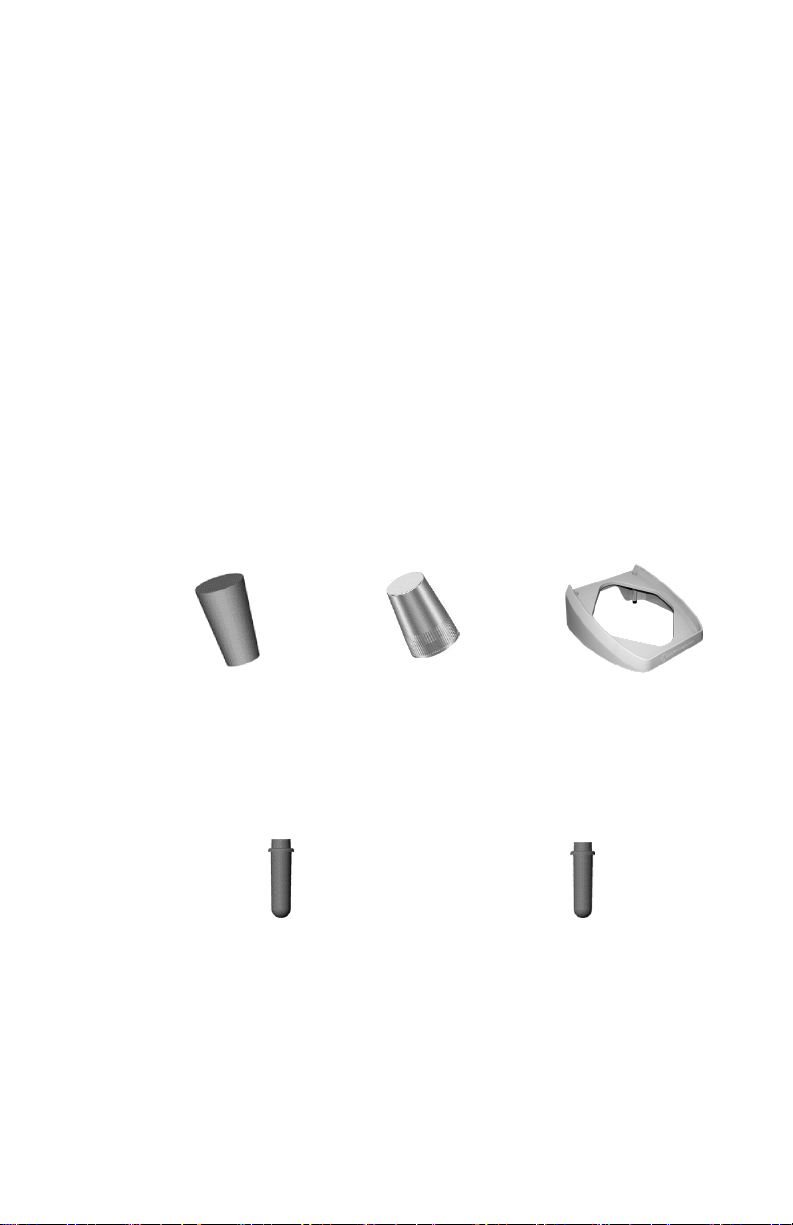

SUPPLIED EQUIPMENT
One (1) six-place fixed-angle rotor
P/N 7786047
Six (6) 125 mm tube holders
P/N 7713032
Six (6) 75/100 mm tube holders
P/N 7713079
The rotor and accessories are rated for a rotation frequency of 3,500 RPM.
For optional accessories, see page 11 of this manual.
FEATURES
•Fixed-angle rotor for spinning 75 mm, 100 mm and 125 mm test
tubes in specially designed tube holders
•Cool–Flow air flow design that prevents overheating of samples
•Heavy gauge steel construction for safety and durability
•Lid safety switch that prevents the centrifuge from operating
unless the lid is closed and latched
•Removable rotor for easy cleaning
•Brushless A/C motor
•Clear lid for safe observation of samples and optical calibration of
speed.
WARRANTY
Drucker Diagnostics warranties that this centrifuge is free from defects in
workmanship and parts for 2 years.

Page | 3 Drucker Diagnostics [phone] - [e-mail]
GENERAL SPECIFICATIONS
Nominal Speed (125 mm holders):
3,150 (± 100) RPM
Nominal RCF (125 mm holders):
1,200 (± 60) xg
Nominal Speed (75/100 mm
holders):
3,250 (± 100) RPM
Nominal RCF (75/100 mm
holders):
1,080 (± 60) xg
Maximum capacity:
90 mL (6 x 15 mL)
Overall Dimensions (H x W x D):
8.75 in. x 11.75 in. x 14 in.
Centrifuge Motor:
1/30 HP, AC
Nominal Acceleration Time:
45 seconds
Protection Breaker:
4 Amp. re–settable
Timer:
Mechanical, 1 to 30 minutes
Any use other than those specified by the Manufacturer is explicitly prohibited.
Maximum sample density is 1.15 grams / mL, (water density = 1.0 grams / mL)
SETUP LOCATION
1. Unpack the centrifuge and verify that all of the supplied
equipment is present.
2. Choose a setup location which meets the following criteria:
a. A clearance height of 20” (50.8cm) is required to open the
lid.
b. The clearance envelope is the space around the centrifuge
which is required for safety. Choose a setup location which
will allow for a clearance envelope of at least 24” x 24”
(60.96cm x 60.96cm), (with the centrifuge at the center). No
person or hazardous material shall be permitted in the
clearance envelope during operation. The operator time
within the envelope shall be limited to the time necessary
for loading, unloading and centrifuge operation only.
c. Proper ventilation is necessary to prevent the overheating of
samples as well as premature failure of the centrifuge.
Choose an area which will allow unencumbered air flow.
d. The centrifuge is designed to secure to the operating surface
by four suction feet. No adjustment is necessary for leveling
the centrifuge, however, the surface should be flat and level.
e. Be sure the outlet is always within reach as the line cord is
the means of emergency disconnection!

Drucker Diagnostics [phone] - [e-mail] Page | 4
INITIAL SETUP PROCEDURE
If any problems are found during the initial setup procedure, refer to the
troubleshooting section on page 9. For further assistance, contact
Drucker Diagnostics at 814-692-7661.
1. Plug the centrifuge in to an approved electrical outlet. For
electrical safety, the unit must always be properly grounded.
2. Turn the latch counter–clockwise and open the lid.
3. Spin the rotor by hand; check for free and level rotation.
4. Close the lid. Rotate the lid knob clockwise to its complete stop
position.
5. Turn the centrifuge on by turning the timer to 10 minutes.
6. Listen to the centrifuge. A smooth whirring sound should be
heard.
After the centrifuge has passed this procedure it is ready for operation.

Page | 5 Drucker Diagnostics [phone] - [e-mail]
OPERATION
NOTE: Follow the initial setup procedure on page 4 before initial operation.
1. Plug the centrifuge into an approved 115 Volt A.C., 60 Hz. outlet.
2. Turn the latch counterclockwise and open the lid.
3. Insert cushions (if needed) into the tube holders for the tube size
you are using.
4. Place the test tube samples into the tube holders. Be sure to
follow the rules for balanced loads (page 5).
5. Close the lid and turn the lid knob clockwise to its complete stop
position.
6. Turn on the machine by turning the timer to the desired run
time. The centrifuge should begin to spin.
7. Once the timer reaches zero (0), power will be cut to the motor
and the rotor will coast to a stop. Do not open the lid until the
rotor has come to a complete stop.
8. Turn the lid knob counterclockwise and open the lid.
9. Remove the samples.
10. The centrifuge is immediately ready for operation..
SPINNING BALANCED LOADS
Your centrifuge must contain a balanced load in order to work properly.
Use the following rules when loading the rotor.
Spinning balanced loads will extend the life of the machine and produce
better results.
1. Opposing tube holders must be identical and must contain the
same cushion, or none at all.
2. Opposing tube holders must be empty or loaded with equally
weighted samples.
3. If an odd number of samples is to be spun, fill a tube with water
to match the weight of the unpaired sample and place it across
from this sample.

Drucker Diagnostics [phone] - [e-mail] Page | 6
ROTOR REMOVAL AND INSTALLATION
TO REMOVE THE ROTOR:
1. Open the lid.
CAUTION: Unplug the centrifuge from the electrical outlet to
eliminate the possibility of electrical shock or other injury.
2. Remove the test tube holders.
3. Remove the nut in the center of the rotor by turning it
counterclockwise (a tool may be required).
4. The rotor is sitting on a cone-shaped adapter. Pull the rotor up
and off of this adapter.
TO INSTALL THE ROTOR:
1. Place the rotor back onto the cone-shaped adapter. You may
need to turn the rotor slightly to line it up properly.
2. The rotor should slide onto the rotor cone freely.
3. Once a proper fit has been achieved, replace the nut and turn it
until it is hand-tight, (a tool may be required).
4. Replace the tube holders and verify that they are seated
properly.
5. It is recommended that the initial setup procedures be
performed to ensure that the rotor has been installed correctly
and that no damage has been done to the centrifuge during
either the rotor installation or possible rotor chamber cleaning.
See page 4 for this procedure.

Page | 7 Drucker Diagnostics [phone] - [e-mail]
CARE AND PREVENTATIVE MAINTENANCE
With proper care and maintenance your centrifuge will provide years of
laboratory service. For proper care, the following steps should be taken:
1. Provide Adequate Ventilation: For cooling purposes, the Model
614B draws in ambient air through the air intake cover on the
top of the lid and exhausts this air in the rear of the base. The
centrifuge should be placed on a hard smooth surface for good
air circulation.
2. Always Spin Balanced Loads: Make certain that you are always
spinning a balanced load. The Model 614B has a unique counter
balanced motor mounting design which, along with its rubber
suction feet, produces excellent vibration dampening. However,
out–of–balance loads may break glass test tubes and may
produce unsatisfactory separation results. Proper load balancing
will improve sample separation and extend the life of the
centrifuge. Refer to page 5 on balanced loads for additional
information on balancing the load.
3. Keep the Tube Holders Clean: NOTE: Always follow the safety
guidelines of your laboratory to properly clean up and/or dispose
of materials in the event that a substance known to be
potentially toxic, radioactive or contaminated with a pathogenic
microorganism is spilt in or on the centrifuge. Small glass
fragments left in the tube holder after a tube breakage may
adhere to the next test tube inserted in that holder. When this
tube is handled, these fragments may puncture protective gloves
and lacerate the operator’s fingers or hand. Remaining fragments
may provide stress points on subsequent tubes and result in
additional breakage. If a tube breakage occurs, carefully remove
the tube holder. Properly dispose of the sample and tube
fragments and thoroughly clean both the inside and outside of
the tube holder. Insert a new tube cushion (if necessary) and
replace the tube holder in the rotor.
4. Motor and Electrical Maintenance: The Model 614B uses a
brushless permanent split capacitor AC motor. It should not need
routine servicing for the life of the centrifuge. The electrical
components are selected for high reliability and should not need
routine service.
5. Tube Holder Replacement: It is recommended that the tube
holders be replaced after 24 months of use. Inspect tube holders
regularly for cracks. If cracks are discovered, replace
immediately.

Drucker Diagnostics [phone] - [e-mail] Page | 8
6. Remove Accessories Before Moving: All tube holders, samples,
and caps must be removed from the rotor chamber before
transporting or storing the centrifuge to prevent damage and
injury.
CLEANING AND DISINFECTION
To prolong the life of the centrifuge cleaning and disinfection is
recommended every six months, or whenever there is a spillage or tube
breakage. Contaminants must be removed immediately, or corrosion and
premature degradation of components can occur.
1. Unplug the centrifuge before cleaning.
2. Apply cleaning solutions with a towel or cloth. Do not submerge
the centrifuge in water or other cleaning solutions as this will
cause damage and void the warranty.
3. ONLY isopropyl alcohol, soap and water, or a 10% (5500 PPM)
bleach solution should be used for cleaning and disinfection of
the centrifuge and accessories.
4. All surfaces must be dried immediately after cleaning and
disinfecting.
5. TBQ Germicidal products shall not be used, as they will cause
damage to the centrifuge and void the warranty.
6. The use of fully/partially halogenated hydrocarbons, ketones,
esters, ethers, benzyls, ethyl benzenes, and all other chemicals
not prescribed by the manufacturer shall not be used as they
may cause damage to the rotor chamber, rotor, tube holders,
accessories and centrifuge exterior and void the warranty.
7. It may be necessary to remove the rotor and clean the rotor
chamber. Follow the instructions on page 6 to remove and
reinstall the rotor.

Page | 9 Drucker Diagnostics [phone] - [e-mail]
TROUBLESHOOTING
Note: The latch must be turned completely clockwise to its stop position
in order for the centrifuge to operate.
The rotor does not spin
freely.
oMake sure nothing has fallen into
the rotor chamber.
oIf there is nothing obstructing the
rotor, the rotor may be damaged.
contact Drucker Diagnostics for
further assistance.
Excessive noise when
the machine is
running.
oCheck to see that the load is
balanced.
oMake sure that nothing has fallen
into the rotor chamber.
oMake sure that the nut in the
center of the rotor is tight.
oHave a technician test the motor
and replace it if necessary.
The centrifuge does
not run.
oCheck the electrical outlet.
oMake sure the lid latch is turned
completely clockwise to its stop
position.
oCheck the circuit breaker switch at
the bottom left of the machine. If
the switch is white, the breaker has
tripped. Contact Drucker
Diagnostics for further assistance.
oThe printed circuit board may be
damaged. Have a technician test
and replace the circuit board if
necessary.

Drucker Diagnostics [phone] - [e-mail] Page | 10
CALIBRATION TESTING
It is recommended that the top speed be tested every two years for
continued safe operation. Contact Drucker Diagnostics for further
information or testing availability.
SAFETY
The Model 614B complies with US, Canadian, and European Safety standards.
Lid Safety Switch: The Model 614B lid is secured to the top of the cabinet
by a latching knob and pawl system. When the knob is rotated clockwise,
the pawl grips the underside of the cabinet opening and prevents the lid
from opening. A mechanical stop positions the pawl and prevents it from
rotating completely. When rotated to the stop position, the pawl makes
contact with a micro–switch mounted underneath the cabinet top. The lid
safety switch prevents the centrifuge from operating while the lid is open.
Note: After the centrifuge has started spinning, it may be possible
to rotate the lid knob enough to cause the pawl to lose contact
with the lid safety switch. If this happens, the centrifuge motor
may lose power. If the knob is accidentally moved and this
situation should occur, rotate the knob fully clockwise to its stop
position and the centrifuge will resume operation.
Circuit Breaker: The Model 614B is protected with a 4 Amp circuit breaker
located at the rear of the machine mounted to the base. Any electrical
short circuit will cause the breaker to cut power to the machine.

Page | 11 Drucker Diagnostics [phone] - [e-mail]
REPLACEMENT PARTS
Part No.
Description
7724037
Foot, rubber
02-006-1-0012
614 Lid Tray Assembly
7786047
Rotor, six–place fixed-angle
02-005-1-0007
614 Motor Assembly
7722009K
Timer with Switch (replacement kit)
7751043
Circuit Breaker, 4A
7760002
02-002-1-0027
Power cord
614 Lid Assembly
7724071
Hinge, friction
7732018
Seal, lid gasket
7713079
Tube holder, blue, for 75/100mm tubes
7713032
Tube holder, black, for 125mm tubes
03-0-0003-0061
Front Panel Label
AVAILABLE ACCESSORIES
1” Tube cushion
p/n 1525
Shield caps
p/n 7713011
Only use with p/n
7713031, 7713032, &
7713033
SmartView™
Platform
p/n 00-079-009-001
100mm Tube Holder, Red
p/n 7713031
75mm Tube Holder, Green
p/n 7713033

FDA LISTED
200 Shady Lane, Suite 170 • Philipsburg, PA 16866
[phone] (U.S. only) • [phone] • www.druckerdiagnostics.com
Protected by U.S. Patents #6,811,531, & #D718463 Other Patents Pending
Made in the USA by
