Drucker Diagnostics Horizon 12 Flex User manual

HORIZON
12 Flex, 24 Flex
Operator’s Manual

TABLE OF CONTENTS
Model Description ..............................................................................................................................................1
Features.....................................................................................................................................................................1
Intended Use .............................................................................................................................................................1
Warranty....................................................................................................................................................................2
Initial Setup.........................................................................................................................................................2
Quick Start ..........................................................................................................................................................3
Settings ...............................................................................................................................................................4
Access the Menu........................................................................................................................................................4
Exit the Menu ............................................................................................................................................................4
Free Mode .................................................................................................................................................................5
Create New Cycle.......................................................................................................................................................5
Display Cycle Count ...................................................................................................................................................5
Modifying a Preset.....................................................................................................................................................6
Deleting a Cycle .........................................................................................................................................................7
Cycle Lock ..................................................................................................................................................................7
Preset Cycles.......................................................................................................................................................7
Operation............................................................................................................................................................8
Balancing Loads...................................................................................................................................................8
12-Tube Centrifuges ..................................................................................................................................................8
24-Tube Centrifuges ..................................................................................................................................................9
Care and Preventative Maintenance ................................................................................................................10
Cleaning and Disinfection .................................................................................................................................10
Troubleshooting................................................................................................................................................11
General Specifications ......................................................................................................................................13
Calculating the G-Force.....................................................................................................................................13

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 1
MODEL DESCRIPTION
HORIZON is a versatile line of centrifuges designed with 3 settings to process Chemistry, Coag or Platelet Poor
Plasma, and Urine specimens in the same unit. The maximum g-force of 2,000 xg makes HORIZON compatible with
most brands of tubes. Cycle settings can be changed to accommodate custom settings.
FEATURES
o The first three (3) cycles are conveniently pre-set and labeled for your lab’s most common applications. Use the
default cycles or customize them as needed.
o A time and speed/g-force can be quickly entered for a single use cycle. The cycle will not be retained in memory.
o If desired, the control panel can be temporarily locked on one cycle for error-free reproducibility.
o A Preset Lock can be turned on to prevent changes from being made accidentally to programmed cycles.
o Up to 10 cycles can be programmed for time, speed, and braking and labeled with a custom name. Cycles can be
programmed by g-force (RCF) or speed to facilitate matching validated cycles and tube manufacturers’ IFUs.
o A digital cycle counter tracks the number of cycles the centrifuge has run.
o Lid lighting indicates the centrifuge’s status (ready, running, done), informing the operator when tubes are ready
for the analyzer and preventing tubes from being left in the centrifuge longer than necessary (patent pending).
o A traditional audible alert indicates the completion of the cycle. The audible alert can be muted.
o Cool–Flow design prevents overheating of samples by using ambient air to keep specimens at room temperature.
o The tube holders are fiber reinforced for high strength, durability, and years of trouble-free use.
o A clear lid permits safe observation of samples and optical calibration of speed.
o The lid safety system prevents the centrifuge from operating unless the lid is closed and latched.
o The lid safety system only allows entry into the centrifuge after the rotor has completely stopped.
o The high-power brushless motor provides years of operation with no routine maintenance.
INTENDED USE
General purpose laboratory Centrifuge intended for safe and rapid density based separation of fluids, including
physiologic fluids, in approved specimen receptacles for qualitative or quantitative test procedures. As a general
purpose laboratory centrifuge, it is designed to also run other approved containers filled with chemicals (non-
flammable, non-explosive, non-volatile, and non-highly reactive only), environmental samples, and other non-
human body samples. This device is intended to be operated by properly trained personnel who have carefully read
the operating manual and are familiar with the function of the device.
[Refer to the clinical laboratory method specified by the specimen receptacle manufacturer or established by the
medical technology for the products applications.]

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 2
WARRANTY
Drucker Diagnostics warrants that this centrifuge is free from defects in workmanship and parts for 2 years.
WARNING: For the safety of both the operator and service personnel, care should be taken when using
this centrifuge if handling substances that are known to be toxic, radioactive or contaminated with
pathogenic microorganisms. Use appropriate personal protection equipment (PPE). When Risk Group II
materials are used, (as identified in the World Health Organization “Laboratory Bio-Safety Manual”), a Bio-
Seal should be employed. In the event that materials of a higher risk group are being used, more than one
level of protection must be provided. The use of flammable or explosive materials as well as those
materials which have a vigorous chemical reaction is prohibited.
Unplug the centrifuge before cleaning or performing maintenance.
WARNING: Inspect centrifuge for cracks or physical damage to cabinet, lid, rotor, or tube holders. Damage
may result in unsafe operation. Discontinue use until repairs have been performed.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with this operator manual, may cause interference to radio communications.
Operation of this equipment in a residential area may cause interference, in which case the user will be
required to correct the interference at his own expense.
Due to the lack of the possibility of human exposure, all Drucker centrifuges and accessories sold by
Drucker Diagnostics, Inc. are compliant without any special labeling required by the California Safe Drinking
Water and Toxic Enforcement Act (Proposition 65).
INITIAL SETUP
o Unpack and verify that all the following are included:
• Centrifuge
• Power cord
• Tube holders
• Operating manual
o Setup the centrifuge on flat and level surface. A bench top clearance height of 21” (54 cm) is required to open
the lid.
o The centrifuge should have 6” (15 cm) of clear space around the centrifuge. Proper ventilation is necessary to
prevent the overheating of samples as well as premature failure of the centrifuge. Choose an area which allows
unencumbered air flow, and where the temperature remains between 16°C and 32°C.
o No hazardous material shall be permitted in the clearance envelope during operation.
o The operator time within the envelope shall be limited to the time necessary for loading, unloading, and
centrifuge operation only.
o Plug the line cord into the centrifuge.
o Plug the line cord into an approved electrical outlet.
BE SURE THE ELECTRICAL OUTLET IS ALWAYS ACCESSIBLE AS THE LINE CORD IS THE MEANS OF EMERGENCY
DISCONNECTION!

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 3
QUICK START
The top screen display alternates between the name of the currently selected speed. The bottom screen displays
the time setting. For convenience, the first few cycles are preset as shown and can be reprogrammed to your
validated cycles:
(1) Chemistry
This setting is factory preset for Chemistry tubes
(2) Coag (PPP)
This setting is factory preset for Coagulation or Platelet Poor Plasma (PPP)
(3) Urine
This setting is factory preset for urine tubes
Start
Begins running the cycle displayed on the screen. The lid must be
closed.
Unlock
Allows access into the rotor chamber by engaging the unlocking
mechanism. Entry is only possible when the rotor is stopped.
Stop
Pressing the UNLOCK button during operation will terminate the
run and unlock the lid after the rotor has come to a stop.
Cycle Selection
Press the CYCLE button to select the desired saved cycle.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 4
SETTINGS
ACCESS THE MENU
FROM PRESET
Access the Menu
Hold the CYCLE button until you hear a double beep. The cycle
number should begin flashing.
Enter the
Advanced Menu
Press the GEAR button to enter the advanced menu.
FROM FREE MODE
Access the Menu
Press the GEAR button.

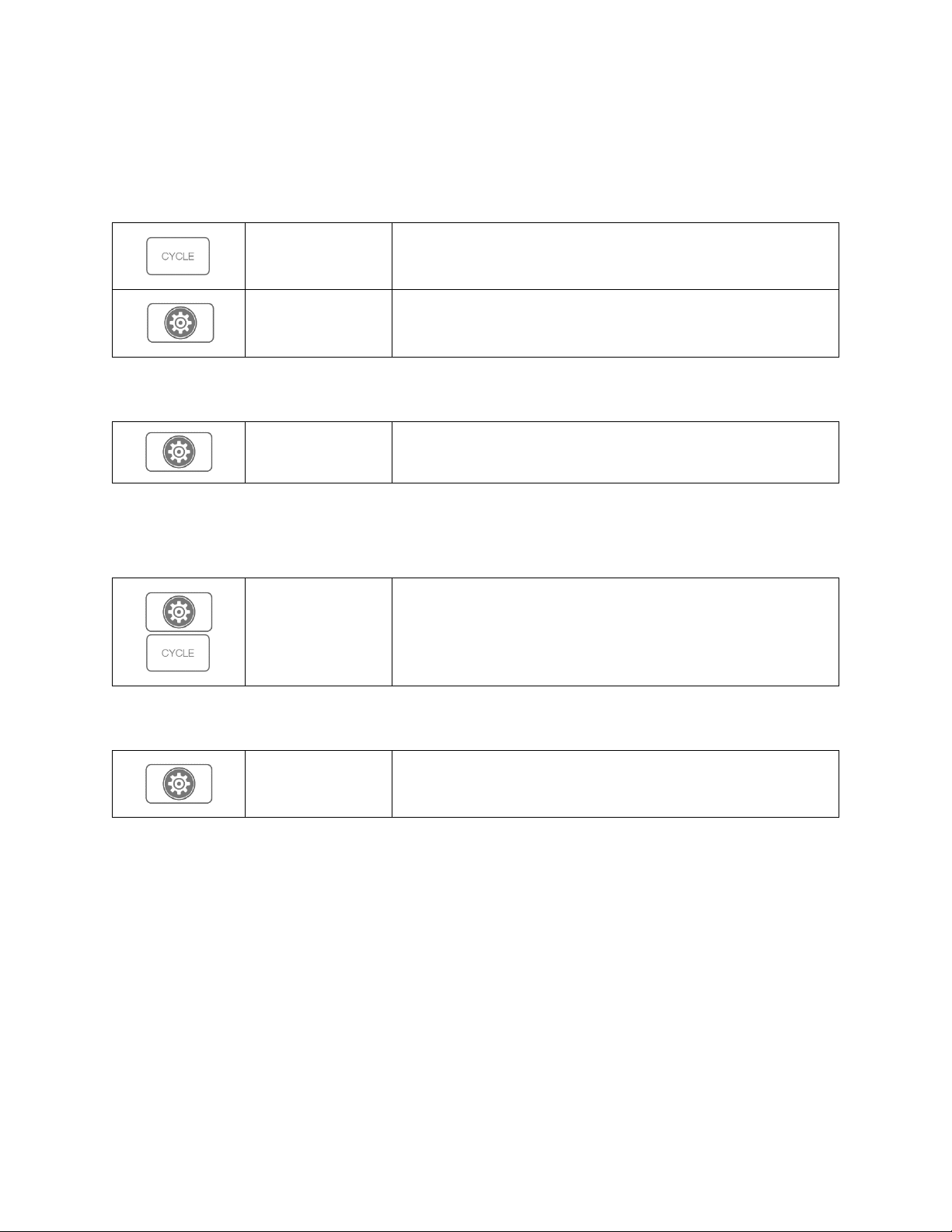

EXIT THE MENU
FROM PRESET
Exit the Menu
Press the GEAR button, followed by the CYCLE button.
FROM FREE MODE
Exit the Menu
Press the GEAR button.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 5
FREE MODE
Change time, RPM or g-force for a single cycle.
Setting Speed

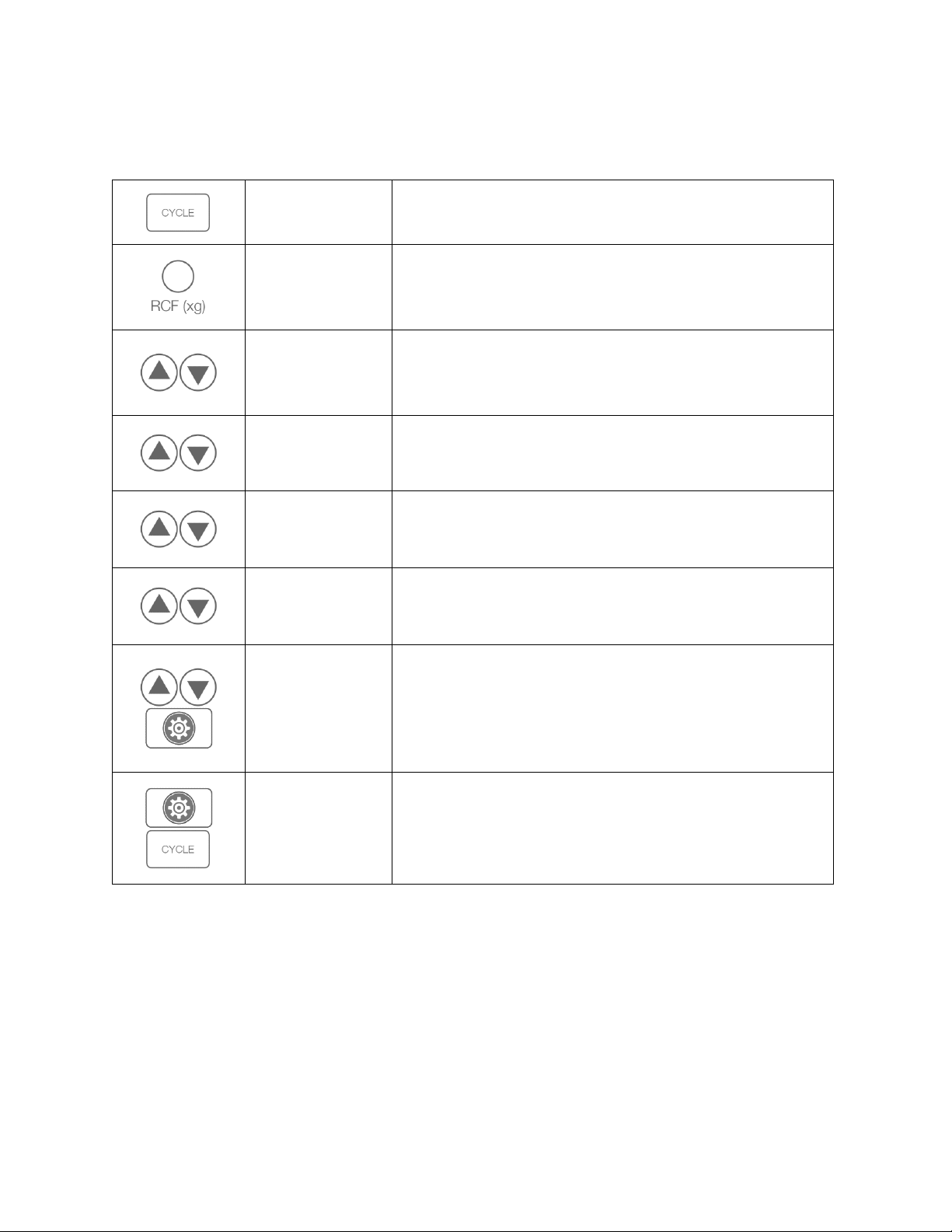

To change the speed (RPM) shown on the top display, use the up
and down buttons next to that screen. The CYCLE number is
replaced with a “--“in the display, and the top screen displays the
speed.
Setting by G-Force
Press and hold the RCF (xg) button while changing the displayed
setting on the top screen, using the up and down buttons next to it.
The RPM will automatically adjust.
Setting Time
Press the up and down buttons next to the TIME display.
Change Brake
Values
Access the menu.
Press the down key next to the top screen until it shows “Brake”.
To turn brake on and off, use the up and down buttons next to the
TIME display.
Exit the menu.
Turn Beeper
On or Off
Access the menu.
Press the up and down keys next to the upper screen until
“Beeper” shows on the upper screen. Switch ON or OFF with the
keys next to the lower screen. This setting will apply to all cycles.
Exit the menu.
CREATE NEW CYCLE
Change Settings
Refer to previous table (Free Mode) to change speed and time to
desired values.
Save Cycle
Hold the CYCLE button until you hear a double beep.
DISPLAY CYCLE COUNT
Display Cycle Count
With the lid open and the unit powered, press and hold the START
button. The cycle count will be displayed until the START button is
released.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 6
MODIFYING A PRESET
Save up to 10 custom cycles. The top screen alternates between cycle name and speed.
Access the Menu
With desired cycle selected, access the menu.
Setting by G-Force
(Recommended)
Press and hold the RCF (xg) button while changing the setting,
using the UP and DOWN buttons next to the display. The RPM will
automatically adjust.
Setting Speed
(Alternate)
To change the speed (RPM), use the UP and DOWN buttons next to
the display. The g-force will adjust automatically and can be
verified by pressing the RCF button.
Setting Time
Press the UP and DOWN buttons next to the TIME display.
Change Brake
Values
While in the advanced menu, navigate to “Brake”. Use the UP and
DOWN buttons next to the TIME screen to turn brake on and off.
Turn Beeper
On or Off
While in the advanced menu, navigate to “Beeper”. Switch ON or
OFF with the UP and DOWN buttons next to the TIME display. This
setting will apply to all cycles.
Naming the Cycle
While in the advanced menu, navigate to the cycle name with the
UP and DOWN arrows. Press the START button. The * indicates the
space selected. Use the UP and DOWN buttons to change
characters, then move to the next space with the right arrow >.
Press the GEAR button to return to the main programming menu.
Save and Exit
Settings Mode
Press the GEAR button, followed by the CYCLE button to exit the
menu.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 7
DELETING A CYCLE
Enter the
Advanced Menu
With the desired cycle selected, access the menu and enter the
advanced menu.
Navigate to Delete
Using the UP and DOWN buttons, navigate to DELETE. Exit the
menu. WARNING: CYCLE WILL BE DELETED IF MENU IS EXITED
WITH DELETE SELECTED
Confirm Deletion
Press the CYCLE button to Delete the cycle
CYCLE LOCK
To ensure repeatability, the centrifuge can be locked either on one cycle (Single Cycle Lock) or restricted to the saved
cycles (Preset Lock). The Single Cycle Lock also prevents making changes to the selected cycle parameters. The Preset
Lock allows selection of any saved cycle and prevents changing the parameters of saved cycles.
Enter Single Cycle
Select desired cycle. With lid open, press and hold the UNLOCK
button. One beep will confirm that cycle selection is locked.
Enter Preset Lock
Continue holding the UNLOCK button to enter Preset Lock. Two
beeps will confirm that cycle selection is now locked. NOTE: If
Single Cycle Lock is set, it must be canceled before Preset Lock
can be set.
Cancel Lock
Hold the UNLOCK button. Three beeps will confirm that the cycle
selection is now unlocked.
PRESET CYCLES
(1) Chemistry
(2) Coag (PPP)
(3) Urine
HORIZON 12
Flex
RPM
3,500
3,200
1,800
Time
10
15
5
G-Force
1,800 xg
1,500 xg
500 xg
HORIZON 24
Flex
RPM
3,300
3,000
1,700
Time
10
15
5
G-Force
1,800 xg
1,500 xg
500 xg

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 8
OPERATION
o Place the tubes into the tube holders. Be sure to follow the rules for balanced loads as listed in the next section.
o Close the lid and turn the lid knob clockwise to its complete stop position.
o The digital screen shows the currently selected cycle. To select another cycle, press the UP or DOWN button in
succession until the desired cycle is selected.
o Pushing the START button on the control panel will start the spin cycle.
o When the cycle is completed, the rotor will slow to a complete stop and the lid light will flash.
o The unlocking mechanism will engage for 60 seconds allowing entry into the rotor chamber. To unlock after more
than 60 seconds have elapsed, press the UNLOCK button. The lid will unlock for another 15 seconds.
o Turn the lid knob counterclockwise and open the lid. The lid light will turn off.
o You may now safely remove the samples.
BALANCING LOADS
Your centrifuge must contain a balanced load to work properly. Spinning balanced loads will extend the life of the
centrifuge and produce better results. Use the following rules when loading the rotor. If an odd number of samples
is to be spun, fill a tube with water to match the weight of the unpaired sample and place it across from this sample.
Opposing tube holders must be equally loaded or empty or loaded with equally weighted samples. When loading
only 3 tubes, they must be of equal weight.

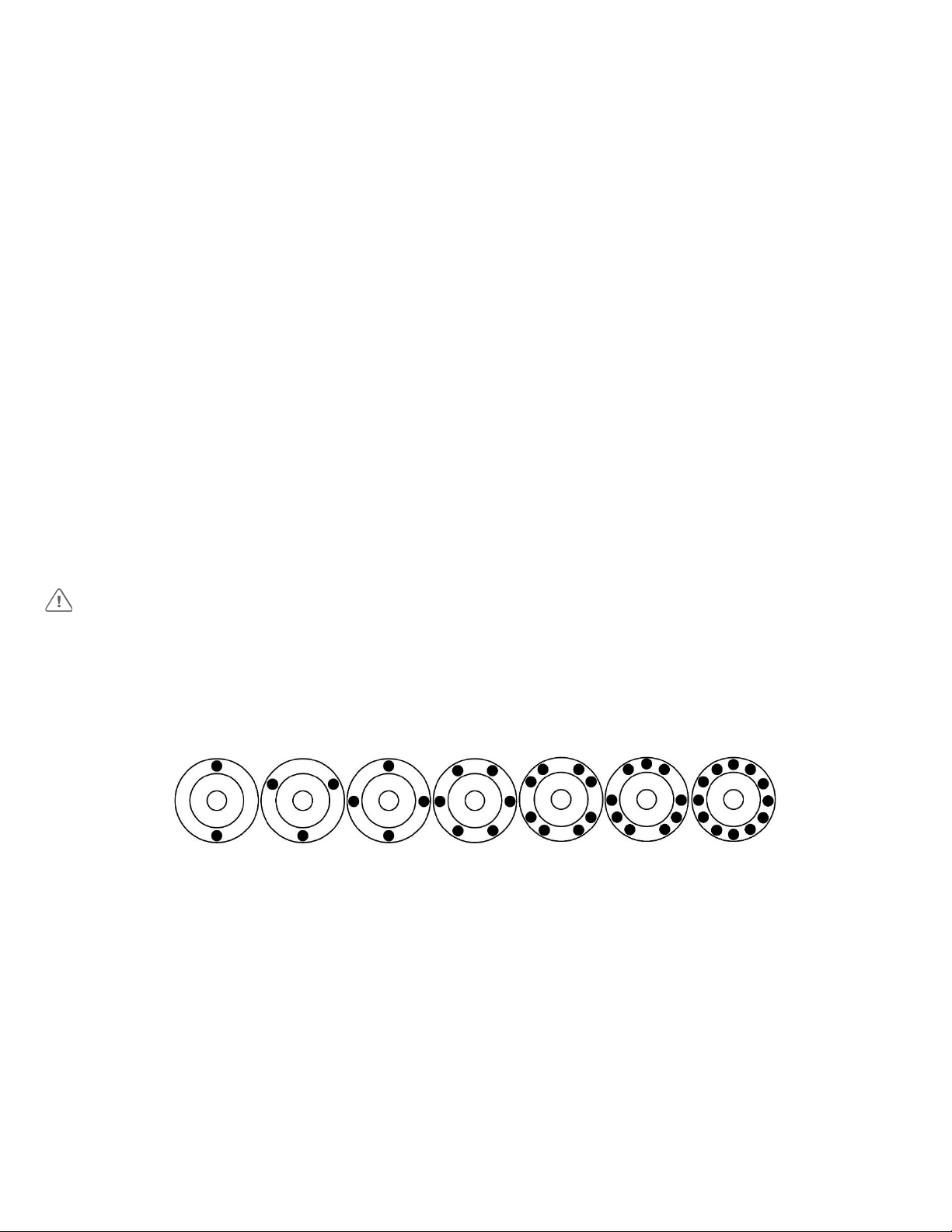

12-TUBE CENTRIFUGES

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 9

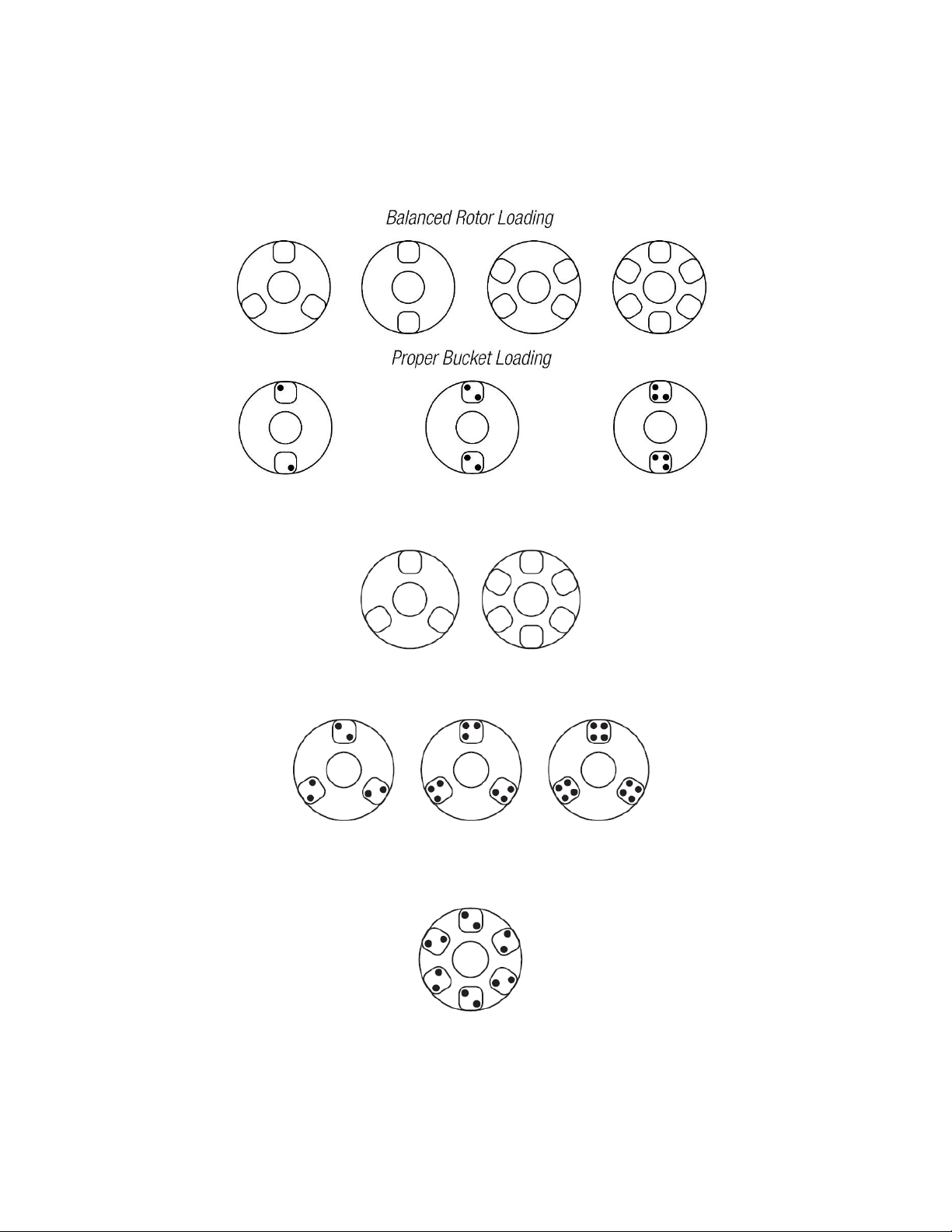

24-TUBE CENTRIFUGES
Buckets can be placed around the rotor in any of the rotor loading configurations shown below. Each bucket
must be loaded symmetrically with tubes.
15 mL / 125 mm tubes may be spun in the standard HORIZON 24 Flex buckets, but must be loaded as follows:
When three buckets are being used, each bucket must be loaded symmetrically in any configuration below:
When all six buckets are being used, the rotor must be loaded in the following configuration only. Opposing
buckets do not need to be filled but must be loaded in exactly the same way.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 10
CARE AND PREVENTATIVE MAINTENANCE
With proper care and maintenance, your centrifuge will provide years of laboratory service. For proper care, the
following steps should be taken:
o Always Spin Balanced Loads: Make certain that you are always spinning a balanced load, as shown in the
previous section. These centrifuges have a unique counter balanced motor mounting design which produces
excellent vibration dampening. However, out–of–balance loads may break glass test tubes and may produce
unsatisfactory separation results. Proper load balancing will improve sample separation and extend the life of
the centrifuge.
o Motor and Electrical Maintenance: The highest quality electrical components have been selected for the
centrifuges and should not need maintenance or servicing for the life of the centrifuge.
o Tube Holder Replacement: It is recommended that the tube holders be replaced after 24 months of use.
Inspect tube holders regularly for cracks. If cracks are discovered, replace immediately.
o Remove Accessories Before Moving: All tube holders, samples, and caps must be removed from the rotor
chamber before transporting or storing the centrifuge to prevent damage andinjury.
CLEANING AND DISINFECTION
To prolong the life of the centrifuge, cleaning and disinfection is recommended every six months or whenever there
is a spillage or tube breakage. Contaminants must be removed immediately or corrosion and premature
degradation of components can occur. Before using any cleaning or decontamination methods other than those
recommended by the manufacturer, users should verify with the manufacturer that the proposed method will not
damage theequipment.
o Unplug the centrifuge before cleaning.
o Use appropriate personal protective equipment (PPE).
o Apply cleaning solutions with a towel or cloth. Do not submerge the centrifuge in water or other cleaning
solutions as this will cause damage and void the warranty.
o ONLY isopropyl alcohol or a 10% (5500 PPM) bleach solution should be used to disinfect the centrifuge and its
accessories.
o All surfaces must be dried immediately after cleaning and disinfecting.
TBQ GERMICIDAL PRODUCTS ARE NOT RECOMMENDED AS THEY MAY CAUSE DAMAGE TO THE
CENTRIFUGE.WIPE OFF THOROUGHLY AFTER USE TO PREVENT VOIDING THE WARRANTY.
o Fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other
chemicals not prescribed by the manufacturer shall not be used as they may cause damage to the rotor chamber,
rotor, tube holders, accessories and centrifuge exterior and void the warranty.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 11
TROUBLESHOOTING
NOTE: The latch must be turned completely clockwise to its stop position for the centrifuge to operate.
The centrifuge does not run
o Verify that the centrifuge is powered. One of the LED lights
should be on.
o If “Lid not closed” message is displayed, make sure the lid latch
is turned completely clockwise to its stop position.
o If the centrifuge still does not run, contact Customer Service.
The rotor does not spin freely
oMake sure nothing has fallen into the rotor chamber,
following the procedure above.
o If nothing obstructs the rotor, the rotor may be damaged.
Contact Customer Service for further assistance.
The centrifuge makes a rattling noise
when running
o Stop the centrifuge. Open the lid.
o Wearing PPE, remove tubes and tube holders/buckets and
look for fallen objects or debris. Carefully reach inside the
rotor chamber with a tool to remove them.
o Inspect the rotor, tube holders or buckets for damage.
o If the tube holders or buckets have any damage, even slight,
safely dispose of them and replace them.
o If the rotor appears damaged, contact Customer Service for
further assistance.
Excessive noise or vibration when the
centrifuge is running
o Verify that all four centrifuge feet are properly seated on a flat
surface.
o Ensure that the load is balanced according to instructions in the
“Balancing Loads” section of this manual.
o Make sure that nothing has fallen into the rotor chamber.
“Abort” is displayed on the top screen
The centrifugation cycle has been interrupted.
The centrifuge stops and beeps
continuously
The load is not balanced. Press the UNLOCK button, open the lid,
and balance the load as recommended elsewhere in this manual.
The centrifuge is stuck on one of the
settings
Cycle selection is locked. Press the UNLOCK button for 5 seconds.
Only a few cycles can be accessed
The Preset Lock is active. To deactivate it, press the UNLOCK
button for 5 seconds, until you hear 2 beeps, then again until the
next 2 beeps. All cycles can now be accessed and/or amended.
The cycle time and speed are not set to
the desired value
Check the setting by following the instructions in the section on
Setting or Modifying a Saved Cycle. If the preset is not the desired
length, follow the procedure on the same page to change the
preset time.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 12
Cycle parameters cannot be changed
o If cycle selection is locked on one cycle, press the UNLOCK
button for 5 seconds. Then, press the GEAR button and follow
the instructions elsewhere in this manual.
o If different saved cycles can be selected but not modified, the
centrifuge is in Preset Lock mode. Press the UNLOCK button for
5 seconds until two beeps are heard, then again until the next
two beeps. You should now be able to change cycle parameters.
The centrifuge does not unlock after a
run is completed
o Wait until the rotor has come to a complete stop. If the lid knob
still cannot be rotated, press the UNLOCK button and try again.

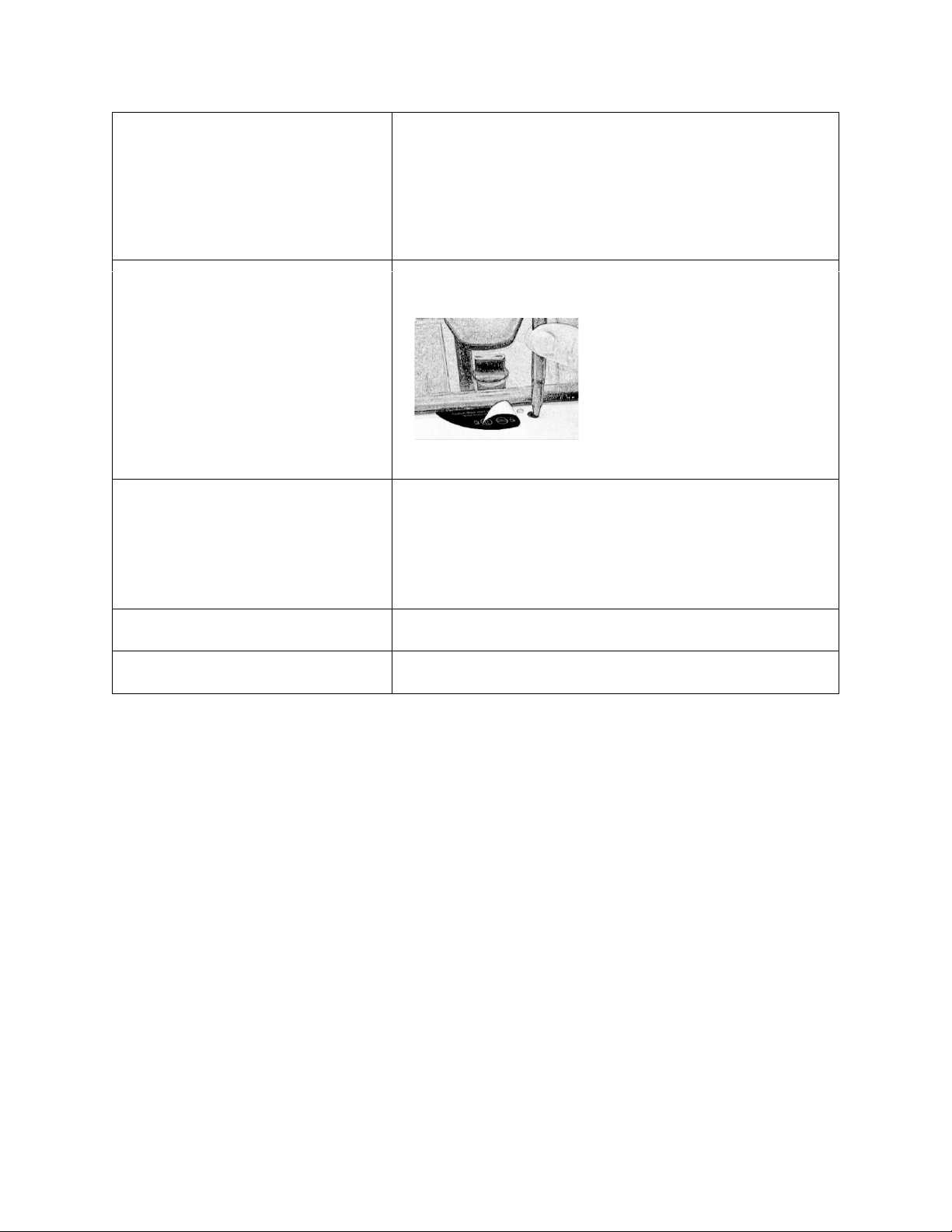

o If no LED light is on, the unit is
not powered and the lid will not
unlock by conventional means.
Remove the latch label and use a pen
to manually disengage the locking
mechanism. Pull the mechanism
towards the control panel and then
unlatch and open the lid.
o If the unit is damaged, contact Customer Service for assistance.
The lid does not open
o Ensure that the lid knob is turned fully counterclockwise.
o If the knob cannot be turned counterclockwise, turn it fully
clockwise, press UNLOCK, and turn counterclockwise.
o If the lid remains locked after this and will not unlock, the
electronics may have been damaged. Contact customer service
for assistance.
Clicking noise during braking gets loud
o Make sure that the screw in the center of the rotor is tight.
Lid does not stay up
o Tighten the center screw on the lid hinge.

Drucker Diagnostics –Customer Service: [phone] –[e-mail] | Page 13
GENERAL SPECIFICATIONS
The rotor and accessories are rated for the maximum rotation frequency shown in the table below.
HORIZON 12 Flex
HORIZON 24 Flex
Tube Capacity
12 tubes –3 to 10 mL
24 tubes –3 to 10 mL,
12 tubes –15 mL
6 tubes - 50 mL
Dimensions (H x W x D)
13 in x 15 in x 9 in
(33 cm x 38 cm x 23 cm)
15 in x 17 in x 9 in
(38 cm x 43 cm x 23 cm)
Weight
34 lbs. (15 kg)
39 lbs. (17 kg)
Sound Level
56 dB A
59 dB A
Environmental Range
16 –32 degree C
16 –32 degree C
Voltage
95 -253 VAC
95 -253 VAC
Frequency
50/60 Hz
50/60 Hz
Power Requirement
280 Watts
280 Watts
Centrifuge Motor
½ H.P. Brushless
½ H.P. Brushless
Max g-Force
2,000 xg
2,000 xg
Max Speed
3,700 RPM
3,400 RPM
Cycle Time
.5 to 99 minutes (+/- 2%)
.5 to 99 minutes (+/- 2%)
CALCULATING THE G-FORCE
The I.F.U.s of tube manufacturers recommend cycles at a minimum G-Force, which can be calculated if you know
the RPM and the radius. Use the formula below or go to www.druckerdiagnostics.com/g-force-calculator/.
In Centimeters:
RCF or G-force = 0.00001118 x
Rotor Radius (cm) x (RPM)2
In Inches:
RCF or G-force = 0.0000284 x
Rotor Radius (in) x (RPM)2
HORIZON 12 Flex
HORIZON 24 Flex
Radius
5.25 in (13.3 cm)
6 in (15.3 cm)

Product Family: HORIZON Series (HORIZON 12 Flex, 24 Flex)
Complies with UL61010-1/CSA C22.2 No. 61010-1 and IEC61010-2-020
Protected by U.S. Patents #6,811,531, # 7,422,554, #D718,463, & #D734,489. Other Patents Pending
FDA LISTED
INSTRUCTIONS FOR DISPOSAL OF WEEE BY USERS IN THE EUROPEAN UNION
This product must not be disposed of with other waste. Instead, it is the user’s responsibility to
dispose of their waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. The separate collection and recycling of
your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more
information about where you can drop off your waste equipment for recycling, please contact
your local city office, waste disposal service, or where you purchased the product.
200 SHADY LANE,SUITE 170 –PHILIPSBURG,PA 16866, USA
[phone] (U.S. ONLY)-[phone]
[e-mail]
DRUCKERDIAGNOSTICS.COM
This operator’s manual is part number 03-0-0002-0139 Rev. E
RoHS
Compliant
