DryAIR Hose Reel II User manual

Operators Manual
Hose Reel II
P.S. 1145-
Jun 14/05
DRYAIR INC.
606 Highway Drive,
St. Brieux, SK., Canada, SOK 3V0,
Tel: [phone]
Fax: [phone]
[email protected]
DRYAIR INC.
1095 N. Main Street
Bowling Green, Ohio, USA, 43402
Tel: [phone]
Fax: [phone]
[email protected]

Table of Contents
Warranty Policies & Claim Procedures 1-1
Warranty Policies ...................................................................................................................................................... 1-1
Warranty Claim Procedure ........................................................................................................................................ 1-2
Safety Concerns 2-1
General Safety Guidelines ......................................................................................................................................... 2-1
Water Heater Module ............................................................................................................................................... 2-1
Heat Transfer Fluid ................................................................................................................................................... 2-1
Material Safety Data Sheet ....................................................................................................................................... 2-2
Material Safety Data Sheet ....................................................................................................................................... 2-5

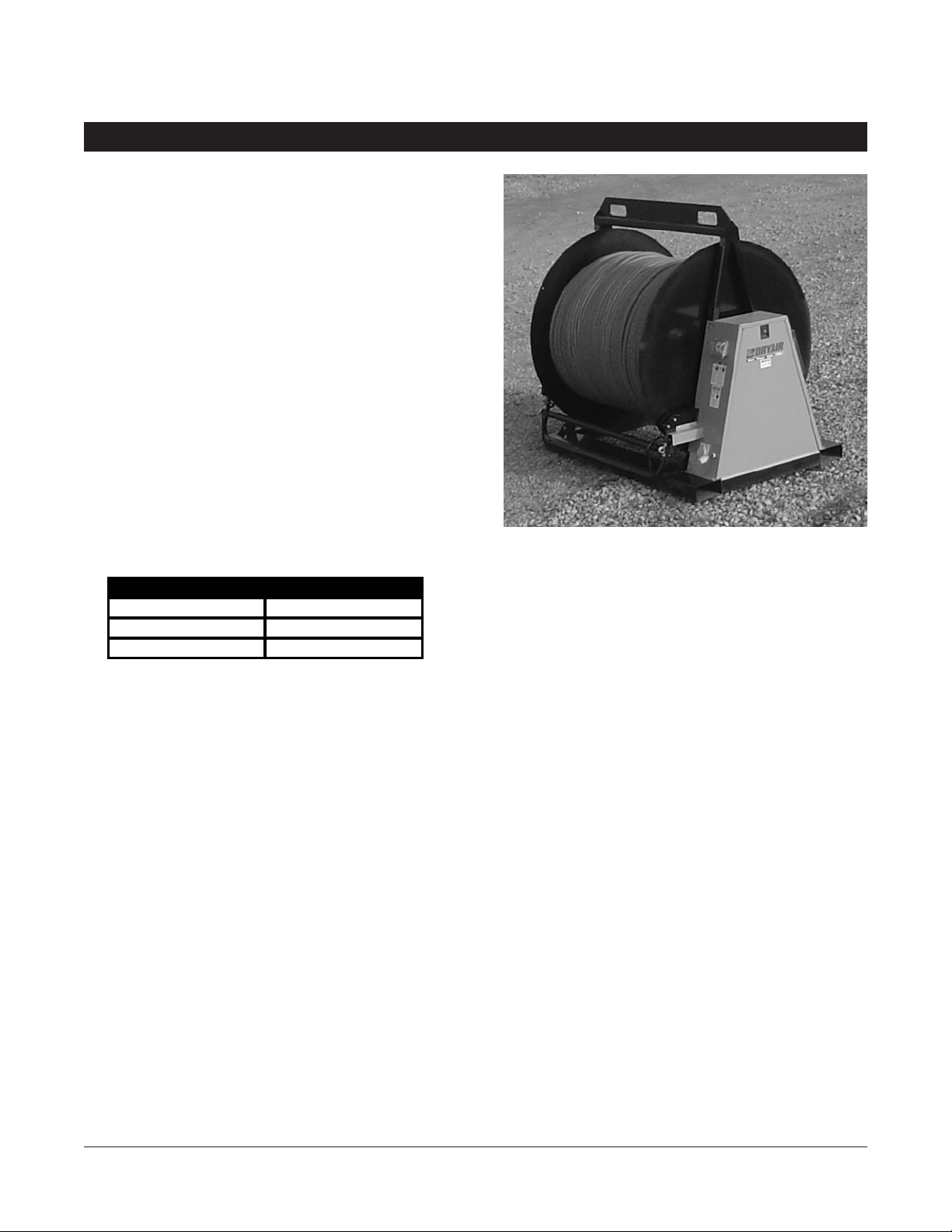

Introduction 3-1
Operating Features ................................................................................................................................................... 3-1
Drive Features & Power Requirements ..................................................................................................................... 3-1
Reel Capacities .......................................................................................................................................................... 3-1
Transportation & Storage ......................................................................................................................................... 3-1
Setup/Operation 4-1

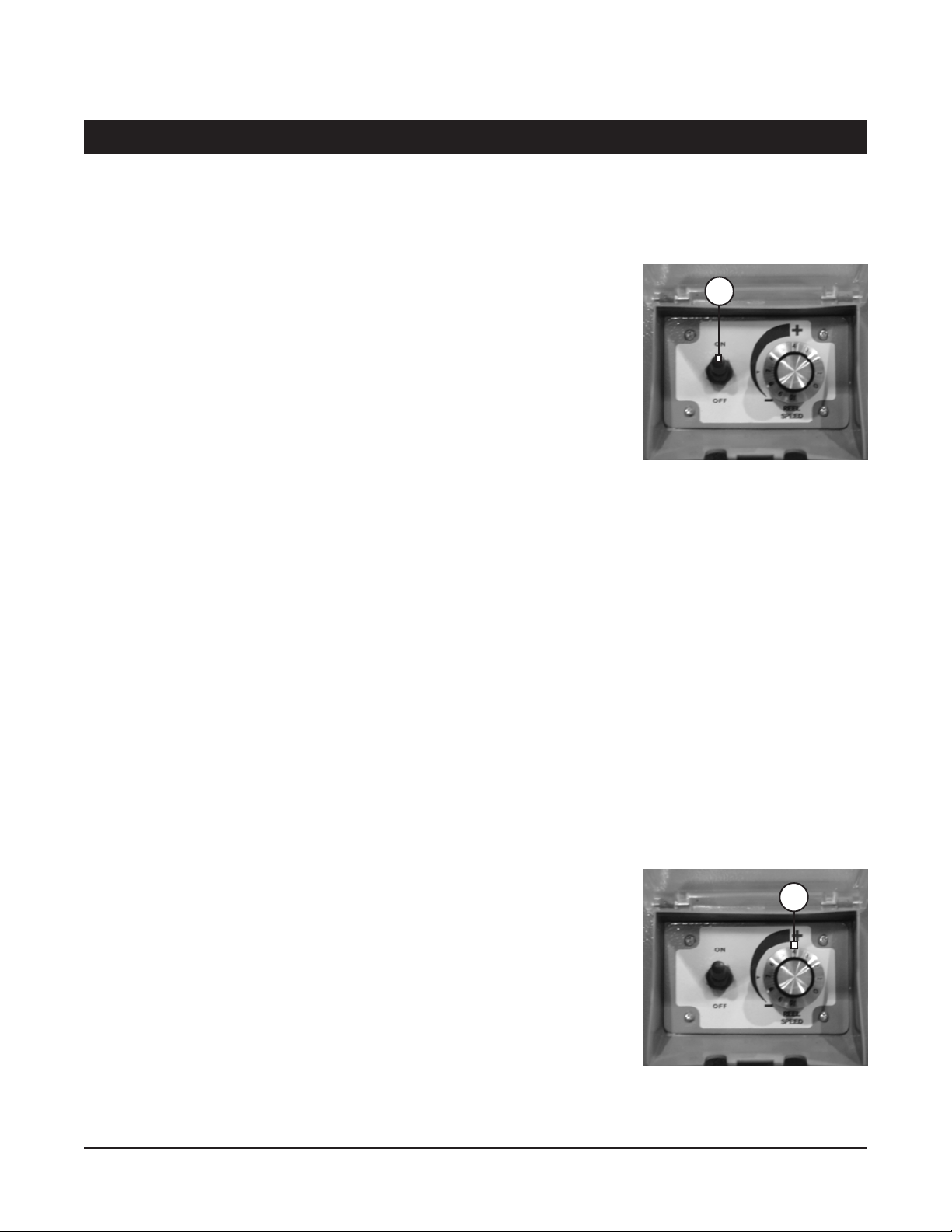

Manual Controls ....................................................................................................................................................... 4-1
Spool Rotational Speed ............................................................................................................................................ 4-1
Automatic Controls & Settings ................................................................................................................................ 4-2
Mechanical Drive Components ................................................................................................................................ 4-3
Maintenance 5-1

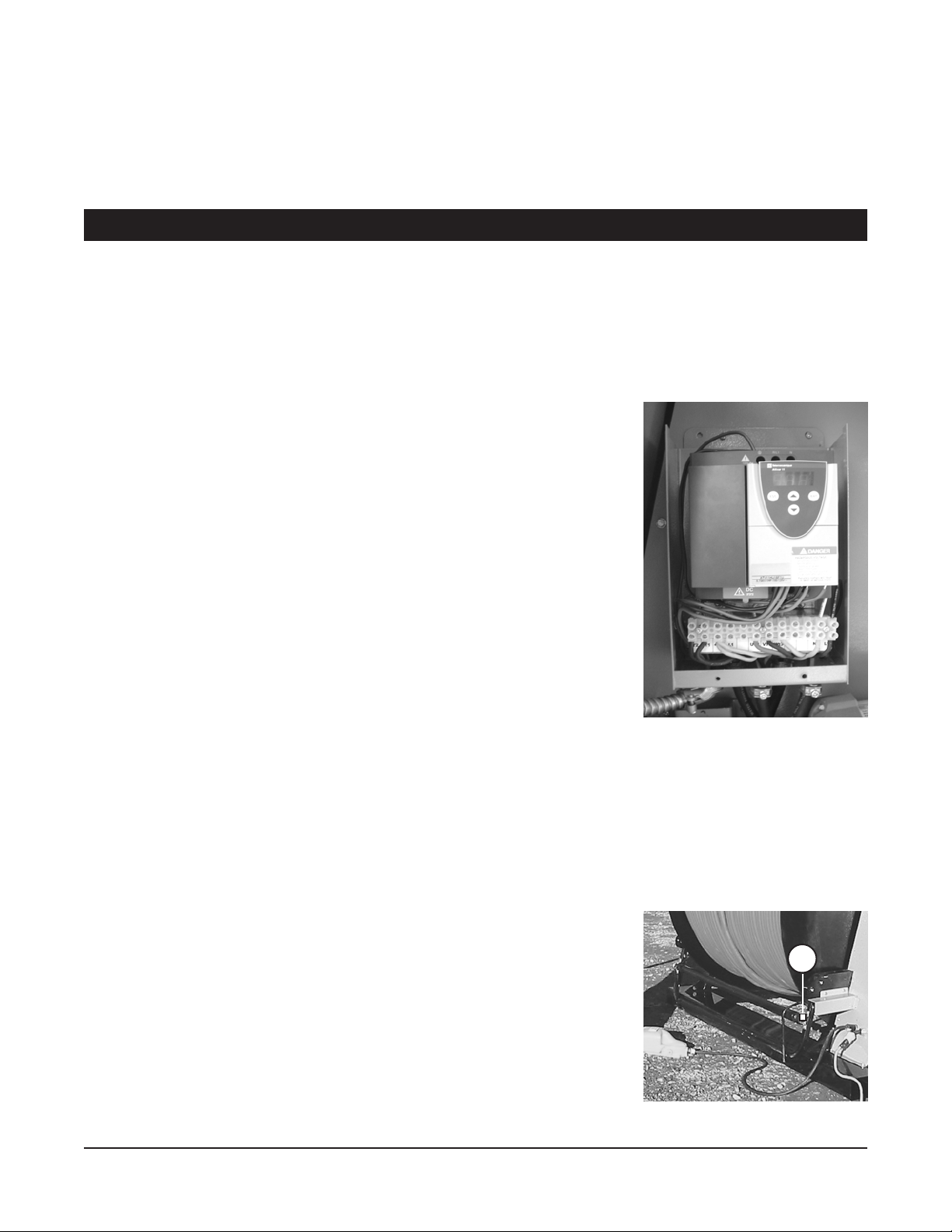

Altivar 11 - AC Drive ................................................................................................................................................ 5-1
Auto-feed Control .................................................................................................................................................... 5-2
Electric Motor ........................................................................................................................................................... 5-2
Gear Box .................................................................................................................................................................... 5-2

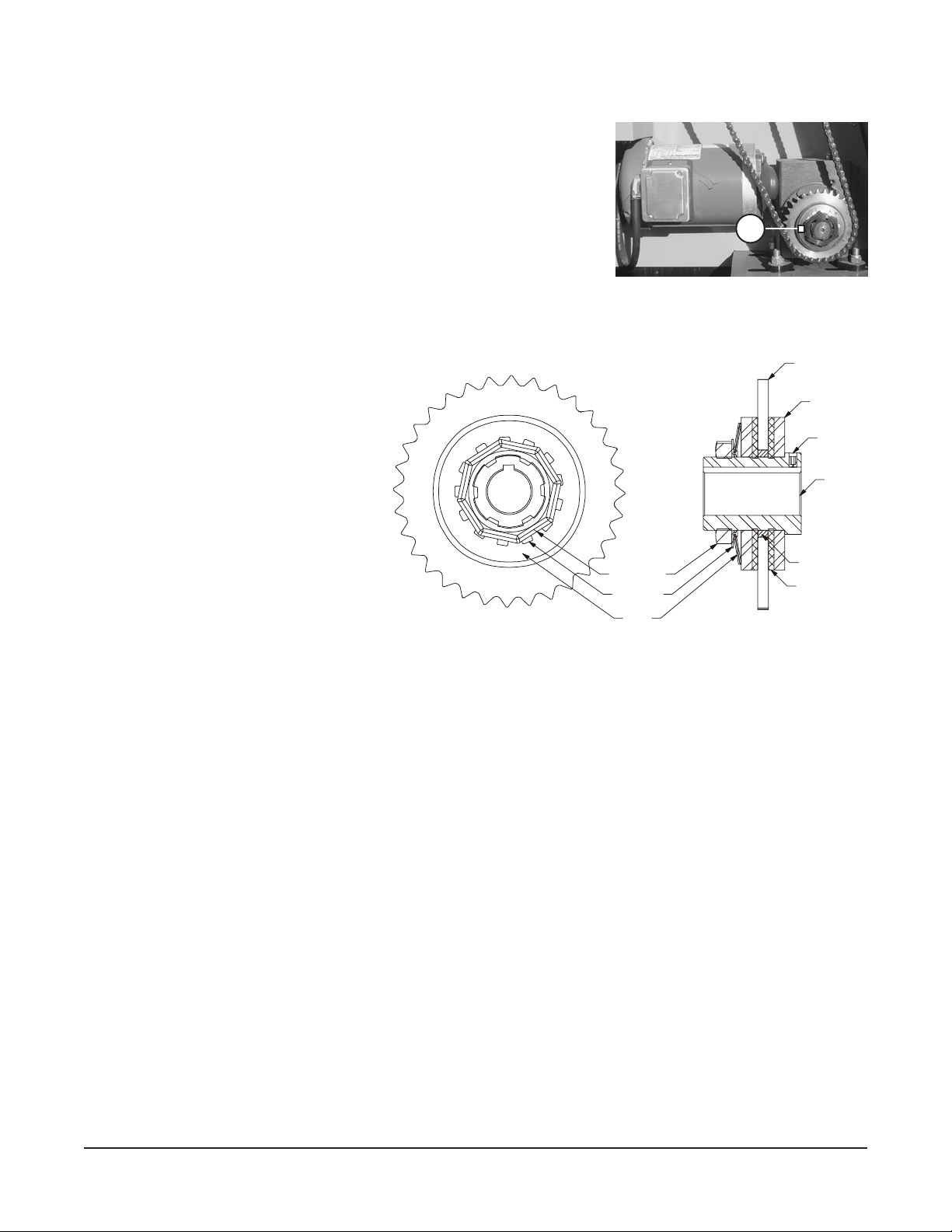

Torque Limiter Adjustment ....................................................................................................................................... 5-3

Warranty Policy 1-1
Warranty Policies & Claim Procedures
DRYAIR Inc. (referred to within as DRYAIR) warranties its new, unused equipment to be free of defects in material and workmanship at the
time of delivery to the first retail purchaser.
Warranty Policies
Basic warranty policy
• DRYAIR will repair or replace, at its option, without charge, any defective part of the equipment for a period of twelve (12) months
from delivery to the first retail purchaser, F.O.B St. Brieux, SK, Canada or Bowling Green, Ohio, USA.
• Mileage is not covered. Any parts that are covered by an extended warranty published by DRYAIR are an exception to the Basic
Warranty policy and are to be warranted as per the details of the Extended Warranty Policy.
• Labor is covered as per DRYAIR flat labor rate.
• The Warranty Policy, terms and conditions, may change from time to time without prior notice.
• Warranty terms and conditions are transferable in the event of the sale to a second owner.
• Replacement parts will be warranted for 90 days from the repair date. Bill of sale must accompany the warranty claim.
Extended warranty policy
Water heater heat exchanger
• An extended warranty is available on the heat exchanger unit of the water heater assembly. The available warranty for a part, under the
extended warranty policy, is prorated by 20% per year.
• (Shipment date is the date to be used for the commencement of the warranty period).
•Coverage schedule
Year 1 - 100%
Year 2 - 80%
Year 3 - 60%
Year 4 - 40%
Year 5 - 20%
Exceptions to the warranty policies
• Under no circumstance shall the owner be entitled to recover costs for incidental, special or consequential damages such as, but not
limited to: loss of profit or revenue, other commercial losses, inconvenience and/or replacement equipment rental cost.
• Maintenance, repair or service items not related to warrantable defects.
• Loss or damage during shipping.
• Failure resulting from lack of or improper maintenance.
• Damage caused by operator abuse, negligence or improper operation.
• Damage resulting from improper voltage supply.
• Damage from improper installation. Installation done by other than the manufacturer.
• Non-defective items replaced at the request of the customer.
• Damage due to accidents.
• Damage resulting from improper fuel supply (i.e. pressure or contamination).
• Damage resulting from cracked or broken lines occurring during transport.
• Damage resulting from use of inadequate or improper fluids (i.e.. glycol or oil).
Owners obligations
• It is the responsibility of the owner, at the owner’s expense, to transport the equipment to the service facility of an authorized DRYAIR
distributor/dealer or alternately to reimburse the distributor/dealer, for any traveling expenses incurred in fulfilling this warranty.
• The terms of this Warranty Policy are subject to provincial and state legislation. DRYAIR reserves the right to make modifications in
accordance with provincial and state legislation without prior notice or obligation.
• It is the responsibility of the owner to read, understand and implement the maintenance, safety and operational guidelines as laid out in
the Operation and Maintenance Guide.
•All parts to be tagged with warranty claim number and shipped prepaid to DRYAIR within 30 days.
Manufacturer obligations
•DRYAIR reserves the right to continually improve and/or change the product’s parts or specifications at any time without notice or
obligation.
•The terms of this Warranty Policy are subject to provincial and state legislation. DRYAIR reserves the right to make modifications in
accordance with provincial and state legislation without prior notice or obligation.

Warranty Policy 1-2
Warranty Claim Procedure
• All warranty credits must be processed with the DRYAIR Warranty Claim Form.
• All warranty parts, unless otherwise specified, are to be returned to DRYAIR along with a completed Warranty Claim Form.
Note: Prior to returning warranty parts, please call for an authorization number and shipping instructions from the Warranty
Department in Canada.
• Location of Warranty Depots
USA Canada
DRYAIR Inc. DRYAIR Inc.
1095 N. Main Street 606 Highway Drive
Bowling Green, OH Box 126
43402 St. Brieux, SK
Ph. 1 [phone] S0K 3V0
Ph. 1 [phone]
•Each warranty claim should only refer to one Serial or Production Schedule numbered unit.
•Warranty parts are to be tagged with warranty claim number.
•When claiming for warranty labour, the allowable warranty labour rate will be $45.00/hour. The factory reserves the right to adjust the
number of hours claimed where deemed necessary.
•The factory may at times specify allowable labour for certain warranty procedures.
•Mileage and travel time, to and from the customer are not eligible for warranty credit.
•Freight charges for warranty parts are not eligible for warranty credit.
•Labour flat rates for component changes
Electrical components - .5 hour
Plumbing components - 1 hour
Electric motor changes - 1 hour
Note: Other labour charges will be at the discretion of DRYAIR.

Safety Concerns 2-1
Safety Concerns
General Safety Guidelines
• Make certain that the operator reads and understands all the information in this manual.
• All unauthorized people must be kept away from the equipment when in operation.
• Maintain instructional and safety decals. Replace damaged decals.
• All guards must be in place when the equipment is in operation.
Water Heater Module
CAUTION! The water heater is a heating appliance.
• When dealing with any heating appliance, observe all posted warnings and cautions.
• Keep children and pets away from all piping and fuel accessories.
• The water heater housing panels must be kept closed when the system is operating. This prevents drafts from affecting water heater
operation.
Heat Transfer Fluid
Follow the following precautions and measures when working with “heat transfer fluid” (“DOWFROST* HTF” & “BOSS CHILL PG”).
Fluid handling precautions
• Ventilation .................. Good general ventilation should be sufficient for most conditions.
• Respiratory protection . No respiratory protection should be needed.
• Skin protection ............ For brief contact, no precautions other than clean body-covering clothing should be needed.
.................................... Use impervious gloves when prolonged or frequently repeated contact should occur.
• Eye Protection ............. Use safety glasses.
First aid measures
• Eyes ............................ Flush eyes with plenty of water.
• Skin ............................ Wash off in flowing water or shower.
• Ingestion ..................... Induce vomiting if large amounts are ingested.
................................... Consult medical personnel.
• Inhalation ................... Remove to fresh air if effects occur.
................................... Consult a physician.
• Note to physician ........ No specific antidote.
................................... Supportive care.
................................... Treatment based on judgment of the physician in response to reactions of the patient.
For complete “heat transfer fluid” information, refer to the Material Safety Data Sheets for “Dowfrost HTF” & “Boss Chill PG” on
the following page.

Safety Concerns 2-2
Material Safety Data Sheet
BOSS CHILL PG
MSDS
Canadian Centre for Occupational Health and Safety
Issue: 2001-4 (November, 2001)
***MATERIAL SAFETY DATA***
1. CHEMICAL PRODUCT & COMPANY IDENTIFICATION
PRODUCT NAME: .................................... PROPYLENE GLYCOL INDUSTRIAL
PRODUCT CODE: ...................................... 70511
EFFECTIVE DATE: .................................... 05/23/03 DATE PRINTED 10/09/03 MSD: 000248
COMPANY IDENTIFICATION: ............... The Dow Chemical Company, Midland, MI 48674
EMERGENCY TELEPHONE NUMBER: . 24-HOUR EMERGENCY PHONE NUMBER 989-636-4400
...................................................................... Customer Information Center: 800-258-2436
2. COMPOSITION/INFORMATION ON INGREDIENTS
Propylene glycol CAS# 000057-55-6 > 99%
3. HAZARDS IDENTIFICATION
EMERGENCY OVERVIEW: ....................... Colorless, odorless liquid. Toxic fumes released in fire situations.
POTENTIAL HEALTH EFFECTS: ................. (See Section 11 for toxicological data.)
EYE: ...................................................................... May cause slight transient (temporary) eye irritation. Corneal injury is unlikely. Mists may
cause eye irritation.
SKIN: .................................................................... Prolonged contact is essentially nonirritating to skin. A single prolonged skin exposure is not
likely to result in the material being absorbed through skin in harmful amounts. Repeated
exposures may cause flaking and softening of skin. May be absorbed in potentially harmful
amounts when applied in large quantities to severe burns (second or third degree) over large
areas of the body as part of a cream or other topical application. Absorption under such
circumstances can elevate serum osmolality and may result in osmotic shock.
INGESTION: ........................................................ Single dose oral toxicity is considered to be extremely low. No hazards anticipated from
swallowing small amounts incidental to normal handling operations.
INHALATION:.................................................... At room temperature, vapors are minimal due physical properties. Mists may cause irritation
of upper respiratory tract.
SYSTEMATIC: .................................................... (OTHER TARGET ORGAN) EFFECTS: Repeated excessive ingestion may cause central
nervous system effects.
CANCER INFORMATION: ............................... Did not cause cancer in long-term animal studies.
TERATOLOGY (BIRTH DEFECTS): .............. Birth defects are unlikely. Exposures having no adverse effects on the mother should have
no effect on the fetus.
REPRODUCTIVE EFFECTS: ............................ In animal studies, has been shown not to interfere with reproduction.
4. FIRST AID
EYE: ...................................................................... Flush eyes with plenty of water.
SKIN: .................................................................... Wash off in flowing water or shower.
INGESTION: ........................................................ No adverse effects anticipated by this route of exposure incidental to proper industrial
handling.
INHALATION:.................................................... Remove to fresh air if effects occur. Consult a physician
NOTE TO PHYSICIAN: .................................... No specific antidote. Supportive care. Treatment based on judgment of the physician in
response to reactions of the patient.
5. FIRE FIGHTING MEASURES
FLASH POINT: .................... 218°F, 103°C
METHOD USED: ................ PMCC
FLAMMABLE LIMITS ...... LFT: 2.6%
LFL: ....................................... 2.6%
UFL: ....................................... 12.5%
HAZARDOUS COMBUSTION PRODUCTS: During a fire, smoke may contain the original material in addition to unidentified toxic
and/or irritating compounds. Hazardous combustion products may include and are not limited to: aldehydes, carbon monoxide.
OTHER FLAMMABILITY INFORMATION: Violent steam generation or eruption may occur upon application of direct water stream
to hot liquids. Spills of these organic liquids on hot fibrous insulations may lead to lowering of the autoignition temperatures
possibly resulting in spontaneous combustion.
EXTINGUISHING MEDIA: Water fog or fine spray, carbon dioxide, dry chemical, foam. Alcohol resistant foams (ATC type) are
preferred if available. General purpose synthetic foams (including AFFF) or protein foams may function, but much less effectively.
Do not use direct water stream. Will spread fire.
MEDIA TO BE AVOIDED: Do not use direct water stream.
FIRE FIGHTING INSTRUCTIONS: Keep people away. Isolate fire area and deny unnecessary entry. Burning liquids may be moved by
flushing with water to protect personnel and minimize property damage. Burning liquids may be extinguished by dilution with water.
Do not use direct water stream. May spread fire.
PROTECTIVE EQUIPMENT FOR FIRE FIGHTERS: Wear positive-pressure, self-contained breathing apparatus (SCBA) and protective
fire-fighting clothing (including fire-fighting helmet, coat, pants, boots, and gloves). If protective equipment is not available or not
used, fight fire from a protected location or safe distance.

Safety Concerns 2-3
6. ACCIDENTAL RELEASE MEASURE (See Section 15 for Regulatory Information)
PROTECT PEOPLE: Isolate area.
PROTECT THE ENVIRONMENT: Contain liquid to prevent contamination of soil, surface water or ground water.
CLEANUP: For small spills, clean up with absorbent material. Collect material in suitable and properly labeled open containers. For
large spills, dike and pump into suitable and properly labeled containers.
7. HANDLING AND STORAGE
HANDLING: Product handled hot may require additional ventilation or local exhaust. Product on surfaces can cause slippery
conditions.
STORAGE: Keep containers tightly closed when not in use. Store in stainless steel, aluminum, Plasite 3066 lined containers or 316
stainless steel. Store below 121°C, 250°F.
8. EXPOSURE CONTROLS/PERSONAL PROTECTION
ENGINEERING CONTROLS: Provide general and/or local exhaust ventilation to control airborne levels below exposure guidelines.
PERSONAL PROTECTIVE EQUIPMENT
EYE/FACE PROTECTION: Use safety glasses. Safety glasses should be sufficient for most operations; however, for misty operations
wear chemical goggles.
SKIN PROTECTION: For brief contact, no precautions other than clean body-covering clothing should be needed. Use impervious
gloves when prolonged or frequently repeated contact could occur.
RESPIRATORY PROTECTION: Atmospheric levels should be maintained below the exposure guideline. When respiration protection
is required for certain operations, use an approved air-purifying respirator. In misty atmospheres, use an approved mist respirator.
EXPOSURE GUIDELINE(S): Propylene glycol: AIHA WEEL is 50 ppm total, 10 mg/m3 aerosol only.
9. PHYSICAL AND CHEMICAL PROPERTIES
APPEARANCE: ....................... Colorless liquid
ODOR: ....................................... Odorless
VAPOR PRESSURE: ................ 0.08 mmHg @ 20°C, 68°F
VAPOR DENSITY: .................. 2.62
BOILING POINT: .................... 370°F, 188°C
SOLUBILITY IN WATER: .... Complete
SPECIFIC GRAVITY: .............. 1.038 @ 20/20°C, 68°F
10. STABILITY AND REACTIVITY
CHEMICAL STABILITY: Stable.
CONDITIONS TO AVOID: Avoid temperatures above 121°C/250°F. Product can decompose at elevated temperatures.
INCOMPATIBILITY WITH OTHER MATERIALS: Avoid contact with oxidizing materials.
HAZARDOUS DECOMPOSITION PRODUCTS: When available oxygen is limited, as in a fire or heated to very high temperatures by
hot wire or plate, carbon monoxide and other hazardous compounds such as aldehydes might be generated.
HAZARDOUS POLYMERIZATION: Will not occur.
11. TOXICOLOGICAL INFORMATION (See Section 3 for Potential Health Effects. For detailed toxicological data, write or call the address
or non-emergency number shown in section 1)
SKIN: the LD50 for skin absorption in rabbits is greater than 10,000 mg/kg.
INGESTION: The oral LD50 for Female rats is about 20,000-34,000mg/kg.
MUTAGENICITY (EFFECTS ON GENETIC MATERIAL): Results of in vitro (test tube) mutagenicity tests have been negative.
Results of mutagenicity tests in animals have been negative.
12. ECOLOGICAL INFORMATION (For detailed Ecological data, write or call the address or non-emergency number shown in Section 1)
ENVIRONMENTAL FATE
MOVEMENT AND PARTITIONING: Based largely or completely on information for similar material(s), i.e. propylene glycol.
Bioconcentration potential is low (BCF less than 100 or Log Pow less than 3). Log octanol/water partition coefficient (log Pow) is
-0.92. Henry’s Law Constant (H) is 1.2E-8 atm.m3/mole.
DEGRADATION AND PERSISTENCE: Based largely or completely on information for similar material(s), i.e. propylene glycol.
Biodegradation under aerobic static laboratory conditions is high (BOD20 or BOD28/ThOD greater than 40%). Biodegradation is
expected to be achieved in a secondary waste-water treatment plant. 5-Day biochemical oxygen demand (BOD5) is 1.16 p/p. 20-
Day biochemical oxygen demand (BOD20) is 1.45 p/p. Theoretical oxygen demand (ThOD) is calculated to be 1.68 p/p.
Inhibitory concentration (IC50) in OECD Activated Sludge Respiration Inhibition Test (OECD Test No. 209) is greater than 1gm/L.
Degradation is expected in the atmospheric environment within minutes to hours.

Safety Concerns 2-4
ECOTOXICITY: Based largely or completely on information for similar material(s), i.e. propylene glycol. Material is practically non-
toxic to aquatic organisms on an acute basis (LC50 greater than 100 mg/L in most sensitive species).
Acute LC50 for fathead minnow (Pimephales promelas) is 46500-54900 mg/L.
Acute LC50 for guppy (Poecilia reticulata) is greater than 10000 mg/L.
Acute LC50 for water flea Daphnia magna is 4850-34400 mg/L.
Acute LC50 for rainbow trout (Oncorhynchus mykiss) is 44 ml/L (about 44000 mg/L).
13. DISPOSAL CONSIDERATION (See Section 15 for Regulatory Information)
DISPOSAL: DO NOT DUMP INTO ANY SEWERS, ON THE GROUND OR INTO ANY BODY OF WATER. All disposal methods must
be in compliance with all Federal, State/Provincial and local laws and regulations. Regulations may vary in different locations.
Waste characterizations and compliance with applicable laws are the responsibility solely of the waste generator. THE DOW
CHEMICAL COMPANY HAS NO CONTROL OVER THE MANAGEMENT PRACTICES OR MANUFACTURING PROCESS OF
PARTIES HANDLING OR USING THIS MATERIAL. THE INFORMATION PRESENTED HERE PERTAINS ONLY TO THE
PRODUCT AS SHIPPED IN ITS INTENDED CONDITION AS DESCRIBED IN MSDS SECTION 2 (Composition/Information on
Ingredients).
FOR UNUSED & UNCONTAMINATED PRODUCT, the preferred options include sending to a licensed, permitted: recycler,
reclaimer, incinerator or waste water treatment system.
As a service to its customers, Dow can provide names of information resources to help identify waste management companies and
other facilities which recycle, reprocess or manage chemicals or plastics, and that manage used drums. Telephone Dow’s Customer
Information Centre at 800-258-2436 or 989-832-1556 for further details.
14. TRANSPORT INFORMATION
DEPARTMENT OF TRANSPORT:
This product is not regulated by D.O.T. when shipped domestically by land
CANADIAN TDG INFORMATION:
For TDG regulatory information, if required, consult transportation regulations, product shipping papers, or your Dow representative.
15. REGULATORY INFORMATION (Not meant to be all-inclusive—selected regulations represented)
NOTICE: The information herein is presented in good faith and believed to be accurate as of the effective date shown above. However,
no warranty, express or implied is given. Regulatory requirements are subject to change and may differ from one location to
another; it is the buyer’s responsibility to ensure that its activities comply with federal, state or provincial, and local laws. The
following specified information is made for the purpose of complying with numerous federal, state or provincial, and local laws and
regulations. See other sections for health and safety information.
U.S. REGULATION
SARA 313 INFORMATION: To the best of our knowledge, this product contains no chemical subject to SARA Title III Section 313
supplier notification requirements.
SARA HAZARD CATEGORY: This product has been reviewed according to the EPA “Hazard Categories” promulgated under
Sections 311 and 312 of the Superfund Amendment and Reauthorization Act of 1986 (SARA Title III) and is considered, under
applicable definitions, to meet the following categories: Not to have met any hazard category.
TOXIC SUBSTANCES CONTROL ACT (TSCA):
All ingredients are on the TSCA inventory or are not required to be listed on the TSCA inventory.
STATE RIGHT-TO-KNOW: The following product components are cited on certain state lists as mentioned. Non-listed
components may be shown in the composition section of the MSDS.
REGULATORY INFORMATION:
CHEMICAL NAME CAS NUMBER LIST
1, 2-PROPANEDIOL 00057-55-6 PA1
PA1=Pennsylvania Hazardous Substance (present at greater than or equal to 1.0%).
OSHA HAZARD COMMUNICATION STANDARD:
This product is not a “Hazardous Chemical” as defined by the OSHA Hazard Communication Standard, 29 CFR 1910.1200.
CANADIAN REGULATIONS
WHMIS INFORMATION: The Canadian Workplace Hazardous Materials Information System (WHMIS) classification for this
product is: This product is not a “Controlled Product” under WHMIS.
16. OTHER INFORMATION
NATIONAL FIRE PROTECTION ASSOCIATION (NFPA) RATINGS:
Health 0
Flammability 1
Reactivity 0
MSDS STATUS: Revised Section 16.
* or ® Indicates a Trademark of The Dow Chemical Company
The Information Herein Is Given In Good Faith, But No Warranty, Express or Implied, Id Made. Consult The Dow
Chemical Company For Further Information.

Safety Concerns 2-5
Material Safety Data Sheet
DOWFROST* HEAT TRANSFER FLUID
MSDS
Canadian Centre for Occupational Health and Safety
Issue: 05/09/2002
Received: 09/10/2003
***MATERIAL SAFETY DATA***
1. CHEMICAL PRODUCT & COMPANY IDENTIFICATION
PRODUCT NAME: .................................... DOWFROST* HEAT TRANSFER FLUID
MSDS#: ........................................................ 1376
EFFECTIVE DATE: .................................... 05/09/2002
COMPANY IDENTIFICATION: ............... The Dow Chemical Company
...................................................................... Midland, MI 48674
EMERGENCY TELEPHONE NUMBER: . 24-HOUR EMERGENCY TELEPHONE NUMBER: [phone]
...................................................................... Customer Information Number: 1-800-258-2436
2. COMPOSITION/INFORMATION ON INGREDIENTS
Propylene glycol CAS# 000057-55-6 > 99%
Demineralized water CAS# 007732-18-5 < 5%
Dipotassium hydrogen phosphate CAS#007758-11-4 < 5%
3. HAZARDS IDENTIFICATION
EMERGENCY OVERVIEW: .............................. Colorless, liquid, mild odor. No significant hazards for emergency response are known.
POTENTIAL HEALTH EFFECTS .................. (See Section 11 for toxicological information and additional information about potential
health effects.)
EFFECTS OF SINGLE ACUTE OVEREXPOSURE
INHALATION:.................................................... At room temperature, exposure to vapor is minimal due to low volatility. Mist may
cause irritation of upper respiratory tract (nose and throat).
EYE CONTACT: ................................................. May cause slight temporary eye irritation. Corneal injury is unlikely.
SKIN CONTACT: ................................................ Prolonged contact is essentially nonirritating to skin. Repeated contact may cause
flaking and softening of skin.
SKIN ABSORPTION: ......................................... Prolonged skin contact is unlikely to result in absorption of harmful amounts.
SWALLOWING: .................................................. Very low toxicity if swallowed. Harmful effects not anticipated from swallowing small
amounts
POTENTIAL ENVIRONMENTAL EFFECTS (See Section 12 for Ecological Information)
4. FIRST AID
INHALATION:.................................................... Move person to fresh air; if effects occur, consult a physician.
EYE: ...................................................................... Flush eyes thoroughly with water for several minutes. Remove contact lenses after the initial
1-2 minutes and continue flushing for several additional minutes. If effect occur, consult a
physician, preferably an ophthalmologist.
SKIN: .................................................................... Wash skin with plenty of water
INGESTION: ........................................................ No emergency medical treatment necessary.
NOTE TO PHYSICIAN: .................................... No specific antidote. Treatment of exposure should be directed at the control of symptoms
and the condition of the patient.
5. FIRE FIGHTING MEASURES
FLAMMABLE PROPERTIES (Refer to section 9, PHYSICAL AND CHEMICAL PROPERTIES)
EXTINGUISHING MEDIA: Water fog or fine spray. Dry chemical fire extinguishers. Carbon dioxide fire extinguishers. Foam. Do not
use direct water stream. May spread fire. Alcohol resistant foams (ATC type) are preferred. General purpose synthetic foams
(including AFFF) or protein foams may function, but will be less effective.
FIRE FIGHTING PROCEDURES: Keep people away. Isolate fire area and deny unnecessary entry. Use water spray to cool fire exposed
containers and fire affected zone until fire is out and danger of reignition has passed. Fight fire from a protected location or safe
distance. Consider the use of unmanned hose holders or monitor nozzles. Immediately withdraw all personnel from the area in case
of rising sound from venting safety device or discoloration of the container. Burning liquids may be extinguished by dilution with
water. Do not use direct water stream. May spread fire. Move container from fire area if this is possible without hazard. Burning
liquids may be moved by flushing with water to protect personnel and minimize property damage.
SPECIAL PROTECTIVE EQUIPMENT FOR FIRE FIGHTERS: Wear positive-pressure self-contained breathing apparatus (SCBA) and
protective fire-fighting clothing (including fire-fighting helmet, coat, pants, boots, and gloves). If protective equipment is not
available or not used, fight fire from a protected location or safe distance.
UNUSUAL FIRE AND EXPLOSION HAZARDS: Container may rupture from gas generation in a fire situation. Violent steam
generation or eruption may occur upon application of direct water stream to hot liquids. Liquid mist of this product can burn.
Flammable concentrations of vapor can accumulate at temperatures above flash point; see Section 9.
HAZARDOUS COMBUSTION PRODUCTS: During a fire, smoke may contain the original material in addition to combustion products
of varying composition which may be toxic and/or irritating. Combustion products may include and are not limited to: Carbon
monoxide. Carbon dioxide.

Safety Concerns 2-6
6. ACCIDENTAL RELEASE MEASURE
SMALL SPILLS: Absorb with materials such as: cat litter, sawdust, vermiculite, Zorb-all. Collect in suitable and properly labeled
containers.
LARGE SPILLS: Dike area to contain spill. Recover spilled material if possible. See Section 13, Disposal Considerations for additional
information.
PERSONAL PRECAUTIONS: Use appropriate safety equipment. For additional information, refer to Section 8, Exposure Controls and
Personal Protection.
ENVIRONMENTAL PRECAUTIONS: Prevent from entering into soil, ditches, sewers, waterways and/or groundwater. See Section 12,
Ecological Information.
7. HANDLING AND STORAGE
HANDLING
GENERAL HANDLING: See Section 8, EXPOSURE CONTROLS AND PERSONAL PROTECTION.
VENTILATION: Provide general and/or local exhaust ventilation to control airborne levels below the exposure guidelines.
OTHER PRECAUTIONS: Spills of these organic materials on hot fibrous insulations may lead to lowering of the autoignition
temperatures possibly resulting in spontaneous combustion.
STORAGE: 121°C ( 250° F). Do not store in: galvanized steel.
8. EXPOSURE CONTROLS AND PERSONAL PROTECTION
EXPOSURE LIMITS
COMPONENT EXPOSURE LIMITS SKIN FORM
Propylene glycol 10mg/m3 TWA8 AIHA WEEL Aerosol
50 ppm TWA8 AIHA WEEL Total Particulate fume
In the Exposure Limits Chart above, if there is no specific qualifier (i.e., Aerosol) listed in the Form Column for a particular limit, the
listed limit includes all airborne forms of the substance that can be inhaled.
PERSONAL PROTECTION
RESPIRATORY PROTECTION: Atmospheric levels should be maintained below the exposure guideline.
PROTECTION: When respiratory protection is required for certain operations, use an approved air-purifying respirator. In dusty or
misty atmospheres, use an approved particulate respirator.
EYE PROTECTION: Use safety glasses.
OTHER PROTECTIVE EQUIPMENT: No precautions other than body-covering clothing should be needed. Use gloves chemically
resistant to this material.
9. PHYSICAL AND CHEMICAL PROPERTIES
PHYSICAL STATE: ................ Liquid
APPEARANCE: ....................... Colorless
ODOR: ....................................... Mild
FLASH POINT - Closed Cup: 102°C 216°F Tag closed cup ASTM D 56 (Propylene glycol)
FLAMMABLE LIMITS IN AIR:Lower 2.6%(V) 100°C (Propylene glycol)
.................................................... Upper 12.5%(V) 130°C (Propylene glycol)
AUTOIGNITION TEMP: ...... 416°C 780°F
VAPOR PRESSURE: ................ 0.7 mmHg @ 20°C, 68°F
BOILING POINT (760 mmHg): 162°C 323°F
VAPOR DENSITY (air=1): .... 2.6
SPECIFIC GRAVITY (H2O=1):1.05 20°C/20°C
FREEZING POINT: ................ <=-51°C <=-60°F
MELTING POINT: .................. Not applicable (for liquids)
SOLUBILITY IN WATER (by weight): 100% 20°C
pH: .............................................. 9-11 (5% solution in water)
EVAPORATION RATE (Butyl Acetate=1): 0.07
PERCENT VOLATILES: ....... 98 Wt%
10. STABILITY AND REACTIVITY
STABILITY/INSTABILITY: Thermally stable at recommended temperatures and pressures.
CONDITIONS TO AVOID: Product can oxidize at elevated temperatures. Generation of gas during decomposition can cause pressure in
closed systems.
INCOMPATIBLE MATERIALS: Avoid contact with: Strong acids. Strong bases. Strong oxidizers.
THERMAL DECOMPOSITION: Decomposition products depend upon temperature, air supply and the presence of other materials.
Decomposition products can include and are not limited to: Aldehydes. Alcohols. Ethers.
HAZARDOUS POLYMERIZATION: Will not occur

Safety Concerns 2-7
11. TOXICOLOGICAL INFORMATION
ACUTE TOXICITY:
Peroral: Rat; female; LD50 = 20300 mg/kg
Percutaneous: Based on information for a similar material:
Rabbit; LD50 = > 10000 mg/kg
DEVELOPMENT TOXICITY: Contains component(s) which did not cause birth defects or any fetal effects in lab animals., The
component(s) is/are:, Propylene glycol.
REPRODUCTIVE TOXICITY: Contains component(s) which did not interfere with reproduction in animal studies., Contains
component(s) which did not interfere with fertility in animal studies., The component(s) is/are:, Propylene glycol.
CHRONIC TOXICITY AND CARCINOGENICITY: Similar formulations did not cause cancer in laboratory animals.
GENETIC TOXICOLOGY:
In Vitro: In Vitro mutagenicity studies were negative.
In Vivo: Mutagenicity studies in animals were negative for component(s) tested
SIGNIFICANT DATA WITH POSSIBLE RELEVANCE TO HUMANS: In rare cases, repeated excessive exposure to propylene glycol
may cause central nervous system effects.
12. ECOLOGICAL INFORMATION
ENVIRONMENTAL FATE: Based largely or completely on information for: Propylene glycol. Material is readily biodegradable.
Passes OECD test(s) for ready biodegradability. Degradation is expected in the atmospheric environment within minutes to hours.
ECOTOXICITY: Based largely or completely on information for: Propylene glycol. Material is practically non-toxic to aquatic
organisms on an acute basis (LC50/EC50 . 100mg/L in most sensitive species tested).
FURTHER INFORMATION: Based largely or completely on information for: Propylene glycol. Bioconcentration potential is low
(BCF < 100 or Log Pow < 3). Potential for mobility in soil is very high (Koc between 0 and 50).
13. DISPOSAL CONSIDERATION (See Section 15 for Regulatory Information)
DISPOSAL: DO NOT DUMP INTO ANY SEWERS, ON THE GROUND OR INTO ANY BODY OF WATER. All disposal practices
must be in compliance with all Federal, State/Provincial and local laws and regulations. Regulations may vary in different locations.
Waste characterizations and compliance with applicable laws are the responsibility solely of the waste generator. THE DOW
CHEMICAL COMPANY HAS NO CONTROL OVER THE MANAGEMENT PRACTICES OR MANUFACTURING PROCESS OF
PARTIES HANDLING OR USING THIS MATERIAL. THE INFORMATION PRESENTED HERE PERTAINS ONLY TO THE
PRODUCT AS SHIPPED IN ITS INTENDED CONDITION AS DESCRIBED IN MSDS SECTION 2 (Composition/Information on
Ingredients). FOR UNUSED & UNCONTAMINATED PRODUCT, the preferred options include sending to a licensed, permitted:
recycler, reclaimer, incinerator or other thermal destructive device. As a service to its customers, Dow can provide names of
information resources to help identify waste management companies and other facilities which recycle, reprocess or manage
chemicals or plastics, and that manage used drums. Telephone Dow’s Customer Information Centre at 1-800-258-2436 or 0-989-
832-1556 (U.S.), or 1-800-331-6451 (Canada) for further details.
14. TRANSPORT INFORMATION
NON-BULK Proper Shipping Name: NOT REGULATED
BULK Proper Shipping Name: NOT REGULATED
The information is not intended to convey all specific regulatory or operational requirements/information relating to this product.
Additional transportation system information can be obtained through an authorized sales or customer service representative. It is the
responsibility of the transportation organization to follow all applicable laws, regulations and rules relating to the transportation of the
material.
15. REGULATORY INFORMATION (Not meant to be all-inclusive—selected regulations represented)
FEDERAL/NATIONAL
OSHS Hazard Communication Standard
This product is not a “Hazardous Chemical” as defined by the OSHA Hazard Communication Standard, 29 CFR 1910.1200.
Superfund Amendments and Reauthorization Act of 1986 Title III (Emergency Planning and Community Right To Know Act) Section 313
To the best of our knowledge this product does not contain chemicals at levels which require reporting under this statute.
Superfund Amendments and Reauthorization Act of 1986 Title III (Emergency Planning and Community Right To Know Act) Section 302
To the best of our knowledge this product does not contain chemicals at levels which require reporting under this statute.
Superfund Amendments and Reauthorization Act of 1986 Title III (Emergency Planning and Community Right To Know Act) Section 311 & 312
Delayed (Chronic) Health Hazard: NO
Fire Hazard: NO
Immediate (Acute) Health Hazard: NO
Reactive Hazard: NO
Sudden Release of pressure Hazard: NO
Toxic Substance Control Act (TSCA)
All components of this product are on the TSCA Inventory or are exempt from TSCA Inventory requirements.

Safety Concerns 2-8
CEPA - Domestic Substances List (DSL)
All substances contained in this product are listed on the Canadian Domestic Substances List (DSL) or are not required to be listed.
European Inventory of Existing Commercial Chemical Substances (EINECS)
The components of this product are on the EINECS inventory or are exempt from EINECS inventory requirements.
STATE/LOCAL
Pennsylvania (Worker and Community Right To Know Act): Pennsylvania Hazardous Substances List and/or Pennsylvania
Environmental Hazardous Substance List:
The following product components are cited in the Pennsylvania Hazardous Substance List and/or the Pennsylvania Environmental
Substance List, and are present at levels which require reporting.
COMPONENT CAS# AMOUNT
Propylene glycol 57-55-6 96.0000 %
Pennsylvania (Worker and Community Right To Know Act): Pennsylvania Special Hazardous Substances List:
To the best of our knowledge this product does not contain chemicals at levels which require reporting under this statute.
California Proposition 65 (Safe Drinking Water and Toxic Enforcement Act of 1986)
This product contains no listed substances known to the State of California to cause cancer, birth defects of other reproductive
harm,at levels which would require a warning under the statute.
California SCAQMD Rule 443.1 (South Coast Air Quality Management District Rule 443.1, Labeling of Material Containing Organic
Solvents).
VOC: Vapor pressure 0.66 mmHg @ 20°C
1002 g/l VOC
1030 g/l less water and less exempted solvents
This section provides selected regulatory information on this product including its components. This is not intended to include all
regulations. It is the responsibility of the user to know and comply with all applicable rules, regulations and laws relating to the product
being used.
16. OTHER INFORMATION
ADDITIONAL INFORMATION
Additional information on this and other Dow products may be obtained by visiting our web page at www.dow.com.
Additional information on this product may be obtained by calling Dow’s Customer Information Group at 1-800-258-2436 (U.S.) or
1-800-331-6451 (Canada).
HAZARD RATING SYSTEM
NFPA rating for this product are: H - 0 F - 0 R - 0
The ratings are part of a specific hazard communication program and should be disregarded where individuals are not trained in the use
of this hazard rating system. You should be familiar with the hazard communication programs applicable to your workplace.
RECOMMENDED USES AND RESTRICTIONS
Intended as a heat transfer fluid for closed-loop systems.
Dow recommends that you use this product in a manner consistent with the listed use. If your intended use is not consistent with
Dow’s Stated use, please contact Dow’s Customer Information Group at 1-800-258-2436 (U.S.) or 1-800-331-6451 (Canada) for more
information.
REVISION
Version: 4.1
Revision: 05/09/2002
Most recent revision(s) are noted by the bold, double bars in the left-hand margin throughout this document.
LEGEND
Bacteria/NA Non Acclimated Bacteria
F Fire
H Health
IHG Industrial Hygiene Guidelines
N/A Not available
NFPA National Fire Protection Association
O Oxidizer
R Reactivity
TS Trade secret
VOL/VOL Volume/Volume
W Water reactive
W/W Weight/Weight
NOTICE: Dow urges each customer or recipient of this MSDS to study it carefully and consult appropriate expertise, as
necessary or appropriate, to become aware of and understand the data contained in this MSDS and any hazards associated
with the product. The information herein is provided in good faith and believed to be accurate as of the effective date
shown above. However, no warranty, express or implied, is given., Regulatory requirements are subject to change and may
differ between various locations. It is the buyer’s/user’s responsibility to ensure that its activities comply with all
federal, state, provincial or local laws. The information presented here pertains only to the product as shipped. Since
conditions for use of the product are not under the control of Dow, it is the buyer’s/user’s duty to determine the condition
necessary for the safe use of this product., Due to the proliferation of sources for information such as manufacturer-
specific MSDSs, Dow is not and cannot be responsible for MSDSs obtained from any source other than Dow. If you have
obtained a Dow MSDS from a non-Dow source or if you are not sure that a Dow MSDS is current, please contact Dow for
the most current version.

Introduction 3-1
Introduction
Operating Features
Danger! It is very important that you read and understand this manual
before operating the reel! Failure to follow the procedures and cautions in
this manual could lead to injury or possible death!
The DRYAIR hose reel’s primary purpose is dispense and collect fluid
circulation hose on job sites…primarily with respect to ground thaw and/
or concrete cure operations.
The hose reel includes the following controls
• Spool directional and power controls
•Spool rotational speed (RPM)
• Two methods of spool rotation activation… both are “hands-off”.
-Momentary foot switch – a default setting when in the “load”
position.
-Auto-feed switch – a default setting when in the “unload”
position.
•The drive is always engaged and braking controls are automatic.
Therefore, there are no brakes to engage or disengage
Drive Features & Power
Requirements
•The reel can be run off a 115VAC, 15 amp circuit.
•Reel RPM and directional control is handled through a variable speed/soft-start AC motor control adjustable frequency drive. The vari
able frequency drive is a phase converter...1 to 3 phase.
•The reel motor is a 1 HP 3-phase continuous duty electric motor.
•Drive and motor protection against inertial forces is provided by an adjustable torque-limiter clutch located between the motor/gear box
and the reel spool. The torque limiter clutch provides quick braking action (less than half a revolution with a loaded reel at full rpm [20
RPM]) and a smooth interface between the spool’s high inertial forces and unit’s drive components.
Reel Capacities
•The Model HR 6000 Hose Reel is designed to carry up to 6000 feet of 3/4" hose (3/4" I.D. x 1.125"O.D.). 6000 or 3000 hose packages
are available.
Transportation & Storage
•The reel can be transported by common carrier. The reel can be loaded using a forklift (accessible from all 4 sides). Slings can also be
used.
•A transport trailer, specifically designed for the reel, is also available.
•As the reel is remote and not connected to the heating system, it can be stored out of the way or off the site when it is not needed.
•A tarp cover is provided to ensure weather and UV protection for the fluid circulation hose.
hose reel overview
DANGER! WARNING!
AWG 10 200 -
Required Wire Guage / Feet
AWG 14 0 - 100
AWG 12 100 - 200

Setup/Operation 4-1
Setup/Operation
Danger! It is very important that you read and understand this section before operating the hose reel! Failure to follow the procedures and
cautions in this manual could lead to injury or possible death!
The DRYAIR hose reel has two methods (modes) of activation. There are also several controls that are factory set, and normally do not require
adjustment.
Manual Controls
The Hose Reel has an automated “UNLOAD/LOAD” actuated controller, a manual method of
controlling the spool rotational speed (RPM) and a general ON/OFF switch.
Spool Direction Controller
The toggle switch (1-1) controls the main power to the hose reel. The hose reel controller
defaults to the “Mode 1 - UNLOAD” upon powering up and engaging the “auto-feed
control”. By connecting the foot switch, the controller switches to the “Mode 2 -LOAD” and
loads hose by depressing the foot switch which is momentary (will only operate when
depressed).
Mode 1 - UNLOAD
Mode 2 - LOAD
Mode 1 - “UNLOAD”
•When the switch is toggled to the “ON” position, reel activation will automatically default to the “auto-feed control”
•To use the “auto-feed control”, pull the roller forward to activate the reel and feed out enough hose that the hose can be passed under the
roller.
•Reel activation will now be automatic and the reel will “unload” the hose. When the hose is pulled in a direction away from the reel, the
hose will ride on the roller and cause the auto-feed arm to lift. When the auto-feed arm lifts, an attached plunger disengages from a limit
switch (internal) which, in turn, activates the reel.
Caution! When NOT operating the reel, put the toggle switch in the “Off” position to prevent accidental activation and possible injury.
When the hose reel is to be left unsupervised, the power cord should be unplugged from the power supply.
Mode 2 - “LOAD”
•When the switch is toggled to “ON” position and the foot switch connected to the hose reel, the reel will “load” the hose.
•The foot switch is momentary and will only operate when it is depressed.
•In the “LOAD” mode, the hose path should pass above the auto-feed mechanism roller.
•The hose must be directed manually into position on the hose reel.
Caution! Take care not to allow your hands, feet or clothing to become trapped by any of the reel’s moving mechanisms.
Spool Rotational Speed
•The adjustment knob (2-1) controls the reel R.P.M. Turning clockwise towards the “+” sign
to increase the RPM of the reel. Turn counter-clockwise towards the “-”sign to decrease the
R.P.M.
•Range - 0 – 20 R.P.M.
•RPM adjustment is required to ensure the operator maintain good control of the hose reel
operation.
•In Mode 1 - “UNLOAD” - Set the reel RPM to a rate that prevents the auto-feed
mechanism from galloping. The reel RPM should be set at a rate that allows the operator to
maintain tension on the hose and, therefore, keep the auto-feed mechanism arm in a lifted
position.
•In Mode 2 - “LOAD”- Set the reel RPM to a rate that allows the operator to maintain good
control of the loading process.
1-1
1 - ON/OFF switch
2-1
2 - RPM controller
DANGER! WARNING!

Setup/Operation 4-2
Automatic Controls & Settings
Altivar 11 - AC Drive
This section deals with Altivar 11 - AC Drive general information and specific Dryair settings only.
For complete specifications, operating information and Troubleshooting, refer to the “ALTIVAR 11 Adjustable Speed Drive Controllers Start-up
Guide” manual included in the manual case (located behind the access panel).
DANGER! HAZARDOUS VOLTAGE
Precautions
Electric shock will result in death or serious injury.
•Read and understand the “ALTIVAR 11 Adjustable Speed Drive Controllers Start-up Guide” before installing or operating the
ALTIVAR 11 drive controllers. Installation, adjustment, repair, and maintenance must be performed by qualified personnel.
•The user is responsible for conforming to all applicable code requirements with respect to grounding all equipment.
•Many parts in this drive controller, including printed wiring boards, operate at line voltage. DO NOT TOUCH. Use only electrically
insulated tools.
•DO NOT touch unshielded components or terminal strip screw connections with voltage
present.
•DO NOT short across terminals PA and PC or across the DC capacitors.
•Install and close all covers before applying power or starting and stopping the drive
controller.
•Before servicing the drive controller:
-Disconnect all power.
-Place a “DO NOT TURN ON” label on the drive controller disconnect.
-Lock the disconnect in the open position.
•Disconnect all power including external control power that may be present servicing the
drive controller. WAIT 15 MINUTES for the DC bus capacitors to discharge. Then follow
the DC bus voltage measurement procedure beginning on page 5 of the “ALTIVAR 11
Adjustable Speed Drive Controllers Start-up Guide” to verify that the DC voltage is less
than 45 Vdc. The drive controller LEDs are not accurate indicators of the absence of DC bus
voltage.
General information
Operating features of the Altivar 11-AC Drive includes:
•Ability to catch a spinning load after a supply break or on a start command for smooth take-up of a rotating machine.
•Dynamic braking possible, even for high inertia and unbalanced load applications.
•Optimal management of the motor due to flux vector control: 150% of the nominal current of the drive during 60 seconds with a 1:20
speed ratio.
Setup-Operation
The drive controller is factory set to the parameters required for optimal performance and minimal down time. The Altivar 11 drive factory
default settings are embedded in the drive controllers main board (EPROM). No power or activity for prolonged periods of time will not
affect the set parameters and therefore reprogramming the controller is not required.
See “Maintenance - Altivar 11 AC Driver, Auto/Manual Resets” section in the operators
manual for auto and/or manual reset procedures.
Auto-feed Control
•The auto-feed control (4-1) is factory set.
•If the setting has changed or the control is not activating properly, the plunger setting
needs to be checked:
See “Maintenance - Auto-feed Control” section of the operators manual for plunger
adjustment procedure.
4 - auto-feed control
4-1
3 – Altivar 11 AC Drive

Setup/Operation 4-3
Mechanical Drive Components
Access to the internal mechanical drive components is through the access door. This door must be removed.
Electric Motor (5-1)
•The electric motor used to drive the reel is manufactured by Marathon Electric.
•No regular maintenance is required.
•Make sure that, during operation or storage, the motor is not in prolonged
contact with moisture.
•Refer to the chart “Table 1- Electric motor features & data”, below for motor
data.
Note: This motor has no built-in thermal protection. Thermal protection is provided by
the “ALTIVAR 11 Drive Controller”.
6 - Hub City gear box
5 - Marathon electric motor
Table 1 - Electric motor features & data
Gear Box (6-1)
Gear box specifications
•HUB CITY - Series 260, Model 264 (FR-56C-70)
•Worm gear speed reducer
•60:1 gear reduction
•5/8" input shaft size
•1 1/8" output shaft
CAUTION
Do not operate the unit without ensuring it contains the correct amount of oil. Do not overfill or underfill with oil. Injury to personnel,
unit, or other equipment may result.
Oil should be changed with greater frequency if unit is used in severe environment (dusty or high humidity).
WARNING
Oil, housing, and other components can reach high temperatures during operation, and can cause severe burns. Use extreme care when
removing lubrication plugs and vents while servicing the unit.
See “Maintenance - Gear Box” section of the operators manual for Hub City Gear Box oil filling procedures, service & maintenance.
Model Number: 56T17F5310 Phase: 3
Catalog Number: G527 Volts: 208-230/460
Product Type: SQ CAGE IND RUN Insulation Class: B
Enclosure: TEFC F.L. Amps: 3.4-3.6/1.8
Frame: 56C Duty: CONTINUOUS
HP/KW: 1 Service Factor: 1.15
Frequency (HZ): 60 F.L. Eff.: 77
Speed (RPM): 1800 Bearing: BALL/BALL
Mounting: ROUND Thermal Protection: NONE
Motor Wt.: 26
Shaft Material: STANDARD Hazardous Location: NONE
Enclosure: TEFC Mounting: ROUND
Frame: 56C Electrical Type: STANDARD
Frame Material: Rolled Steel Spaceheaters: NONE
Shaft: T Orientation: Horizontal
Grease: STANDARD Conduit Assembly: F1
Product Feature
Mechanical Information
5-1
6-1

Setup/Operation 4-4
Torque Limiter Clutch (7-1)
•The Torque limiter protects the drive line from damage due to overload
conditions. The driven center member slips on non-asbestos friction discs
during overload situations in the drive line.
•Torque Ratings
GLI Model 350 w/ two springs
- minimum: 60 lb.-ft.
- maximum: 190 lb.-ft.
Please note that the torque ratings are estimates. Actual torque capacity may
vary significantly depending on many factors. Field conditions such as oil,
humidity, water and temperature as well as the frequency and duration of
slippage all affect torque capacity.
•Although the torque limiter clutch is factory
(Dryair) set, periodic adjustment may be
required. It is recommended the torque setting
of the clutch be checked twice per season (see
“Maintenance” section). With prolonged use,
the two friction disks, located on either side of
the A-plate sprocket, will eventually show
wear.
•It is important that the torque limiter clutch is
adjusted properly. If the clutch slips too easily,
the spool will take too long to stop and hose
will pile up on the reel. If the clutch does not
slip at all, the protection on the Altivar drive
will take over and the spool will again take too
long to stop.
Note: A visual check may be required to
confirm whether it is the clutch that is
slipping or whether it is the Altivar drive that is
automatically adjusting in an overload situation.
See “Maintenance - Torque limiter adjustment” of the operators manual for proper Torque adjustment and Run-in procedure.
Model 350 Torque Limiter
Adjusting Nut
Center Member
Pressure Plate
Set Screw
Hub
Bushing
Friction Disc
Lockwasher
Spring
7 - torque limiter clutch
7-1

Maintenance 5-1
Maintenance
Danger! It is very important that you read and understand this section before operating the hose reel! Failure to follow the procedures and
cautions in this manual could lead to injury or possible death!
Altivar 11 - AC Drive
This section deals with Altivar 11 - AC Drive general information and specific Dryair settings only.
For complete specifications, operating information and Troubleshooting, refer to “ALTIVAR 11 Adjustable Speed Drive Controllers Start-up
Guide” manual included in the manual case (located behind the access panel).DANGER HAZARDOUS VOLTAGE
Precautions
Electric shock will result in death or serious injury.
•Read and understand the “ALTIVAR 11 Adjustable Speed Drive Controllers Start-up
Guide” before installing or operating the ALTIVAR 11 drive controllers. Installation,
adjustment, repair, and maintenance must be performed by qualified personnel.
•The user is responsible for conforming to all applicable code requirements with respect to
grounding all equipment.
•Many parts in this drive controller, including printed wiring boards, operate at line voltage.
DO NOT TOUCH. Use only electrically insulated tools.
•DO NOT touch unshielded components or terminal strip screw connections with voltage
present.
•DO NOT short across terminals PA and PC or across the DC capacitors.
•Install and close all covers before applying power or starting and stopping the drive
controller.
•Before servicing the drive controller:
-Disconnect all power.
-Place a “DO NOT TURN ON” label on the drive controller disconnect.
-Lock the disconnect in the open position.
•Disconnect all power including external control power that may be present servicing the drive controller. WAIT 15 MINUTES for the
DC bus capacitors to discharge. Then follow the DC bus voltage measurement procedure beginning on page 5 of the “ALTIVAR 11
Adjustable Speed Drive Controllers Start-up Guide” to verify that the DC voltage is less than 45 Vdc. The drive controller LEDs are
not accurate indicators of the absence of DC bus voltage.
Auto Resets
The drive controller is factory set and will reload its factory default settings each time the AC line is connected. It will also automatically
start when recovering from a series of different faults.
Manual Resets
If a fault occurs due to a prolonged overload, overvoltage, undervoltage or phase failure, the control must be manually restarted. The control
can be restarted by:
1) Disconnect AC power and wait for at least 30 seconds for drive controller to power down.
2) Reconnect the AC power. This will re-initiate the factory default settings.
2 – Altivar 11 AC Drive
DANGER! HAZARDOUS VOLTAGE!

Maintenance 5-2
Auto-feed Control
•The auto-feed control is factory set and may require some minor adjustment.
•If the setting has changed or the control is not activating properly, the plunger setting needs
to be checked. An example of a situation requiring a check of the plunger setting would be
when the toggle switch is placed in the “ON” position (with the foot switch disconnected)
and the reel engages without the auto-feed control mechanism being lifted.
Note: Before servicing the “Auto-feed control”, disconnect all power and lock the disconnect in the
open position.
•Access to the internal auto-feed components is through the access door (2-1). This door
must be removed.
•First, visually check that the auto-feed control switch (3-2) is still properly positioned
and has not come loose.
•Then, with the “auto-feed control” in rest position, check that the plunger (3-1) stop
plate is in contact and closing out the switch.
•Normal operation - when the switch is in the depressed position, power is “off”. When
the switch is in the extended position, power is “on”.
•The plunger stop plate must make enough contact with the switch arm that the switch
is in the “off” position.
•Adjustment that causes the plunger stop plate to move past the ideal “stop” position,
and apply force to the switch will eventually lead to component damage.
Electric Motor
•The electric motor used to drive the reel is a Marathon.
•No regular maintenance is required.
•Make sure that the motor is not in prolonged contact with moisture during operation or storage.
Note: This motor has no built-in thermal protection. Thermal protection is provided by the “ALTIVAR 11 Drive Controller”.
2 - access door
3 - auto-feed switch and plunger
2-1
3-1
3-2
DANGER! WARNING!
Gear Box
Oil, housing, and other components can reach high temperatures during operation, and can cause severe burns. Use extreme care when
removing lubrication plugs and vents while servicing the unit.
•Do not operate the unit without making sure it contains the correct amount of oil. Do not overfill or underfill with oil, or injury to
personnel, unit, or other equipment may result.
•For proper operation in subzero conditions, it is mandatory that the following oil be used:
“Spartan EP 320 industrial gear oil”
…any other gear oil will void warranty!
Oil Filling Procedure
•Remove Fill and Breather Plug.
•Clean threads on the removed plugs and the plug holes with degreaser.
•Fill gear box with the recommended lubricant (see above) to a level near the center line of the uppermost horizontal shaft or until
lubricant comes out of the oil level plug hole.
•Install plugs secure in gear case.
Break-In Period
After the first 100 hours of operation, drain out initial oil, flush out the gear case with an approved non-flammable, non-toxic solvent, such
as Whitmore’s Flushing Oil (#06802030) or Medallion Flushing Oil Kosher (#06812010), and refill. Therefore, oil should be changed at
least every 2500 operating hours or every 6 months - whichever occurs first.
Note: Oil should be changed with greater frequency if unit is used in severe environments (dust or high humidity).
Maintenance & Operation

Maintenance 5-3
Torque Limiter Adjustment
•Although the torque limiter clutch is factory (Dryair) set, periodic adjustment may be required. It is recommended tha torque setting of
the clutch be checked twice a season. With prolonged use, the two friction disks, located on either side of the A-plate sprocket, will
eventually show wear.
•It is important that the torque limiter clutch is adjusted properly. If the clutch slips too easily, the spool will take too long to stop and
hose will pile up on the reel. If the clutch does not slip at all, the protection on the Altivar 11 drive will take over and the spool will
again take too long to stop.
Note: A visual check may be required to confirm whether it is the clutch that is slipping or whether it is the Altivar 11 drive that is auto
matically adjusting in an overload situation.
•Check that the clutch is adjusted properly with the following procedure:
Physical check
•With no power being applied to the reel, grip the edge of the spool plate and
apply full upward force, making sure that you are lifting with your legs and
not your back.
•You should be able to cause the clutch to just slip with full lifting force.
•If the clutch does not slip or slips too easily, refer to the “torque adjust
procedure”, below.
Torque adjust procedure
•Insure that the adjusting nut is in a finger tight position.
•If the adjustment nut is tighter than finger tight, loosen and complete
previous step.
•Match mark the adjusting nut with the hub. Using a torque wrench tighten
the adjusting nut to 50ft*lb.
After the break-away torque is set, bend the tabs of the lock washer over the
hex flats of the adjusting nut.
Note: The torque limiter clutch nut requires
a reasonable amount of force to adjust. Use
a torque wrench that provides you with at
least 18” of leverage.
Run-in procedure
•If the torque limiter has been taken apart
and reassembled or friction disks have been
changed, it is recommended that the clutch
be “run in” by “slipping” the center
member (sprocket).
•Insure that the adjusting nut is in a finger
tight position.
•Match mark the adjusting nut and hub.
Advance the adjusting nut ¼ turn from
finger tight.
•Slip the torque limiter sprocket for 8
minutes at full RPM.
•Refer back to the “Torque adjust proce-
dure” for final readjustment.
4 - torque limiter adjustment
Model 350 Torque Limiter
Adjusting Nut
Center Member
Pressure Plate
Set Screw
Hub
Bushing
Friction Disc
Lockwasher
Spring
