Dryfast DEH5 User manual

Instruction
manual
EN - NL - FR - DE
Electric heater
DEH5 / DEH9

Table of contents
General information ......................... P.3
Safety warnings ............................ P.3
Special safety instructions .................... P.3
Use...................................... P.4
Emergency ............................... P.4
Maintenance and cleaning .................... P.4
Storage................................... P.4
Specifications .............................. P.5
Instructions for power cable ................... P.6
Faults ................................... P.7
Algemene informatie.........................P.10
Veiligheidswaarschuwingen ...................P.10
Speciale veiligheidsvoorschriften ...............P.10
Gebruik...................................P.11
Noodgevallen ..............................P.11
Onderhoud en reiniging.......................P.11
Opslag ...................................P.11
Specificaties...............................P.12
Instructies koppeling.........................P.13
Storingen .................................P.14
Informations générales .......................P.17
Avertissements de sécurité....................P.17
Instructions spéciales de sécurité ...............P.17
Utilisez ...................................P.18
Urgence .................................P.18
Entretien et nettoyage........................P.18
Stockage .................................P.18
Spécifications ..............................P.19
Instructions pour l’accouplemen ............... P.20
Défauts ................................. P.21
Allgemeine Information ...................... P.24
Sicherheitshinweis ......................... P.24
Besondere Sicherheitshinweise................ P.24
Gebrauch ................................ P.25
Notfall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.25
Pflege und Reinigung ....................... P.25
Lagerung ................................ P.25
Technische Daten .......................... P.26
Anleitung Kupplung......................... P. 27
Störung ................................. P.28
Spare-parts & exploded view drawing DEH5 ...... P.31
Spare-parts & exploded view drawing DEH9 ...... P.32
CE-declaration DEH5 and DEH9 ............... P.3 3
EN DE
FOR ALL LANGUAGESNL
FR

3
EN ENGLISH USER MANUAL
General information
Product: Electric heater
Type: DEH5/DEH9
With an airflow of 793 m³/h (DEH5) and 1198 m³/h (DEH9) , these
heaters are suitable for heating medium-sized rooms such as
warehouses and workshops, optimally and cleanly.
The DEH5 is switchable between stage 1, where only the fan is
running, stage 2 with 2.5kW and stage 3 with 5kW. The DEH9 is
switchable between stage 1, where only the fan is running, stage
2 with 4.5kW and stage 3 with 9kW.
The step-less adjustable thermostat ensures comfortable heat up
to the set number of kW. The overheating protection contributes
to safe use of the heater in your operating situation. The relatively
quiet fan (48-49dB) makes this heater ideal for use in workshops.
Please note: the electric heaters are supplied without power
cord.
Safety warnings
• Always disconnect the appliance electrically before you
moves or carries out maintenance.
• Repairs to the electrical part of the machine may only be
carried out by an authorised and qualified company.
• Always operate the appliance on a power source with the
same voltage, frequency and power as indicated on the
product identification plate.
• The air inlet - and outlet must be free at all times.
• Do not use or place the appliance in rooms or environments-
with a risk of explosion.
• Do not use the device in aggressive atmospheres.
• Do not use the device on a metal surface.
• Do not use the device around children.
• Do not pierce or burn the device.
• Place the device stably on a solid surface.
• Do not use or operate the device with damp or wet hands.
• Do not expose the appliance and plug to water.
• Never insert objects or limbs into the appliance.
• Do not cover the appliance during operation.
• Do not sit on the device.
• The appliance is not a toy. Keep children and animals away.
• Do not leave packaging material lying around as it can be
dangerous for children.
• Only use the appliance under supervision.
• Before each use, check the accessories and their connecting
parts for possible damage. Do not use defective devices or
parts.
• Make sure that all electrical cables outside the device are
protected from damage (e.g. by animals). Never use the
device if electrical cables or the mains connection are
damaged!
• Plug into a fused socket.
• When using extension cords, unwind the extension cord fully.
Avoid electrical overloading.
• Before maintenance, care or repair work switch off the
appliance and pull the plug out of the socket (when doing so,
do not pull the cord but the plug only).
• Switch off the appliance and remove the plug from the socket
when you are not using the appliance.
• Never use the appliance if you notice any damage to power
cable or plug.
• When setting up the appliance, observe sufficient distance
from walls and objects as well as the storage and operating
conditions.
• Do not remove any safety symbols, stickers or labels from
the device. Keep all safety symbols, stickers and labels in a
legible condition.
• Parts of the appliance may become hot. Take special care
when particular care when children or other persons are
present.
Special safety instructions
• Before use, check the marking on the power cord. Depending
on the type of power cord, this appliance can be used in
different environmental conditions.
Type Applications Do not use in
H07RN-F domestic, warehouses, workshops,
construction sites and greenhouses
H05RN-F domestic, warehouses,
workshops or greenhouses
construction sites
H05RR-F domestic, warehouses and
workshops
construction sites or
greenhouses
When using an electrical appliance, basic
precautions should be observed as described below:
• The heater is not suitable for outdoor use in humid weather,
in bathrooms or in other wet or damp environments.
• Please note that the heater can get very hot and should
therefore be positioned at a safe distance (at least 30 cm )
from flammable objects such as furniture.
• Do not cover the stove.
• The stove must not be placed directly under a wall
socketplaced.
• Do not connect the stove with an on/off timer or other
equipment that can automatically switch the appliance on/off.
Operating Manual
This operating manual may not be reproduced, duplicated or
distributed without written permission from the manufacturer.
Important: Read the manual carefully before use. Keep the
manual for future reference

4
EN
• If an extension cord is used, it must be as short as possible
and always be fully unrolled. The extension cord must be
equipped with protective earth and must not exceed 10
metres long. The thickness of the wires must be at least 5 x
2.5².
• Do not use this heater in the immediate vicinity of a bathtub-
shower or a swimming pool.
• Do not place the device on moving vehicles or in a place
where it can easily tip over.
• Keep the stove far from curtains or places where the air
intake can be easily blocked.
• Do not dispose of electrical appliances as unsorted municipal
waste, but use separate collection facilities. Contact your
local authority for information about the available collection
systems. If electrical appliances are disposed of in the
wrong place, hazardous hazardous substances into the
groundwater and food chain that are harmful to your health
and well-being.
Use
Use the DEH electric heater only for heating of enclosed spaces.
These include areas such as: construction containers, warehouse
and production halls, workshops, garages and greenhouses.
First-time use
When using the heater for the first time, there may be a slight
smoke development. This is quite normal and will stop after a
short period of time. The heating element is made of stainless
steel and was treated with protective oil during production.
The smoke is caused by the protective oil burning off on first use.
• Position the heater so that it is straight on a solid surface
and at a safe distance from wet environments and flammable
objects.
• Connect the heater to the mains.
• Set thermostat knob to MAX and let heater run at full power.
• The stove will switch on when the heat switch is set to one of
the power settings.
• Once the room has reached the desired temperature the
heating element will stop working. However, the fan will
continue to operate. As soon as the temperature has dropped
below set point, the heating element will start working again.
The heater will now start, stop automatically and keep the
room temperature constant.
• Before switching off the heater, turn the thermostat to the
MIN position and turn the switch to the fan only position and
allow the appliance to cool for two minutes. Then turn off the
heater and pull the plug out of the socket.
Control panel
Left-hand knob: selector switch with heat settings
Right-hand knob: thermostat
Emergency
1. In the event of an emergency, ensure that the appliance is
switched off ASAP switched off and the plug is removed from
the socket.
2. Secure the environment, get everyone out of a possible
danger zone.
3. Do not reconnect a defective device!
Maintenance and cleaning
• Before cleaning the appliance, unplug it from the socket and
allow the appliance to cool down. The housing gets dirty
easily, therefore wipe it regularly with a soft sponge. For all
dirty parts, wipe with a sponge dipped in <50 °C water and a
mild detergent, then dry the stove housing with a clean cloth.
Ensure that water does not penetrate into the appliance. Do
not splash water on the stove, never use solvents such as
petrol etc. to clean the stove, this to protect the housing.
• Clean the power cable and plug, dry it and put these in a
plastic bag.
Storage
When storing the heater, first let it cool down and keep it dry.
Then cover the stove with a plastic bag, put it in a packing box
and store it in a dry, ventilated place.
Warranty
• Warranty applies only to appliances purchased from Dryfast
(via a dealer).
• The manufacturer provides a one-year manufacturer’s
warranty from the date of purchase on all parts except the
power cable
• In case of any modification both electrical and mechanical,
as well as misuse of the appliance through improper voltage
use, the guarantee becomes null and void.
• To obtain replacement parts under warranty proof of
purchase is required.

5
EN
Specifications
Product code DEH5 DEH9
Capacity 5kW 9kW
Settings 0,04 kW - 2,5 kW - 5 kW 0,052 kW - 4,5 kW - 9 kW
Voltage 400V 3~ 400V 3~
Current draw 7.2 A 13A
Fan type Axial Axial
Air flow 793 m³/h 1198 m³/h
Mobility Portable Portable
Dimensions L x W x H 270x255x400 mm 355x300x490 mm
Dimensions L x W x H (incl. box) 295x295x435 mm 365x315x520 mm
Weight (net) 5,6 kg 9,6 kg
Weight (gross) 6,3 kg 10,6 kg
Recommended Fuse 10A 16A
Control Thermostat Thermostat
Recommended Extension Cable (till 25 m) 5 x 2,5 mm² 5 x 2,5 mm²
Overheat protection 70°C 80°C
Maximum ambient temperature 25°C 25°C
Noise level 51 dB 55 dB
IP class IP24 IP24
Higest outlet temperature 95°C 94°C

6
EN

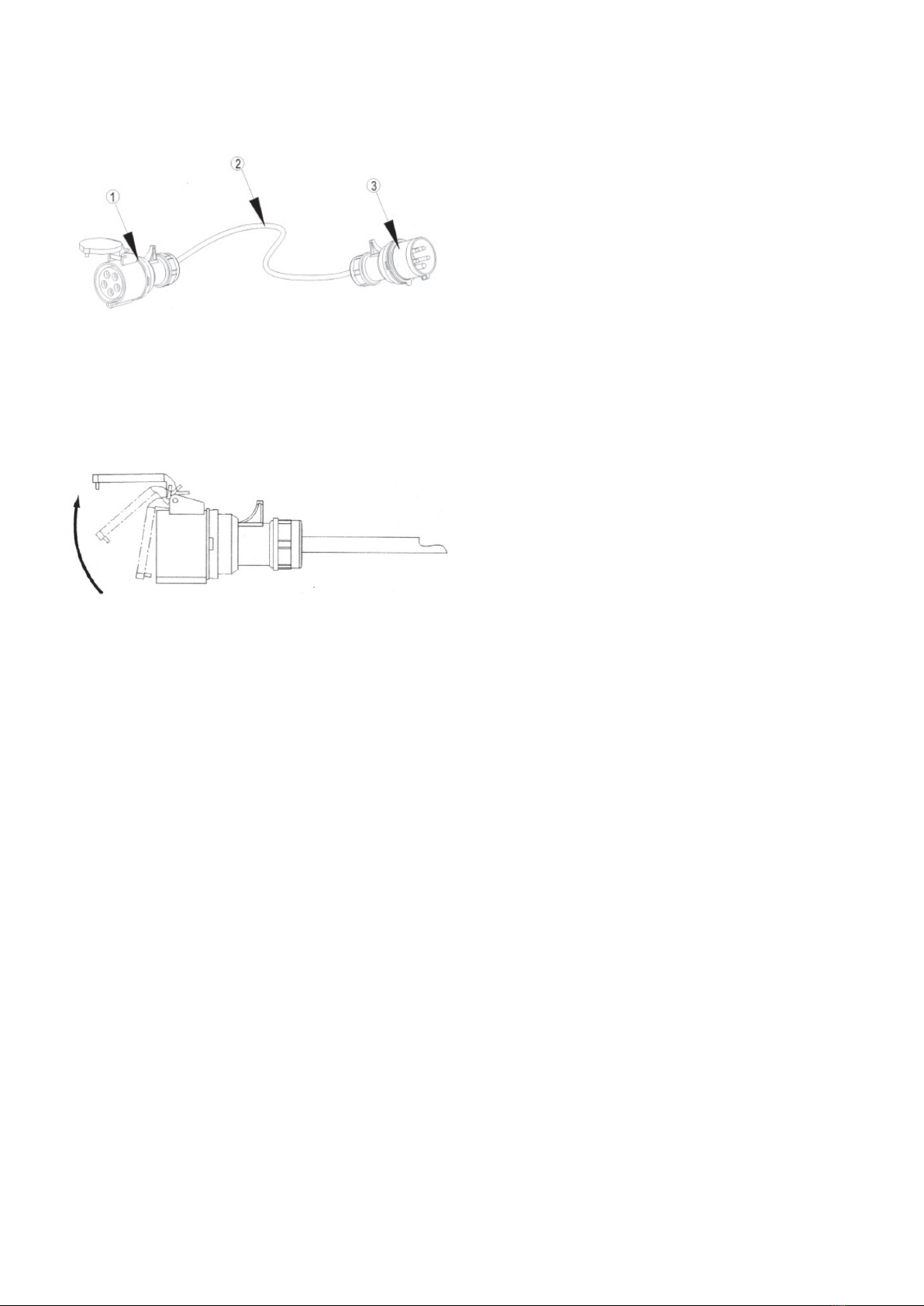

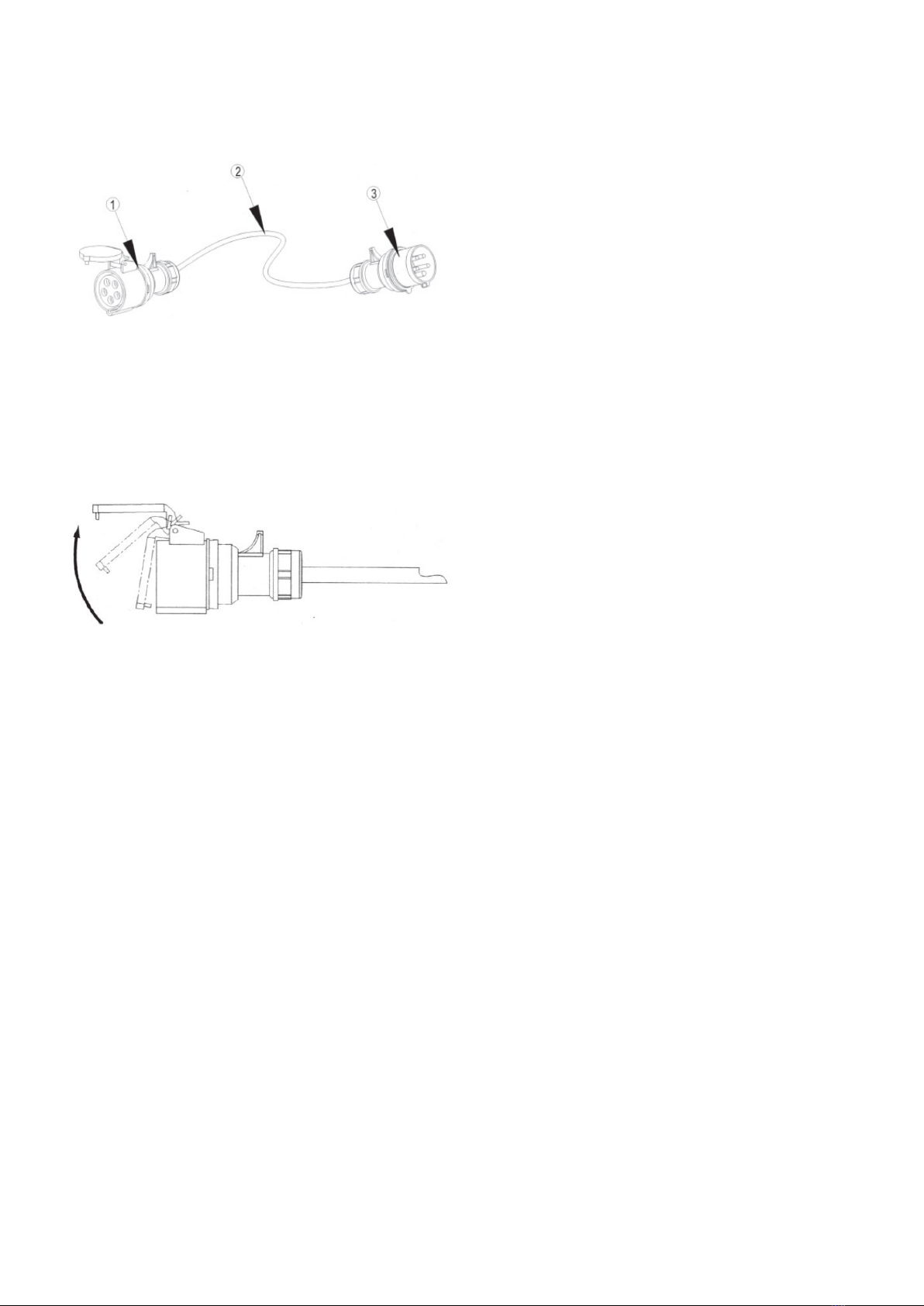

Instructions for power cable
1. Five-pin connector 380V / 415V 50 Hz/ 16A
2. Mains cable 5 x 2.5²mm
3. Five pin plug 380V / 415V 50 Hz / 16A
• The user must use the purchased power cable as shown on
‘figure 1’. The cable must match the appliance and extend
the earth connection. The coupling must be NEN approved.
• When connecting the power plug to the appliance, open the
cover and insert the plug into the power socket.
• After use, first switch off the appliance, pull the plug out of
the mains socket and then remove the plug from the heater
socket
Figure 1
Figure 2

7
EN
Faults
Problem Possible cause Solution
DEH9-The electric heater cuts out Because the heater has become too hot, the
thermal protection device caused it to switch
off.
A manual reset is required. Do this by pressing
the reset button (e.g. with a suitable screw-
driver) with appropriate pressure. This button
is located on the front panel, next to the
thermostat knob.
Caution: always unplug the electric from the
mains electricity supply first!
The heater does not work even when
it is connected and both the switch
and thermostat are switched on
The plug is loose, poor connectiong
_________________________
No power at the socket
Remove the plug from the socket, check
the connection of the plug and socket, then
connect again
_________________________
Plug into a proper socket
The heating element glows The input voltage is too high or too low
_________________________
The air inlet is blocked
Use the power supply according to the rating on
the label
_________________________
Keep the heater far away from items such as
curtains plastic bags, paper and other things
that could easily cover the air inlet
The appliance does not heat up or
only the fan is working
The switch is not set to the heating position
_________________________
The thermostat is switched on
_________________________
The self-resetting thermal protector is
enabled
Turn the switch to the heating position
_________________________
Turn the thermostat and listen if you hear a
click. If there is no click and the thermostat
is not damaged then the heater will switch
on automatically when the unit has cooled
down
_________________________
Switch off the heater and inspect for possible
blocking of inlet or outlet.
Disconnect the plug and wait
at least 10 minutes to reset the protection
system, before trying to restart the heater.
Abnormal noise The appliance is not level Place the heater on a level surface
Note: Do not attempt to fix malfunctions using unqualified personnel.
If the appliance is still not working properly, contact the dealer where you purchased the heater.

8
EN
Model: DEH5
Item Symbool Value Unit Item Unit
Heat output Type of heat input, only for local space heaters with electric storage (select
one)
Nominal heat output Pnom 5 kW Manual heat output control with integrated thermostat [no]
Minimum heat output (indicative) Pmin 2.5 kW Manual heat load control with room and/or outside temperature [no]
Maximum continuous heat output Pmax 5 kW Electric heating control with room and/or outside temperature [no]
Auxiliary electricity consumption Fan-assisted heat output [no]
At nominal
heat output elmax N/A kW Type of heat output / room temperature control (select one) [no]
At minimum
heat output elmin N/A kW Single-stage heat output and no room temperature control [no]
In standby mode elSB N/A W Two or more manual stages, no room temperature control [no]
With mechanical thermostat room temperature control [yes]
With electronic room temperature control [no]
Electronic room temperature control plus day timer [no]
Electronic room temperature control plus weekly timer [no]
Other control options (multiple selections possible)
Room temperature control, with presence detection [no]
Room temperature control, with window
detection [no]
With remote control option [no]
With adaptive start control [no]
With working time limitation [no]
With black bulb sensor [no]
Remark:
For local electric space heaters, the measured seasonal energy efciency for space heating cannot be worse than the specied value at the nominal
heat output of the unit.

9
EN
Model: DEH9
Item Symbool Value Unit Item Unit
Heat output Type of heat input, only for local space heaters with electric storage (select
one)
Nominal heat output Pnom 9 kW Manual heat output control with integrated thermostat [no]
Minimum heat output (indicative) Pmin 4.5 kW Manual heat load control with room and/or outside temperature [no]
Maximum continuous heat output Pmax 9 kW Electric heating control with room and/or outside temperature [no]
Auxiliary electricity consumption Fan-assisted heat output [no]
At nominal
heat output elmax N/A kW Type of heat output / room temperature control (select one) [no]
At minimum
heat output elmin N/A kW Single-stage heat output and no room temperature control [no]
In standby mode elSB N/A W Two or more manual stages, no room temperature control [no]
With mechanical thermostat room temperature control [yes]
With electronic room temperature control [no]
Electronic room temperature control plus day timer [no]
Electronic room temperature control plus weekly timer [no]
Other control options (multiple selections possible)
Room temperature control, with presence detection [no]
Room temperature control, with window
detection [no]
With remote control option [no]
With adaptive start control [no]
With working time limitation [no]
With black bulb sensor [no]
Remark:
For local electric space heaters, the measured seasonal energy efciency for space heating cannot be worse than the specied value at the nominal
heat output of the unit.

10
NL NEDERLANDSE GEBRUIKERSHANDLEIDING
Algemene informatie
Product: Elektrische kachel
Type: DEH5/DEH9
Met een luchtopbrengst van 793 m³/uur (DEH5) en 1198 m³/uur
(DEH9) zijn deze elektrische kachels geschikt om middelgrote
ruimtes zoals magazijnen en werkplaatsen, optimaal en schoon te
verwarmen.
De DEH5 is schakelbaar tussen stand 1 waarbij alleen de
ventilator draait, stand 2 met 2,5kW en stand 3 met 5kW. De
DEH9 is schakelbaar tussen stand 1 waarbij alleen de ventilator
draait, stand 2 met 4,5kW en stand 3 met 9kW.
De traploos instelbare thermostaat zorgt voor een comfortabele
warmte tot het ingestelde aantal kW. De overhittingsbeveiliging
draagt bij aan een veilig gebruik van de kachel in uw bedrijfssi-
tuatie. Door de relatief stille ventilator (48-49dB) is deze kachel
uitermate geschikt om in werkplaatsen te gebruiken.
Let op: de elektrische kachels worden zonder voedingskabel
geleverd.
Veiligheidswaarschuwingen
• Koppel het apparaat altijd elektrisch los voordat u het
verplaatst of onderhoud uitvoert.
• Reparaties aan het elektrische gedeelte van de machine
mogen alleen uitgevoerd worden door een daartoe bevoegd
en gekwalificeerd bedrijf.
• Gebruik het apparaat altijd op een voedingsbron met
hetzelfde voltage, dezelfde frequentie en hetzelfde vermogen
als aangegeven op het identificatieplaatje van het product.
• De luchtinlaat - en uitlaat dienen te allen tijde vrij te zijn.
• Gebruik en plaats het apparaat niet in ruimten of omgevingen
met explosiegevaar.
• Gebruik het apparaat niet in agressieve atmosferen.
• Gebruik het toestel niet op een metalen oppervlak.
• Gebruik het toestel niet bij kinderen.
• Het apparaat niet doorboren of verbranden.
• Plaats het apparaat stabiel op een stevige ondergrond.
• Gebruik of bedien het apparaat niet met vochtige of natte
handen.
• Stel het apparaat en stekker niet bloot aan water.
• Steek nooit voorwerpen of ledematen in het apparaat.
• Dek het apparaat niet af tijdens gebruik.
• Ga niet op het apparaat zitten.
• Het apparaat is geen speelgoed. Houd kinderen en dieren op
afstand.
• Laat het verpakkingsmateriaal niet rondslingeren. Voor
kinderen kan dit gevaarlijk zijn.
• Gebruik het apparaat alleen onder toezicht.
• Controleer voor elk gebruik van het apparaat de accessoires
en aansluitonderdelen hiervan op mogelijke beschadigingen.
Gebruik geen defecte apparaten of onderdelen.
• Zorg dat alle elektrische kabels buiten het apparaat zijn
beschermd tegen beschadigingen (bijv. door dieren). Gebruik
het apparaat nooit bij schade aan elektrische kabels of aan
de netaansluiting!
• Steek de stekker in een gezekerd stopcontact.
• Bij het gebruik van verlengsnoeren, rol het verlengsnoer
volledig uit. Voorkom elektrische overbelasting.
• Schakel voor onderhouds-, verzorgings- of reparatiewerk-
zaamheden het apparaat uit en trek de stekker uit het
stopcontact (trek hierbij niet aan het snoer van de stekker).
• Schakel het apparaat uit en verwijder het netsnoer uit het
stopcontact als u het apparaat niet gebruikt.
• Gebruik het apparaat nooit als u schade aan voedingskabel of
stekker constateert.
• Houd bij het opstellen van het apparaat rekening met de
voldoende afstand t.o.v. wanden en objecten evenals met de
opslag- en gebruiksomstandigheden.
• Verwijder geen veiligheidssymbolen, stickers of etiketten
van het apparaat. Houd alle veiligheidssymbolen, stickers en
etiketten in een leesbare toestand.
• Onderdelen van het apparaat kunnen warm worden Let
vooral goed op als kinderen of andere personen aanwezig
zijn.
Speciale veiligheidsvoorschriften
• Contoleer voor het gebruik de markering op het netsnoer.
Afhankelijk van het type netsnoer kan dit apparaat in
verschillende omgevingsomstandigheden worden gebruikt.
Type Toepassingsgebieden Niet gebruiken in
H07RN-F huishoudelijk, magazijnen,
werkplaatsen, bouwplaatsen en
kassen
H05RN-F huishoudelijk, magazijnen,
werkplaatsen of kassen
bouwplaatsen
H05RR-F huishoudelijk, magazijnen en
werkplaatsen
bouwplaatsen of
kassen
Bij gebruik van een elektrisch apparaat moeten altijd de basis
voorzorgsmaatregelen worden gevolgd zoals hieronder om-
schreven:
• De kachel is niet geschikt voor gebruik buitenshuis bij
vochtig weer, in badkamers of in andere natte of vochtige
omgevingen.
Bedieningshandleiding
Deze bedieningshandleiding mag zonder schriftelijke
toestemming van de fabrikant niet worden gereproduceerd,
vermenigvuldigd of verspreid.
Belangrijk: Lees de handleiding zorgvuldig vóór gebruik.
Bewaar de handleiding om deze later te kunnen raadplegen.
