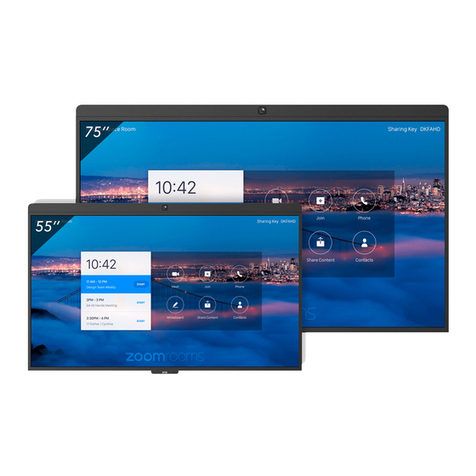

DTEN D7 Operating manual

55” User and Installaon Manual
D7
CERTIFIED HARDWARE
& Technology Partner

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 2
DTEN.COM
[e-mail]
[e-mail]
[phone]

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 2 DTEN D7 Single 55” User Manual [email protected] [email protected] Page 3
DTEN D7 SETUP
Warranty and Liability
DTEN oers a one-year limited warranty.
For full warranty informaon, see our online statement available at:
DTEN.COM.
DTEN accepts no liability for any losses or claims resulng from misuse or incorrect
installaon or operaon of this product, or any associated equipment.
INTRODUCTION
IMPORTANT SAFETY INFORMATION
UNBOXING INSTRUCTION
PACKAGE CONTENTS
CONFERENCE ROOM SETUP
WALL MOUNTING
D7 SET UP
• ATTACHING AV PANEL
• ATTACHING ANTENNA, ETHERNET AND POWER CORD
• POWER UP D7
ZOOM ROOMS SETUP
PRODUCT TOXIC OR HAZARDOUS SUBSTANCES STATEMENT
4
5
5
6
7
8
9
10
11
12
13

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 4
INTRODUCTION
The DTEN D7 is a complete ZOOM Rooms TOUCH conferencing
installaon, including all hardware and soware. The built-in, AI
enhanced, 16 element microphone array with 4K camera, oers a
best-in-class conferencing, wireless, screen sharing, and white boarding
experience. (All soware is pre-installed.)
The ZOOM Rooms conferencing applicaon is secure and highly
adaptable, allowing remote aendees on almost any plaorm or
hardware to fully parcipate. With the DTEN D7 conference room
installaon, aendees may also administer meengs or screen-share
from any connected laptop or tablet that is on the same network (with
the ZOOM Rooms App installed).
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 5
IMPORTANT SAFETY INFORMATION
Read and follow the informaon in this manual. Failure to follow instrucons,
warnings or statements of “Important” informaon may result in damage to the
equipment and/or personal injury. Keep these instrucons for future reference.
྇Verify that all connecons and aachments are correct according to these
instrucons before connecng the power.
྇Only aach the units to walls, surfaces or other equipment that is designed
and mechanically capable of supporng them.
྇Avoid placing the equipment near sources of heat or direct sunlight.
྇Keep all equipment in a dry and safe environment; avoid any contact with
liquids
྇All internal repairs must be performed by qualied personnel.
྇Disconnect equipment from the power cord during long periods of non-use.
྇During cleaning, always disconnect the power; then use a so dry or slightly
damp cloth.
྇Never use damaged equipment.
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com
Unboxing: Remove parts and packaging from the top of the box.

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 5 DTEN D7 Single 55” User Manual [email protected] [email protected] Page 6
PACKAGE CONTENTS
—DTEN D7 HD Interacve Unit
—AV Panel
—Wall Mounng Brackets
—Monitor Mounng Clips
—Wi-Fi Antenna x2
—D7 Stylus
—Power cord
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com

DTEN D7 Single 55” User Manual [email protected] [email protected] Page PB DTEN D7 Single 55” User Manual [email protected] [email protected] Page 7
CONFERENCE ROOM SETUP
For the best experience and to fully opmize the capabilies of the
hardware, follow these ps and suggesons regarding the layout and
arrangement of the conference room space.
• Units should be mounted at approximately eye level when standing,
in a central locaon, and in full view of all meeng parcipants.
• The space should be well lit.
• Fluorescent lighng is not recommended.
• Avoid bright lights, windows, or colors in the background behind
aendees.
• Parcipants’ faces should not be in shadow.
• Rooms with many hard surfaces may be acouscally “ambient”.
Acouscs can be improved by adding thick carpeng, sound
absorbing furniture (such as bookcases), or acousc panels/parons.
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 8
DTEN D7 monitors ship with wall mounng brackets, mounng
clips, plugs, and screws. The brackets should be wall mounted in an
appropriate locaon and the clips aached to the back of the monitors as
shown in the following pages.
The plugs and screws supplied are intended for use on masonry surfaces.
On drywall, it will be necessary to obtain cabinet grade mounng screws
of an appropriate size. And in some cases, it may be necessary to use
a backing board to ensure a structurally secure installaon in locaons
where there are no conveniently placed studs or the wall surface is
uneven or damaged.
WALL MOUNTING
Wall Bracket Mounng Clip
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com

DTEN D7 Single 55” User Manual [email protected] [email protected] Page PB DTEN D7 Single 55” User Manual [email protected] [email protected] Page 9
AV Panel
ATTACHING AV PANEL
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com
1
2
Magnec
Stylus
Holder
On the Display:
1. Aach the AV panel to the front (as shown).
2. The Stylus may be aached to the magnec clip/shoe.

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 10
With all connecons made:
1. Insert the power cord into the outlet.
2. Arrange or dress cables using es or tape.
On the PC:
1. Aach the Antennae at the rear, as shown.
2. Connect an Ethernet cable connected to the local network
(Recommended)
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com
1
1
2Ethernet
(Recommended – not supplied)
Antenna
Antenna
ATTACHING ANTENNA, ETHERNET AND POWER CORD

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 10 DTEN D7 Single 55” User Manual [email protected] [email protected] Page 11
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com
With the power connected:
• The unit will power up and ZOOM Rooms will launch.
(Note: In the event that the monitor does not power up, it may be necessary to press the
Power buon on the rear right hand of the Display.)
Menu Buons:
Volume Up
Volume Down
Menu
Power
POWER UP D7

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 12
ZOOM ROOMS SET UP
Prerequisite:
- ZOOM Rooms account. If you need to purchase ZOOM Rooms, visit
hps://zoom.us/pricing
Signing in to ZOOM Rooms
- Follow the instrucon: hps://support.zoom.us/hc/en-us/
arcles/115003659546-Signing-in-to-Zoom-Rooms
DTEN D7 Frequently Asked Quesons
- For more informaon visit: hps://support.zoom.us/hc/en-us/
arcles/360028757332-DTEN-D7-Frequently-Asked-Quesons
The content in this document is for reference only. Content is subject to change without noce.
For most updated informaon, please visit DTEN.com

DTEN D7 Single 55” User Manual [email protected] [email protected] Page 13
PRODUCT TOXIC or HAZARDOUS SUBSTANCES STATEMENT
Toxic or Hazardous Substance (Pb) (Hg) (Cd) (Cr?) PBB PBDE
Displays X O O O O O
Housing O O O O O O
PBCA* X O O O O O
Power cords and cables X O O O O O
Metal parts O O O O O O
Packing Materials O O O O O O
Speaker X O O O O O
Accessories O O O O O O
This table has been prepared in accordance with SJ/T11364.
* = PCBA includes the PCB and its electronic components. Packaging materials include the carton,
EPS, etc. Other accessories include the User Manual, etc.
O =The content of such toxic/hazardous substances in all homogeneous materials of such component
falls within the content limited in GB/T26572-2011.
X = the content of such toxic/hazardous substances in one or more homogeneous materials of such
component goes beyond the content specied in GB/T26572-2011.
The above table is prepared based on the data provided by our suppliers for each type of material and
is veried by us; the product contains hazardous substances. The hazardous substances contained in
some materials are irreplaceable at the current technological level although we are improving wherever
possible.
The environmentally friendly life of the product is 10 years when used in accordance with this manual.
Dispose of and recycle this product in accordance with local regulaons.
This equipment is a Class-A product and may produce radio interference in the environment.
