ImagePro 8066
Portable LCD Projector
• 2000 lumen brightness
• SVGA resolution
• Contrast Ratio 400:1
• Digital Keystone
• Easy to transport, only 5.1 lbs.
• Monitor loopthrough
• IR remote control
• HDTV ready
• Simple operation
8066
Composite
Video
S-Video
Audio
In
Audio
Out
Monitor
Out
Control
(RS-232)
Kensigton
Lock Slot
RGB
In 1RGB
In 2

The ImagePro 8066 is a portable LCD projector that
can be used in a variety of applications. It provides
outstanding color saturation and brightness. An auto
configuration makes it a snap to set-up and start your
presentation. Ample connections permit use in various
situations. In addition, the 8066 has a quiet fan so the
projector noise never inter-
feres with your message.
The light weight of the
ImagePro 8066, makes it
easy to carry. Use it as a
portable or mount it on the
ceiling with the optional
ceiling mount.
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: [phone]
[email protected]
www.dukcorp.com/av

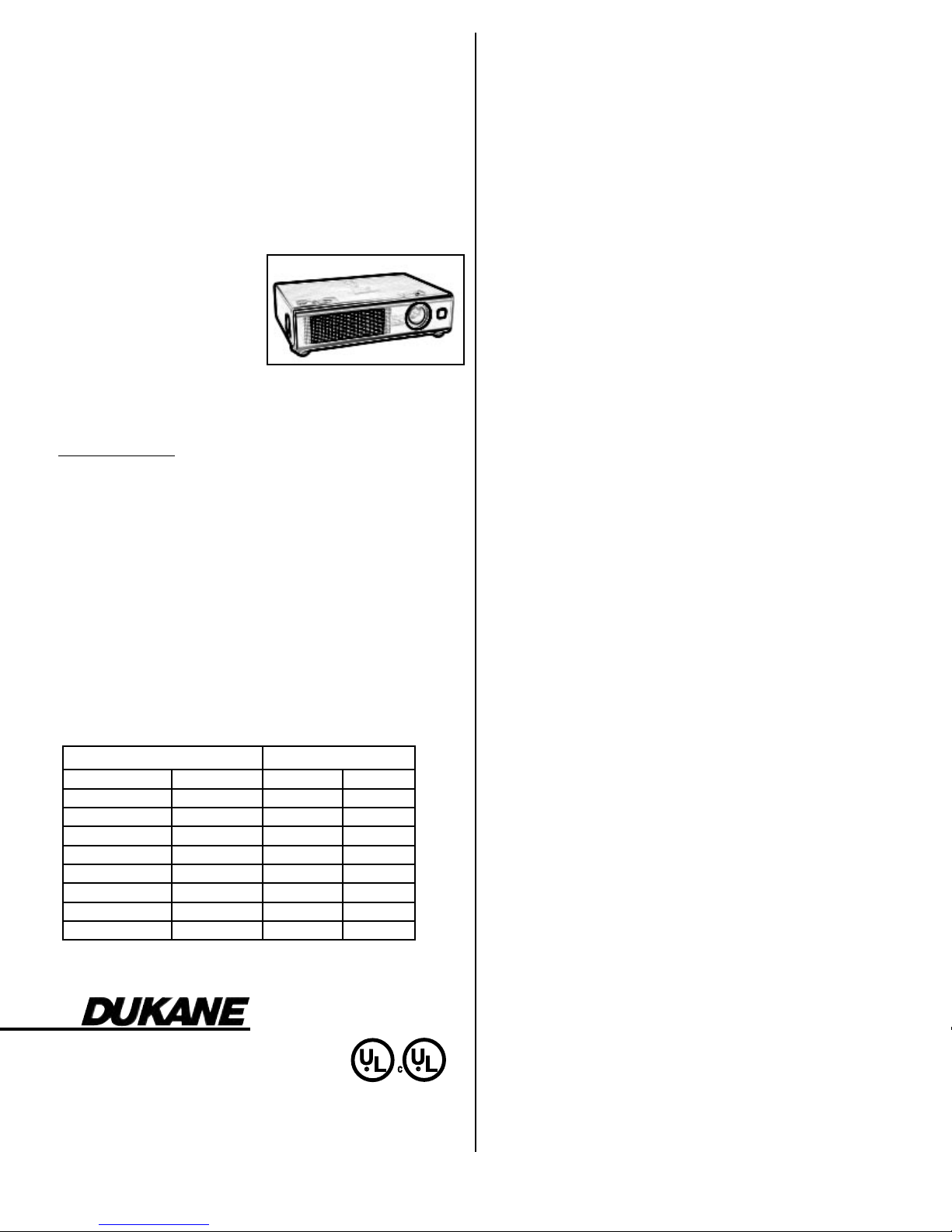

ImagePro 8066
Portable LCD projector
Key features:
• 2000 lumen brightness
• SVGA resolution
• Contrast Ratio 400:1
• Digital Keystone
• Easy to transport, only 5.1 lbs.
• Monitor loopthrough
• IR remote control
• HDTV ready
• Five Year Warranty and One Year Peace of Mind Service
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program.
5YR
8066 Projection Table
Throw Ratio (distance to width), 1.50 1.80
#11727-K-06 ImagePro is a registered trademark of Dukane Corporation
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
40 32 4.0 4.8
60 48 6.0 7.2
80 64 8.0 9.6
100 80 10.0 12.0
120 96 12.0 14.4
150 120 15.0 18.0
200 160 20.0 24.0
Specifications 8066
Image Element 0.6” polysilicon active-matrix TFT x3,
with micro lens
Brightness 2000 ANSI lumens
Resolution 800 x 600 pixels (H X V), SVGA
Contrast 400 to 1
Lens F 1.6 to 1.9, Manual zoom 1.2X
Lens Throw Ratio 1.5 -1.8 to 1 throw distance to
image width
Keystone Correction Digital, Vertical +/-15 deg,
Aspect Ratio Native, 4:3, or 16:9, compatible
Computer VGA, SVGA, XGA, SXGA, UXGA
Video Compatibility Mac 13” and Mac 16”, HDTV, 480i,
576i, 480p, 720p, 1080i
Component Video, Shared, with VGA input
Image Control Freeze function, Magnify 4X
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 165 W
Lamp Life 2000 hours, 3000 in whisper mode
Audio 1 speaker , 1 watt
Throw Distance 47” to 288”
Screen Size, diagonal 40” to 200”
Inputs, Video (1) Component, D-sub 15 pin, shared
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
(1) Audio In, Stereo mini jack 3.5mm
Inputs, Computer (2) RGB Signal: D-sub, 15 pin x 2
Outputs Monitor 15 pin, D-sub
Outputs, Audio (1) Audio Out, Stereo, mini jack
3.5mm
Outputs,Control PC control DIN 8 pin, RS-232
Security Kensington slot
Fan Level Ultra quiet, 33dB in Whisper Mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC220-240V
50/60 Hz, Auto Switching
Size (WxHxD) 11.22” x 2.87” x 7.94”
Weight 5.1 LBS.
Shipping Weight Not available at this time
Carton Size Not available at this time
Accessories Included Remote control, batteries, power cord,
RGB Computer cable, Filter Cover for
Ceiling use, and Operators manual
Safety UL/C-UL, FCC CLASS B, CE,
EN60950
Optional Accessories Lamp 456-8066
Rolling briefcase; 185-406,
Ceiling mount , universal; RPA-U
