Dukane ImagePro 8767 User manual

8767
ImagePro 8767
Portable Powerful LCD Projector
• 2000 lumen brightness
• XGA resolution
• Easy to transport, only 6 lbs.
• Full set of features, 3 inputs
• Monitor loopthrough
• Switched audio output
• Automatic keystone correction
• Wide angle zoom lens
RGB, PC or
Component, In
Audio, L/R
for Video S-Video
USB
Composite
Video
Control
by PC
Monitor,
Out
PC
Audio In
Audio
Out
Audio L/R,
for S Video

Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, Illinois 60174
800-676-2485 or 2486 toll-free
630-584-5156 fax
[email protected] e-mail
www.dukcorp/av.com
ImagePro is a registered trademark of Dukane Corporation
#11625-B-04
ImagePro 8767
Quality XGA LCD projector
Specifications 8767
Image Element 0.7” polysilicon TFT x3, MLA
Brightness 2000 ANSI lumens
(1600 lumens in Whisper Mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400 to 1
Scanning Frequency fh 15-100 kHz, fv 50-120 Hz
Lens Manual zoom f 21.6 to 25.9mm, 1.2X
Lens Throw Ratio 1.5 -1.8 to 1 throw distance
to image width
Keystone Correction Digital, vertical +/-30 deg, Automatic
Aspect Ratio 4:3, 16:9,with 4 modes selectable
Computer SVGA, VGA, XGA, and
Compatibility SXGA/UXGA Compressed,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM,
HDTV 1080i,1080i/50 Hz, 720p,
576p, 480i/p
Component Video, Horizontal res, 800TV line
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 205 W, 160W in whisper mode
Lamp Life 2000 hours, 3000 in whisper mode
Audio 1 speaker , 1 watt, mono
Throw Distance 29” to 432”
Screen Size, diagonal 21” to 300”
Inputs, Video Component, D-sub 15 pin, shared
S-video, Min DIN 4-pin,
Composite video, RCA x 1
Audio, Stereo, RCA x 2, for C-video
Audio, Stereo, RCA x 2, for S-video
Inputs, Computer RGB Signal: D-sub, 15 pin, shared
Audio, Stereo mini jack for PC
Outputs Monitor 15 pin, D-sub
Outputs,Control PC control DIN 8 pin, RS-232
Audio out, Stereo mini jack
USB Type B, mouse control
Security Kensington slot and code word
Fan Level Ultra quiet, 37 dB
32dB in Whisper Mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 90-120V, AC 220-240V
50/60 Hz, 260 watt, 7.5W standby
Size (WxHxD) 12.2” x 3.5” x9.1”
Weight 6.5 lbs.
Shipping Weight 12.6 lbs.
Carton Size 14.7” x 11” x 17.3”
Accessories Included Remote control, batteries, power
cord, Computer cable, USB cable,
operator’s manual and soft carry
case.
Safety UL/CSA, FCC/DOC Class B, CE
Optional Accessories Lamp 456-8766
Rolling briefcase; 185-406,
Ceiling mount, universal; PJF-UNV-S

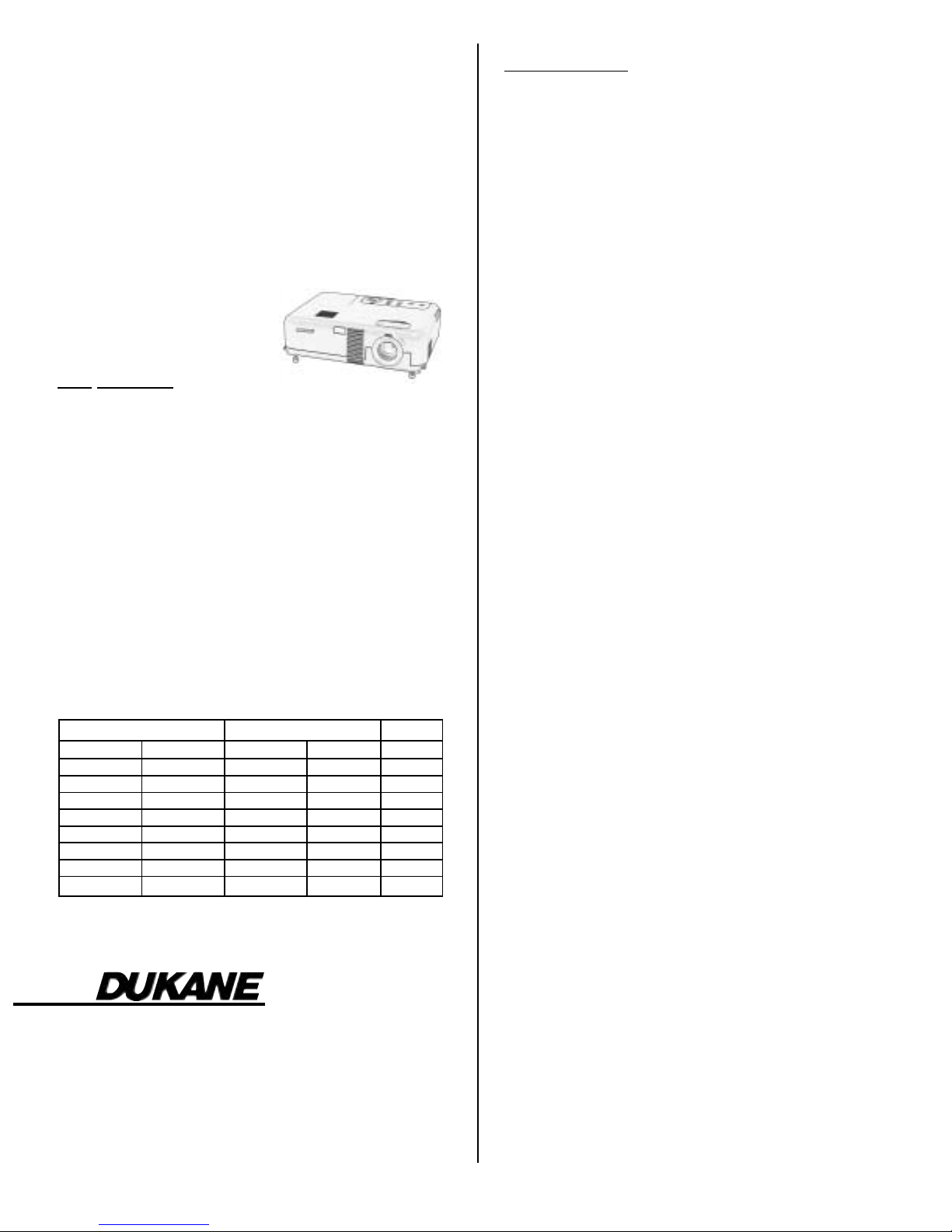

Key features:
The Dukane ImagePro 8767 is a projector that can be
easily moved around while still providing higher image
brightness and features to make your class or presenta-
tion easy. It is simple to use, transport, and can be setup
in a minute.
This full-featured LCD projector is ideal for classrooms,
conference rooms or other locations where a bright
image is required. Use it as a
portable or mount it on the
ceiling.
• True XGA (1024 x 768) resolution
• 2000 ANSI Lumens of brightness
• Vibrant rich colored images
• Easy carry 6 lbs.
• Flexibility with 1 computer and 2 video inputs
• Full function remote with mouse/cursor control
• Audio output switches with selection of either video or
computer source
• Wide angle zoom lens permits closer placement to
the screen
• "Silent Running" so you hear only your message
• Automatic vertical keystone correction
• Peace of Mind Service
Diagonal Width Min. Max. a*
Inches Inches Feet Feet Inches
40 32 3.9 4.7 2.3
60 48 5.9 7.1 3.5
100 80 10.0 12.0 5.8
120 96 12.0 14.4 7.0
150 120 15.1 18.1 8.7
210 168 21.1 25.3 12.2
300 240 30.2 36.3 17.4
a* = Distance Below Lens Center line.
Image Size 4:3
Throw Distance
8767 Image Size Distance Table
Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).Includes
Dukane’s FREE 1 year Peace-of-Mind Loaner Program .
2YR
