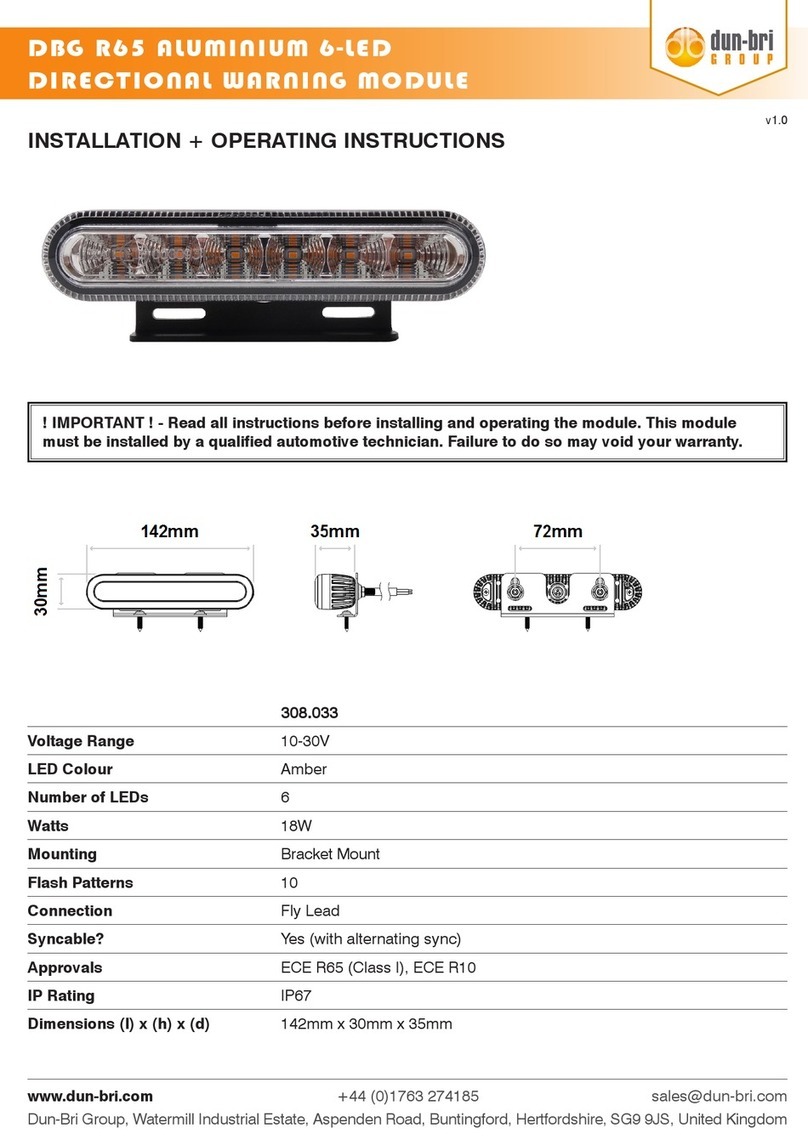

dun-bri GROUP DBG M33 Series Manual

DBG M33 SERIES R65 LED
WARNING MODULE
www.dun-bri.com [phone] [email protected]
Dun-Bri Group, Watermill Industrial Estate, Aspenden Road, Buntingford, Hertfordshire, SG9 9JS, United Kingdom
INSTALLATION + OPERATING INSTRUCTIONS
! IMPORTANT ! - Read all instructions before installing and operating the module. This module
must be installed by a qualified automotive technician. Failure to do so may void your warranty.
v1.1
308.033
Voltage Range 10-30V
LED Colour Amber
Number of LEDs 6
Watts 18W
Mounting Bracket Mount
Connection Fly Lead
Flash Patterns 10
Syncable? Yes (with alternating sync)
IP Rating IP67
Approvals ECE R10, ECE R65 (Class I)
Dimensions (l) x (h) x (d) 142mm x 30mm x 35mm

www.dun-bri.com [phone] [email protected]
Dun-Bri Group, Watermill Industrial Estate, Aspenden Road, Buntingford, Hertfordshire, SG9 9JS, United Kingdom
DBG M33 SERIES R65 LED
WARNING MODULE
! WARNING ! - Do NOT look directly at the LEDs when in operation to prevent damage to your eyes.
10 FLASH PATTERNS
01 Single Flash (100 FPM) 06 Double Flash (Left / Right Split)
02 Quad Flash (Left / Right Split) 07 Triple Flash
03 Five Flash (Left / Right Split) 08 Single Flash (ECE R65 Approved) (93 FPM)
04 Triple Flash (Left / Right Split) 09 Single Flash (ECE R65 Approved) (146 FPM)
05 Rapid Flash (1200 FPM) 10 Combination Flash
WIRING DIAGRAM
Latching Switch (On/Off)
+VDC
(RED WIRE)
Ground
Battery
ALT SYNC (GROUP 1)
GREEN WIRES (+)
Fuse (Required)
Supplied with 190mm length of cable
Fuse and switches NOT supplied
Momentary Switch (Change Flash Pattern)
(Not Connected)
ALT SYNC (GROUP 2)
GREEN WIRES (+)
SYNC
WHITE WIRE (+)
- VDC
(BLACK WIRE)
SYNCHRONISATION INSTRUCTIONS - Ensure
all modules are set to the same flash pattern.
Connect white wires of all modules together.
ALTERNATE FLASH INSTRUCTIONS - Ensure
all modules are set to the same flash pattern.
For GROUP 1: Connect all green wires to the
+VDC.
For GROUP 2: Do not connect green wires.
Unconnected wires must be sealed to
prevent any water ingress.
TO CHANGE FLASH PATTERNS - Apply white
wire to the +VDC between 0.5 - 2 seconds.
Applying for 2.5 seconds will revert back to
the first pattern. A simple momentary switch
will be sufficient.

www.dun-bri.com [phone] [email protected]
Dun-Bri Group, Watermill Industrial Estate, Aspenden Road, Buntingford, Hertfordshire, SG9 9JS, United Kingdom
MODULE LENS CLEANING
Occasional cleaning is recommended to ensure optimal
light output.
Although tough, polycarbonate scratches easily, so take
care when cleaning.
Clean lens with soap and water or a lens polish using a
soft cloth.
! WARNING ! - Do NOT use
solvents as they may damage
the lens.
! WARNING ! - Do NOT use
high-pressure washers or
automatic car washers. This
module is rated IP67.
MOUNTING + FITTING INSTRUCTIONS
Carefully unpack and inspect the module and all
accessories before installing to ensure there are no
damaged or missing parts.
Plan all cable routing before attempting installation and
ensure voltage compatibility.
Ensure there are no obstructions limiting visibility to
traffic when mounting.
If the module slides or moves easily, a proper installation
has NOT been attained.
! CAUTION ! - Disconnect the
battery before wiring up the
module to prevent accidental
shorting and/or electrical
shock.
! CAUTION ! - When drilling into
the vehicle surface, make sure
the area is free from anything
that could be damaged,
including any electrical wires,
fuel lines, upholstery, etc.

www.dun-bri.com [phone] [email protected]
Dun-Bri Group, Watermill Industrial Estate, Aspenden Road, Buntingford, Hertfordshire, SG9 9JS, United Kingdom
DBG M33 SERIES R65 LED
WARNING MODULE
MANUFACTURER’S WARRANTY
Dun-Bri Services Ltd warrants that on the date of purchase this product conforms to the specifications
(available on request). Dun-Bri Services Ltd further warrants that this product is free from defects in materials
and workmanship for 12 months from the date of purchase. Dun-Bri Services Ltd will at its discretion, repair or
replace any product found to be defective, subject to the Limited Warranty.
Damage to parts or products resulting from tampering, accident, abuse, misuse, negligence, unapproved
modifications, fire or other hazard, improper installation/operation or failure to maintain in accordance with the
reasonable maintenance procedures set forth in Dun-Bri Services Ltd’s installation and operating instructions
shall void the Limited Warranty.
Verbal statements or representation about this product made by salespersons, dealers, agents or other
representatives do not constitute part of the warranty agreement. This Limited Warranty may not be amended
or extended except by written agreement, signed by an authorised official of Dun-Bri Services Ltd, which
expressly refers to this Limited Warranty.
EXCLUSION OF OTHER WARRANTIES
Dun-Bri Services Ltd offers no further warranties, express or implied. The implied warranties for merchantability
or fitness for a particular purpose are hereby excluded and shall not apply to the product. The buyer’s sole and
exclusive option in contract, tort, or any other practice against Dun-Bri Services Ltd regarding the product and
its use shall be the replacement or repair of the product as described.
LIMITATION OF LIABILITY
In the event of liability for damages arising from this Limited Warranty or any other claim related to Dun-Bri
Services Ltd’s products, the liability for damages shall be limited to the amount paid for the product at the time
of purchase. Under no circumstances shall Dun-Bri Services Ltd be liable for lost profits, the cost of substitute
equipment or labour, property damage, or other special, consequential, or incidental damages based upon
any claim for breach of contract, improper installation or negligence. Dun-Bri Services Ltd shall not be liable for
any claim even if Dun-Bri Services Ltd or its representatives has been advised that damages of this nature are
sought. Dun-Bri Services Ltd shall have no further obligation or liability with respect to the product or its sale,
operation and use. Dun-Bri Services Ltd neither assumes nor authorises the assumption of any obligation or
liability in connection with this product.
Problem Probable Cause Solution
Module does not function
Wiring error Ensure module wiring is correct and all wire
connections are secure
Blown fuse Check wiring and fuse. Replace fuse
Incorrect flash pattern Wrong flash configuration Re-progam the flash pattern
TROUBLESHOOTING
All modules are performance tested prior to shipment. However, should you encounter a problem at any
time, please refer to the below table for repair solutions. Additional information may be obtained from the
manufacturer if required.
