Duncan EcoSeeder User manual

Owners Manual
Head Office:
P.O. Box 2018
Hilton Highway, Washdyke
Timaru, New Zealand
Telephone [phone]
Facsimile [phone]
Australian Branch:
4B Silverton Close
Laverton North 3026
Melbourne, Australia
Telephone [phone]
Facsimile [phone]
EcoSeeder
ORIGINAL INSTRUCTIONS
Pt. No. 67392
Issue 0918

1
Pt. No. 67392
Issue 0918
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Acquisition & Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Description of Machine Working Principle. . . . . . . . . . . . . . . . . . . . . . . 3
Dimensions & Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SAFETY - General Safety Symbols on Machine . . . . . . . . . . . . . . 6
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . 7
Be Prepared for Emergencies. . . . . . . . . . . . . 7
Appropriate Dress . . . . . . . . . . . . . . . . . . . . . . 8
Transport This Machine Safely . . . . . . . . . . . . 8
Handle Agricultural Chemicals Safely . . . . . . . 9
Avoid High Pressure Fluids. . . . . . . . . . . . . . . 9
Safe Work Practices . . . . . . . . . . . . . . . . . . . . 9
Practise Safe Maintenance . . . . . . . . . . . . . . . 10
SAFETY - Machine Specific Hazard Points . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Decals & Safety Guards. . . . . . . . . . . . 13
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sowing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Basic Calibration Procedure Gearbox Setting Lever . . . . . . . . . . . . . . . . . . 18
Setting Seeder Shutter Slides . . . . . . . . . . . . . 18
Bottom Flap Settings . . . . . . . . . . . . . . . . . . . . 18
Seed Calibration . . . . . . . . . . . . . . . . . . . . . . . 19
Hand Crank Turns for Seed Rate Calculation. 20
Use of Seed Rate Calculator. . . . . . . . . . . . . . 21
Calibration Deviations . . . . . . . . . . . . . . . . . . . 22
Sowing of Fine Seeds . . . . . . . . . . . . . . . . . . . 23
Sowing Small Seeds . . . . . . . . . . . . . . . . . . . . 24
Sowing Peas . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Hectaremeter Settings. . . . . . . . . . . . . . . . . . . 25
Calibration Notes. . . . . . . . . . . . . . . . . . . . . . . 27
Maintenance & Care General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Lubrication Instructions . . . . . . . . . . . . . . . . . . 29
Maintenance Schedule . . . . . . . . . . . . . . . . . . 30
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Troubleshooting/Maintenance Notes. . . . . . . . 33
Calibration Chart and Handy Hints . . . . . . . . . 34
(copies of chart that may be found inside box lid)
Parts List Base Machine . . . . . . . . . . . . . . . . . . . . . . . . . 39
Optional Extras . . . . . . . . . . . . . . . . . . . . . . . . 69
EcoSeeder Contents
Page

2
Introduction
Acquisition & Warranty
On delivery of your new Duncan EcoSeeder please check that
the machine is not damaged. In cases of shipping damage,
please ask your dealer to arrange for the appropriate claim
to be lodged immediately. Assemble any parts supplied
loose and inspect your machine with the aid of this manual to
familiarise yourself with its features. If you have any queries
ask your dealer straight away. The machine is covered by our
12 month warranty on faulty parts, subject to normal use.
Record below the serial number of your machine and keep
it in a secure place to help trace the machine and assist
us when you order parts.
The Owner’s Manual
Your new Duncan EcoSeeder will give long and efficient
service if given normal care and operated properly.
This owner’s manual is provided so that you can become
thoroughly familiar with the design of the machine and to
furnish information on correct operation, adjustment and
maintenance. Only persons well acquainted with these
guidelines should be allowed to use the equipment.
A separate illustrated parts section has been provided so that
if any parts are required your dealer will be able to supply
them by reference to part numbers.
The manual is considered as part of your machine and must
remain with the machine when it is sold.
Right and left hand references in this manual are
determined by standing behind the machine and facing in
the direction of travel.
Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial No:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Owner:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delivery Date:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disclaimer
Every effort has been made to
ensure that the information in this
manual was accurate and up to
date at the time of going to press.
Clough Agriculture reserves the
right to make subsequent changes
to the machine, where necessary,
without notification.
The Company will not be
responsible for any damage or
consequential loss arising out of
misinterpretation or failure to follow
recommended procedures. Nor will
it be liable for any damage caused
by or arising out of modification or
misuse of its product.
The owner has a responsibility to
protect himself and others by
observing all safety information
and by ensuring all operators are
well acquainted with the safety
information, trained in the correct
use of the machine and applying
safe work practices.
This Document contains the Original
Operating Instructions for this machine
and are verified by the Manufacturer,
Signed:...........................................
Product Development Manager

3
Pt. No. 67392
Issue 0918
Description of Machine
The Duncan EcoSeeder is a Tee-boot drill which can be
operated as a trailing or a 3 point linkage machine.
The seed box is mounted on a robust frame
accommodating large diameter tyres for the arable
situation. The depth of the ground engaging conponents
on the 3 point linkage machine is controlled by adjusting
turnbuckles fitted to each wheel leg. For the trailing
machine, the depth is controlled by using the hydraulic
rams and depth control collars on each ram. The quality
European type peg roller seeder system handles all
seeds from turnip and rape through to peas and maize.
The seeders are driven from one of the groundwheels
via a jockey wheel system and variable speed gearbox.
For transport the drive is easily disconnected by raising
the drill to its transport height.
Working Principle
The gearbox, pegged seed rollers and seeder flaps are
set to give the desired seed rate. The coil tine and T-
boot, create the seed bed. Seed flows down the flexible
tubes between seeder and tee-boot units, and drops into
the prepared seed bed.

4

5

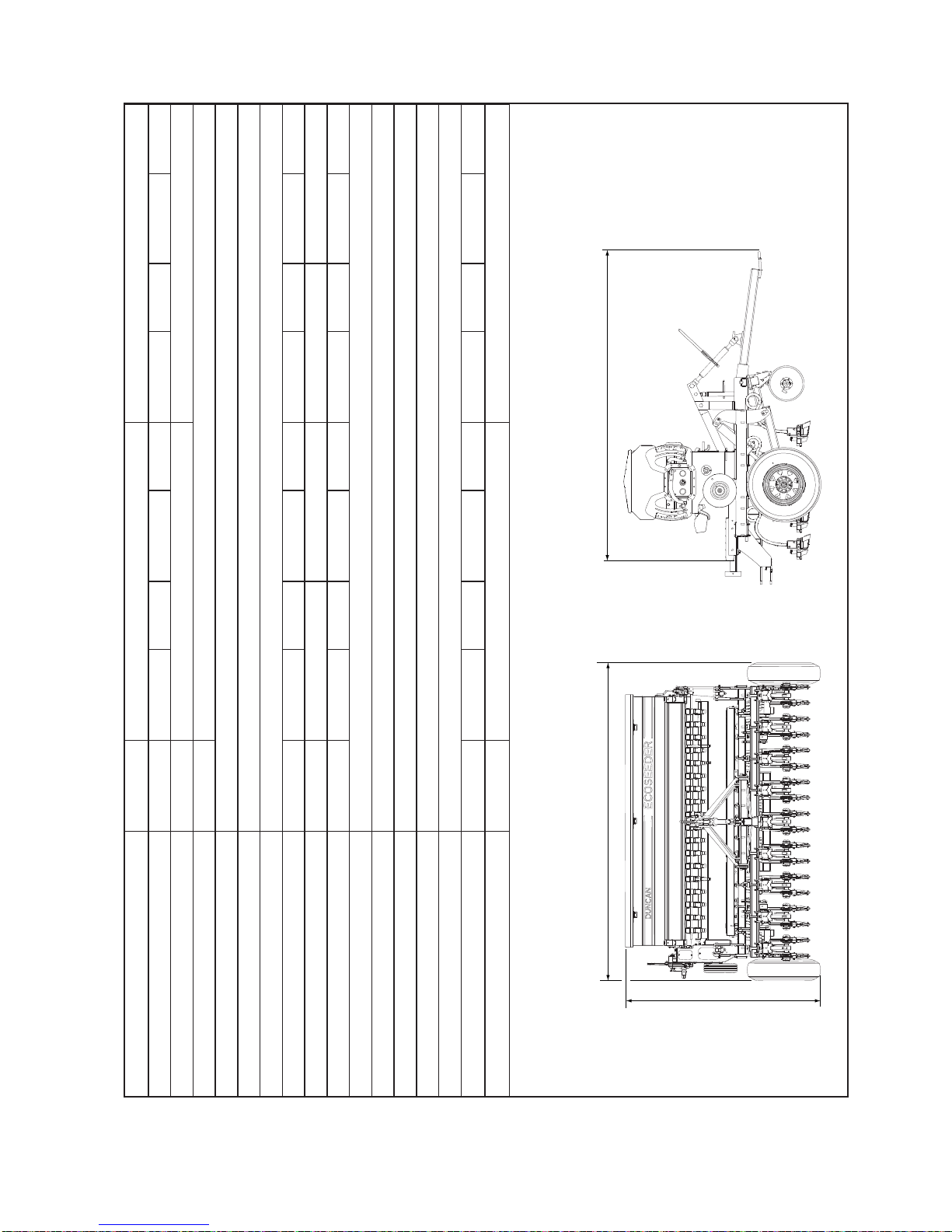

OVERALL LENGTH (refer specification table) (excluding optional rear tow-hitch)
HEIGHT (refer specification table)
WIDTH OVER WHEELS (refer specification table)
Dimensions &
Capacities
Pt. No. 67392
Issue 0918
Dimensions & Capacities 14 Run 16 Run 18 Run
Description S/B 3PL S/B Trailing S/B 3PL D/B Trailing D/B 3PL S/B Trailing S/B 3PL D/B Trailing D/B 3PL
Sowing Width (mm) 2079 2376 2673 Width (over wheels /mm) 2698 2995 Height (Groundwheels up /mm) 1623 Height (Groundwheels down /mm) 2000 Row Spacing (mm) 148.5 Weight inc. disc openers (kg) 731* 1050 998 1150 1098 1130 1078 1256 1204 Box Capacity (litres per box) 295 338 326 338 326 Overall Length (mm) 1685** 2720 1551 2870 1702 2856 1687 2870 1702 Tyre Size ST215/75D14 Recommended Tyre Pressure 2.76 bar (40psi) Maximum speed 40km/hr Jockey Tyre Size 410/350 x 6 x 4 ply Jockey Tyre Pressure*** 3.44 bar (50 psi) - TYRE IS FILLED WITH ANTI-PUNCTURE SEALANT***
S/B 3PL S/B Trailing S/B 3PL D/B Trailing D/B 3PL S/B Trailing S/B 3PL D/B Trailing D/B 3PL
14 Run 16 Run 18 Run
* No disc openers fitted ***Pressure gauges may be damaged if they are not filtered ** Length to linkage as no drawbar fitted

6

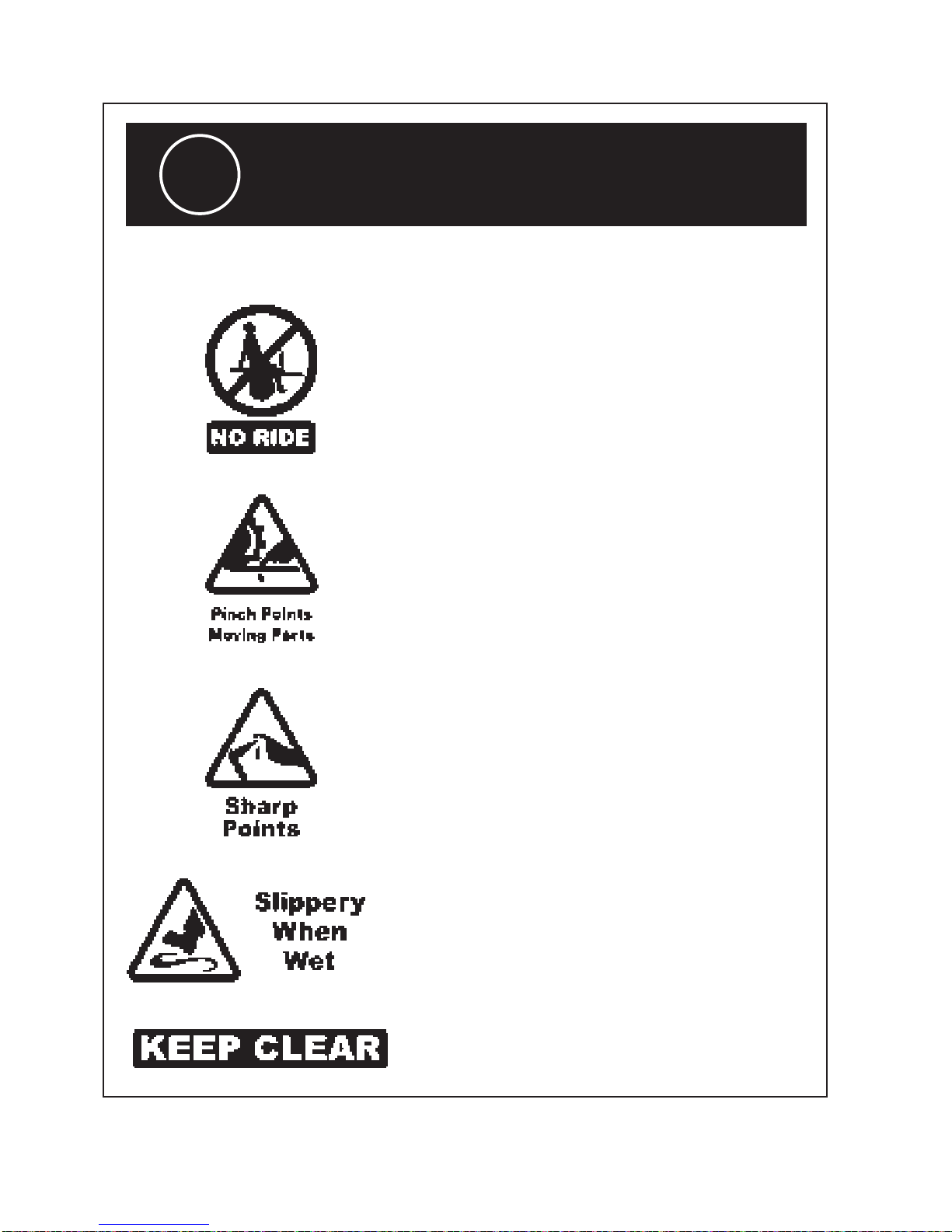

Do not ride or allow passengers on the machine.
Under no circumstances are passengers to be permitted
on the machine while it is in operation or being transported.
Any footboards and/or footsteps are provided solely for the
purpose of preparing the machine for use.
Keep clothing and body extremities well clear of pinch
points while the machine is operating (seeding or
calibrating). Keep well clear of moving parts at all times.
These signs typically occur wherever trapping points exist.
These include drive chains, sprockets, shafts, wheels, discs,
pivot points, etc. Guards are provided with the machine
for safety reasons (where practical without compromising
machine performance). Ensure these are always fitted
during operation.
Always exercise extreme caution in the vicinity of sharp
edges and points.
Where possible guards are provided with the machine
for safety reasons (where practical without compromising
machine performance). Ensure these are always fitted
during operation.
Footboards, footsteps, drawbars and other machine
surfaces may be slippery when wet.
Apply extra caution in wet conditions and in the early
morning when surfaces are wet.
Keep Clear. (It is dangerous to be in this area when the
machine is operating.)
!ATTENTION
On the machine important safety information is indicated by these symbols.
These highlight general safety aspects in regard to the machine rather than specific hazards.

7
Pt. No. 67392
Issue 0918
SAFETY - General
This section of the manual offers general guidelines
for the safe operation of machinery. It does not replace
local safety regulations. These guidelines were current at
the time of publication, but may be superseded by later
regulations.
Clough Agriculture has made every effort to highlight all
risks to personnel or property. Owners and operators have
a responsibility to exercise care and safe work practices at
all times in the vicinity of the machine.
Owners are advised to keep up to date on safety issues
and to communicate these to all users of the machine.
Contact the Occupational Safety and Health Service
(OSH) for further information about general safety aspects.
If you have safety concerns specifically related to this
machine, contact your dealer immediately.
Operator Safety
Read this manual carefully before operating new
equipment. Learn how to use this machine safely.
Be thoroughly familiar with the controls and the proper use
of the equipment before using it.
Take careful note of all safety instructions both in this
manual and on the machine itself. Failure to comply with
instructions could result in personal injury and/or damage
to the machine.
Replace missing or damaged safety signs on the machine
and ensure that these remain clearly visible.
It is the owner’s responsibility to ensure that anyone
who operates, adjusts, lubricates, maintains, cleans
or uses the machine in any way has had suitable
instruction and is familiar with the information in this
manual (particularly with regard to safety aspects).
Operators and other users of the machine should be
aware of potential hazards and operating limitations.
Be Prepared for Emergencies
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance,
hospital and fire department near your telephone.
N.B. Throughout this
manual important safety
information is indicated
by these symbols in the
margin:
A prohibition should
be observed under all
circumstances.
A warning indicates a
hazard that could cause
death or injury if the
warning is ignored.
A caution indicates a
hazard that may cause
damage to property if
the caution is ignored.

8
SAFETY - General (Continued)
Appropriate Dress
Wear close fitting clothing and avoid rings or other forms of
jewellery which could become caught in the machinery.
People with long hair must have it securely fixed and confined
close to the head.
Refer to local safety standards for protective clothing and
recommended safety equipment.
Adequate protection, such as a face mask, should be worn if
operating this machine in dry and dusty conditions.
Transport This Machine Safely
Ensure that all linkage pins and security clips are fitted correctly.
With trailing machines tow with the drawbar only, as this is the
only safe towing point on the machine.
Always check that bystanders (especially children) are well clear
(front and rear) before starting and moving the tractor and the
machine.
Plan safe routes of travel, and be aware of power lines and
other roadside hazards. Take particular care when towing
implements on hillsides.
Do not ride or allow passengers on the machine.
This machine is not designed to carry passengers, and no riders
are permitted.
Road transport
On public roads,
• A speed of 40km/h must not be exceeded.
• Do not operate during the hours of darkness unless standard
lights are fitted and clearly visible. (This also applies when
visibility is limited, e.g., in foggy conditions.)
See the guidelines in the Vehicle Dimensions and Mass Rule,
issued by the Land & Transport Safety Authority.
Avoid tip-overs
Avoid holes, ditches and obstructions which may cause the
machine to tip over, especially on hillsides. Never drive near the
edge of a gully or steep embankment - it might cave in. Slow
down for hillsides, rough ground and sharp turns.
