Duncan Renovator AS3000 User manual

Owners Manual
Head Office:
P.O. Box 2018
Hilton Highway, Washdyke
Timaru, New Zealand
Telephone [phone]
Facsimile [phone]
Australian Branch:
4B Silverton Close
Laverton North 3026
Melbourne, Australia
Telephone [phone]
Facsimile [phone]
AS3000/AS3500/DD30
‘Electric Drive Operation’
ORIGINAL INSTRUCTIONS
Pt. No. 67405
Issue 1113

1
Pt. No. 67405
Issue 1113
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Acquisition & Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Description of Machine Working Principle. . . . . . . . . . . . . . . . . . . . . . . 3
Setup, Calibration & Operating Procedure:
Read Before Operation. . . . . . . . . . . . . . . . . . 4
Pre-calibration setup flowchart . . . . . . . . . . . . 9
Calibration procedure . . . . . . . . . . . . . . . . . . . 10
DD30 Sowing Chart . . . . . . . . . . . . . . . . . 14
Airflow & Fan Speed . . . . . . . . . . . . . . . . . . . . 26
Alarm Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Renovator AS3000/3500 Contents
Page

2
Introduction
Acquisition & Warranty
On delivery of your new Duncan Renovator AS3000/3500
please check that the machine is not damaged. In cases of
shipping damage, please ask your dealer to arrange for the
appropriate claim to be lodged immediately. Assemble any
parts supplied loose and inspect your machine with the aid of
this manual to familiarise yourself with its features. If you have
any queries ask your dealer straight away. The machine is
covered by our 12 month warranty on faulty parts, subject to
normal use.
Record below the serial number of your machine and keep
it in a secure place to help trace the machine and assist
us when you order parts.
The Owner’s Manual
Your new Duncan Renovator AS3000/3500 will give long and
efficient service if given normal care and operated properly.
This owner’s manual is provided so that you can become
thoroughly familiar with the design of the machine and to
furnish information on correct operation, adjustment and
maintenance. Only persons well acquainted with these
guidelines should be allowed to use the equipment.
A separate illustrated parts section has been provided so that
if any parts are required your dealer will be able to supply
them by reference to part numbers.
The manual is considered as part of your machine and must
remain with the machine when it is sold.
Right and left hand references in this manual are
determined by standing behind the machine and facing in
the direction of travel.
Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial No:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Owner:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delivery Date:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disclaimer
Every effort has been made to
ensure that the information in this
manual was accurate and up to
date at the time of going to press.
Clough Agriculture reserves the
right to make subsequent changes
to the machine, where necessary,
without notification.
The Company will not be
responsible for any damage or
consequential loss arising out of
misinterpretation or failure to follow
recommended procedures. Nor will
it be liable for any damage caused
by or arising out of modification or
misuse of its product.
The owner has a responsibility
to protect himself and others
by observing all safety
information and by ensuring all
operators are well acquainted
with the safety information,
trained in the correct use of
the machine and applying safe
work practices.
This Document contains the Original
OperatingInstructionsforthismachine
and are verified by the Manufacturer.
Signed:......................................
Product Development Manager

3
Pt. No. 67405
Issue 1113
Description of Machine
The Duncan ‘Renovator AS3000/3500’ is a Coil Tine T-
boot drill.
The large split hopper is mounted on a robust frame
accommodating large diameter tyres.
Sowing depth is controlled by adjusting the hydraulic
ram as required. The quality European air metering units
handle all seeds from turnip and rape through to peas
and maize and permits easy calibration. The seeders
are driven via a radar ground speed proportional electric
drive system. Seeding ceases automatically when the
machine is raised into the transport postion.
Working Principle
The air flow and metering units are set to give the
desired sowing and/or fertilizer rate. The coil tine and T-
boot, create the seed bed. Seed flows down the flexible
tubes between seeder and tee-boot units, and drops
into the prepared seed bed. Optional tine harrows and
following roller enhance seed to soil contact.

4
‘Renovator AS3000/3500’ Read Before Operation
Components Referred to in the Pre-Calibration Setup and Calibration Process
The following pages describe how to set the machine up for calibration, the calibration process and
subsequent adjustments to obtain the desired seed and/or fertilizer output.
Terms and words used in those instructions are shown below:-
Adjustment Handle
Toggle
‘NORMAL’ POSITION
‘FINE’ POSITION
Only switch from
normal to fine seed
if the seed hopper is
empty
Do not open the
setting above ‘25’
with the toggle set to
‘fine’ as the adjuster
will break.
Metering Setting
Scale

5
Pt. No. 67405
Issue 1113
‘IDLER GEAR’
HIGH = PUSHED IN
LOW= PULLED OUT
Adjustment Handle
Normal/Fine Toggle
high (idler in)
low (idler out)
Venturi Housing
with Trap Door for calibration
& gate for controlled emptying
of the bin
Components Referred to in the Pre-Calibration Setup and Calibration Process
The following pages describe how to set the machine up for calibration, the calibration process and
subsequent adjustments to obtain the desired seed and/or fertilizer output.
Terms and words used in those instructions are shown below:-
Metering motor
& Gearbox
Shaft confirmation
sensor
Motor mount has been cut away to
show the idler gear
‘Renovator AS3000/3500’ Read Before Operation

6
‘Renovator AS3000/3500’ Read Before Operation
Components Referred to in the Pre-Calibration Setup and Calibration Process
The following pages describe how to set the machine up for calibration, the calibration process and
subsequent adjustments to obtain the desired seed and/or fertilizer output.
Terms and words used in those instructions are shown below:-
Clock
OUT OF WORK- the machine is raised up for turning or transport
‘AREA CUTOUT’
IN WORK- the machine is lowered ready for drilling
‘FAN SPEED’
‘CURRENT
APPLICATION
RATE’
‘MENU KEYS’
‘MAIN’ The default screen as shown above.
‘RATE’ This screen allows the drilling rate
to be adjusted.
‘INFO’Access information regarding area
and weights sown for each product.

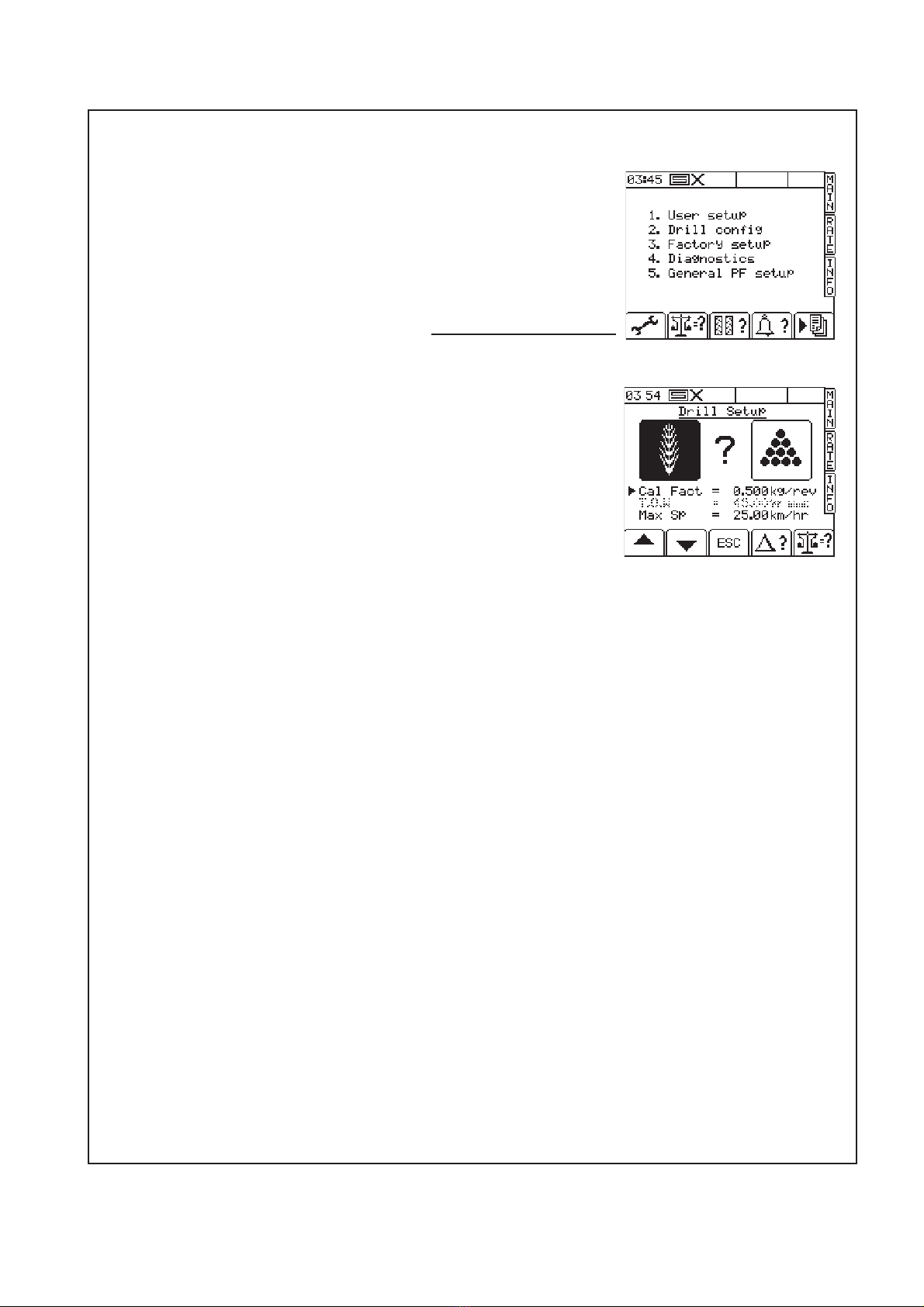

‘SETUP’ Machine setup and diagnostics
access screen
‘FORWARD
SPEED’
Power: ON/OFF ‘ENTER’
‘PRE-START
FUNCTION’
METERING: ON/OFF
(manual overide)
metering motor status
‘SUB-MENU SOFT KEYS’ -the function
changes for each screen. The icon above each
button is the function. On the MAIN menu as
shown, the ‘PRE-START’ and ‘METERING:ON/
OFF’ functions are available.
PRO-SERIES
HEAD UNIT

7
Pt. No. 67405
Issue 1113
‘Renovator AS3000/3500’ Read Before Operation
Components Referred to in the Pre-Calibration Setup and Calibration Process
The following pages describe how to set the machine up for calibration, the calibration process and
subsequent adjustments to obtain the desired seed and/or fertilizer output.
Terms and words used in those instructions are shown below.

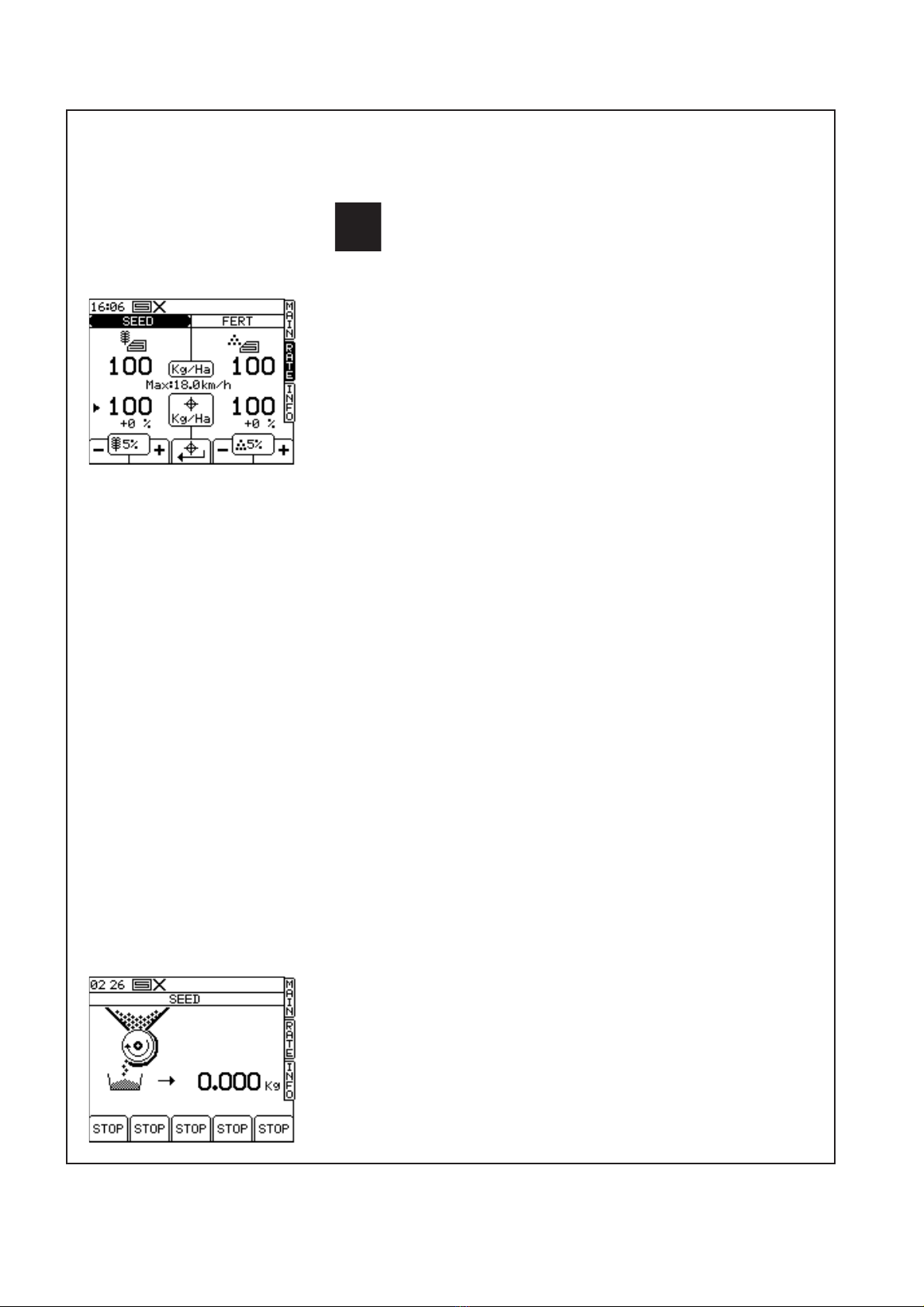

‘RATE’ Screen
To get to this screen from the ‘MAIN’ screen press the ‘RATE’ menu key.
This ‘RATE’ screen allows the drilling rate to be set and adjusted.
To toggle between SEED and FERT press the ‘RATE’ menu key again.
The picture below shows the SEED rate activated. If you enter a rate with the keypad, the display will
show the change. To keep this change, hit the ‘ENTER’ key.
The ‘CURRENT DRILLING RATE’ will then show and retain the value you entered.
To edit the settings for FERT, press the ‘RATE’ menu key to toggle the display.
‘CURRENT DRILLING
RATE’
‘TARGET RATE’
reset to ‘TARGET RATE’ (Hit ‘ENTER’ key)
manual overide of ‘TARGET RATE’
by % steps
The display may then issue a warning to indicate the maximum ‘FORWARD SPEED’
attainable for the selected rate.
If the machine has not been calibrated ignore these warnings until calibration is complete.
To maintain the requested drilling rate, the metering motors speed up in proportion to the
forward speed of the machine. The metering motors are protected by a speed and current
limit. If the forward speed exceeds the maximum advised, the metering motors will not be
able to deliver enough product. At normal rates and speeds this limit is never found. Note that
the indicated maximum is for the lowest of the 2 products shown.
max ‘FORWARD SPEED’
up to which the drilling
rate can be maintained

8
‘Renovator AS3000/3500’ Read Before Operation

9
Pt. No. 67405
Issue 1113

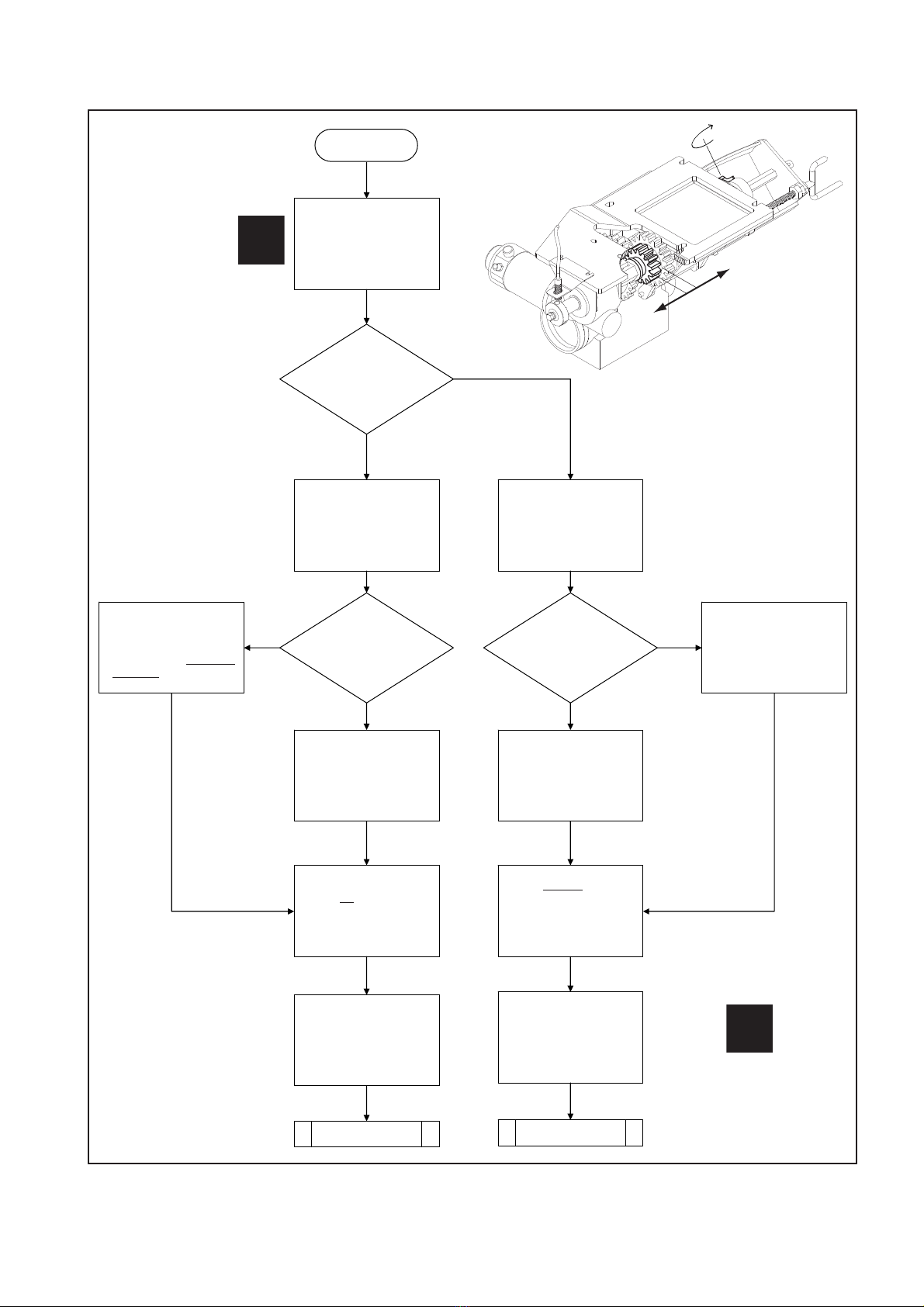

Start
Is seed size
between 4 and
10mm?
Locate product in 'Normal'
seed table.
Look up 'Setting Postion' for
desired output.
No
Yes
Is Setting Position
25mm or less?
No
Yes
Pull idler gear to 'out' position.
The metering shaft will rotate
at half speed for smoother
delivery at low rates. Look up
revised rates on 'Increased
Accuracy' chart for normal
sized seed.
Ensure that idler gear is
pushed in and not meshing to
the external gear. The
metering shaft will rotate at
high speed when seeding.
Turn handle on the metering
housing to the desired 'Setting
Position' for the chosen
product from the table.
Ensure that the normal/fine
toggle is not engaged with the
hex shaft and that the end is
pointing toward the metering
housing.
Locate product in 'Fine' seed
table.
Look up 'Setting Postion' and
'Rate' for desired output.
Does 'Rate' in
table specify
'low'?
Ye
s
No
Ensure that idler gear is
pushed in and not meshing to
the external gear. The
metering shaft will rotate at
high speed when seeding.
Ensure that the normal/fine
toggle is engaged with the hex
shaft. You will need to turn the
the metering handle so the
scale reads zero and engage
the toggle with the cutout in th
e
hex shaft.
Turn handle on the metering
housing to the desired 'Setting
Position' for the chosen
product from the table.
Perform Calibration -
refer to next page. Perform Calibration -
refer to next page.
Pull idler gear to 'out' position.
The metering shaft will rotate
at half speed.
Empty boxes and clear old
seed and fertilizer from
metering unit. high (idler in)
low (idler out)
normal/fine toggle
‘Renovator AS3000/3500’ Pre-Calibration Setup
Only switch from
normal to fine seed
if the seed hopper is
empty

10
‘Renovator AS3000/3500’ Calibration
Calibration
The calibration test should be done to confirm the settings of
the required seed rate and is done with the drill stationary and
level with the fan off.
The metering units must be set prior to filling with seed and
the bins are calibrated one-at-a-time.
Calibration Procedures
1 On the ProSeries head unit, navigate to the ‘RATE’
screen and enter the desired rate. Hit ‘ENTER’ to store
the value. Ignore max speed warnings at this stage.
2Prepare a suitable area for weighing and setup the
scales. Tare the scales with the same container that
will be used to weight the product. Scales must be
accurate to 2 grams
3 Ensure that the metering unit is free from debris. Close
the trap-door and the bin emptying gate.
4The metering unit should already be set. If not refer to
the pre-calibration flowchart on previous pages. Note
that it can be hard to adjust the settings once product is
in the bins.
5 Fill the appropriate bin. A minimum depth of 300mm is
required for calibration with normal seeds.
6Place a suitable container under the metering unit of the
bin to be calibrated.
7 Open the trap door.
8The calibration process can be in initiated in two ways:
(i) By pressing the appropriate ‘PRIMING SWITCH’
(ii) Via the SETUP menu.
Each of these methods are described in the next few
pages. The PRIMING SWITCH method is easier and
more convenient.
(i) Calibration via PRIMING SWITCH
(recommended)
1Press and hold the appropriate ‘PRIMING SWITCH’ for
1 second then release.
2The ProSeries Head Unit display will change as shown.
It is likely the operator will be standing near the priming
switches at this time so will not see the display. It is only
after weighing the dispensed product that the operator
need visit the tractor cab.

11
Pt. No. 67405
Issue 1113
Calibration via PRIMING SWITCH (continued)
3The appropriate metering unit will run until the PRIMING
SWITCH is pressed again. Product is collected in this
time. The operator is in control of the amount of product
metered out so is able to stop the metering unit when
the collecting container is at a suitable fill level.
4Weigh the contents of the container. Write down the
amount exactly as displayed. Do not round up or round
down the value measured. Scales must be accurate to
2 grams.
5 Enter the recorded value into the ProSeries head unit as
shown. Press ‘ENTER’ to confirm as requested.
Always use consistant units of measure ie grams or
Kilograms.
6 Press ‘ENTER’ again. The instrument will then calculate
the settings in order to correctly deliver the product. The
‘error’ value is only the difference between the new and
old settings. Subsequent recalibrations with the same
product will only report small differences.
7Press ‘ENTER’ again to confirm and store the new
settings.
8Repeat the calibration process. In this case, the ‘Error’
reported will be very small if any. Remember to press
the ‘ENTER’ key to accept the settings. This repeat
calibration is especially important if the metering units
have been adjusted from very different values since the
last time the machine was used.
9NOTE: If, when presing the priming switch the motors
do not turn but there are no other errors, it could be
that the previous calibration was wrongly entered. The
metering speed is out of the range of the motor speed.
This can be corrected by manually entering a ‘calibration
factor’ as follows:
(i) Press the ‘SETUP’ menu key.
(ii) Press the key below the wrench icon.
(iii) Use the up down left right arrows to select the
product. The left right arrows will appear when the
cursor is moved up one line from the ‘Cal Fact’.
(iv) Move the arrow to the ‘Cal Fact’ line, type 0.500
and hit the ‘ENTER’ key. (You need to enter the leading
zero as the machine will not accept the ‘.’ as a first
character.)
(v) Hit the ‘ESC’ key to return to the ‘SETUP’ menu or
hit the ‘MAIN’ key to return to the ‘MAIN’ menu.
(vi) Repeat the calibration process from step 1.
‘Renovator AS3000/3500’ Calibration

12
(ii) Calibration via ‘SETUP’ MENU
1Ensure that steps 1 to 8 at the top of page 21 have been
carried out prior to actual calibration.
2Navigate to the ‘SETUP’ screen by pressing the
‘SETUP’ key.
3Access the ‘Calibration Check’ screen by hitting the key
below the weighing scales icon.
4From the ‘Calibration Check’ screen select the product
that you want to calibrate by pressing the arrow keys
and confirm by pressing the ‘ENTER’ key.
5The screen will then prompt, “Enter weight required
here”. Enter the amount required. Hit ‘ENTER’ to
continue Remember to set and keep to consistant units.
Note that this is is only related to calibration and
weighing; it is not related to the sowing rate entered
on the ‘RATE’ screen earlier.
6The machine will dispense the amount you entered
based on the current settings. If the product or seeding
rates are different from the last time the machine was
used then the amount metered may not be as expected.
If you suspect that the calibration container will overflow
then you can stop metering process by hitting one of the
5 keys along the bottom of the screen.
7Once the machine has stopped the calibration delivery,
either because it has reached the amount you entered
or you forced it to stop, weigh the contents of the
container. Write down the amount exactly as displayed.
Do not round up or round down the value measured.
Scales must be accurate to 2 grams.
8 Enter the recorded value into the ProSeries head unit as
shown. Press ‘ENTER’ to confirm as requested.
Always use consistant units of measure ie grams or
Kilograms.
6 Press ‘ENTER’ again. The instrument will then calculate
the settings in order to correctly deliver the product. The
‘error’ value is only the difference between the new and
old settings. Subsequent recalibrations with the same
product will only report small differences.
7Press ‘ENTER’ again to confirm and store the new
settings.
8Repeat the calibration process. In this case, the ‘Error’
reported will be very small if any. Remember to press
the ‘ENTER’ key to accept the settings. This repeat
calibration is especially important if the metering units
have been adjusted from very different values since the
last time the machine was used.
‘Renovator AS3000/3500’ Calibration

13
Pt. No. 67405
Issue 1113
(ii) Calibration via ‘SETUP’ MENU continued
9NOTE: If, when presing the priming switch the motors do
not turn but there are no other errors, it could be that the
previous calibration was wrongly entered. The metering
speed is out of the range of the motor speed.
This can be corrected by manually entering a ‘calibration
factor’ as follows:
(i) Press the ‘SETUP’ menu key.
(ii) Press the key below the wrench icon.
(iii) Use the up down left right arrows to select the
product. The left right arrows will appear when the
cursor is moved up one line from the ‘Cal Fact’.
(iv) Move the arrow to the ‘Cal Fact’ line, type 0.500
and hit the ‘ENTER’ key. (You need to enter the leading
zero as the machine will not accept the ‘.’ as a first
character.)
(v) Hit the ‘ESC’ key to return to the ‘SETUP’ menu or
hit the ‘MAIN’ key to return to the ‘MAIN’ menu.
(vi) Repeat the calibration process from step 1.
‘Renovator AS3000/3500’ Calibration

20
NORMAL SEED (toggle NORMAL, Butterfly Valve Settings shown below and on page 22)
PRODUCT SPECIFIC
GRAVITY (kg/l) Setting
Position> *10* *15* *20* *25* 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110
RATE*
Wheat 0.77 high 34 51 69 86 104 122 140 157 174 192 210 228 246 264 281 298 316 335 352 370 387 Oats 0.5 high 24 35 47 59 71 82 94 106 118 130 141 153 165 177 189 200 212 224 236 248 260 Barley 0.68 high 32 48 64 79 95 111 127 143 159 174 190 206 222 238 253 268 284 300 316 332 348 Ryecorn 0.74 high 33 49 66 83 100 117 134 151 168 184 200 217 235 252 269 286 302 319 337 354 371 Peas 0.81 high 21 40 59 78 97 117 136 155 174 194 213 232 251 270 289 309 328 347 366 385 404 Grass 0.36 high 18 26 34 42 50
Pasture Mix - high 18 26 34 42 50
DAP 1.03 high 39 58 77 97 116 135 155 174 193 213 232 251 270 290 309 328 348 367 386 406 425 Superphosphate 1.26 high 34 70 109 138 171 204 235 266 303 336 366 390 421 451 489 524 558 586 622 660
INCREASED ACCURACY FOR SETTING POSITION<25mm (toggle NORMAL, Butterfly Valve Settings shown below and on page 22)
PRODUCT SPECIFIC
GRAVITY (kg/l) Setting
Position> *10* *15* *20* *25* 30
RATE*
Wheat 0.77 low 17 25.5 34.5 43 52 Oats 0.5 low 12 17.5 23.5 29.5 35.5
Barley 0.68 low 16 24 32 39.5 47.5 Ryecorn 0.74 low 16.5 24.5 33 41.5 50 Peas 0.81 low 10.5 20 29.5 39 48.5 Grass 0.36 low - 9 13 17 21 Pasture Mix - low - 9 13 17 21
‘Enviro DD30’ Sowing Chart Normal
Box contents Butterfly Position (affects rear box) Fan Speed/rpm*
FRONT REAR
seed (Normal) seed (Normal) open - 5 2000 seed (Normal) seed (Fine) closed - 1 2000
Fertilizer seed (Normal) closed -2 2000 to 2500 Fertilizer seed (Fine) closed - 1 2000 to 2500
1
5
2
3
4
*MAXIMUM PERMISSABLE SPEED 4000 RPM

21
Pt. No. 67394
Issue 0913
FINE SEED (toggle ‘FINE’, Butterfly Valve Settings shown below and on page 22)
PRODUCT SPECIFIC GRAVITY (kg/l) Setting Position> 2.5 5 7.5 10 12.5 15 17.5 20 22.5 25
RATE ONCE SET DO NOT REDUCE/CLOSE WITH SEED IN BIN**
Lucerne (Alfalfa) 0.77 low 1.10 3.06 4.60 6.49 7.93 9.34 11.28 12.95 14.39 15.50
Turnip 0.65 low 1.10 2.30 3.40 4.55 5.70 6.85 7.95 9.10 10.25 11.40
Kale 0.65 low 1.10 2.30 3.40 4.55 5.70 6.85 7.95 9.10 10.25 11.40
Swedes 0.65 low 1.10 2.30 3.40 4.55 5.70 6.85 7.95 9.10 10.25 11.40
Canola/Rape 0.65 low 1.10 2.30 3.40 4.55 5.70 6.85 7.95 9.10 10.25 11.40
White Clover 0.77 low 1.15 2.65 4.30 6.00 7.65 9.00 10.65 12.00 13.30 13.75
Red Clover 0.77 low 1.15 2.65 4.30 6.00 7.65 9.00 10.65 12.00 13.30 13.75
Grass 0.36 low 1.40 2.60 3.60 4.60 5.60 6.60 7.50 8.10
Millet 0.64 low 1.12 2.30 3.64 4.80 5.80 6.80 8.20 9.20 10.30
Grain Sorghum 0.56 low 0.32 2.80 6.00 7.50 8.50 10.50 12.20 13.70 15.70
Forage Sorghum 0.56 low 0.32 2.80 6.00 7.50 8.50 10.50 12.20 13.70 15.70
Chicory 0.54 low 0.58 1.84 2.90 4.08 5.06 6.24 7.53 8.61 9.54 10.39
Lucerne (Alfalfa) 0.77 high 2.20 6.12 9.20 12.98 15.86 18.68 22.56 25.90 28.78 31.00
Turnip 0.65 high 2.20 4.60 6.80 9.10 11.40 13.70 15.90 18.20 20.50 22.80
Kale 0.65 high 2.20 4.60 6.80 9.10 11.40 13.70 15.90 18.20 20.50 22.80
Swedes 0.65 high 2.20 4.60 6.80 9.10 11.40 13.70 15.90 18.20 20.50 22.80
Canola/Rape 0.65 high 2.20 4.60 6.80 9.10 11.40 13.70 15.90 18.20 20.50 22.80
White Clover 0.77 high 2.30 5.30 8.60 12.00 15.30 18.00 21.30 24.00 26.60 27.50
Red Clover 0.77 high 2.30 5.30 8.60 12.00 15.30 18.00 21.30 24.00 26.60 27.50
Grass 0.36 high 2.80 5.20 7.20 9.20 11.20 13.20 15.00 16.20
Millet 0.64 high 2.24 4.60 7.28 9.60 11.60 13.60 16.40 18.40 20.60
Grain Sorghum 0.56 high 0.64 5.60 12.00 15.00 17.00 21.00 24.40 27.40 31.40
Forage Sorghum 0.56 high 0.64 5.60 12.00 15.00 17.00 21.00 24.40 27.40 31.40
Chicory 0.54 high 1.16 3.68 5.80 8.16 10.12 12.48 15.06 17.22 19.08 20.78
**Setting may only be reduced by a large amount if unit is turning or bin and metering device clear of
product else damage will occur. Do not open the setting above ‘25’ with the toggle set to ‘fine’ as the
adjuster will break.
‘Enviro DD30’ Sowing Chart Fine
Box contents Butterfly Position (affects rear box) Fan Speed/rpm*
FRONT REAR
seed (Normal) seed (Normal) open - 5 2000
seed (Normal) seed (Fine) closed - 1 2000
Fertilizer seed (Normal) closed -2 2000 to 2500
Fertilizer seed (Fine) closed - 1 2000 to 2500
* MAXIMUM
PERMISSABLE
FAN SPEED
4000 RPM

26
‘Renovator AS3000/3500’ Airflow & Fan Speed
Airflow and Fan Settings
1. The return hose for the hydraulic fan must only be connected to the tractor’s
low pressure return circuit.
If this is not carried out, the hydraulic motor seals will fail.
The hose is fitted with a 3/4” female Quick Release Coupling.
A 3/4” male QR Coupling is provided to fit to your tractor.
The return hose is large to prevent back pressure on the motor, case drain and
seal.
2. A higher fan speed is usually required to correctly deliver high rate or heavier product
such as fertilizer from the front box. The airflow to the rear box is reduced by setting
the butterfly valve to the approriate position as shown in the table. If this is not done
the seed delivered to the disc units from the rear box may well bounce out of the seed
slot.
The following table shows box fill combinations, butterfly position and recommended
fan speeds for normal/fine seeds and fertilizer:-
Box contents Butterfly Position (affects rear box) Fan Speed/rpm*
FRONT REAR
seed (Normal) seed (Normal) open - 5 2000
seed (Normal) seed (Fine) closed - 1 2000
Fertilizer seed (Normal) closed -2 2000 to 2500
Fertilizer seed (Fine) closed - 1 2000 to 2500
* MAXIMUM
PERMISSABLE
FAN SPEED
4000 RPM
1
5
2
3
4
The Fan Speed shown on the Pro-
Series Head Unit is for illustrative
purposes only. Refer to the table for
the correct setting.

27
Pt. No. 67405
Issue 1113
‘Renovator AS3000/3500’ Calibration Notes

28
3526(5,(6$57(0,69$5,$%/(5$7('5,//&21752/

 $ODUP&RGHV

&RGH 5HDVRQ 'LVSOD\ &KHFNOLVW





+LJKIRUZDUGVSHHG
)RUZDUGVSHHGH[FHHGV
WKHPD[LPXPFDOFXODWHG
DQGGLVSOD\HGRQWKH5$7(
VFUHHQ







• &KHFNWKH7DUJHWDSSOLFDWLRQUDWH
LVDVUHTXLUHG
• &KHFNWKDWWKH&DOLEUDWLRQIDFWRU
UHDOLVWLF
• $GMXVWPHWHULQJXQLWDQG
UHFDOLEUDWHZKLFKZLOOLQFUHDVH
NJUHYIDFWRUDQGWKHUHIRUH
LQFUHDVHPD[LPXPDFKLHYDEOH
IRUZDUGVSHHG





$UHDFXWRXW
)ODVKHVXSIRUVHFRQG
HYHU\VHFRQGVZKHQ
V\VWHPLV¶RXWRIZRUN·






• &KHFNWKHGULOOLVVWLOOOLIWHG
• 2SHUDWLQJORJLFQRWVHWFRUUHFWO\
• &KHFNWKHZLULQJEHWZHHQVHQVRU
DQGFRQQHFWLRQER[LVFRUUHFW
• &KHFNWKHZLULQJEHWZHHQ
FRQQHFWLRQER[DQG&$1PRGXOH
LVFRUUHFW



/



/RZIDQVSHHG
)DQVSHHGLVEHORZWKHORZ
DODUPYDOXHSURJUDPPHG







• &KHFNWKHIDQLVUXQQLQJ
• &KHFNWKHIDQVHQVRUDQGWDUJHWLV
IXQFWLRQLQJDQGFRUUHFW
• &KHFNWKH335YDOXHLV
SURJUDPPHGFRUUHFWO\


/



+LJKIDQVSHHG
)DQVSHHGDERYHWKHKLJK
DODUPYDOXHSURJUDPPHG







• &KHFNWKHIDQVHQVRUDQGWDUJHWLV
IXQFWLRQLQJDQGFRUUHFW
• &KHFNWKH335YDOXHLV
SURJUDPPHGFRUUHFWO\


/66


6HHGOHYHOLVORZ
6HHGRQO\RU6HHGDQG
)HUWGULOO
PHWHULQJXQLWSHU
SURGXFW







• 6HHGOHYHOLVORZ
• &KHFNWKHOHYHOVHQVRULV
IXQFWLRQLQJFRUUHFWO\
• &KHFNWKHZLULQJEHWZHHQVHQVRU
DQGFRQQHFWLRQER[LVFRUUHFW
• &KHFNWKHZLULQJEHWZHHQ
FRQQHFWLRQER[DQG&$1PRGXOH
LVFRUUHFW


/)6



)HUWOHYHOLVORZ
6HHGDQG)HUWGULOO
PHWHULQJXQLWSHUSURGXFW







• )HUWOHYHOLVORZ
• &KHFNWKHOHYHOVHQVRULV
IXQFWLRQLQJFRUUHFWO\
• &KHFNWKHZLULQJEHWZHHQVHQVRU
DQGFRQQHFWLRQER[LVFRUUHFW
• &KHFNWKHZLULQJEHWZHHQ
FRQQHFWLRQER[DQG&$1PRGXOH
LVFRUUHFW
