Glass Door
Top Unit
Assembly Instructions

dunelm.com
Thank You
Dear Customer
Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design
and construction of our products to ensure they set the standard for quality, durability and ease of
assembly.
If for any reason you feel we haven’t lived up to the high standards we set ourselves, please don’t
hesitate in contacting us on 03451 656565 where our team will be very keen to understand what has
gone wrong and, more importantly, put it right.
The next step...
There is no need to feel daunted by the number of
parts and fittings in front of you, we have compiled
this straight forward, step-by-step guide to make
sure that assembling your furniture is as easy as 1,
2, 3. Before you begin, we advise that you check
that you have everything you need to get started.
Top tip
Find a space to spread everything out across
the floor before you begin assembling the item.
Lay each panel down on a clean and level area,
ideally in the room of intended use, ensuring there
is enough room to manoeuvre around the item.
It is recommended that two people assemble this
product together. The full list of furniture parts,
fixtures and fittings, as well as the tools you will
need for assembly can be found on in this manual.
Top tip
Identify all the fittings, make sure that you have
them all prepared and familiarise yourself with
each component to make things easier when you
are putting it all together.
Safety and care advice
IMPORTANT - The first step you need to
take is to ensure your safety! Please take the
time to read and understand these instructions
before assembling your furniture.
Please keep these instructions for future reference.
Keep children and animals away from the
assembly area. This furniture contains small
parts that could cause choking if swallowed.
Keep all plastic wrapping materials away
from babies and children to avoid danger of
suffocation.
Ensure that all packaging is disposed of carefully
and responsibly.
From time to time check that there are no loose
fittings on the unit, re-tighten when necessary.
Two people may be required for the assem-
bly of this product.
Once items are part or fully assembled they are
not returnable unless faulty. This item is not for
outdoor use – unless stated otherwise.
Some items will be supplied with a wall
fixing strap which we recommend is used to
secure the item to the wall to prevent a child from
accidentally pulling furniture over. Furniture can
be dangerous if incorrectly installed. Assembly
should be carried out by a competent person.
No liability will be accepted for damage or
injury caused by incorrectly installed or assem-
bled furniture.

dunelm.com

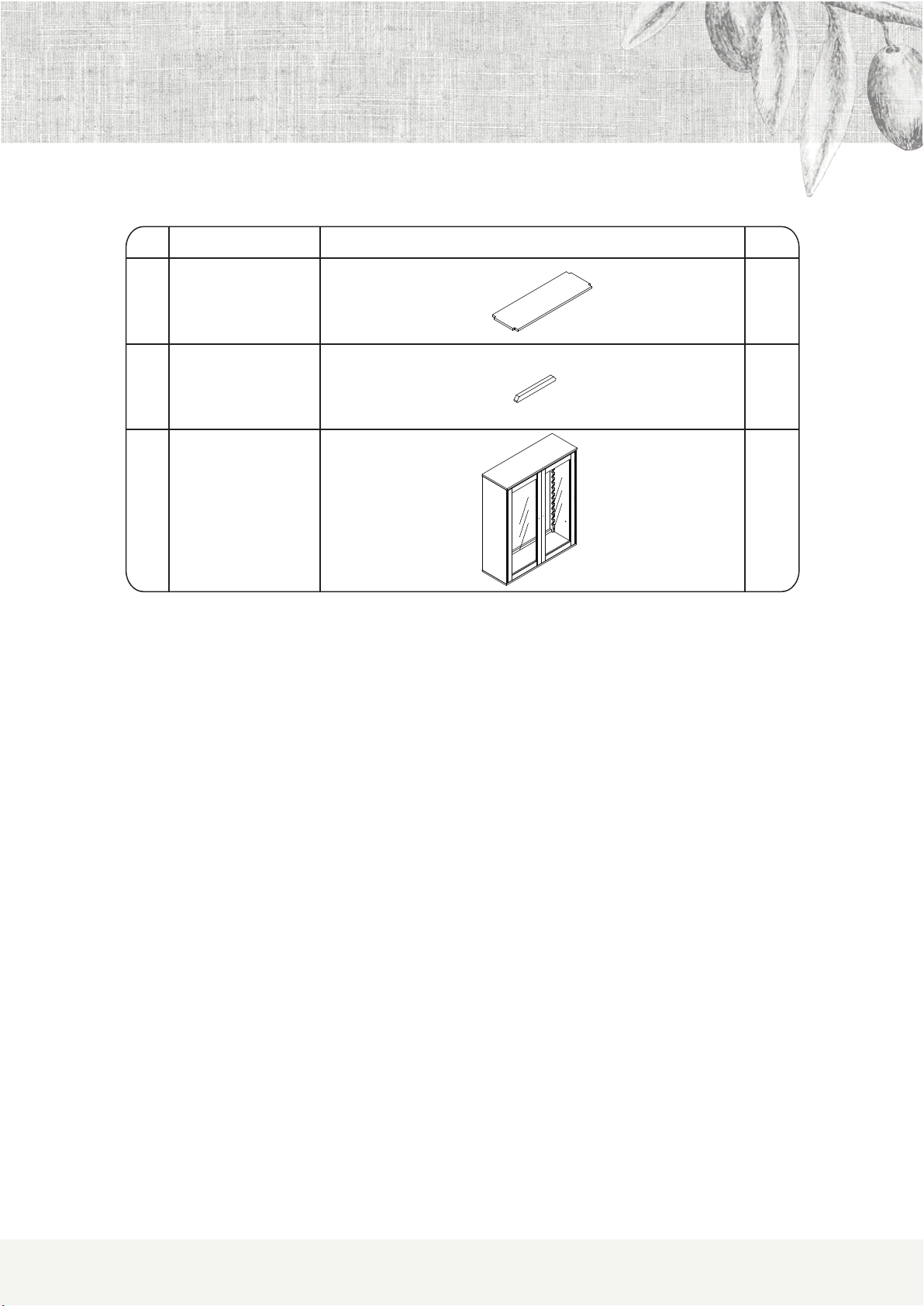

Component Parts Supplied
Ref Dimensions Visual Qty
1 28.4 x 86.2cm 2
2 2.5 x 23.9cm 4
3 90 x 32 x 106.8cm 1

dunelm.com
Parts and Fittings
Ref Dimensions Qty
A 4 x 12mm 2
B 4 x 35mm 2
C 6 x 25mm 2
D 8.5 x 15mm 2
E
F(*)
4 x 25mm
4 x 40mm
2
2
Ref Item Visual Qty
G
H Wall bracket 2
2
2Allen
Handle
key
Fixtures and fittings
supplied (actual size)
Fixtures and fittings supplied (not to scale)
mm 10 20 30 40 50 60 70 80 90 100 110 120 130
Tools required but not included
(*) Note this wall plug is only suitable for masonry walls. Please use appropriate wall plug and drill bit type
to suit your wall. See wall fixings guide towards the back of the assembly instructions for further guidance.
Ref Item Visual Qty
JCordless
Drill 1
K 1
Ref Item Visual Qty
L(*) 1
M
Masonry drill
bit
1
Wood drill
bit (10mm)
Cross-head
screwdriver
I

dunelm.com

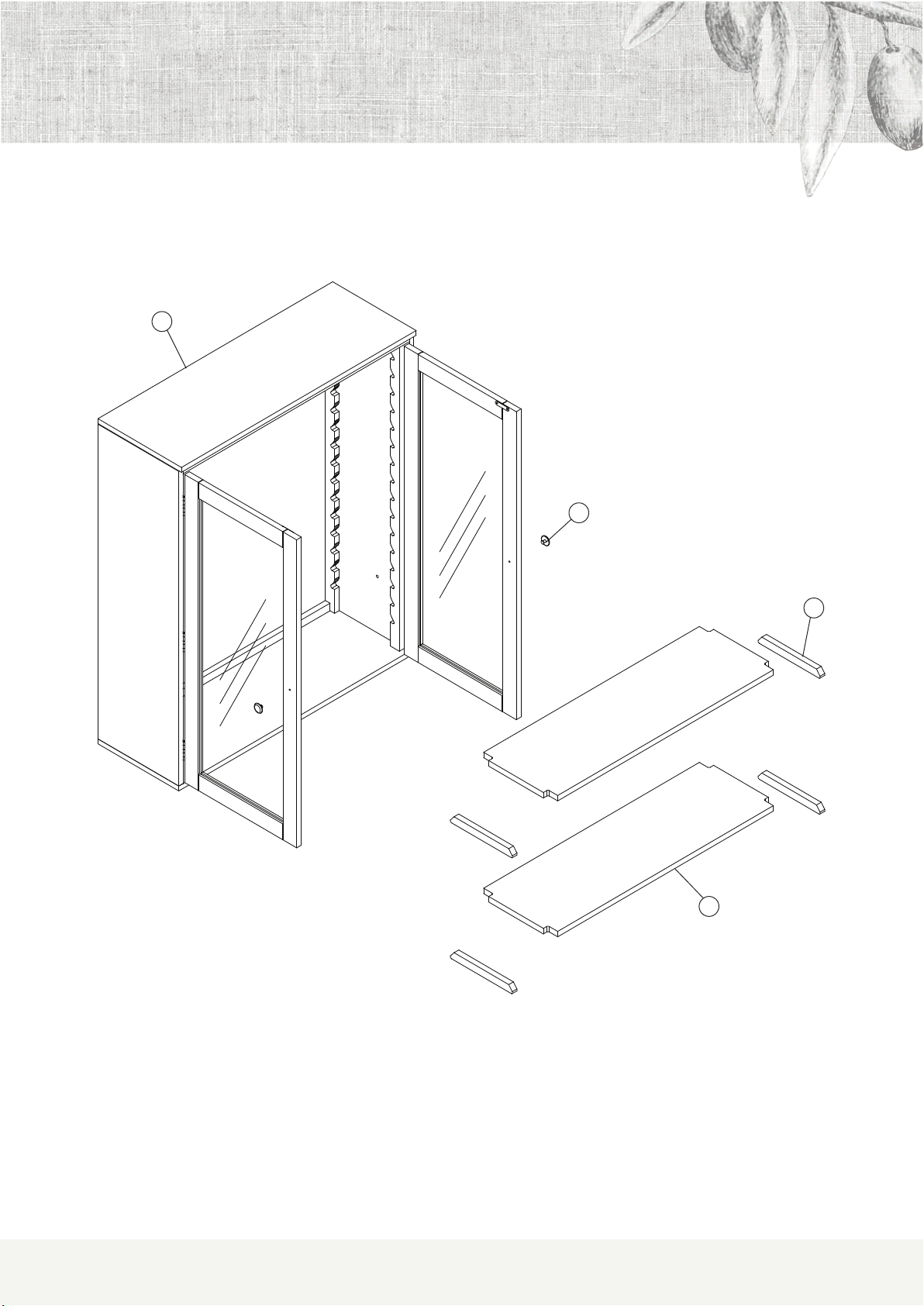

Exploded View
3
1
2
G

dunelm.com

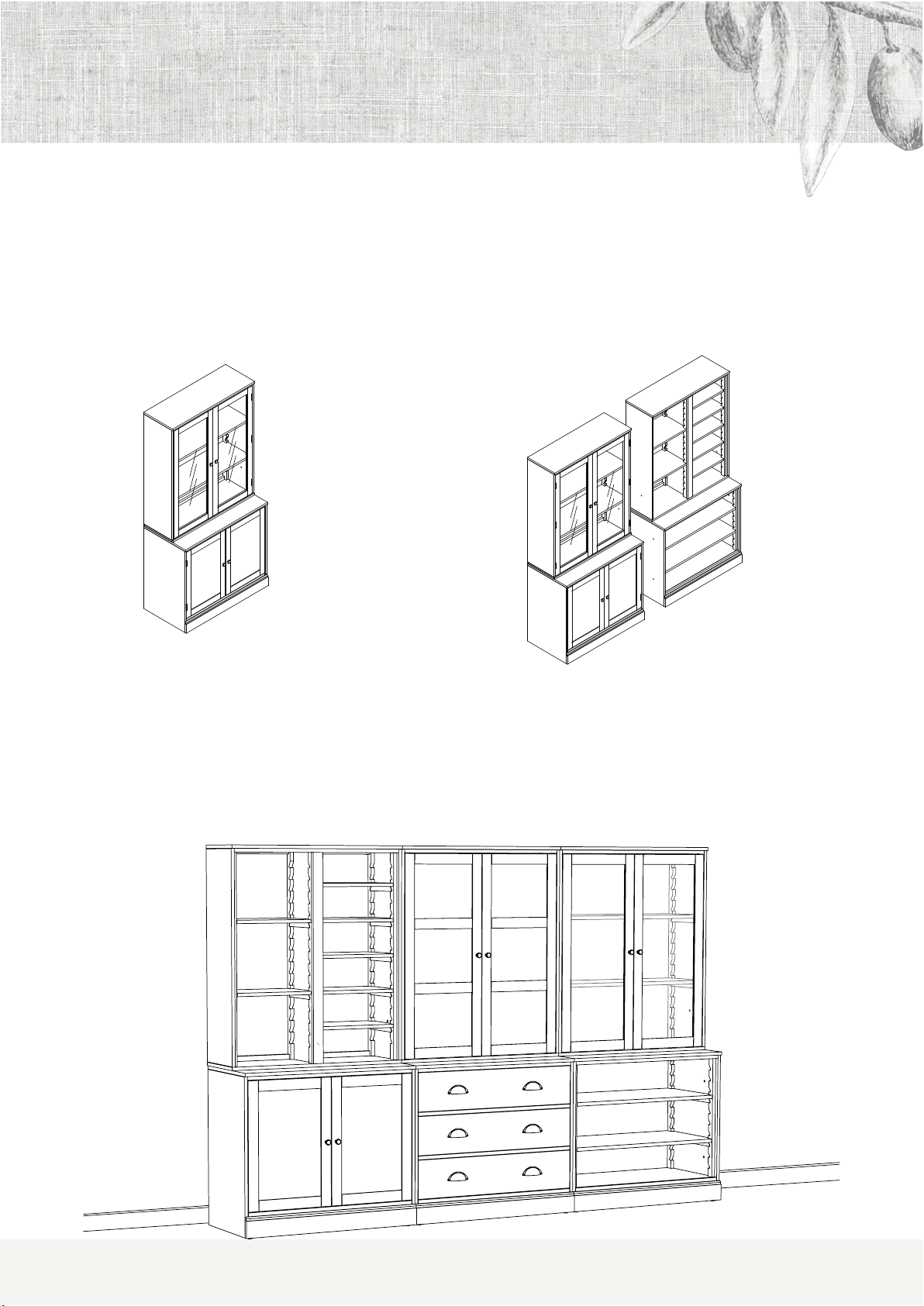

Assembly Process Guide
This assembly guide is split into 2 sections:
We recommend you read the entirety of the sections that apply to you before you begin to
assemble your items.
Section 1:
Assembling a Single Top Unit
Section 2:
Connecting Multiple Top Units
BEFORE YOU START
If you are connecting multiple base units and top units together, we strongly advise to unpack all
items and place them where you intend to position/fit them BEFORE you commence any assembly
steps. This will allow you to check that the items fit in your space and also check for any problematic
wall fixing positions, e.g. avoiding wiring and pipes etc. We also recommend you make note or mark
which side panels for each base unit will be connecting to a neighbouring base unit.

dunelm.com
Section 1: Assembling a Single Top Unit
Step 1.1:
Remove the shelves (1) and supports (2) from inside the cabinet and store in a safe place until
assembly is complete.
E
3
2
1
G
K
Step 1.2:
Unscrew the handles (G) and screw (E) from the inside of the doors. Reattach the handles to the
outside of the doors using the same screws (E) and the cross head screwdriver (K).
E x2 G x2 K x1

dunelm.com
Section 1: Assembling a Single Top Unit

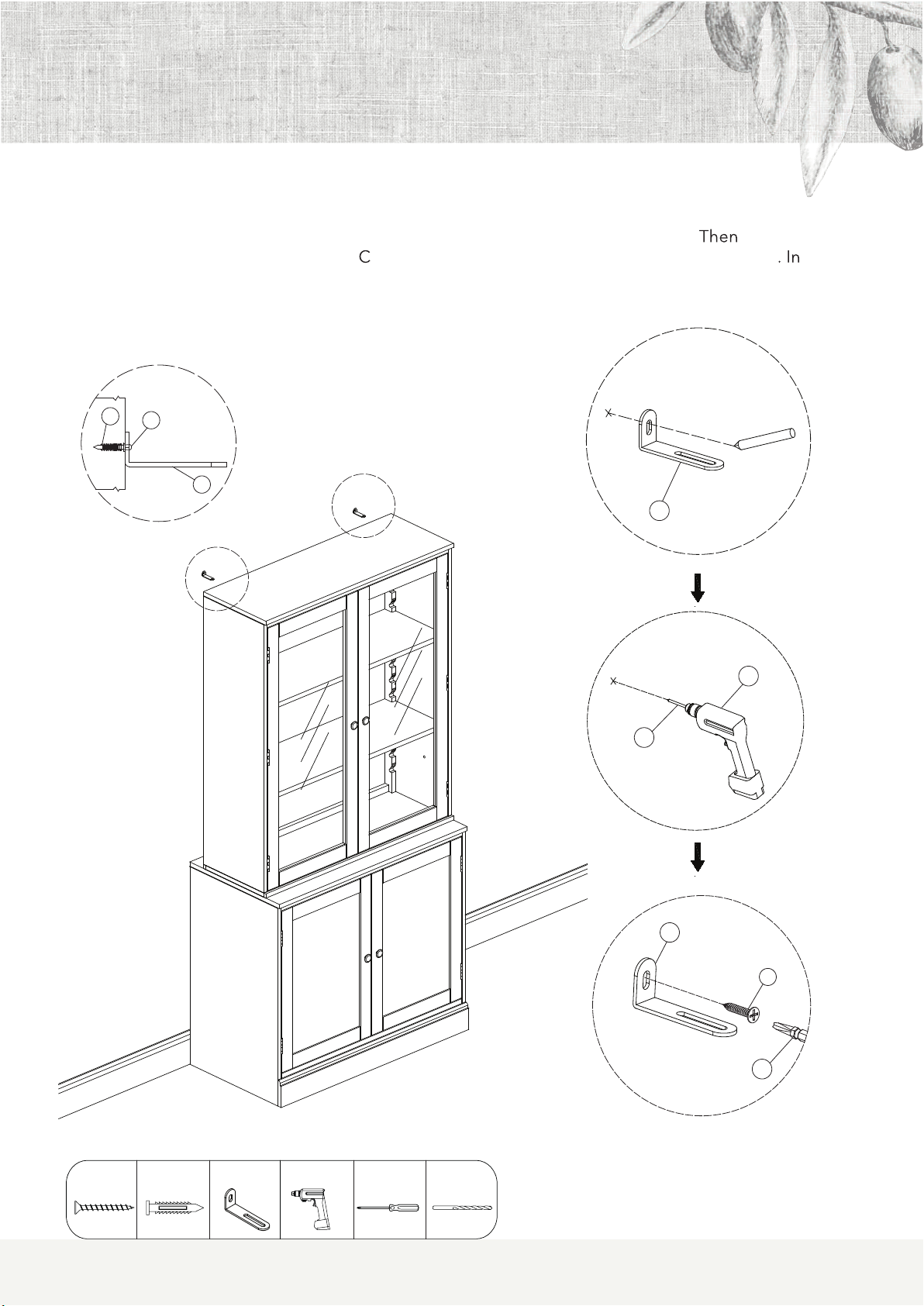

Step 1.3:
Side view
WALL
LLAW
B x2 F x2 H x2 K x1 L x1
J x1
F
H
B
H
H
B
J
L
K
Take a single top unit and place it on top of the base unit already in position. Leaving the top unit a little
distance from the wall. Then mark out the two bracket hole positions on the wall. remove top unit
from the base and store in safe place. over the surface of the base unit with a soft covering order to
protect the top surface from dust and dirt whilst drilling. Once drilling completed, insert Wall plugs (F)
into wall and take bracket (H) and screw (B) and fix a bracket to the wall. Then repeat this process for both
brackets.

dunelm.com
Step 1.4:
Move the top unit back into position, aligning the sides of the top cabinet with the sides of the base. Then
push the top cabinet against the wall if your wall is smooth a flat. If not, move slightly away from wall and
align with back of base unit please see illustrations below. Once in desired position, carefully use Screw
(A) and hand screw driver ( K ) to fix top cabinet to wall. Repeat this for both wall mounting brackets.
K
A
K
x1A
WALL WALL
x2
Section 1: Assembling a Single Top Unit

dunelm.com
Step 1.5:
Section 1: Assembling a Single Top Unit
WALL

dunelm.com
Section 2: Connecting Multiple Top Units
Please note: The top units shown in the following steps are generic/universal examples and your
items may differ in design. The assembly process remains the same, regardless of which base unit
you are assembling.
Step 2.1:
When connecting multiple top units together. The first step is to drill the side connecting positions at one
time. Take a 10 mm wood drill bit (M) and a cordless drill (J ) carefully drill the location hole on the inside
panel of the on the sides that will be connected together. Please note in order to avoid break through
when drilling the side panel. Clamp or hold a piece of wood to the outside surface of the cabinet over the
drill point.
WARNING:
ONLY DRILL HOLES IN THE
SIDE PANELS THAT WILL BE
JOINED TO ANOTHER TOP
UNIT.
WALL
M x1
J x1
M
J

dunelm.com
Step 2.2:
Section 2: Connecting Multiple Top Units
Side view
F
WALL
BH
H
L
JB
H
K
B x2 per
tinutinu
unit H x2 per
F x2 per
J x1 K x1 L x1
WALL
FH

dunelm.com
Section 2: Connecting Multiple Top Units
Step 2.3:
Move the top unit back into position, aligning the sides of the top cabinet with the sides of the base unit.
Then push the top cabinet against the wall if you wall is smooth a flat. If not, move slightly away from wall
and align with back of base unit. Once in desired position, carefully use Screw (A) and hand screw driver
(K) to fix top cabinet to wall.
K
A
K
x1A
WALL WALL
x2

dunelm.com

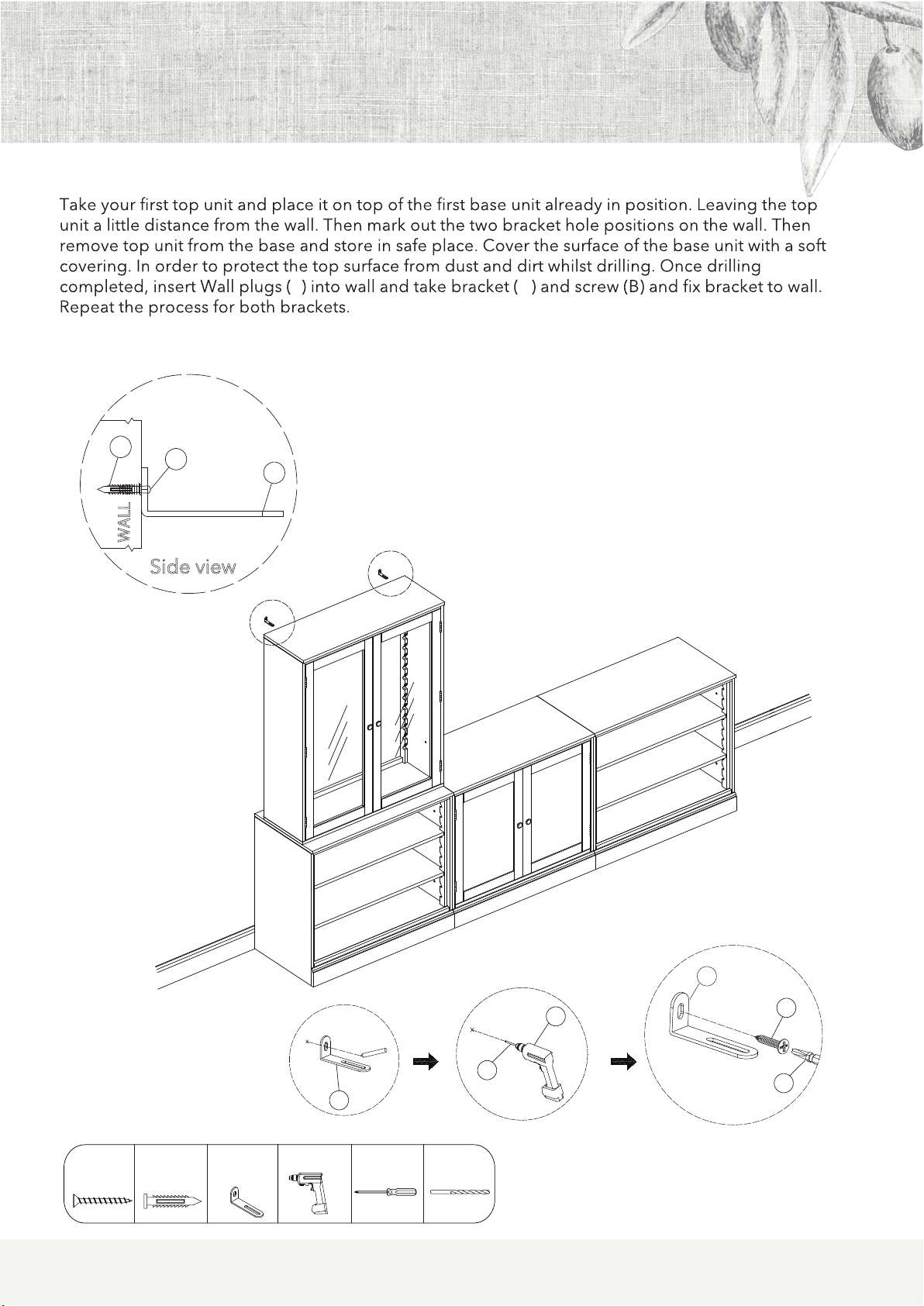

Step 2.4:
Section 2: Connecting Multiple Top Units
Side view
F
WALL
BH
H
L
JB
H
K
B x2 per
unit unit
unit H x2 per
F x2 per J x1 K x1 L x1
Take the second top unit that you wish attach to the first top unit already in position. Leaving the
second top unit, a little distance from the wall. Mark out the two bracket hole positions on the wall.
Then remove top unit from the base and store in safe place. Cover the surface of the base unit with a
soft covering, In order to protect the top surface from dust and dirt whilst drilling. Drill the two bracket
positions and insert Wall plugs (F) into wall and take bracket (H) and screw (B) and fix bracket to wall.

dunelm.com
Step 2.5:
Section 2: Connecting Multiple Top Units
A
K
K x1A x2
Move the second top unit back into position. Making sure you align this unit with the first top cabinet
already in place. You will need to be careful that the fixing holes on the side of the first and second
cabinet are now aligned Once in desired position, carefully use Screw (A) and hand screw driver (K)
to fix top cabinet to wall.

dunelm.com
Step 2.6:
Now you are ready to attach the top units together. Insert bolts (C) and (D), and tighten from both
sides with Allen keys (I) provided. Please remember to tighten slowly.
WALL
D
C
I
I
Section 2: Connecting Multiple Top Units
C x2 D x2 I x2

dunelm.com
Step 2.7:
Section 2: Connecting Multiple Top Units
WALL
Repeat the above steps unit all top units are fixed into place. In order to completely align top cabinets.
You may need to do some final adjustments to top brackets that fix to the wall. Once all aligned you
are now ready to insert shelves into your cabinets.

dunelm.com
Wall Fixings
Step by Step Important
When drilling into walls always check there are no
hidden wires or pipes etc. Make sure that the screws
and wall plugs being used are suitable for support-
ing your unit. Consult a qualified tradesperson if
you are unsure.
Hints
1. General Rule; Always use a larger screw and wall plug if you are not sure.
2. Ensure you use the recommended drill bit to match the wall plug and hole size.
3. Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4. Take extra care when drilling high walls,ceilings and ceramic tiles. Ensure the
plug is fitting below the ceramic title to avoid splitting or cracking.
5. Ensure wall plugs are well fitted and are a tight fit in the drilled hole.
Types of Walls
You can use one of the following
types of wall plug if your walls
are made of brick, breeze block,
concrete, stone, wood or plastic
board.
1. STANDARD Wall Plug
General wall materials
6. HAMMER FIXING Wall Plug3. SHIELD ANCHOR Wall Plug
Heavy loads
These come in various sizes
and are made from plastic or
sometimes wood fibre.
2. GENERAL PURPOSE Wall
Plug
Aerated/Breeze block
Generally aerated blocks should
not be used to support heavy
loads, use a specialist fitting in
this case. For light loads, a
General Purpose Plug can be
used.
For use with heavier loads such as
TV & Hi-fi Speakers and Satellite
Dishes etc.
4. CAVITY FIXING Wall Plug
For use with plaster board
partitions or hollow wooden
doors.
5. CAVITY FIXING HEAVY DUTY
Wall Plug
For use with plaster board
partitions or hollow wooden
doors.
For use with walls stuck with
plaster board. The hammer
fixing allows it to be fixed to the
wall rather than the plaster board.
Always check the fixing is secure
to the retaining wall.
Care and Maintenance
Safety
Fitting
Always check the fitting and
location to ensure your safety in
and around the home.
From time to time check the
fitting to ensure the wall plugs or
screws do not become loose.

dunelm.com
Wood Care Advice
Wood is a natural product and each piece is individual. As a natural product, wood is affected by
temperature and humidity. We recommend that you avoid placing the furniture directly in front of heat
sources such as radiators or fires or in humid areas such as bathrooms or next to bathrooms as this can
cause cracking or warping over time.
The colour will mellow over time and new items can vary in shade from items that you have already pur-
chased. Strong direct sunlight can affect the colour dramatically, so try to avoid this as much as possible,
we also recommend that any ornaments, coasters and items placed on the product are periodically
moved around to allow the colour to mellow evenly.
Always use mats and coasters to protect the surface when placing items on the furniture. This will help
to protect the finish from heat, liquids or items that might scratch your furniture. Additionally, if writing
on your product, use a mat or pad so protect the surface. If items are to be placed on the surface of your
furniture and have rubber feet, it is advisable to use mats to prevent marking.
Always lift your furniture into place, avoid dragging it across the floor as this can cause damage to joints.
When placing furniture on a wooden or laminate floor, please ensure that the plastic or felt protectors
are securely fitted and in place.
Avoid rocking backwards on two legs of the chair as this will weaken the joints
Only clean using a damp cloth and mild detergent, do not use bleach or abrasive cleaners.
From time to time check that there are no loose screws on this unit.
Wood can absorb liquids, for this reason, remove any spills immediately to avoid staining.
When mopping the floor around where your chairs and stools are placed avoid getting the legs wet.
Dust regularly with a soft lint free cloth or duster.
The use of abrasive polish or silicon-based polishes is not advised as these can affect the polished finish
and joints over time. Ensure the polish you are using is correct for your product as some polishes can
degrade protective layers on furniture. Ensure you patch test a polish or cleaning product on a discrete
area before applying it to the whole product.
Uneven floors could give the impression that doors of wall units and wardrobes are out of alignment.
Be aware of this and compensate if necessary, by adjusting the hinges or packing a corner to level the
item. Please refer to the instructions, included with your furniture, and adjust accordingly.
If your furniture becomes stained, scratched, chipped or suffers other damage, we recommend profes-
sional help is sought to restore it. Please contact our customer services line for recommended agents.
Always follow fitting instructions carefully and retain them for future use.

dunelm.com
Caring for your Furniture
To keep your new item looking its best, we recommend you dust regularly and wipe clean with a damp
cloth, ensuring any spills are removed immediately.
If using a polish to maintain your product, ensure the polish you are using is correct for your product and
always do a patch test of polish or cleaning product on a discrete area before applying it to the whole
product.
1. To ensure colour consistency, if you’re using more than one tin of any colour, check the
batch numbers are the same. If they’re not, thoroughly mix the contents of both tins
together before you start.
Now prepare your surface. Remove any sharp edges or flaking paint with fine sandpaper.
There’s no need to go back to bare wood, just sand enough to create a smooth surface.
Then wipe away any dust with a dry cloth so it doesn’t spoil the final finish.
2.
If there are any sections of the furniture which do not require painting, for example oak
surfaces, we recommend these are taped off to prevent any splashes or wobbly lines.
3.
If the wood has any cracks or dents, buy some wood filler and patch it, following the
instructions on the packaging. Once it’s set, be sure to sand it again so the entire surface
is uniform.
4.
Purchasing a high-quality specialist furniture paint is always recommended. It is always
vital to follow the instructions on the packaging to achieve the desired finished.
5.
If, in many years to come, you’d like to repaint your furniture, you absolutely can. For best results, we
suggest following the steps below put together by our furniture team.
We recommend that our oak finishes shouldn’t be re-treated. The reason being that the oak veneers
shouldn’t be sanded, and achieving the same level of finish is almost impossible to recreate.
Check out Dunelm.com for Wood Furniture Care Kits we have on offer
