Duon System AUTROL APT3200 SERIES User manual

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
* Subject to change without notice to improve the performance
AUTROL APT3200 SERIES
SMART PRESSURE TRANSMITTER
OPERATION MANUAL
AUTROL Series Operation Manual : M3200-E01G
DUON SYSTEM Co., Ltd.
Autrol®DUON SYSTEM Co., Ltd. http://www.autrol.com/

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
.
APT3200 Smart Pressure Transmitter
This manual is made so that general user can help to install and operate APT3200
Smart Pressure Transmitter efficiently.
Before handling APT3200 transmitter, all users have to be fully aware of it.
Information on this manual can be changed without an advance notice
DUON SYSTEM CO., LTD.
#60-31, Gasan-dong, Geumchon-gu, SEOUL, KOREA
TEL [phone]

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
i
Table of Contents
Chapter 1 Introduction
1.1 Using This Manual
1.2 Overview of Transmitter
1.3 Software Compatibility
1.4 Transmitter Components
Chapter 2 Handling Cautions
2.1 Unpacking
2.2 Models and Specifications Check
2.3 Storage
2.4 Selecting the Installation Locations
2.5 Calibration on Spot after Installation
2.6 Pressure Connections
2.7 Waterproofing of Cable Conduit Connections
2.8 Restrictions on Use of Radio Transceiver
2.9 Insulation Resistance Test and Dielectric Strength Test
2.10 Installation of Explosion Protected Type Transmitters
2.11 EMC Conformity Standards
Chapter 3 Transmitter Functions
3.1 Overview
3.2 Safety Messages
3.3 Warning
3.4 Fail Mode Alarm
3.5 EEProm-Write Enable and Disable Mode Jumper
3.5.1 Security Jumper(EEPROM Write Protect)
3.5.2 Zero and Span Managetic Button
3.6 Configuration of Alarm and Security Jumper Procedures
3.7 Configuration of Zero and Span Procedure
3.8 Commissioning on the bench with HHT
Chapter 4 Installation
4.1 Overview
4.2 Safety Messages
4.3 Warning
4.4 Commissioning on the bench with Hand-Held Terminal
4.5 General Considerations
4.6 Electrical Considerations
4.6.1 Power Supply
4.7 Wiring
4.7.1 Caution for Wiring
4.7.2 Selecting the Wiring Materials

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
ii
4.7.3 Outer Cable Connection to Transmitter Terminal
4.7.4 Wiring
4.7.5 Grounding
4.7.6 Power Supply Voltage and Load Resistance
4.8 Mechanical Considerations
4.8.1 Mounting
4.8.2 Considerations When Access to Transmitter
4.9 Environmental considerations
4.9.1 Effect of Ambient Temperature
4.9.2 Environment of Toxic, Moisture
4.9.3 Installation of Dangerous Place
Chapter 5 On-line Operation
5.1 Overview
5.2 Safety Messages
5.2.1 Warning
5.2.2 Configuration Current to Passive Mode
5.3 Configuration Data Review
5.4 Check Output
5.5 Basic Setup
5.6 Detail Setup
5.7 Information Variables Setup
5.8 Diagnostics and Services
5.9 Calibration
Chapter 6 Maintenance
6.1 Overview
6.2 Safety Messages
6.2.1 Warning
6.3 Hardware Diagnosis
6.4 Hardware Maintenance
6.4.1 Test Terminal
6.4.2 Disassembling the Electronics Housing
6.4.3 Asseembling the Electronics Housing
Appendix I
LCD Display Code for APT3200 Smart Pressure Transmitter
Appendix II
275 Hart Communicator User Guide for APT3200 Smart Pressure Transmitter
Appendix III
PDA User Guide for APT3200 Smart Pressure Transmitter

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
1
Duon System Co.,Ltd.
Chapter 1 Introduction
The APT3200 Smart Pressure Transmitter are correctly calibrated at the factory before shipment. To
ensure correct and efficient use of the instrument, please read this manual thoroughly and fully
understand how to operate the instrument before operating it
①The contents of this manual are subject to change without prior notice.
②All rights reserved. No part of this manual may be reproduced in any form without DUON
System’s written permission.
③If any question arises or errors are found, or if any information is missiong from this manual,
please inform the nearest DUON System sales office.
④The specifications covered by this manual are limited to those for the standard type under the
specified model number break-down and do not cover custom-made instrument.
⑤Please note that changes in the specifications, construction, or component parts of the
instrument may not immediatelty be reflected in this manual at the time of change, provided
that postponement of revisions will not cause difficulty to the user from a functional of
performance standpoint.
1.1 Using This Manual
The Chapters in this operating manual provide information on installing, operating, and maintaining
devices from the AUTROL Model APT3200 Samrt Pressure Transmitter. The Chapters are organized as
follows.
Chapter 2 Handling Cautions
This chapter consists of core information for installing APT3200 on operating place after buying
it. Chapter 2 provides instructon on commissioning and operating Model APT-3200 Smart Pressure
Transmitters. Informations on software functions, configuration parameters, and on-line variables is
also included.
Chapter 3 Transmitter Functions
Chapter 3 contains in consideration of handling Model APT3200 Smart Pressure Transmitters.
Chapter 4 Installation
Chapter 4 contains mechanical, environment consideration and electrical installation
instructions on the Model APT3200 Smart Pressure Transmitters.
Chapter 5 On-line Operation
Chapter 5 describes the configuration the parameter how to use variety of the Model
APT3200 Smart Pressure Transmitters' software fucntion and configuration. See the following list for
the details.
①Regulations of circuit's Input/Output characteristics; Sensor or Output Trim
②Changed of output characteristic; Range Configuration, Output Type, Damping,Unit
③Changed of general data; Tag No.,Date,Message etc.
Chapter 6 Maintenance
Chapter 6 contains hardware diagnostics ,troubleshooting and maintenace task.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
2
Duon System Co.,Ltd.
1.2 Overview of Transmitter
Autrol® Smart Pressure Transmitter based in a microprocessor is the pressure transmitter, has a
designed capacitance sensor optimized for draft measurement. APT-3200 has a true draft analog
range from 0 to 20mA offering that feature that a pressure range or after convert analog range to
HART (Communication) digital signal transmit for control systems like DCS, PLC. This Model has
explosion protected type (Instrinsically Safety) and high precision, better reliabilty and is available on
digital commuication for the use remotes communication system.
This transmitter is enabled in HART commmunication with Host, HHT (HART Hand-Held Terminal), PC
Configurator, or PDA Configurator. Thus, transmitter various variables in host is enable to be changed,
configured and tested calibrated by users. For the HART Communication between DC Power Supply of
24 Vdc and Transmitter has to terminate 250~ 550 Ohm as loop resistance by series connection.
1.3 Software Compatibility
Autrol® Smart Pressure Transmitter's software is implemented and complemented if necssary. Uses of
the transmitter will not be a compatibility software is contained in the host of the HHT(Model 275
HART Communicator). In this case contact us for software DD(Device Descriptor) to be able to use
with the transmitter, you must to use loading in HHT, etc.
There may be some differences on supported fucntions as to Firmware Revision of transmiter. This
manual is based on Firmware Revision 58. Function deviations as to firmware Revision are same as
under box
Function Supports
ZERO / SPAN Botton
FUNCTION
Before Rev. 58 Rev. 58 Autrol PC/PDA HART 275/375
ZERO/SPAN ●●●●
ZERO TRIM ●●●●
ZERO Adj ●●●●
Units set ⅹ●●●
Range set ⅹ●●●
Damping set ⅹ●●●
LCD Decimal set ⅹ●●∆
●: Supported.
ⅹ: Not Supported
∆: Supported but update required

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
3
Duon System Co.,Ltd.
1.4Transmitter Components
The components and figure of Autrol® Smart Pressure Transmitter is suggested on the next page.
Follow the precedure described on figure 1-1.

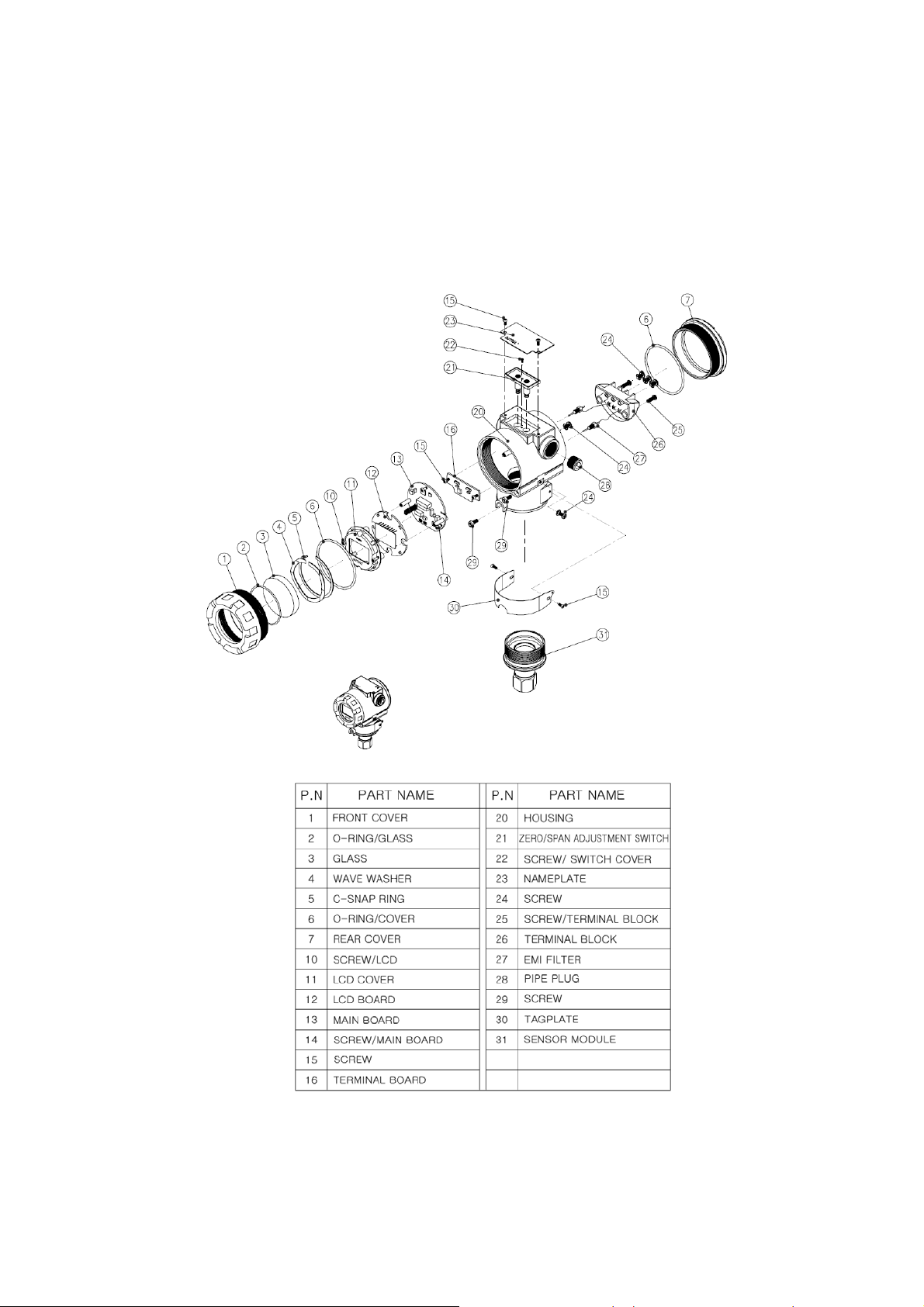

[Figure 1-1 Transmitter Exposed View and Components]

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
4
Duon System Co.,Ltd.
Chapter 2 Handling Cautions
This chapter consists of cautions for transmitter handling and storage, selection of installation
locations, insulation and explosion structure, etc.
[Quick Reference Manual]
Step Job Job Details Instrument
1 Unpacking - Unpack transmitter packing
2
Model and
Specifications
Check
-Make sure whether the delivered transmitter is same
as options attached on its nameplate
3 Storage
-Places not exposed to water, non-vibration and non-
impact area
-Ambient temperature 25 deg C and relative humidity
65% RH
4 Calibration on a
Calibration Room
- Configuration of Range, Zero/Span, Unit, Tag,
Damping Time, Transfer Function, DA Trim and other
parameters
- HHT
- Pressure
Source
(requested)
- Galvanometer
5 Installation
Locations
-Where ambient temperature is not fluctuated
-Where corrosion happens by chemical materials, etc.
-Where vibration and impact is not severe
-Where non-explosion area is matched on
explosionproof regulations
-Where maintenance is very easy
(Engineering)
6 Mechanical
Considerations
-Where transmitter can be handled easily
-Be cautious not leaking the pressure. (Engineering)
7 Electrical
Considerations
-Connect 24 Vdc
(Power Supply is 11.9 Vdc – 45 Vdc)
-For HART communication, total resistance on
transmitter terminal loop should be 250 – 550 Ohm.
(Engineering)
8 Mounting and
Installation
-For mounting transmitter, an appropriate bracket
should be used.
-Transmitter should be fixed well against swing.
(Mounting and
Installation)
9 Calibration on
Spot
-Sensor Zero Trim has to be done after ten seconds,
namely, differential pressure become zero and
stabilized.
-Make sure that PV value of transmitter is zero and
current is 4 mA.
HHT or
Zero/Span
button
10 Pressure
-Do not apply the regulated differential and line
pressure.
-Close equalizing valve of 3 valve manifold, Then,
open stop valve on high and low side slowly and
simultaneously.
(Applying
pressure)
11 Operation - Make sure whether transmitter operates well or not Eye or HHT

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
5
Duon System Co.,Ltd.
2.1 Unpacking
When moving the transmitter to the installation site, keep it in its original packaging. Then, unpack
the transmitter there to avoid damage on the way.
2.2 Models and Specifications Check
The model name and specifications are indicated on the nameplate to the case. Please check your
specification and wanted model.
2.3 Storage
The following precautions must be observed when storing the instrument, especially for a long period.
(1) Select a storage area that meets the following conditions:
(a) It is not exposed to rain or water.
(b) It suffers minimum vibration and shock.
(c) If possible, it is preferable at normal temperature and humidity (approx. 25°C, 65% RH).
However, it has an ambient temperature and relative humidity within the following ranges.
●Ambient Temperature: -40 ~ 85°C (without LCD module)
-30 ~ 80°C (with LCD module)
* General Use -20 ~ 60°C (CSA Explosionproof)
●Relative Humidity: 5% ~ 98% RH (at 40°C)
(2) When storing the transmitter, repack it as nearly as possible to the way it was packed when
delivered from the factory.
(3) If storing a transmitter that has been used, thoroughly clean diaphragm surfaces (the pressure-
detector sections) of the diaphragm seals, so that no measured fluid remains on them. In addition,
make sure before storing that the pressure-detector and transmitter assemblies are securely
mounted.
2.4 Selecting Installation Locations
The transmitter is designed to withstand severe environmental conditions. However, to ensure stable
and accurate operation for many years, the following precautions must be observed when selecting an
installation location.
(1) Ambient Temperature
Avoid locations subject to wide temperature variations or a significant temperature gradient. If the
location is exposed to radiant heat from plant equipment, provide adequate insulation or
ventilation.
(2) Ambient Atmosphere
Avoid installing the transmitter in a corrosive atmosphere. If the transmitter must be installed in a
corrosive atmosphere, there must be adequate ventilation as well as measures to prevent intrusion
or stagnation of rainwater in conduits. Moreover, there should be appropriate ventilation
preventing corrosion by rain gathered on conduit.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
6
Duon System Co.,Ltd.
(3) Shock and Vibration
Select an installation site suffering minimum shock and vibration (although the transmitter is
designed to be relatively resistant to shock and vibration)
(4) Installation of Explosion-protected Transmitters
Explosion-protected transmitters can be installed in hazardous areas according to the gas types
for which they are certified.
(5) Select a place that transmitter maintenance is very easy.
2.5 Calibration on Spot after Installation
(1) Sensor Zero Trim should be done after transmitter is installed on spot, because zero point is not
accurate as to mounting status.
(2) For Sensor Zero Trim, make differential pressure of transmitter for zero in advance. Then, make
Sensor Zero Trim after pressure is sufficiently stabilized (after approximately 10 seconds).
(3) There are two ways for making differential pressure for zero. One is to apply zero differential
pressure (making same pressure both high and low side pressure). The other is to close Hign and
Low side of stop valve of 3 valve manifold and to open its equalizing valve.
(4) Sensor Zero Trimming is to use HHT (275 calibrator), PC or PDA configurator, and to use
Zero/Span button. Make sure all details on this manual.
(5) Refer to On-line Operation for configuring another parameters except Sensor Zero Trim
2.6 Pressure Connections
The following precautions must be observed in order to safely operate the transmitter under pressure.
(1) Never apply a pressure higher than the specified maximum working pressure.
(2) Confirm the option of pressure connection of transmitter. Necessarily use standardized and quality-
approved parts.
(3) In case of being needed by hard circumstances and regulations, there should be seal equipment
for leakage.
2.7 Waterproofing of Cable Conduit Connections
Apply a non-hardening sealant (silicone or tape, etc.) to the threads to waterproof the transmitter
cable conduit connections.
▲Warning
◈Instrument installed in the process is under presure. Never loosen or tighten the flange bolts as it may
cause dangerous spouting of process fluid.
◈If the accumulated process fluid may be toxic or otherwise harmful, take approriate care to avoid contack
with the bodym of inhalation of vapors even after dismounting the instrument from process line for
maintenance.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
7
Duon System Co.,Ltd.
2.8 Restrictions on Use of Radio Transceivers
2.9 Insulation Resistance Test and Dielectric Strength Test
Since the transmitter has undergone insulation resistance and dielectric strength tests at the factory
before shipment, normally these tests are not required. However, if required, observe the following
precautions in the test procedures.
(1) Do not perform such tests more frequently than is absolutely necessary. Even test voltages that do
not cause visible damage to the insulation may degrade the insulation and reduce safety margins.
(2) Never apply a voltage exceeding 500 Vdc (100 Vdc with an internal lightening protector) for the
insulation resistance test, nor a voltage exceeding 500V AC (100V AC with an internal lighting
protector) for the dielectric strength test.
(3) Before conducting these tests, disconnect all signal lines from the transmitter terminals. Perform
the tests in the following procedure.
(4) Insulation Resistance test
(a) Short-circuit the + and - SUPPLY terminals in the terminal box.
(b) Turn OFF the insulation tester. Then connect the insulation tester plus (+) lead wire to the
shorted SUPPLY terminals and the minus (-) lead wire to the grounding terminal.
(c) Turn ON the insulation tester power and measure the insulation resistance. The voltage
should be applied short as possible to verify that insulation resistance is at least 20MΩ.
(d) After completing the test and being very careful not to touch exposed conductors disconnect
the insulation tester and connect a 100kW resister between the grounding terminal and the
short-circuiting SUPPLY terminals. Leave this resistor connected at least three second to
discharge any static potential. Do not touch the terminal while it is discharging.
(5) Dielectric Strength Test
(a) Short-circuit the + and - SUPPLY terminals in the terminal box.
(b) Turn OFF the dielectric strength tester. Then connect the tester between th shorted SUPPLY
terminal and the grounding terminal. Be sure to connect the grounding lead of the dielectric
strength tester to the ground terminal.
(c) Set the current limit on the dielectric strength tester to 10mA, then turn ON the power and
gradually increase the tester voltage from '0' to the specified voltage.
(d) When the specified voltage is reached, hold it for one minute.
(e) After completing this test, slowly decrease the voltage to avoid any voltage surges.
▲Warning
◈Although the transmitter has been designed to resist high frequency electrical noise, if a radio transeiver is
used near the transmitter of its external wiring, the transmitter may be affected by high frequency noise
pickup. To test for such effects, bring the transceiver in use slowly from a distance of several meters from
the transmitter, and observe the measurement loop for noise effects. Thereafter, always use the
transceiver outside the area affected by noise.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
8
Duon System Co.,Ltd.
2.10 Installation of Explosion Protected Type Transmitters
2.10.1 KOSHA Certification
Caution for KOSHA Flameproof is following type.
[Note1]Model APT3100 diaphragm sealed for potentially explosive atmosphere:
zType of Protection and Marking Code: Ex d ⅡC T6
zTemperature Class: T6
zAmbient Temperature: -20 ~ 60'C
zProcess Temperature: Max. 80'C
[Note2] Electrical Data
zSupply Voltage: Maximum 45 Vdc
zOutput signal: 4 ~ 20mA, maximum 22mA
[Note3] Installation
zAll wiring shall comply with local installation requirement.
zThe cable entry devices shall be of a certified flameproof type, suitable for conditions of
use.
[Note4] Operation
zWait one minute after power -disconnection, before opening the enclosure.
zTake care not to generate mechanical spark when access to the instrument and
peripheral devices in hazardous location.
[Note5]Maintenance and Repair
zThe instrument modification or parts replacement by other than authorized
representative of DUON System is prohibited and will void KOSHA Flameproof.
2.10.2 KEMA / ATEX Certification
ATEX Certification number : KEMA07ATEX0103
CE 0344 II 2 G
Note 1. Model APT3100 for potentially explosive atmosphere
zEx d IIC T6...T4
zOperating Temperature : -20℃≤Tamb ≤+60°C
zT6 for process ≤85°C;
zT5 for process ≤100°C;
zT4 for process ≤130°C;
Note 2. Electrical Data
zSupply Voltage : 42 Vdc Max
zOutput Signal : 4 to 20 mA + HART
Note 3. Electrical Connection : 2 x 1/2-14NPT Female

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
9
Duon System Co.,Ltd.
Note 4. APT3100 ATEX Certification is according to the below standards
EN 60079-0 : 2006
EN 60079-1 : 2007
Note 5. Installation
zAll wiring shall comply with local installation requirement.
zThe cable glands and blanking elements shall be of a certified flameproof type, sutable
for the condition of use and correctly installed. Also those devices should be endured at
the 130°C.
zHousing Ground must be followed to “local electrical codes”. The most efficient ground
procedure is to connect directly to the earth as least impedance.
zHow to Housing Ground:
z* Internal Ground Connection: Internal ground connection screw is located in terminal in
housing, the screw can be identified as ground sign.
z* External Ground Assembly: This is located in the right side of housing and identified as
ground sign. (For grounding use a cable lug)
zWhen use tubing, Stopping boxes must be connected with the wall of housing directly.
zTubing is installed a minimum of 5 threads.
zSensor is to be threaded a minimum of 7 threads and prevented from turing by
tightening the housing rotation set screw.
zDo not disassemble flameproof Joints but in an unavoidable case to disassemble it or
need the specification of flameproof Joints, contact the manufacturer before doing.
Note 6. Operation
zWARNING-DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE MAY BE PRESENT
zTake care not to generate mechanical spark when access to the instrument and
peripheral devices in hazardous location.
Note 7. Maintenance and Repair
zThe instrument modification or parts replacement by other than authorized
representative of DUON System is prohibited and will void KEMA/ATEX Explosion-proof /
Flame-proof.
2.11 EMC Conformity Standards
EMI (Emission): EN55011
EMS (Immunity): EN50082-2
DUON System recommends customer to apply the Metal Conduit Wiring or to upset he twisted pair
Shield Cable for signal wiring to conform the requirement of EMC Regulation, when customer installs
AUTROL Series Transmitters to the plant.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
10
Duon System Co.,Ltd.
Chapter 3 Transmitter Functions
3.1 Overview
This Chapter contains information on operating Model APT3200. Tasks that should be performed on
the bench priori to installation are explained in this chapter.
3.2 Safety Message
Procedures and instructions in this chapter may require special precautions to ensure the safety of the
personal performing the operations. Information that raises potential safety issues is indicated by
warning symbol(▲). Refer to the following safety messages before performing an operation preceded
by this symbol.
3.3 Warning
3-4. Fail Mode Alarm
AUTROL® Smart Pressure Transmitter automatically and continuously performs self-diagnostic
routines. If the self-diagnostic routines detect a failure, the transmitter drives its output outside of the
normal saturation values. The transmitter will drive its output low(down) or high(up) based on the
position of the failure mode alarm jumper . See Table 3.1 for Output values.
▲Warning
Explosion can result in death or serious injury:
◈Do not remove the transmitter covers in explosion environments when the circuit is alive.
◈Check transmitter to install accroding to Intrinsically safe regulation before HHT connect to Transmitter in
explosive environment.
◈Transmitter covers must be fully engaged to meet explosionproof requirements.
▲Warning
Electrical can result in death serious injury:
◈The qualification which is educated only the person whom it prepares will be able to establish the
transmitter.
▲Warning
Electrical can result in death serious injury:
◈Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical
shock.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
11
Duon System Co.,Ltd.
[Table 3-1 Standard Alarm and Saturation Value]
Fail Mode Select Jumper Switch has in LCD Module and Main CPU Module and Jumper Switch Line is
connected circuital. In case of Not LCD Module, we can use CPU Module's Fail Mode Select Jumper
Switch and In case of LCD Module we can use LCD Module's Jumper Switch. In this case, CPU Module
is selected "Down" side. No selected we can select "Down" side.
(Jumper Select Switch is followed in Figure 3-2, 3-3)
Both LCD Module and CPU Module Only CPU
Module
Select Fail Mode
CPU Module LCD Module CPU Module
Fail Down Down D D
Down U
Fail Up Up U or D U
< Fail Mode Selection DIP Switch of CPU Module >
1. WR_EN (EEPROM Write Enable)
DOWN : ENABLE
UP : DISABLE
2. Fial Mode(Alarm)
DOWN : LOW
UP : HIGH
< Fail Mode Selection Jumper Switch of LCD Module >
U O O O O O O D O O O D
(If Down) FAIL MODE (If Up)
Figure 3-1. Fail Mode and EEPROM-Write Selection Jumper Switch
Level 4~20mA Saturation 4~20mA Alarm
Low/Down 3.9 mA ≤3.75 mA
High/Up 20.8 mA ≥21.75 mA
UP
DOWN

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
12
Duon System Co.,Ltd.
Figure 3-3. CPU Module Fail Mode, EEPROM-Write Selection Jumper Switch
3-5. EEProm-Write Enable / Disable Mode Switch
There is the EEPROM (Electrically Erasable Programmable ROM) restoring various configuration
variables in Transmitter. For protect to change configuration variable data in software, hardware side
there is Write-Protect Mode and Jumper Switch selected it segmented "EEP-Write DIS / EN " in Main
CPU Module. Thus if you connect Jumper to DIS you can't change configuration data in EEPROM,
when you connect Jumper to EN you can change configuration data in EEPROM. No connected Jumper,
it is classified EN. At the factory before shipment, it is configured "EN". (Following figure 3-3)
Fail Mode Select
Jumper Switch

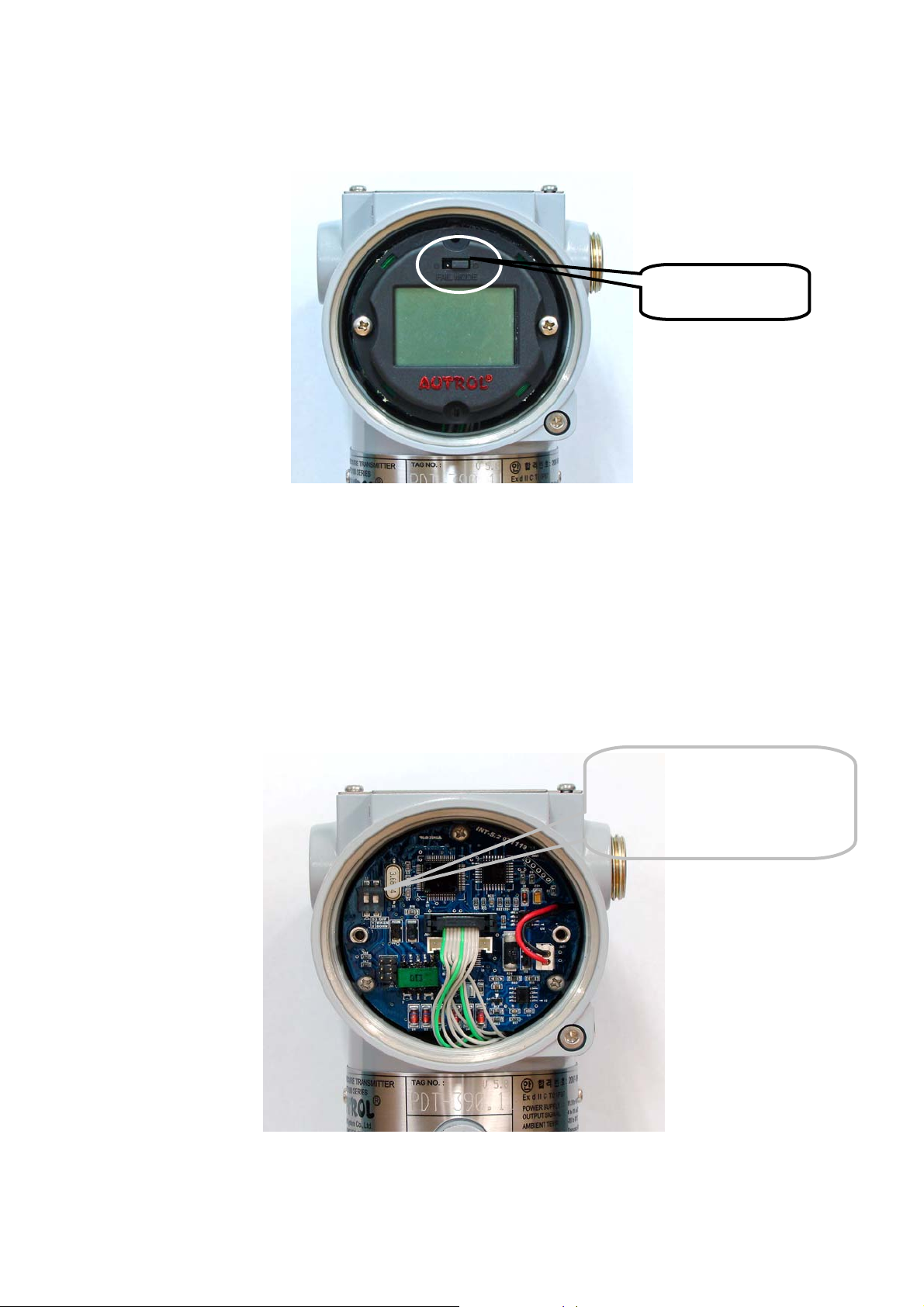

[Figure 3-2 LCD Module’s Fail Mode Select Jumper]
CPU Module Jumper Switch
1) Fail Mode Selection
2) EEPROM Write Selection

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
13
Duon System Co.,Ltd.
There are two security methods in APT3200. Following this.
(1) Security Jumper: protect to writing configuration parameters of transmitter.
(2) Physical removing Zero and Span Magnetic Buttons of Transmitter: you are not able to regulate
Zero and Span in Local.
[Notification] If EEP-Write is not connected, it is classified Security Off state.
3.5.1 Security Jumper (EEPROM Write Protect)
Protect to change Configuration Parameter of transmitter to Write Protect Jumper.
3.5.2 Zero and Span Magnetic Button
To remove Magnetic Button, you can't configure Zero and Span in Local.
.
3.6 Configuration of Alarm and Security Jumper Procedures
To change Jumper's position, follow this.
(1) If install the transmitter, cutoff power.
(2) Open the housing front side covers. In case Power Supply, don't open the covers of
transmitter
(3) After turn off Jumper, turn on at wanted position.
(4) Close the housing covers. You must fully engage to meet explosion proof requirements
3.7 Configuration of Zero and Span Procedures
There are ZERO and SPAN Buttons when the nameplate opened of the transmitter. For the previous
version of transmitter, ZERO, SPAN, ZERO TRIM and ZERO ADJ. functions were supported using ZERO
/ SPAN Buttons. But, from the version of 58, Units, Range, Damping, LCD decimal set functions are
included. Also, the procedure is changed as below.
.
But ZERO and SPAN set function is same as before Revision of 58.
Using functions which supported by buttons,
(1) Zero/Span Button mounted in Transmitter.
(2) HHT Configurator by HART Communication (following chapter 4)
** Refer to “275 Hart Communicator User Guide” on Appendix II for details.
Zero/Span configuration process by Zero/Span Button of transmitter is following this.
(1) Release to both sides bolts of Name Plate in the upper part of transmitter and if push down right
of Name Plate, appear to Zero/Span Button (following figure 3-4)
(2) Zero Configurations
Set the current process value for Lower Range Value (4 mA).
Put purposed pressure for zero over 10 seconds and push Zero Button over 5 seconds. Then show

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
14
Duon System Co.,Ltd.
“Zero” in LCD window. After checking this message, take off the finger from the button. Push the
button over 3 seconds after 1 second passes. Then show “-ZE-“ in LCD window. By this message, all
zero configurations have finished. If the works has failed, show “SPEr” or “SEtE” in LCD window.
(3) Span Configurations
Set the current process value for Upperr Range Value (20 mA).
Put purposed pressure for zero over 10 seconds and push Span Button over 5 seconds. Then show
“SPAn” in LCD window. After checking this message, take off the finger from the button. Push the
button over 3 seconds after 1 second passes. Then show “-SP-“ in LCD window. By this message, all
zero configurations have finished. If the works has failed, show “SPEr” or “SEtE” in LCD window.
yPlease refer to Appendix 1 for the button error and LCD display message
The other functions which supported by ZERO / SPAN Buttons are available as below.

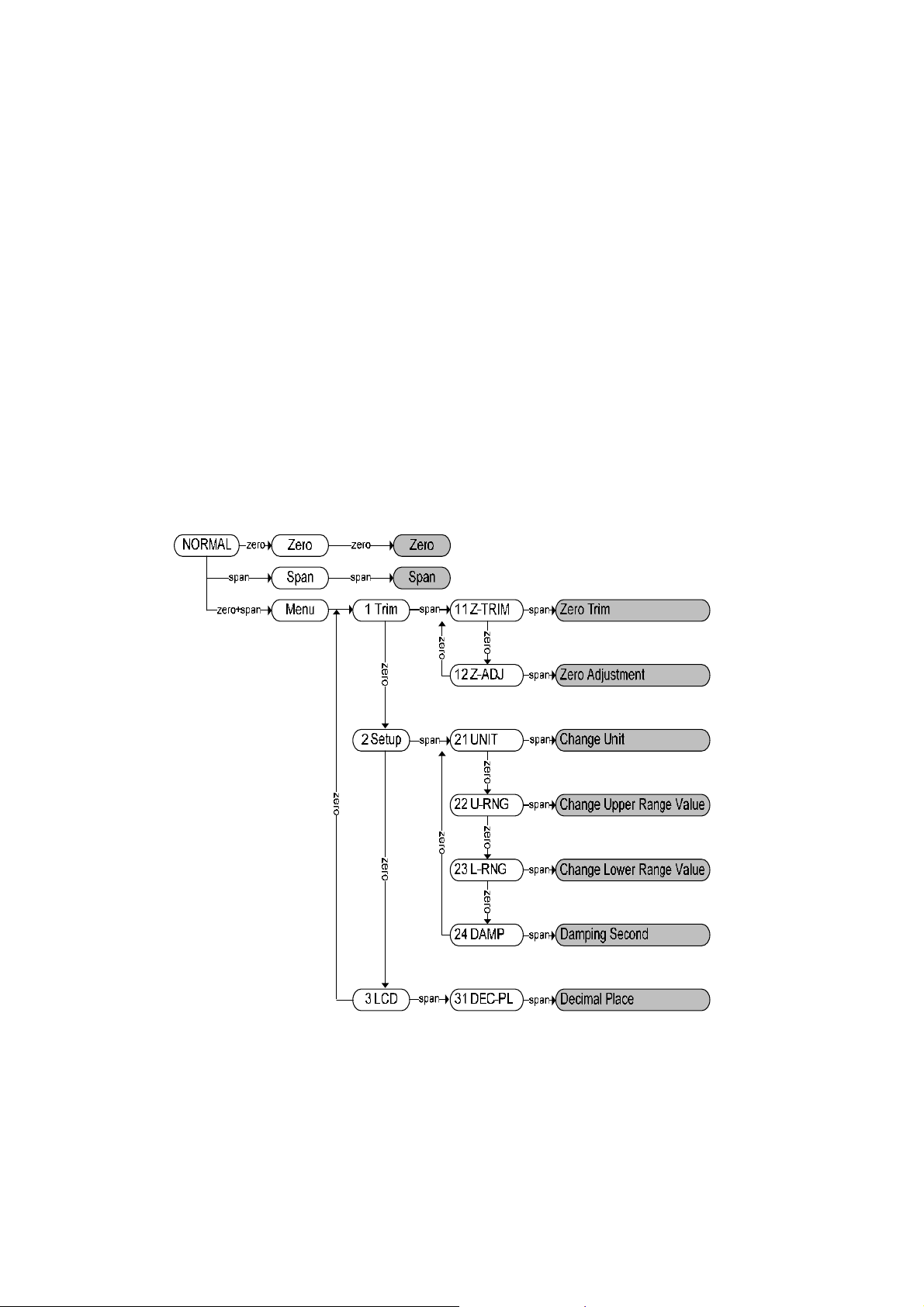

[Menu Tree of ZERO+SPAN Button Function]
(1) Moving between menus : Zero
(2) Enter or moving to sub menu : Span
(3) Moving to top menu : Zero+Span

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
15
Duon System Co.,Ltd.
yPut the button for 3 seconds to execute each function. After 3 seconds to put the ZERO+SPAN
button, LCD Display will be changed from Menu to Trim. To see next menu, put the Zero Button for 3
seconds and then Setup Menu will be displayed. Use Zero button to move down to the next directory.
yPut the Span button to select the displayed menu. The same procedure will be applicable for the sub
menus.
Caution : After about 30 seconds without any action, the button function will be finished.
yHow to put numerical value
①Functions needed to put numerical value : 12 Zero Adjustment, 22 Change Upper Range Value,
23 Change Lower Range Value, 24 Damping Second
②How to put numerical value : Firstly, select a increasing rate(10n) and then, change the each
decimal value to increase or decrease as wanted.
③For example, to select 3810 : Select increasing rate as 1000 -> Increase 3 times as 1000 ->
Select increasing rate as 100 -> Increase 8 times as 100 -> Select increasing rate as 10 ->
Increase 1 time as 10
④To select the increase / decrease steps : SelInc Message will be displayed on the bottom of LCD.
Select step to put the Zero button : The decimal value will be changed whenever put Zero
button.
After set the wanted step, put the span button to execute the item no. 2
⑤How to set the required value using Zero, Span buttons. : VALUE Message will be displayed on
the bottom of LCD window.
When put the Zero button, the step will be increased as the set on the item 1.
When put the Span button, the step will be decreased as the set on the item 1.
After setting, execute again the item 1 to put Zero+Span button.
⑥Set the final value to repeat ④, and ⑤
After setting the final value, finish the procedure to put the Zero+Span button while executing
yExercises for each function
-ZERO TRIM
- Executing the menu to put ZERO+SPAN button.
- Moving to the sub directory to put Span button when 1 TRIM message appear.
- Executing Zero Trim Function to put the Span button when 11 Z-TRIM message appear.

APT3200 Smart Pressure Transmitter Operation Manual M3200-E01G
16
Duon System Co.,Ltd.
-Zero Adjustment : To change the PV value as 14
- Executing the menu to put ZERO+SPAN button.
- Moving to the sub directory to put Span button when 1 TRIM message appear.
- Moving to the sub directory to put Zero button when 11 Z-TRIM message appear.
- Executing Zero Adjustment function to put Span button when 12 Z-ADJ message appear.
- When SelInc message appear, put the Zero button repeatedly until appearing 10.0 message
on LCD. And then, set the value to put Span button.
- When VALUE message appear, change the LCD value 10.0 as to put Zero button, and then put
Zero+Span button.
- When SelInc message appear, change the LCD value 1.0 as to put Zero button, and then set
the value to put Span button.
Put the Zero+Span button after change the LCD value 14.0 when VALUE message appear.
- To save the setting value to put Zero+Span button when SelInc message appear.
-Change Unit
- Executing the menu to put Zero+Span button.
- Moving to next menu to put Zero button when 1 TRIM message appear.
- Moving to sub directory to put Span button when 2 SETUP message appear.
- Executing the Change Unit function to put Span button when 21 UNIT message appear.
- Saving the setting value to put Span button when the wanted value is displayed on the botton
of LCD to put Zero button repeatedly.
-Change Upper Range Value
- Executing the menu to put Zero+Span button.
- Moving to the next menu to put Zero button when 1 TRIM message appear.
- Moving to the sub directory to put Span button when 2 Setup message appear.
- Moving to the next menu to put Zero button when 21 Unit message appear.
- Executing the function to put Span button when 22 U-RNG message appear.
- The procedure of setting value is same as Zero Adjustment.
