Durabook R11 User manual

Rugged Tablet PC
R11 User Manual

EN-2
Table of Contents
BEFORE YOU START......................................................................................4
PACKAGE CONTENTS.....................................................................................4
PRODUCT OVERVIEW ....................................................................................5
Front View ............................................................................................................. 5
Back View.............................................................................................................. 6
Right View ............................................................................................................. 7
Left View ............................................................................................................... 7
Bottom View .......................................................................................................... 8
STATUS INDICATORS.....................................................................................9
GETTING STARTED................................................................10
INSTALLING THE BATTERY ............................................................................. 10
Charging the Battery............................................................................................. 10
When to replace the Battery Pack ........................................................................... 11
Removing the Battery ........................................................................................... 11
CONNECTING THE POWER ............................................................................. 12
Connecting the AC Adapter .................................................................................... 12
Using Battery Power.............................................................................................. 12
STARTING YOUR TABLET PC .......................................................................... 13
Turning On Your Device......................................................................................... 13

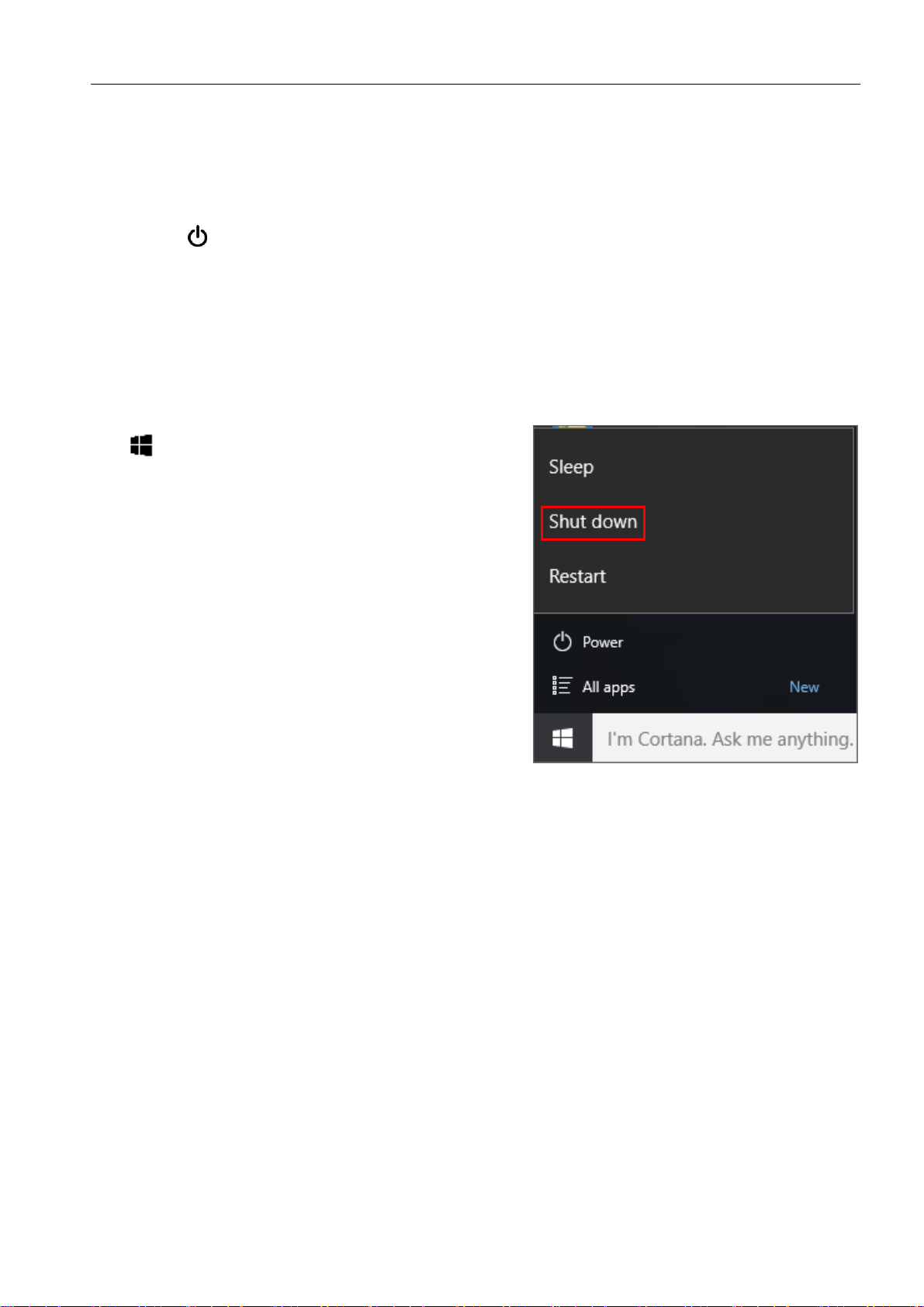

Turning Off Your Device......................................................................................... 13
OPERATINGYOURTABLETPC....................................................14
USING THE QUICK MENU.............................................................................. 14
Quick Menu Overview............................................................................................ 14

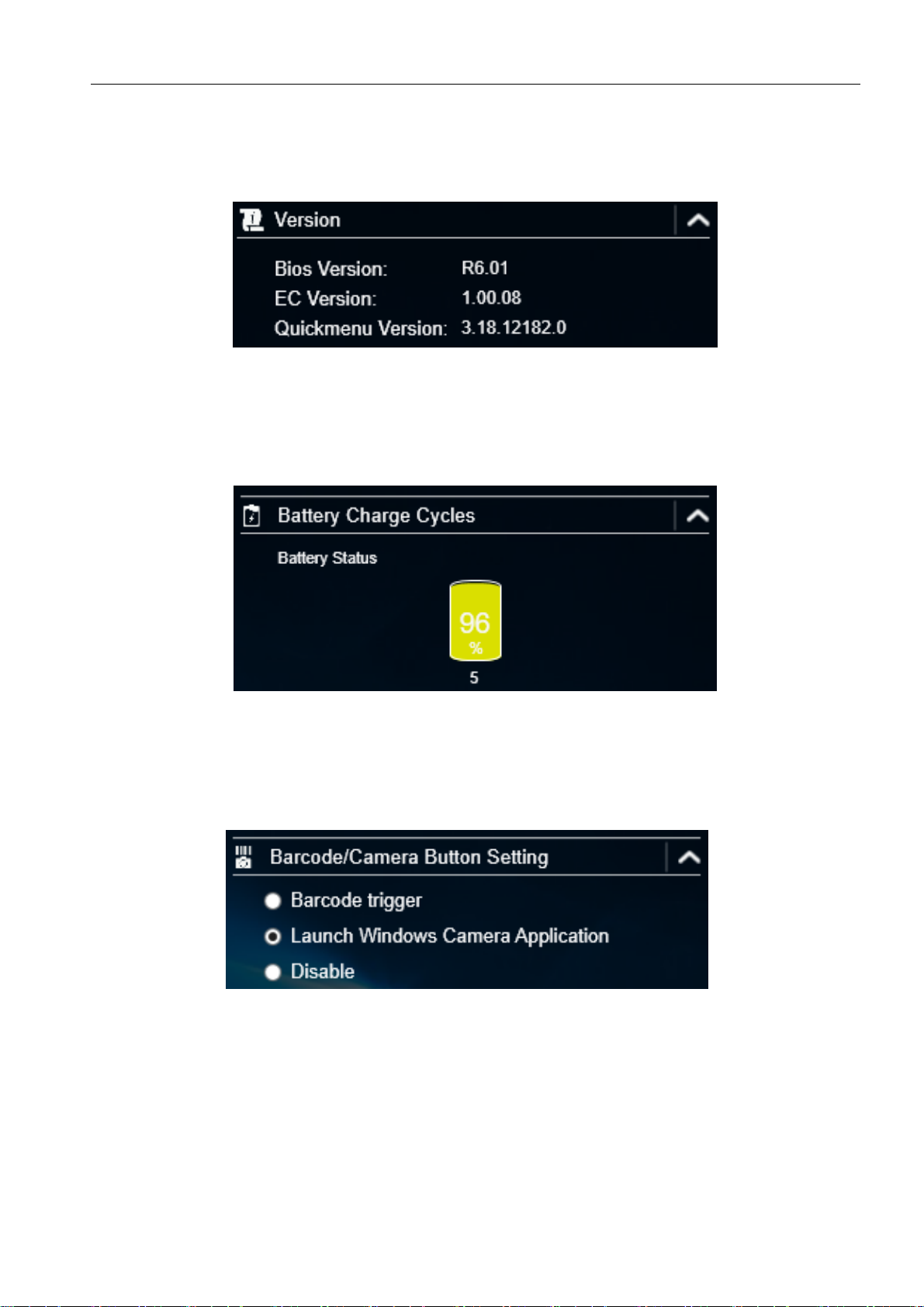

Viewing the Version Information............................................................................. 15
Viewing the Battery Charge Cycles.......................................................................... 15
Configuring the Function Button (Barcode/Camera) ....................................................... 15
Configuring the Programmable Button (P)................................................................ 16
Configuring the Up/Down Button ............................................................................ 16
Assigning an Application to the P Button.................................................................. 17
Accessing the Mobility Center................................................................................. 18
Configuring External Antenna Switching Mode.......................................................... 18
Configuring Adaptive Brightness Setting.................................................................. 19
USING THE CAMERA.................................................................................... 19
Opening the Camera App....................................................................................... 19
Taking Photos ...................................................................................................... 21
Recording Videos.................................................................................................. 22
Setting a Flash Mode............................................................................................. 23
Setting Photo Timer .............................................................................................. 23
Adjusting Focus.................................................................................................... 24
Adjusting Brightness ............................................................................................. 25

EN-3
Configuring Camera Settings.................................................................................. 26
Viewing Photos/Videos .......................................................................................... 27
MAKING CONNECTIONS........................................................28
INSTALLING THE MICROSD MEMORY CARD......................................................... 28
INSTALLING THE SIM CARD .......................................................................... 29
CONNECTING THE MICROPHONE/HEADSET ................................................................. 29
CONNECTING USB DEVICES.......................................................................... 30
CONNECTING TO WIRELESS CONNECTIONS......................................................... 31
USING THE BIOS SETUP UTILITY..........................................38
BIOS SETUP MENU.................................................................................... 38
MAIN MENU............................................................................................. 39
ADVANCED MENU ...................................................................................... 40
BOOT MENU............................................................................................. 41
SECURITY MENU........................................................................................ 42
SAVE &EXIT MENU .................................................................................... 43
MAINTAINING AND CARING FOR YOUR TABLET PC..............44
PROTECTING YOUR TABLET PC ....................................................................... 44
STORING AND HANDLING YOUR TABLET PC ........................................................ 44
CLEANING YOUR TABLET PC.......................................................................... 46
TRAVELING WITH YOUR TABLET PC ................................................................. 47
TROUBLESHOOTING..............................................................48
PRELIMINARY CHECKLIST.............................................................................. 48
SOLVING COMMON PROBLEMS........................................................................ 48
DISPLAY PROBLEMS.................................................................................... 50
HARD DISK PROBLEMS ................................................................................ 50
OTHER PROBLEMS...................................................................................... 54
APPENDIX .............................................................................55
COPYRIGHT.............................................................................................. 55
SPECIFICATIONS........................................................................................ 55
REGULATORY STATEMENT.............................................................................. 58
Federal Communications Commission Statement...................................................... 58
Declaration of Conformity ...................................................................................... 58
RF exposure warning............................................................................................. 58
Canada, Industry Canada (IC) Notices..................................................................... 59
Battery Disposal ................................................................................................... 60
CLASS 1 LASER PRODUCT ..................................................................................... 60
SAFETY INSTRUCTIONS ................................................................................ 62

Before You Start
EN-4
Before You Start
Congratulations on your purchase of this tablet PC.
This rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your tablet PC, read this chapter to familiarize yourself with the main
components installed in the system.
Package Contents
If any of following items is damaged, please contact your retailer.
Tablet PC AC adapter Power cord
Hand strap
NOTE
 The pictures are for reference only, actual items may slightly differ.

Before You Start
EN-5
Product Overview

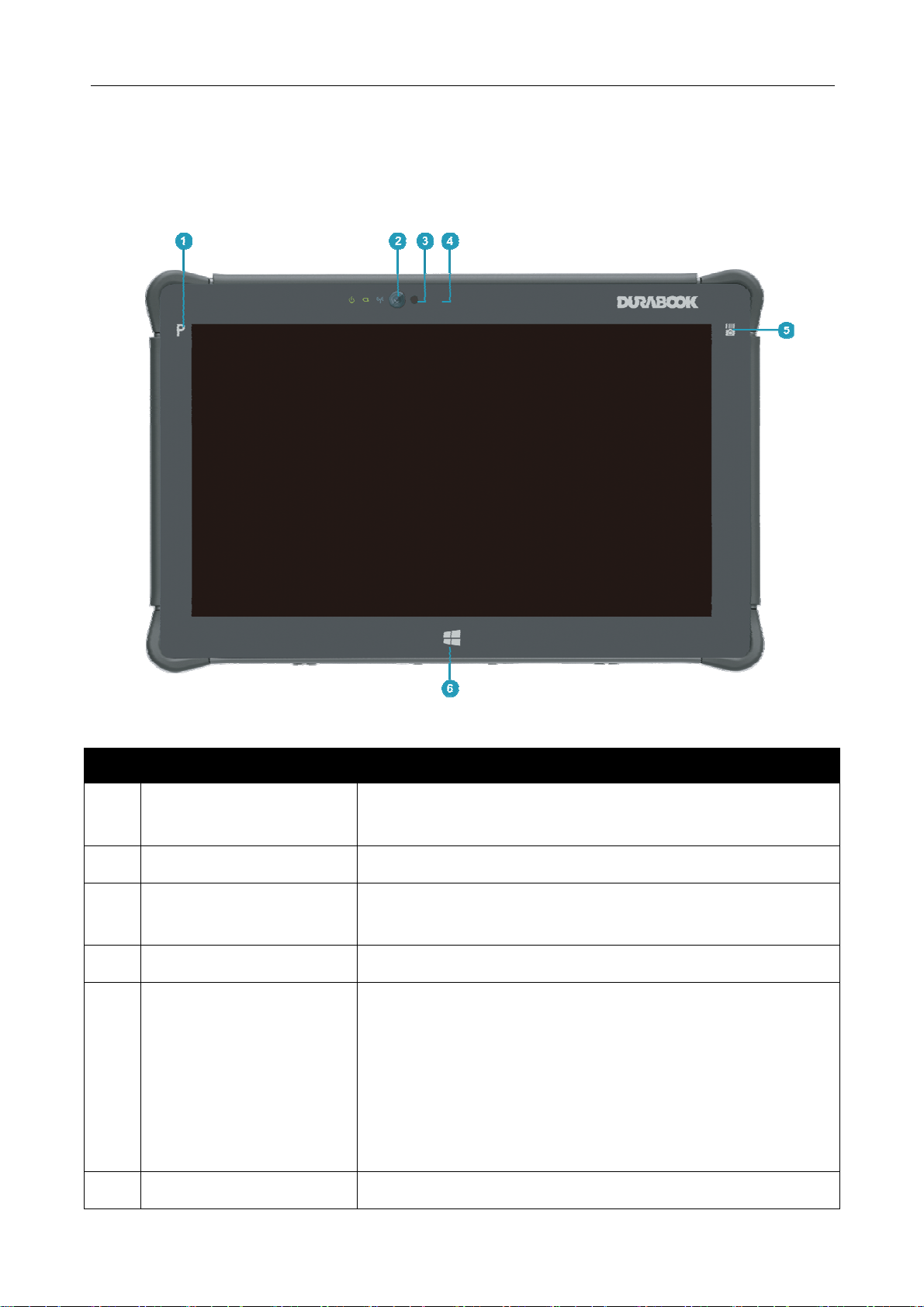

Front View
No. Item Description
1 Program button Tap to enter the chosen program (user definition)
or enable Stealth mode.
2 Front camera Use for video conference.
3 Ambient light sensor Use to detect the current level of visible light in the
surrounding environment.
4 Microphone Record the surrounding sound.
5 Function button The button functionality can be assigned via Quick
Menu.
 Barcode trigger button: Press to trigger the
Barcode scan function if the barcode scanner is
enabled.
 Launch Windows Camera Application button.
 Disable
6 Window button Tap to return to the Start screen.

Before You Start
EN-6

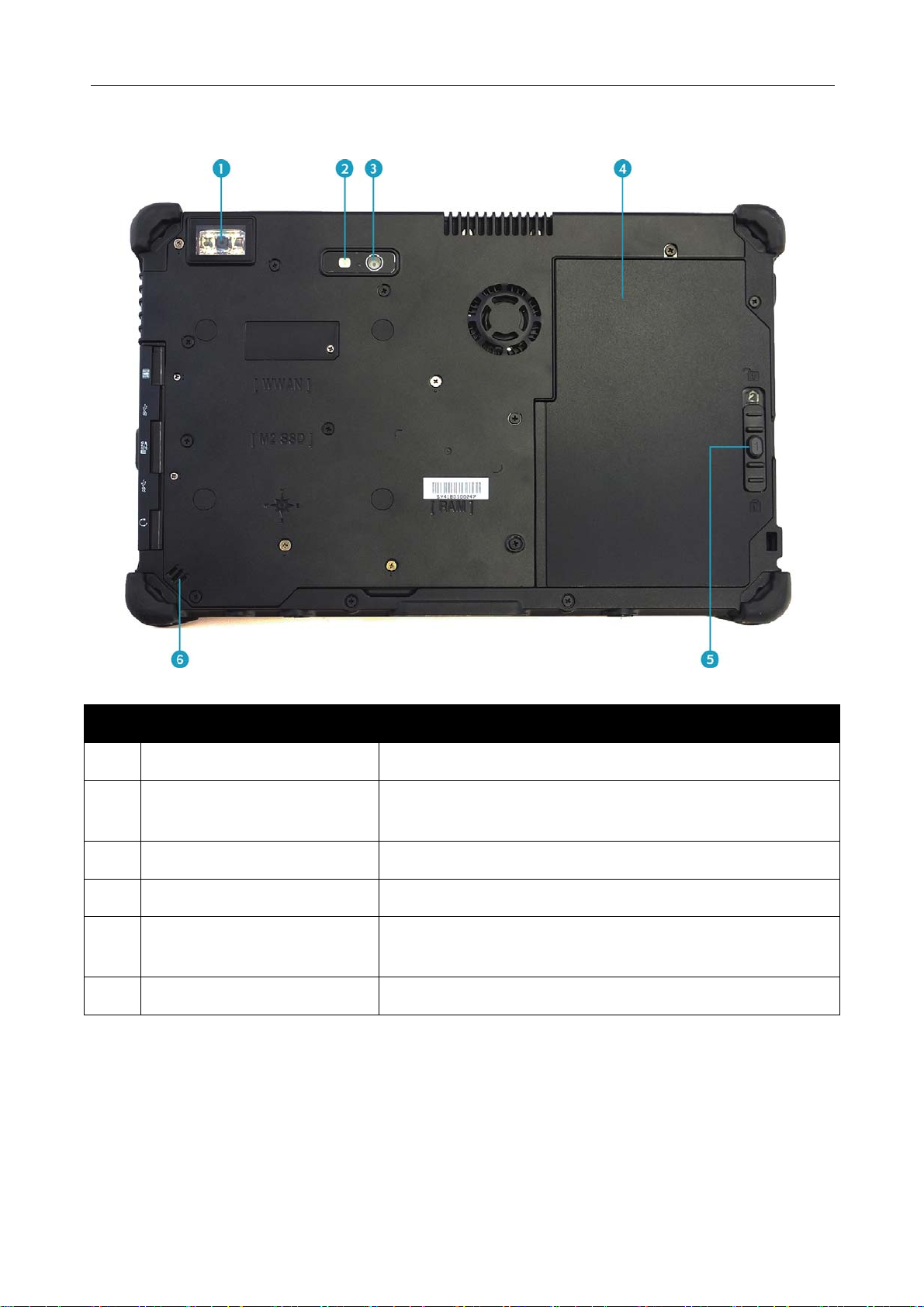

Back View
No. Item Description
1 Barcode scanner Scan barcodes.
2 Camera light Provide additional lighting when taking pictures
under low light environment.
3 Rear camera Use to take pictures.
4 Battery Pack Battery Pack.
5 Battery latch release
button Press and hold the button to slide the battery latch to the unlock position.
6 Speaker Emit sound.

Before You Start
EN-7
Right View
No. Item Description
1 Audio Combo jack Connect a headphone or an external speaker or
microphone.
2 USB 3.0 ports (x2) Connect USB 3.0 peripheral devices.
3 MicroSD memory
card slot Use to insert a MicroSD card to transfer pictures, music, and data between your Tablet PC and flash
compatible devices.
4 SIM card slot Use to insert a SIM card for WWAN module
connection.
Left View
No. Item Description
1 Power button Press to turn your tablet PC on or off.
2 Up/Down buttons The button functionality can be assigned via Quick
Menu.
 Brightness adjustment: Press to adjust the
brightness level.
 Volume adjustment: Press to adjust the volume
level.
 Disable
3 Kensington lock slot A Kensington cable can be connected.

Before You Start
EN-8
NOTE
 When using the tablet PC without attaching an external keyboard, the three-
finger salute (Ctrl+Alt+Del) function is defined by pressing the and
buttons simultaneously. By pressing the two-button combination, it will
switch to Windows Security screen, which lets you lock the device, switch to
different user, sign out, change a password, enter Task Manager, or
shutdown/Restart the device.
Bottom View
No. Item Description
1 Docking connector Connect the tablet PC to a docking station.
2 DC-IN jack Connect the power adapter.

Before You Start
EN-9
Status Indicators
The status indicators in the upper side of the tablet PC light up when a particular
function of the tablet PC is active.
Icon Item Description
Power Green LED always lights on when the system is running.
When the system is in sleep mode, the LED blinks.
Battery Indicate the battery status:
 Green: when battery is fully charged (95% or above)
 Orange: when battery is charging
 Flashing Red: when battery capacity is lower than 10%
 Off: when discharged
RF Blue LED lights on when any of RF features (WLAN/
Bluetooth/ WWAN/ GPS) is on.
Blue LED lights off when none of RF features (WLAN/
Bluetooth/ WWAN/ GPS) are on.
NOTE
 On Windows 10 OS, you need to install the Quick Menu application in order to
verify the RF signal status.

Getting Started
EN-10
Getting Started
This chapter will help you get started using the device.
Installing the Battery
To install the battery, follow the steps below:
1. Align and insert the battery to the
battery compartment.
2. Push completely until the battery locks
into place.
3. Slide the battery latch to the lock
position to secure the battery.

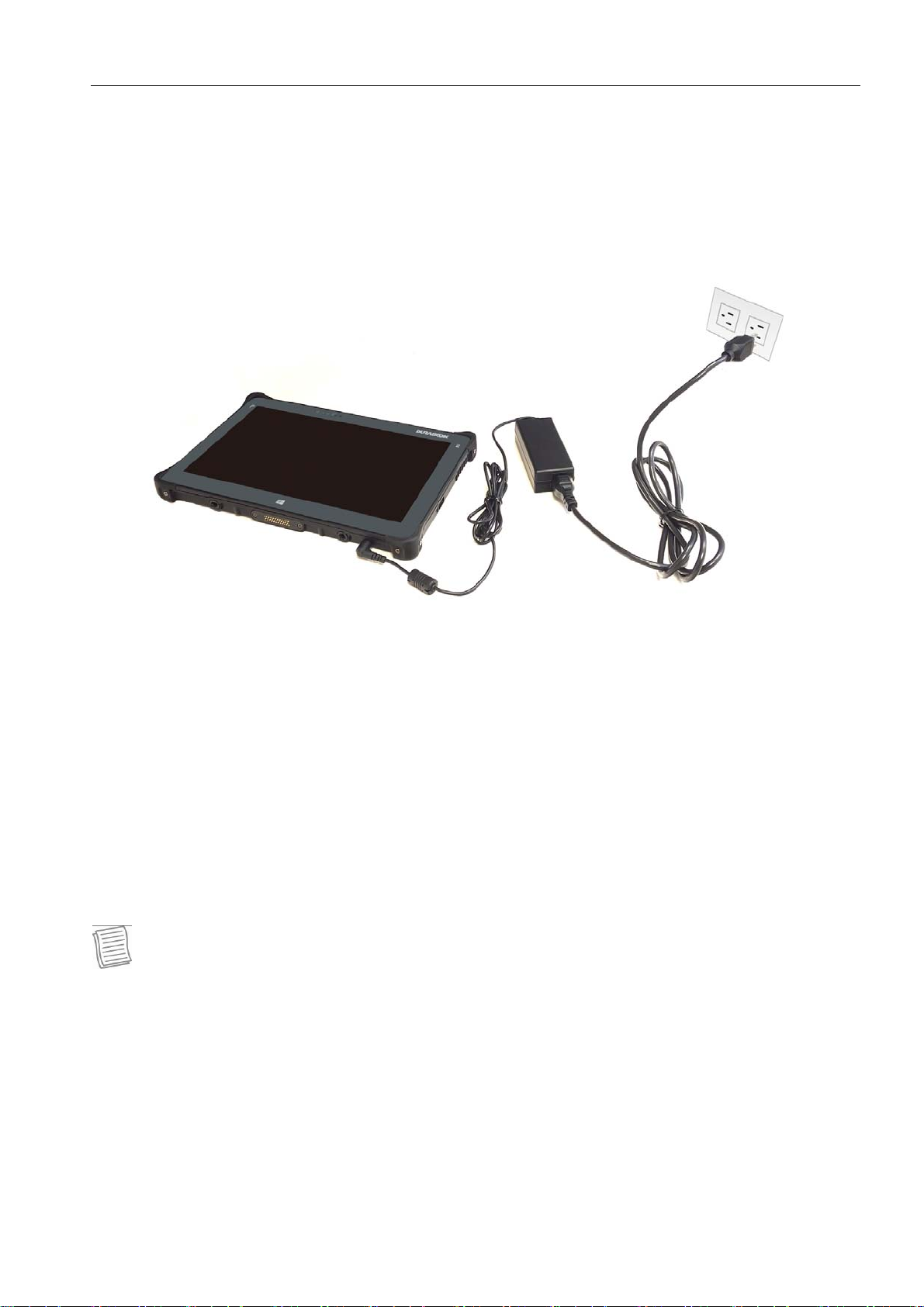

Charging the Battery
The Lithium-ion battery is not fully-charged upon purchase.
To charge the battery, follow the steps below:
1. Install the battery to your tablet PC. See procedures above.
2. Connect the AC adapter to the DC-IN jack of your tablet PC.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to an electrical outlet.
