Before You Start
EN-5
Before You Start
Congratulations on your purchase of this tablet PC.
This rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your tablet PC, read this chapter to familiarize yourself with the main
components installed in the system.
Package Contents
If any of following items is damaged, please contact your retailer.
Tablet PC
AC adapter
Power cord
Stylus and tether
Hand strap
NOTE
•The pictures are for reference only, actual items may slightly differ.

Before You Start
EN-6
Product Overview

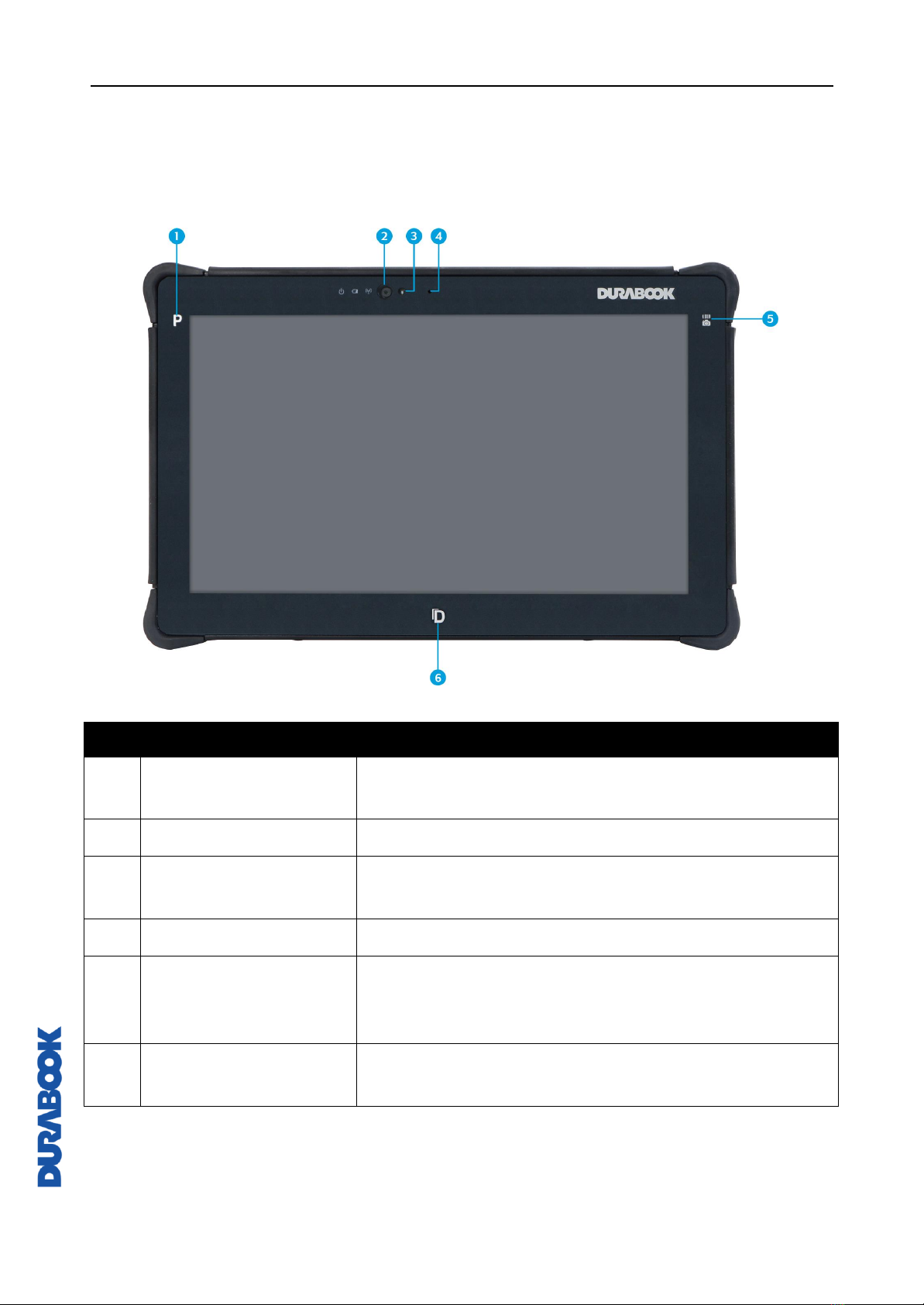

Front View
No.
Item
Description
1
Program button (P)
Tap to enable Stealth mode or enter the chosen
program (user definition).
2
Front camera
Use for video conference.
3
Ambient light sensor
Use to detect the current level of visible light in the
surrounding environment.
4
Microphone
Record the surrounding sound.
5
Barcode/Camera
button
Tap to trigger Barcode Scanner, launch Camera
application, or enter the chosen program
(user definition).
6
Program button (D)
Tap to enable Touch Screen mode or enter the
chosen program (user definition).

Before You Start
EN-7
Back View
No.
Item
Description
1
Barcode scanner
Scan barcodes (optional).
2
Camera light
Provide additional lighting when taking pictures
under low light environment.
3
Rear camera
Use to take pictures.
4
Battery Pack
Battery Pack.
5
Battery latch release
button
Press and hold the button to slide the battery
latch to the unlock position.
6
Speaker
Emit sound.

Before You Start
EN-8
Right View
No.
Item
Description
1
Audio Combo jack
Connect a headphone or an external speaker or
microphone.
2
USB 3.2 port
Connect USB-A peripheral devices.
3
MicroSD memory
card slot
Use to insert a MicroSD card to transfer pictures,
music, and data between your tablet PC and flash
compatible devices.
4
Thunderbolt 4 port
Connect Thunderbolt peripheral devices or USB-C
peripheral devices.
5
SIM card slot
Use to insert a SIM card for WWAN module
connection.
6
Micro HDMI port
Connect HDMI peripheral devices with micro HDMI
support.
Left View
No.
Item
Description
1
Power button
Press to turn your tablet PC on or off.
2
Up/Down buttons
The button functionality can be assigned via Quick
Menu.
•Brightness adjustment: Press to adjust the
brightness level.
•Volume adjustment: Press to adjust the volume
level.
•Disable
3
Kensington lock slot
A Kensington cable can be connected.

Before You Start
EN-9
NOTE
• When using the tablet PC without attaching an external keyboard, the three-
finger salute (Ctrl+Alt+Del) function is defined by pressing the D-Key if the
D-Key has been assigned to function as the “SAS key” in the Quick Menu.
Pressing the D-Key will switch to Windows Security screen, which lets you
lock the device, switch to different user, sign out, change a password, enter
Task Manager, connect to an available wireless network, activate the airplane
mode, enter the Accessibility menu, shutdown/restart the device, or activate
the Sleep mode.
Bottom View
No.
Item
Description
1
RF pass through
connector
(for selected models)
Use for the external GPS/WWAN Antenna.
2
Docking connector
Connect the tablet PC to a docking station.
3
DC-IN jack
Connect the power adapter.

Before You Start
EN-10

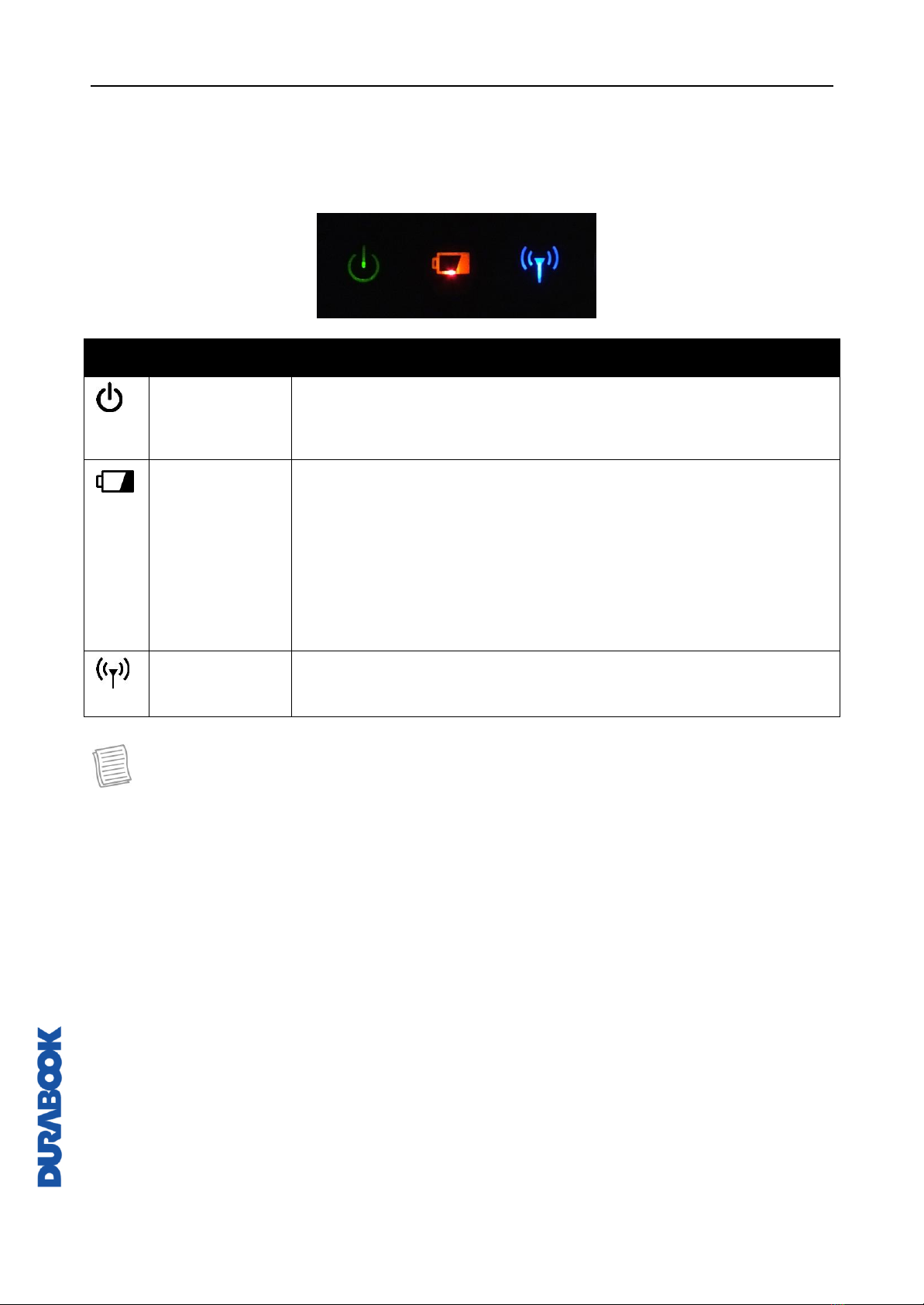

Status Indicators
The status indicators in the upper side of the tablet PC light up when a particular
function of the tablet PC is active.
Icon
Item
Description
Power
Green LED always lights on when the system is running.
When the system is off or in hibernation mode, the LED
is off.
Battery
Indicate the battery status:
•Green: when battery is fully charged (95% or above)
•Orange: when battery is charging
•Flashing Orange: when there is a battery error
(cannot fully charge the battery within 8h)
•Red: when battery capacity is lower than 7%
•Off: when discharged
RF
Blue LED lights on when the airplane mode is off.
Blue LED lights off when the airplane mode is on.
NOTE
•When the Stealth mode is on then all LED lights will automatically turn off.
