Durapac DPR-223S User manual

ABSOLUTE EQUIPMENT PTY LTD –2/186 Granite Street, GEEBUNG QLD 4034 –Australia
[e-mail] –Phone: [phone] –Fax: [phone]
Maximum Operating Pressure –700 bar
Instruction Manual
Rotary Air Hydraulic Power Unit
Model –DPR-223S

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 2 of 10
This is a safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid injury or death
1.0 Product Information
DURAPAC –Rotary Air Hydraulic Power Units are engineered to meet Industrial Standards for
Performance and Safety. The DPR-223S model is a two speed, high performance pump design that is
ideally suited to applications where air is the preferred power source. The power units feature a
Gast® heavy duty air motor and an 11 litre usable oil reservoir. They have a 3 way/3 position
solenoid valve for Advance/Hold/Retract of a single acting cylinder/tool.
The unique hydraulic circuit allows the quick displacement of hydraulic fluid under no load
conditions and easy pumping in loaded conditions. These air actuated power units supply
compressed hydraulic fluid to a compatible single-acting cylinder, anywhere that 700 bar of fluid
pressure is needed.
Special skill, knowledge and training may be required for a specific task and the product may not be
suitable for all jobs. The user must ultimately make the decision regarding suitability of the product
for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac
representative if you are unsure of your power unit’s suitability for a particular application.
2.0 Receiving Instructions
It is recommended prior to use that an inspection be done by qualified personnel and that any
missing or damaged parts, decals, warning/safety labels or signs are replaced with Durapac
authorised replacement parts only. Any power unit that appears to be damaged in any way, is worn,
leaking or operates abnormally should be removed from service immediately until such time as
repairs can be made. Any power unit that has been or suspected to have been subject to a shock
load should be removed from service immediately until inspected by a Durapac authorised service
centre. Owners and operators of this equipment should be aware that the use and subsequent
repair of this equipment may require specialised training and knowledge.
3.0 Safety
Save these instructions. For your safety, read and understand the information contained within. The
owner and operator should have an understanding of this product and safe operating procedures
before attempting to use this product. Instructions and safety information should be conveyed in the
operator's native language before use of this product is authorised. Make certain that the operator
thoroughly understands the inherent dangers associated with the use and misuse of the product. If
any doubt exists as to the safe and proper use of this product as outlined in this factory authorised
manual, remove from service immediately.
DANGER:
To avoid personal injury keep hands and feet away from work area during operation
Do NOT handle pressurized hoses. Escaping oil under pressure can penetrate the skin
causing serious injury. If oil is injected under the skin, see a doctor immediately

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 3 of 10
Stay clear of loads supported by hydraulics. A cylinder, when used as a load lifting
device, should never be used as a load holding device. After the load has been raised
or lowered, it must always be supported mechanically
WARNING:
The system operating pressure must not exceed the pressure rating of the lowest
rated component in the system. Install pressure gauges in the system to monitor
operating pressure. It is your window to what is happening in the system
Always wear appropriate personal protective equipment (PPE) when operating
hydraulic equipment. The operator must take precaution against injury due to failure
of the tool or work piece(s)
Do NOT hold or stand directly in line with any hydraulic connections while pressurising
Do NOT attempt to disconnect hydraulic connections under pressure. Release all line
pressure before disconnecting hoses
All personnel must be clear before lowering load or depressurising the system
Do NOT attempt to lift a load weighing more than the capacity of the cylinder
IMPORTANT:
If at any stage, the safety related decals become hard to read, these must be replaced
Minimum age of the operator must be 18 years. The operator must have read and
understood all instructions, safety issues, cautions and warnings before starting to
operate the equipment. The operator is responsible for this activity towards other
persons
Do NOT lift hydraulic equipment by the hoses or couplers. Use the carrying handle or
other means of safe transport
Hydraulic equipment must only be serviced by a qualified hydraulic technician. For
repair service, contact the Durapac authorised service centre in your area. To protect
your warranty, use only high quality hydraulic oil
CAUTION:
KEEP HYDRAULIC EQUIPMENT AWAY FROM FLAMES AND HEAT. Hydraulic fluid can
ignite and burn. Excessive heat will soften packings and seals, resulting in fluid leaks.
Heat also weakens hose materials and packings. For optimum performance do not
expose equipment to temperatures of 65°C (150°F) or higher. Protect all equipment
from weld spatter
No alteration should be made to this device
3.1 Hydraulic Power Units
Do use a gauge or other load measuring instrument to verify load
Do NOT exceed the rated capacity of the power unit or any equipment in the
system. Burst hazard exists if connection pressure exceeds rated pressure
Do NOT operate the system with bent or damaged couplers or damaged threads
Do NOT subject the power unit and its components to shock loads

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 4 of 10
Use only Durapac approved accessories and components
Do NOT connect to an application which can return more oil to the reservoir than
the power unit reservoir can hold
Do NOT connect power unit to a hydraulic system that is powered by another pump
3.2 Hydraulic Hoses & Fluid Transmission Lines
Avoid short runs of straight line tubing. Straight line runs do not provide for
expansion and contraction due to pressure and/or temperature changes
Reduce stress in tube lines. Long tubing runs should be supported by brackets or
clips. Before operating the power unit, tighten all hose connections with proper
tools. Do not over tighten. Connections should be tightened securely and leak-free.
Over tightening can cause premature thread failure or high pressure fittings to burst
Should a hydraulic hose ever rupture, burst or need to be disconnected,
immediately shut off the power unit and release all pressure. Never attempt to
grasp a leaking pressurised hose with your hands. The force of escaping hydraulic
fluid can inflict injury
Do NOT subject the hose to potential hazard such as fire, sharp objects, extreme
heat or cold or heavy impact
Do NOT allow the hose to kink, twist, curl, crush, cut or bend so tightly that the fluid
flow within the hose is blocked or reduced. Periodically inspect the hose for wear
Hose material and coupler seals must be compatible with the hydraulic fluid used.
Hoses also must not come in contact with corrosive materials such as battery acid,
creosote-impregnated objects and wet paint. Never paint a coupler or hose
FAILURE TO HEED THESE WARNINGS MAY RESULT IN PERSONAL INJURY AS WELL AS PROPERTY DAMAGE.
4.0 Installation
IMPORTANT:
This power unit is for use with a single-acting cylinder ONLY! Connect a hose from the
power unit’s oil output port to the input port of a single-acting application such as a
cylinder. Block the unused subplate port securely. This model cannot be used with a
double-acting cylinder
Always secure threaded port connections with high grade, non-hardening pipe thread
sealant. Teflon tape can be used if only one layer of tape is used and it is applied
carefully, two threads back, to prevent the tape from being introduced into hydraulic
system, which could cause jamming of precision-fit parts
To extend the life of your power unit, the air compressor should have a filter, regulator
and lubricator system that will provide clean, lubricated air to the power unit. Contact
your Durapac representative for the necessary accessories

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 5 of 10
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual.
Know your power unit, its limitations and how it operates before attempting to use.
Refer to the specification chart below for details of oil port thread size, usable oil
capacity, and more. If in doubt, contact a Durapac representative.
4.2 Check all system fittings and connections to be sure they are tight and leak free.
4.3 Replace shipping plug with air vent plug before use.
4.4 Hydraulic Connection: Connect oil output port to suitable fittings and
application/cylinder.
4.5 Air Connection: After making the necessary hydraulic connections above, connect
suitable air supply to air input connection. Ensure that your air source can dedicate
1,246 Lpm @ a range of 4.1 –5.6 bar for rated capacity performance.

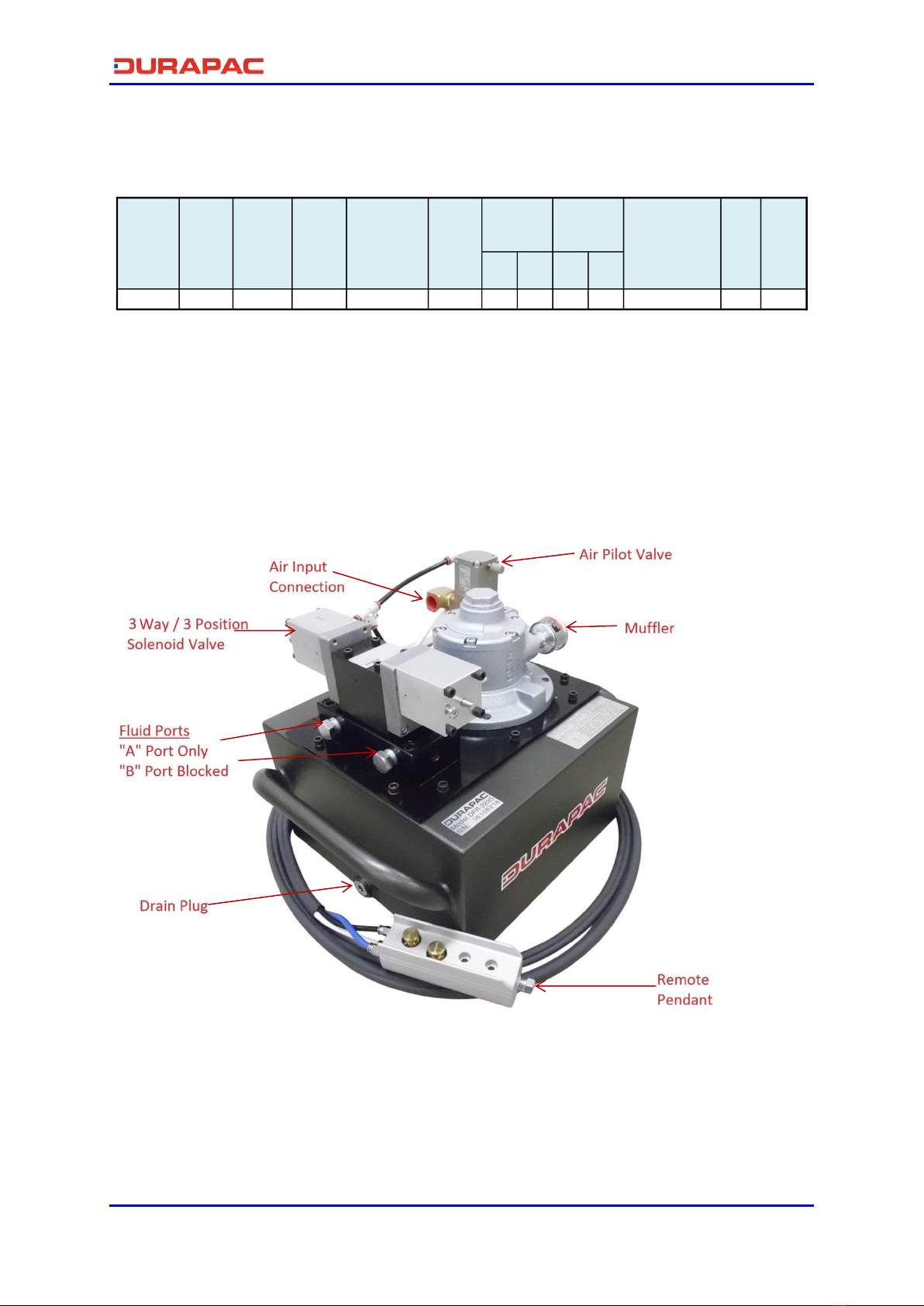

Figure 1 - DPR-223S Components
4.6 Remove air from the power unit –Air can accumulate in the hydraulic system during
the initial setup or after prolonged use, causing the cylinder to respond slowly or in an
unstable manner. Should removal of air from pump be required, please follow the
steps in 6.2 –Bleeding Air from the System in the Maintenance Section.
4.7 Check oil level in reservoir before operating power unit.
1st
Stage
2nd
Stage
1st
Stage
2nd
Stage
DPR-223S S/A 3/8"NPTF 4.1 - 5.6 1,246 700 48 700 6.8 0.36 Solenoid 3W/3P 1.27 32
Max.
Pressure
Rating
(bar)
Pressure
Rating (bar)
Oil Output
Flow Rate
(Lpm)
Valve Type
Motor
Size
(kW)
Weight
(kg)
Model
Number
Used
with
Cylinder
Oil Port
Thread
(2x)
Air
Pressure
Range
(bar)
Air
Consumption
(Lpm)

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 6 of 10
5.0 Operation
IMPORTANT:
Always monitor pressure, load or position using suitable equipment. Pressure may be
monitored by means of an optional manifold and gauge. Do not load a hydraulic
application (cylinder, spreader, etc) to more than 80% of its rated capacity. Load may
be monitored by means of a load cell and digital indicator. Correct application position
can only be determined by the operator of the equipment
Do NOT operate a power unit that is disconnected from the application. If operated in
this condition, the hose and connections will become pressurised. This increases the
chance of a burst hazard. Damage may also occur to the power unit and its
components
5.1 To Direct Fluid to and from the Application
Do not continue to operate the power unit after the cylinder piston rod is fully
extended or retracted
5.1.1 Connect the air source to the air input connection.
Figure 2 - DPR-223S –Remote Pendant
5.1.2 Advance - Press the remote pendant ADV. button (see Figure 2) to start the
air motor and advance the cylinder until the desired pressure, load or
position is reached. Releasing the ADV. button will stop the motor and hold
the cylinder position.

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 7 of 10
5.1.3 Retract –Press the remote pendant RET. button (see Figure 2) to energise
the retract air solenoid and retract the cylinder until the desired pressure,
load or position is reached.
Note - Both air input ports use a 1/4" NPT air nipple (not included). It is recommended to
install an inline air filter upstream from the power unit to provide clean, lubricated air. Contact
your Durapac representative for the necessary accessories.
6.0 Maintenance
IMPORTANT:
Check oil level regularly
Use only good quality hydraulic fluid. Do NOT use brake fluid, transmission fluid,
turbine oil, motor oil, alcohol, glycerine etc. Use of anything other than good quality
hydraulic oil will void warranty and damage the power unit, hose, and application. We
recommend Durapac Hydraulic Oil or equivalent
Equipment must only be serviced by a qualified hydraulic technician. For repair service,
contact your local Durapac authorised service centre
Damage to hydraulic hoses may not be detected during visual inspections. For this
reason, Durapac recommends that hydraulic hoses be replaced on a regular basis
Tighten connections as needed. Use non-hardening pipe thread compound when
servicing connections
Dirt, sand, etc. will quickly ruin any hydraulic system. Ensure that couplings are clean and free of
foreign matter. After each use, clean couplings and attach dust caps.
Maintenance is required when wear or leakage is noticed. Periodically inspect all components to
detect any problem that may require service and maintenance.
6.1 Adding Hydraulic Fluid
WARNING: Always add oil with cylinders fully retracted (or extended, if pull cylinders) or
the system will contain more oil than the reservoir can hold
6.1.1 Depressurise and disconnect hydraulic hose from application/cylinder.
6.1.2 With the power unit in an upright, horizontal position, remove the air vent plug
located on the top plate of the reservoir.
6.1.3 Use a small funnel to fill the reservoir to within 19mm (3/4") of the opening.
6.1.4 Bleed air from system if necessary.
6.1.5 Wipe up any spilled fluid and reinstall the air vent plug/reservoir cap.
6.2 Bleeding Air from the System
6.2.1 Repeat Steps 6.1.1 to 6.1.5 (above), if required.
6.2.2 Invert cylinder and place at a lower level than the power unit reservoir.

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 8 of 10
6.2.3 Extend and retract the cylinder several times without putting a load on the
system. Air will be released into the power unit reservoir.
6.2.4 Recheck oil level after removing air.
6.3 Changing Hydraulic Fluid
For best results, change fluid once a year or every 300 hours of use
6.3.1 Repeat Steps 6.1.1 to 6.1.2 (above).
6.3.2 Pour used fluid into a sealable container.
6.3.3 Repeat Steps 6.1.3 to 6.1.5 (above).
6.3.4 Dispose of fluid in accordance with local regulations.
6.4 Lubrication
When power unit is operated on a daily basis, it is recommended that an inline oiler
and air dryer is installed and SAE grade oil (5W to 30W) is used.
6.5 Storage
6.5.1 When not in use, depressurise and disconnect the hydraulic power unit from
the application.
6.5.2 Wipe clean thoroughly and store in a clean, dry environment. Avoid
temperature extremes.
6.5.3 For transportation or long storage, replace the air vent plug with shipping plug.
6.5.4 Shield power unit with a protective cover.

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 9 of 10
7.0 Troubleshooting
Problem
Cause
Solution
Application does not
extend, move or respond to
pressurised fluid
Overload condition
Remedy overload condition
Loose couplers
Tighten couplers
Faulty couplers
Replace couplers
Malfunctioning power unit
Contact a Durapac authorised
service centre
Repair or replace as
necessary
Inadequate air supply
Ensure the air source can
dedicate 1246 Lpm @ a range
of 4.1 –5.6 bar for the
1.27kW power unit
Application responds to
pressurised fluid, but
system does not maintain
pressure
Overload condition
Remedy overload condition
Malfunctioning power unit or
valve
Contact a Durapac authorised
service centre
Repair or replace as
necessary
Leaking application/connection
Replace
application/connection
Application responds
slower than normal
Loose connection or coupler
Tighten connection or
coupler
Restricted hydraulic line or
fitting
Clean and replace if damaged
Leaking application/connection
Replace
application/connection
Application does not return
fluid to power unit (i.e.
cylinder will not retract)
Malfunctioning coupler/
damaged application
Secure load by other means
Depressurise power unit and
hose
Remove coupler and/or
application
Repair or replace as
necessary
Application does not fully
extend (cylinder or
spreader)
Overfilled reservoir
Secure load by other means
Depressurise power unit and
hose
Remove application
Drain fluid to proper level
Low fluid level in power unit
Secure load by other means
Depressurise power unit and
hose
Remove application
Fill fluid to proper level
Poor performance
Low fluid level in power unit
Ensure proper fluid level

Instruction Manual
DPR-223S Rotary Power Unit - V1.1 www.durapac.com Page 10 of 10
8.0 Control Circuit
