DuraVent FasNSeal W2 User manual
FasNSeal W2
Installation Instructions
A MAJOR CAUSE OF VENT RELATED FIRES IS FAILURE
TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO
COMBUSTIBLE MATERIALS. IT IS OF THE UTMOST IMPORTANCE
THAT FasNSeal W2 BE INSTALLED ONLY IN ACCORDANCE WITH
THESE INSTRUCTIONS.
IMPORTANT:
Read through all of these instructions
before beginning your installation. Failure
to install this product as described in these
instructions will void the manufacturer’s
warranty, may create a re or other safety
hazard, and may affect your homeowner’s
insurance and safety listing of your
appliance.
Keep these instructions for future
reference.
Dear Customer, Installer, or End User:
C A ME R A -R E A DY L O G OT Y P E – UL MA R K F OR C A N ADA A N D T HE U.S .
These Marks are registered by Underwriters L aboratories Inc.
The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the
UL M ark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.
The font for all letter forms is Helvetica Condensed B lack, except for the trademark symbol ® , which is
Helvetica Condensed Medium. No other fonts are acceptable.
200-195C 20M/11/97
CONTENTS
Introduction; General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Vent Size and Length; Adjustable Vent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Joint Connections; Appliance Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Condensate Drains; Horizontal Through-The-Wall Installation.. . . . . . . . . . . 7
Vertical Through-The-Roof Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exterior Wall Bracket Installation; Venting Through Masonry Chimney. . . .10
Important Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
FasNSeal W2
INTRODUCTION
FasNSeal W2 must be installed by an
experienced professional familiar with
the operation and maintenance of heating
appliances and venting. Before installing
this product, examine all components
for possible shipping damage and read
the complete installation manual. Failure
to follow proper installation procedures,
including vent pitch and improper appliance
connections may cause unsafe conditions.
It is the responsibility of the installer to
contact local building and re ofcials
concerning any installation restrictions
and/or inspection requirements that may
apply.
GENERAL INSTALLATION
REQUIREMENTS
more than one drain may be required
Note: Follow appliance manufacturer’s
allowances for elbows.
VENT SIZE AND LENGTH

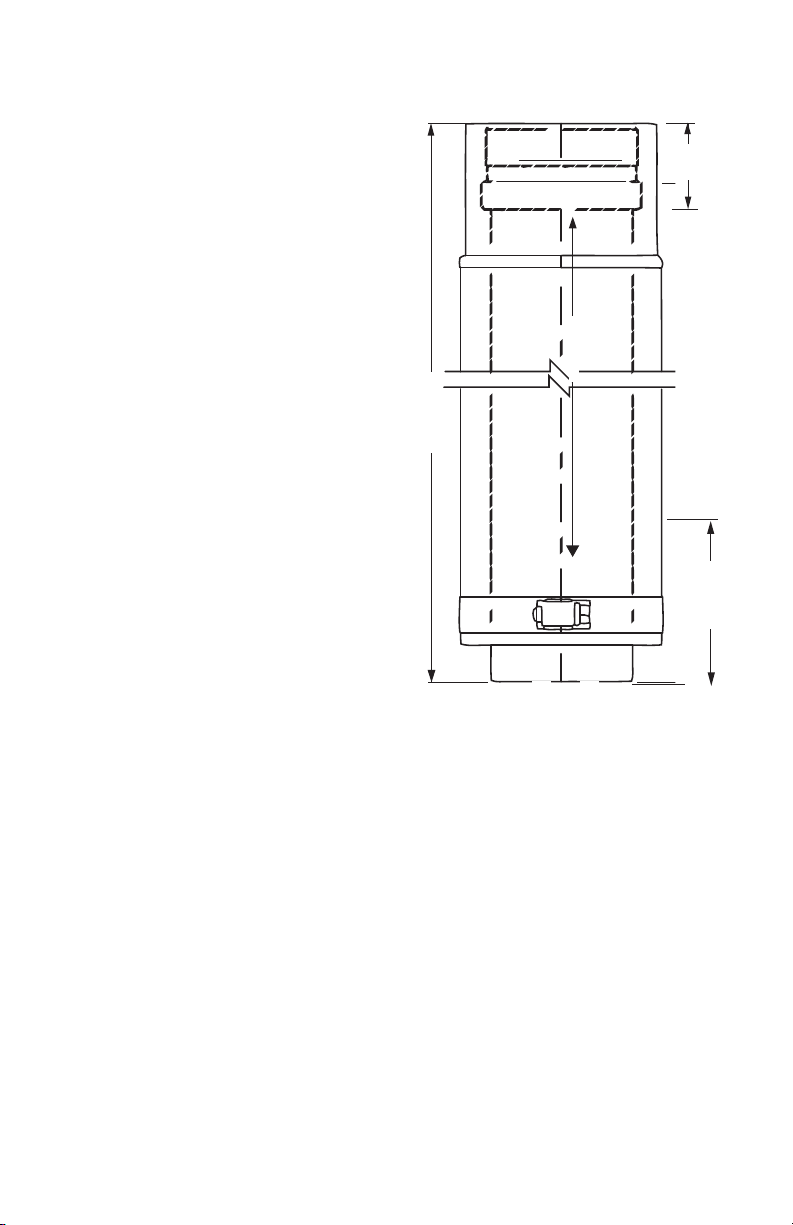

FASNSEAL W2 ADJUSTABLE
VENT LENGTH
A
B
(2)
W2 Vent
Length
W2- AVL
(3)
(1)
(4)
Correct Joint Connection.
Male/Female sections fully engaged.
INCORRECT Joint Connection.
Male/Female sections NOT fully engaged.
JOINT CONNECTIONS
Before proceeding, recheck all joints and
ensure that all male sections extend to the
top of the ared female end and all clamps
are tightened.
APPLIANCE CONNECTION
CONDENSATE DRAINS
Hoizontal Through-The-Wall Installation
HORIZONTAL, THROUGH THE
WALL INSTALLATION
Condensate must ow freely and may not
be retained in any part of the vent system.
NOTE:
NOTE:
Wall Thimble Installation
Do not drill through or penetrate any part of
the vent system.

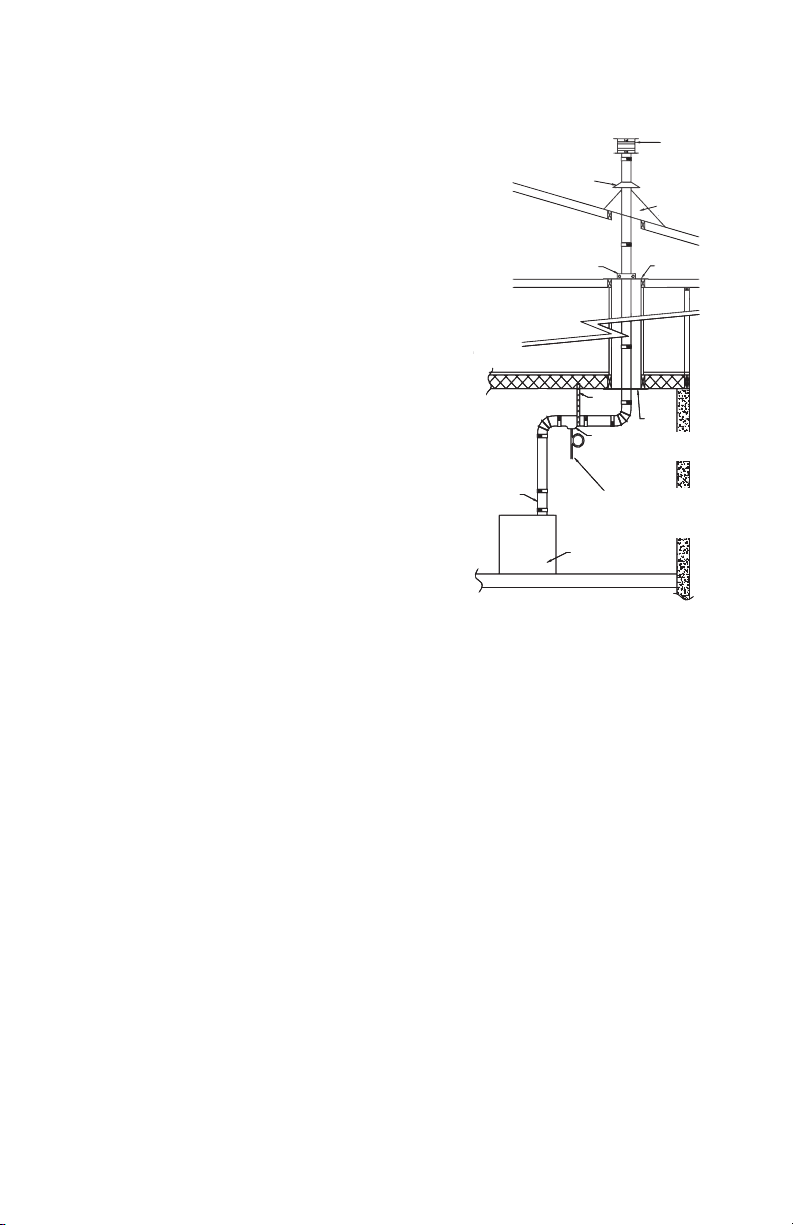

VERTICAL, THROUGH THE ROOF
INSTALLATION
1.
2.
Vertical Through the
Roof Installation
3
4.
5.
8.
9.
10.
FASNSEAL EXTERIOR WALL
BRACKETS
PRE-INSTALLATION
INSTALLATION
1.
2.
3.
4.
5.
6.
7.
VENTING THROUGH A MASONRY
CHIMNEY
IMPORTANT NOTICE
FasNSeal Double-Wall Clearances to Combustibles
FasNSeal is a registered trademark of the M&G DuraVent, Inc.
All rights reserved. Made in the USA. M&G DuraVent is a member of M&G Group. ©2012
Customer Service Support 800-835-4429 707-446-4740 FAX www.duravent.com
M&G DURAVENT LIMITED LIFETIME WARRANTY
M&G DuraVent, Inc. (“DuraVent”) provides this limited lifetime warranty for all of its products with the exception of Ventinox® (lifetime), and
PolyPro® (ten years). Subject to the limitations set forth below, DuraVent warrants that its products will be free from defects in material or
manufacturing, if properly installed, maintained and used. DuraVent products are fully warranted if installed only by a professional installer.
This Warranty is transferable from the original homeowner to the buyer of the home. This warranty does not cover normal wear and tear, smoke
damage or damage caused by chimney res, acts of God, or any product that was: (1) purchased other than from an authorized DuraVent
dealer, retailer or distributor; (2) modied or altered; (3) improperly serviced, inspected or cleaned; or (4) subject to negligence or any use not
in accordance with the installation instructions included with the product as determined by DuraVent. Installation instructions are available
online at www.duravent.com under Support/Literature and through our Customer Service Department 800-835-4429 or customerservice@
duravent.com. This limited lifetime warranty applies only to parts manufactured by DuraVent.
DuraVent provides the following warranties for its products: One Hundred Percent (100%) MSRP 15 years from the date of purchase, and Fifty
Percent (50%) thereafter, except for the following limitations on: all Termination Caps and DuraBlack® are warranted at One Hundred Percent
(100%) for ve years.
All warranty obligations of DuraVent shall be limited to repair or replacement of the defective product pursuant to the terms and conditions
applicable to each product line. These remedies shall constitute DuraVent’s sole obligation and sole remedy under this warranty. This warranty
provides no cash surrender value. The terms and conditions of this warranty may not be modied, altered or waived by any action, inaction or
representation, whether oral or in writing, except upon the express, written authority of an executive ocer of DuraVent.
Corn, bio-fuels, driftwood or other wood containing salt, preservative-treated lumber, plastic and household trash or garbage, or wood pellets
containing such materials must not be burned in the appliance or replace. In case of a chimney re, the chimney must be inspected and
approved by a certied Chimney Sweep before reuse. After each annual inspection, maintenance, and cleaning, the certied Chimney Sweep
must ll out and date the appropriate section of the warranty card provided with the chimney liner.
LIMITATIONS ON INTERNET SALES: Notwithstanding any other terms or conditions of this Limited Lifetime Warranty, DuraVent provides no
warranty for the following specic products if such products are not installed by a qualied professional installer: DuraTech®, DuraPlus HTC®,
DuraChimney® II, PelletVent Pro®, DirectVent Pro®, FasNSeal®, FasNSeal® W2, FasNSeal® Flex, and PolyPro®, and M&G DuraVent’s relining
products including DuraLiner®, DuraFlex® (SW, Pro, 316, 304), and Ventinox®. For purposes of this warranty, a trained professional installer is
dened as one of the following: licensed contractors with prior chimney installation experience, CSIA Certied Chimney Sweeps, NFI Certied
Specialists, or WETT Certied Professionals.
DuraVent must be notied and given the opportunity to inspect defective product prior to replacement under the terms of this limited lifetime
warranty. All warranty claims must be submitted with proof of purchase. Labor and installation costs are not covered under this warranty. To
obtain warranty service contact: DuraVent Warranty Service, 877 Cotting Ct., Vacaville CA 95688, or call 800-835-4429.
WHERE LAWFUL, DURAVENT DISCLAIMS ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL DURAVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL,
PUNITIVE OR SPECIAL DAMAGES OR DIRECT OR INDIRECT LOSS OF ANY KIND, INCLUDING BUT NOT LIMITED TO PROPERTY DAMAGE AND
PERSONAL INJURY. DURAVENT’S ENTIRE LIABILITY IS LIMITED TO THE PURCHASE PRICE OF THIS PRODUCT. SOME STATES DO NOT ALLOW
LIMITATIONS ON IMPLIED WARRANTIES, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
For the most up-to-date installation instructions, see
www. duravent.com
REV 3.22.2012
Manufactured in Vacaville CA and Albany NY
