Duravent Selkirk ultimate stovepipe usp User manual

(Canada et États-Unis)

Installation

Instructions

(USA & Canada)

The Ultimate connection between your

Woodstove and the Insulated Chimney

LISTED

W/N 23367

Report Number: GG104935831

MODEL USP

Factory Built Double Wall

Chimney Connector

Tested to Standards

CAN/ULC-S641

UL 103 Type HT

Selkirk Corporation

4460 44th Street S.E., Suite F

Grand Rapids, MI 49512Toll

Free: 1.800.VENT (8368)

[email protected]

www.selkirkcorp.com

Selkirk Canada

P.O. Box 526, Depot 1,

Hamilton, ON L8L 7X6

Toll Free: 1.888.SELKIRK (735.5475)

[email protected]

www.selkirkcorp.ca

Note: Diagrams & Illustrations Are Not to Scale.

A MAJOR CAUSE OF CHIMNEY CONNECTOR RELATED FIRES IS

FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO

COMBUSTIBLE MATERIALS. CHECK WITH THE APPLIANCE

MANUFACTURER FOR CLEARANCE REQUIREMENTS.

IT IS OF THE UTMOST IMPORTANCE THAT THIS DOUBLE WALL

CHIMNEY CONNECTOR BE INSTALLED ONLY IN ACCORDANCE

WITH THESE INSTRUCTIONS. IF YOU ARE UNSURE OF

INSTALLATION REQUIREMENTS, CALL THE PHONE NUMBER

LISTED ON THESE INSTRUCTIONS.

IMPORTANT:

Read through all of these instructions

before beginning your installation. Failure

to install this product in accordance

with these instructions will void the

manufacturer’s warranty, condtions

of certification, and may affect your

homeowner’s insurance and safety listing

of your appliance.

APPLICATION

These instructions apply to Model USP

Factory Built Chimney Connector system.

Your Chimney Connector is intended to

connect a gas, liquid or solid fuel appliance

      

     

- to the temperature requirements of UL

103 Type HT) or less to a factory built or

masonry chimney.

Installer: It is of the utmost importance these instructions

are left with the homeowner.

Homeowner: Keep these instructions in a safe place

for future reference.

CONTENTS

CERTIFICATION LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TYPE OF APPLIANCES AND PRE-INSTALLATION GUIDELINES . . . . . . . . . . . . . . . . .4-5

SECURING OF PIPE AND FINISHING BAND............................................................... 5-6

STOVE ADAPTERS, INSTALLATION PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . 6

MASONRY, STRAIGHT INSTALLATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

CLEANOUT, THROUGH THE WALL INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

IN-LINE DAMPER, INCREASER, REDUCER, PROBE THERMOMETER . . . . . . . . . . . . . . 9

SAFE OPERATION AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CHIMNEY FIRES AND PARTS CHECK LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-12

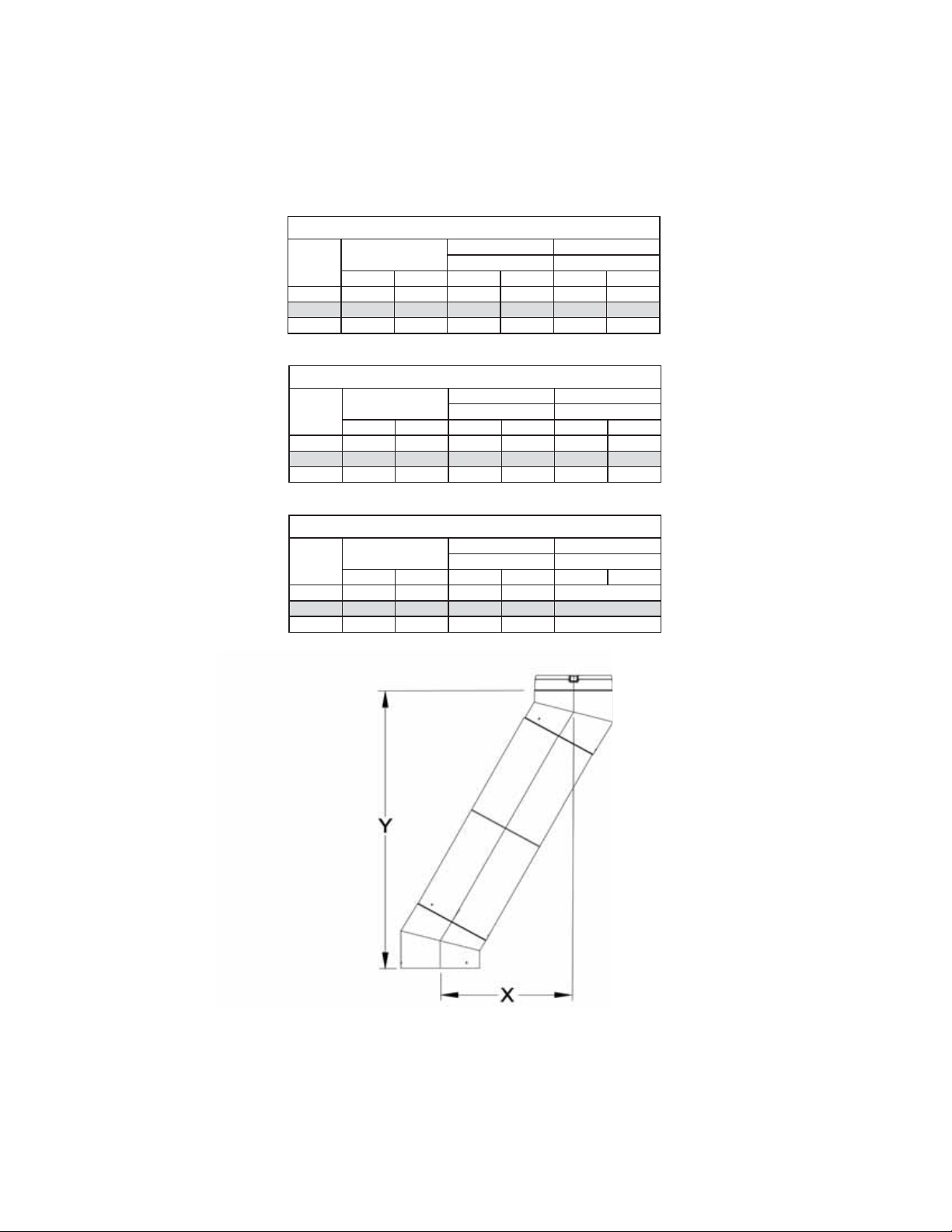

OFFSET CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-14

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Note: Diagrams & Illustrations Are Not to Scale.

CERTIFICATION LABEL

Note: Diagrams & Illustrations Are Not to Scale.

The Minimum Clearance to combustibles (i.e.

walls, ceilings, etc.) is 6” (152mm).

We recommend the maximum vertical run of

Double Wall Stove Pipe should not exceed 20ft.

Failure to follow the installation instructions

could cause FIRE, CARBON MONOXIDE

POISONING, OR DEATH. If you are unsure

of installation requirements, call the Phone

Number listed on the instructions or visit

www.selkirkcorp.com.

WARNING

TYPES OF APPLIANCES

Your Chimney Connector is intended to

connect a gas, liquid, or solid fuel appliance

      



less to a factory built or masonry chimney. If

you are planning to install a wood stove, we

recommend that you:

- Use this chimney connector only with an

appliance listed by a recognized Testing Lab-

oratory (such as ULC, WH, ITS, UL or OMNI).

- Choose the right size stove. Do not buy one

larger than you need.

- Connect only one appliance to a chimney.

For mobile home installations follow the in-

stallation instructions for the mobile home

appliance and use the chimney connector

clearance required by the appliance.

PRE-INSTALLATION GUIDELINES

This Chimney Connector must not be en-



or ceilings, and must not be used in place of

an insulated chimney section.

Plan the installation of your appliance and

chimney connector in such a way that your

chimney connector run is as short and straight

as possible.

By having too long and/or multiple bend in-

stallations you can reduce system draft which



of your appliance and/or chimney system.

CONTACT LOCAL BUILDING OR FIRE

OFFICIALS ABOUT RESTRICTIONS AND

INSTALLATION INSPECTIONS

Ensure the Wide Finishing Band covers any

single wall portion of the Pipe Adapter/Flue

Extension to provide 6” clearance.



the chimney connector (1/4” per foot, 20mm

per meter) to enable any condensed liquid or

creosote to run back toward the appliance.

When pipe is correctly placed and aligned,

all joints between sections of the chimney

connector must be secured with three sheet

metal screws per joints (#8 x 3/8” - supplied).

Some drilling may be required to the Stove

Pipe Adapter with a 3/32” metal drill bit.

If you are upgrading from a single wall stove

pipe to USP Double Wall Chimney Connector,

      



ATTENTION!

It is important these installation instructions

are followed.

We recommend our hearth products be in-

stalled and serviced by professionals who are



Technology Transfer) or l’APC (l’association

      

U.S.A. by NFI (National Fireplace Institute).





Model USP warranty coverage will be nulled

       

safety hazards may result from any of the

following actions:

- Installation of any damaged Chimney Connector;

 

Connector;

- Installation of any component part not man-

ufactured or approved with Model USP.

- Installation other than as instructed in the

installation instructions and the appliance

manufacturer’s instructions.

Ensure you obtain any necessary building

permits, and your installation will conform

with all federal and municipal building code

requirements.

Note: Diagrams & Illustrations Are Not to Scale.

SECURING USP DOUBLE WALL STOVEPIPE

TO THE CHIMNEY



will slide over the Stovepipe/Smoke Pipe

Adapter (ASE, CPA, SPA) or Flue Extension.

The following pages are to assist in a smooth

transition of the USP to the chimney system.

A Wide Finishing Band (WFB) will conceal the

joint between the USP and the connection at

the Pipe Adapter or Flue Extension. Ensure

the Wide Finishing Band covers any single

wall portion of the Pipe Adapter/Flue Exten-

sion so the 6” clearance can be maintained.

Once in the right position, secure in place with

the supplied nut and bolt.

NOTE: The Wide Finishing Band is included

with the Telescopic Length (TL).

WIDE FINISHING BAND (WFB)

1. Position the Telescopic or a Fixed Length

over the Pipe Adapter/Flue Extension. En-



Wide Finishing Band (3-1/2” wide). The Wide

Finishing Band must overlap the male end of



support, Basecap or the beveled portion of

the Pipe Adapter (ASE).

2. Secure the USP pipe to the Pipe Adapt-

er/Flue Extension with the 3 metal screws

(supplied).

3. Wrap the Wide Finishing Band over the

dimpled male end of the USP pipe and the

Pipe Adapter/Flue Extension. Ensure it is

over the bead and snug to the beveled edge

of the ASE or the Basecap. Secure the Wide

Finishing Band in place with the supplied nut

and bolt. See Figures 1A-1B.

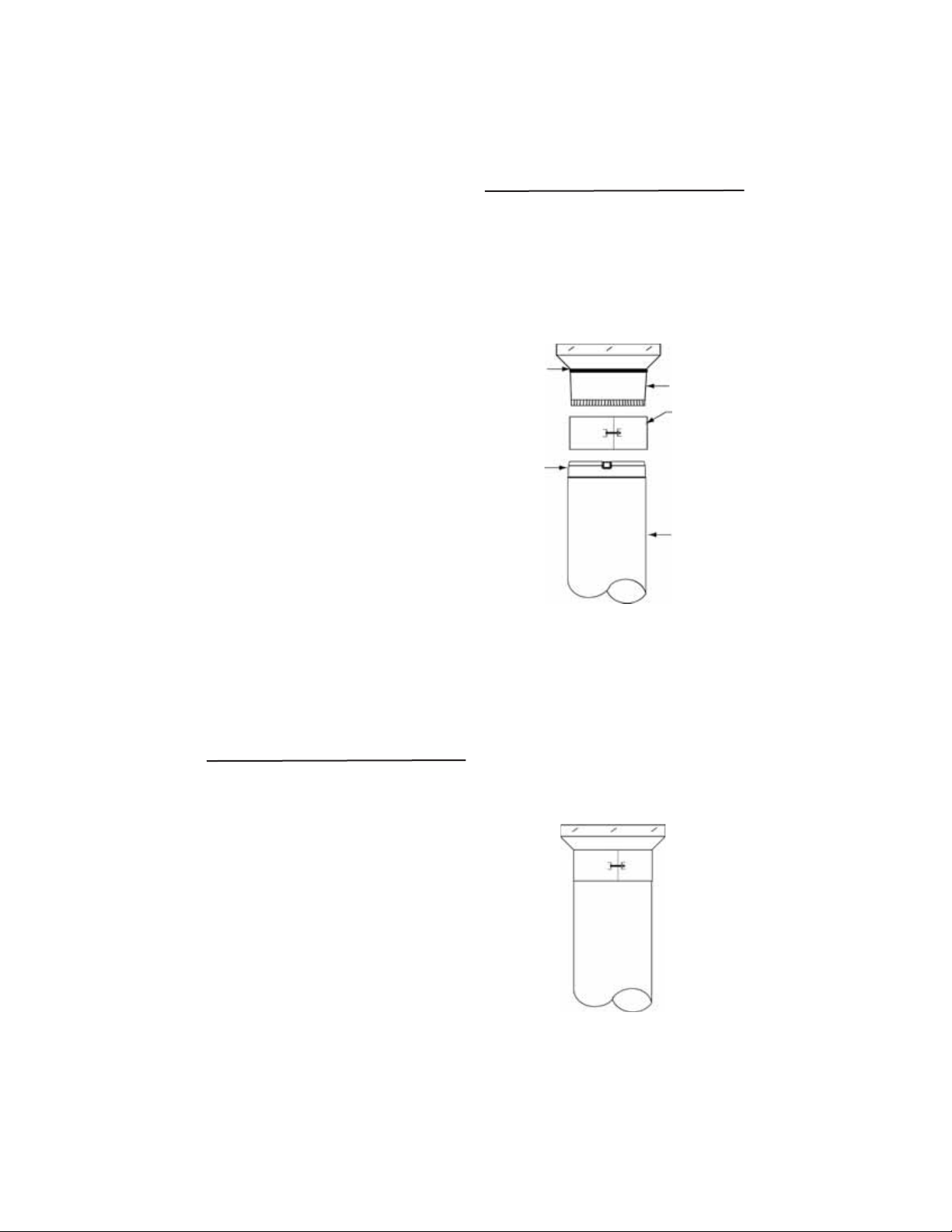

Figure 1A - Pipe Adapter with beveled edge

Figure 1B - USP & Pipe Adapter Assembled

Overlap

the Wide

Finishing

Band snug

to beveled

edge of Pipe

Adapter

Wide

Finishing

Band

USP Length

Pipe

Adapter/Flue

Extension

Position

the Wide

Finishing

Band over

the male end

for a more



After the installation has been inspected, you

can remove the labels from the USP. For

future reference, apply the labels to a blank

or back page of the instructions. Remove any

remaining glue residue, then clean the entire



to burning the appliance.

NOTE: It is not unusual for the USP Chim-

       





and any residual oil from the manufacturing

process. This will disappear after a few uses

of the appliance. Please ensure the room

is well ventilated, open all windows. It is

recommended you burn your appliance for



you use it.

The black surface of the chimney connector

may be touched up as required. We rec-

ommend Stove Bright Metallic Black #6309.

Follow the paint manufacturer’s installation

instructions for best results.

Use only authorized USP parts. Do not mix

with single wall stove pipe. Do not mix with

other product or improvise solutions. Do not

install damaged parts.

Joint overlap of the USP Chimney Connector

Lengths and Fittings is 1-3/8” (i.e.: 36” Length

is 34-5/8”).

Note: Diagrams & Illustrations Are Not to Scale.

ATTENTION!

The orientation of all USP Chimney Connector

components must be with the dimpled male end

(outer pipe) pointing up, towards the chimney

and the female end with pilot holes toward the

appliance. See diagram below.

4 dimples at male

end of outer pipe

3 Pilot holes at

female end of outer

pipe

INSTALLATION PROCEDURES

Install the appliance and chimney system ac-

cording to the installation instructions provided

with them, ensuring the required clearances

are maintained.

Figure 3- Stove Adapters

STOVE ADAPTERS (LPSA-AL6-SAJOTUL)







      





the Adjustable Length/Stove Adapter (AL6)

or other Adjustable Lengths can be used. If





outlet collar.

The Jotul Stove Adapter (SAJOTUL) has a



        

outlet with 3/4” screws (supplied by others).

See Figure 3 below for each of the above men-

tioned Adapters.



Wide Finishing Band



ASE Pipe

Adapter

USP

Length

Jotul Adapter

(SAJOTUL)

Adjustable

Length /Stove

Adapter

(AL6)



Adapter(LPSA)

4. On a through-the-wall installation with a



Adapter/Flue Extension and/or the Wide Fin-

ishing Band to the required width to be covered.

Secure the USP pipe to the Pipe Adapter/Flue

Extension with the 3 metal screws (supplied).

Ensure the Wide Finishing Band overlaps the

male end of the USP pipe and overlaps snug to

the beveled edge of the ASE. See Figure 2A.

“6”

Note: Diagrams & Illustrations Are Not to Scale.

1. Place the Telescopic Length on top of the



collar of the appliance. In most cases the

outer casing will rest on the stove top. Secure



collar using 3 metal screws provided.

2. Extend the Telescopic Length up to

        

Adapter/Flue Extension. Secure in place with

3 metal screws provided. Secure the bottom

and top of the Telescopic Length together

once you reach the necessary length. If the

installation requires more length than provided



on the appliance and the Telescopic Length

next to the chimney.

Figure B - Straight Up

Chimney Suppport

Telescopic

Length

Insulated Chimney

Length

Pipe Adapter

Wide Finishing Band

3 Metal Screws

STRAIGHT INSTALLATION (See Figure B)

This installation is used when the insulated

chimney system is located immediately above

the appliance. Most installation will require

just a Telescopic Length which adjusts from

35-3/4” to 68-1/2” when assembled. The



Length, an upper 36” Adjustable Length and

a Wide Finishing Band. See images under

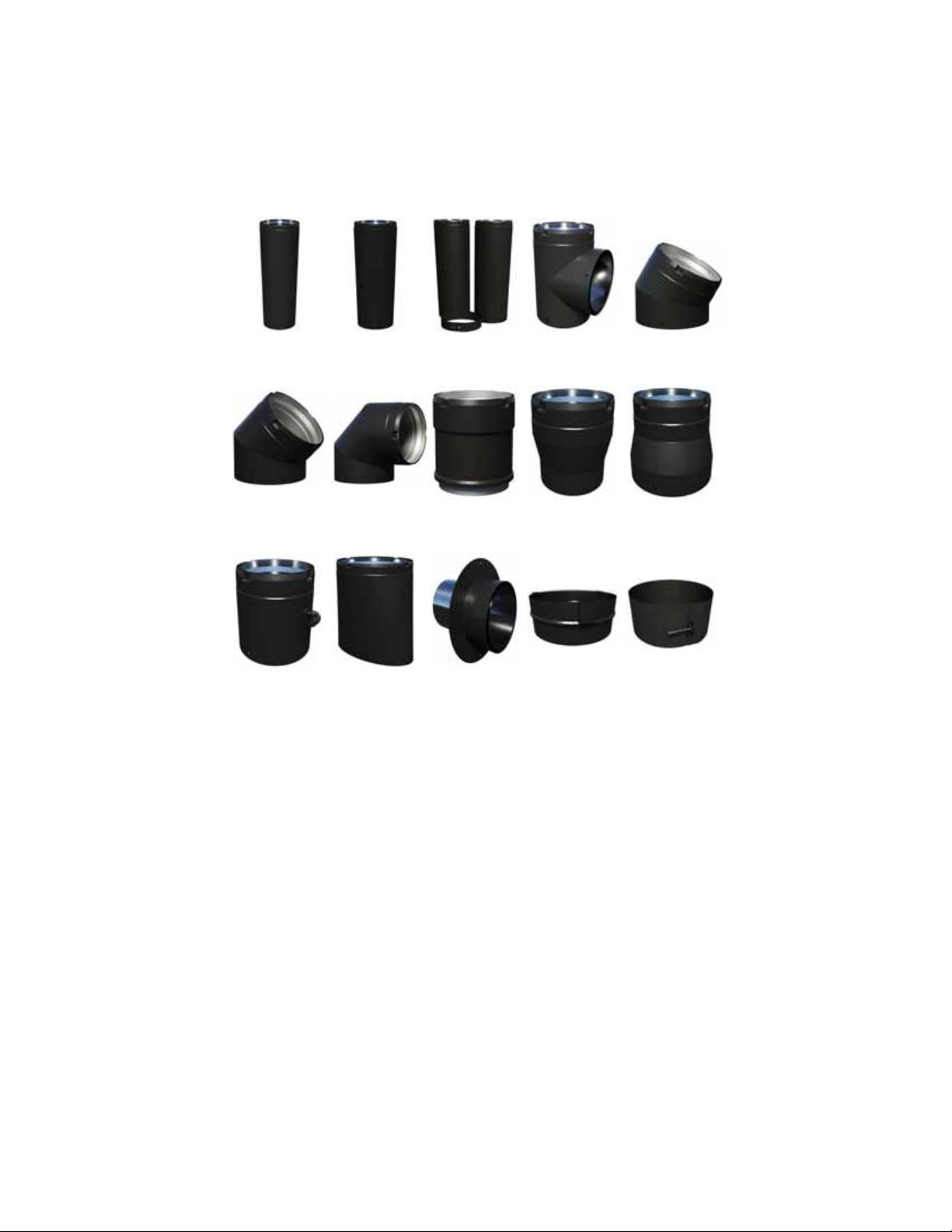

Parts List, page 12.

6”

3 Metal

Screws

Fixed Length

3 Metal Screws Chimney

Liner

Masonry

Chimney

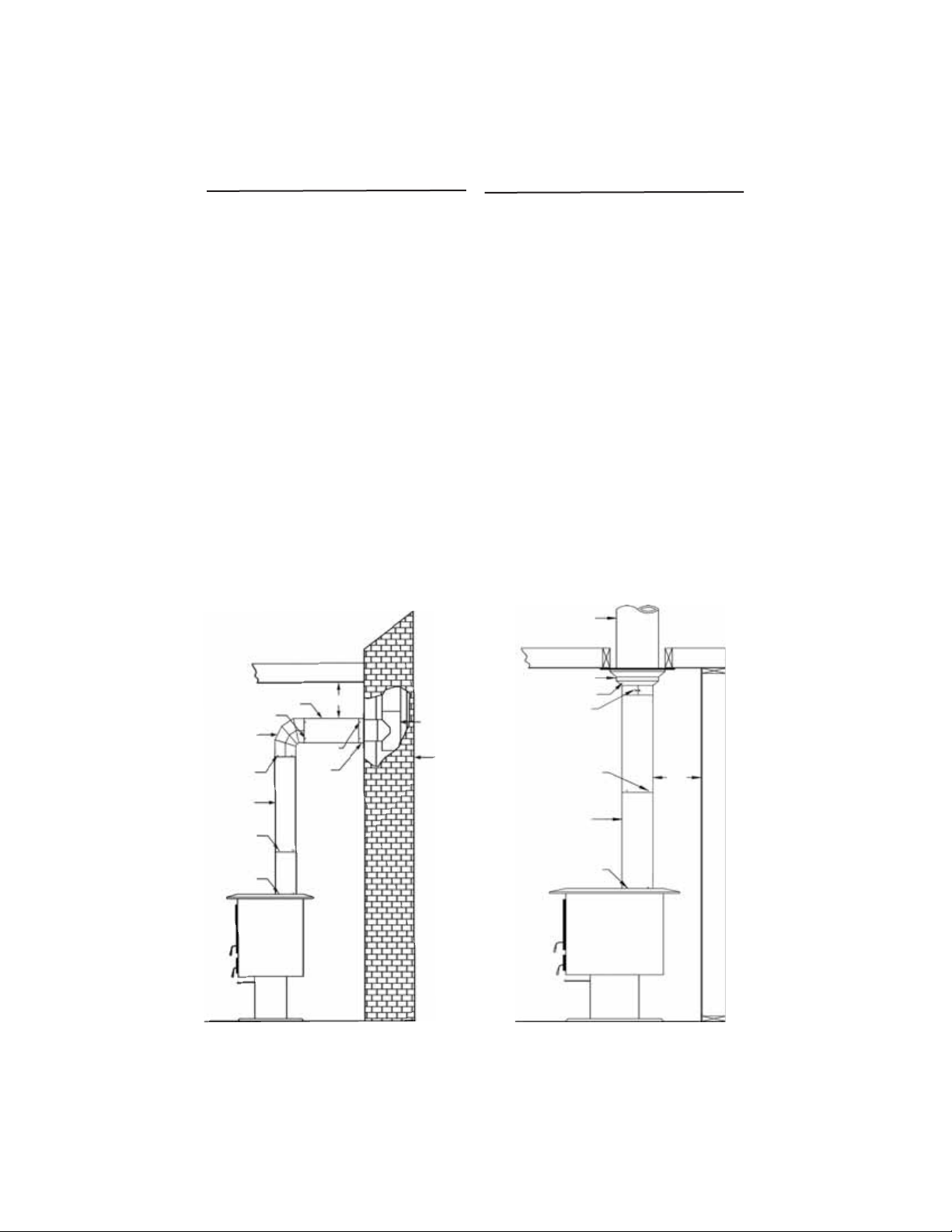

Figure A - Masonry Chimney

Telescopic

Length

3 Metal

Screws

3 Metal

Screws

Appliance



Masonry

Adapter

3 Metal

Screws

MASONRY CHIMNEY (See Figure A)

Have your masonry chimney inspected by a



Inspector before using it. Masonry chimney

should only be used if they are in good con-

dition and have been built to the National

Building Code.

When required, the masonry can be relined

with a stainless steel liner or other approved

relining products. If the existing masonry

chimney is suitable, make sure the liner and

opening are the correct size to accept the Ma-

sonry Adapter (MA). See image under Parts

List, page 12. Fit the Masonry Adaptor into

this opening and over the branch of the Liner



the wall of the masonry chimney. If the Adapt-



to the wall, or it projects too far on the Tee, the



Attach the adaptor collar to the masonry wall

using screws and masonry anchors. Seal the

joint between the collar and the masonry with

a high temperature silicone caulking.

Appliance

Note: Diagrams & Illustrations Are Not to Scale.

 

Elbow and Tee Section up to the chimney



Adapter/Flue Extension. Secure in place with

3 metal screws provided. Secure the bottom

and top of the Telescopic Length together

once you reach the necessary length. If the

installation requires more length than provided

by the Telescopic Length then add fixed

length(s) on the appliance and the Telescopic



be fastened together with the 3 metal screws

provided with each length. Install the Wide

Finishing Band ( see pages 5 - 6). See images

under Parts List on page 12.

THROUGH THE WALL INSTALLATION (See

Figure D)

This installation is used when the insulated

chimney system is located through the wall

behind the appliance.

1. Place the Telescopic Length on top of the

appliance so the female end sits over the

        

the outer casing will rest on the stove top.

Secure in place through the outer casing into



         

       

a Stove Adapter on top of the stove before

installing the Telescopic Length. See Stove

Adapters on page 6.

2. Make sure the Pipe Adapter/Flue extension

is installed to the through the wall horizontal

insulated chimney length.

         

the Telescopic Length and secure in place

with 3 metal screws. If the clearances of the

 

Section) to the top of the Telescopic Length

and secure the sections together with 3 metal

screws.

Figure C - Straight Up with Cleanout Tee Section

Telescopic

Length

Insulated Chimeny Length

Pipe Adapter

3 Metal Screws

6”

3 Metal Screws

Chimney Suppport

Wide Finishing Band



3 Metal Screws

Appliance





cases, a Stove Adapter may be more suitable

(see Stove Adapters on page 6). If necessary,

-



CLEANOUT INSTALLATION (See Figure C)

This installation, utilizing a Tee Section (T), is

used when the insulated chimney system is



proper clearances for the appliance or for in-

corporating a cleanout in the chimney system.

1. Place the Telescopic Length on top of the



collar of the appliance. In most cases the

outer casing will rest on the stove top. Secure



collar using 3 metal screws provided. If the





Adapter on top of the stove before installing

the Telescopic Length. See Stove Adapters

on page 6.

        

Section (T) branch. Secure in place with 3

metal screws provided.

All joints are to be fastened together with the

3 metal screws provided with each length.

Install the Wide Finishing Band (see page 5).

Metal

Screws

Tee

Tee Cap

Clearance

Holes (2)

Note: Diagrams & Illustrations Are Not to Scale.

PROBE THERMOMETER (by others)

To assist in monitoring your system, it is

       

thermometer in the USP Connector Pipe as it

is designed for use on double wall stove pipe.

Follow the installation instructions provided

by the probe thermometer manufacturer for

proper installation.

Figure 4 - In-Line Damper - Closed Position

USP INCREASER (IN) AND REDUCER (RE)

The use of the Increaser (IN) is to increase

the diameter of a system to accommodate a

-

tions. See image, page 12.

The use of a Reducer (RE) is to reduce the

connector diameter. Use of this part must be

approved by the appliance manufacturer or

authority having jurisdiction. Check prior to

installing in the system. See image, page 12.

USP IN-LINE DAMPER (DK)

Modern stoves today do not need a damper

as the draft and combustion is controlled

       

manufacturer of the stove to see if a damper

key (USP In-Line Damper) can be installed.

6”

Pipe Adapter



Elbow

Telescopic

Length

3 Metal

Screws

3 Metal

Screws

3 Metal

Screws

Wide

Finishing

Band

Chimney

Pipe

Insulated

Tee

Wall

Thimble

Wall

Support

Insulated

Tee Cap

or Length

Figure D - Through the Wall To Factory Built

Chimney

Appliance

A damper allows control of the air being drawn

through the chimney and to control the stove’s

combustion.

A damper must be installed in a vertical run,

2 to 3 feet above the stove.

When the handle of the damper is in the hori-

zontal position (Figure 4), the damper is closed

(reducing combustion). The “closed” position

is still 20% open so the venting system is not

completely blocked.

When the handle is in the vertical position,

the damper is wide open (no reduction of

combustion).

appliance requires a greater horizontal







over the Pipe Adapter/Flue Extension. Secure

in place with 3 metal screws provided. Secure

the bottom and top of the Telescopic Length

together once you have reach the necessary

length. If the installation requires more length

than provided by the Telescopic Length then





joints are to be fastened together with the

3 metal screws provided with each length.

Install the Wide Finishing Band (see pages

5-6). See images under Parts List, page 12.

Note: Diagrams & Illustrations Are Not to Scale.

Contact a local professional chimney sweep

for chimney cleaning services and advice.

      -

     

incomplete combustion of wood produces

acids which, when combined with moisture,

are corrosive.

During the heating season, corrosion tends

not to occur because the heat in the system

evaporates the condensation of any water

vapour that may be formed.

Warm, moist air during the summer months

passes slowly through the heating system. It

makes any remaining ash or creosote moist

and soggy. Corrosion of steel occurs where

these deposits remain.

-

erably if the system is thoroughly cleaned after



Where coal is burned, the system must be

throughly cleaned within 48 hours of shutting

down the system for the season and all soot

be removed from the chimney system. This

should be the most important cleaning the

system receives all year. Air inlets should be

closed and sealed if necessary to prevent the



CHIMNEY FIRES AND WHAT TO DO

ABOUT THEM:

Your chimney or connector pipe are not in-

tended or designed for use as a combustion

         

your woodburning appliance with kindling,

scrap lumber, brush or any fast burning fuel.

-

tures all the way up the chimney, and may

cause appliance, chimney and connector

pipe damages.

         

glowing red, you are risking chimney

        

burning inside the chimney. If you see

        -

       





any reason, follow these steps:

RULE FOR SAFE OPERATION AND

MAINTENANCE

Do not use fuel materials corrosive to the

chimney such as driftwood, chemically treat-

        

fuel appliance. This can cause failure of the

USP Double Wall Stove Pipe and void any

warranties.

When wood is burned slowly, it produces tar

and other organic vapors, which combine

with expelled moisture to form creosote. The

creosote vapors condense in the relatively



a result, creosote residue accumulates on the





Some coals contain large amount of sulphur

(up to 7%). Combined with moisture, deposits

forms a highly corrosive acid (sulphuric acid).

Burn only low sulphur coals (less than 1%).

With a new installation, the chimney should be

inspected frequently (every 2 weeks if need

be) to determine the rate of creosote forma-

tion. When familiar with the appliance and

chimney characteristics, the chimney should

be inspected at least once every 2 months

during the heating season to determine if a

creosote or soot build-up has occured.



stove or connector pipe is glowing red, then

you are overfiring. Immediately close the

stove’s dampers until the system is cool.

If you see deposits more than 2mm (1/16”)

thick, clean all connector pipe and chimney

system mechanically (with a properly sized

plastic cleaning brush) to reduce the risk of



Do not expect chemical chimney cleaners to

keep your chimney clean. Their use does not

negate the necessity of periodically inspecting

and mechanically cleaning your chimney.

       

inspected annually and cleaned as often as

may be necessary to keep the chimney and



of combustible deposits.

Note: Diagrams & Illustrations Are Not to Scale.

KEEP YOUR CHIMNEY

AND CONNECTOR

CLEAN!

PARTS CHECK LIST

To complete a proper USP Double Wall Stove-

pipe installation, the following parts may be re-

quired:

•Telescopic L (35-3/4”-68-1/2”)

• Adjustable Length (2” - 4”)

• Adjustable Length (2” - 10”)

• Adjustable Length (2” - 16”)

• Adjustable Length (2” - 34”)

• Wide Finishing Band

• 6” Pipe Length

• 12” Pipe Length

• 18” Pipe Length

• 24” Pipe Length

• 36” Pipe Length

• 48” Pipe Length

 

 

 

• Tee Section (Includes Cap)

• Increaser (5”-6”)

• Increaser (6”-7”)

• Increaser (7”-8”)

• Reducer (8”-7”)

• Reducer (8”-6”)

• Reducer (7”-6”)

• Masonry Adapter

• In-Line Damper

• 8” Oval to 8” Round Adapter

• 8” Oval to 6” Round Adapter

 

• JOTUL 6” Stove Adapter

*USP-TL

*USP-AL6

*USP-AL12

*USP-AL18

*USP-AL36

*USP-WFB

*USP-L6

*USP-L12

*USP-L18

*USP-L24

*USP-L36

*USP-L48

*USP-E30

*USP-E45

*USP-E90

*USP-T

5USP-IN6

6USP-IN7

7USP-IN8

8USP-RE7

8USP-RE6

7USP-RE6

*USP-MA

*USP-DK

8USP-ORA

8USP-ORA6

*USP-LPSA

6USP-SAJOTUL

* Denotes size of product:

6” (152mm), 7” (178mm), 8” (203mm).

1. Immediately close all dampers and/or

air entrance openings to your appliance.



2. Alert your family to the possible danger.

3. Inspect your appliance and chimney



alert your Fire Department.

4. Do not continue to operate your appli-

ance until it and your chimney have been

thoroughly inspected. Overheating can

cause metal parts to expand, buckle and

crack. If you are not certain, have a certi-

     

sweep disassemble all parts so they can

be inspected and replaced.

 

your appliance. Salt is corrosive and water

will cause a dangerous steam explosion.

        

using ashes, sand or baking soda. Baking

soda is an ingredient used for dry chemi-



 

do so, check internal locations such as the

attic and under the roof and keep watch-

ing for two or three hours. There may be

delayed smoldering and subsequent igni-



been controlled.

USP-L USP-TUSP-TL

USP-ORA6

USP-AL

USP-IN USP-RE

USP-E30

USP-E45 USP-E90

USP-DK USP-MA

USP-SAJOTUL

USP-LPSA USP-WFB

Note: Diagrams & Illustrations Are Not to Scale.

PARTS CHECK LIST

Note: Diagrams & Illustrations Are Not to Scale.

USP OFFSET CHARTS WITH RIGID LENGTH

   

 

ϬΗ Ϯϭϰ ϴϱϴ ϬΗ ϰ ϵϭϮ

ϲΗ ϰϱϴ ϭϮϱϴ ϲΗ ϳϭϰ ϭϮϯϰ

ϭϮΗ ϳϭϮ ϭϳϳϴ ϭϮΗ ϭϭϭϮ ϭϳ

ϭϴΗ ϭϬϭϮ Ϯϯ ϭϴΗ ϭϱϯϰ Ϯϭϭϰ

ϮϰΗ ϭϯϭϮ Ϯϴϭϰ ϮϰΗ ϮϬ ϮϱϭϮ

ϯϲΗ ϭϵϭϮ ϯϴϱϴ ϯϲΗ ϮϴϭϮ ϯϰ

ϰϴΗ Ϯϱ ϰϴϭϴ ϰϴΗ ϯϲϭϰ ϰϭϯϰ

ϬΗ Ϯϯϴ ϵϭϴ ϬΗ ϰϭϰ ϭϬϭϰ

ϲΗ ϰϯϰ ϭϯϭϴ ϲΗ ϳϭϮ ϭϯϭϮ

ϭϮΗ ϳϱϴ ϭϴϯϴ ϭϮΗ ϭϭϯϰ ϭϳϯϰ

ϭϴΗ ϭϬϱϴ ϮϯϭϮ ϭϴΗ ϭϲ ϮϮ

ϮϰΗ ϭϯϱϴ Ϯϴϯϰ ϮϰΗ ϮϬϭϰ Ϯϲϭϰ

ϯϲΗ ϭϵϱϴ ϯϵϭϴ ϯϲΗ Ϯϴϯϰ ϯϰϯϰ

ϰϴΗ Ϯϱϭϴ ϰϴϱϴ ϰϴΗ ϯϲϭϮ ϰϮϭϮ

ϬΗ Ϯϱϴ ϵϱϴ ϬΗ ϰϭϮ ϭϭ

ϲΗ ϱ ϭϯϱϴ ϲΗ ϳϯϰ ϭϰϭϰ

ϭϮΗ ϳϳϴ ϭϴϳϴ ϭϮΗ ϭϮ ϭϴϭϮ

ϭϴΗ ϭϬϳϴ Ϯϰ ϭϴΗ ϭϲϭϰ ϮϮϯϰ

ϮϰΗ ϭϯϳϴ Ϯϵϭϰ ϮϰΗ ϮϬϭϮ Ϯϳ

ϯϲΗ ϭϵϳϴ ϯϵϱϴ ϯϲΗ Ϯϵ ϯϱϭϮ

ϰϴΗ Ϯϱϯϴ ϰϵϭϴ ϰϴΗ ϯϲϯϰ ϰϯϭϰ

 



ϬΗ ϭϬϯϴ

ϲΗ ϭϱ

ϭϮΗ Ϯϭ

ϭϴΗ Ϯϳ

ϮϰΗ ϯϯ

ϯϲΗ ϰϱ

ϰϴΗ ϱϲ

ϬΗ ϭϭϯϴ

ϲΗ ϭϲ

ϭϮΗ ϮϮ

ϭϴΗ Ϯϴ

ϮϰΗ ϯϰ

ϯϲΗ ϰϲ

ϰϴΗ ϱϳ

ϬΗ ϭϮϯϴ

ϲΗ ϭϳ

ϭϮΗ Ϯϯ

ϭϴΗ Ϯϵ

ϮϰΗ ϯϱ

ϯϲΗ ϰϳ

ϰϴΗ ϱϴ

 



  !"   !"

ϴϴ

ϴ ϭϮϯϴ

ϲϲ

ϲ ϭϬϯϴ

ϳϳ

ϳ ϭϭϯϴ

  !"

Note: Diagrams & Illustrations Are Not to Scale.

USP OFFSET CHARTS WITH TELESCOPIC LENGTH

Min Max MIN MAX MIN MAX

ϲ ϯϱϯϰ ϲϴϭϴ ϮϬϭϴ ϯϲϭϰ ϯϵϱϴ ϲϳϱϴ

ϳ ϯϱϯϰ ϲϴϭϴ ϮϬϭϰ ϯϲϯϴ ϰϬϭϴ ϲϴϭϴ

ϴ ϯϱϯϰ ϲϴϭϴ ϮϬϭϮ ϯϲϱϴ ϰϬϱϴ ϲϴϱϴ

30°Elbow2xE30with1xTelescopicLength

Size Telescopiclength Offset Rise

Min Max MIN MAX MIN MAX

ϲ ϯϱϯϰ ϲϴϭϴ Ϯϵϭϰ ϱϮϭϴ ϯϰϯϰ ϱϳϱϴ

ϳ ϯϱϯϰ ϲϴϭϴ ϮϵϭϮ ϱϮϯϴ ϯϱϭϮ ϱϴϯϴ

ϴ ϯϱϯϰ ϲϴϭϴ Ϯϵϯϰ ϱϮϱϴ ϯϲϭϰ ϱϵϭϴ

45°Elbow2xE45with1xTelescopicLength

Size Telescopiclength Offset Rise

Min Max MIN MAX MIN MAX

ϲ ϯϱϯϰ ϲϴϭϴ ϰϲϭϴ ϳϴϭϮ

ϳ ϯϱϯϰ ϲϴϭϴ ϰϳϭϴ ϳϵϭϮ

ϴ ϯϱϯϰ ϲϴϭϴ ϰϴϭϴ ϴϬϭϮ

ϭϬϯϴ

ϭϭϯϴ

ϭϮϯϴ

90°Elbow2xE90with1xTelescopicLength

Size Telescopiclength Offset Rise

Note: Diagrams & Illustrations Are Not to Scale.

CLAIM PROCEDURE: If you believe that a product is defective, notify us in writing at:

(a) any non-stainless base tee unit mounted or connected to an Insulated Chimney system;

(b) costs (labor or otherwise **) associated with either removing a previously installed product, installing a replacement product, transportation or return

of a product, or transportation of replacement product;

(c) damage to the finish of products caused by the use of improper solvents/chemicals or improper (or lack of) cleaning methods;

(d) damage resulting from normal wear and tear, corrosion from salt air or failure to reasonably clean, care for or maintain products in accordance with our

installation instructions/recommendations;

(e) damage (to products, appliances or structure) based on or resulting from improper installation or repair, misuse or abuse (including, but not limited to,

excessive or improper operating condition), or alteration or adjustment other than in conformity with our installation instructions and specifications,

whether performed by a contractor, service company, technician, or yourself;

(f) any products that have been moved from their original installation site;

(g) damage caused by burning driftwood, garbage, or any other prohibitive material that has been burned in the appliance served by the chimney;

(h) damage that results from accidents such as riot, fire, flood, high winds, “acts of God”, or any other contingency beyond our control.

** Due to the wide variance in installation practices and other conditions beyond our control, except as stated above, we do not guaranty or in any way

warrant the installation of Chimney and Venting products.

Selkirk Corporation, Amerivent (“Selkirk”, “Amerivent”, “we”, “us”, “our”) warrants our residential Chimney & Venting products (* defined below) to

be free from defects in material and workmanship. For products installed after January 1, 2023, for a period of Ten (10) years from original installation, we

will provide replacement product with a similar or like quality of available Selkirk product, free of charge, excluding any installation costs. From the Eleventh

(11) through Fifteenth (15) years, we will provide replacement product at a cost of 75% off the published Retail Price in effect on the date the claim is received,

excluding any installation costs.At expiration of the Fifteen (15) year term, we will provide replacement product at a cost of 50% off the published Retail Price

in effect on the date the claim is received excluding any installation costs. This warranty coverage is non-transferable and applies exclusively to the original

consumer.

WARNING: FAILURE TO INSTALL OR OPERATE PRODUCTS ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS, OR FAIL-

URE TO USE PRODUCTS WITH RESIDENTIAL APPLIANCES THAT HAVE BEEN CERTIFIED ATAN ACCREDITED LABORATORY WILL

VOID ALL APPLICABLE WARRANTIES.

“SMART CHOICE” LIMITED LIFETIME WARRANTY

THIS WARRANTY DOES NOT COVER:

SELKIRK CANADA

P.O. Box 526, Depot 1,

Hamilton, Ontario, CANADA, L8L 7X6

ATTN: WARRANTY CLAIMS

1.888.735.5475

www.selkirkcorp.ca

LIMITATIONS:

BUYER’S REMEDIES ARE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT AND DO NOT INCLUDE INSTALLATION

COSTS. EXCEPT AS SET FORTH HEREIN, ALL OTHER WARRANTIES (EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. IT IS AGREED THAT THIS SHALL

BE THE SOLE AND EXCLUSIVE REMEDY OF THE BUYER. IN NO EVENT SHALL WE BE LIABLE FOR ANY CONSEQUENTIAL,

SPECIAL OR PUNITIVE DAMAGES ARISING DIRECTLY OR INDIRECTLY FROM THE USE OF THE PRODUCTS WHETHER BASED ON

WARRANTY, CONTRACT NEGLIGENCE OR STRICT LIABILITY.

ALL LENGTHS, TEES, ELBOWS, AND COMPONENTS SUPPLIED BY US ARE SUBJECT TO WARRANTY COVERAGE. PRODUCT

SUPPLIED BY US AS REPLACEMENT FOR ORIGINAL MATERIAL WILL BE SUBJECT TO A ONE-YEAR WARRANTY COVERAGE

WITH THE EXCEPTION OF SAF-T PIPE WHICH IS SUBJECTED TO A 5 YEAR LIMITED WARRANTY COVERAGE FROM DEFECTS IN

MATERIAL OR WORKMANSHIP WHEN PROPERLY INSTALLED PURSUANT TO THE MANUFACTURER’S INSTALLATION INSTRUC-

TIONS AND APPROPRIATE CODES.

If installation is performed by Professional Installers certified in Canada by WETT orAPC or in the USA by NFI or CSIA, we will provide replacement

product with a similar or like quality of available product, free of charge (excluding any installation costs) for the full Fifteen (15) years from the date

of original installation. To be eligible for this additional warranty the consumer must provide a proof of installation by a Professional Installer when

submitting a claim.

PROFESSIONAL INSTALLATION:

SELKIRK CORPORATION

4460 44th Street S.E., Suite F

Grand Rapids, MI 49512

ATTN: WARRANTY CLAIMS

1.800.433.6341

www.selkirkcorp.com

Notification should include a description of the product, model and serial number (if applicable) and a description of the product defect. Upon receipt of a

written claim under this limited warranty and evidence of the date of purchase or installation, at our option and in our sole discretion, we will provide

replacement product with similar or like quality of available product excluding any installation costs. We reserve the right to inspect or investigate any

warranty claims prior to determining whether to provide replacement product. If, as determined by us, that repair or replacement of the product is not

commercially practicable or cannot be completed in a timely manner, we may refund the prorated purchase price paid for the product upon verification by

providing a copy of your invoice or receipt of bill of sale.
