Typical Installations
Short or tall, large or small, there is a Selkirk Chimney System
to suit every need or appliance. The following diagrams are
intended as guides to proper part selection for several common
chimney installations. Keep in mind that these diagrams do not
show the exact details for installation of the various chimney
parts. They supplement the instructions by illustrating a wider
variety of complete chimney systems. While the primary
emphasis in the diagrams is on solid-fuel appliances, the type
of appliance originally selected must never affect the installation
of the chimney.
Whether the chimney is initially connected to a gas, oil or
wood-burning appliance, the parts used and clearances to
combustibles are always the same. Remember that at some
future time, the same chimney may serve a wood furnace, even
if it started out with gas or oil.
1. Maintain the minimum 2" AIRSPACE clearance to
combustibles and to any insulation except SUSI.
2. For joint security–use Locking Bands or screws for the
chimney and its connector.
NOTE: The drawings shown of these installations are solely for
assistance in product selection. Reference should be made to
the Selkirk Chimney System installation instructions for full and
exact details of a correct installation.
DSP Stove Pipe
Chimney Extension
(T-9) or Longer)*
Finishing Collar (T-FC)
Wall Thimble
(IWT)
Chimney
Clearance to
Wall
Use Locking Bands
At Every Joint
Wall Band (T-WB)
Needed Every 8'
or Less
Round Chimney Top
(T-CT)
Storm Collar (T-SC)
2"
Flashing (T-AF6) or
(T-AF12)
8'
Chimney Pipe
Adapter (CPA)
Tee Plug
Wall Support Kit
(T-WSK)
on Outside
Wall
*The end of the chimney section
must extend into the room a
minimum of 4-1/2" beyond the
face of the wall.
2. Basement Heater with Tee-supported
outside chimney
Follow Appliance
Instructions for
Clearance
Chimney Pipe Adapter (CPA)
Enclose Chimney if Attic Space is
Occupied or Used for Storage
Framing as Needed
for Resupport
Resupport (T-IR)
Elbow/Offsets (T-EL15)
or (T-EL30)
Elbow/Offset (T-EL15)
or (T-EL30)
Storm Collar (T-SC)
Round Chimney Top
(T-CT)
Adjustable Pitch Flashing
(T-AF6) or (T-AF12)
Use Locking Bands (T-LB) or
Three Screws at Every Joint
Finish Support Pakcage (T-FSP)
Model DSP Stove Pipe
Maximum Offset
is 30 Degrees
From Vertical
Maximum Inc
lined Length - 96"
or longer if supported every 48"
Attic Insulation
Shield (T-AIS)
Total Chimney
Height is 85'
Maximum on Anchor Plate
Chimney Pipe
(T-18) or (T-36)
Joist Shield
(T-JS) Attic Enclosure or
Attic Insulation Shield
Anchor Plate (T-AP)
All Masonry or Steel Shell
HW
1. Masonry Fireplace using Selkirk Chimney
3. Wood Stove with chimney
offset to avoid ridge
Ultra-Temp®

4
Ultra-Temp®
Typical Installations continued
NOTE ON CHIMNEY/STOVE PIPE CONNECTIONS
These diagrams show Ultra-Temp/Galva-Temp Chimney Systems connected to Selkirk DSP Double-Wall Stove Pipe using
the Chimney Pipe Adapter. Ultra-Temp/Galva-Temp Chimneys may be connected to Single-Wall Stove Pipe using either
DSA, DSAC or CPA. For additional information on Model DSP Double-Wall Stove Pipe go to www.selkirkcorp.com.
6. Wood Heater with its
chimney through an
upstairs enclosure
7. Pitched Roof with Attic 8. A-Frame with chimney on a steep
pitch roof
Round Top (T-CT)
Storm Collar (T-SC)
Flashing (T-TF)
Chimney Pipe
Locking Bands
at All Joints
Finish Support
(T-FSP) Package
Single Wall
Pipe Elbow or
Cleanout Tee
Combined Venting
of Oil or Gas
Appliances
Furnace
Water
Heater
Correct Clearance
for
Type of Appliances
Construct a
Full Enclosure in
Occupied or
Habitable Areas
3 Foot
Minimum
5. Combination of Furnace and
Water Heater on one chimney
4. Solid Fuel Appliance with a
short vertical chimney
Attic
Insulation
Chimney Pipe
Adapter (CPA)
Solid Fuel
Appliance
Round Top (T-CT)
Storm Collar (T-SC)
Flashing
(T-AF6) or
(T-AF12)
Attic Insulation
Shield (T-AIS)
Finish Support Pkg.
(T-FSP)
DSP Stove
Pipe
Joist Shield
(T-JS)
Flashing
(T-AF6) or
(T-AF12)
Either
Full Enclosure in
Attic or
Attic Insulation Shield
Round Top (T-CT)
Storm Collar (T-SC)
Full Enclosure in
Occupied Areas, Storage
Areas or Closets
Locking Bands at
All Joints
Finish Support Pkg.
(T-FSP)
All Connections
Secured with Screws
Solid
Fuel
Appliance
Chimney Pipe
A
dapter (CPA)
DSP Stove
Pipe
Locking Band
2 Foot
Minimum
All Connectors
Secured with Screws
Round Top (T-CT)
DSP Stove Pipe
Roof Brace Kit
(T-RBK)
Selkirk
Type HT Chimney
Pipe
Storm Collar
(T-SC)
High Pitch
Flashing
(T-AF)
Roof Support (T-RSP)*
Under Flashing
Adjustable Pitched Ceiling Plate (T-PCP
AJ)
Used to Trim Opening
Suspended Length, Long Enough to
Provide Required Clearance, Secured
with Locking Band or Screws
* Support Box may also be used. Please consult
installation instructions for more information.
Chimney Pipe Adapter (CPA)
Finishing Collar (T-FC)
Round Top (T-CT)
Selkirk
Type HT Chimney
Attic Level
24" Maximum
Support
Box (T-SB)*
Ceiling
The Support Box may be
installed flush with the ceiling
level. The Support Bucket must
be exposed a minimum of
3-1/2" below the ceiling level.
Single Wall Smoke Pipe
* Support Box also intended for use in
mobile home and A-frame installations.
Storm Collar
(T-SC)
Locking Band
Flashing
(T-TF
, T-AF6 or
T-AF12)
Shield
Trim
Support Bucket
Stove Pipe Adapter
(DSAC)

5
ULTRA-TEMP®/GALVA-TEMP®All-Fuel Chimney
TECHNICAL DATA SHEET
ULTRA-TEMP®HT/GALVA-TEMP®HT
Diameter Sizes: 4" (UT), 5", 6", 7" & 8"
Part Identification: Letter UT and GT
Clearances: 2" of airspace to Combustibles
Listing: UL 103 Type HT
Temperature Ratings: 2100°F (Maximum Test 10 min.)
1400°F (Maximum for 60 min.)
1000°F (Maximum Continuous Operating
Temperatures)
ULTRA-TEMP®/GALVA-TEMP®
Diameter Sizes: 10", 12", 14", 16", 18", 20", 22" & 24".
Part Identification: Letter U and G
Clearances: 2" of airspace to Combustibles
Listing: UL 103
Temperature Ratings: 1700°F (Maximum Test 10 min.)
1400°F (Maximum for 60 min.)
1000°F (Maximum Continuous Operating
Temperatures)
FRAMING TABLE TO MAINTAIN 2" AIR SPACE CLEARANCE
CHIMNEY SIZE 4" 5" 6" 7" 8" 10" 12" 14"
Ceiling or Finish Support **9" x 9" 11-1/4" x 11-1/4" 12-1/4" x 12-1/4" 13-1/4" x 13-1/4" 14-1/4" x 14-1/4" 16-1/4" x 16-1/4" 18-1/4"x18-1/4" 20-1/4" X 20-1/4"
Ceiling Penetrations 10" x 10" 11" x 11" 12" x 12" 13" x 13" 14" x 14" 16" x 16" 18" x 18" 20" x 20"
Floor Openings 10" x 10" 11" x 11" 12" x 12" 13" x 13" 14" x 14" 16" x 16" 18" x 18" 20" x 20"
Roof Openings 10" x 10" 11" x 11" 12" x 12" 13" x 13" 14" x 14" 16" x 16" 18" x 18" 20" x 20"
Wall Openings 10" x 10" 11" x 11" 12" x 12" 13" x 13" 14" x 14" 16" x 16" 18" x 18" 20" x 20"
SUPPORT TABLE MAX. HEIGHT
SUPPORT TYPE PART NO .
SIZE
5", 6", 7", 8"
FEET OF CHIMNEY
10", 12", 14"
FEET OF CHIMNEY
Anchor Plate AP 85 85
Finish Or Ceiling Support FSP, CSP 50 50
Insulated Tee IT 50 40
Wall Support Kit WSK See Sheet S-5 40
Roof Support (A) RSP, RSK 30 30
Interior Resupport IR 18 18
Support Box SB 20 ––
The Selkirk Chimney System (SCS) is ideal for venting residential heating appliances burning wood, #2 oil, and natural and LP gas. They have been
specifically designed for today’s modern, high-efficiency “airtight” wood stoves. They are designed for gravity (natural draft), nonpositive internal pressure
venting only. The SCS is usable on any appliance having a power burner (such as an oil furnace) if that appliance operates with neutral or negative draft
at its outlet. Non-residential appliances which may cause positive pressure in the chimney should use a Selkirk Commercial Model PS or IPS system.
NOTE: See separate catalog for Canadian installation.
See separate catalog for 16" - 24" UTL / GTL
IMPORTANT
This catalog references ULTRA-TEMP/GALVA-TEMP Chimney Systems with maximum test temperatures under Underwriters’ Laboratories Safety
Standard for Factory-Built Chimneys (UL®-103).
FRAMING / SUPPORTS:
All Selkirk Supports are designed to carry four times the combined weight of each system at maximum allowable height.
* All framing dimensions may be up to 1/2” more, but not less than the above values.
Check support dimensions before using.
** 4" chimney approved for use at clearance provided by Ceiling Support
NOTE: (A) 20 feet of chimney may be suspended below a roof support with all
joints securely threaded, using locking bands or screws.
Sloped ceilings and roofs will not have a square opening, but need to maintain 2".
The table only works on flat roof +/or ceiling penetrations.
4" components support 50 feet: Ceiling Supports (BCS, LCS and CSG), Wall
Support (WS), Roof Support (RS) and Anchor Plate (AP).
Ultra-Temp®

6
Ultra-Temp®
CHIMNEY HEIGHT ABOVE ROOF
Requirement #1: The chimney must extend not less than 3ft. above the highest point at which the chimney comes in contact with the roof
Requirement #2: The chimney must extend not less than 2ft. above the highest roof surface or structure within a horizontal distance of 10ft.
CHIMNEY HEIGHT CHART TO MEET THE 3, 2, 10 FOOT RULE ABOVE THE ROOF
DISTANCE
FROM PEAK
PITCH OF ROOF
1/12 2/12 3/12 4/12 5/12 6/12 7/12 8/12 9/12 10/12 11/12 12/12
CHIMNEY HEIGHT ABOVE ROOF (INCHES)
10' 36 44 54 64 74 84 94 104 114 124 134 144
9' 36 42 51 60 69 78 87 96 105 114 123 132
8' 36 40 48 56 64 72 80 88 96 104 112 120
7' 36 38 45 52 59 66 73 80 87 94 101 108
6' 36 36 42 48 54 60 66 72 78 84 90 96
5' 36 36 39 44 49 54 59 64 69 74 79 84
4' 36 36 36 40 44 48 52 56 60 64 68 72
3' 36 36 36 36 39 42 45 48 51 54 57 60
2' 36 36 36 36 36 36 38 40 42 44 46 48
1' 36 36 36 36 36 36 36 36 36 36 36 36
ULTRA-TEMP®/GALVA-TEMP®All-Fuel Chimney
2 ft.
2 ft.
10 ft.
Roof with Ridge
Flat Roof
3 ft.
Step 1 = Multiply the upper part from the pitch of roof
by the # of feet away from the peak
Step 2 = Add 24" to your calculation to meet
requirement #2
Step 3 = Height of chimney required to extend above
the roof line
*Measurements in Grey highlights have been moved to
36" to meet requirement #1
The chimney must extend at least three feet above the
highest point where it passes through the roof surface
and at least two feet higher than any part of the building
within a horizontal distance of ten feet.

7

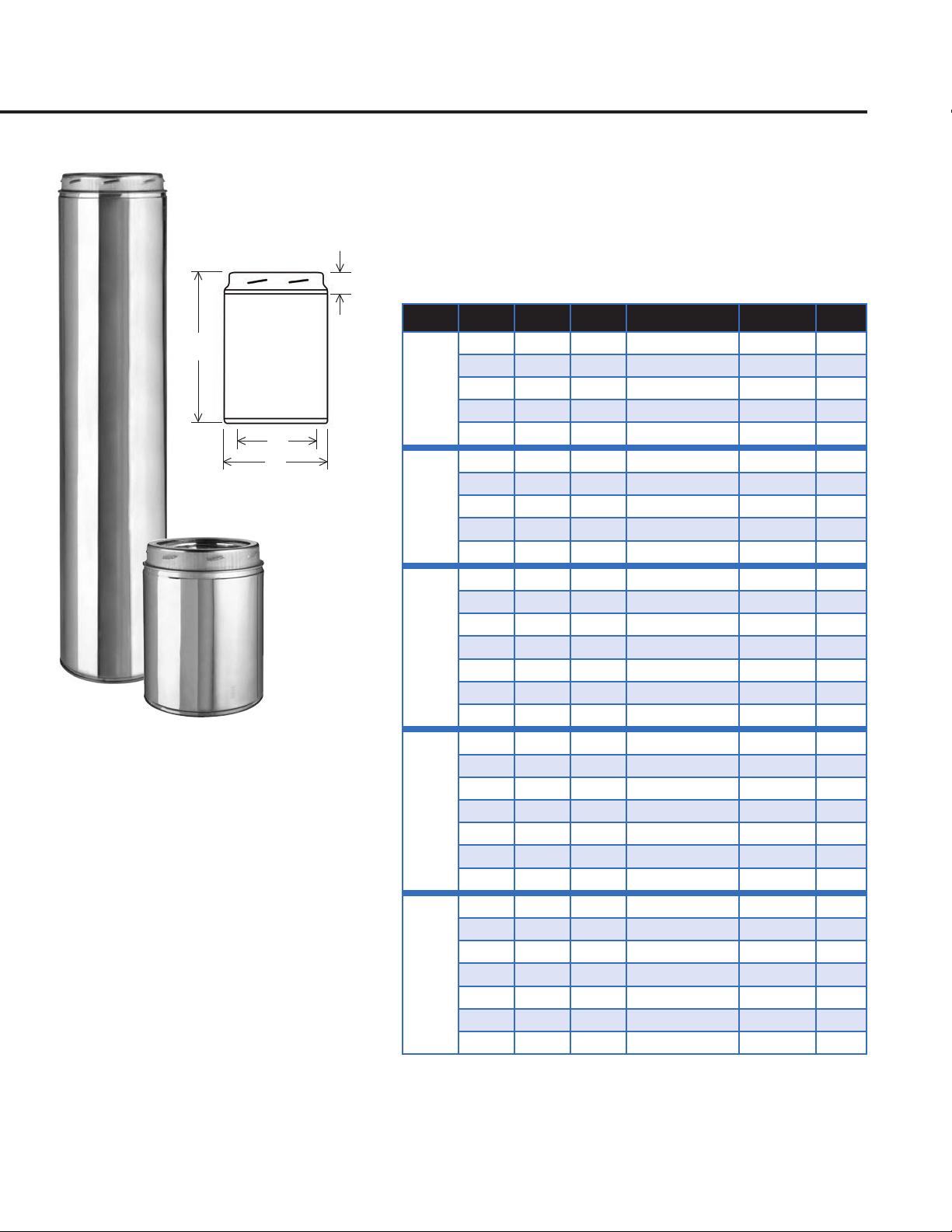

Chimney Lengths
GALVA-TEMP - TYPE HT
Size A B C Product No. Part No. Pack
6"
6" 6" 8" 206006G 6GT-6 1
9" 6" 8" 206009G 6GT-9 1
18" 6" 8" 206018G 6GT-18 1
36" 6" 8" 206036G 6GT-36 1
48" 6" 8" 206148G 6GT-48 1
7"
6" 7" 9" 207006G 7GT-6 1
9" 7" 9" 207009G 7GT-9 1
18" 7" 9" 207018G 7GT-18 1
36" 7" 9" 207036G 7GT-36 1
48" 7" 9" 207148G 7GT-48 1
8"
6" 8" 10" 208006G 8GT-6 1
9" 8" 10" 208009G 8GT-9 1
18" 8" 10" 208018G 8GT-18 1
36" 8" 10" 208036G 8GT-36 1
48" 8" 10" 208148G 8GT-48 1
GALVA-TEMP
Size A B C Product No. Part No. Pack
10"
12" 10" 12" 210012G 10GT-12 1
18" 10" 12" 210018G 10GT-18 1
24" 10" 12" 210024G 10GT-24 1
36" 10" 12" 210036G 10GT-36 1
12"
12" 12" 14" 212012G 12GT-12 1
18" 12" 14" 212018G 12GT-18 1
24" 12" 14" 212024G 12GT-24 1
36" 12" 14" 212036G 12GT-36 1
14"
12" 14" 16" 214012G 14GT-12 1
18" 14" 16" 214018G 14GT-18 1
24" 14" 16" 214024G 14GT-24 1
36" 14" 16" 214036G 14GT-36 2
INSULATED LENGTHS GALVA-TEMP• Stainless steel inner and galvanized outer pipe.
• All insulated pipe lengths are furnished with a Locking Band.
• Secure twist-lock design couples chimney sections together with just
a 1/8 turn.
• To calculate installed length, subtract 1-1/4" per joint.
• Insulated chimney requires 2" clearance to combustible material.
• Galva-Temp and Ultra-Temp can be combined to make a complete
and cost effective installation.
C
B
A
1¼"
CHIMNEY PARTS GUIDE
The following section offers pictorial references, specifications and a brief description of major
components to aid in the design of an Ultra-Temp - Type HT, Galva-Temp - Type HT, Ultra-Temp and
Galva-Temp Chimney System.
READ AND FOLLOW THE
INSTALLATION INSTRUCTIONS WHEN
INSTALLING ANY CHIMNEY SYSTEM.
Ultra-Temp®

8
Ultra-Temp®
NOTE: All insulated pipe lengths are furnished with a
Locking Band, except for 4" - supplied with securing screw.
Chimney Lengths
ULTRA-TEMP - TYPE HT
Size A B C Product No. Part No. Pack
4"
6" 4" 6" 204006U N/A 1
12" 4" 6" 204012U N/A 1
18" 4" 6" 204018U N/A 1
24" 4" 6" 204024U N/A 1
36" 4" 6" 204036U N/A 1
5"
6" 5" 7" 205006U 5UT-6 1
9" 5" 7" 205009U 5UT-9 1
12" 5" 7" 205012U 5UT-12 1
18" 5" 7" 205018U 5UT-18 1
36" 5" 7" 205036U 5UT-36 1
6"
6" 6" 8" 206006U 6UT-6 1
9" 6" 8" 206009U 6UT-9 1
12" 6" 8" 206012U 6UT-12 1
18" 6" 8" 206018U 6UT-18 1
24" 6" 8" 206024U 6UT-24 1
36" 6" 8" 206036U 6UT-36 1
48" 6" 8" 206148U 6UT-48 1
7"
6" 7" 9" 207006U 7UT-6 1
9" 7" 9" 207009U 7UT-9 1
12" 7" 9" 207012U 7UT-12 1
18" 7" 9" 207018U 7UT-18 1
24" 7" 9" 207024U 7UT-24 1
36" 7" 9" 207036U 7UT-36 1
48" 7" 9" 207148U 7UT-48 1
8"
6" 8" 10" 208006U 8UT-6 1
9" 8" 10" 208009U 8UT-9 1
12" 8" 10" 208012U 8UT-12 1
18" 8" 10" 208018U 8UT-18 1
24" 8" 10" 208024U 8UT-24 1
36" 8" 10" 208036U 8UT-36 1
48" 8" 10" 208148U 8UT-48 1
INSULATED LENGTHS ULTRA-TEMP • Stainless steel inner and outer pipe.
• All insulated pipe lengths are furnished with a Locking Band.
• Secure twist-lock design couples chimney sections together with just
a 1/8 turn.
• To calculate installed length, subtract 1-1/4" per joint.
• Insulated chimney requires 2" clearance to combustible material.
• Ultra-Temp and Galva-Temp can be combined to make a complete
and cost effective installation.
C
B
A
1¼"

9
Chimney Lengths continued
ULTRA-TEMP ADJUSTABLE LENGTH• Overall length of 12".
• Adjustable from 2" to 9-1/2".
• Used in offset applications.
• Supplied with Locking Band.
Size A Product No. Part No. Pack
5" 12" 205011U 5UT-11AJ 1
6" 12" 206011U 6UT-11AJ 1
7" 12" 207011U 7UT-11AJ 1
8" 12" 208011U 8UT-11AJ 1
Adjustable
Length
Standard
Length
A
NOTE: Adjustable Lengths must be installed above a fixed
length - they cannot be installed immediately above
a support, tee or elbow.
NOTE: All insulated pipe lengths are furnished with a
Locking Band, except for 4" - supplied with securing screw.
ULTRA-TEMP
Size A B C Product No. Part No. Pack
10"
6" 10" 12" 210006U 10U-6 1
9" 10" 12" 210009U 10U-9 1
12" 10" 12" 210012U 10U-12 1
18" 10" 12" 210018U 10U-18 1
24" 10" 12" 210024U 10U-24 1
36" 10" 12" 210036U 10U-36 1
12"
6" 12" 14" 212006U 12U-6 1
9" 12" 14" 212009U 12U-9 1
12" 12" 14" 212012U 12U-12 1
18" 12" 14" 212018U 12U-18 1
24" 12" 14" 212024U 12U-24 1
36" 12" 14" 212036U 12U-36 1
14"
6" 14" 16" 214006U 14U-6 1
9" 14" 16" 214009U 14U-9 1
12" 14" 16" 214012U 14U-12 1
18" 14" 16" 214018U 14U-18 1
24" 14" 16" 214024U 14U-24 1
36" 14" 16" 214036U 14U-36 1
• Stainless steel inner and outer pipe.
• All insulated pipe lengths are furnished with a Locking Band.
• Secure twist-lock design couples chimney sections together with just
a 1/8 turn.
• To calculate installed length, subtract 1-1/4" per joint.
• Insulated chimney requires 2" clearance to combustible material.
• Ultra-Temp and Galva-Temp can be combined to make a complete
and cost effective installation.
C
B
A
1¼"
INSULATED LENGTHS ULTRA-TEMP
CONTINUED
Ultra-Temp®

10
Ultra-Temp®
Elbows and Tees
• Kits Include: 2 Elbows, 2 Locking Bands and Interior Resupport in
one box.
• REQUIRED: Locking bands (two packaged with each elbow kit) allow
360 degree rotation and lock the components together at the exact
offset required. Elbows can be used on the same two-inch air space
clearance as chimney sections.
• The first vertical length of chimney above an offset should be
resupported, using an Interior Resupport Assembly securely clamped
to the pipe just below a Locking Band, with its straps nailed to a
nearby structure.
Note: For additional information see Installation Instructions or visit www.selkirkcorp.com
ELBOW KITS
15° INSULATED ELBOW KIT
NOTE: 4" Elbows not sold in kits - offset support required
ULTRA-TEMP
Size A B Product No. Part No. Pack
4" N/A N/A 204206 N/A 1
5" 11-5/8" 3-1/16" 205206 5T-EL 15 KIT 1
6" 11-5/8" 3-1/16" 206206 6T-EL 15 KIT 1
7" 12-1/2" 3-3/16" 207206 7T-EL 15 KIT 1
8" 12-5/8" 3-5/16" 208206 8T-EL 15 KIT 1
10" 13-5/8" 3-9/16" 210206 10S-EL 15 KIT 1
12" 14-5/8" 3-13/16" 212206 12S-EL 15 KIT 1
14" 15-5/8" 4-1/8" 214206 14S-EL 15 KIT 1
GALVA-TEMP
Size A B Product No. Part No. Pack
6" 11-5/8" 3-1/16" 206206G 6GT-EL 15 KIT 1
7" 12-1/2" 3-3/16" 207206G 7GT-EL 15 KIT 1
8" 12-5/8" 3-5/16" 208206G 8GT-EL 15 KIT 1
• Versatile, simple device for increasing stability of a chimney.
• Inward flanges around the band fit into grooves at chimney length
joints.
• Reinforces joints of chimney and prevents accidental uncoupling.
• Locking Band is included with all insulated lengths, tees and
elbow kits.
• Made of stainless steel.
Size A B Product No. Part No. Pack
5" 7" 7/16" 205450 5T-LB 4
6" 8" 7/16" 206450 6T-LB 4
7" 9" 7/16" 207450 7T-LB 4
8" 10" 7/16" 208450 8T-LB 4
10" 12" 7/16" 210450 10S-LB 4
12" 14" 7/16" 212450 12S-LB 4
14" 16" 7/16" 214450 14S-LB 4
LOCKING BANDS
