Duronic VC24 User manual

VC24 / VC28
Upright Cordless Vacuum Cleaner
PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

2
English Manual
Manuel d’utilisation en français
Gebrauchsanleitung auf Deutsch
Manual de Instrucciones en Español
Manuale D’istruzioni In Italiano
Instrukcja obsługi. Polski
Türkçe Kullanım Kılavuzu
Gebruikershandleiding Nederlands
3
19
35
51
67
83
99
115
Contents
Svensk manual 131

3
English Manual

4
Features and Specications
Model Number
VC24 (vacuum + 1 battery pack)
VC28 (vacuum + 2 battery packs)
VC2SB (spare battery pack)
Dimensions 37.5x15x20cm
Weight 2.5kg
Dust Container
Capacity 0.8L
Cable Length 120cm/47in
Power 220W
Voltage 220-240V
Energy Rating A
Battery 25.9V/2200mAh
Charging Period 4.5 hours
Input 31V/500mA
RPM 80000 RPM
Vacuum Pressure
24kpa (high speed)
18kpa (mid speed)
7kpa (low speed)
Airow 22dm3/s
Decibels
78db (high speed)
74db (mid speed)
72db (low speed)
Speed Settings 3 speeds
Battery Pack Information
Size H 61mm, ø18.55
Weight 315g (45.0g/cell)
No. of Cells 7
Watt Hours 56.98Wh (8.14Wh/cell)
Lithium Content 94.5g (13.5g/cell)

5
Components
4
1
13 17
14 18
15 19
16 20
2
3
6
5
1211
7
8
10
9
1. Power switch
2. Speed button
3. Battery pack release button
4. Indicator panel
5. Motor unit
6. Metal tube release button
7. Metal telescopic tube
8. Brush release button
9. Support lock
10. Floor brush
11. Dust container release button
12. Dust container
13. Battery pack
14. Wall mount
15. Crevice tool
16. Short brush head
17. Cleaning tool
18. Power adapter
19. HEPA lter
20. Mesh lter

6
Indicator Panel
Battery Pack Panel
1
1
2
3
4
2
3
4
1. Power / battery
(charge percentage)
indicator
2. Low speed indicator
3. Blockage indicator
4. High speed indicator
1. Charging cable port
2. On/Off button
3. Charging indicator
4. Speed button

7
PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE
REFERENCE
• This appliance is for indoor/household use only. Do not use outdoors.
• This appliance is not designed for commercial or industrial use; it is for
household use only.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
•Children should be closely supervised at all times to ensure that they do not
play with the appliance.
• Do not operate this appliance if the power cable or plug is damaged. If
either is damaged, return it to Duronic for service or repair by a professional
technician.
• Never try to replace the parts and repair the unit by yourself. Do not modify
the appliance in any way that is not described in the instructions for use. The
appliance contains live parts. Repairs may only be carried out by Duronic,
using original spare parts and accessories.
•If an extension lead/cable is needed to reach the appliance to a mains power
socket that is too far away out of reach of the appliance’s accompanying
cable, please ensure that:
- the marked electrical rating of the extension lead is at least as great
as the electrical rating of the appliance.
- the extension lead is of the grounded type.
- no other appliance is plugged into the same extension lead.
- the extension cable is safely positioned to avoid it being pulled on by
children or animals or being tripped over.
Safety Information

8
• Do not cover the air inlet or the air outlet vent openings while the appliance is
operating.
• Always turn off the vacuum cleaner before unplugging from the outlet.
• Unplug from the mains plug outlet when not in use.
• Never disconnect the plug by pulling on the power cable. You should always
hold the plug with your hand and pull to disconnect.
•To protect against the risk of electric shock, do not immerse any part of the
main motor unit in water or other liquids.
•Keep hair, loose clothing, ngers and all parts of your body away from the
suction opening.
• Do not put any objects into the openings.
• Do not use to pick up ammable or combustible liquids such as gasoline or
use in areas where they may be present.
• Only use this vacuum cleaner on a dry surface. Do not vacuum up any
moisture or uid of any kind.
•Do not pick up anything that is burning or smoking such as cigarettes,
matches or hot ashes.
•Do not use on concrete, tarmac, or any other rough surfaces.
• Do not use on articial grass.
• Take extra care when using the vacuum cleaner on staircases.
• Do not use the vacuum cleaner without the dust container lter in place.
• Do not use the vacuum cleaner when it is blocked. Keep the appliance free of
dust, lint, hair and anything else that may reduce airow.
•Unplug the charger when not in use for extended periods.
• Do not wrap the charging cable around the charger when storing.
Safety Information (continued)

9
• Unplug the charger and disconnect the battery from the appliance before
carrying out any cleaning or user maintenance.
• Do not install, charge or use this appliance outdoors.
• Do not use on wet surfaces and do not expose to moisture, rain or snow.
• Use on dry oors and areas ONLY. Do not use it outdoors or on wet surfaces.
• When removing or replacing the motorised brush roller, be careful not to
switch on the vacuum until the brush roller has been reassembled and locked
back into place
•Only use the battery and charging cable supplied by Duronic for the VC24/
VC28. A charger that is suitable for one type of battery pack may create a risk
of re when used with another battery pack.
• Do not modify the charger in any way; it has been designed for a specic
voltage. Always check that the mains voltage is the same as that stated on
the rating label.
• The battery pack is a sealed unit and, under normal circumstances, poses no
safety concerns. In the unlikely event that liquid leaks from the battery, do not
touch the liquid as it may cause burns or irritation, and you should observe
the following precautions:
- Skin contact – can cause irritation. If you get any battery liquid on
your hands, wash them with soap and water.
Safety Information (continued)
Battery Safety
WARNING - FIRE HAZARD:
Do not apply any fragrance or scented product to the lter(s) of this
appliance. The chemicals in such products are known to be ammable
and can cause the appliance to catch re.

10
- Inhalation – can cause respiratory irritation. Open a window or step
outside to get some fresh air and then seek medical advice.
- Eye contact – can cause irritation. If any uid comes into contact with
your eyes, immediately ush your eyes thoroughly with water for at
least 15 minutes. Seek medical attention.
- Disposal – wear protective gloves to handle the battery pack
and dispose of it immediately, following local refuse guidance or
regulations.
•Do not use a battery pack that is damaged or modied. Damaged or modied
batteries may exhibit unpredictable behaviour resulting in re, explosion or
risk of injury. Do not shorten/short-circuit the battery terminals.
•The battery pack used in this appliance may present a risk of re or chemical
burn if mistreated.
•Do not place the battery pack on or near a cooker or any other hot surface.
• Do not expose the battery pack to re or excessive temperatures. Exposure
to re or temperatures above 140°F (60°C) may cause explosion.
•When the battery pack is not in use, keep it away from paper clips, coins,
keys, nails, screws or other small metal objects that could make a connection
from one terminal to another.
Battery Safety (continued)
WARNING - FIRE HAZARD:
Do not place this appliance on or near a cooker or any other hot surface
and do not incinerate this appliance even if it is severely damaged. The
battery might catch re or explode.

11
The VC24 / VC28 vacuum cleaner is a lightweight cordless upright electric oor
cleaner that is perfect for cleaning all around the home.
Cordless by design, this vacuum has a wide range of manoeuvrability and
enables you to clean both upstairs and downstairs without having to worry about
annoying trailing power cables. It can convert from an upright cleaner into a
compact handheld vacuum which is ideal for cleaning the car or areas you need
to get up close to.
Using the attachments provided you can clean not just the oors but also high-up
spots, shelves, in-between seats on the sofa or in gaps behind furniture.
1) Attach the metal telescopic tube (7)
to the motor unit (5).
1) Attach the wall bracket (14) to the
wall using the xings provided.
2) Attach the oor brush (10) to the
metal telescopic tube.
2) To attach the vacuum to the bracket,
simply press and click the pole into
place on the bracket.
Assemble the vacuum
Install the wall mount
Introduction
Before First Use

12
The Attachments
For cleaning both
carpeted and hard
ooring.
For cleaning smaller
spaces or hard-to-reach
spots.
For cleaning surfaces,
particularly dusty surfaces
and edges.
Floor Brush Crevice Tool Small Brush Head
This vacuum can be used in two ways: as an upright stick vacuum which is
controlled by the long pole handle, or as a portable handheld vacuum.
How to Use
Attach the telescopic tube to the motor
unit, then attach the oor brush. Both
parts should click into place.
Attach the telescopic tube to the motor
unit, then attach the small brush or
crevice tool to the other end of the tube.
Alternatively, the brush or crevice tool
can attach directly to the motor unit.
To use as an upright vacuum To use as a handheld vacuum

13
Using the Vacuum
To switch on the vacuum, press the On/Off button (a).
To adjust the speed, press the Speed button (b).
There are 3 speeds to choose from: low, medium and
high.
To stop the vacuum, press the On/Off button (a).
ab
When the power/battery indicator ashes for seconds and turns off, this indicates
that the power has been used up.
To recharge the battery (13), plug the charging power adapter (18) into a plug
socked and then into battery pack. A green light will start to ash – this indicates
that the battery is charging. When the power indicator stops ashing and stays on
constantly instead, this means the battery is fully charged.
The battery on this vacuum can be charged in two ways:
Recharging the Battery
On the wall mounted dock

14

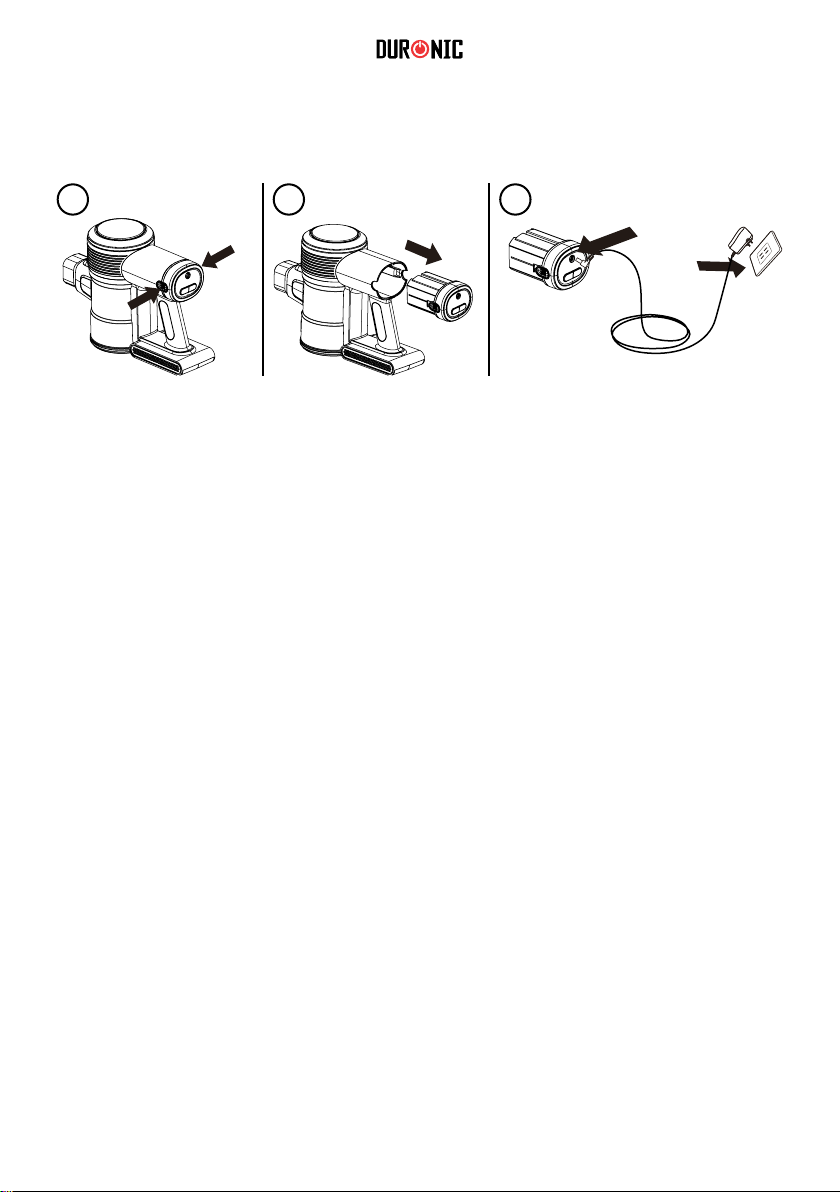

Removing the battery to charge separately
Recharging the Battery (continued)
1 2 3
Emptying the Dust Container
1. Remove the telescopic tube (7) and any attachments from the motor unit
body (20).
2. Holding the vacuum motor unit over a bin, press down on the Dust Container
Release button (11) to open the dust container (12). The lid will pop open and
the contents will be released into the bin.
3. Gently close the lid until it clicks into place.
4. Re-attach the telescopic tube back onto the motor unit.
Cleaning or Changing the Filter
Cleaning and changing the lters (19+20) will improve the performance of the
vacuum cleaner. In order to do so, please refer to the following steps:
1. Remove the dust container from the motor unit (5). Inside the dust container
you will nd the HEPA lter inside the Mesh Filter. Remove both lters from
the dust container.
2. Gently tap out any dust from the lters into a bin.
3. Use the Cleaning Tool (17) to dust away any remaining build-up on the lters.
Cleaning and Maintenance

15
Cleaning and Maintenance (continued)
4. The fabric HEPA lter can also be rinsed under water and then left to air dry.
5. Once the HEPA lter is fully dry, replace the lter back into mesh lter, and
then back into the dust container.
Note: Do not use a washing machine to clean the dust lter, or a hair dryer to dry
the lter.
Clearing Blockages
If your vacuum has a blockage, the blockage indicator will light up.
Ensure that the vacuum is not plugged in or switched on before looking for
blockages.
Be careful not to switch it on during the unblocking process and be aware of any
sharp objects that could be stuck in the vacuum.
Cleaning the Whole Vacuum
If the body of the main unit or handle needs to be cleaned, use a damp well-
wrung cloth to wipe over the surface. Then use a dry cloth to dry the surface.
CAUTION:
Do not immerse any part of the vacuum main unit in water or any other
liquid.

16
Cleaning and Maintenance (continued)
Removing and Cleaning the Floor Brush
1. Unplug the vacuum from power
supply.
3. Lift the roller out and clean the
hair or any other foreign matter
from the roller brush.
5. Leave the roller brush to air dry
for at least 24 hours.
2. Slide the brush lock outwards to
the unlocked position.
4. Wash the roller brush with water.
6. Install the roller brush back into
the oor brush assembly. Slide
the lock inwards until it is locked
into place.

17
Troubleshooting
Problems Possible Solutions
It is not cleaning or
picking up well
1. Empty the dust container.
2. Checked dust container is correctly
assembled.
3. Check the lters are correctly tted.
4. Clean the lters.
The vacuum stops or
doesn’t work
1. Charge battery.
2. Clean the lter.
3. Check battery is installed properly.
The battery did
not charge
1. Check connections with power cable.
2. Check wall socket.
The powered oor
brush didn’t work
1. Make sure dust container is assembled
correctly & locked in place.
2. Make sure the oor brush and metal extension
tube are connected tightly.
3. Check if the brush is blocked or not.

18
Warranty
1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products.
NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A
CONSUMER
This product has been manufactured under the strictest or quality control procedures, and
using the highest quality of materials, to ensure excellent performance and reliability. It will
give very good and long lasting service, provided it is properly used and maintained. The
product is guaranteed for 1 years from the date of original purchase. If any defect arises due
to a faulty materials or poor workmanship, the faulty product must be returned to the original
place of purchase. Refund or replacement is at the discretion of that company.
Duronic Products are offered with a1year guarantee under the following conditions:
1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions
contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect,
inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work,
under the guarantee
7. Valid in the UK only
This product is tted with CE:1363 plug and fuse
Imported by Shine-Mart Ltd, RM3 8SB
Information on waste Disposal for Consumers of
Electrical &ElectronicEquipment.
This mark on a product and/or accompanying documents indicates that when it
is to be disposed of, it must be treated as Waste
Electrical & Electronic Equipment, (WEEE).
Any WEEE marked products must not be mixed with general household waste,
but kept separate for the treatment, recovery and recycling of the materials used.
For proper treatment, recovery and recycling; please take all WEEE marked
waste to your Local Authority Civic waste site,
where it will be accepted free of charge.
If customers dispose of Waste Electrical & Electronic Equipment correctly, they
will be helping to save valuable resources and preventing any potential negative
effects upon human health and the environment, of any hazardous materials that
the waste may contain.
Follow Us

19
Manuel d’utilisation en français

20
Caractéristiques et Spécications
Modèle
VC24 (aspirateur + 1 batterie)
VC28 (aspirateur + 2 batteries)
VC2SB (batterie de rechange)
Dimensions 37.5x15x20cm
2.5kg
0.8L
120cm/47in
220W
220-240V
A
Batterie 25.9V/2200mAh
4.5 heures
31V/500mA
RPM 80000 RPM
24kpa (vitesse élevée)
18kpa (vitesse moyenne)
7kpa (vitesse faible)
22dm3/s
Décibels
78db (vitesse élevée)
74db (vitesse moyenne)
72db (vitesse faible)
3 vitesses
Poids
Longueur du câble
Puissance
Tension
Classe énergétique
Temps de charge
Entrée
Capacité du
réservoir à poussières
Pression à vide
Débit d'air
Réglages de la vitesse
H 61mm, ø18.55
315g (45.0g/cellule)
Nb. de 7
Watt Heures56.98Wh (8.14Wh/cellule)
94.5g (13.5g/cellule)
Informations sur la batterie
Dimensions
Poids
Cellules
Teneur en Lithium
