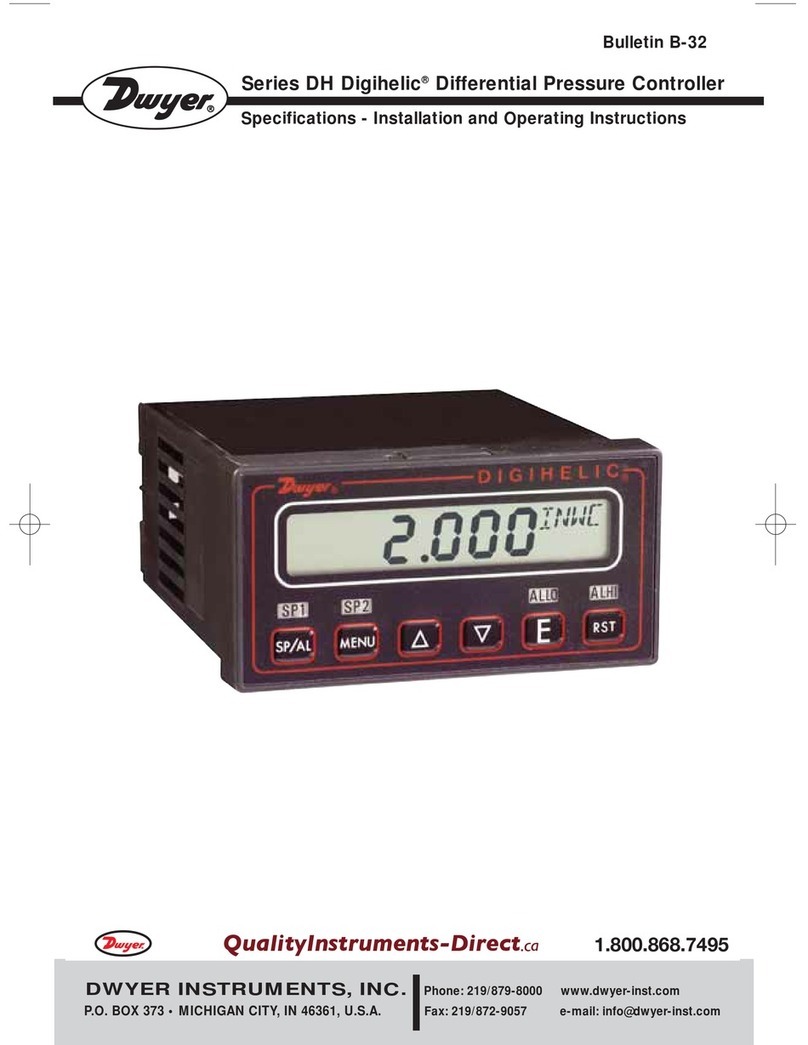

Dwyer Instruments DH-006 User manual

Bulletin B-32

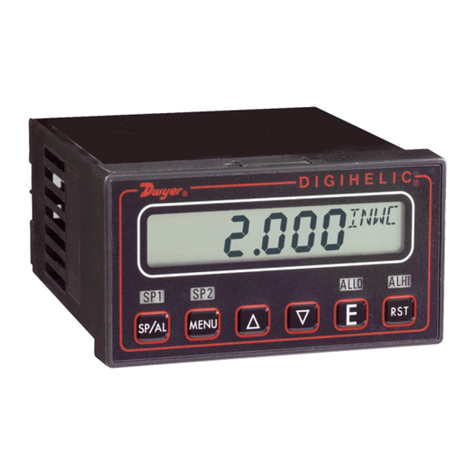

Series DH Digihelic®Differential Pressure Controller
Specifications - Installation and Operating Instructions
DWYER INSTRUMENTS, INC. Phone: [phone] www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, IN 46361, U.S.A. Fax: [phone] e-mail: [e-mail]
B-32:B-32 7/9/09 2:52 PM Page 1
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

1
DIMENSIONS
1-3/4
[44.45]
4-1/2
[114.30]
1/2
[12.70]
4-1/2
[114.30]
3-19/32
[91.28]
1-15/16
[49.21]
3-25/32
[96.04]
Face Designed to Meet NEMA 4X (IP66)
PANEL CUT OUTS
Horizontal
3.620 in. + 0.032 - 0.0
(92.00 mm + 0.8 - 0.0)
1.772 in. + 0.024 - 0.0
(45.00 mm + 0.6 - 0.0)
B-32:B-32 7/9/09 2:52 PM Page 2
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

2
SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Housing Material: ABS plastic, UL approved 94-V-0.
Accuracy: ±0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour
warm-up).
Stability: < ±1% per year.
Pressure Limits: Ranges ≤2.5 in. w.c. = 2 psi
5˝: 5 psi; 10˝: 5 psi; 25˝: 5 psi; 50˝: 5 psi; 100˝: 9 psi.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
Power Requirements:
High Voltage Power = 100 to 240 VAC, 50 to 400 Hz or 132 to 240 VDC.
Low Voltage Power = 24 VDC ±20%.
Power Consumption:
Low Voltage Power = 24 VDC - 130 mA max.
High Voltage Power = 100 to 240 VAC, 132 to 240 VDC - 7VA max.
Output Signal: 4-20 mA DC into 900 ohms max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (dampening set to 1).
Display: 4 digit LCD 0.4˝ height LED indicators for set point and alarm status.
Electrical Connections: Screw terminals.
Process Connections: Compression fitting for use with 1/8˝ ID tubing x 1/4˝ OD
tubing (3.175 mm ID x 6.35 mm OD).
Enclosure Rating: Face designed to meet NEMA 4X (IP66).
Mounting Orientation: Mount unit in horizontal plane.
Size: 1/8 DIN. Panel Cutout: 1.772 x 3.620 in (45 x 92 mm).
Weight: 14.4 oz (408 g).
Serial Communications: Modbus® Protocol RTU, RS485, 9600 Baud.
Agency Approvals: UL Listed, CUL Listed File No. E83725
CE EMC and Low Voltage Directives:
EN61000-4-2
EN61000-4-3*
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-11
EN55011
EN601010
* Models DH-001 through DH-004, DH-011 through DH-014 pass criteria B. All others pass criteria A.
Switch SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 8 Amps at 240 VAC resistive.
Set Point Adjustment: Adjustable via keypad on face.
B-32:B-32 7/9/09 2:52 PM Page 3
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

3
WIRING
2020 1919 1818 1717 1616 1515 1414 1313 1111 1212
1010 9 8 7654321
21
21
2222
2323
2424
C
C
N/CN/C
N/CN/C N/ON/O
N/O
N/O
SP1
RELAY
SP1
RELAY
SP2 OR
ALARM
RELAY
SP2 OR
ALARM
RELAY
3/8A 250VAC
MEDIUM LAG
3/8A 250VAC
MEDIUM LAG
100-240 VAC or
132-240 VDC POWER
100-240 VAC or
132-240 VDC POWER
NOTE1NOTE1
A
B_
+
RS485 SERIAL
COMMUNICATION
RS485 SERIAL
COMMUNICATION
_
+
24 VDC POWER24 VDC POWER
REMOTE RESET
SWITCH
REMOTE RESET
SWITCH
NOTE 1
NOTE 1
4-20mA
transmitter
output
4-20mA
transmitter
output
Device receiving 4-20mA
signal. Check specifications
of this device for input load
resistance. Typical 250 to
600 OHMS, 900 OHMS
maximum
signal. Check specifications
of this device for input load
resistance. T
600 OHMS, 900 OHMS
maximum _
_
+
+_
+
High Pressure PortHigh Pressure Port Low
Pressure
Port
Low
Pressure
Port
NOTES:
1. The instrument may be powered from the AC line or 24 VDC. Do not wire AC
line terminals 4-5 and 24 VDC terminals 14-15 at the same time or damage to
the unit will result.
2. For supply connections, wire in accordance with an equivalent national standard
or code. Use copper conductors only rated for at least 75°C.
3. Terminals 11-15, 18 and 20 are rated CLASS 2.
4. ISOLATION:
Relays - 1500 VAC to all other inputs and outputs.
AC Line Power (terminals 4-5) - 1500 VAC to all other inputs and outputs.
RS485 output - 500 VAC to all other CLASS 2 wiring.
The 24 VDC Power, 4-20 mA transmitter, and Remote Reset Switch share
a common ground.
5. The Remote Reset Switch must be a dry contact switch.
6. Shielded cable is required for RS485 wiring.
WIRING
WARNING
If Digihelic®is powered by 24 VDC, the device receiving the 4-20 mA transmitter
output MUST NOT share a common ground with the 24 VDC supply or damage
to the Digihelic®will result.

