Dyna-Glo DGF350CSP User manual

1
Français p. XX
Español p. XX
70-10-640 Rev. 07/11/17
2-BURNER
LP GAS GRILL
WITH SIDE BURNER
Model #DGF350CSP/DGF350CSP-D
ATTACH YOUR RECEIPT HERE
Serial Number _____________________________ Purchase Date ______________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday
or e-mail us at [email protected].
Français p. 31
Español p. 61

2
Assembler/Installer: This manual contains important information necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
TABLE OF CONTENTS
Safety Information ...................................................................................................................... 3
Package Contents ...................................................................................................................... 5
Hardware Contents .................................................................................................................... 6
Preparation ................................................................................................................................. 6
Assembly Instructions ................................................................................................................ 7
Operation Instructions ................................................................................................................. 18
Care and Maintenance ................................................................................................................. 23
Troubleshooting ........................................................................................................................... 26
Warranty ...................................................................................................................................... 28
Replacement Parts List .............................................................................................................. 29
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. Open lid.
4. If odor continues, keep away
from the appliance and immedi-
ately call your local re depart-
ment.
1. Do not store or use gasoline
or other ammable liquids or
vapors in the vicinity of this or
any other appliance.
2. An LP (liquid propane) cylin-
der not connected for use shall
not be stored in the vicinity of
this or any other appliance.
3. This grill is for outdoor use
only and shall not be used in a
building, garage, under over-
hangs or any other enclosed
area.
4. Do not leave a lit grill unat-
tended. Keep children and pets
away from the grill at all times.
WARNING
DANGER

3
CAUTION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. If you have any questions regarding the product, please call customer service at:
1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday.
• Never use charcoal or lighter uid with the grill.
• Do not use gasoline, kerosene or alcohol for lighting.
• The LP gas cylinder used with this appliance must be:
(a) Constructed and marked in accordance with the Specications for LP-Gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commision, as applicable; and
(b) Provided with a listed overlling prevention device.
(c) Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances. This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
• Never keep a lled container in a hot car or car trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and allow gas to escape.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn
you severely.
SAFETY INFORMATION
DANGER
• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible
materials, gasoline and other ammable vapors and liquids.

4
SAFETY INFORMATION

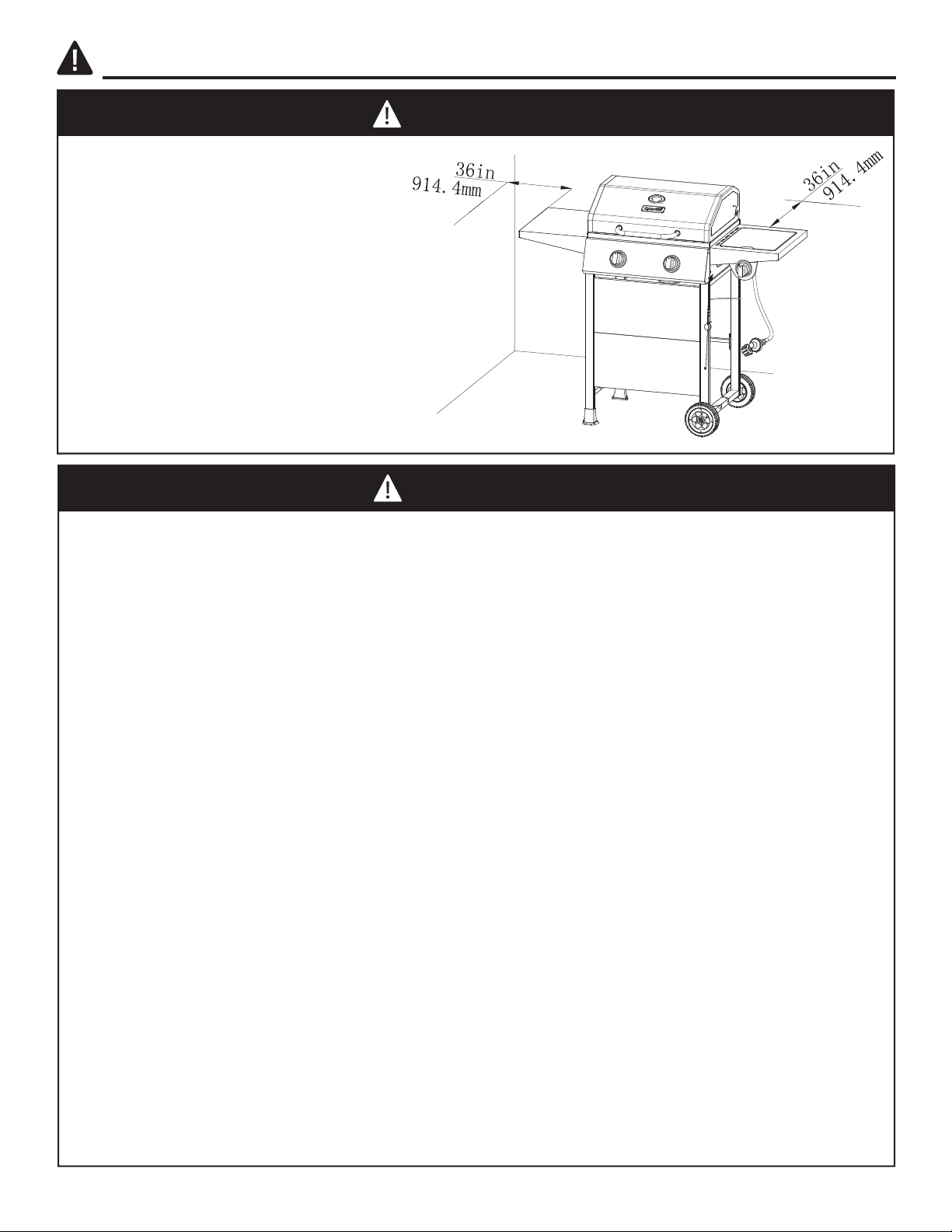

• Do not place the grill under overhead
combustible construction or awnings.
Minimum clearance from sides and
back of unit to combustible construction,
36 inches (914.4mm) from sides and
back.
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and
Handling Code, B149.2.
CAUTION
• Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliance.
• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
• This grill is for use with propane gas only (propane cylinder not included).
• Never attempt to attach this grill to the self-contained propane system of a boat, camper trailer,
motor home or house.
• Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked
when not moving the grill.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
• Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all
times.
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc…).
• Do not alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
assembly will be that which is specied by the manufacturer.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the
grill before each use. Do not obstruct the ow of gas or ventilation air.
• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability
to properly assemble or safely operate the grill.
• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
• Do not place this grill on any type of tabletop surface. The grill should be placed on a at and
level surface.
• Do not use the grill in high winds.
WARNING

5

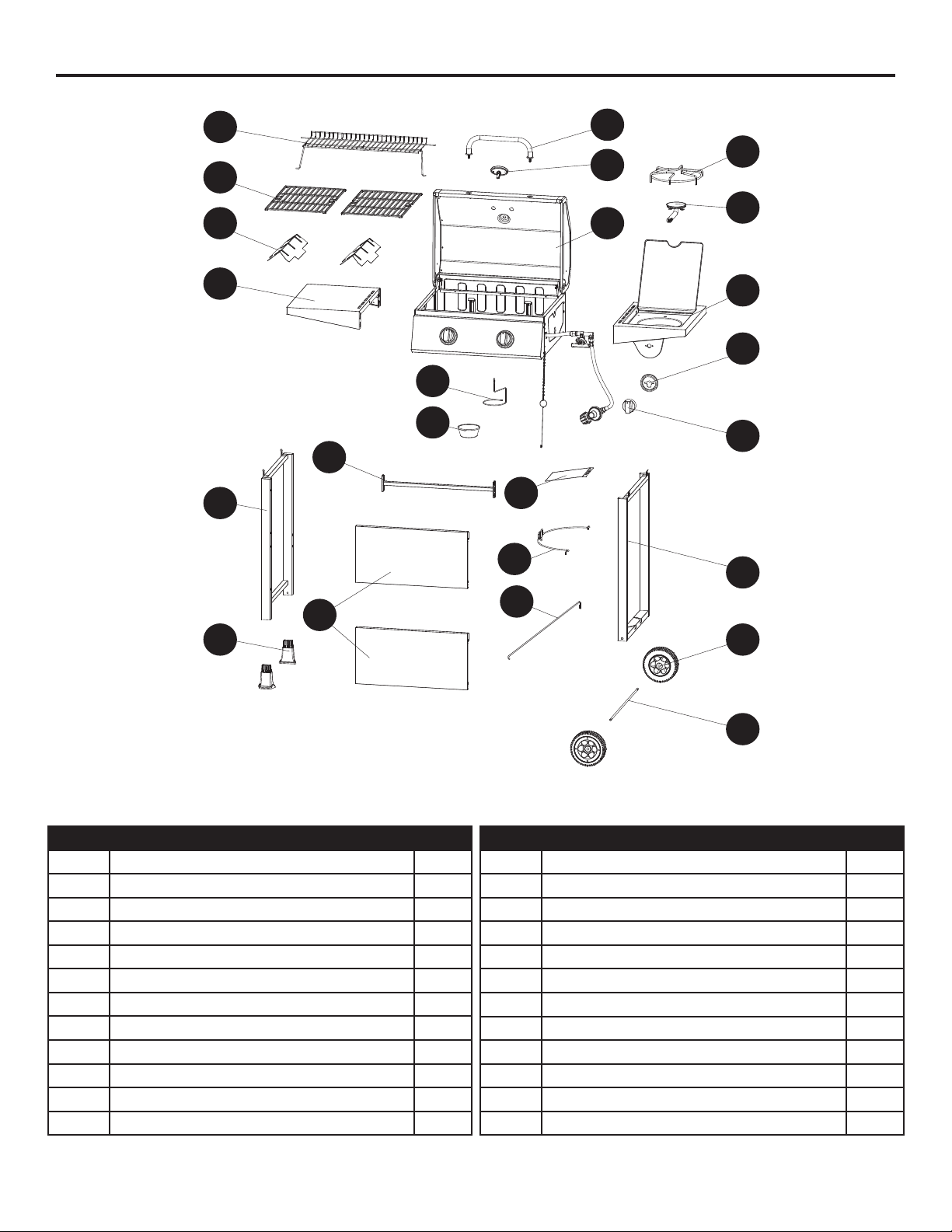

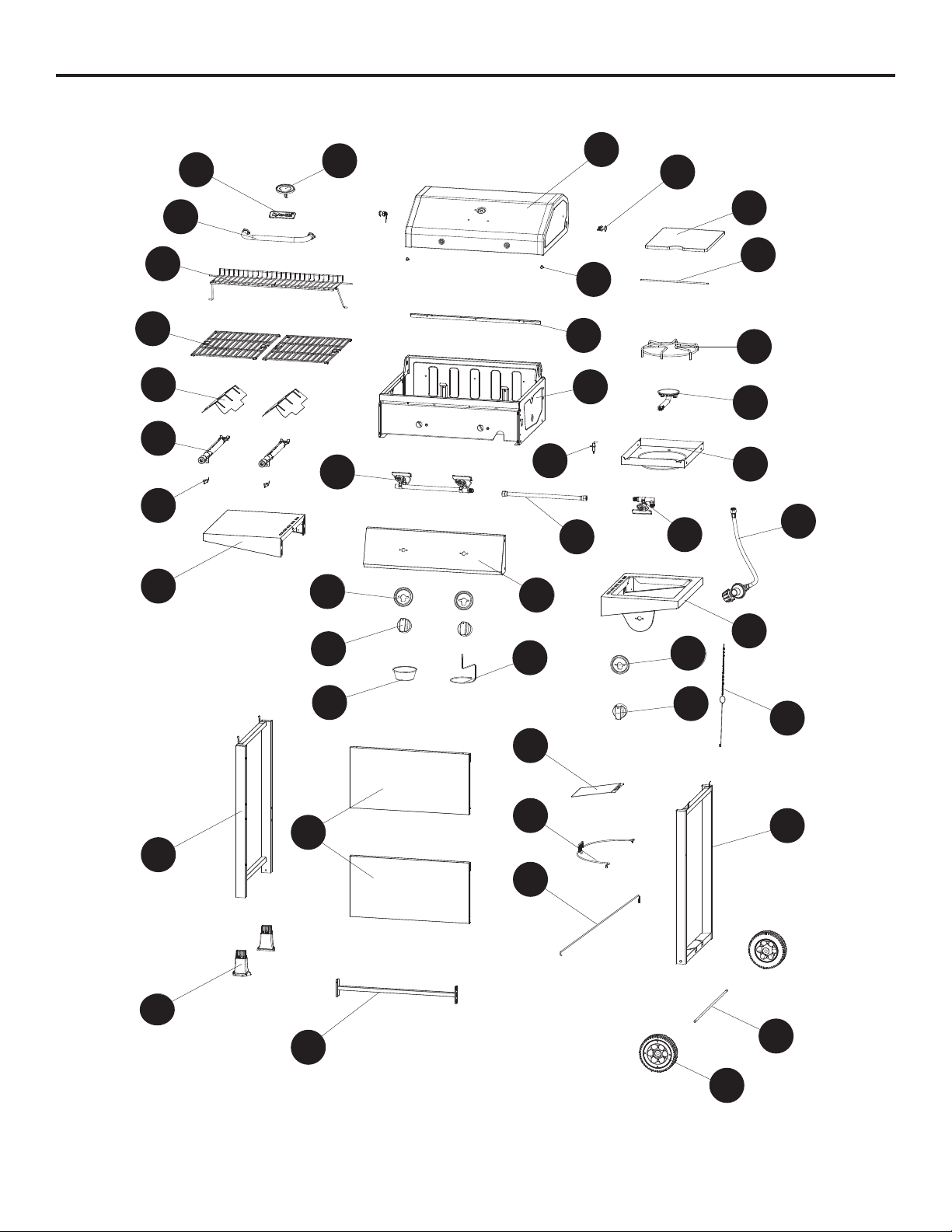

PACKAGE CONTENTS
B
C
DA
H
G
E
F
J
K
L
N
O
M
P
Q
R
V
T
S
U
W
X
I
PART DESCRIPTION QTY
A Hood Handle 1
B Temp Gauge 1
CGrill Body Assembly 1
D Warming Rack 1
E Cooking Grate 2
FHeat Tent 2
G Grease Cup Support 1
H Grease Cup 1
ILeft Side Table Assembly 1
JRight Side Burner Body Assembly 1
KSide Burner 1
L Side Burner Rack 1
PART DESCRIPTION QTY
M Control Knob 1
N Control Knob Bezel 1
OLeft Leg Assembly 1
P Leg End Cap 2
Q Cart Rear Support 1
R Cart Front Panel 2
S LP Gas Tank Heat Shield 1
T LP Gas Tank Retainer Wire 1
U Cylinder Block Bar 1
V Right Leg Assembly 1
W Wheel 2
X Axle 1

6
HARDWARE CONTENTS
ST4.8x10
Screw
Qty. 2
M5
Wingnut
Qty. 1
M6x16
Bolt
Qty. 14
M5x14
Bolt
Qty. 14
M8
Nut
Qty. 2
M8
Wrench
Qty. 2
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do
not attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle,
Plier, Adjustable Wrench
CAUTION
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges. Wear protective
gloves if necessary. Read and follow all safety statements, warnings, assembly instructions and
use and care instructions before attempting to assemble and use.
CC
AA BB DD
GGFF
M6
Washer
Qty. 2
M6
Spring
Washer
Qty. 2
M6
Wingnut
Qty. 2
HH
M4x10
Bolt
Qty. 4
II JJ
EE

7
ASSEMBLY INSTRUCTIONS
1. Put two leg end caps (P) under left leg
assembly (O), and fasten them with two
ST4.8X10 screws (AA).
Hardware Used
ST4.8x10 Screw x 2
2. Slide the axle (X) through the right leg
assembly (V) and then put the wheels (W)
on both sides, and tighten the wheels
with M8 nuts (BB) with M8 wrenches (CC).
Please note, this step requires two people to
complete, and if necessary any other plier or
adjustable wrench can be used for assembly.
Hardware Used
BB M8 Nut x 2
2
AA
1
P
O
CC M8
Wrench x 2
AA
V
X
W
BB

8
ASSEMBLY INSTRUCTIONS
3. Assemble eight M5x14 bolts (DD) onto the left
leg assembly (O) and right leg assembly
(V) , do not tighten and make sure to leave a
5mm gap between the bolt and leg. Hang
one of the cart front panel (R) on the
lower, hang the other cart front panel (R) on
the upper, then tighten all bolts.
Hardware Used
DD M5x14 Bolt
5mm
M5x14 Bolt
x 8
3
R
O
V
DD
4. Use four M5x14 bolts (DD) to fasten the
cart rear support (Q) to the left and right leg
assembly.
4
Q
Hardware Used
DD x 4
DD

9
U
Q
ASSEMBLY INSTRUCTIONS

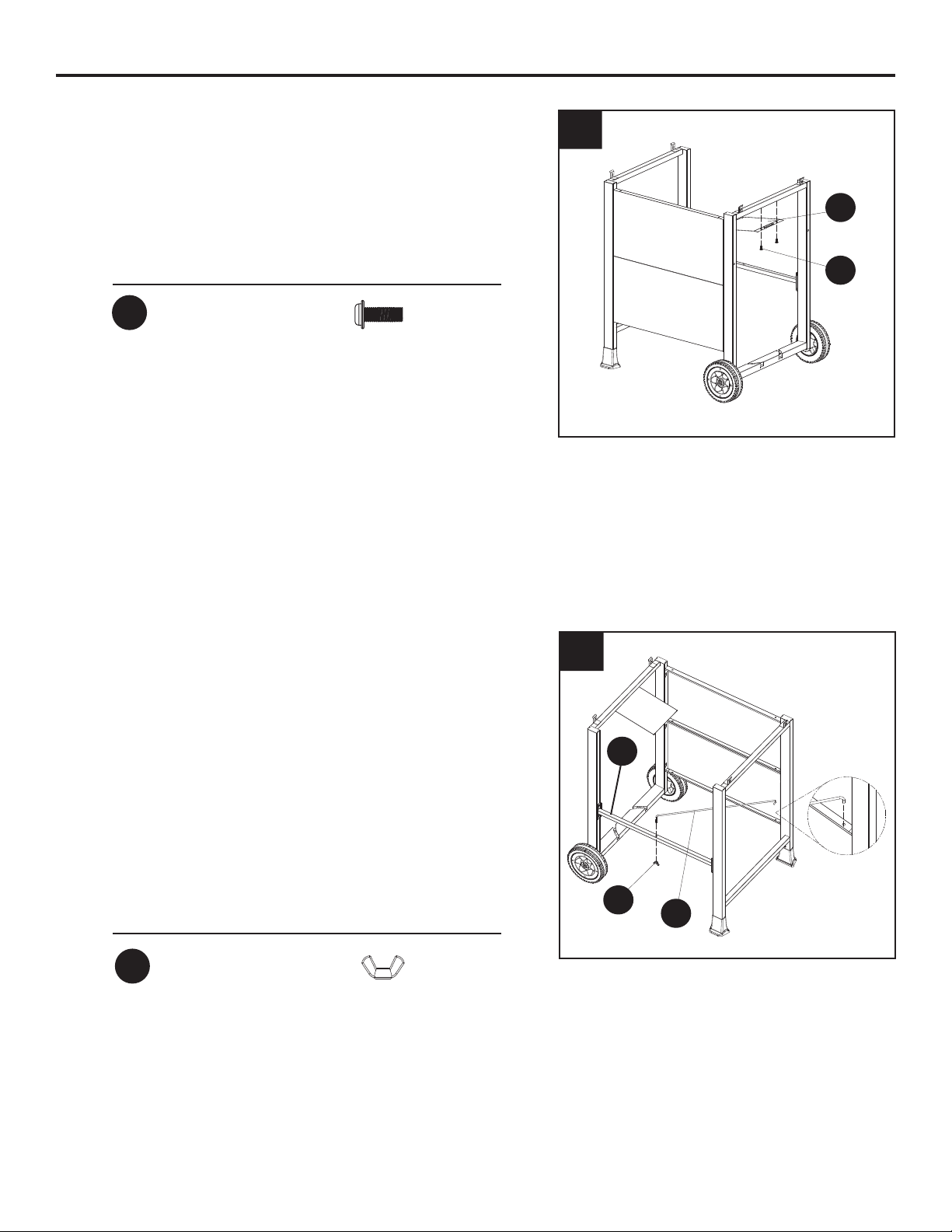

5. Use two M5x14 bolts (DD) to fasten the LP gas
tank heat shield (S) to right leg assembly.
6. Insert one end of the cylinder block bar(U) into
the hole of the cart front panel in bottom, insert
the other end with thread of the cylinder block
bar into the cart rear brace support (Q). Use
one M5 wingnut (EE) to fasten the cylinder
block bar (U) onto the cart rear brace support
(Q).
5
6
Hardware Used
DD M5x14 Bolt x 2
EE
DD
S
Hardware Used
EE M5 Wingnut x 1

10
ASSEMBLY INSTRUCTIONS

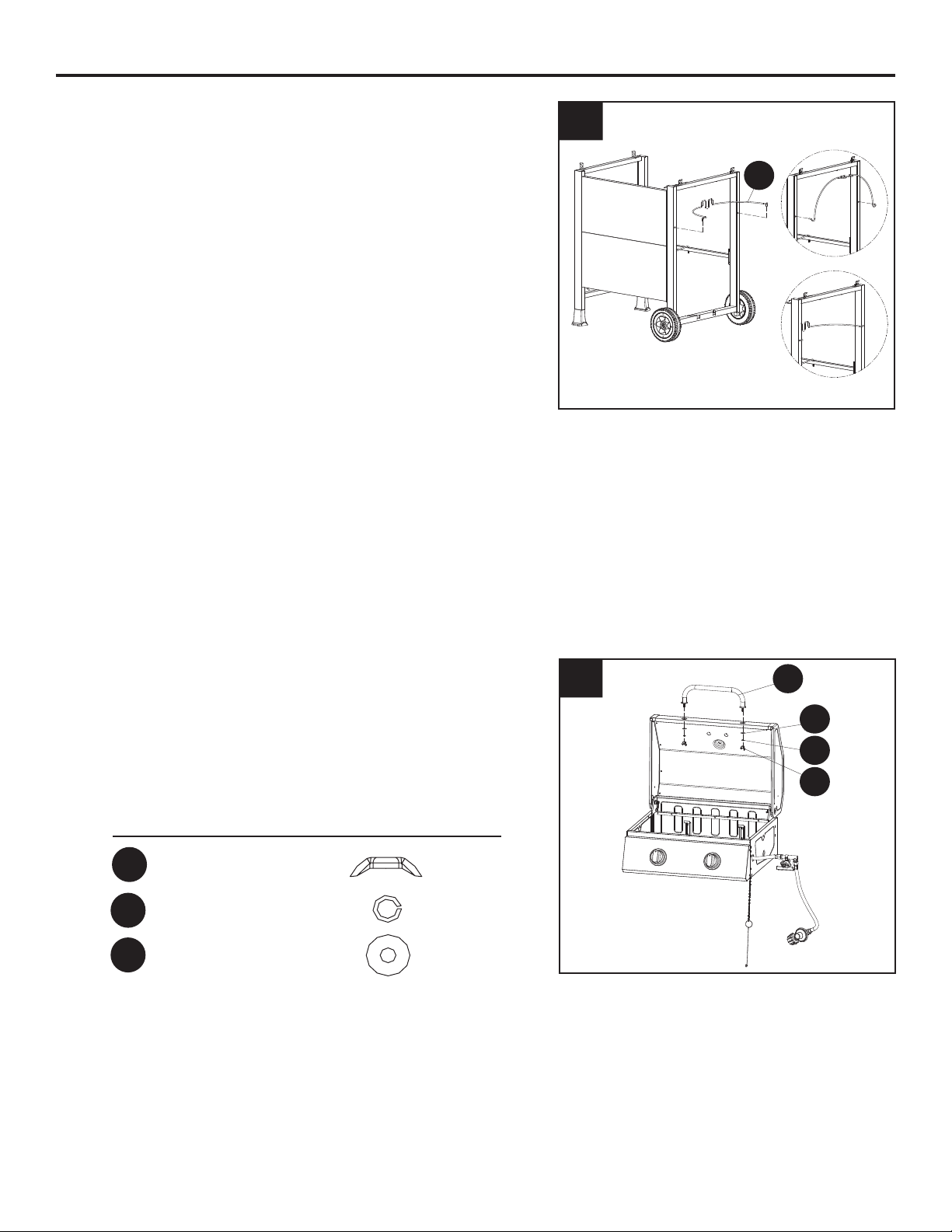

8. Assemble the hood handle (A) to the hood
with two M6 wingnuts (FF) and two M6 spring
washers (GG) and two M6 washers (HH).
7. Attach the LP gas tank retainer wire (T) to right
leg assembly. 7
8
Hardware Used
FF M6 Wingnut x 2
GG M6 Spring Washer x 2
T
A
HH
GG
FF
GG
HH M6 Washer x 2

11
ASSEMBLY INSTRUCTIONS
9. Assemble the temp gauge (B) onto the hood.
Please use the washer and wing nut pre-
assembled with temp gauge to install the temp
gauge (B) onto the hood.
9

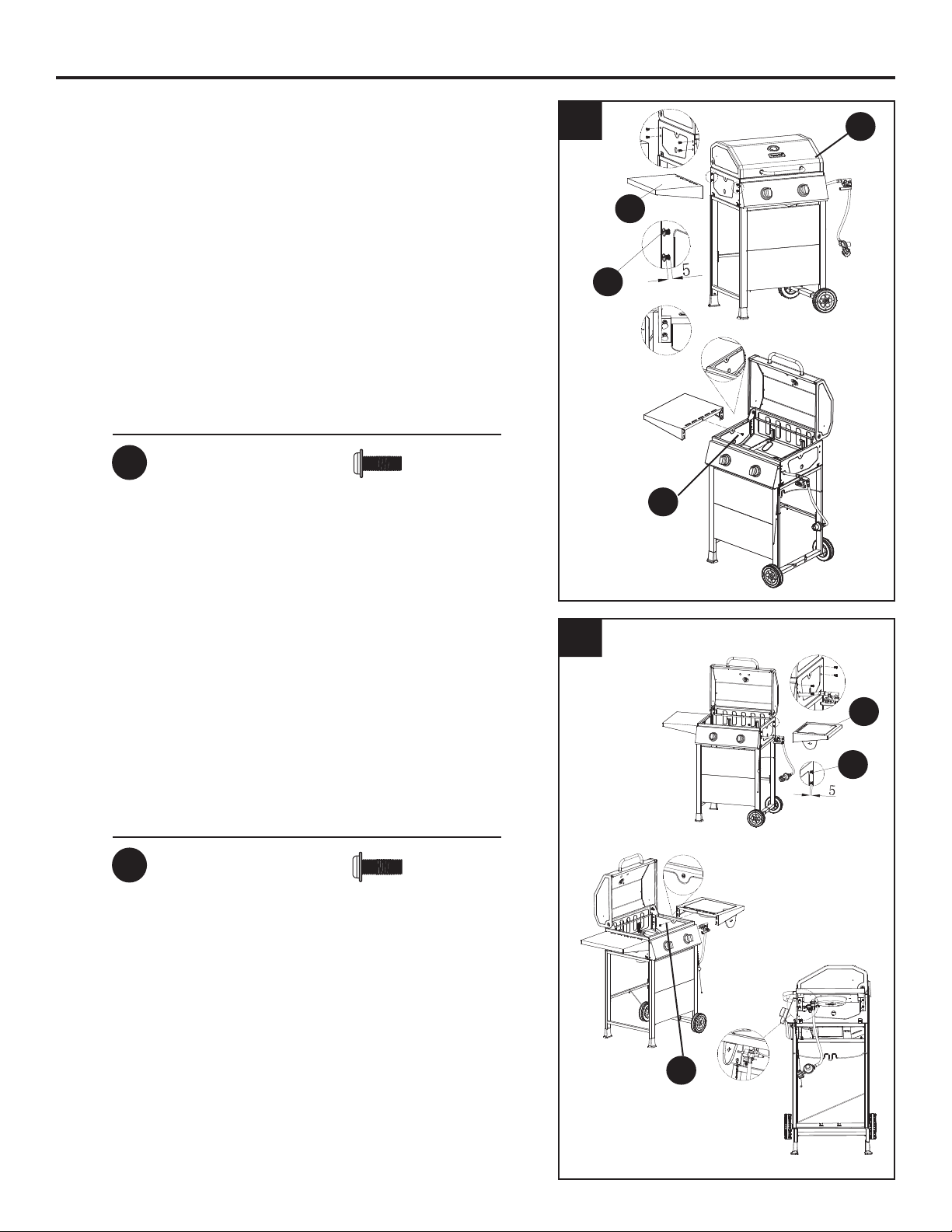

10. Assemble the grill body assembly (C) onto the
cart assembly with four M6x16 bolts (II).
Please note this step needs two people to
uplift the grill body assembly.
10
II
B
Hardware Used
II M6x16 Bolt x 4
C

12
mm
mm
mm
ASSEMBLY INSTRUCTIONS
11. Assemble four M6x16 bolts (II) onto the grill
body assembly (C) and do not tighten them
and make sure to leave a 5mm gap between
the bolt and grill body’s end cap. Then hang
the left side table assembly (I) on the bolts
and fasten the left side table assembly (I) with
one M6x16 bolt (II) and tighten all bolts.
11
12
Hardware Used
II M6x16 Bolt x 5
I
II
II
II
II
J
12. Assemble four M6x16 bolts (II) onto the grill
body assembly (C) and do not tighten them and make
sure to leave a 5mm gap between the bolt and grill
body’s end cap. Then hang the right side burner body
assembly (J) on the bolts and fasten the right side
burner body assembly (J) with one M6x16 bolt (II)
and tighten all bolts.
Hardware Used
II M6x16 Bolt x 5
mm
mm
C

13
Hardware Used
Hardware Used
JJ
JJ
M4x10 Bolt
M4x10 Bolt
x 2
x 2
13
ASSEMBLY INSTRUCTIONS
13. Use two M4x10 bolts (JJ) to assemble the side
burner valve assembly and control knob bezel
(N) to the right side burner body assembly(J).
K
JJ
J
N
J
JJ
14

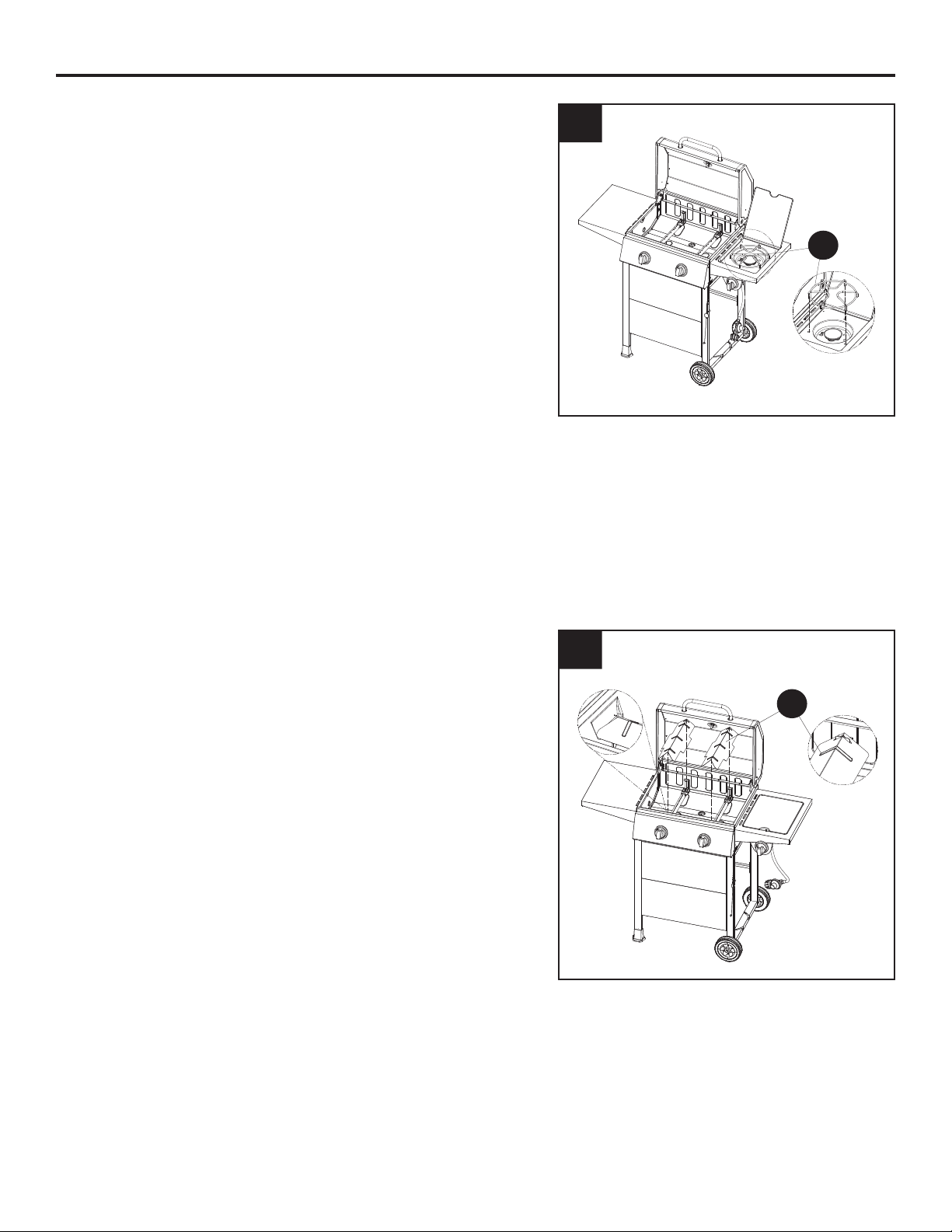

14. Use two M4x10 bolts(JJ) to assemble the side
burner (K) on the right side burner body
assembly (J). Please ensure the gas valve
orice is correctly positioned inside side burner
inlet (venturi).
Correct
Incorrect
Incorrect

14
15
ASSEMBLY INSTRUCTIONS

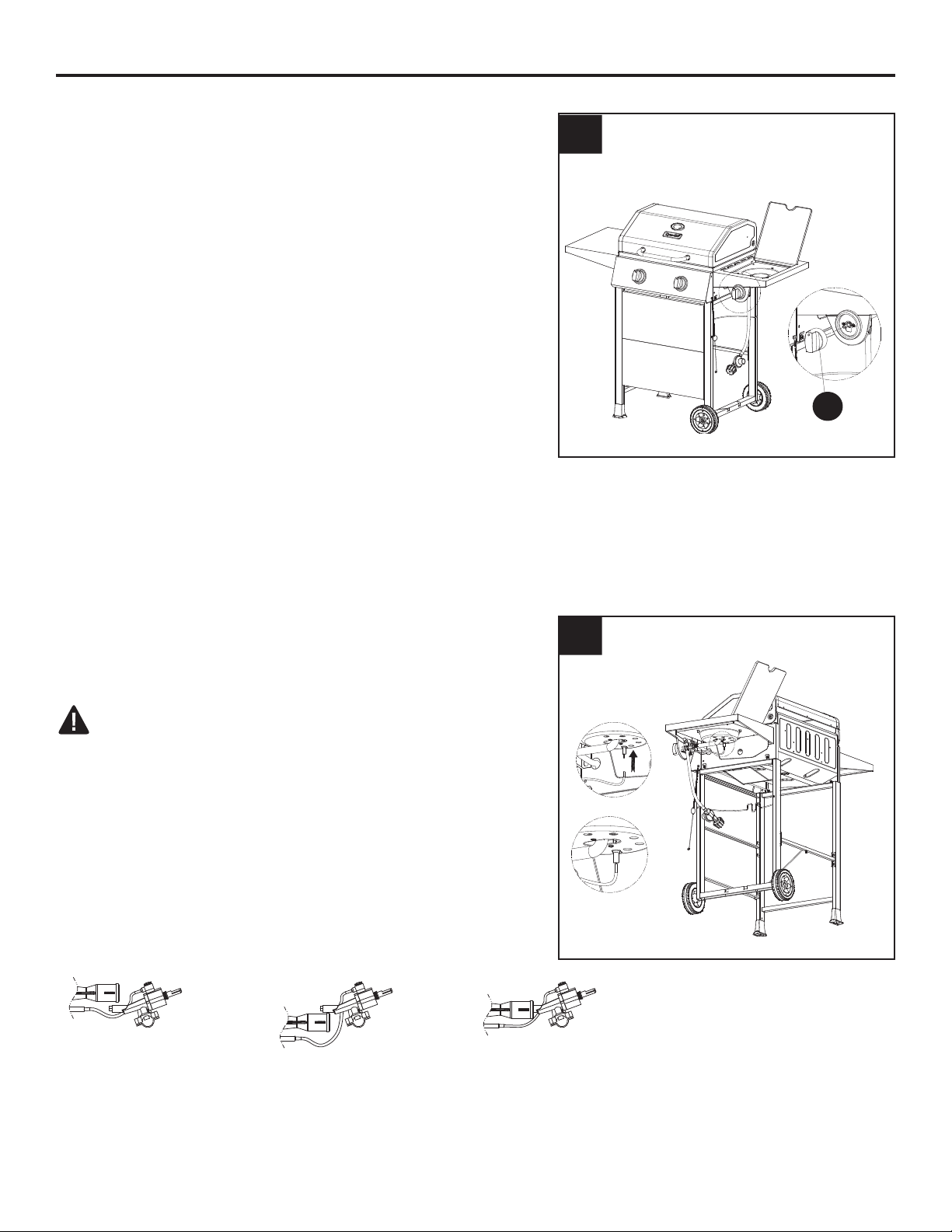

15. Assemble the one control knob (M) to side
burner valve stem.
16. Connect the side burner sparker wire to the side
burner electrode. 16
M
WARNING: IT IS VERY IMPORTANT TO CHECK
AND ENSURE THAT EACH AND EVERY BURNER
IS FULLY ENGAGED WITH THE ADJACENT VALVE
ORIFICE BEFORE COMPLETING STEP 17.
FAILURE TO DO SO MAY RESULT IN FIRE OR
EXPLOSION, POSSIBLY CAUSING SERIOUS
INJURY OR DEATH. REFER TO MAINTENANCE
SECTION INSTRUCTIONS TO PROPERLY CHECK
THE ENGAGEMENT.
Wrong Wrong Correct

15
ASSEMBLY INSTRUCTIONS
17. Put the side burner rack (L) in place. 17
18. Put the 2 heat tents (F) into place over each
burner. 18
L
F

16
ASSEMBLY INSTRUCTIONS
19. Put one warming rack (D) in place.
20
E
20. Put two cooking grates (E) in place.
21. Put the grease cup(H) onto the grease cup
support (G), then insert into the bottom of
the grill body.
19
21
D
GH

17
ASSEMBLY INSTRUCTIONS
22. Place gas cylinder (sold separately) upright
into the notches in the right leg assembly,
so the gas cylinder valve is facing the gas line
connection. Secure gas cylinder by sliding the
LP gas tank retainer wire (T) over collar of gas
cylinder. Hand-tighten the hose/
regulator coupling to the threaded valve
of the LP gas cylinder.
22
Front view Rear view
T

29
REPLACEMENT PARTS LIST
3
4
7
16
9
2
32
22
22
21
14
12
5
17
15
10
33
31
34
23
29
41
11
13
8
25
28
30
26
27
24
39
37
38
36
35
18 19 20
1
23
40
6

30
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m.,
CST, Monday – Friday.
70-10-640 Printed in China
PART DESCRIPTION PART#
1Temp Gauge Assembly 70-01-100
2 Badge 70-01-540
3 Hood Handle 70-01-632
4 Warming Rack 70-01-633
5 Cooking Grate 70-01-634
6Heat Tent 70-01-635
7 Main Burner With Clip 70-01-636
8 Main Burner Sparker 70-01-283
9Left Side Table Assembly 70-01-637
10 Left Leg Assembly 70-01-638
11 Leg End Cap 70-01-639
12 Hood Assembly (with inner plate) 70-01-640
13 Hood Hinge (with nut, washer and clip) 70-01-641
14 Lid Bumper 70-01-176
15 Cooking Grate Support 70-01-642
16 Firebox Assembly (with heat shield and burner bracket ) 70-01-643
17 Main Valves and Manifold Assembly 70-01-644
18 Corrugated Hose 70-01-645
19 Side Valve 70-01-646
20 Regulator and Hose Assembly 70-01-647
21 Control Panel Assembly English Only 70-01-648
22 Control Knob Bezel 70-01-184
23 Control Knob 70-01-185
24 Grease Cup 70-01-650
25 Grease Cup Bracket 70-01-651
26 Cart Front Panel 70-01-652
27 Cart Rear Brace Assembly 70-01-653
28 Tank Heat Shield 70-01-654
29 Tank Fix Bar 70-01-655
30 Cylinder Block Bar 70-01-656
31 Match Holder with Chain 70-01-204
32 Right Leg Assembly 70-01-657
33 Axle 70-01-658
34 Wheel 70-01-659
35 Right Side Table Assembly 70-01-660
36 Side Burner Pan 70-01-661
37 Side Burner Sparker 70-01-269
38 Side Burner Body 70-01-662
39 Side Burner Rack 70-01-266
40 Side Burner Lid 70-01-264
41 Side Burner Lid Rod 70-01-265
n/a Instruction Manual 70-10-640
n/a Hardware Pack 70-09-523

31
Français p. XX
Español p. XX
70-10-640 Rév. 07/11/17
BARBECUE AU
PROPANE À DEUX
BRÛLEURS AVEC
BRÛLEUR LATÉRAL
Modèle noDGF350CSP/DGF350CSP-D
AGRAFEZ VOTRE FACTURE ICI
Numéro de série __________________________ Date d’achat _______________________
Questions, problèmes, pièces manquantes? Avant de retourner l’article au détaillant,
appelez notre service à la clientèle au 1 877 447-4768, entre 8 h 30 et 16 h 30 (HNC),
du lundi au vendredi, ou envoyez un courriel à [email protected].
English p. 1
Español p. 61
