5-BURNER LP GAS GRILL
WITH SIDE BURNER AND
SEARPLUS™ BURNER
Model #DGH485CRP/DGH485CRP-D
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service
department at 1-877-447-4768,
8:00 a.m. – 4:30 p.m., CST,
Monday – Friday or e-mail us at
[email protected]
Français p. 31
Español p. 61

2
Table Of Contents
Assembler/Installer: This manual contains important information necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call your
local fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP (liquid propane) cylinder not
connected for use shall not be stored
in the vicinity of this or any other
appliance.
3. This grill is for outdoor use only and
shall not be used in a building, garage,
under overhangs or any other enclosed
area.
4. Do not leave a lit grill unattended.
Keep children and pets away from the
grill at all times.
DANGER WARNING
Safety Information.....................................................................................................................3
Package Contents.....................................................................................................................5
Hardware Contents ...................................................................................................................6
Preparation ................................................................................................................................6
Assembly Instructions ..............................................................................................................7
Operation Instructions............................................................................................................18
Care and Maintenance............................................................................................................23
Troubleshooting.......................................................................................................................26
Limited Warranty .....................................................................................................................27
Replacement Parts List...........................................................................................................28

3
DANGER
CAUTION
Safety Information
• Never use charcoal or lighter uid with the grill.
• Do not use gasoline, kerosene or alcohol for lighting.
• The LP gas cylinder used with this appliance must be:
(a) Constructed and marked in accordance with the Specications for LP-Gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commission, as applicable; and
(b) Provided with a listed overlling prevention device.
(c) Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances. This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
• Never keep a lled container in a hot car or car trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and allow gas to escape.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn
you severely.
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH
FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM. For more information go to: www.P65Warnings.ca.gov.
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at: 1-877-447-
4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.
•Donotuseinanexplosiveatmosphere.Keepgrillareaclearandfreefromcombustible
materials, gasoline and other ammable vapors and liquids.

4
•Donotplacethegrillunderoverhead
combustible construction or awnings.
Minimum clearance from sides and back
of unit to combustible construction, 36
inches (914.4mm) from sides and back.
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling
Code, B149.2.
36in
914.4mm
36in
914.4mm
WARNING
Safety Information
CAUTION
36in
914.4mm
36in
914.4mm
• Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliance.
• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
• This grill is for use with propane gas only (propane cylinder not included).
• Never attempt to attach this grill to the self-contained propane system of a boat, camper
trailer, motor home or house.
• Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked
when not moving the grill.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
• Keepallcombustibleitemsandsurfacesatleast36inches(91.44cm)awayfromthegrillat
all times.
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
• Do not alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
assembly will be that which is specied by the manufacturer.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Keepthegrill’svalvecompartment,burnersandcirculatingairpassagesclean.Inspectthegrill
before each use. Do not obstruct the ow of gas or ventilation air.
• Theuseofalcohol,prescriptionornon-prescriptiondrugsmayimpairtheoperator’sabilityto
properly assemble or safely operate the grill.
• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
• Do not place this grill on any type of tabletop surface. The grill should be placed on a at and l
evel surface.
• Do not use the grill in high winds.

5
X
H
PART DESCRIPTION QTY.
ATemperature Gauge 1
BTemperature Gauge Bezel 1
CLid Handle Assembly 1
DGrill Body 1
EMainBurnerKnob 5
FSearPLUS™BurnerKnob 1
GGrease Pan 1
HGrease Cup 1
IWarming Rack 1
JCooking Grate, Main Burner 2
KCooking Grate, SearPLUS™ Burner 1
LHeat Tent For Main Burner 4
MHeat Tent For Sear Burner 1
NLeft Side Table 1
OUpper Cart Brace 1
PRight Side Burner 1
QSide Burner Bezel 1
PART DESCRIPTION QTY.
RCart Left Side Panel Assembly 1
SCart Rear Panel 1
TCylinderExclusion 1
UCart Right Side Panel Assembly 1
VLower Cart Brace 1
WBase Panel 1
XLocking Swivel Caster 2
YNon-Locking Swivel Caster 2
ZLeft Door Assembly 1
A1 Right Door Assembly 1
B1 SmokerBoxFrontSupport 1
C1 SmokerBoxAssembly 1
D1 SmokerBoxRearSupport 1
E1 Cabinet Magnet 1
F1 Condiment Tray 1
G1 Side Burner 1
H1 Side Burner Grate 1
Package Contents
J
ICB
A
DC1 D1
H1
E
K
L
M
N
E
G
F1
H
O
R
Z
F
G1
P
Q
T
S
U
A1
X
Y
W
E1
X
Y
V
B1

6
Hardware Contents
Preparation
CC
AA BB DD
M6x16
Screw
M4x12
Screw
33X
2X
10X
2X
2X
1X
2X
M6 Wing
Nut
M6 Plain
Washer
Door Upper
Hinge
FF GG
M6 Spring
Washer
EE
M10
Wrench
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle
CAUTION
M4x8
Screw
2X
HH
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges.
Wear protective gloves if necessary. Read and follow all safety statements,
warnings, assembly instructions and use and care instructions before attempting
to assemble and use.

7
1
2

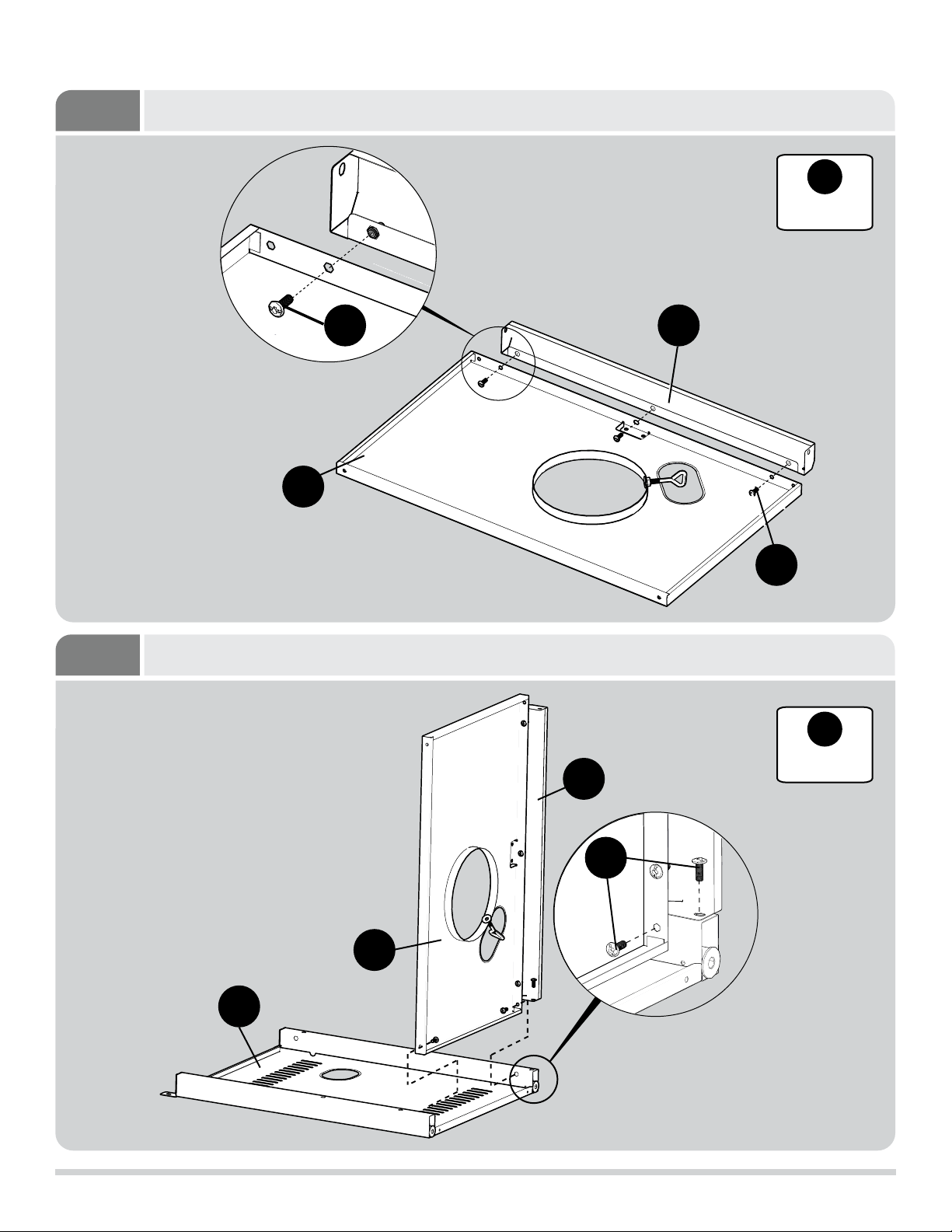

Assembly – Bottom Panels
Assembly – Right Side and Rear Panels
Assembly Instructions
AA
3X
AA
3X
AA
W
V
AA
W
AA
V
U

8
3
4

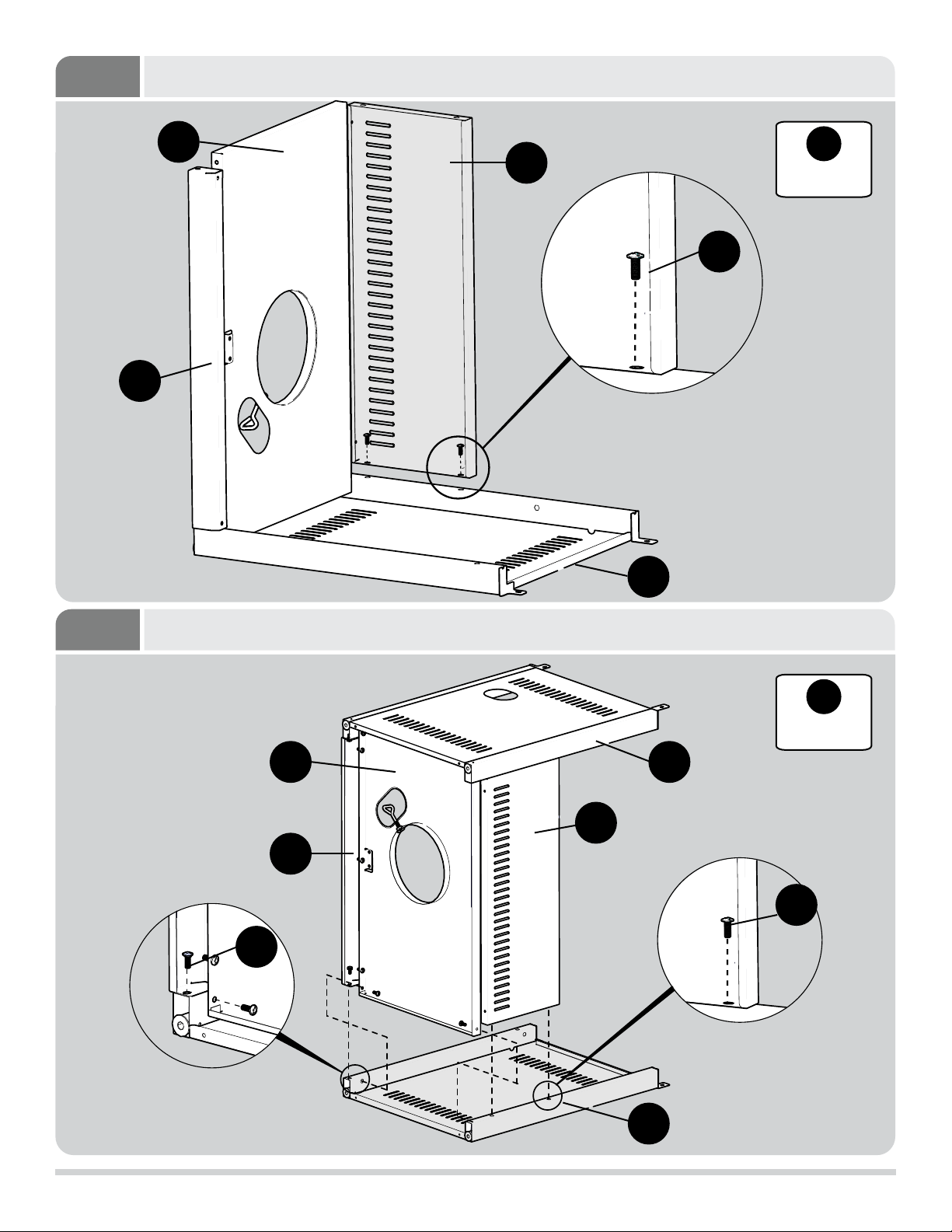

Assembly – Rear Panel
Assembly – Left Side and Rear Panels
AA
2X
AA
5X
W
AA
V
U
S
W
VS
U
AA
AA
R

9
5
6

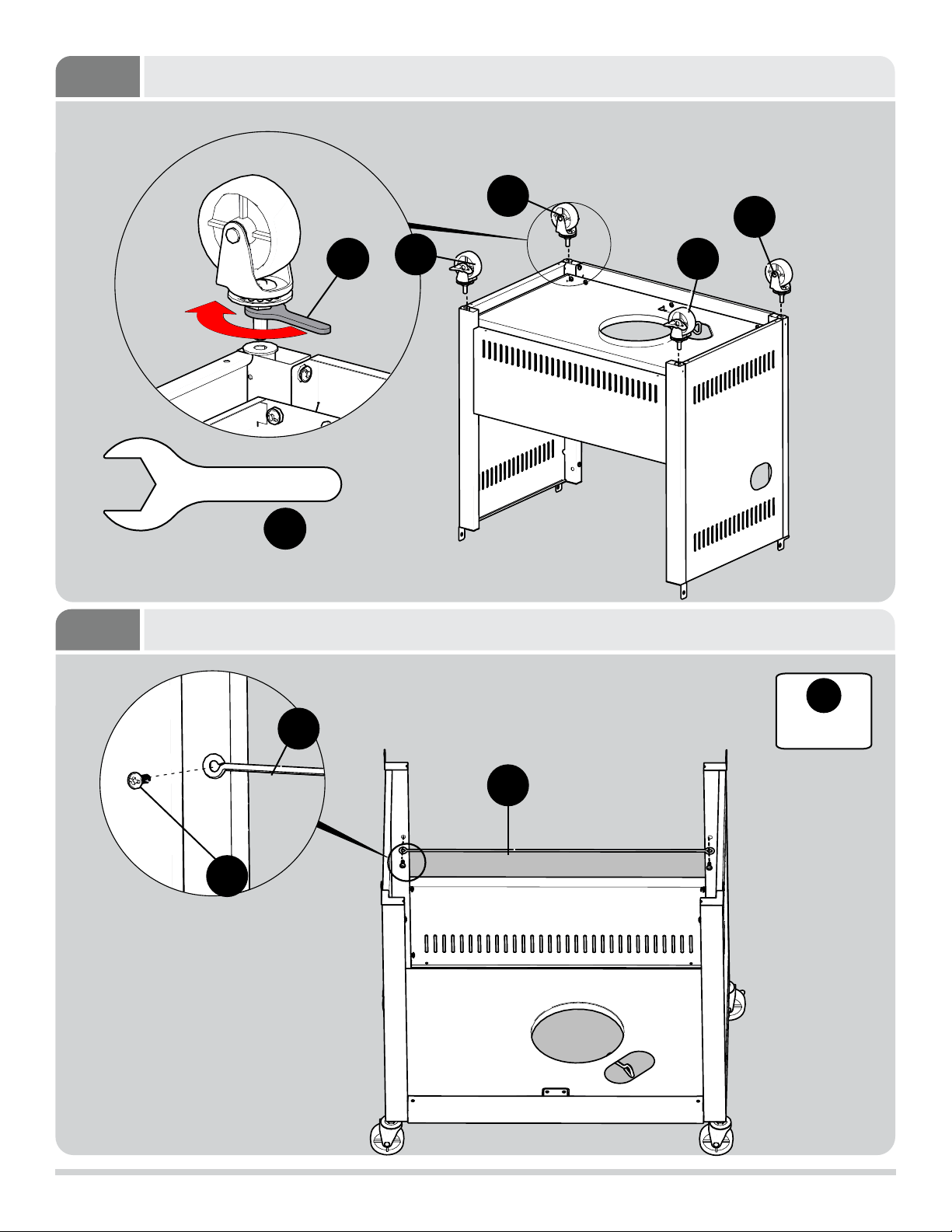

Assembly – Casters
Assembly - Cylinder Exclusion
GG
Wrench
2X
AA
2X
T
X
GG
Y
AA
Y
X
GG
GG
T

10
7
8

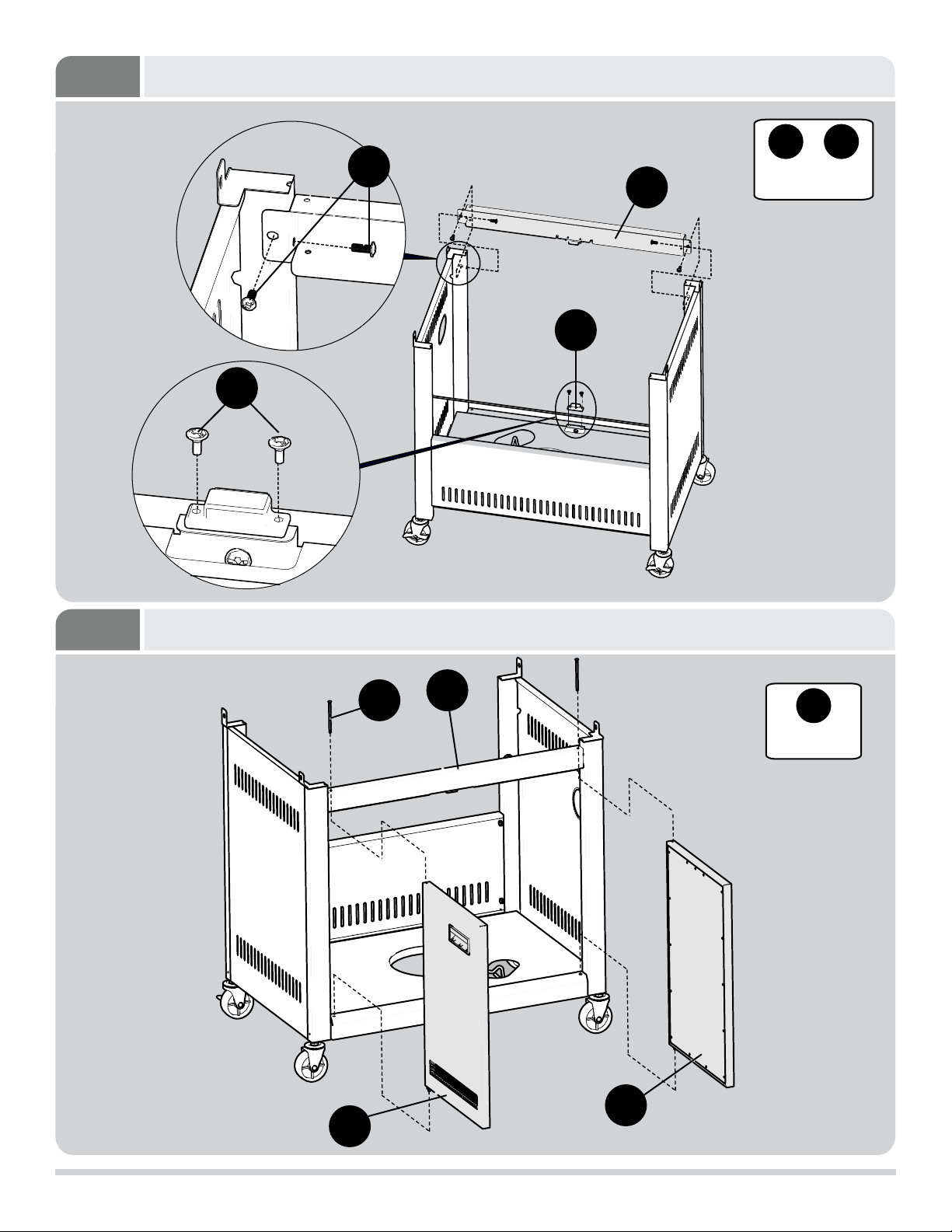

Assembly – Upper Brace and Cabinet Magnet
Assembly – Doors
AA
4X
BB
2X
CC
2X
O
AA
BB
E1
CC
ZA1
O

11
9
10
Assembly – Handle, Knobs, and Temperature Gauge
Assembly – Grill Body to Base
Note: Fully tighten all
screws at this time.
CAUTION:
2 people required
for safe assembly.
AA
4X
D
DD
AA
AA
EE
FF
C
B
A
E
F
D
EE
2X
FF
2X
DD
2X

12
11
A
B
C
Assembly - Left Side Table and Condiment Tray
AA
5X
BB
2X
AA
N
AA
AA
AA
AA
BB
N
BB
F1
Tab
Slot
Tab
Slot
Same for
other side
Rear shown,
same for front
5 threads
Rear shown,
same for front

13

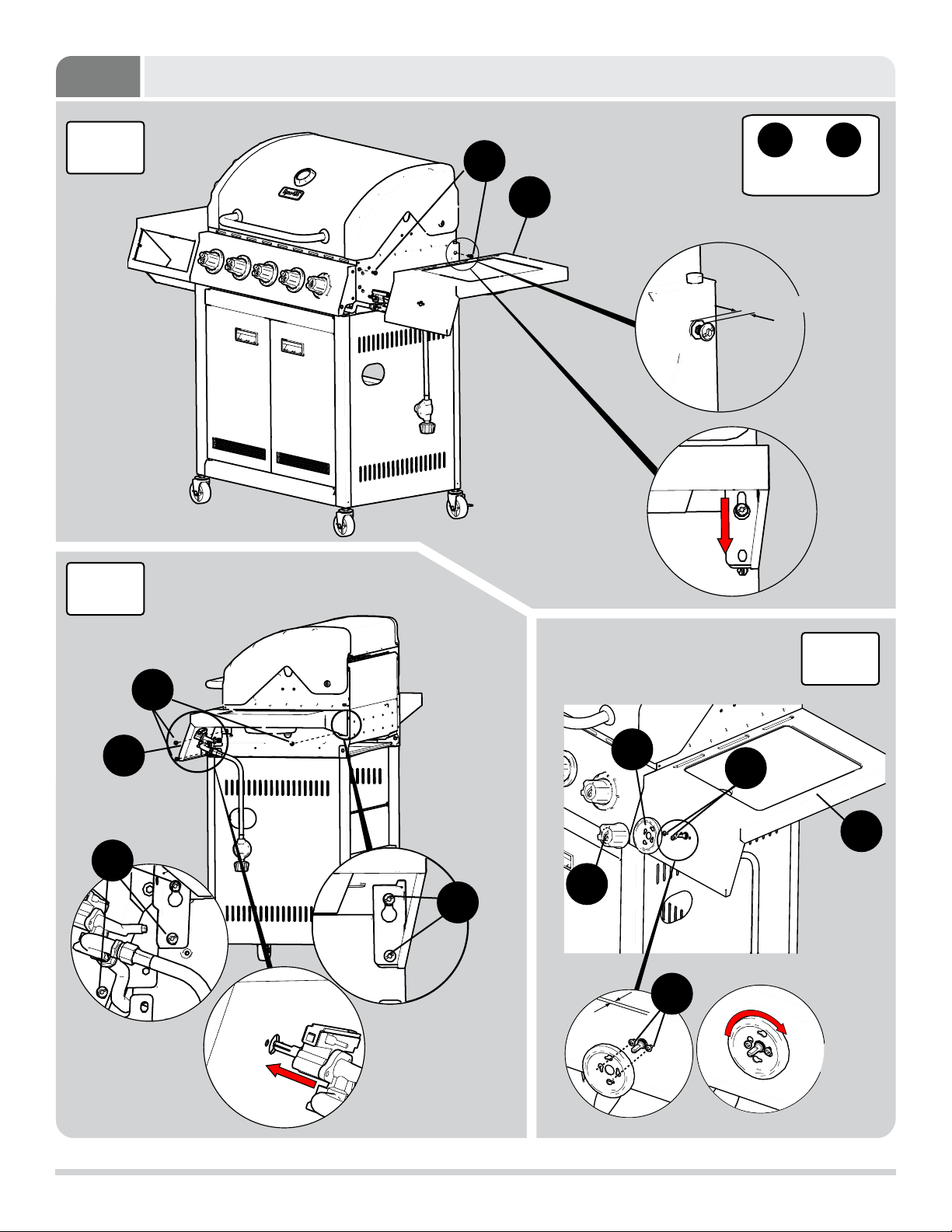

12 Assembly – Right Side Shelf
C
A
B
BB
2X
PRear shown,
same for front
5 Threads
Rear shown,
same for front
AA
AA
AA
AA
P
BB
BB
P
E
5 Threads
Engage
slots and
tighten
screws
AA
5X
Q

14
13 Assembly – Side Burner
A
B
CHH
2X
G1
P
G1
HH

15
14
15

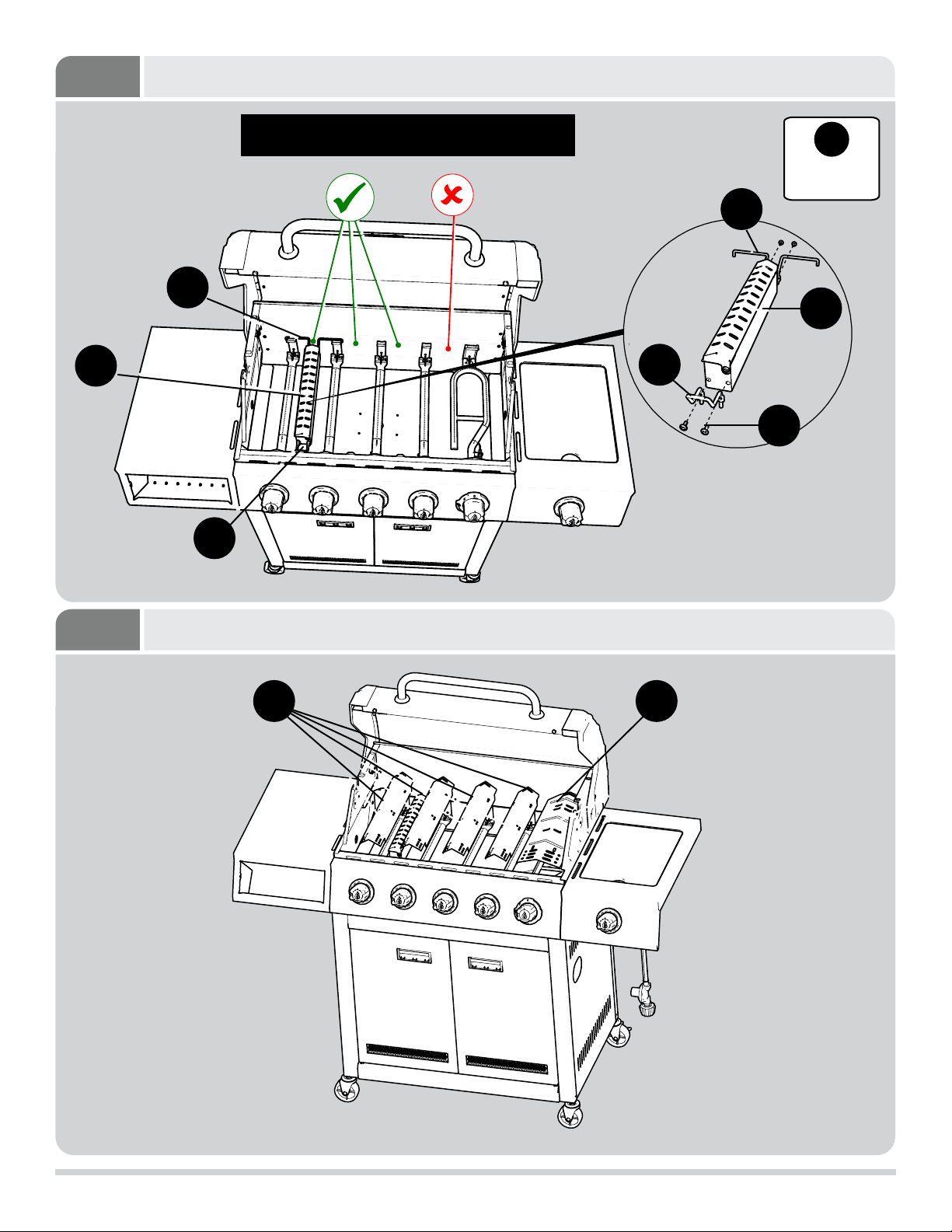

Assembly – Optional Smoker Box
Assembly – Heat Tents
BB
4X
D1
D1 C1
C1
B1
B1
BB
Smoker Box Placement
M
L

16
16
17
Assembly – Rack and Cooking Grates
Assembly – Grease Pan and Grease Cup
H1
K
I
J
G
H

17

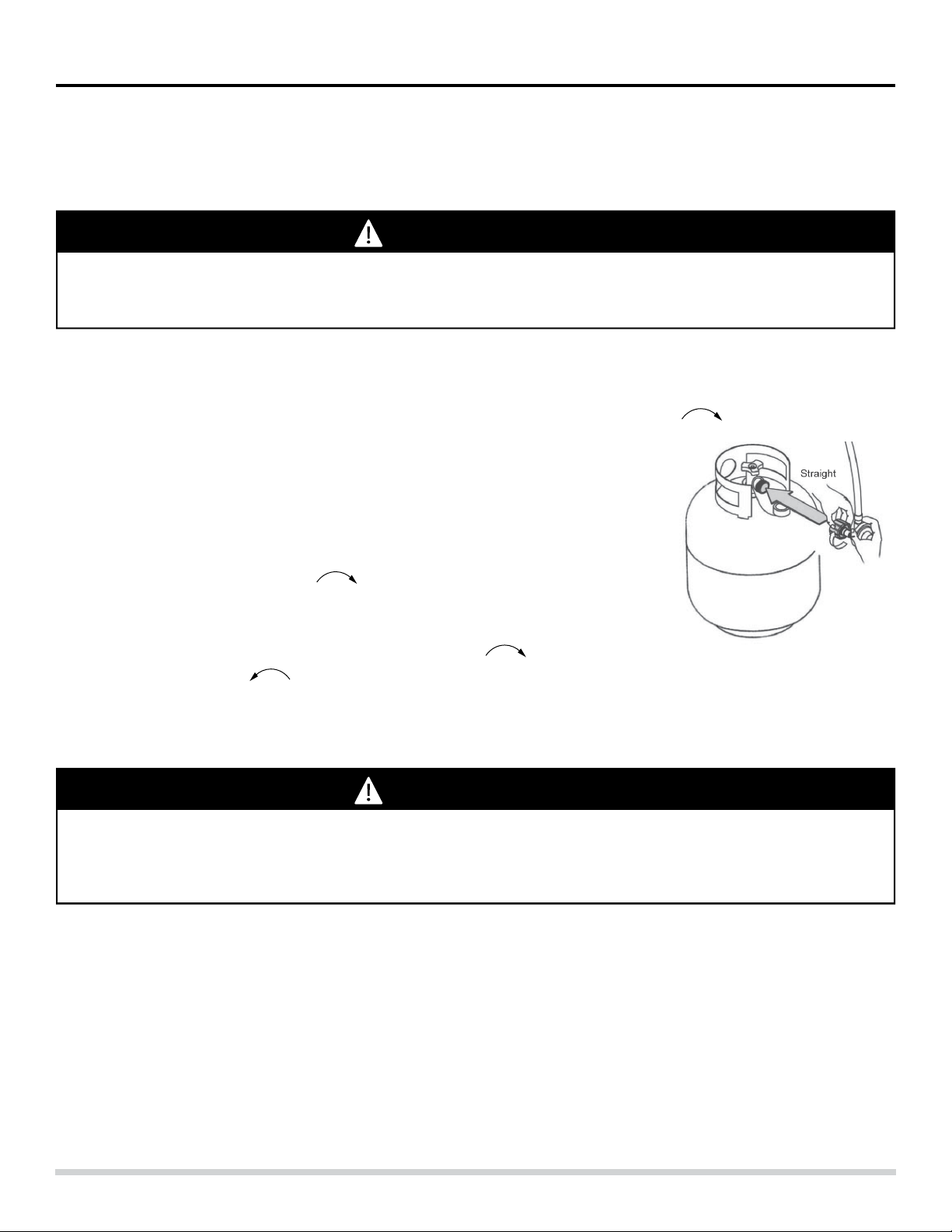

18 Assembly – Propane Cylinder
Z
W
A1
Hose access hole
Regulator connector
Tank Connector

18
Operation Instructions
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
CAUTION
Only use the regulator and hose assembly provided! If a replacement is necessary, please call
our customer service center. Do not use replacement parts that are not intended for this grill.
CHECKING FOR LEAKS
After all connections are made, check all connections and ttings on the LP gas tank valve, gas hose
and regulator for leaks with a water and soap solution.
Topreventreorexplosionwhiletestingforaleak:
• Always perform leak test prior to lighting the grill.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Do not use any source of ame while testing for leaks.
• Do not use the grill until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORM LEAK TEST
• Prepare leak test solution by 50/50 ratio of liquid dish soap and water.
Totalsolutionrequiredisapproximately2-3ounces(70-90ml).
Put leak test solution in a spray bottle.
• Ensure all control knobs are in the O OFF position.
• Connect the gas hose to the gas supply.
• Open the LP gas tank valve.
• Spray leak test solution on all gas carrying connections and ttings. Presence of bubbles at areas
of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off
the gas supply valve immediately and repair or replace the defective part. Do not use the grill until
all leaks are corrected.

19
CAUTION
CONNECTING GAS CYLINDER
The propane gas supply cylinder to be used must be constructed and marked in accordance with the
Specications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a listed overlling prevention device.
Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter:
8.03 inches) equipped with a cylinder connection device compatible with the connection for outdoor
cooking appliances.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped
or handled roughly!
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must
be stored outdoors out of the reach of children and must not be stored in a building, garage or any other
enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the
regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and
hand-tightenrmly.Keepthepropanecylindervalveclosedanddisconnectthepropanecylinderfrom
the regulator valve when the grill is not in use.
DO NOT obstruct the ow of combustion air and ventilation air to the grill. The propane cylinder must be

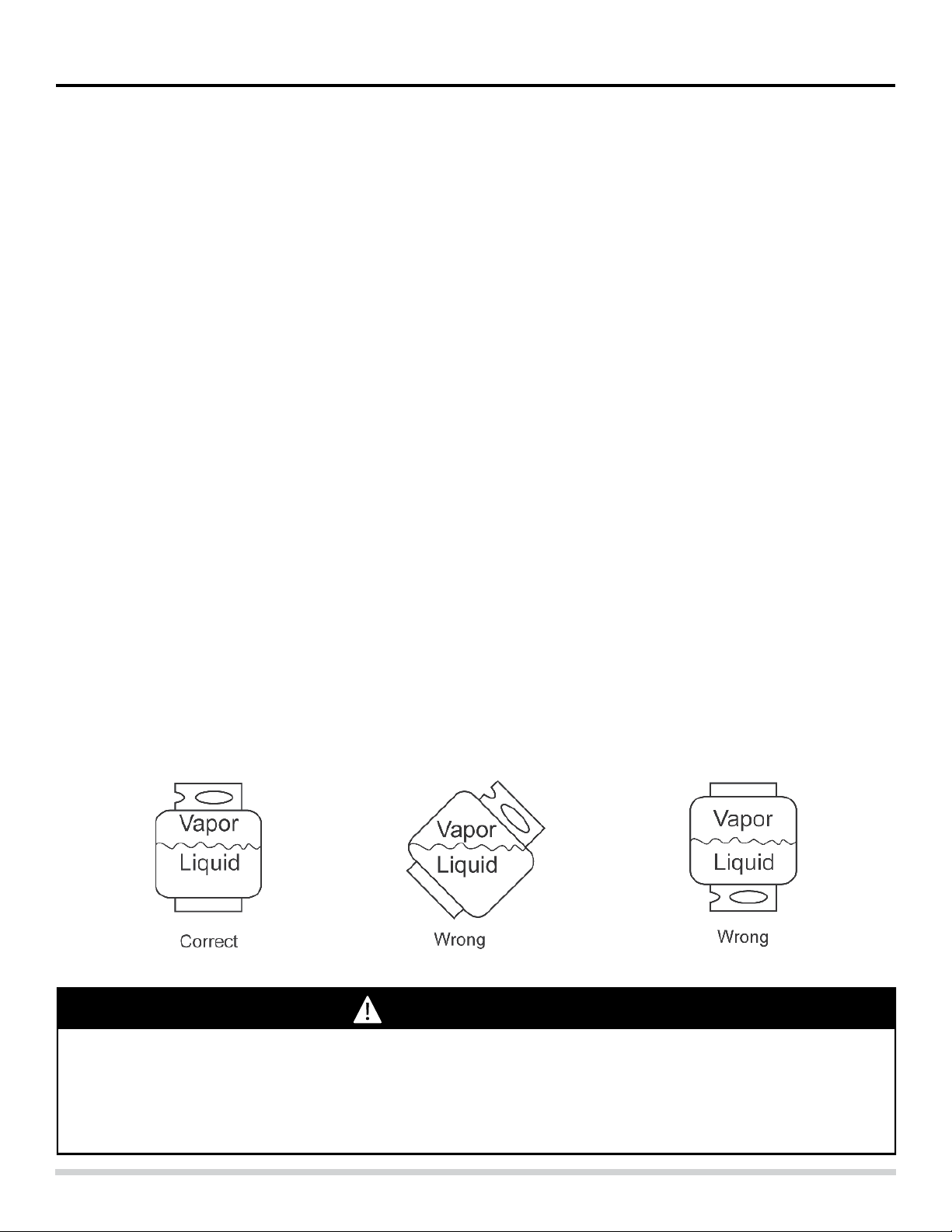

arranged for vapor withdrawal and equipped with a listed overlling prevention device. Please use the
proper cylinder orientation to provide vapor withdrawal.
NOTE: The cylinder must be fully upright for the cylinder to have vapor withdrawal only.
a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury
may occur.
Operation Instructions

20
WARNING
WARNING
Operation Instructions
CONNECTING THE LP TANK
1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a
full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve outlet.
Be sure the nipple is centered in the valve outlet. The coupling nut
connects to the large outside threads on the valve outlet.
Use care – do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full stop.
Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator assembly detaches.
NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible
with the appliance nesting hole and retention means. Refer to Step 18 of the Assembly Instructions
for correct cylinder to cylinder holder connection.
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
In the connection process, make sure:
• the regulator inlet connector mates with the cylinder valve outlet properly, safely and rmly, and;
• theLPgashosedoesnotcomeincontactorremainincontactwiththerebox.
