Dyna-Glo DGU951SDE User manual

1
40" 2-Door Vertical
Electric Digital Smoker
MODEL #DGU951SDE / DGU951SDE-D
Español p. 55
Français p. 28
ATTACH YOUR RECEIPT HERE
Serial Number ________________________________ Purchase Date _________________________________
70-10-636 Rev. 02/03/20
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST,
Monday – Friday or e-mail us at [email protected].
FOR OUTDOOR
USE ONLY
Use only with Class A GFI
(Ground Fault Interrupter)

2
DYNA-GLO® 40" 2-DOOR VERTICAL ELECTRIC DIGITAL SMOKER
MODEL NUMBER AND PRODUCT SERIAL NUMBER CAN BE FOUND ON
THE RATING LABEL OF YOUR SMOKER.
STOP!
NO NEED TO RETURN TO THE STORE
Questions with The Assembly?
Require Parts Information?
Product Under Manufacturers Warranty?
Call Toll Free : 1-877-447-4768
8:00 a.m. – 4:30 pm CST, Monday – Friday
Retain This Owner's Manual And Proof Of Purchase For Future Reference
To help us help you
Fill in the information below:
Date of Purchase Place of Purchase Model Number Product Serial No.

3
TABLE OF CONTENTS
Safety Information ...................................................................................................................... 3
Package Contents ...................................................................................................................... 8
Hardware Contents ..................................................................................................................... 9
Preparation Before Assembly ....................................................................................................... 9
Assembly Instructions ................................................................................................................ 10
Operating Instructions ................................................................................................................. 14
Tips On Smoking ......................................................................................................................... 20
Care and Maintenance ................................................................................................................ 22
Troubleshooting ........................................................................................................................... 23
Replacement Parts List .............................................................................................................. 25
Warranty ...................................................................................................................................... 27
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, call our customer service department at
1-877-447-4768, 8:00 a.m.- 4:30 p.m. CST, Monday - Friday.
SAFETY INFORMATION
CAUTION
• When using electrical appliances, basic precautions should always be followed to
reduce the risk of re, electrical shock, and injury to persons.
DANGER
• Failure to follow these instructions could result in re or burn hazard which could
cause property damage, personal injury or death.
Assembler/Installer: This instruction manual contains important information necessary for the
proper assembly and safe use of this appliance. Read and follow all warnings and instructions
before assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
SAVE THESE INSTRUCTIONS

4
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS, PRIOR TO USING THIS SMOKER
• DO NOT use this product for anything other than its intended purpose. It is NOT intended for
commercial use. It is NOT intended to be installed or used in or on a recreational vehicle and/or boat.
• DO NOT operate this smoker with a damaged cord or plug or after the smoker malfunctions, has
been dropped, or is damaged in any manner. If the supply cord is damaged, it must be replaced by
 themanufacturer,itsserviceagentorsimilarlyqualiedpersoninordertoavoidahazard.
• DO NOT use smoker within 10 ft. (3 m) of a swimming pool, puddle, pond or other body of water.
• Keep smoker and electric controller dry and out of rain at all times.

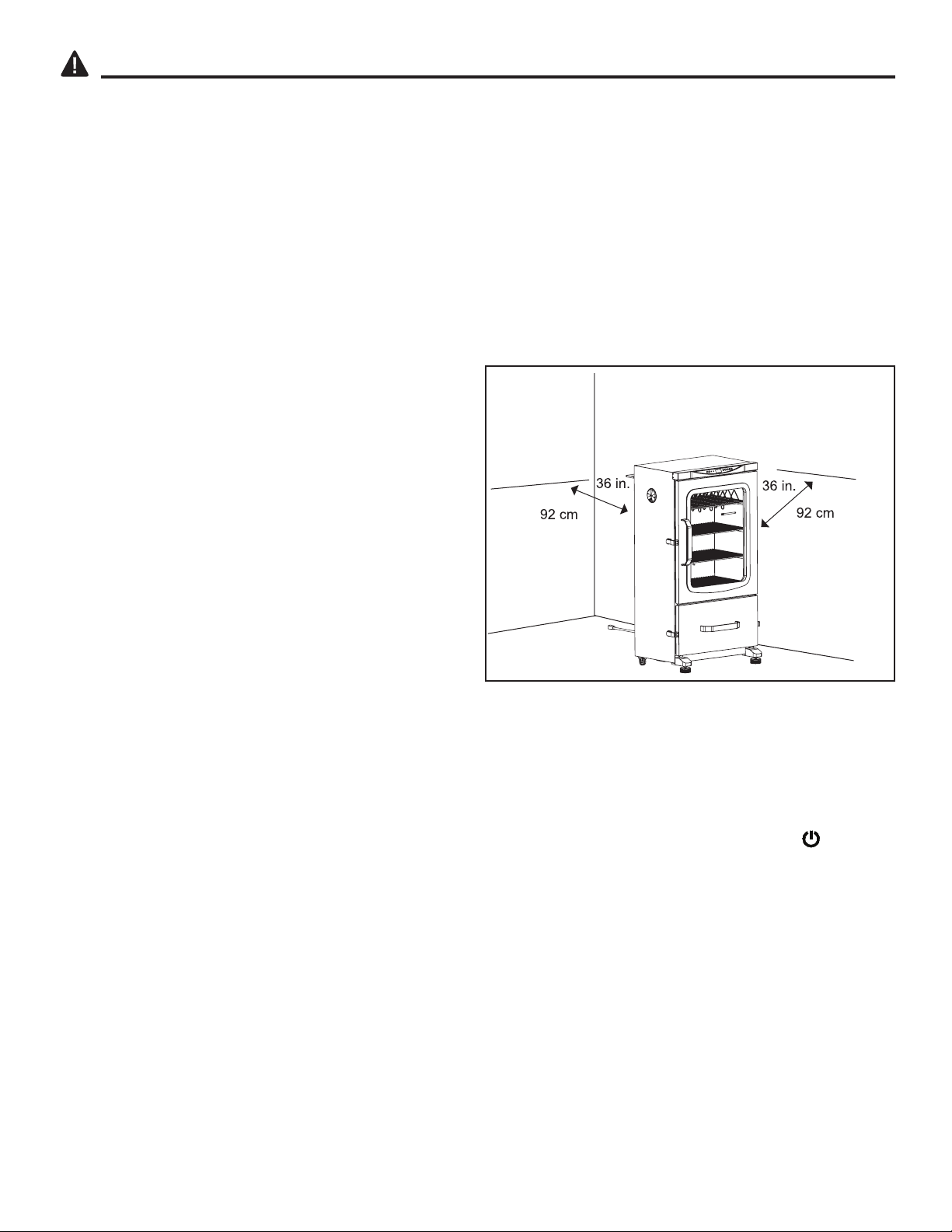

• A minimum clearance of 36 in. (92 cm) to combustible material is required on the front, sides and
back. It is very important to always maintain
proper clearances to combustibles.
•Whenusingavoringwood,addasufcient
amount at the start of the cooking process, in
order to avoid re-adding wood during the cooking
process. Adding wood while operating may
splash hot water and cause serious injury.
• Check the water level at least every 2 hours. A
 sizzlingsoundmayindicatealowwaterlevel.
Follow instructions in this manual for adding
water while operating (see Page 18).
• DO NOT use the appliance during an
electrical storm.
• The appliance is to be connected to a socket-outlet having an earthing contact.
• The appliance should be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30 mA. Use only with Class A GFI (Ground Fault Interrupter)
protected circuit.
•Arrangethepowercordawayfromtrafcareastoensurethatitisnottrippedover.
• To disconnect the smoker, turn the smoker off by pressing and holding the Power button ( ), and
remove the plug from the outlet.
• DO NOTobstructtheowofventilatedairfortheappliance.
• DO NOT use metal foil on the cooking grates. Doing so may result in damage to the smoker.
• DO NOT use this appliance as a heater.
• DO NOT use charcoal or similar combustible fuels with this appliance. This appliance is not
 designedforusewithcharcoalandarewillresultifcharcoalisusedduringoperation.Therewill
create an unsafe condition and damage the smoker.
• Use caution when opening the upper door and lower drawer of the smoker while in operation. Keep
 hands,faceandbodysafefromhotsteamorare-ups.DO NOT inhale smoke.
• If you must dispose of ashes in less time than it takes for the ashes to completely cool down, then
remove the ashes from the appliance using insulated oven mitts or gloves and completely soak the
ashes with water before disposing of them in a noncombustible container.
SAFETY INFORMATION

5
• DO NOT wear loose clothing while operating the smoker. Tie back long hair while operating the smoker.
• ALWAYS wear shoes that fully cover your feet while operating the smoker.
• DO NOT touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord or plugs in water or other liquid.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking
off parts.
•DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or
has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
•DO NOT use indoors.
• DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
•Alwaysattachplugtoappliancerst,thenplugcordintothewalloutlet.Todisconnect,turnany
control to “OFF”, then remove plug from wall outlet.
• DO NOT use appliance for other than intended use.
• Use extreme caution when removing trays or disposing of hot grease.
•DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts,
creating a risk of electric shock.
• Fuel, such as charcoal briquettes, is not to be used with appliance.
• Use only on properly grounded outlet.
• Be sure that handles are assembled and fastened properly. See instructions regarding handles on
Page 10-11.
• SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
WARNING
• DO NOT use 16 or 18 gauge extension cords. Damage to household wiring and/or
recouldresult.
THE USE OF AN EXTENSION CORD IS NOT RECOMMENDED.
READ ALL INSTRUCTIONS PRIOR TO USING AN EXTENSION CORD WITH THIS SMOKER
• Use only OUTDOOR type with 3 prong grounding plug, rated for 15 amperes or more, approved by
UL, marked with a W-A and a tag stating “Suitable for Use with Outdoor Appliance”.
• Use the shortest length extension cord required. Do not connect 2 or more extension cords
together.
• Do not let cord hang over edge of table top or other items where it can be pulled by children or
tripped over.

6
SAFETY INFORMATION
Ground Fault Interrupter
• Since 1971, the National Electric Code (NEC) has required Ground Fault Interrupter
devices on all outdoor circuits.
•Ifyourresidencewasbuiltbefore1971,checkwithaqualiedelectriciantodetermineif
a Ground Fault Interrupter protector exists.
• Do not use this appliance if the circuit does not have Class A GFI protection.
• Do not plug this appliance into an indoor circuit.
GENERAL SAFETY
READ ALL INSTRUCTIONS PRIOR TO USING THIS SMOKER
• This appliance is for outdoor use only in well-ventilated areas. DO NOT operate it under a roof, in a
building, garage or any other enclosed area, or under overhead construction.
• Before each use, check that no dead leaves or debris are under the appliance.
•Keepareextinguishernearthisproductatalltimes.
• Always unplug the smoker when not in use.
• Allow the smoker and its components to cool completely before conducting any routine cleaning
or maintenance.
• DO NOTusewaterorotherliquidspraytocleanthesmokerwithoutrstunpluggingtheunit.
• Allow the smoker to cool to 115°F (45°C) before moving or storing. Use caution when lifting and
moving the appliance to avoid back strain or back injury.
• DO NOT move the appliance while it is in use.
• When not in use, the smoker should be kept out of the elements or protected with a cover. Allow
the smoker to completely cool before placing the cover. Store this appliance in a dry, protected
location when possible.
• Use of accessory attachments not recommended by the appliance manufacturer may lead to injury
or property damage.

7
SAFETY INFORMATION
WARNING
To avoid serious injury:
• While cooking, the smoker must be on a level, stable, noncombustible surface in an area
clear of combustible material, including long or dry grass.
• The use of alcohol, prescription or nonprescription drugs may impair the user’s ability to
properly assemble and safely operate this appliance.
• DO NOT move the appliance while it is in use.
• DO NOT store and use this appliance near gasoline or other combustible liquids or where
other combustible vapors may be present.
• The smoker should only be used in well-ventilated areas.
• DO NOT use this appliance as a heater.
• DO NOT leave the appliance unattended while in use. Keep children and pets away from
the appliance at all times.
• This appliance will be hot during and after use. Use insulated oven mitts or gloves for
protection from hot surfaces or splatter from cooking liquids.
WARNING
This product and the fuels used to operate this product (charcoal or wood), and the prod-
ucts of combustion of such fuels, can expose you to chemicals including carbon black,
which is known to the State of California to cause cancer, and carbon monoxide, which is
known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.p65Warnings.ca.gov
DANGER
In case of re, unplug smoker from outlet and allow re to burn out. Do not use
water to put out a re in this or another electrical appliance.
To avoid electrical shock, disconnect electric cord before cleaning smoker. Never
immerse electric controller or heating element in any liquid.
To avoid the possibility of burns, make sure the smoker is completely cooled before
removing and/or cleaning electric controller and heating element.
DO NOT use steel wool or wire brushes to clean the inside of the appliance. Pieces
can break off and touch electrical parts creating a risk of electric shock.
CALIFORNIA PROPOSITION 65

8
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Smoker cabinet assembly 1
B Rear casters 2
C Front legs (left/right) 2
D Rear handle 1
E Door handle (upper door/
lower door) 2
F Rib & Sausage rack 1
G Cooking grates 4
H Water bowl 1
I Wood chip box 1
J Drawer assembly 1
K Grease tray 1
A
A
C
D
B
H
G
F
J
I
E
K
E

9
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product. Please read and understand this entire manual before at-
tempting to assemble, operate or install the product. If you have any questions regarding the
product, call our customer service department at 1-877-447-4768, 8:00 a.m.- 4:30 p.m. CST,
Monday - Friday.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Phillips Screwdriver
PREPARATION BEFORE ASSEMBLY
HARDWARE CONTENTS (PRE-ASSEMBLED)
M4 x 35 mm
Screw
Qty. 8
8 M4 x 35 mm screws
(AA) are pre-assem-
bled in each of the 2
door handles (upper
door/lower door) (E).
M6 x 12 mm
Screw
Qty. 6
6 M6 x 12 mm screws
(BB) are pre-assem-
bled in the smoker
cabinet assembly (A).
M5 x 12 mm
Screw
Qty. 12
12 M5 x 12 mm
screws (CC) are
pre-assembled in the
smoker cabinet as-
sembly (A).
CCBB
AA

10
ASSEMBLY INSTRUCTIONS
Remove the pre-installed screws on the bottom of
the cabinet assembly (A). Attach each of the rear
casters (B) to the bottom of the cabinet assembly
(A) using 4 M5 x 12 (CC) screws per caster. At-
tach the bottom of the front legs (C) to the bottom
of the cabinet assembly (A) using 3 M6 x 12 (BB)
screws per leg.
CAUTION: This unit is HEAVY! Do not attempt
this step without assistance!
With the assistance of a helper, stand the smoker
uprightonarmandlevelsurface.(Makesure
thatlegsandcastersarermlyattached).Re-
move the pre-installed screws on the back of the
cabinet assembly (A) and attach the rear handle
(D) using the pre-installed screws.
2.
1.
Hardware Used
Hardware Used
v1
C
BB
B
A
BB
2
D
A
CC
M6 x 12 mm
Screw x 6
BB
M5 x 12 mm
Screw x 8
CC
M5 x 12 mm
Screw x 4
CC
CC

11
Remove the pre-installed screws on the door
handle (E) and attach the handle to the upper
door on the cabinet assembly (A) using the pre-
installed screws.
Remove the lower drawer assembly (J) from the
cabinet assembly (A). Remove the pre-installed
screws on the drawer handle (E) and attach the
handle to the drawer assembly (J) using the pre-
installed screws.
3.
4.
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
E
3A
AA
A
4
E
J
AA
M4 x 35 mm
Screw x 4
AA
M4 x 35 mm
Screw x 4
AA

12
Place the grease tray (K) onto the lower frame of
the drawer assembly (J). Place the water bowl (H)
and wood chip box (I) onto the upper wire sup-
ports of the drawer assembly (J).
Slide the drawer assembly (J) onto the cabinet
support rails as shown.
5.
6.
ASSEMBLY INSTRUCTIONS
J
I
5
H
K
6
J

13
Slide the 4 cooking grates (G) onto the support
rails of the cabinet (A) as shown
Installing the Rib Rack (Optional).
Place the rib and sausage rack (F) directly onto
the desired grate (G) before sliding the grate onto
the supports.
7.
ASSEMBLY INSTRUCTIONS
7
G
F
A
G

25
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. - 4:30 p.m.
CST, Monday - Friday or e-mail us at [email protected].
PART DESCRIPTION PART # PART DESCRIPTION PART #
1. Smoker Cabinet
Assembly 70-01-610
2. Rear Handle 70-01-611
3. Top Door Hinge 70-01-612
4. Control Panel
Housing & Circuit
Board
70-01-613
5. Door Handle (Upper
Door/Lower Door) 70-01-344
6. Upper Door Assembly 70-01-614
7. Bottom Door Hinge 70-01-615
8. Damper Plate* 70-01-616
9. Handle for Damper
Plate 70-01-617
10. Damper Housing 70-01-618
11. Rib Rack & Sausage
Hooks 70-01-619
12. Firebox Crossbar 70-01-620
13. Water Bowl 70-01-347
14. Wood Chip Box 70-01-346
15. Door Latch Bracket 70-01-352
16. Door Latch 70-01-353
17. Rear Casters (L/R) 70-01-624
18. Front Leg Assembly
(L/R) 70-01-625
19. Outer Drawer
Hardware - Left Side 70-09-124
20. Inner Drawer
Hardware - Left Side 70-09-126
21. Inner Drawer
Hardware - Right Side 70-09-127
22. Outer Drawer
Hardware - Right Side 70-09-125
23. Water Bowl / Wood
Chip Box Support 70-01-703
24. Grease Tray 70-01-627
25. Lower Heat Shield 70-01-628
26. Lower Drawer Frame 70-01-629
27. Lower Door Panel 70-01-630
28. Cooking Grate 70-01-631
29. Silicon Latch Sleeve 70-01-356
30. Upper Heat Shield 70-02-475
n/a Instruction Manual 70-10-636

26
REPLACEMENT PARTS LIST
70-10-636 Printed in China
5
3
1
4
2
7
10 8
9
A
15
13
17
14
16 18
21
23
22
19
11
12
20
26
25
27
28
24
30
29
6
