Dynalab DYN-C-3000-SE User manual

Model DYN-C-3000-SE
2g/4g/8g/10g/20g/40g/50g/100g/200g/500g
Product Manual

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
2
Product Support
If at any time you have questions or problems with the DYN-C-3000-SE
sensors, please contact a Dynalabs engineer at:
Phone: [phone] (9 a.m. to 5 p.m., UTC +3)
E-mail: [email protected]
Warranty
Our products are warranted against defective materials and workmanship for one
year. Defects arising from user errors are not covered by the warranty.
Copyright
All copyrights of this manual belonging to Dynalabs products are reserved. It
cannot be reproduced without written consent.
Disclaimer
Dynalabs Ltd. provides this publication "as is" without warranty of any kind,
express or implied, including but not limited to, the implied warranties of
merchantability or fitness for a particular purpose. This document is subject to
change without notice, and should not be construed as a commitment or
representation by Dynalabs Ltd.
This publication may contain inaccuracies or typographical errors. Dynalabs Ltd.
will periodically update the material for inclusion in new editions. Changes and
improvements to the product described in this manual may be made at any time.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
3
Table of Contents
1) Introduction..........................................................................................................................................4
2) General Information.............................................................................................................................4
2.1) Unpacking and Inspection.............................................................................................................4
2.2) System Components......................................................................................................................4
2.3) Specifications................................................................................................................................5
2.4) Outline Drawing............................................................................................................................6
3) Operation and Installation....................................................................................................................7
3.1) General..........................................................................................................................................7
4) Sensor Static Calibration Verification .................................................................................................7
5) Declaration of Conformity...................................................................................................................8

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
4
1)Introduction
Capacitive accelerometers are based on proven micro-electro-mechanical systems
(MEMS) technology. These capacitive accelerometers are reliable and long-term
stable. These sensors are Single Ended type DC response sensors. The advantange
of these sensors istheir outstanding temperature stability, low noise- high
resolution features and their low cost. These sensors have reliable aluminum
housing with IP68 protection class. Dynalabs 3000SE series triaxial
accelerometers provide an outstanding noise performance from 25 to 300 μg/√Hz.
These accelerometers provide a wide frequency range (±3dB) from 1,500 Hz to
3,000 Hz.
DYN-C-3000-SE sensors offer the following options;
• Custom Cable Length (5m standard cable)
• Custom Housing Material
• Custom Connector
• Base plate
2) General Information
2.1) Unpacking and Inspection
Dynalabs products provide adequate protection for undamaged products to be
transported. Document the damages that occur indirectly during the transport
and contact the customer representative.
2.2) System Components
The DYN-C-3000-SE has the following components:
- MEMS Sensor
- Calibration Certificate
-Product Manual

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from theproprietors.
5
2.3) Specifications
Table 1: Specifications datasheet
Full scale
acceceleration
(g)
3002SE
±2
3004SE
±4
3008SE
±8
3010SE
±10
3020SE
±20
3040DE
±40
3050SE
±50
3100SE
±100
3200SE
±200
3500SE
±500
Frequency
range (±3dB)
(Hz)
1,500
1,500
1,500
1,500
1,500
1,500
3,000
3,000
3,000
3,000
Non-linearity
(full scale)
(%)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
Noise (in band)
(μg/
√Hz)
25
25
25
80
80
110
130
220
550
1,200
Scale factor
(nominal)
(mV/g)
400
200
100
80
40
20
40
20
10
4
Shock
survivability
(g)
5,000
5,000
5,000
5,000
5,000
5,000
5,000
6,000
6,000
6,000
Environmental
Table 2 Environmental specifications datasheet
Protection Level
IP 68
Operating Voltage
6 V –20 V
Operating Temperature
-40 °C to +100 °C
Operating Current Consumption mA
21 mA
Isolation
Case isolated

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from theproprietors.
6
Physical
Table 3 Physical specifications datasheet
Sensing Element
MEMS Capacitive
Housing Material
Aluminum or Steel
Connector (Optional)
D-Sub 9 or 15 pin, Lemo, Binder
Mounting
Adhesive or screw mount
Base plate (Optional)
Aluminum or Steel
Weight (without cable)
16g (aluminum)
33g (steel)

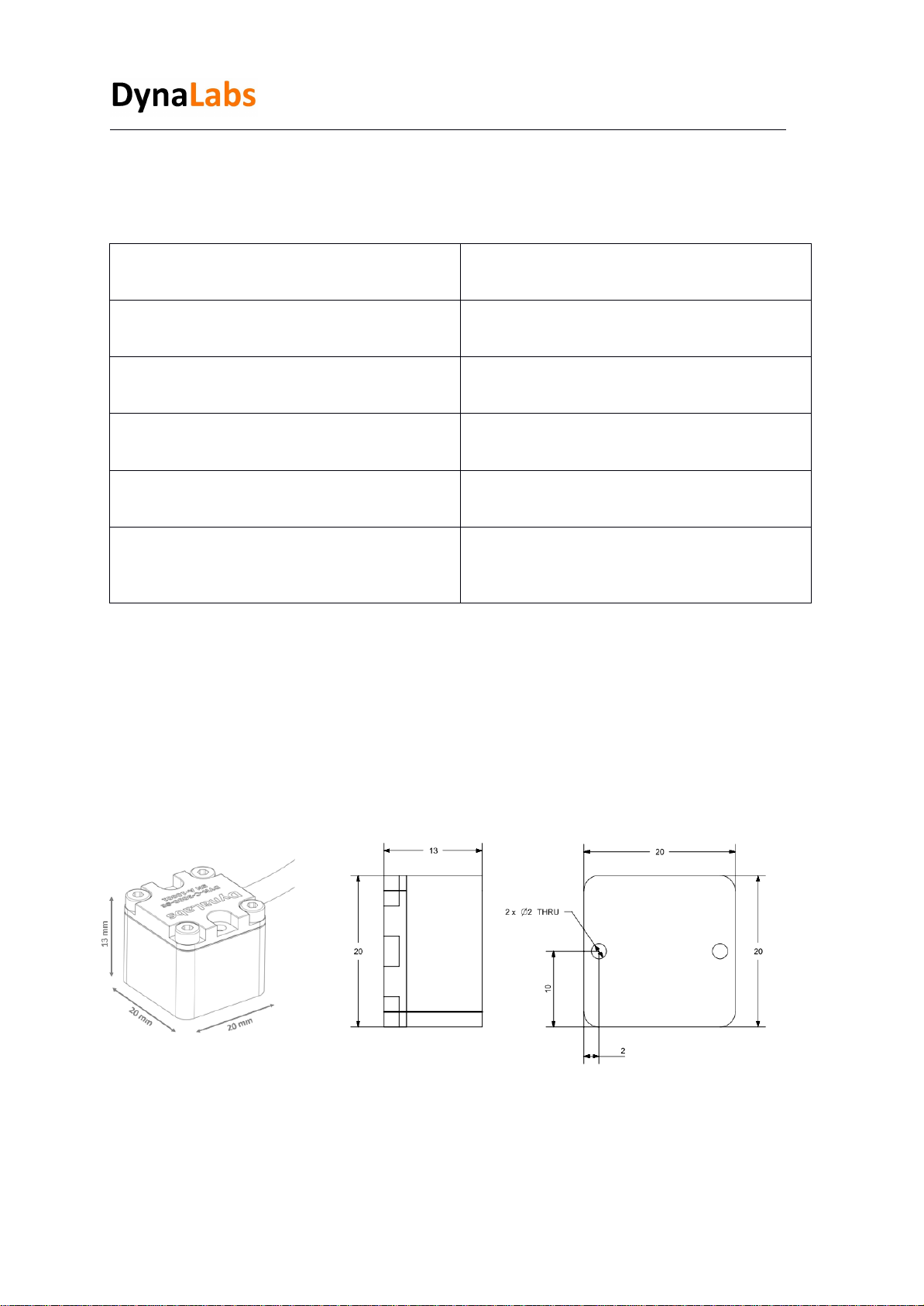

2.4) Outline Drawing
The dimensional properties of DYN-C-3000-SE sensors are given below.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from theproprietors.
7
3) Operation and Installation
3.1) General
The general sensor connector configuration is given below;
Cable Code/Pin Configuration:
• Red : V + Power supply voltage +6 to +20 VDC
• Black : Ground Power GND
•X-Axis: Yellow : Signal Analog output voltage signal for single ended
• Y-Axis: Blue : Signal Analog output voltage signal for single ended
• Z-Axis : White : Signal Analog output voltage signal for single ended
WARNING
Never connect the power supply and/or the power ground to yellow, blue, and/or
white cables.
Never connect the power supply to the power ground. Always use a clean power
source and check the voltage range.

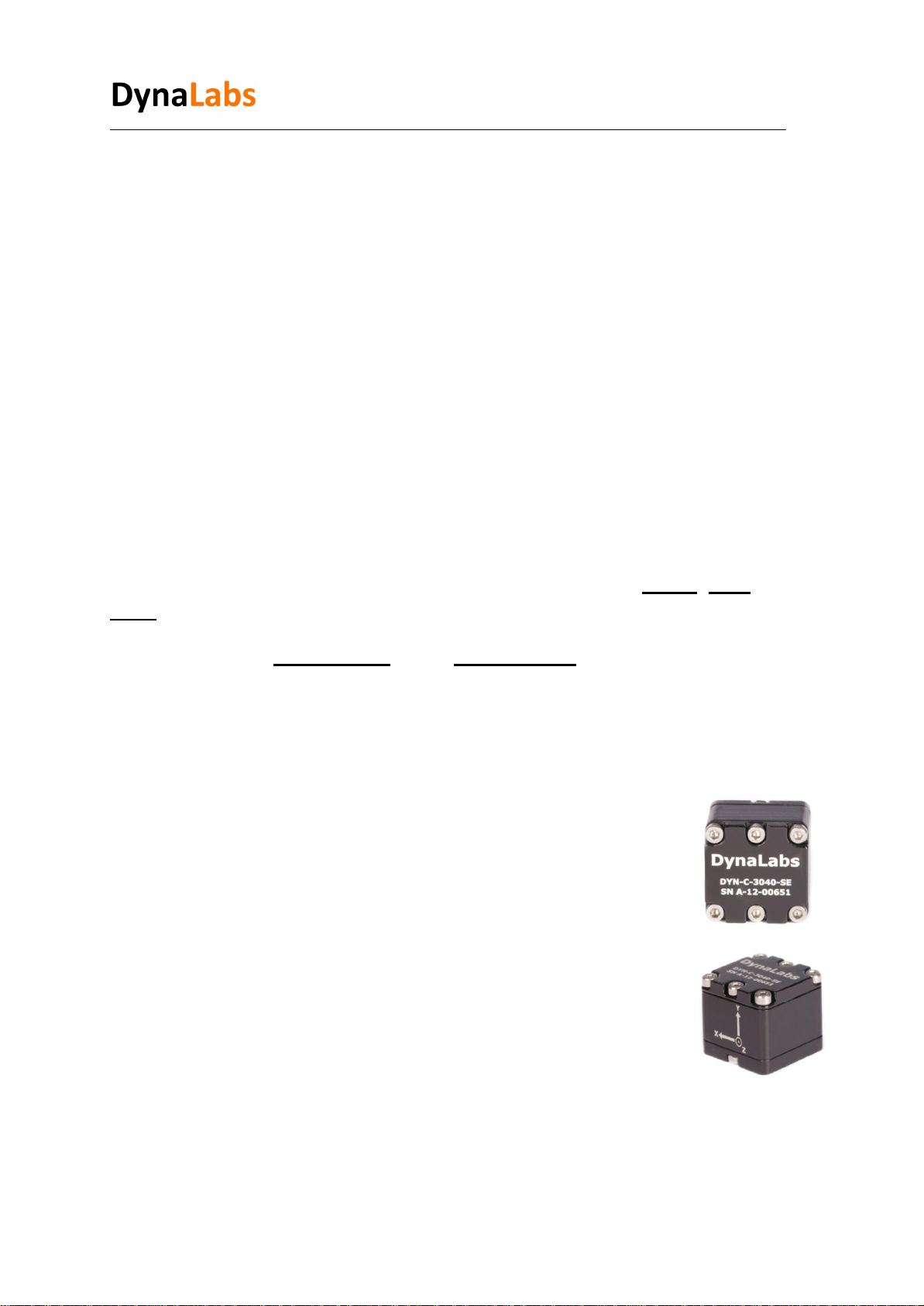

4) Sensor Static Calibration Verification
Using gravity, voltage values are measured in the + and - directions, providing a value of 1 g.
The measurement should be made as follows;
When the acceleration value of 3000SE series sensors is entered into the data
acquisition system, the sensor shows +1 g with the effect of gravity, which is
in the direction of the axis to be calibrated.
When the sensor is positioned in the opposite direction to the axis to be
calibrated, the arrow shows -1g as shown below under the effect of gravity.
Using gravity, the voltage values that provide 1 g in the + and - directions are
measured and compared with the catalog value. The calibration value should
be close to the catalog value with a 10% tolerance. Sensor catalog sensitivity
values are given in Table 1.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from theproprietors.
8
5) Declaration of Conformity
This declaration of conformity is issued under the sole responsibility of the manufacturer.
The product(s) are developed, produced and tested according to following EC- directives:
•2014/35/EU –Low Voltage Directive (LVD)
•2006/42/EU –Machinery Safety Directive
•2015/863/EU –RoHS Directive
Applied standards:
• EN 61010-1:2010
• EN ISO 12100:2010
• MIL-STD-810-H-2019 (Test Methods: 501.7 - High Temperature, 502.7 - Low
Temperature, 514.8 - Vibration, 516.8 –Shock)
DYNALABS MÜHENDİSLİK SANAYİ TİCARET LİMİTED ŞİRKETİ declares
that above mentioned products meet all the requirements of the above mentioned
standards and regulations.
Murat Aykan, Technical Manager
Ankara, 15.07.2021
