Dynamica VELOCITY 13u User manual

VELOCITY 13µ
Minifuge
Operation Manual
Model Velocity 13µ
Revision : D01- V1.01

1
CONTENTS
Page #
1. Meanings of Symbols & Safety Precautions .................................................................................. 2
1-1. Meanings of Symbols ................................................................................................................. 2
1-2. Safety Precautions ..................................................................................................................... 3
2. Product Description and Technical Specifications ....................................................................... 5
2-1. Product Description .................................................................................................................... 5
2-2. Technical Specifications ............................................................................................................ 6
3. Installation ...................................................................................................................................... 7
3-1. Power on/off................................................................................................................................. 7
3-2. Rotor coupling and disassembling............................................................................................... 8
3-3. Positioning of Sample Tubes....................................................................................................... 9
4. Operation ...................................................................................................................................... 10
4-1. Key Functions of Control Panel ............................................................................................... 10
4-2. Setting RPM/RCF ...................................................................................................................... 11
4-3. Setting Time............................................................................................................................... 12
4-4. Start/Stop ................................................................................................................................... 12
4-5. Pulse .......................................................................................................................................... 13
4-6. Emergency door open ............................................................................................................... 13
5. Maintenance ................................................................................................................................. 14
5-1. Outer part of instrument ........................................................................................................... 14
5-2. Chamber .................................................................................................................................. 14
5-3. Shaft ......................................................................................................................................... 14
5-4. Rotor ........................................................................................................................................ 14
5-5. Transportation of the instrument................................................................................................ 14
6. Trouble Shooting ........................................................................................................................ 14
6-1. Check list .................................................................................................................................. 14
6-2. Error Code ................................................................................................................................. 16
7. Rotors & Accessories ................................................................................................................... 17

2
1. Meanings of Symbols & Safety Precautions
1-1. Meanings of Symbols
1-1-1. Symbols on the device
Symbol Meaning Symbol Meaning
Attention and warning.
Attention and warning
for an electric shock
Indicate a hole for door
opening in case of
emergency
Attention and warning
for correct way of
sample balancing in
the rotor.
Attention and warning
for rotor coupling.
Attention and warning
for door opening and
closing
1-1-2. Symbols in this document
Symbol Meaning Symbol Meaning
This symbol refers to safety
relevant warnings and indicates
possible dangerous outcomes.
☞Note.
This symbol refers to the important
reminder.
1-2. Safety Precautions
Before using the instrument, please read this operation manual to ensure correct usage through
understanding. Incorrect handling of the instrument could possibly result in personal injury or physical
damage on the instrument or its accessories.

3
1. ALWAYS locate the instrument on a flat, rigid and stable table capable of withstanding the
weight of the instrument and its spinning operation.
2. ALWAYS make a safety zone of 30 cm around the centrifuge to indicate that neither
hazardous materials nor persons should be permitted within the area during operation.
9ALWAYS position the instrument with enough space on each side of instrument to
ensure proper air circulation.
3. ALWAYS install the instrument within a temperature and humidity controlled environment.
(Permissible ambient temperature: +5°C – +35 °C, Relative humidity: ≤85%)
4. Should not use a power source other than the instrument designed to operate on.
5. Should not use unapproved rotors and associated components.
9Only use rotors from Dynamica with appropriate centrifugal tubes and suitable
adaptors to embrace sample containers tightly enough inside rotors.
6. Before operating the instrument, check if the rotor and the rotor lid are securely fastened.
9Should operate the instrument with a rotor properly installed and secured to the
motor shaft.
7. Mount the rotor on the motor shaft properly, check it with spinning manually.
8. Do not stop the rotor by touching with hand during the instrument is running.
9. Emergency door open should be performed only when spinning is completely stopped.
10. Should not exceed the rated speed or specific gravity. Samples whose density is greater than
1.2g/ml must have reduced maximum rotational speed to avoid rotor failure.
11. The sample content should not exceed 80% of total capacity of a tube. Otherwise, it would
cause spillage of sample fluid and even the tube breakage.
12. ALWAYS load the tubes symmetrically with evenly weighted samples to avoid rotor
imbalance. If necessary, use the water blank to counterbalance the unpaired sample.
13. The operation speed should not exceed the lowest value of the individual guaranteed g-
forces among the centrifuge, rotor, bucket or adaptors and sample container, especially the
guaranteed g-force of sample container should not be neglected.
14. The rotors should be cleaned and kept dry after every use for longer life time and safety.
15. ALWAYS disconnect the power supply prior to maintenance and servicing to avoid electrical
shock.
16. ALWAYS use proven disinfection procedures after centrifuging biohazardous materials.
17. Should not centrifuge flammable, toxic, radioactive, explosive, or corrosive materials.

4
18. When it is necessary to use toxic or radioactive materials or pathogenic micro-organisms
which belong to the Risk Group II of WHO: “Laboratory Bio- safety Manual,” should follow
national regulations.
9Do not place dangerous materials within 30cm distance around the instrument,
and that is also recommended by IEC 61010-2-020.
9Use the emergency door open function only when the door button on the control
panel is dumb under the condition of complete stop of rotor running.
9Never try to open or move the instrument if it is not completely stopped.
9If the power input is more than +/- 10% of the recommended voltage or fluctuates
frequently, it may cause malfunction of the instrument and often result serious
damage.
9Install the instrument at the place without any kinds of corrosive gases.

5
2. Product Description & Technical Specifications
2-1. Product Description
¾Velocity 13μincludes Fixed Angle rotor FA13A and 12 of 0.2ml & 0.5ml adaptors.
¾The PCR tube rotor is optional.
Emergency Door open
Power supply

6
2-2. Technical Specifications
Max. RPM/RCF 13,500 rpm/ 12,300 xg
FA13A
6,000 rpm/ 1,850 xg
FA6B
Max. capacity 12 x 2.0 ml tubes 4 x 8-tube PCR strips
Time control Pulse or timed ≤30 min
RPM/RCF conversion Yes
Noise level(dB) ≤56
Acc/Dec(sec) ≤12 / < 16
Display Blue LCD
Automatic door release at completion Yes
Power supply(V/Hz) 220/50~60 (110V optional)
Power requirement(VA) 110 Watts
Dimension(W x D x H, mm) 208 x 245 x 145
Weight without rotor (Kg) 4.4
CE mark Yes

7
3. Installation
3-1. Power On/off and Door Release
3-1-1. Power On/off
Action
1. Connect the AC Power cord at the power socket on the back
of the instrument.
2. Turn on the instrument by pressing a switch on the back
of the instrument.
3. Press the ‘Door’ button to open the door.
3-1-2. Door Release
Action
1. For opening the door, press the [DOOR] button.
¾The door is automatically opened after
completion of spinning operation with
beeping sound.
¾When you close the door, close it until
hearing clank shut.
☞
9The door is not opened while the instrument is running.
9If the door is opened, the instrument could not operate even with pressing the ‘Start’
button.
9Power Failure: If there is any power failure during the operation, door is not opened
with ‘Door’ button. Door can be opened only when the operation is completely
stopped and the power is on again. If you want to open the door at the power failure,
please refer to ‘4-6. Emergency Door Open’.
3-2. Rotor coupling and disassembling
Action
1. Before coupling a rotor, clean the motor shaft and chamber with soft dry
towel.
2. Mount a proper rotor into the motor shaft.

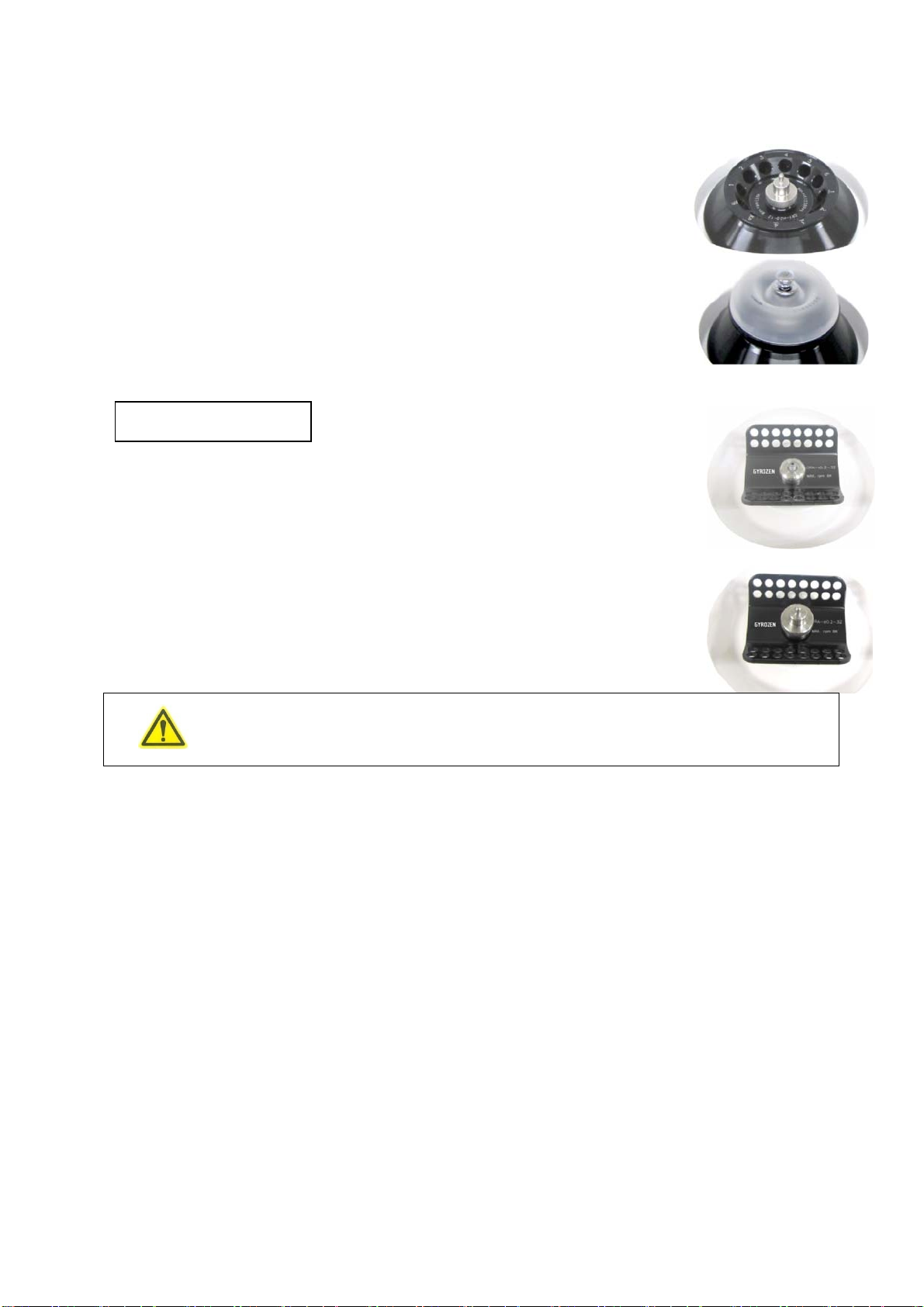

Fixed Angle Rotor

8
3. Place the Rotor Locking Nut at the center hole of the rotor.
¾To assemble the rotor: Rotate the Rotor Locking Nut clockwise
until tightly assembled.
¾To disassemble the rotor: Rotate the Rotor Locking Nut
counterclockwise.
4. After loading sample tubes, close the rotor lid until hearing clank shut.
¾When you open the lid, lift the nut.
2. Mount the PCR rotor into the motor shaft.
3. Place the Rotor Locking Nut at the center hole of rotor.
¾To assemble the rotor: Rotate the Rotor Locking Nut clockwise
until tightly assembled.
¾To disassemble the rotor: Rotate the Rotor Locking Nut
counterclockwise.
9When the PCR rotor is coupled, please do not speed over 6,000rpm/2,400
rcf.
3-3. Positioning of Sample Tubes
Action
1. Before loading sample tubes, check the water drop or dirt in the rotor hole or inner adaptor.
¾If there is a water drop or dirt in the rotor hole or inner adaptor, remove it with soft
dry cloth.
2. Tubes should be placed in the rotor with same amount of samples and symmetrical positions.
¾Only use appropriate centrifugal tubes and do not exceed the speed beyond the
tube’s max g-force.
¾For safety, fill the sample for 70~80% in the tubes.
PCR Rotor

9

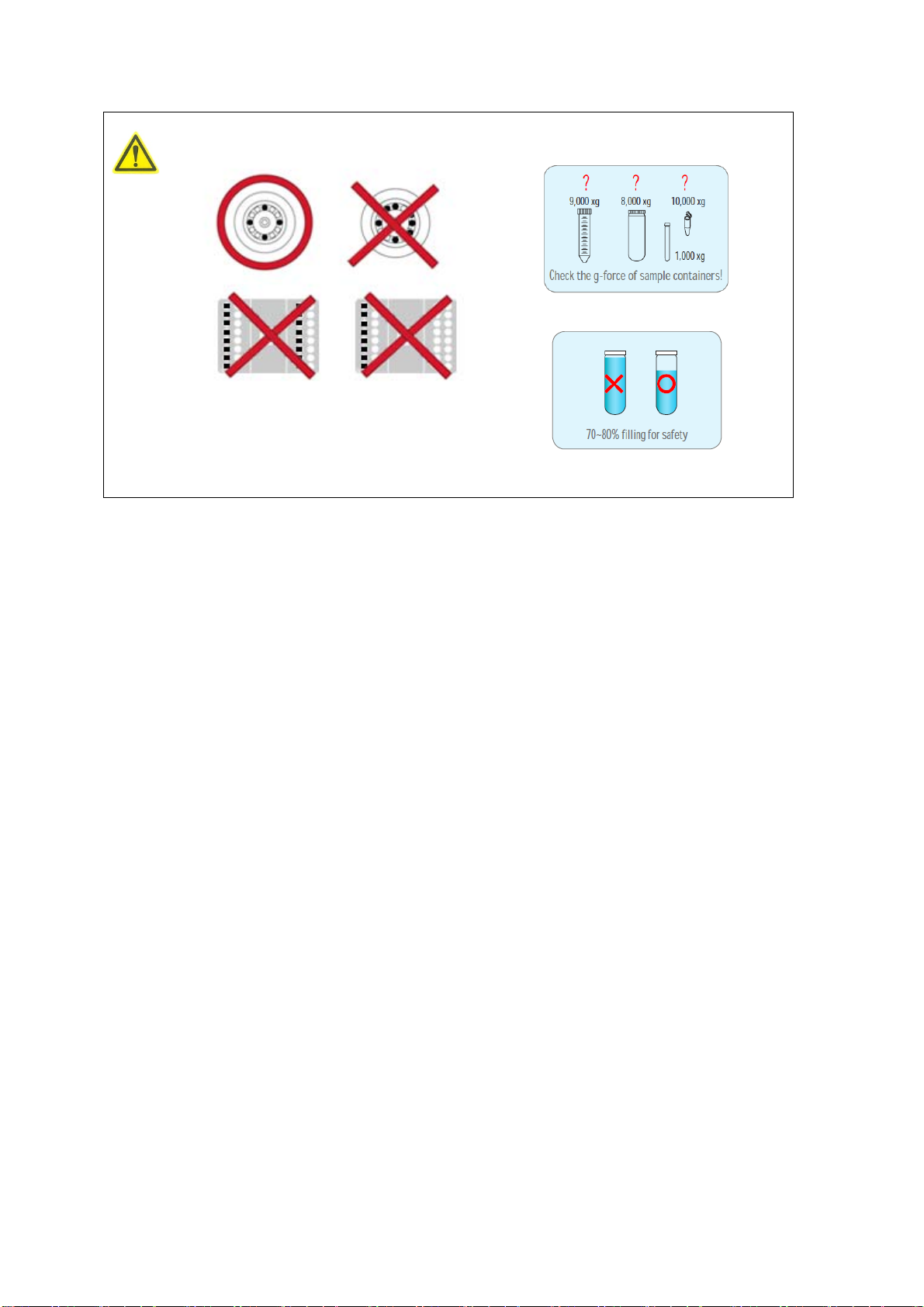

Correct Ways of Sample Balancing & Tube usage
☞If the number of samples is not in pair, please load the control tubes at each symmetrical position.
Otherwise, it results noise and vibration, which eventually damages the instrument.

10
4. Operation

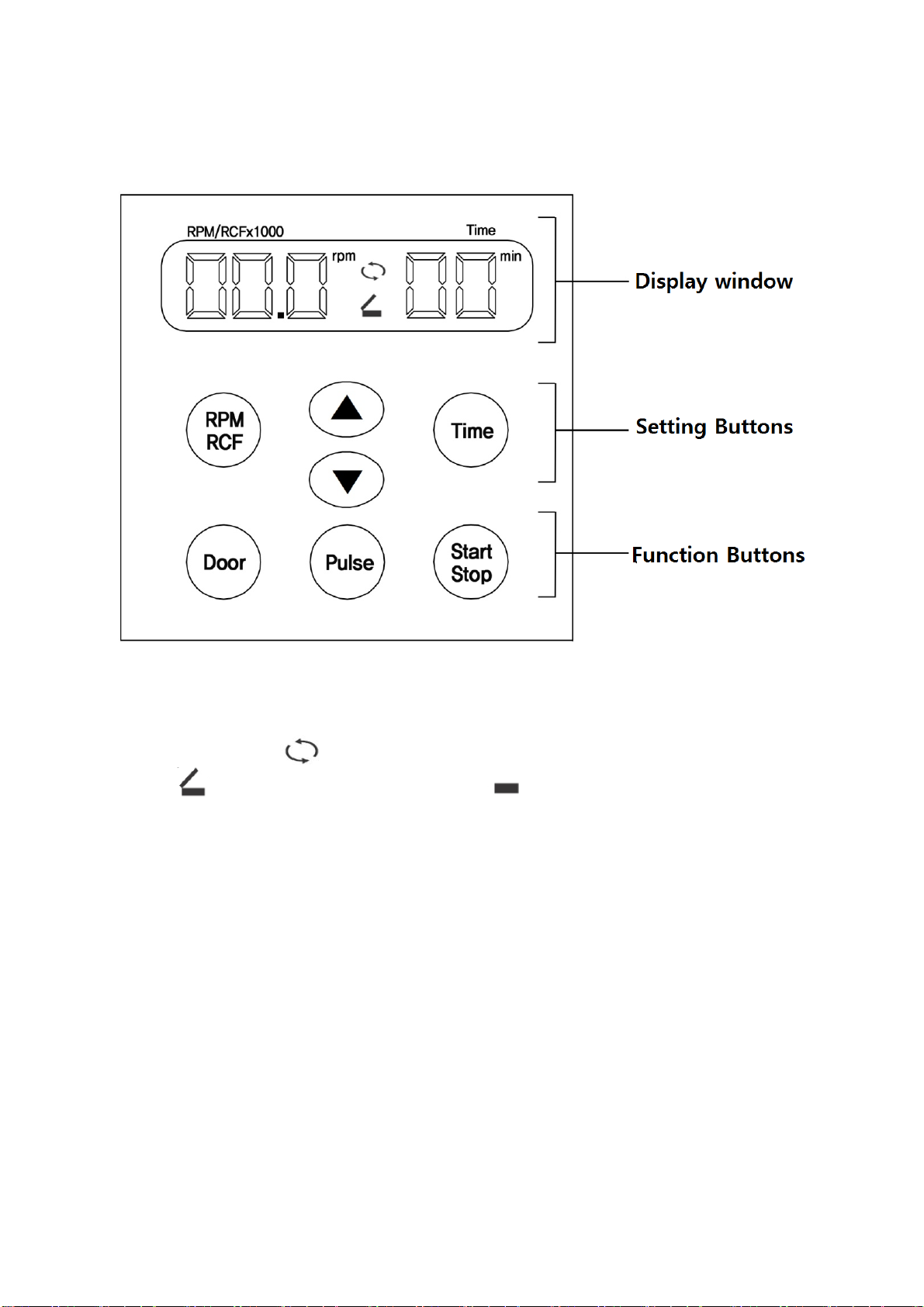

4-1. Key Functions of Control Panel
Display window
Shows speed, time, status of running and the status of door opening or closing.
¾RPM/RCF Modes are displayed as rpm and rcf.
¾While running, is flickering.
¾appears when the Door is opened and appears when the Door is closed.
¾Time is displayed as ‘min’
Setting Buttons
When setting up the RPM/RCF and Time, you can put the set value with up (▲) and down (▼)
button.
Function Buttons
¾Door For opening instrument door
¾Pulse Forquickspindown
¾Start/Stop Commend start and stop operation

11
4-2. Setting RPM/RCF
▶Maximum RPM/RCF: 13,500 RPM/ 12,300 x g
▶Display value: multiply 1,000 to check real value. (Example: RPM Display value 13.5 indicates
RPM 13,500)
Action
1. Press the [RPM/RCF] button once.
¾RPM MODE is generated by pressing a [RPM/RCF] button
once.
¾RPM LED is flickering on the display window.
2. Press the [▲▼] buttons to change input value.
¾RPM setting unit: 0.1 unit (0.1=100rpm)
¾After 5 seconds from pressing the input value, the setting value is
saved.
¾If you want to check the input value, press [RPM/RCF] button.
¾If you do not press the [▲▼] button for 5 second, the setting
mode is cleared.
1. Press a [RPM/RCF] button twice.
¾RCF MODE is generated by pressing a [RPM/RCF] button twice.
¾RCF LED is flickering on the display window.
2. Press the [▲▼] buttons to change input value.
¾RCF setting unit: 0.1 unit (0.1=100 rcf)
¾After 5 seconds from pressing the input value, the setting value is
saved.
¾If you want to check the input value, press [RPM/RCF] button.
¾If you do not press the [▲▼] button for 5 second, the setting mode is cleared.
9When the PCR rotor is coupled, please keep in mind that do not over speed at the
max. 6,000rpm/2,400 rcf.
4-3. Setting Time
▶Time control: 1 min. ~30 min.
Setting RPM
Setting RCF

12
▶Time setting unit: 1min.
Action
1. Press the [TIME] button once.
¾‘min’ on LED is flickering.
2. Press the [▲▼] buttons to change input value.
¾After 5 seconds from pressing the input value, the
setting value is saved.
¾If you do not press the [▲▼] button for 5 second, the setting
mode is cleared.
4-4. Start/Stop
Action
1. After setting RPM/RCF and Time, press [Start/STOP] button.
¾The running starts only when the door is closed.
¾In case of pressing the [Start /Stop] button while running,
the running is stopped.
4-5. Pulse
 It is for quick spin down.
Action
1. If you press ‘Pulse’ button and release at the point you want to stop,
the
centrifuge decelerates immediately.
¾When the running is stopped, the door is opened
automatically with beeping sound.
4-6. Emergency Door Open
The door can be unlocked manually with Emergency Door Open Function.
1. After pulling the instrument forward about 10cm, find the
“Emergency Door Open Hole” at the bottom of the instrument
2. Insert spikes (a car key, scissors and etc.) 2~3cm into the

13
“Emergency Door Open” hole and pull the spikes at the opposite
direction of the arrow.
5. Maintenance
5-1. Outer part of instrument
1. Clean the outside of the instrument with dry soft cloth. If necessary, dip the cloth in neutral
detergent and clean contaminated area. Keep completely dry after cleaning.
2. Do not use any volatile chemicals such as alcohol and benzene, etc.
3. Be careful not to make scratches on the surface of the instrument. The scratches can cause
corrosion on the surface of the instrument.
9If any rust appears, clean it with neutral detergents and keep dry.
5-2. Chamber
1. Keep dry inside the chamber after every use.
2. If the chamber is contaminated, dip the cloth in neutral detergent and clean contaminated
area.
5-3. Shaft
1. Always make special attention to clean the motor shaft to avoid any imbalance problem due
to the contaminants.
2. After using the instrument, take out the rotor from the shaft, and clean the shaft with dry soft
cloth to keep dry.
5-4. Rotor
1. If any parts are contaminated with samples, clean the rotor with soft wet cloth and keep the
rotor dry.
2. Be careful not to make scratches inside or on the surface of rotors. Any small scratches can
cause corrosion of the rotor and big damage to the instrument.
3. If you do not use the instrument, keep the rotor separately from the motor shaft and stand it
upside down.
Manual opening should be performed only when spinning is completely stopped.
Otherwise, harmful damage will be accompanied to not only operators but samples.
After opening the door manually, it is recommended to wait until normal electricity
comes back.

14
5-5. Transportation of the instrument
1. If you need to move or ship the instrument, be cautious to protect the motor shaft from any
physical impact or turbulence.
2. Do not mount a rotor in any cases of movement. Fill inside the chamber with proper materials
to keep the motor shaft on place and not to be influenced by physical pressure.
6. Trouble Shooting
6-1. Check list
Symptom Check list
Power failure
Connect the AC Power cord and make sure that the line is completely
connected between the instrument and power outlet. Check the
power switch is turned on. (Please refer to 3-1. Power On/Off)
Can’t be started
If the door is not closed completely, the instrument can’t run.
Check the Door LED on the display window and close the door
completely.
Can’t open the door
If the power is out, check the main fuse for the laboratory to supply
the power. If it is not solved in shortly, open the door with spikes for
safety of sample. (Please refer to 4-6. Emergency Door Open)
Can’t close the door
Remove the dirt at the door latch and then close the door completely
again. If the door seems not being closed by mechanical reason,
please contact our service team.
Please check the balanced status of both the table and the
instrument
Noise and vibration during
running
Please re-check the coupling status of the following three matches to
minimize the noise
1. the balanced way of coupling of the rotor into the motor
shaft
2. the completeness of fixing of the Rotor Locking Nut on the
rotor
3. the matching status of Rotor Lid with the rotor

15
Check balances of samples in the rotor. (Please refer to 3-3.
Positioning of Sample Tubes) and load the same weight of samples
symmetrically.
6-2. Error code
If the instrument shows the error code with beeping sound, press ‘STOP’ button to stop the beeping
sound and press ‘Enter’ button to release of the error status and make the instrument go to the default
setting again.
Error Possible Causes Actions
Error 1 RPM Sensor
- Shut off the power supply, and then, turn on the power switch
again to check the instrument.
- If the error code shows continuously although you try to operate
again, please contact us.
Error 2 Door
- If the door is not closed completely, this message is appeared.
- Remove the dirt at the door latch and then close the door
completely again. Check the Door LED on the display window. If
it is not solved in shortly, open the door with emergency door
tool manually for safety of sample. (Please refer to 4-6.
Emergency Door Open.)
Error 3 Motor Overheating
- If the motor is overheated, this message is appeared.
- Shut off the power supply for an hour, and then turn on the power
switch for checking the instrument.
- If the error code shows continuously, please contact us.
Error 4 Low Voltage
- If the power input of Power supply (V/Hz) is 10% less than
required power, this message is appeared.
- Shut off the power supply and then check the voltage of the
Power supply (V/Hz).
- Use AVR to provide proper power.
Error5 High Voltage
- If the power input of Power supply (V/Hz) is 10% more than
required power, this message is appeared.
- Shut off the power supply and then check the voltage of the
Power supply (V/Hz).
- Use AVR to provide proper power.
Error 6 Over Speed
- If the instrument is spun with over speed, there will be some
problems in the overload of motor and the output of motor.
- Shut off the power supply, and then, turn on the power switch
again to check the instrument.

16
Error 7 Software
- If the installed software has bugs, this message is appeared.
- Tuning the firmware (Download)*
Error 8 Imbalance
- Check weight-balances of samples (Please refer to 3-3.
Positioning of Sample Tubes) and then turn off and on the
instrument for checking.
* Any wire disconnection or tuning of the instrument must be performed only by a service engineer
who is authorized by Dynamica

17
7. Rotors and Accessories

The VELOCITY Range
BENCH TOP CENTRIFUGES
Dynamica Scientific Ltd
2 Bain Square, Kirkton Campus
EH54 7DQ, UK
P: [phone]
F: [phone]
Email: [email protected]
Australasia
Dynamica Pty Ltd
Unit C3 Hallmarc Business Park
Corner Centre and Westall Roads
Clayton, Victoria, 3168, Australia
P: [phone]
F: [phone]
Email: [email protected],au
Asia
Dynamica (Asia) Limited
6/F Mita Centre
552-566 Castle Peak Road
Kowloon, Hong Kong
P: [phone]
F: [phone]
Email: [email protected]
Web: www.dynamica-eu.com
