OPERATOR’S/SERVICE MANUAL
™ ™
®

DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 II
Before treating a patient with the T3 Treatment Table or the T4 Traction Table, see the “Contraindications, Warnings,
and Precautions” in this manual. Read the operating instructions carefully.
COMPLIANCE: e contents of this “Instructions For Use” manual are exactly the same in both the printed and electronic forms.
INDICATIONS FOR USE
ese electrically operated High Low Tables are Class I devices intended for medical purposes. It can be utilized
as a treatment table with surfaces that can be adjusted to various positions, or it can be used in conjunction with
Traction devices and Traction accessories such as: belts, and harnesses to exert therapeutic pulling forces on the
patient’s body (890.5900), primarily for the cervical-lumbar areas.
Inventory: T34MANUAL Rev. 10
ISO 13485
DNV GL NEMKO PRESAFE AS CERTIFIED
Dynatron® T3™/T4™ Operator and Service Manual
©Copyright 2007
Revised April 4, 2018
ALL RIGHTS RESERVED
Dynatronics Corporation
7030 Park Centre Drive, Salt Lake City, UT 84121
[phone] / [phone]
www.dynatronics.com / [e-mail]
WARNING
DANGER - Explosion Hazard:
Do not use in the presence of ammable anesthetics.

TABLE OF CONTENTS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 III
Table of Contents
Introduction
Dynatron® T3™Hi-Lo Treatment Table & T4™ Traction/ Decompression Table ..................................... 1
Operator’s Prole .......................................................................................................................................................................2
Before You Treat a Patient.........................................................................................................................................................2
Installation and Features........................................................................................................................ 3
Unpacking...................................................................................................................................................................................3
Setup ............................................................................................................................................................................................3
Assembling Traction Arm.........................................................................................................................................................4
Attaching Traction Unit ............................................................................................................................................................5
Technical Specications ............................................................................................................................................................5
Adjusting the Table Height ......................................................................................................................................................6
Adjusting Head and Foot Sections ..........................................................................................................................................6
Positioning the Patient ..............................................................................................................................................................6
Warnings and Precautions ..................................................................................................................... 7
Technical Information............................................................................................................................ 8
General Specications ...............................................................................................................................................................8
Disposal of Equipment and Accessories .................................................................................................................................8
Environmental Conditions / Transport and Storage.............................................................................................................9
Denition of Symbols and Labeling ........................................................................................................................................9
Symbols and Labels .................................................................................................................................................................10
Cleaning Naugahyde®Surfaces ...............................................................................................................................................10
Maintenance and Service ..................................................................................................................... 12
General Maintenance ..............................................................................................................................................................12
Components and Replacement Parts................................................................................................... 13
Replacement Parts Diagrams............................................................................................................... 14
Returning a Unit for Repair ...................................................................................................................................................21
Medical Device Reporting Requirements............................................................................................ 22
Denition of Serious Injury....................................................................................................................................................22
Warranty............................................................................................................................................... 23
Warranty Registration .............................................................................................................................................................24

INTRODUCTION DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION/DECOMPRESSION TABLE
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 1
Introduction
Dynatron® T3™ Hi-Lo Treatment
Table & T4™ Traction/
Decompression Table
e Dynatron T3 is a qulaity 3-section, Hi-Lo Treatment Table oering maximum features at competitive pricing. e T4
Table features the same framework as the T3 with the added engineering to make it the world’s rst combination traction,
3-section table. ese tables include all of the standard advantages of Dynatronics’ engineering with meticulous attention to
detail and quality, producing a reliable product that will provide years of excellent performance.
Outstanding features include:
• Dual Full-Length Foot Switches
• Postural Drainage
• Optional Motorized Mid-Section
• MSAS (Mobilization Strap Attachment System)
• Easy-Glide Foot Section with Positive Dual Lock
• Contoured Nose Hole with Plug
• Manual Traction Pull Bar
• 4" Dual-Locking Casters
• Swing-Away Traction Pedestal (T4 Table)
In addition, each table carries a ve-year manufacturer’s warranty on its solid metal frame and a one-year warranty on the
Naugahyde® upholstered top (see full warranty details at the end of this manual).

INTRODUCTION DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION/DECOMPRESSION TABLE
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 2
Operator’s Prole
All operators shall be properly trained and certied medical practitioners, or working under the direction of a licensed
practitioner, capable of reading and comprehending instructions for use as described in this manual. Operators will have
reasonable mobility and dexterity to monitor patient responses to attended or unattended treatments.
Before You Treat a Patient
Before administering a treatment to a patient, familiarize yourself with the operating instructions, as well as the
contraindications, warnings, and precautions associated with the use of treatment tables and the associated Traction
Treatments. In addition to this information, consult other published sources for additional application and safety
instructions. If you have any questions about the operation of this product, contact your Dynatronics’ Dealer/Representative
or Dynatronics’ Customer Service at [phone].

INSTALLATION AND FEATURES
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 3
Installation
and Features
Unpacking
Upon receiving the table, immediately unpack it and verify that all parts and accessories are included. Check for possible
damage, obvious or concealed. In case of damage, immediately notify the freight carrier and take any steps necessary to le a
claim for the damage sustained. If possible, reuse the shipping carton if the table must be shipped for any reason. e carton
is specially designed to protect the table from shipping damage. Improper packaging of the unit during transport can result
in damage and invalidate the warranty.
Complete the warranty registration form located at the back of this manual and return it to Dynatronics within 30 days
of purchase. is is essential to insure you are not billed for services that are covered by the warranty policy. Warranty
registration should include all applicable serial numbers.
Setup
• Aer unpacking, set the table in the desired location. No assembly is required as the table is fully assembled and all
motors are pre-adjusted at the factory.
• Provide ample clearance around and above the table.
• Securely lock all four casters for stability. Install the traction arm for the T4 table (see instructions on the following
page). Inspect all cables and power cord for damage;
• Immediately report any damage found to Dynatronics’ Customer Service [phone].

INSTALLATION AND FEATURES
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 4

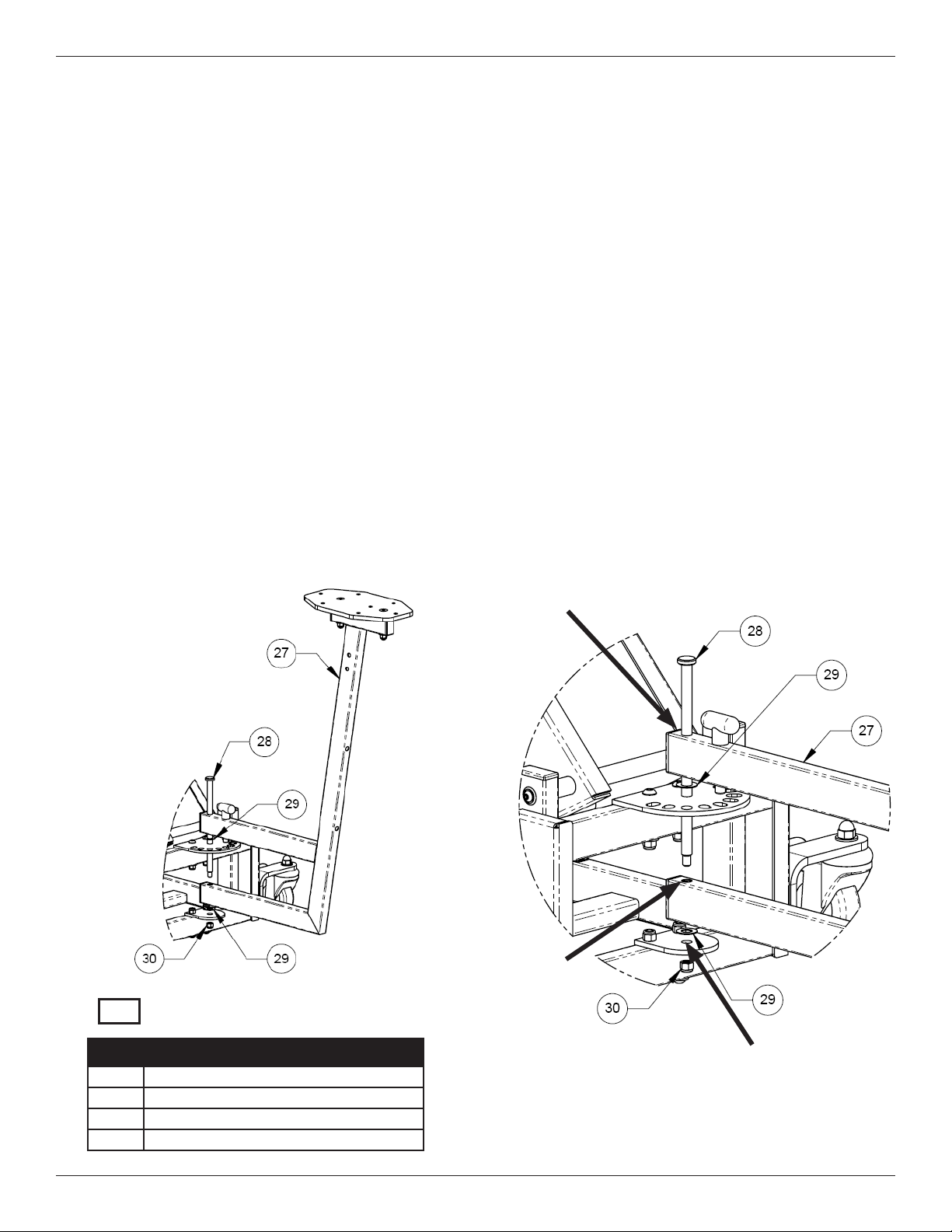

Assembling Traction Arm
e Traction Arm can quickly and easily be assembled by following the steps outlined below. An adjustable wrench is
required for assembly.
1. Remove the Nylon Lock Nut (30) from the Traction Arm Pivot Pin (28) attached to the Traction Arm (27).
2. Slide the Pivot Pin (28) through the upper traction arm Pivot Pin Hole.
3. Attach the Nylon Washer (29) onto the Pivot Pin (28) before sliding it through center hole in the adjustment plate.
4. Continue sliding the Pivot Pin through the lower traction arm Pivot Pin hole.
5. Attach the second nylon washer (29).
6. Slide the Pivot Pin through the hole in the Lower frame.
7. Securely tighten the Nylon Lock Nut (30) to the end of the Pivot Pin (28). Do not over tighten the Nylon
Lock Nut (30). When it feels secure, give it an additional ½ turn.
Upper Traction Arm Pivot Pin
REF
No. Part Numbers
27 Traction Arm Assembly (long)
28 Traction Arm Pivot Pin
29 Nylon Washer (.375 x .875 x .083)
30 3/8-16" Nylon Lock Nut

Lower Frame Pivot Pin Hole
Lower Frame Pivot Pin Hole

INSTALLATION AND FEATURES
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 5
Attaching Traction Unit
Follow the manufactures instructions in order to attach the traction unit to the traction arm.
Technical Specications
• Surface dimensions
Width 28" wide,
Length without Traction arm 81" long
Length with Traction arm 105" long (T4)
• Elevation Table Adjustments
Head Section Raises to 40°; Lowers to -80°
Foot Section Raises to 85°
• Surface Height Adjusts from 17.5" to 39"
• Casters 4" two-way locking casters
• Controls Electric Foot Bar
• Capacity 500 lbs.
• Shipping Weight 348 lbs. (T3) / 385 lbs. (T4)
• Shipping Boxed Dimensions 85" X 36" X 28"

105"
39" 36"
85°
- 80°
40°
17.5"
81"

INSTALLATION AND FEATURES
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 6
Adjusting the
Table Height
Use the electric foot control to
activate the motor drives that
raise and lower the table.
Adjusting Head and Foot Sections
Raising the Head or Foot Sections
To raise the head or the foot sections, position your hand in the middle on the top edge of the section to be raised and li
up. is motion will release the gatch mechanism and allow the section to move upward. Once the section is in the desired
position, stop liing. e gatch mechanism automatically locks the section in place.
Lowering the Head or Foot Sections
Slightly li up on the section to be lowered, while at the same time turning the lever directly below the section to be lowered
in order to release the gatch mechanism.
• Head Section Lever moves clockwise.
• Foot Section Lever moves counterclockwise.
As long as the lever is down, the section will continue to move down. When the handle is released, the section will securely
remain in place.
Positioning the Patient
Ambulatory Patients
Verify that the casters are
locked before positioning the
patient. Adjust table height so
that the patient platform is just
below the patient’s buttocks.
e patient should always be
seated in the center of the table.
Assist the patient to the desired
treatment position.
Stretcher Patients
e table height is adjusted to the height of the stretcher. With the casters locked, transfer the patient to the table using the
same procedure used for transferring a patient from a stretcher to a bed. Consult applicable literature.
WARNING
Keep hands and feet away from moving mechanisms while adjusting table
height. Do not change the angle of a section while the patient’s weight is on
that section.
WARNING
When moving the patient onto or o the table, ALWAYS inform the patient
of the procedure before beginning. Advise the patient before making any
further adjustments.

WARNINGS AND PRECAUTIONS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 7
Warnings and Precautions
1. NEVER leave the patient unattended.
2. NEVER place hands or feet near moving mechanisms while raising or lowering the table.
3. When moving the patient onto or o the table, ALWAYS inform the patient of the procedure before beginning.
4. ADVISE the patient prior to making any adjustments to the table while the patient is positioned on the table.
5. DO NOT change the angle of any section while the patient’s weight is on that section.
6. ALWAYS keep children away from the table.
7. DANGER: Risk of explosion hazard if used in the presence of ammable anesthetics.
8. Verify that the casters are locked before treating the patient.

WARNING
PINCH POINTS
Alert the patient to the
danger of placing hands or
feet near moving mechanisms
while raising or lowering the
table, avoiding areas labeled
“Pinch Points” when the table
is in motion.

TECHNICAL INFORMATION
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 8
Technical
Information
General Specications
Power Requirements: 110-240 V~
Current: 5.0 Amps
Frequency: 60 Hz
Phase: Single Phase
60 Hz Leakage Currents: Normal: 1µa or less
Maximum Leakage: 100 µa or less (Typ. 18 µa)
Grounding Characteristics: Resistance from ground pin on power plug to exposed metal surfaces:
.1 Ohm or less (Typ. .08 Ohms)
Disposal of Equipment and Accessories
ere is no risk posed in disposal of this equipment or its accessories. is product contains no hazardous materials.
CAUTION
To ensure proper mechanical operation, a daily check and preliminary operation of the table controls is
recommended prior to placing a patient on the table.

TECHNICAL INFORMATION
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 9
Environmental Conditions / Transport and Storage
is equipment, while packed for transport or storage, should not be exposed to environmental conditions outside the
following ranges:
a. an ambient temperature range of -40°C
b. a relative humidity range of 10% to 100% including condensation
c. an atmospheric pressure range of 500 hPa to 1060 hPa

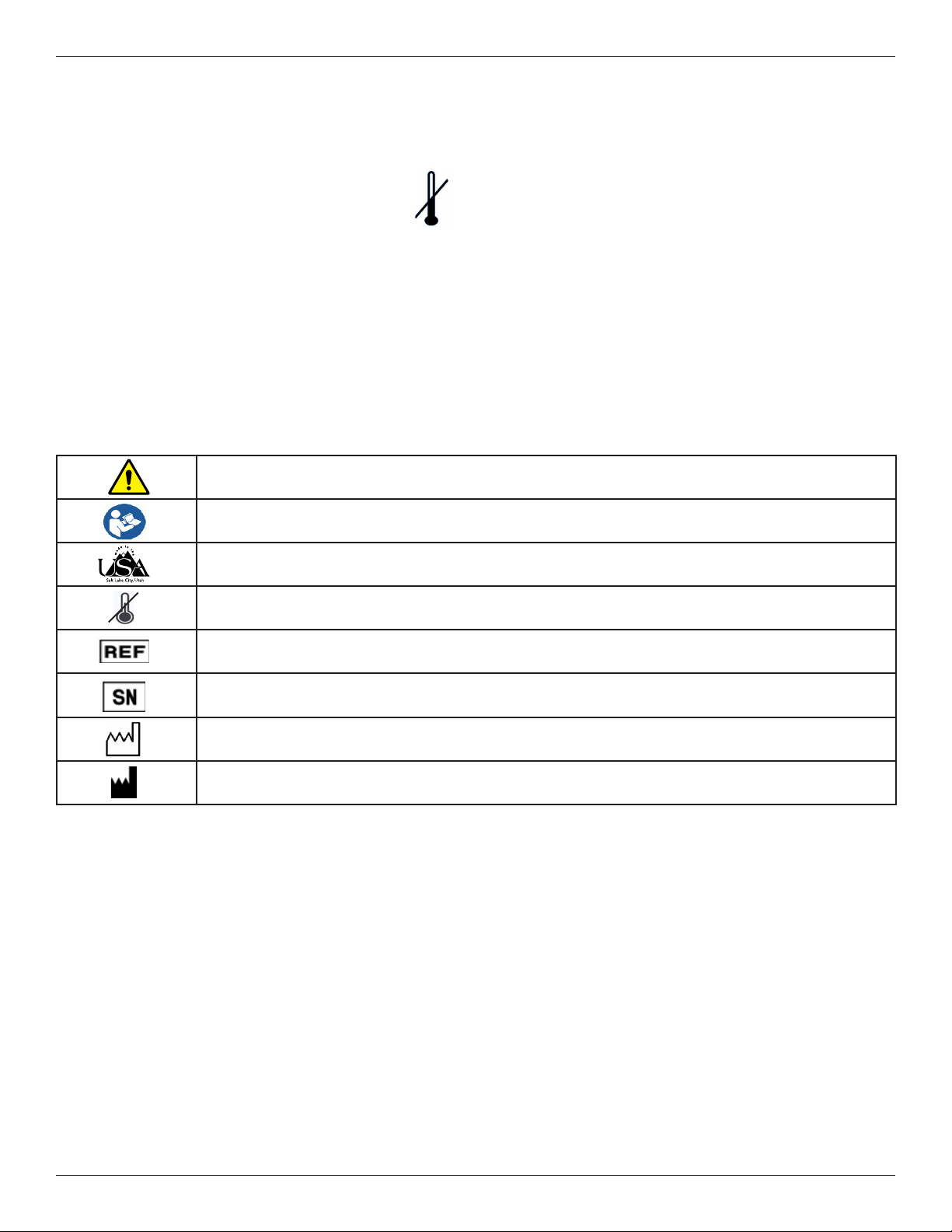

Denition of Symbols and Labeling
Some or all of the following symbols are included in the labeling for this device. Denitions accompany each symbol.
Caution / Warning
Follow Instructions for Use
Made in USA
Temperature
Model Number
Serial Number
Manufacturer Location
Manufacturing Date
+70°C

TECHNICAL INFORMATION
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 10
Symbols and Labels
e following labels are attached to this device.
Cleaning Naugahyde® Surfaces
e table is upholstered with durable Naugahyde® which may be cleaned according to manufacturer’s directions as
listed below.
Light Soiling
A solution of 10% household liquid dish soap with warm water applied with a so damp cloth may be used. Wipe away the
residue with clean, so cloth dampened with clear water.
Dicult Stains
Uniroyal Engineered Products oers the following cleaning instructions for their Naugahyde products: “Naugahyde with
Advance BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing
sodium hypochlorite (common household bleach) diluted 1:10.”
Dampen a so white cloth with a solution of household bleach (sodium hypochlorite), 10% bleach, 90% water. Rub gently.
Rinse with a clean, so cloth dampened with clear water to remove any remaining bleach concentration. Use protective gloves.
Make sure the power cord, plug assembly, and hands are dry before reconnecting the power cord to the outlet.






Serial # T4
Serial # T3
CAUTION
Unplug the power cord before cleaning. Test cleaning agents in a non-conspicuous place.

TECHNICAL INFORMATION
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 11
Unapproved Cleaning Solutions
• Strong Phenols / Phenol Alcohol Combinations
• Sodium Hypochlorite / Household Bleach
• Sodium Bromide
• Citric Acids
• Iodophors
• Ammonium Chloride
• Accelerated Hydrogen Peroxide (0.5%)

MAINTENANCE AND SERVICE
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 12
Maintenance
and Service
e table described in this manual oers some user-serviceable parts. is section provides suggestions for periodic
maintenance inspections as well as instructions for specic service or repair that may be performed by the user. For assistance
with any service-related matter or to obtain needed replacement parts, contact Dynatronics’ Customer Service department at
1-800-874-6251. NOTE: Only technically qualied personnel should attempt to service or repair this equipment.
GENERAL MAINTENANCE
If the bed is located in an area where it is subject to extreme amounts of moisture, humidity or dust, the pivot joints and
sliding surfaces should be cleaned and lubricated.
WARNINGS
An electric shock hazard may exist when electrical covers have been removed.
In addition, the mechanical action of the table may subject the repair person to signicant shearing and crushing
forces. erefore, repair must be performed only by qualied personnel who should proceed with care and use
proper servicing techniques. Servicing by unqualied personnel may void the warranty.

COMPONENTS AND REPLACEMENT PARTS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 13
Components and
Replacement Parts
e following optional accessories and replacement parts are available through your Dynatronics Dealer. Call Dynatronics
Customer Service [phone] for assistance.
No. Part Number Description
1 NHP(color) Nose Hole Plug
2 T4-TOP(color)-A Nose Hole Section
3 T4-TOP(color)-B Top Mid-Section
4 T4-TOP(color)-C Top Foot-Section
5 DT4PB Pull Bar
6 DTKNOB Li-back Handle (black)
7 T4SLIDELOCKHANDLE Traction Arm Handle and Sliding Mechanism
8 DP000075 Mobilization Strap Attachment System (Chrome Bar)
9 DP000072 Foot Switch Bar
10 DTCAS 4" Two-Way Locking Casters
11 T34MPH Main Plug-in Housing
12 40-106 Magnetic Motor Max 65 – Main Motor
13 40-106-B Magnetic Mid-Li Motor Max 10
14 T34MSL Mid-Li Switch Le
15 T34MSR Mid-Li Switch Right
16 DP000088 Mid-Section Gatch Mechanism Spring
17 DP000061 Master Gatch Mechanism Wieldment (controls all three sections)
18 T4FOOTSWITCH Foot Switches
19 T34FSC Foot Switch Cable
20 DP000084 Slide Rack Block Assembly
21 HW000022 3/16" x 1" Grooved Clevis Pin
22 HW000187 3/16" Push Nut
23 HW000171 12mm (OD) x 4.88mm (ID) x 1mm ick Washer
24 DP000080 Bent Lock Hinge
25 DP000082 Slide Lock Sha
26 DP000112 Slide Lock Sha Spring
27 DP000006 Traction Arm Assembly (long)
28 DP000099 Traction Arm Pivot Pin
29 HW000071 Nylon Washer (.375 x .875 x .083 )
30 HW000017 3/8-16" Nylon Lock Nut
31 DP000106 Gatch Lock Spring
32 40-106-A Magnetic Motor Max 63 – Main Motor used in conjunction with Mid-Li Motor in place of the Max 65.
REF

REPLACEMENT PARTS DIAGRAMS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 14

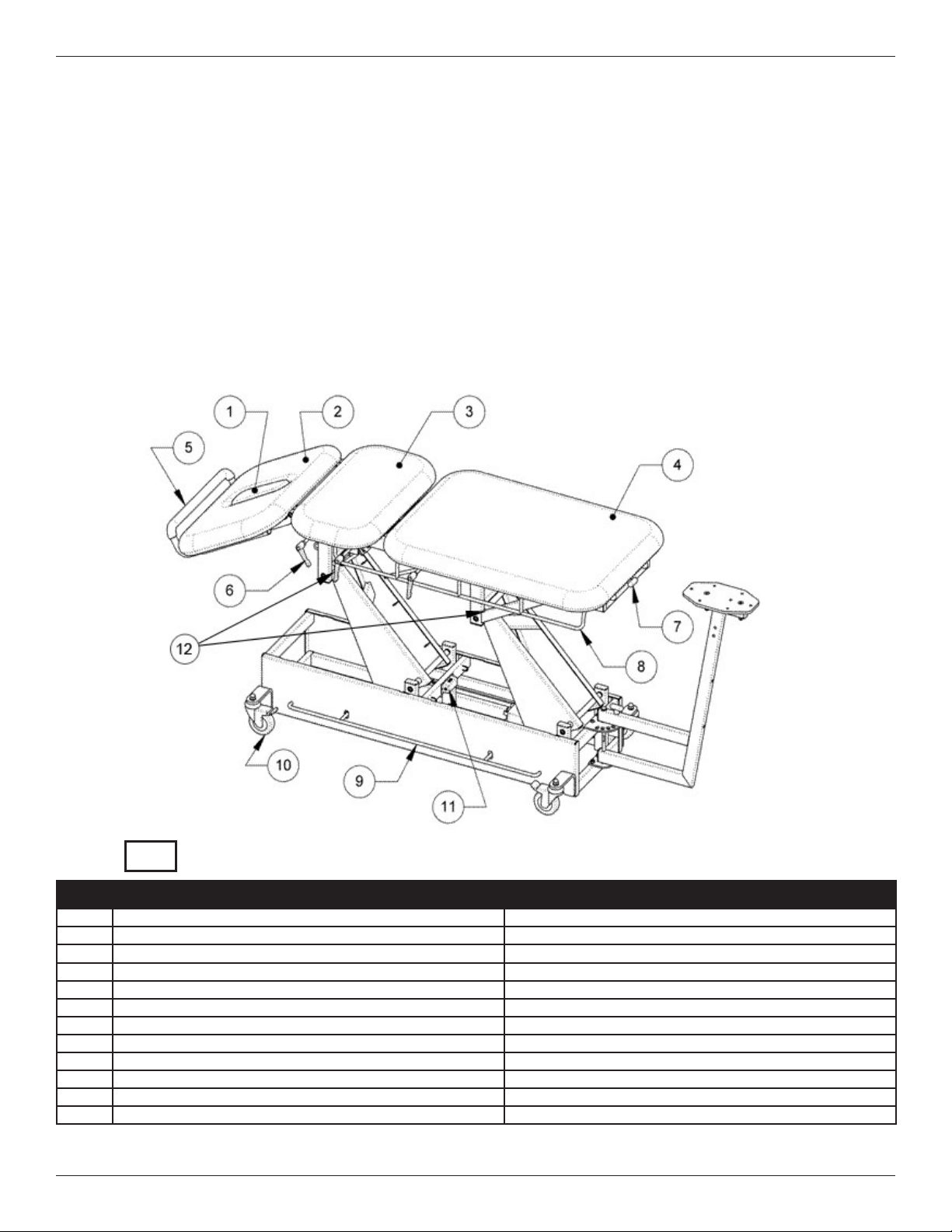

Replacement Parts Diagrams
No. Part Numbers Above Diagram Description
1 NHP(color) Nose Hole Plug
2 T4-TOP(color)-A Nose Hole Section
3 T4-TOP(color)-B Top Mid-Section
4 T4-TOP(color)-C Top Foot-Section
5 DT4PB Pull Bar
6 DTKNOB Li-back Handle (black)
7 T4SLIDELOCKHANDLE Traction Arm Handle and Sliding Mechanism
8 DP000075 Mobilization Strap Attachment System (Chrome Bar)
9 DP000072 Foot Switch Bar
10 DTCAS Two-Way Locking Casters
11 T34MPH Main Plug-in Housing
12 Pinch Point Labels Warning – Pinch Points
See part numbers and diagrams for insert View A on the following page.
REF


REPLACEMENT PARTS DIAGRAMS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 15
No. Motor Part Numbers Description
32 40-106 Magnetic Motor Max 65 – Main Motor
12 40-106-A Magnetic Motor Max 63 – Main Motor used in conjunction with Mid-Li Motor in place of the Max 65.
13 40-106-B Magnetic Mid-Li Motor Max 10
REF
Right: T3 Table with Mid-Li Motor.
Both the T3 and T4 Traction Tables are available with
the Mid-Li Motor.
Le: T4 Traction Table with standard main Motor



REPLACEMENT PARTS DIAGRAMS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 16

No. Part Numbers View A Description
3 T4-TOP(color)-B Top Mid-Section
13 40-106-B Magnetic Mid-Li Motor Max 10
14 T34MSL Mid-Li Switch Le
16 35-005 Mid-Section Gatch Mechanism Spring
17 DP000061 Master Gatch Mechanism Wieldment (controls all three sections)
REF

View A enhancement with Mid-Li Motor.
View A enhancement without Mid-Li Motor.

REPLACEMENT PARTS DIAGRAMS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 17
No. Part Numbers View B Description
9 DP000072 Foot Switch Bar
16 DP000088 Mid-Section Gatch Mechanism Spring
18 T4FOOTSWITCH Foot Switches
19 T34FSC Foot Switch Cable
REF
View B location of Z-Spring, applicable to both the T3
and the T4 tables.
Detail B
