E-matic EVH625BL User manual

1
1

Product Manual
EVH625BL

1
Functions
Functions
Thank you for purchasing this ActionCam. This product features clear, high-definition picture and video in AVI
format. The portable design makes it easy to take pictures and record video wherever you go. To get the most out of
your ActionCam, please make sure to carefully read this manual and keep it for future reference.
Screen display and diagrams used in this manual are for detailed and visualized introduction for this digital
ActionCam. Because of technical R&D, the displays and diagrams may vary within the actual digital ActionCam.
Precautions
Precautions
Before using the ActionCam, please carefully read this user’s manual to ensure that you use the ActionCam in a
correct and safe manner in order to achieve the best performance and good working condition.
Do not leave the ActionCam in direct sunlight for long periods of time. Keep the lens of the ActionCam away
from direct sunlight to avoid damaging the image sensor.
Please avoid water or sand entering the ActionCam while using it on sand beach or by water. Water, sand, dust or
particles containing salt may damage the ActionCam.
Keep the ActionCam away from dust and chemical materials. When not in use, store the ActionCam in a cool and
dry place with good ventilation. Do not store the ActionCam in a place with high temperature, humidity or dust in
order to prevent abnormal ActionCam operation.
In case of accumulated dirt or dust on the ActionCam, wipe the ActionCam with a soft, clean and dry cloth. In
case of dirt on the ActionCam or lens, gently blow off the dirt to clean.
To clean the surface of the ActionCam lens, first gently blow off the dust, then wipe it with soft cloth or wipe
suitable for cleaning optical instruments. If necessary, please clean ActionCam with lens cleaner. Do not clean the
lens with other cleaning materials, as it may damage the lens.
Touching the surface of the lens with finger may damage the lens.
Before inserting a memory card into the ActionCam, first make a back up of the data, and then format the
memory card for ActionCam use.
An external TF card is necessary for use with the ActionCam. The following may cause loss or damage of the
data:
1. Improper use of the memory card.
2. A broken or damaged memory card.
3. High temperatures and humidity or direct sunlight.
4. Static fields or electromagnetic field nearby.
5. Taking out the memory card while the ActionCam is on or while in use when plugged into a computer (when
memory card is reading, writing or formatting).
7. Using a memory card that is no longer in good working condition.
8. If the ActionCam freezes, press the reset hole on the bottom of the ActionCam with a paperclip. All data on SD
card will be lost.

2
About the Product
About the Product
This product is compact and features easy installation.
The product features high definition video and dynamic images. Even under low illumination, video can be
recorded, and it also supports AVI video format.
Support VGA (640x480) and HD (1280x720) capturing.
Three different image size options: 5M, 3M and 1M.
This product supports time and date watermark function. The time and date can be displayed while
recording.
USB 2.0 port
Support max. 32G TF card.
This product features loop recording. New video and images will replace the oldest files. Be sure to save all
files when the “Full Memory” message appears on the screen before the oldest files are erased.
This product is equipped with on-site replay function. You may check the video recorded on-site with the
display.
System Requirements
System Requirements
System Requirements
Operation system
Microsoft Windows 2000, XP, Vista, 7, or more
CPU
Above Intel Pentium III 800MHz or equivalent CPU
Memory
Minimum 512MB
Sound card, video card
Sound card and video card should support DirectX8 or higher version
Hard disk
Over 500MB free space
Others
1 standard USB1.1 or USB2.0 interface

3
ActionCam
ActionCam Overview Overview
Key/Indicator
Function
Power On/Off
Power the ActionCam on or off. In menu mode, switch between normal (effect parameters and replay of
image, video) and setup menu.
Shutter-Release Button
In video mode, press to start/stop recording video. In capture mode, press to take a picture. In replay
mode, press to replay a video. In menu mode, press to confirm your selection.
Up key
Capture/Video Mode: Zoom In
Menu Mode: Scroll up in Menu Selection
Replay Mode: Pause/Play Video
OK key
Open or Exit Menu.
Replay Mode: Stop playing video
Down key
Capture/Video Mode: Zoom Out
Menu Mode: Scroll Down in Menu Selection

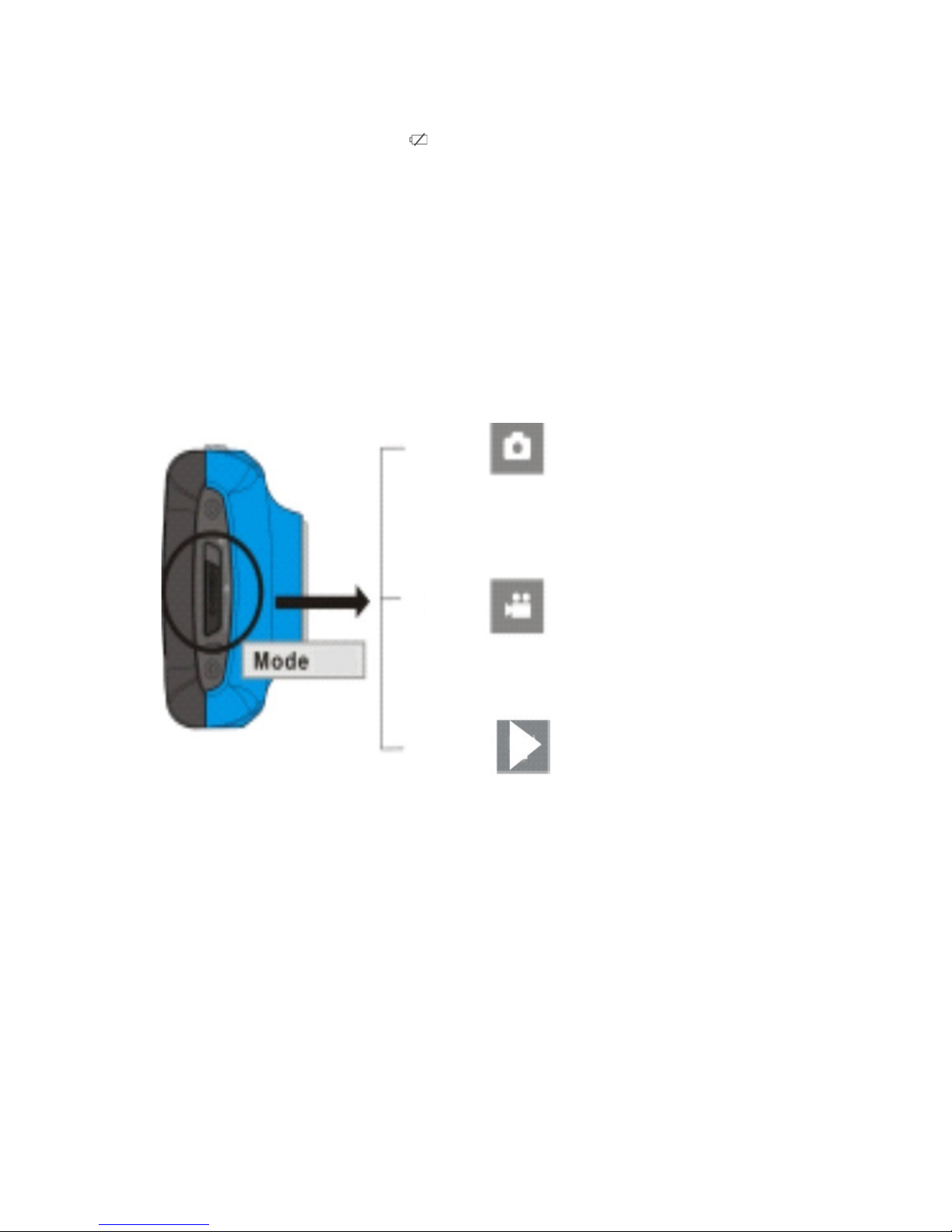

Mode switch
Switch between Capture Mode, Video Mode, and Replay Mode.
Light Indicators
The top light is a charging indicator.
In power-off state, the indicator will be lit when the
ActionCam is charging.
The bottom light is an
operation indicator.
Operation indicator will flash once when taking a picture. In
charging mode, the operation indicator will be lit.
Mode switch:
-Photograph
-Video
-Replay
Lens
LCD TFT
Power ON/OFF
Shutter
Charging Indicator
Operation Indicator
Up Key
OK Key
Down Key

4
Preparation
Preparation
1. Charge built-in lithium battery
In power-off state, connect the ActionCam to a computer to begin charging. The charger indicator will light up when
charging, and will turn off when the ActionCam is fully charged. Generally, it takes about 2-4 hours for the
ActionCam to be fully charged.
2. Use memory card
1. Fully insert a memory card into the memory card slot.
2. To take out the memory card, gently press down the memory card to eject.
Note: The ActionCam is not equipped with a built-in memory, and thus a memory card is required.
3. Power On/Off:
1. Power On: Press and hold the power key for 3 seconds. The screen should turn on and the ActionCam will enter
the startup state.
USB 线
Charger Indicator Lights

5
2. Power Off: In idle state of the ActionCam, press the power key to turn the ActionCam off.
Automatic Power Off: When the ActionCam is left in an idle state, it will automatically turn off to save power.
The default time of the system automatic power off is 5 minutes.
3. Power Off due to low battery: In case of extremely low battery, the low battery icon “ ” will appear on the
LCD screen. This indicates that you need to charge the ActionCam battery. When the icon turns red and
flashes, the ActionCam will automatically power off.
4. Functional ActionCam Modes
The ActionCam is equipped with three modes: capture, video and replay mode. After power-on, you can switch to
each mode with the Mode switch.
Capture mode: Take pictures.
Video mode: Record video (5 minutes, 3 minutes, and 1 minute).

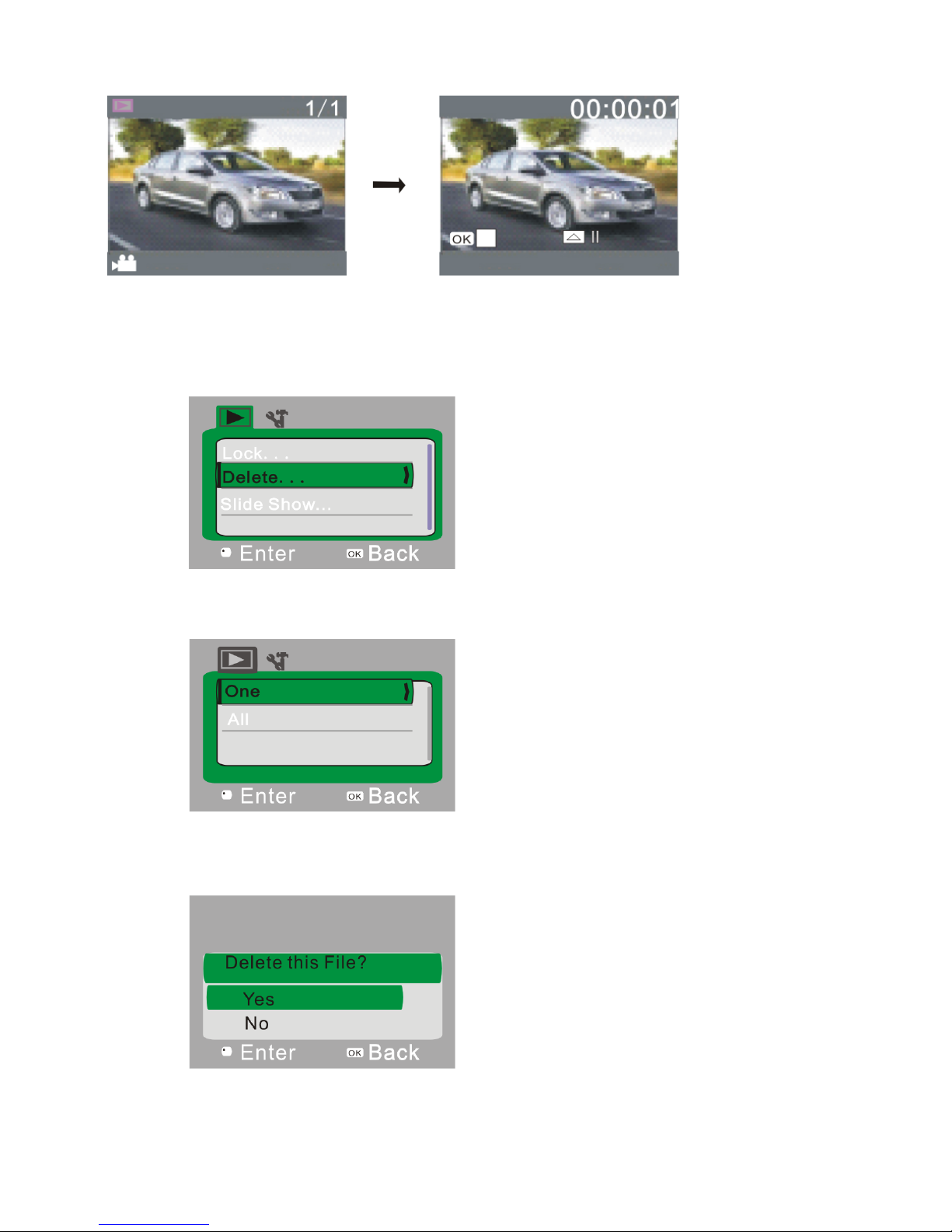

Replay mode: Picture and video file playback.
5. Indicators
Operation indicator: When the ActionCam is powered on (e.g. recording video, capturing or automatic screen
turn-off), the operation indicator lights up.
Charger indicator: Indicator light is constant to notify you that your ActionCam is being charged.

6
6. Video Mode
When switching to video mode, press the shutter-release button to enter preview state to start recording
video. To stop video recording, press the shutter-release button again. If the memory card becomes full
while video recording or the battery is too low, the ActionCam will automatically stop recording.
1. 00:00:01: Time Meter: Indicates the time of video being recorded
2. : Video Mode icon: Indicates video recording mode.
3. : Loop Record Video Time icon: Indicates the current loop
video recording time is 3 minutes.
4. : Movie Size: Indicates the current video size is 720P.
5. : Indicates memory card is inserted.
6. : Digital Zoom Magnification: Press Up and Down key to
adjust the zoom between 1x-4x.
7. : Battery icon: Indicates the current battery level.
8. : White Balance icon: Indicates the current white balance mode is automatic.
9. : Metering icon: Indicates the current exposure mode.
Video Menu Setup
In video mode, press the OK key to open the menu. Press the Up and Down key to scroll through menu selections.
When selecting a menu option, the background of the currently selected item will be highlighted. Press the
Shutter-Release button to enter the sub-menu. In the sub-menu, press the Up and Down keys to scroll through
menu selections. Then press the Shutter-Release button to confirm your selection and go back to the main menu.
In the main menu, press OK key to exit the menu screen.
▲Video Menu

7
Video Menu Options
Main Menu
Sub-Menu
Description
Video format
1280x720
High-resolution format.
640X480
Medium-resolution format.
Recording int
Off
Power off recording
1min
Set record for 1 minute as a repeating phase.
3min
Set record for 3 minutes as a repeating phase.
5min
Set record for 5 minutes as a repeating phase.
Metering
Central
metering
Metering subject to the central area.
Multi-point
metering
Metering subject to multi-points.
Point metering
Metering subject to one point.
White balance
Automatic
Using automatic white balance, suitable for most environments.
Daylight
Suitable for daylight environment.
Cloudy
Suitable for cloudy environment.
Fluorescent
light
Suitable for fluorescent light source environment.
Tungsten light
Suitable for tungsten light source environment.
Special effect
Normal
Normal effect.
White and
black
White and black effect.
Sepia
Sepia effect.
Negative film
Negative film effect.
Red
Reddish effect.
Green
Greenish effect.
Blue
Bluish effect.
Date stamp
Off
Turn off display date/time on the file.
Date
During capture/record mode, display date on right bottom corner
of the file.
Date and time
During capture/record mode, display date and time on right
bottom corner of the file.
7. Video recording:
Push the Mode switch to Video Mode. Open the menu, press the Down key, and then select “REC interval”. Then
press the shutter-release button to enter the sub-menu with the 1-minute, 3-minute, and 5-minute recording loop mode
options. Select a recording loop option and press the OK key for confirmation. Press the OK key again to exit from
the menu. Press the shutter-release button to start video recording. During video recording, the ActionCam will
automatically stop recording video based on your 1-minute, 3-minute, or 5-minute selection and will immediately
start a new video recording with the same time limit. This process will continue until you press the shutter-release
button to stop recording or when the memory card is full.
WARNING!When the memory card is full, the earliest recorded files will be deleted to create space for new
video recordings. This process will continually repeat when loop recording is on.

8
▲Open video recording menu ▲Select loop recording time ▲Exit from menu and and press
and press OK to confirm the shutter-release button to start loop recording.
Note: When selecting OFF in “REC interval” menu, the ActionCam will return to normal recording. Normal
recording has no time limit. You must press the shutter-release button to stop recording.
8. Capture Mode:
Push Mode switch to Capture Mode. Press shutter-release button once to preview captured images.
1. 9999: Counter: Indicates quantity of picture space available.
2. : Mode icon: Indicates ActionCam is in Capture Mode.
3. : Movie Size: Click this icon to select among 1M/3M/5M.
4. : Indicates memory card is inserted.
5. : Digital Zoom Magnification: Press Up and Down key to
adjust the zoom between 1x-4x.
6. :Battery icon: Indicates current battery level.
7. : Self-Timer icon: Indicates the self-timer mode is set to 10 seconds.
8. : White Balance icon: Indicates the white balance mode is automatic.
9. : Metering icon: Indicates the current exposure mode.
Capture Menu Setup
In capture mode, press the OK key to open the menu. Press the Up and Down key to scroll through menu selections.
When selecting a menu option, the background of the currently selected item will be highlighted. Press the
Shutter-Release button to enter the sub-menu. In the sub-menu, press the Up and Down keys to scroll through
menu selections. Then press the Shutter-Release button to confirm your selection and go back to the main menu. In
the main menu, press OK key to exit the menu screen.
▲Capture Menu

9
Capture Menu Options
Main Menu
Sub-Menu
Description
Image size
2592 x 1944
5-megapixel resolution.
2048 x 1536
3-megapixel resolution.
1280 x 960
1-megapixel resolution.
Image quality
Excellent
Best quality image.
Good
Good image quality.
Normal
General quality image.
Metering mode
Central Metering
Metering subject to the central area.
Megapixel
resolution
Metering subject to multi-points.
Point Metering
Metering subject to one point.
White balance
Automatic
Using automatic white balance, suitable
for most cases.
Daylight
Suitable for daylight environment.
Cloudy
Suitable for cloudy environment.
Fluorescent light
Suitable for fluorescent light source
environment.
Tungsten light
Suitable for tungsten light source
environment.
Exposure
/
Use Left and Right Keys to adjust
exposure.
Capture mode
Off
Use general single-shot mode.
2s
Use 2 sec. delay self-timer mode.
10s
Use 10 sec. delay self-timer mode.
Continuous
shooting
Use continuous shooting.
Special effect
Normal
Normal effect.
White and black
White and black effect.
Sepia
Sepia effect.
Negative film
Negative film effect.
Red
Reddish effect.
Green
Greenish effect.
Blue
Bluish effect.
Date stamp
Off
Turn off displaying date/time on the
file.
Date
During capture/record mode, display
date on right bottom corner of the file.
Date / time
During capture/record mode, display
date and time on right bottom corner of
the file.

10
9 Playback Mode:
9.1 After powering on, push Mode switch to Playback mode:
1. : Mode icon: Indicates ActionCam is in playback mode.
2. : Indicates number of files in a folder.
3. : Indicates that the current folder is locked.
4. : Indicates current file is a video file.
9.2 Playback Menu Setup
In playback mode, press the OK key to open the menu. Press the Up and Down key to scroll through menu
selections. When selecting a menu option, the background of the currently selected item will be highlighted. Press
the Shutter-Release button to enter the sub-menu. In the sub-menu, press the Up and Down keys to scroll through
menu selections. Then press the Shutter-Release button to confirm your selection and go back to the main menu. In
the main menu, press OK key to exit the menu screen.
▲Playback Menu
Playback Menu Options
Main
menu
Sub-menu
Description
Lock
Lock/Unlock
this file
Lock/Unlock this file.
Lock all
Lock all files.
Unlock all
Unlock al files.
Delete
Delete this
file
Delete the current file.
Delete all
Delete all files.
Slide
Show
Start
Start playing slide show.
Interval
1 second -10 seconds.
Repeat
Yes/No.

11
9.3 Play Movie Clips:
During video playback, press the shutter-release button to play video. Press the Up key to pause. Press the
shutter-release button again to stop playing video.
9.4 Delete File:
1) After selecting the file to be deleted, open the menu, and press the Up/Down key to select “Delete”.
2）Press the Shutter-Release button to enter the sub-menu. Select “One”, and then press the Shutter-Release button
again to confirm. “All” means to delete all files.
3) After selecting “Yes”, press the Shutter-Release button to delete the file. When the file is deleted, press OK key to
exit from the menu.

12

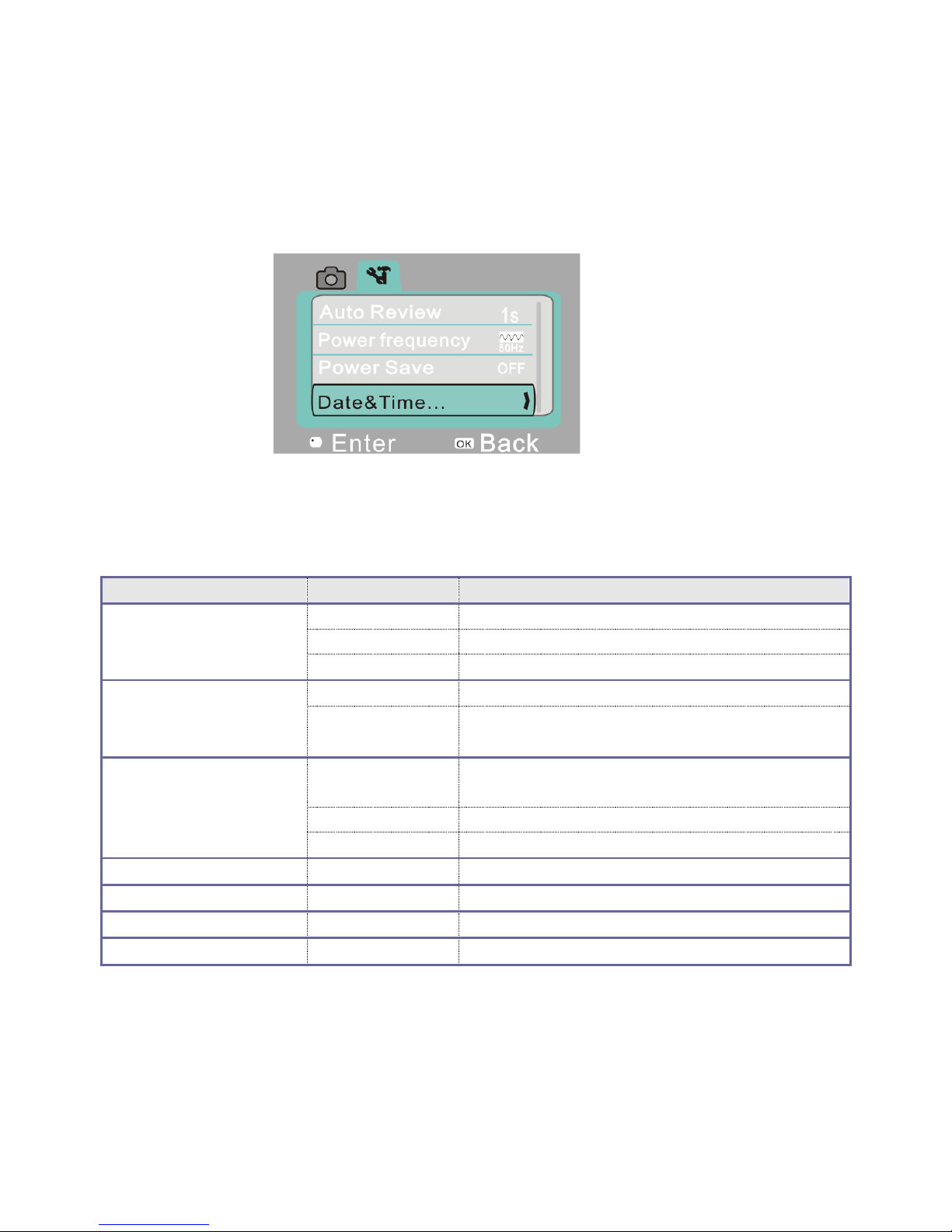

10. System Setup Menu:
In capture mode, video mode or playback mode, press the OK key to open the menu. Press the Up and Down key
to scroll through menu selections. When selecting a menu option, the background of the currently selected item
will be highlighted. Press the Shutter-Release button to enter the sub-menu. In the sub-menu, press the Up and
Down keys to scroll through menu selections. Then press the Shutter-Release button to confirm your selection and
go back to the main menu. In the main menu, press OK key to exit the menu screen.
▲System Setup Menu
System Setup Menu Options
Main Menu
Sub-Menu
Description
Automatic Playback
Off
No playback review after capture.
1 second
Playback review 1 second after capture.
3 seconds
Playback review 3 seconds after capture.
Power frequency
50Hz
Set to 50Hz light source frequency.
60Hz
Set to 60Hz Playback performed 1 second later
after capture.
Automatic shutdown
1 minute
Automatic shutdown within 1 minute of idle time.
3 minutes
Automatic shutdown 3 seconds after capture.
5 minutes
Automatic shutdown 5 seconds after capture.
OFF
Cancel automatic shutdown.
Date and time
/
Set up date and time format.
Language
/
Set up the language.
Format
Yes/No
Format memory card.
Default value
Yes/No
Back to default value.

13

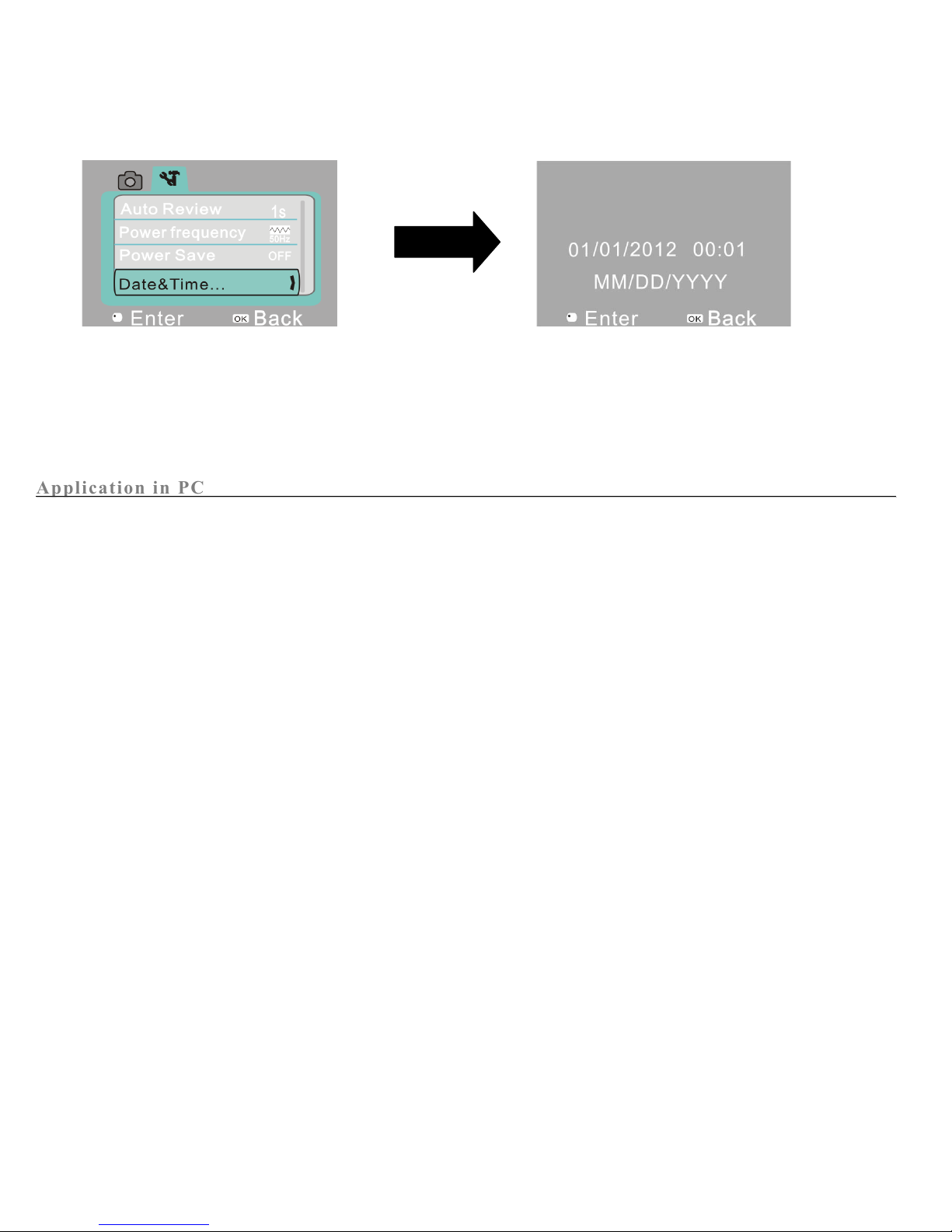

Setting the Date and Time:
Press the OK key to open the menu, and press the power button to enter the setup menu. Press the Down key to select
“Date & Time”. Then press the shutter-release button to enter the setup menu for Date and Time.
In the Date and Time menu, press the power button to select the item you want to set (date, time, year, etc.). The
selected item will be highlighted in yellow. Then press the Up or Down key to adjust the date and time. Once the date
and time is set, press the shutter-release button to confirm your changes. Press the OK key to exit the date and time
setup and return to the previous screen. Press the OK key again to exit the setup mode.
Application in PC
Application in PC
1. Connect to a PC
The ActionCam is equipped with a plug and play function. Connect the ActionCam to the computer with a USB
cable.
A portable hard disk icon will be shown in “My Computer” on your PC. Captured images and are stored in the
portable hard disk folder I:\DCIM\100MEDIA (“I” indicates equipment portable hard disk)
Under the environment with electrostatic discharge, the product may be hanged and the PC-link could not be
maintained. If the portable hard disk icon can’t be found in the “My Computer” section of your PC, you may have
to disconnect the ActionCam and reconnect again.
2. Use Computer ActionCam Function
After connecting the ActionCam to the computer, press the OK key to enter ActionCam mode.

14
Technical Parameters
Technical Parameters
Image sensor
1.3 megapixel (CMOS)
Function mode
Video, Capture, Car Mode, Portable Disc,
PC Cam
Lens
F3.1 f = 6.5mm
Digital zoom
4x
Shutter
Electronic shutter
LCD display
1.77” TFT screen
Image resolution
5M (2592 ×1944), 3M (2048 ×1536), 1M
(1280 ×1024)
Video resolution
VGA: 640 x 480 (60 frame/second); 720P:
1280 x 720 (30 frame/second)
White balance
Automatic / Sunny / Cloudy / Fluorescent
light / Tungsten light
Exposure
-2.0 ~ +2.0
File format
Video
AVI
Imag
e
JPEG
Storage medium
TF card (Max. support 32GB)
USB interface
High-speed USB 2.0 interface
Power supply
Built-in 3.7V chargeable lithium battery
Dimensions
(LxWxH)
62 x 43 x 27mm
Weight
Roughly 48g
Standard package
Standard package
ActionCam User Manual USB cable

15
Accessories:
1) Waterproof Case:
The transparent case included with this product allows you to capture movies or photos in wet conditions, even in
the water. To do this, simply select the desired mode (photo or video), select the desired criteria, and place the
ActionCam in the waterproof case. Make sure the ActionCam is secure, and that the case is locked shut with the
locking clip. Once the ActionCam is inside the waterproof case, the buttons can be pressed by pushing the buttons
located on top of the waterproof case.
Warning:
- Once the ActionCam installed in the case make sure that all seals are in place to prevent water intrusions.
- Do not use an aggressive cleaning product such as acetone to clean the case to prevent permanent damage.
2) Handlebar clamp:
The handlebar clamp allows the ActionCam to attach on to handlebars or other bars of the same type.
3) Helmet Clamp:
The ActionCam can be fixed on a ventilated helmet, with the provided strap and the helmet kit.
Locking clip

16
Note About Disposal
Older appliances should not be discarded with household waste. You must take them to a specific disposal site
(check with your local authority) or to your retailer. These sites will guarantee disposal without harming the
environment
