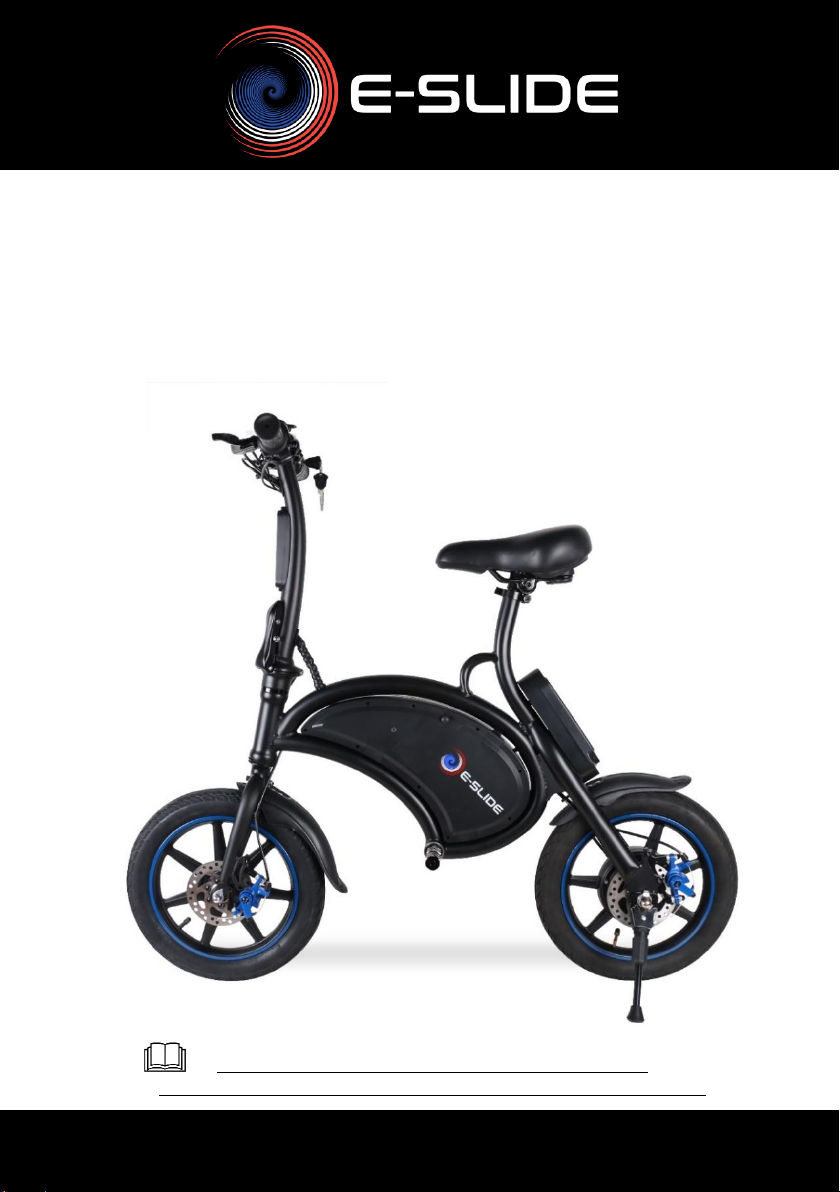

E-Slide ES1410D User manual

USUER MANUAL
Original Version
BALANCE BIKE ELECTRICAL 14 INCH
ESLIDE ES1410D
Important: These instructions are for your safety.
Read carefully before use and keep them for future reference.

Page2
1. Warnings / Residual Hazards / Precautions for Use
a. Warnings / Precautions for use
b. Residual risks
c. Handling / Transport / Storage / Battery
i) Handling / Transport / Storage
ii) Battery
2. Product description
a. Description/Presentation
b. Mounting accessories
i) Mounting the footrests
ii) Saddle assembly
iii) Mounting the fenders
c. Technical characteristics (technical table)
3. Functions
a. Pin System: Folding / Unfolding the Handlebar
i) Pin System: Unfolding the Handlebar
ii) Pin System: Handlebar Folding
b. Buckle System: Folding / Unfolding the Handlebar
i) Buckle System: Unfolding the Handlebar
ii) Buckle System: Handlebar Folding
c. Protection against unauthorized use
d. Charge the battery of the balance bike
i) Description of the charging of the battery
ii) Warnings on the load
e. Functions
i) Parking Position
ii) Turning On / On the Balance Bike
iii) Front / Rear Lighting
iv) Horn
Content of the manual

Page3
v) Start / Driving
vi) CRUISE CONTROL Mode
vii) Braking
4. Cleaning / Maintenance / Repairs
a. Cleaning
b. Brakes: maintenance / adjustments
i) Adjustment of brake cable tension
ii) Brake Caliper Adjustments
c. wheels
i) Inflation
ii) Wheel Alignment
iii) Warnings on shocks
5. Warranty
6. Logotype information used
7. Legal indications
Imported by DPA EUROPE
Gildo Pastor Center - 7 Rue Gabian, 98000 MONACO
User manuals in Spanish and Dutch are available at
www.dpa-europe.com.

Page4
Warnings-ResidualHazards-PrecautionsforUse
a) Warnings/Precautionsforuse
The falsification (or change) is to alter or distort
something voluntarily. It is forbidden to change
the balance of the electric bike and its charger
(for example with non original parts,
unclamping...) A any falsification modifies the technical data
and the safety of the product. Your liability in the event of
forgery: the guarantee will no longer apply and your insurance
will not indemnify you in an accident. You have to
disassemble the unit or change the components of this
product in any way. Do not open the device, if it has a load
fault or operating, contact the seller immediately, do not try to
repair it by yourself.
Safety rules for the foldable electric Balance Bike ESLIDE
ES1410D
The foldable electric Balance Bike ESLIDE ES1410D can not
be used by children. It can be used by people with physical,
sensory or mental capabilities or reduced without experience
or knowledge, are they (if they) are properly guarded (e) s or if
instructions relating to the use of the device safely have been
given and if the risks involved were arrested. Children must
not play with the appliance. Cleaning and maintenance by the
user may not be made by children without supervision.
Children must not use or play with the balance of the electric
bike the foldable electric Balance Bike ESLIDE ES1410D
should be used only with the charger provided HTL-180-
42015000.
The foldable electric Balance Bike ESLIDE ES1410D be
supplied only under very low safety voltage corresponding to
the marking of the unit.

Page5
Conditions to ensure good stability during use, transportation,
Assembly or disassembly: users must not exceed the weight
indicated in the specifications for the maximum weight,
otherwise the driver might fall and be hurt, or even damage
the service balance (stability) of the device. Raise the stand
and put both feet on the ground for balance (stability) before
starting.
This device is allowed to use only on private roads and is
tolerated on some pedestrian routes. Make sure you take
knowledge of local regulations. Please make sure these
different regulations.
Please use this product only in authorized places, if this place
requires a permit, please submit a request. Do not use the
product on the floor. The device is not a peer device. Do not
drive in dimly lit places, in the dark or at night.
The traffic in the city has many obstacles to overcome, such
as borders or markets. It is recommended to avoid the
jumping. It is important to anticipate and adapt your trajectory
and speed to a pedestrian before these obstacles. It is also
recommended to get out of the vehicle when these obstacles
become dangerous because of their shape, their height or
their landslide.
Please respect pedestrians that you fly the aircraft. Avoid
scare pedestrians, especially children and elderly people.
When you miss a pedestrian must slow down and pass
pedestrians as far as possible. You must strictly follow the
instructions of safety devices listed in this manual. Society
cannot be made responsible for an injury or an accident any if
the instructions have not been followed. Do not lend your
device to someone who has not been trained in its use. Be
sure that this person is wearing suitable protective equipment.

Page6
While driving, you might be exposed to unexpected hazards or
dangerous situations that can lead to serious injury, please
adopt a prudent and careful driving.
Equipment protection when you use the Balance Bike Please
wear shoes and an outfit suited, together with all the
necessary protection: a helmet, knee pads, elbow pads and
other protections. Use at least the following protective
equipment: protection of the hand / wrist, knee, head and
elbow-
You also must always wear shoes when you manipulate the
Balance Bike (maintenance, installation, repair...)
The sound pressure level, expressed in dB (A) at the level of
the ears of the driver is less than 70 dB (A).
Should make no change which is not notified in the
manufacturer's instructions. In case of accident, please stay
put and wait for rescue. Failure, contact the retailer or after-
sales Service if the wheels are blocked, remove objects that
may be responsible for blocking and redo the wheel of the
engine in a vacuum. If the handlebar is blocked, make sure
you carefully check if objects are not responsible for the
blocking. In all cases, please do not use the Balance Bike if
the wheels and handlebars are blocked. Please take the
provisions of safety in the event of deadlock that could
intervene while driving.
Take the time to learn the basics of the practice to avoid any
accident that may occur in the first few months; In all cases,
anticipate your path and your speed in respecting the highway
code, the code of the sidewalk and the most vulnerable;
Notify your presence when you're approaching a pedestrian or
a cyclist when you are not seen or heard.
Walk across the protected passages. In all cases, take care of
you and others.

Page7
The hobby is not intended for aerobatic use. Do not lend your
Balance Bike to someone being unfamiliar with the device. Do not
drive after consuming alcohol or drugs. You need to subscribe to an
insurance policy for this kind of device in the case of a damage or
injury caused to a third party but also in the case of an injury of the
user. Please check with your insurer. Do not allow children under
14 years, the elderly and pregnant women to use the Balance Bike
One person at a time can use the product. There is no maximum
size limit for the use of the Balance Bike. This device is designed
for personal enjoyment, it is forbidden to be used to transport
people.
Beware, the brake may become warm during use. Do not
touch after use. Periodically check the tightening of various
components bolted, in particular the axles of the wheels, the
folding system, the direction and the brakes. Eliminate sharp
edges caused by usage. Do not alter or transform the
Balance Bike, including a fork, the frame, the folding
mechanism and brakes to disc etc...
Always check that the steering system is correctly adjusted
and that all elements of connection are tight and are not
broken.
Important: During all handling operations to prepare the
use, be careful to avoid pinching or wedging.
The system of braking becoming hot when used in prolonged
or repeated manner, should not touch after having slowed
down.
Attention, in the lifetime of the product, due to its use and the
constraints it undergoes are self-locking nuts and other
fasteners anti-unscrewing can lose their effectiveness.
In order to ensure the safety of all, the device must be able to
stop at any time. Don't be distracted while driving, answering
the phone, listening to music or doing any other activity. Avoid
obstacles, smooth surfaces, snow, ice and unstable surfaces.

Page8
Avoid irregular objects like roll on a branch, waste, pebbles,
Cobbles streets.
Use on rough passages or too long could lead to many
vibrations of the body that can trigger some pain, use the
Balance Bike in a reasonable manner in order to limit these
risks. Avoid tight spaces or spaces with obstacles. Does not
allow driving on slippery roads in rainy weather. Avoid steep
slopes. Do not ride in sand, water puddles, mud, or other
surfaces wet, damp or damaged otherwise you may damage
the electronic components of the device. It is forbidden to use
the balance of the electric bike in dangerous places, with
presence of flammable gases, vapors, liquids, of dust that
could cause a fire or an explosion.
You must be aware that as you roll into a public space you are
subject to strict rules, but also to the risk of falls, collisions with
pedestrians or other vehicles. As for other vehicles, the
greater your speed, more braking.
On a smooth emergency braking do drag the device and
therefore cause fall and injury. It is therefore very important to
adapt his driving style and speed, and to leave a safe distance
adapted with pedestrians or other means of transport. Be
careful and check your speed when you enter a field not
known.
ATTENTION! As any component for mechanical, the Balance
Bike is subject to constraints and a high wear. The various
materials and components can react differently to wear or
fatigue. If the expected component lifetime is exceeded, it may
break suddenly, which may cause injuries to the user. Cracks,
scratches and discoloration in the areas subject to severe
constraints indicate that the component has exceeded its
service life and must be replaced. Always check your device
before use, if you notice that parts are damaged, the battery
has a very low load outfit, tires are worn or abnormally swollen

Page9
or there is a strange noise or malfunction Please do not use
your unit and authorized service center.
Safety rules for le HTL-180-42015000
• Input: 100-240V-50/60 Hz - 1.5 A
• output: 42V - 1.5 A
Operating Temperature: 0 ° C to 40 ° C storage
Temperature:-10 ° C to 45 ° C
The HTL-180-42015000 charger can be used by children at
least 8 years and by people with physical, sensory or mental
capabilities or reduced without experience or knowledge, are
they (if they) are properly guarded (e) s or if they were given
instructions on how to use the device safely and if the risks
were apprehended. Children must not play with the appliance.
Cleaning and maintenance by the user may not be made by
children without supervision.
The HTL-180-42015000 charger is intended only for charging
the battery GB/T18287-2000 of the foldable electric Balance
Bike ESLIDE ES1410D it delivers 42V with a maximum
current of 1.5 A output voltage
If the power cable is damaged, it must be replaced by the
manufacturer, its after-sales service or people of similar
qualification to avoid a danger.
For use indoors or do not expose to rain disconnect the power
before you connect or disconnect the connections on the
battery.
Caution: Explosive gas, avoid flames and Sparks, ensure
sufficient ventilation during charging. This charger cannot be
used to charge batteries or non-rechargeable batteries. This
unit is only intended for the loading of batteries indicated in this
manual. Do not charge batteries NI-/ CAD or other types of
batteries with this device.

Page10
Never charge a frozen battery. If fluid content in the (acid)
battery is frozen, the battery must be thawed. Then, the battery
can be charged.
Store the charger in a dry place (to protect from moisture). The
charger is only suitable for indoor use. Protect from liquids, rain
and snow.
During charging, the battery must be placed in a well ventilated
location. Do not place the battery on top of charger or vice
versa. Never use the charger when he suffered a violent shock
or a fall. In this case, to inspect and repair the unit by a
competent person. Do not use the charger if it has been a shock
or a significant drop or if it is damaged.
For use inside. Do not expose to rain not Ne pas verser pour
liquid on the charger, risk of electric shock do not expose to heat
or excessive light source.
Do not ask other equipment on the charger remove the
defective batteries through the points of approved collection.
a) Residual risks
The correct use of the Balance Bike respecting conditions of
security, does not exclude certain risks of injury and damage.
Residual risks
Détails
Mécanic
Coupure

Page11
Training or imprisonment (caused by
hair, clothing, etc. caught by a moving
parts)
Crushing
Risks of friction or abrasion
Loss of stability
Collision
thermal
explosions
Harmful to health due to hot or cold
surfaces
vibrations
Strong vibrations can be harmful to your
health in case of prolonged use, or if the
product is not used and maintained in
accordance with the instructions
Materials from the
environment
Inhalation of dust and noxious fumes
Formation of dust and explosive fumes
Hydraulic fluids on the track
Damage to property and persons
resulting from the projection of objects.
ergonomic
Repetitive injuries
Bad posture
on-use of personal protective
devices
Battery failure
Unexpected restoration of power
supply after a failure

Page12
i) Handling, Transport, storage, battery
Handling, Transport, storage
During handling and transport of the Balance Bike, avoid all
physical or electrical shocks. During handling, the balance of
the bike must be in position 'parking' (crutch in position open,
on a flat surface or on a slope or hilly), that the charger is
unplugged and the balance bike is off (off). During transport,
the Balance Bike must be turned off (off), properly packed
and protected to avoid all shocks or unwanted marketing, this
can lead to malfunctions of the device, see a deterioration of
the device or battery.
The Balance Bike storage must be in a place fresh, airy, clean
and dry, in the "parking position" (stand in the open position,
on a flat surface or slope or hilly), that the charger is
unplugged and the balance bike is off) extinguished), the place
of storage must not be subjected to large differences in
temperature.
Do not store the Balance Bike outdoors without protection, the
balance of the bike should not be stored subject to bad
weather, even prolonged exposure to the sun damage the
components and the battery.
The balance of the bike can be stored/handled at
temperatures between 5 ° C and 45 ° C. Storage/handling
temperatures must not exceed these.
The hobby can be transported at temperatures between-20 °
C and 60 ° C, temperatures of transport must not exceed
these.

Page13
Storage without use may not exceed 2 months, it will fully
recharge the Balance Bike every 2 months to ensure that the
battery of the Balance Bike damaged.
To ensure that your electric Balance Bike always works
optimally, you must keep the wheel bearings and those of the
lubricated continuously steering column. For this, just to get
the gel or special bearing grease or a drop of silicone lubricant
adapted on each side of the wheel directly into the bearing
and spin the front wheel. This is to well to distribute the
lubricant on the entire turnover.
To grease the bearings of the steering column, you must first
loosen the system of compression with an Allen wrench and
remove the bar and the column to access the bearings. Once
you can access, apply lubricant directly on it and spin them to
distribute the grease evenly.
Always use a special lubricant designed for this purpose.
ii) Battery
YourBalanceBike containsabatteryhighcapacityLithium-Ion,for a
goodsafeuseplease followthefollowingdirections:
oThe battery cover should not be removed by
someone not authorized. Only an authorized
person can open the battery cover. Should no
longerusetheBalanceBike inthefollowingcases:
- Overheating/smoke/strong smell Substance fleeing to the
location of the battery the battery used in the unit contains
dangerous substances.

Page14
- Do not insert in the battery cover. Only an authorized
personcanchangethebattery.Ifthebatteryisdefectiveor
damaged,pleasecontactaspecialistcycleelectricTakara
who can disassemble the Balance Bike and change the
battery.
- The Balance Bike equipped with a battery should not be
nearafire orheat source.
- The Balance Bike equipped with a battery should not be
dippedin acidoralkalineliquid.
- Need toreloadonlytheBalanceBike undertemperatures
between 5 ° C and 45 ° C and use it only under
temperaturesbetween-20° Cand60 °C.
- TomaintainthelongevityofthebatteryoftheBalanceBike
, respect the charge cycle, do not exceed the maximum
chargetime, regularlyrechargethe BalanceBike.
- Duringa prolonged non-use youmust reload the Balance
Bike completely every2months.
- Balance your bike battery is recyclable and must be
recycledordisposedofaccordingto localregulations.
- Therefore the battery of your balance bike should not be
eliminatedasa conventionalhouseholdwasteandshould
neverbecrematedbecausethere isa riskofexplosion.
Please contact the local authorities for practices of
recyclingin yourjurisdiction.
2) Product description
a) Description/Presentation
You have to purchase an electric brand model ESLIDE ES1410D
Balance Bike . This new type of all-electric and nonpolluting mobility
allows you to make recreational activities smoothly and without
fatigue.

Page15
Its14-inchwheelsfittedwithdiscbrakesallowyoutoenjoyyourleisure
timecomfortablyandsafely.
This product must be used on private road. Prohibition of traffic on
roadsopentothepublic.
The power of its engine will take of gentle slopes without effort, the
batterycapacitywillallowyoutoenjoyyourhobbythroughouttheday.
When you use the Balance Bike , please wear suitable clothing, as
wellasallthenecessaryprotection:ahelmet,kneepads,elbowpads
andotherprotections.
DonotuseyourelectricBalanceBike beforereadingthismanualand
beforeyoubefamiliarwiththeunit.
Before using this electric Balance Bike , familiarize yourself with its
operation, this will allow you to keep this unit in the best possible
conditions.
Thismanualcanhelpyoulearnhowtoflythiselectricappliancesafely.
This manual includes all the instructions and usage notes;
Please read carefully and follow these instructions.

Page16
List products elements
19
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
2
14
15
16
17
18
25
20
21
21
24
26
27
28
29
30
32
23
22
31
33

Page17
*Onlyoriginalsparepartsforcriticalsafetycomponentsareallowed.
N°
Nom
Réf.
Piècesdétachées*
1
Left brake handle
ES1401
x
2
Right brake handle
ES1402
x
3
Start button
ES1403
x
4
Handlebar folding ring
ES1404
5
Front lighting
ES1405
x
6
Tire
ES1406
x
7
Front & rear brake disc
ES1407
x
8
Front mudguard
ES1408
x
9
Frame
ES1409
10
Footrest
ES1410
x
11
Inner tube
ES1411
x
12
Crutch
ES1412
x
13
Brake caliper
ES1413
x
14
Rear mudguard
ES1414
x
15
Rear lighting
ES1415
x
16
Saddle
ES1416
x
17
Seat height adjustment buckle
ES1417
x
18
Battery location
ES1418
19
Fork
ES1419
20
Front and rear light button
ES1420
x
21
Brake cable
ES1421
22
Carry handle
ES1422
23
Handlebar
ES1423
24
Throttle grip
ES1424
x
25
Folding buckle
ES1425
26
Handle
ES1426
x
27
Buzzer
ES1427
28
Drums
ES1428
x
29
Front rim
ES1429
x
30
Engine with rear rim
ES1430
x
31
Built-in charger
ES1431
32
Digital display
ES1432
x
33
Lock lock
ES1433
*Sparepartsavailable for2 yearson www.dpa-europe.fr

Page18
Saddle
mudguard
Footrests
Accessories
Manual
Front
Back
CHARGE CABLE
WARNING accessories it is prohibited to use/install the Balance
Bike to the accessories and additional items not approved by the
manufacturer.

Page19
WARNING mounting foot-make sure the Balance Bike
in "parking position" (stand in the open position, on a
flat surface or slope or hilly), that the charger is
unplugged and that the balance bike is off (off).
b) Mounting accessories
i) Foot wedge
Unpackthefootrests.Take the firstfootrestandscrewitclockwise
ontotheindicatedsupport.Takethesecond footrestand screwit
clockwiseon theindicatedsupport :
WARNING assembly/disassembly the Assembly of the
elements when you must follow the directions below
and the precautions to be taken, if you do not comply
with these instructions could cause a malfunction of
the unit and cause a loss of balance (stability), a fall or
accident.

Page20
WARNING assembly/disassembly of the saddle
make sure the Balance Bike in "parking
position" (stand in the open position, on a flat
surface or slope or hilly), that the charger is
unplugged and that the balance of the bike is off
(off ).
ii) Mounting saddle
Remove the protection of the frame tube, and unlock the
clamp loop, take the saddle and unpack her, insert the tip of
the saddle in the frame tube, re - block clamping buckle.
iii)Mounting mudguard
Insertion
of the
saddle
Tightening of the
seat down
Settings of the
saddle upward
