VESPA LX 50 4V User manual

Vespa would like to thank you
for choosing one of its products. We have prepared this booklet to help you to get the very best from your scooter. Please read it carefully before riding
the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and use it for a long
time at full satisfaction. This booklet forms an integral part of the vehicle; should the vehicle be sold, it must be transferred to the new owner.
Vespa LX 50 4valvole

The instructions given in this booklet are intended to provide a clear, simple guide to using your scooter; this booklet also details routine maintenance
procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centres. The booklet also contains
instructions for simple repairs. Any operations not specifically described in this booklet require the use of special tools and/or particular technical
knowledge: to carry out these operations, refer to any authorised Dealer or Service Centres.
2

Personal safety
Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment
Sections marked with this symbol indicate the correct use of the vehicle to prevent dam-
aging the environment.
Vehicle intactness
The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee.
The signs that you see on this page are very important. They are used to highlight those
parts of the booklet that should be read with particular care. As you can see, each sign
consists of a different graphic symbol, making it quick and easy to locate the various
topics.
3

4

INDEX
VEHICLE...................................................................................... 7
Dashboard................................................................................ 9
Analogue instrument panel....................................................... 10
Clock......................................................................................... 11
Key switch................................................................................. 12
Locking the steering wheel.................................................... 13
Releasing the steering wheel................................................ 13
Switch direction indicators........................................................ 13
Horn button............................................................................... 14
Light switch............................................................................... 14
Start-up button.......................................................................... 15
Fuel tank................................................................................... 15
Opening the saddle............................................................... 16
Keys.......................................................................................... 16
Identification.............................................................................. 16
Rear top box opening................................................................ 18
Bag clip..................................................................................... 18
USE.............................................................................................. 19
Checks...................................................................................... 20
Refuelling.................................................................................. 20
Tyre pressure............................................................................ 21
Running in................................................................................. 22
Starting up the engine............................................................... 23
Difficult start up......................................................................... 24
Stopping the engine.................................................................. 25
Anti-theft ring............................................................................. 26
Catalytic silencer....................................................................... 26
Stand......................................................................................... 27
Automatic transmission............................................................. 27
Safe driving............................................................................... 28
MAINTENANCE........................................................................... 31
Engine oil level.......................................................................... 32
Engine oil level check............................................................ 32
Engine oil top-up................................................................... 33
Engine oil change.................................................................. 33
Hub oil level.............................................................................. 34
Tyres......................................................................................... 35
Spark plug dismantlement........................................................ 36
Removing the air filter............................................................... 37
Secondary air system............................................................... 38
Checking the brake oil level...................................................... 39
Braking system fluid top up................................................... 40
Battery....................................................................................... 41
Use of a new battery............................................................. 42
Long periods of inactivity.......................................................... 43
Fuses........................................................................................ 44
Front light group........................................................................ 48
Headlight adjustment............................................................. 50
Front direction indicators........................................................... 51
Rear optical unit........................................................................ 52
Rear turn indicators................................................................... 53
Rear-view mirrors...................................................................... 54
Idle adjustment.......................................................................... 55
Front disc brake........................................................................ 56
Rear drum brake....................................................................... 57
Puncture.................................................................................... 57
Periods of inactivity................................................................... 58
Cleaning the vehicle.................................................................. 59
TECHNICAL DATA...................................................................... 63
Kit equipment............................................................................ 68
SPARE PARTS AND ACCESSORIES........................................ 69
Warnings................................................................................... 70
PROGRAMMED MAINTENANCE............................................... 71
Scheduled maintenance table................................................... 72
5

6

Vespa LX 50 4valvole
Chap. 01
Vehicle
7

01_01
8
1 Vehicle

Dashboard (01_01)
A= Ignition key-switch
B= Horn button
C= Turn indicator switch
D= Light switches
E= Left hand grip
F= Rear brake control lever
G= Left turn indicator warning light
H= Low fuel warning light
I= Not used
L= High-beam warning light
M= Taillights/low-beam lights warning light
N= Right turn indicator warning light
O= Front brake control lever
P= Throttle grip
Q= Start-up button
R= Fuel gauge
S= Speedometer
T= Digital clock
U= Odometer
9
1 Vehicle

01_02
Analogue instrument panel (01_02)
G= Left turn indicator warning light
10
1 Vehicle

H= Low fuel warning light
I= Not used
L= High-beam warning light
M= Taillights/low-beam lights warning light
N= Right turn indicator warning light
R= Fuel gauge
S= Speedometer
T= Digital clock
U= Odometer
Clock (01_03)
Located in the instrument panel, it displays hours and minutes with 1 to 12-hour time,
AM or PM.
Operate the function selection button «B» and month, day and seconds are also dis-
played besides hours and minutes.
Toadjustthedifferentfunctions,selectthedesiredfunctionwithbutton«A»andadjust
with button «B». The time counter can be reset by pressing button «A» with the clock
in the seconds function.
11
1 Vehicle

01_03
The digital clock is powered by a battery (battery life is about 2 years); lift the whole
instrument panel to replace the battery. It is advisable to take your vehicle to an
Authorised Service Centre for this operation.
WARNING
DEAD BATTERIES ARE HARMFUL TO THE ENVIRONMENT. THEY MUST DIS-
POSED OF IN SUITABLE CONTAINERS AS PRESCRIBED BY THE REGULA-
TIONS IN FORCE.
Key switch (01_04)
The key switch «A» is located on the knee-guard panel.
01_04
SWITCH POSITIONS
ON«1»: Ready to start position, non-extractable key, mechanical antitheft device dis-
abled.
OFF «2»: Ignition disabled, extractable key, mechanical antitheft device disabled.
LOCK «3»: Ignition disabled, extractable key, mechanical antitheft device enabled.
12
1 Vehicle

01_05
Locking the steering wheel (01_05)
Turn the handlebar to the left as far as it will go; turn the key «B» to «LOCK » and
remove it.
CAUTION
DO NOT TURN THE KEY TO «LOCK» OR «KEY OFF» WHILE RIDING.
Releasing the steering wheel
Reinsert the key «B» and turn it to «KEY OFF».
CAUTION
DO NOT TURN THE KEY TO «LOCK» OR «KEY OFF» WHILE RIDING.
01_06
Switch direction indicators (01_06)
Lever «D» towards «1» = left turn indicators switched on;
Lever «D» towards «2» = right turn indicators switched on;
The lever «D» automatically goes back to «0» and the turn indicators remain on; push
the lever «D» to turn them off.
13
1 Vehicle

01_07

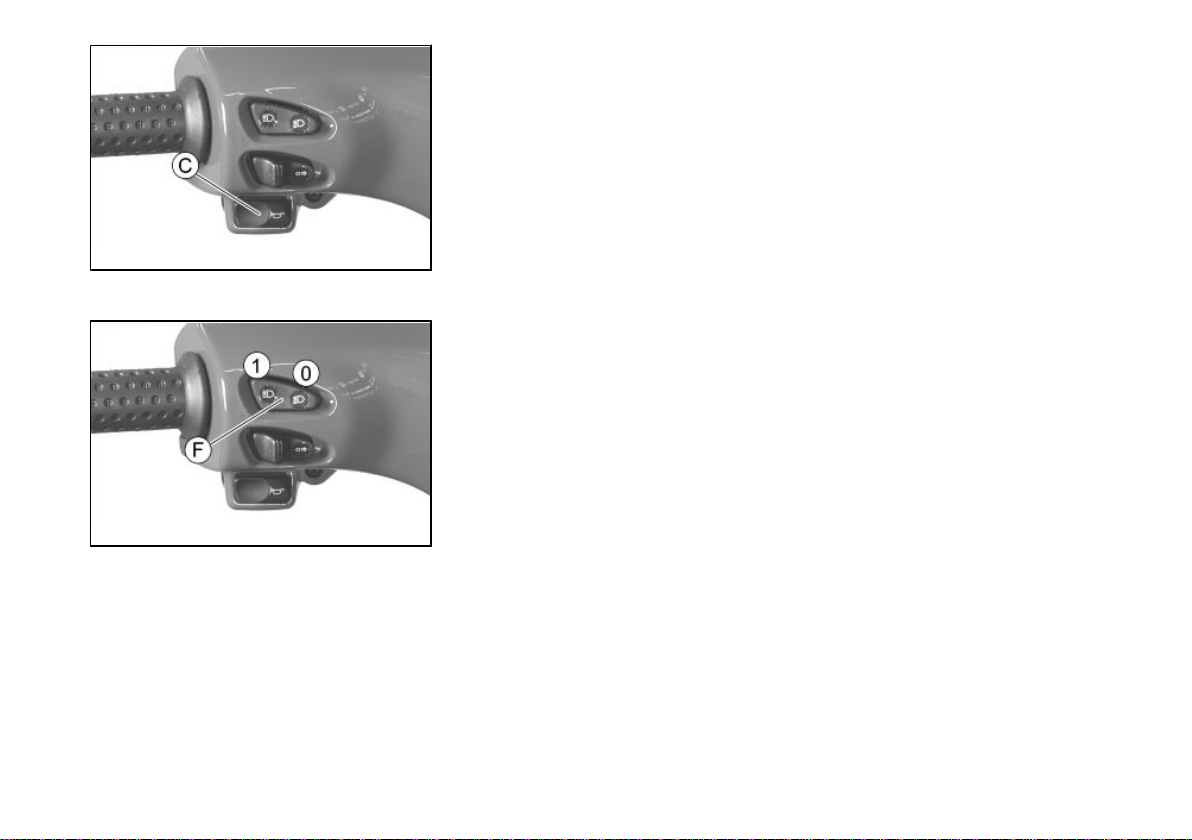

Horn button (01_07)
Push the «C» button to sound the horn.
01_08
Light switch (01_08)
When the light switch «F» is set to «0», the low-beam light is on. When set to «1», the
high-beam light is activated.
14
1 Vehicle

01_09
Start-up button (01_09)
To start the engine, pull either of the two brake levers and then push the button «L».
01_10
Fuel tank (01_10)
The fuel tank cap «A» is under the saddle. To reach it, tip the saddle forwards.
15
1 Vehicle

01_11
Opening the saddle (01_11)
Insertthe key intothe saddle lock«A», turn itanticlockwise and tipthe saddle forward.
01_12
Keys (01_12)
The vehicle is supplied with two keys (one spare) which serve to start the engine and
unlock the saddle compartment. The keys are accompanied by a tag marked with the
identification code to be quoted when ordering duplicates.
WARNING
WE RECOMMEND KEEPING THE DUPLICATE KEY TOGETHER WITH ITS CODE
IN A SAFE PLACE AND NOT ON THE VEHICLE
Identification (01_13, 01_14)
Identification registration numbers are made up of a prefix and a number, stamped on
the chassis and on the engine. These numbers must always be quoted when ordering
spare parts. We recommend checking that the chassis registration number stamped
on the vehicle corresponds with that on the vehicle documentation.
16
1 Vehicle

CAUTION
BE REMINDED THAT ALTERING IDENTIFICATION REGISTRATION NUMBERS
CAN LEAD TO SERIOUS PENAL SANCTIONS (IMPOUNDING OF THE VEHICLE,
ETC.).
01_13
Chassis number
The number «A» is stamped near the battery compartment. Remove the helmet com-
partment to read it.
01_14
Engine number
The engine number «B» is stamped near the rear left shock absorber lower support.
17
1 Vehicle

01_15
Rear top box opening (01_15)
Turn the key to «OFF». Then press it. When the key is set to «LOCK», the glove-box
is locked.
01_16
Bag clip (01_16)
To use the retractable bag hook «B» located at the front end of the saddle, pull it
forward lightly.
18
1 Vehicle

Vespa LX 50 4valvole
Chap. 02
Use
19

02_01
Checks (02_01)
Before using the vehicle, check:
1. that the fuel tank is full.
2. The oil level in the rear hub.
3. engine oil level (see section «Engine oil level»).
4. That tyres are properly inflated.
5. correct functioning of headlights, rear taillight and turn indicators.
6. The correct functioning of the front and rear brakes.
02_02
Refuelling (02_02)
Fill fuel tank«A» with unleaded petrol (minimum octane rating = 95).
When the fuel reaches the reserve level, the warning light fitted on the instrument
panel lights up.
CAUTION
SHUT OFF THE ENGINE BEFORE REFUELLING WITH PETROL. PETROL IS
HIGHLYFLAMMABLE.DONOTLETPETROLSPILLFROMTHETANKORWHILE
REFUELLING
CAUTION
DO NOT BRING NAKED FLAMES OR CIGARETTES NEAR THE MOUTH OF THE
FUEL TANK: FIRE HAZARD. ALSO AVOID INHALING HARMFUL VAPOURS.
20
2 Use
Table of contents
Other VESPA Scooter manuals

VESPA
VESPA LXV 125 3V ie 2013 User manual

VESPA
VESPA KT1510 User manual

VESPA
VESPA GT 125 Guide

VESPA
VESPA S 50 4T 4V User manual

VESPA
VESPA GT 125 Instruction manual

VESPA
VESPA 946 E4 EMEA 2021 User manual

VESPA
VESPA S 50 4T 2V 2012 User manual

VESPA
VESPA RALLY 200 User manual

VESPA
VESPA GTS Super 300 ie 2008 Guide

VESPA
VESPA SPIRIT 150 3V ABS User manual

VESPA
VESPA LX 150 4T Euro 3 Guide

VESPA
VESPA GTS 300 i.e. User manual

VESPA
VESPA 42 L2 Guide

VESPA
VESPA LXV 50 User manual

VESPA
VESPA GTS Super 300 ie 2008 User manual

VESPA
VESPA LXV 125 ie 2013 User manual

VESPA
VESPA ET4 50 Instruction manual

VESPA
VESPA 90 Installation guide

VESPA
VESPA GTV 125 Guide

VESPA
VESPA Vespa GTS 250 User manual
