Eagle EGA510 User manual

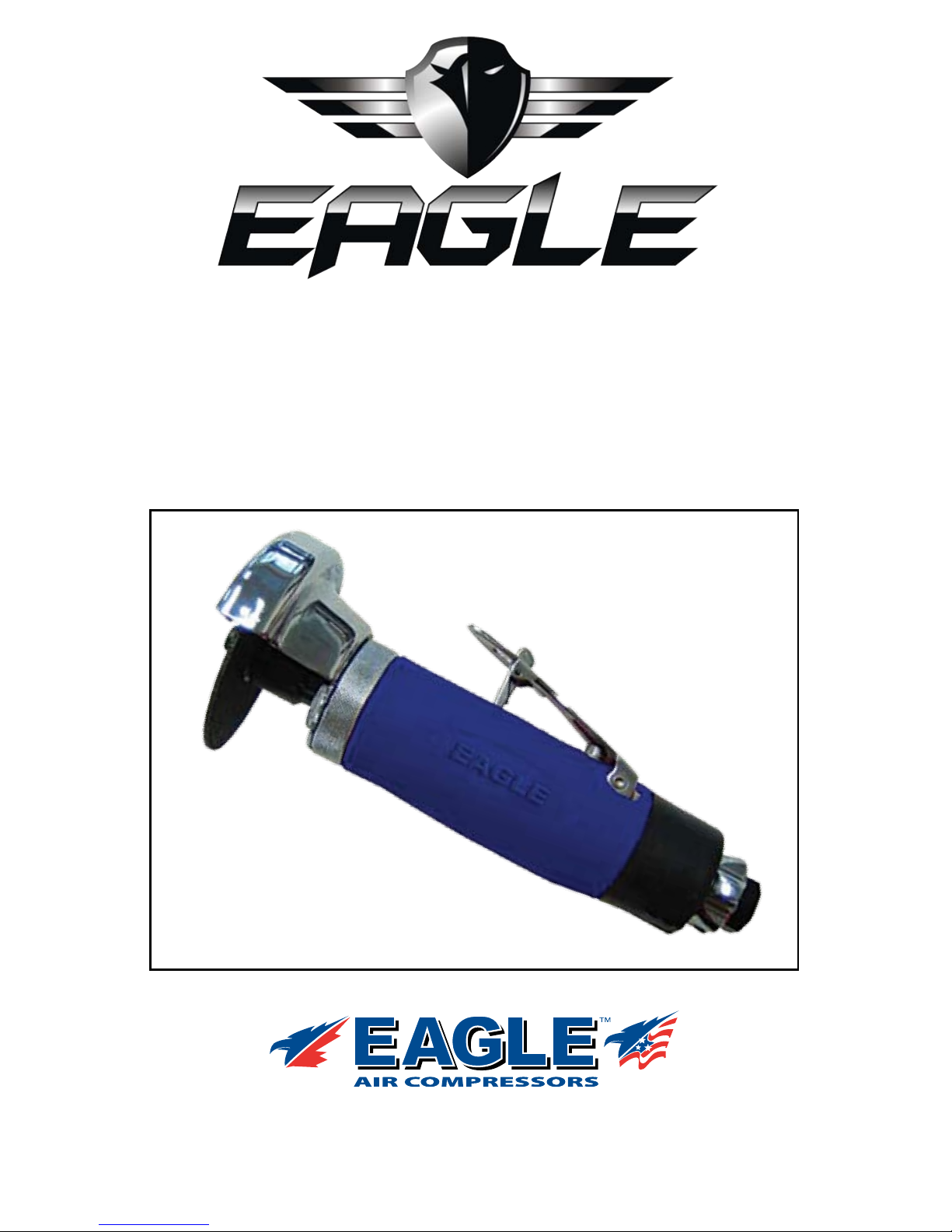

3” CUT OFF TOOL
MODEL EGA510
www.eaglecompressor.com
1-800-551-2406
OWNERS MANUAL

2
Wear hearing protection.
Wear eye protection.
Wear respiratory protection. Read the instruction manual
2
READ THE ENTIRE MANUAL
BEFORE PUTTING THIS TOOL
IN SERVICE
Limited Air Tool Warranty
Wood Industries, Inc. warrants air tools of its own manufacture against defects in workmanship and
materials under normal use and service for twelve(12) months from date of purchase by
original purchaser. Parts are covered by this warranty for ninety(90) days from date of
purchase.
The following expandable items are warranted against defects in workmanship and
materials for ninety(90) days from date of purchase: sockets, screw driver bits and
accessories, sanding and back-up pads, impact mechanism, chisels and their retain-
ers, cutting and grinding accessories and any other expandable items not specically
mentioned.
Normal wear and tear, service or maintenance items such as O-rings, springs, gaskets,
packing or seals, uid needles and nozzles, motor vanes or blades, collets, chucks or
any such item not specically mentioned are covered for ninety(90) days from date of
purchase warranty only.
Eagle will, at its sole discretion, repair or replace the tool or parts that have failed within
the warranty period. If repairs are considered, they will be scheduled in the normal
course of the workow at its service centre.
Not covered under this warranty:
• Indirect or consequential loss or damage or expenses resulting from the
failure or malfunction of this tool.
• Accidents or failures resulting from owners neglect, abuse or failure to oper-
ate and maintain the tool in accordance with the instructions provided in the
owner’s manual.
• Tampering, removal or alterations of safety devices will void this warranty.
• Blemishes or cosmetic defects which do not effect the tool’s operation.
• Tools used industrially, commercially or in rental applications.
To claim warranty the owner/purchasers must provide proof of purchase and mainte-
nance records, and when requested ship or deliver at owner/purchasers expense and
cost to Eagle’s factory or service centre

3
Wear hearing protection.
Wear eye protection.
Wear respiratory protection. Read the instruction manual
3
TABLE OF CONTENTS
Limited Warranty ...............................................................................................2
Description.........................................................................................................3
Inspection..........................................................................................................3
Safety Instructions.............................................................................................3
Before Using This Air Tool .................................................................................5
Operating Instructions .......................................................................................5
Troubleshooting.................................................................................................5
Parts Breakdown...............................................................................................6
Tool Specications.............................................................................................7
INSPECTION
Upon receipt of your new tool, carefully check for any shipping damage. If your new tool is
damaged in shipping you need to le a claim with the carrier at once, and before contacting
Eagle’s customer service department.
Also carefully check to make sure all accessories (if included) are with the tool. Make sure
any loose bolts, ttings etc. are tightened before you put this tool into service.
DESCRIPTION
Eagle Air tools are manufactured in accordance with our strict specications and designed
to be used in light duty professional or serious DIY applications. When used in accordance
with warnings and instructions given in this manual, and when properly applied and main-
tained they should give you many years of productive and trouble free service.
This tool is NOT designed for professional, production or industrial use, when used in these
applications its life expectancy will be signicantly shortened and the warranty will be void.
SAFETY INSTRUCTIONS
You should operate this air tool only if you have read this entire manual, and understand
its content, and you are familiar with safety and proper use when operating this equipment.
This air tool is part of a high pressure compressed air system, the following safety precau-
tions must be followed at all times.

4
Wear hearing protection.
Wear eye protection.
Wear respiratory protection. Read the instruction manual
SAFETY INSTRUCTIONS
1) Always wear protective goggles or safety glasses, hearing protection, protective gloves
and footwear.
2) Air tools can create dust when drilling, grinding, sanding or cutting. This dust can con-
tain substances known to cause cancer, birth defect, etc. Also wear proper breathing
protection.
3) Do not wear loose clothing or jewelry, and ensure long hair is protected with a proper
cover.
4) Do not exceed the maximum operating pressure of this tool or any component in the
air delivery system.
5) Do not depress the trigger when connecting this tool to the air supply system. Always
disconnect the tool from the air supply system when changing attachments.
6) Only use attachments specically designed for use with air tools. Hand tool sockets
can shatter and cause serious injury. Do not use worn or damaged attachments. Make
sure attachments are securely attached to the air tool.
7) Do not point the air tool at yourself or any other person.
8) Never use Oxygen or combustible gases to operate this tool. Use only lubricated com-
pressed air regulated to the recommended operating pressure for this tool.
9) Disconnect this tool from its air supply before attempting to install or change attach-
ments or before attempting any service. Also disconnect the air tool from the com-
pressed air system when not in use.
10) Excessive use of this tool can cause injury due to vibration and fatigue. Do not use this
tool in awkward positions, and avoid repetitive work motions. When feeling discomfort,
numbness, fatigue, tingling or pain stop work immediately and seek medical treatment
and advice.
11) Inspect air hoses, and discard if in worn, weak or damaged condition. Make sure all air
connections are tight and secure.
12) Keep hands away from moving parts
13) Consider working conditions and environment. Do not operate this tool around hazard-
ous gases or ammable gases. Keep your work area neat and tidy and make sure the
work area is well lit.
14) Always use clamping devices to hold all work securely in place, never use hands or
other body parts for holding work. Both hands must be used to operate this air tool,
enabling control and safety.
15) Do not use this air tool if intoxicated, if you are using drugs or medication causing
drowsiness or if you are tired.
16) Do not leave this air tool unattended, and disconnect from the air delivery system when
not in use. Children must be supervised in the proximity of any air tool or work area.
17) Follow air supply manufacturer’s recommendation for connection of regulators, lters
and other accessories. Do not install quick couplers directly on air tool, it puts unneces-
sary strain on the air inlet threads, instead install a short length of air hose to the tool.
Do not over tighten tting connecting to the air tool; this could cause the housing to
crack. Use Teon tape or pipe sealant carefully to prevent excess from entering the air
tool.

5
Wear hearing protection.
Wear eye protection.
Wear respiratory protection. Read the instruction manual
BEFORE USING THIS AIR TOOL
OPERATING INSTRUCTIONS
Add oil throughout the day when using. We highly recommend use of an in-line mini oiler to
accomplish this. Blow out air line to clear dirt and moisture. The air regulator knob can be
used as a throttle if there is no other means of regulating air. Turn the knob all the way in
and adjust outward until desired speed is reached.
Hold the tool away from work when starting. Set it down on the work evenly and make the
cut. When cut is completed, lift tool away from work before stopping the motor. Use only
discs rated at 20000 RPM or higher. Accessory retainers should be used to prevent ejec-
tion of the accessory which might injure persons.
EXCEPTION: Retainers need not be used if in compliance with acceptable safety codes. In
such cases, to avoid injury, the trigger should never be depressed unless the accessory is
held rmly against the work piece. Accessory should be removed when tool is not in use.
To ensure long life be sure to oil the tool daily. Pour 4 drops of Eagle air tool (SEA 20 non
detergent) oil into the air inlet, and then run the tool for a few seconds to clean.
If tool is an impact wrench tted with a “Zirc” grease tting:
The hammer mechanism of this tool also needs to be greased from time to time (depending
on usage). The tool is equipped with grease tting for this purpose; use this connection to
re-grease the tool using Eagle impact wrench grease.
PLEASE USE EAGLE SEA 20 NON DETERGENT OIL
TROUBLESHOOTING
SYMPTOMS CAUSE REMEDY
Air tool does not
run or runs slow. Lack of lubrication. Lubricate as per instructions.
Dirt in tool. Clean with mixture of 50/50 tool
oil/solvent. Lubricate after cleaning.
Insufcient air pressure. Check regulator and air supply for
leaks. Check compressor to make
sure it operates at correct pressure.
Make sure air hose is properly sized
and that multiple hoses are not
connected to same outlet. Check air
hose for leaks and repair.
Rotor blades worn or motor
bearing worn or dirty. Replace blades, inspect clean or replace bearing.
IMPACT WRENCH
does not impact or
impacts slowly.
See causes (above). See remedies (above).
Broken or worn impact
mechanism. Inspect and repair as required.

6
Wear hearing protection.
Wear eye protection.
Wear respiratory protection. Read the instruction manual
PARTS BREAKDOWN
INDEX PART DESCRIPTION QTY
1 44501-1 Housing 1
2 44502-1 Trigger 1
3 14504-1 Pin 1
4 14503-1 Pin 1
5 14503-1 Spring 1
6 14503-1 Lever 1
7 14505-1 O-Ring 1
814506-1 O-Ring 1
9 44509-1 Valve Stem 1
10 38021-1 Spring 1
11 14311-1 O-Ring 1
12 38023-1 Valve Plug 1
13 44513-1 Grip 1
14 44514-1 O-Ring 1
15 44515-1 Exhaust Ring 1

7
Wear hearing protection.
Wear eye protection.
Wear respiratory protection. Read the instruction manual
16 64335-1 Retainer Ring 1
17 64335-1 O-Ring 2
18 64337-1 Air Regulator 1
19 64338-1 O-Ring 1
20 64339-1 Air Inlet 1
21 64341-1 Spring 1
22 54941-1 Ball 1
23 14515-1 Bearing 1
24 14516-2 End Plate 1
25 14517-1 Ball 2
26 14518-1 Rotor 1
27 14519-1 Rotor Blade 4
28 14520-2 Cylinder 1
29 14521-2 Bushing 1
30 14524-1 Pin 1
31 14523-2 Front Plate 1
32 14525-1 Bearing 1
33 14826-1 Collet Holder 1
34 54834-4 Retainer 1
35 64341-1 Spring 2
36 54941-1 Ball 2
37 54837-1 Clamp Nut 1
38 54839-1 Pin 2
39 54838-1 Plastic Protector 1
40 54840-1 Nut 1
41 14830-1 Cutting Wheel 1
42 14831-1 Washer 1
43 14832-1 Screw 1
44 14833-1 Wrench 1
45 14834-1 Wrench 1
Arbor hole size...............................................................................................................3/8”
Maximum cutting capacity.............................................................................................3/4”
Wheel diameter ................................................................................................................3”
Air pressure (PSI)............................................................................................................90
Average air consumption (CFM).....................................................................................4.0
Free speed (RPM).....................................................................................................20000
Air inlet (NPT)................................................................................................................1/4”
Hose size (ID)................................................................................................................3/8”
