Eaglemaster E5 User manual

IMPORTANT:
Please read the entire manual for complete details on the features, accessories and
operation before attempting to use your security system.
This Security system must be installed by a qualified technician to ensure proper
operation. Do not attempt to install or modify this system yourself as
this way void your warranty.
2-WAY CAR ALARM SYSTEM
Instruction manual

Table of contents
About your system
System maintenance
Remote battery replacement
LCD 2-way configuration
1-way remote description
2-way & 1-wayremote function table
Standard LCD 2-wayicon instructions
Standard features
ToARM the system
Defective Zone Bypass& Alert
Auto Reset
Arm without sirenchirp
ToDISARM the system
Programming 2-way remote
Disable remote receiving
Remote button 1.2.3on/off
Vibrate mode on/off
Time adjust mode
Alarm clock setting
2-way signal pagingfeatures
Command Page
Alarm Page
Page Recognition (Acknowledgement)
Check-in range notification(on/off )
Reminder disarm status(Programmable)
Vehicle statuschecking
Turn on LCD display backlight
Intrusion Alert
2-way LCD IntrusionAlert
Disarm without sirenchirp
Silent arm mode
Automatic REARM (programmable)
Passive arm (programmable)
Panic mode
Dual stage shocksensor
Remote sensor bypass
Car search mode
Confort /window close
Valet mode
Ignition controlled doorlock/unlock(programmable)
Ch-4: 2nd stagedoor unlock (programmable)
Ch-4: Remote latched(programmable)
Passive immobilizer (programmable)
Arming without Remotecontrol (programmable)
1.
2.
2-1.
3.
4.
5.
6.
7.
7-1.
7-2.
7-3.
7-4.
7-5.
8.
8-1.
8-2.
8-3.
8-4.
8-5.
8-6.
8-7.
9.
9-1.
9-2.
9-3.
9-4.
9-5.
9-6.
9-7.
9-8.
9-9.
9-10.
9-11.
9-12.
9-13.
9-14.
9-15.
9-16.
9-17.
9-18.
9-19.
9-20.
9-21.
9-22.
3
4
4
4
5
5
6
9
9
9
9
10
10
11
11
11
11
12
12
12
12
13
13
13
13
13
14
14
14
15
15
15
15
16
16
16
17
17
17
17
17
17
18
18
-1-
Page

2nd step disarm
Remote trunk open
CH-5: Dome lightsupervision
CH-5: ArmW/Engine running
CH-5:Turbo mode
CH-6: Programmable output
CH-7: Programmable output
Red/black programme (+)input
- Reverse warning
- Heard lightwarning
- Extra sensor(knock sensor) input
Siren chirps ON/OFF(programmable)
Status LED timer
Power disconnecting memory
Emergency reset switch
Emergency disarm (Valet SW &PIN code)
Anti car-jacking mode
R.f antenna callswitch
Set your ownPIN code
Programme mode features
Wiring diagram
Programme mode table
Transmitter programming
System installation
Central door lockwiring
9-23.
9-24.
9-25.
9-26.
9-27.
9-28.
9-29.
9-30.
9-31.
9-32.
9-33.
9-34.
9-35
9-36.
9-37.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
18
19
19
19
20
20
20
20
20
20
20
21
21
21
21
21
22
23
23
24
24
25
27
28
30
-2-

About Your System
NOTE:
Congratulations on yourpurchase of this state-of-the-art vehicle security system.
With proper installationthis system will provide superior protection and performance for
many years tocome.
What is included:
Acontrol module
2-way pager transceiverantenna
One 5-button 2-wayLCD remote transmitter
One 3-button or4-button random code remote transmitter
Dual stage shocksensor
High output 6-tonesiren (optional)
Status LED indicator
Valet over-rideswitch
Options and Accessories:
This system includesseveral optional inputsand outputs allowing the creation ofa
completely personalized securityand convenience system by offering manyoptional
features such as:
2nd stage doorunlock
Horn honk output
2pulse signal doorunlock
Engine turbo timemode
Check range notification
Arm/disarm chirpon/off
*Many require additionalparts and/or labor, see storefor details
Some of thefeatures described in this manual mayrequired additional parts and/or
labor, andmay not be included as partof the standardinstallation of thisunit.
Additionally, manyfeatures of thissecurity system have selectable options thatmust be
activated or programmedduring the system's installation. These itemswill be identified
in the followingsections. Please discuss these features andany questions you may
regarding the installationof this product with your authorizeddealer.
Window close control
Anti car-jack bydoor switch
Power trunk/hatch release
Glass breakage sensor
Micro-wave detector
Back-up battery sirem
-3-

System maintenance
The system requiresno specific maintenance other than batteryreplacement for the remotes.
LCD 2-Way Remote Battery Replacement
The 2-way remoteis powered by a 1.5VAAA battery. The BatteryLevel indicator hasthree level
indicators that serveas a visual indication of batterycharge. When thebattery reaches a low
charge level thatrequires replacement, the transceiver will generatea single notificationchirp,
and the BatteryLevel indicator will flash continuously.
Toreplace the battery, gently pull the battery coverrelease tab, thenslide the door down to
expose the batteryand remove the expired battery.Place the new battery into the transceiver
observing the correctpolarity. Whenpower is returnedthe transceiver will light all iconsin the
LCD and generateall beeper tones once.
3 & 4-ButtonRemote Battery Replacement
Your remote is poweredby a 12V A27 thatwill last approximatelyone year under normal use.
When the batterybegins to weaken, operating range willbe reduced andthe LED on the remote
will dim.
FULL REPLACE EMPTY
LCD 2-Way configuration
-4-
Button 1 Button 2
Button 3
Button 4
Button 5
LCD display
Antenna
TR-45
CALL
AHJ
IMMO
AM
PM
PASS
X
T
R
BRAKE

2-way & 1-way Remote Function Table:
Functions Step Condition
Arm and door lock
Arm without siren chirp
Disarm and door unlock
Disarm without siren chirp
Trunk open
Anti car-jack mode
Panic mode
Car search mode
1st stage sensor bypass
2nd stage sensor bypass
Valet mode
Status check & Back light
Remote button 1.2.3 on/off
Silent arm mode
Enable check-in range
Vibrate mode on/off
Disable remote receiving
Time adjust mode
Alarm clock setup
Press once
Press once then within 3sec. press once
Press once
Press once then within 3sec. press once
Press over 2sec
Press together over 2sec..
Press over 2sec.
Press once after 8sec. of armed
Press once within 8sec. of armed
Press once within 8sec. of armed
Press together over 2sec.
Press once
Press over 2sec.
Press once. & Press 1-way once.
Press once within 8sec. of armed.
Press over 2sec.
Press together over 2sec.
Press together over 3sec.
Press together over 3sec.
Disarmed & ACC off
Disarmed & ACC off
Armed
Armed
Any time
ACC ON
Armed
Armed
Armed
Armed
ACC ON
Disarmed
Armed
1-Way Remote Transmitter Description (optional 3 & 4 button available)
Button 1 (Arm / Door lock)
LED indicator
Button 2 (Disarm / Door unlock)
Button 3 (Trunk open)
Button 4 (Silent arm mode)
TX-4R
NO:
-5-

T
R

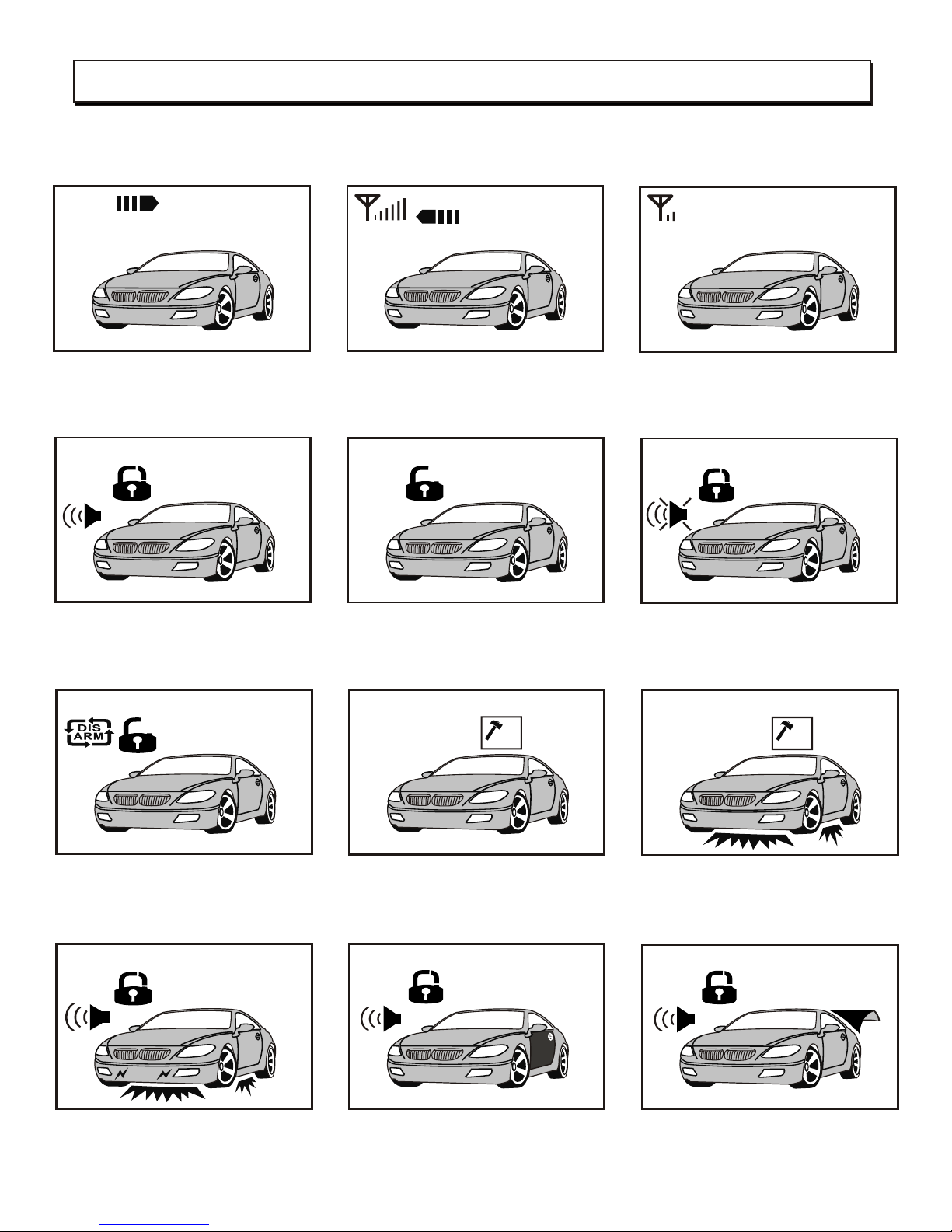

Standard LCD 2-way icon instructions
Remote transmitting asignal.
System Armed.
Passive arming &
Auto re-arming mode.
Panic mode.
Check-in range turnON status.
System Disarmed.
1st-stage sensor bypass.
Door open whenarmed.

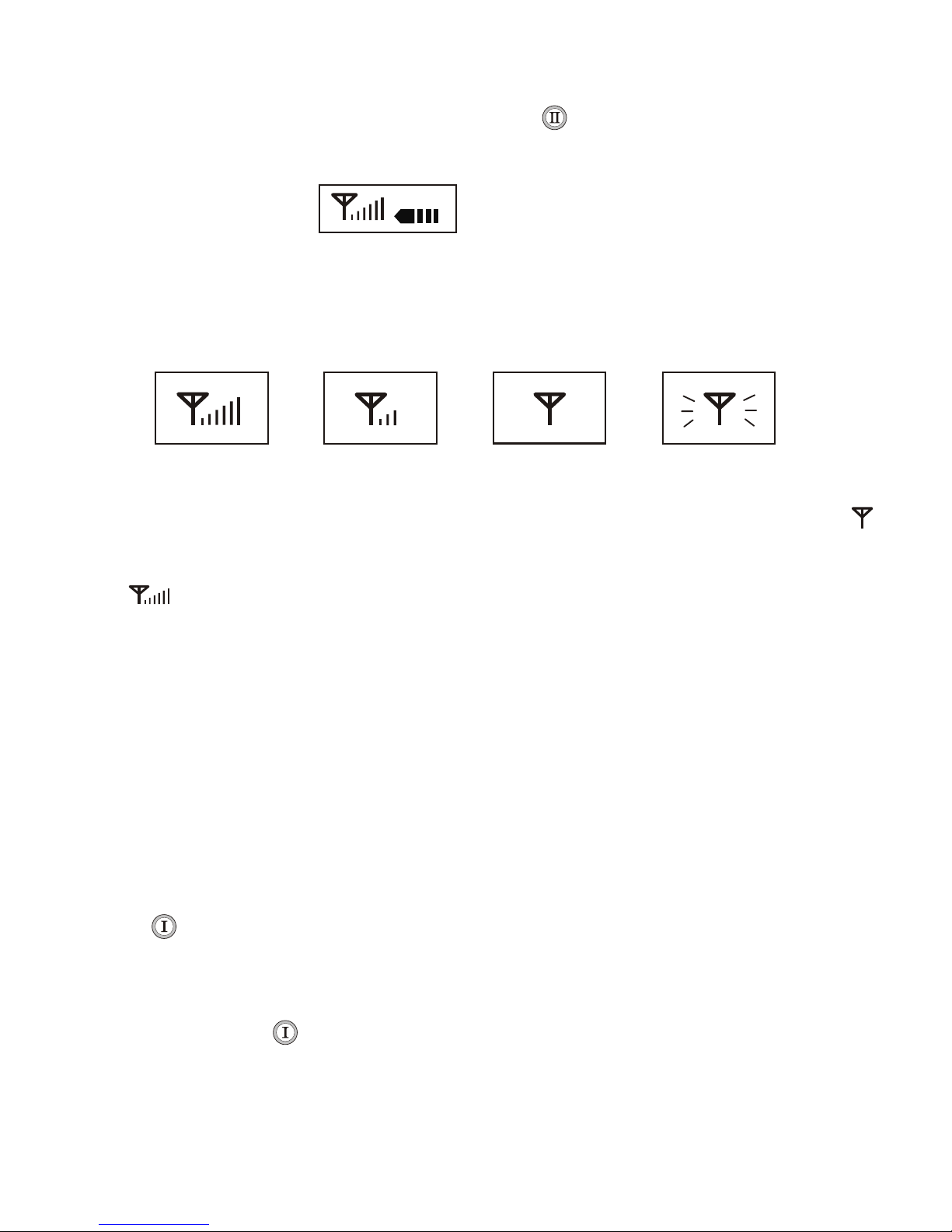

Weak signal notification.
Silent Armed.
2nd-stage sensor bypass.
Trunk open when armed.
-6-
PASS
X
PASS
X

AHJ
IMMO
Hood open whenarmed.
Door switch triggered.
Ignition switch triggered.
Valet mode.
1st stage sensortriggered.
Trunk switch triggered.
Passive immobilizer mode.
Arm W/engine runningmode.
2nd stage sensortriggered.
Hood switch triggered.
Anti car-jacking mode.
Turbo mode.
-7-

-8-
AM
AM
CALL
Call / pagemode.
2way time display.

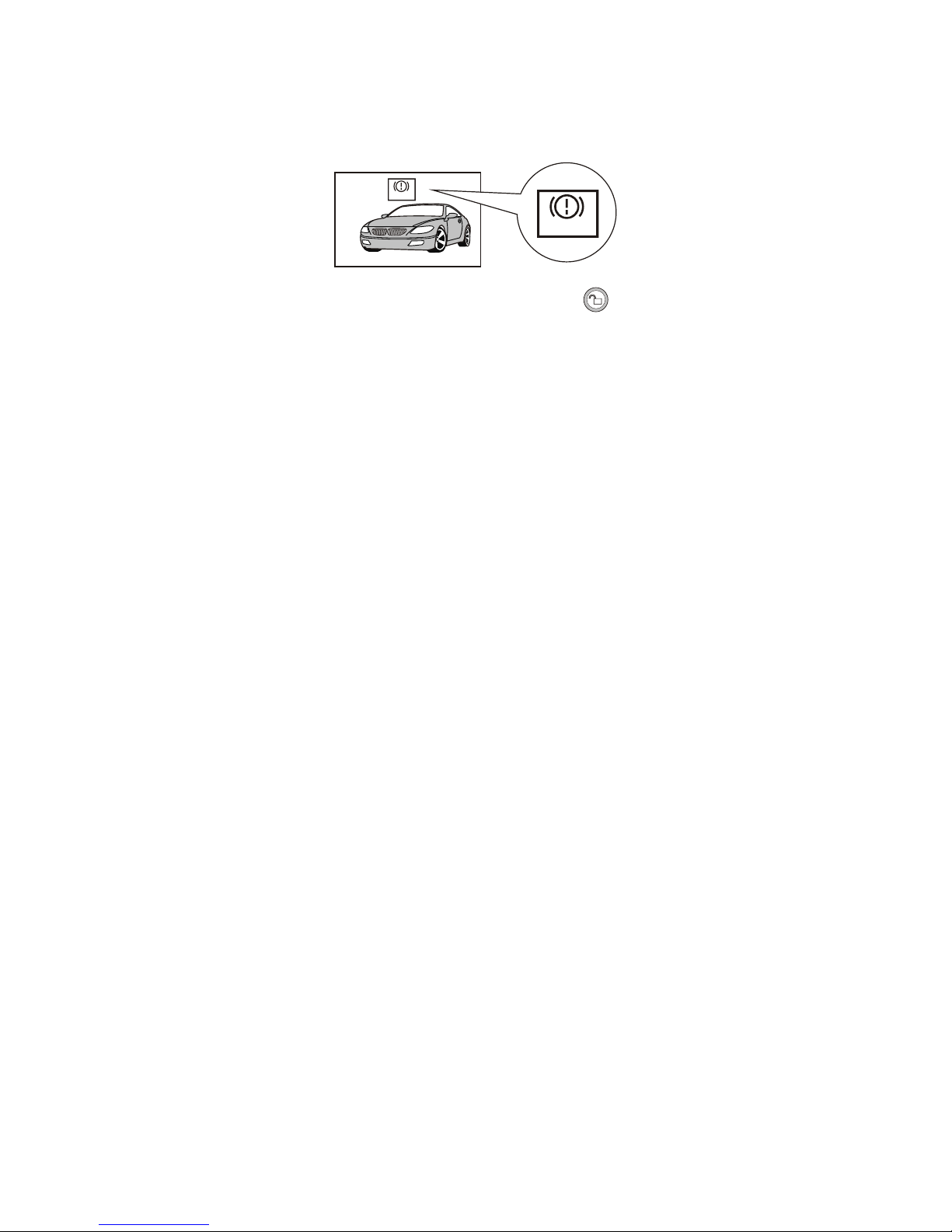

Hand brake indication.
(Optional for startermodel)
2way receiving OFFmode. 2way button OFFmode.
Alarm clock.
2way battery levelindication.
2way Vibration mode.
Extra sensor triggered.
(Knock sensor) optional
BRAKE

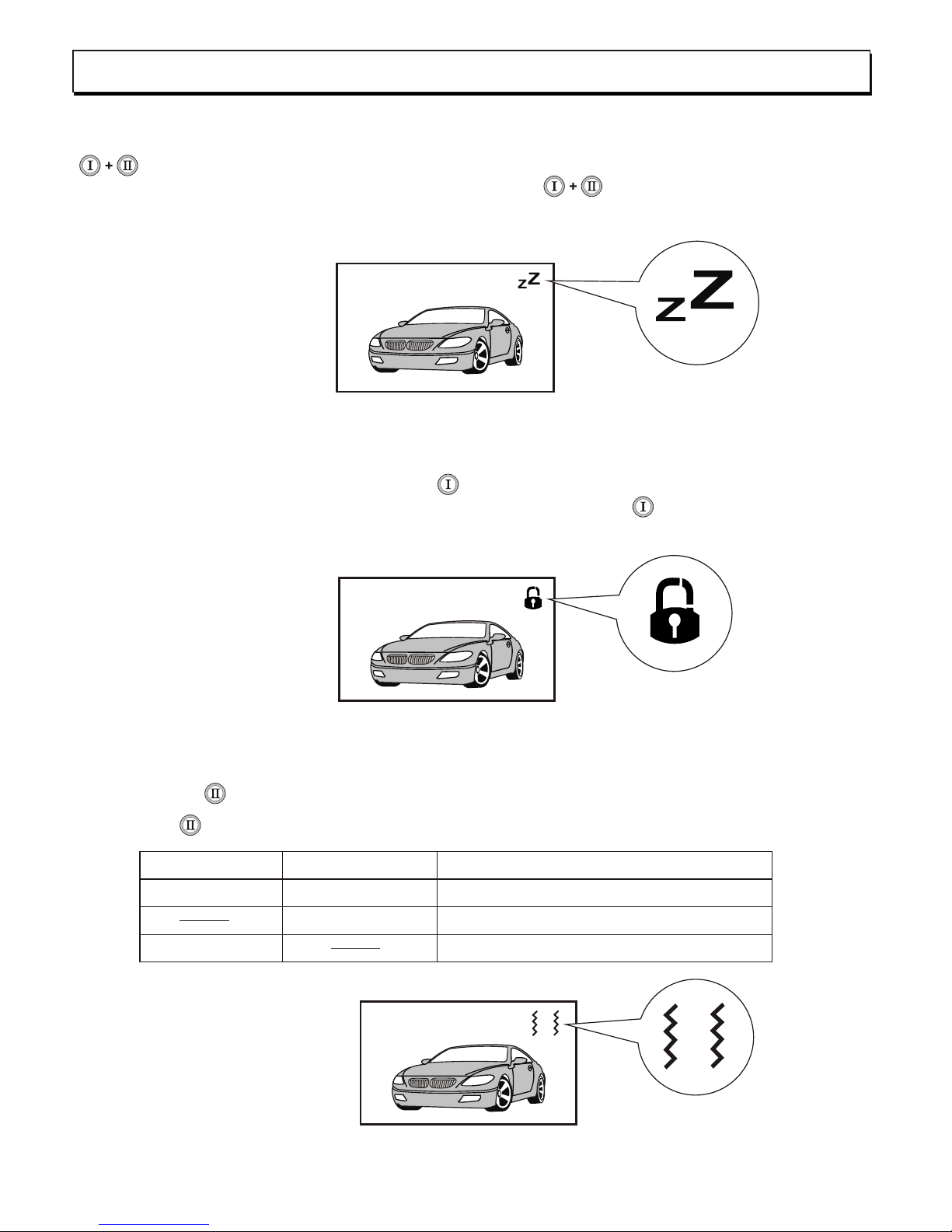

Disable remote receiving
You may turn offthe 2-Way remote receiving signal from the mainunit. Press button
simultaneously for 2sec.until one long beep is heard.Remote receiving is now
disabled. To turn on receiving again, Pressbutton simultaneously untiltwo long
beep is heard,remote receiving is now enable.
2way remote button ON/OFF
For safety purpose,this 2-way remotecan be lockout the remote buttonin order notto
mis-touched the buttons.Press button forover 2sec. until one beep is heard, remote
button is nowlocked. To turn onremote button, pressbutton for over2sec. until two
beeps is heard,remote button isnow unlocked.
Programming 2-way remote
2-way LCD display:
2-way LCD display:
If set withvibration only
the 2-way LCDwill display :
-9-
Vibrate mode on/off
Press button for over 2sec. the2-way remote will respond tone & vibrate feature,
the button pressing 2sec. will changethe feature, see under table:
Beeps 2-way remote feature
Vibrations
1-beep
1-beep
1-time
1-time
Remote with toneand vibration
Remote with vibrationonly
Remote with toneonly

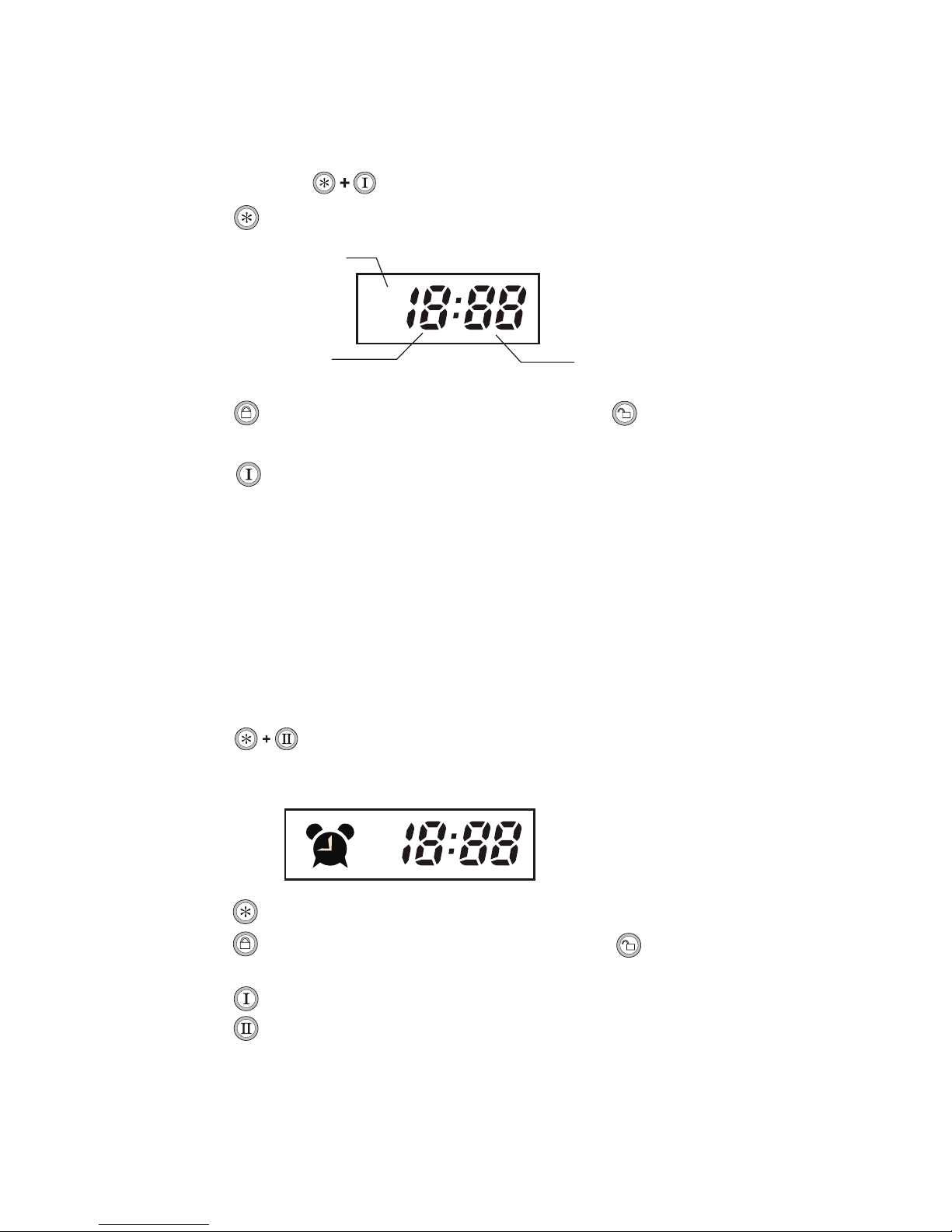

Time adjust mode
Besides operating foralarm functions, LCD remote control additionallyprovides 12-hour
clock, alarm clock.
Instructions:
1. Press and holdButton for 3sec.to enter time-setup mode, 1 beepwill be heard.
2. Press button toselect Hour & Min adjust setting.Icon flashing to indicate.
3. Press button toturn up the numbers. Press button to turn downthe numbers.
The button maybe held downto scroll faster.
4. Press button toexit the setting mode. 2 beepwill be heard.
Note: The remote willrevert to normaloperation from the set mode when10-seconds has
elapsed without abutton entry.
Alarm clock setting
This function usefulto warning the user by pre-settingalarm clock time, if setting timeup,
the LCD remotewill give beep sound for 1minutes. (Press anybutton once willstop beep).
Instructions:
1. Press button for3sec. To enter alarmclock time-setup mode,1 beep sound will
be heard andalarm clock icon flashing:
2. Press button toselect Hour & Min adjust setting.Icon flashing to indicate.
3. Press button toturn up the numbers. Press button to turn downthe numbers.
The button maybe held downto scroll faster.
4. Press button toenable the alarm clock. 1 beepwill be heard and exit themode.
Press button todisable the alarm clock. 2 beepwill be heard and exit themode.
Note: The remote willrevert to normaloperation from the set mode when10-seconds has
elapsed without abutton entry.
-10-
AM
AM
PM
PM
Minutes display
12-hour display
AM/PM indicator

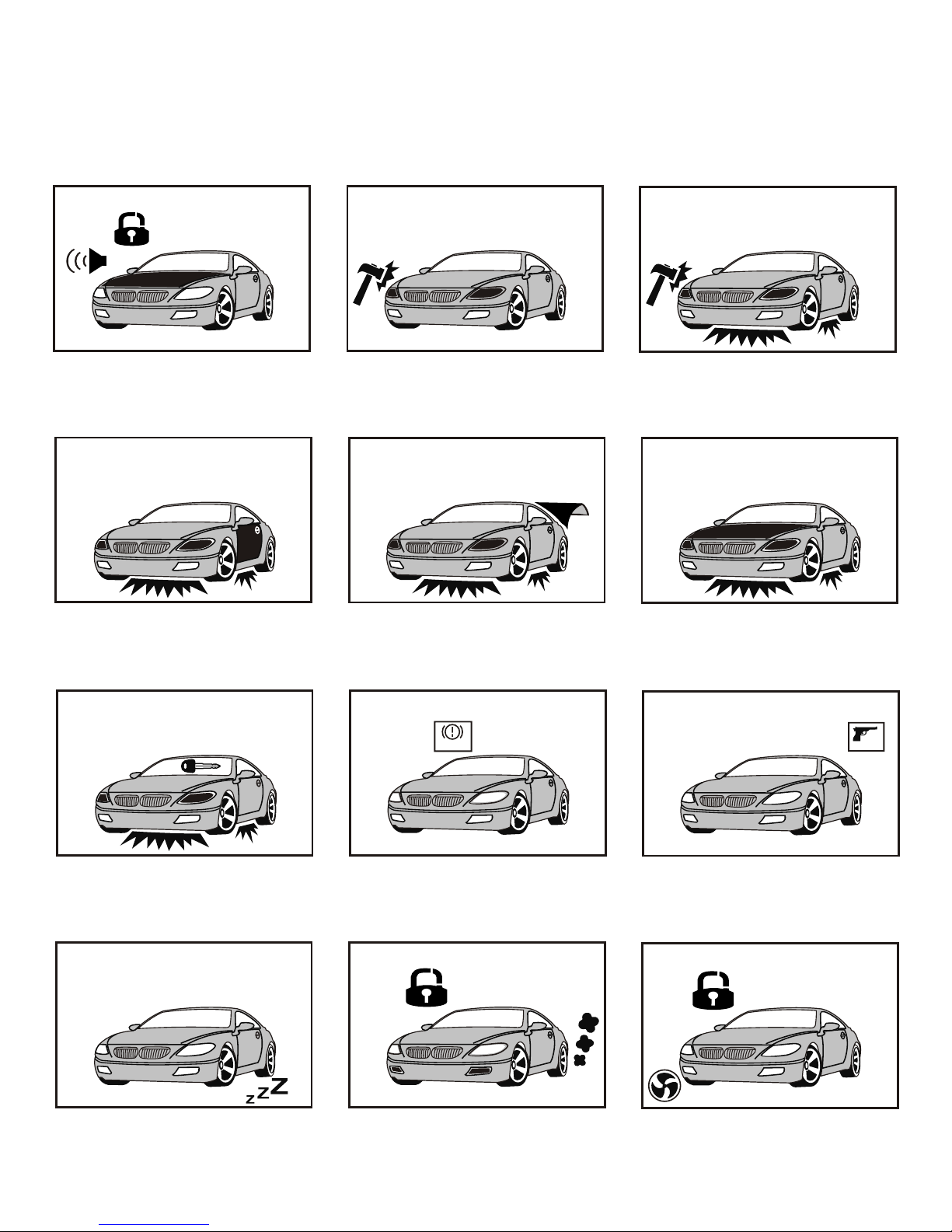

Display Beeps Vibrations Trigger
1st stage-Sensor warning
2nd stage-Sensor triggering
Trunk switch triggering
Door switch triggering
Hood switch triggering
Ignition triggering
5 short
Melody 1
Melody 2
Melody 3
Melody 4
Melody 5
1 times
1 times periodically
2
5 times periodically
times periodically
3 times periodically
4 times periodically
2-way signal paging features
A pageis the signal the control modulesends to theremote controls confirmationof
receipt of acommand or alarm system status. Whenthe remote control receives a page
it will generatea page notification to the user(notifications are audible beeps) and the
LCD Icons willdisplay the current system status.
Command Page
When a command(arm/disarm, or auxiliary channel) from theremote control is sent
and received, thesystem will send a command pageback to confirm receipt.
Alarm Page
If the alarmsystem is triggered while armed, an Alarm Pagewill be sent to the remote
control. When theremote receives anAlarm Page, the LCD iconswill display thealarm
system status informationand the remotecontrol will generate beeps.
Page Recognition (Acknowledgement)
Toclear a page alert/notification, quickly pressany button on the remote control.This
can be performedat any time during or afterthe page notification has occurred.
The remote controlwill not send a command tothe system at this time; itwill only clear
future repeats ofthe page notification. The next timea button ispressed on the remote
control it willsend a command to the system.
-11-

Check-in range notification(on/off )
Arming the systemwithin 8-seconds, press button once onthe 2way remote , the
system will enablethis Check- in range function.
- With in5 minutes, the 2-way remote willthan give 1 beep sound everyone minute for5
cycles to remindthe user within range.
- After5 minutes , the Antennaicon will indicatesunder receiving status:
For friendly usage,the 2-way remote will provide 2beeps/ 3cycles and flashing icon
after 35 minutesif the user is out ofthe receiving rage. However, afterwardsif the 2-way
remote detect thesignal again from the system, 1beep sound will be provided andflashing
icon will beON to indicate the 2-way remoteis within range.
Note: If under Check-inrange mode, if alarm triggered, thisfunction will automatically
turn off (disable).
-12-
R
The 2way remote
will respond:
Icon will onfor 2sec. and give 1 beep
sound to indicatethe function has been
turned ON.
Full reception Half reception Weak signal Non reception
(flashing icon)
Reminder disarm status(Programmable)
If programmed with" 1way reminder disarm status to2way" feature , this function will
reminder disarm statusif disarming by 1-way remote control.The 2-way remotewill display
disarm icon andgive 2 beep sound .
Vehicle statuschecking
Turn on LCD display back light
The 2-Way remote offer thefeature to check the current statusof the car, simply press
button once withinproper operation range. The main unitwill send the signals to
the 2-Way remote about the vehicle current status.
Simply press button once, the backlight of LCD display will turn on 5 secondsand
also check thevehicle status.

- To ARM the system:
To arm your system within proper operation range, simply press button once (while system
in disarmed or Acc off position) . The system will respond one siren chirp, one lights flash,
doors lock, disable engine starter, LED will begin flashing quickly until all sensor inputs are active
- LED will start blinking slowly (flash once per second) to indicate the system is in full armed.
- Defective Zone Bypass & Alert:
- Auto Reset:
If a violation occurs the system will respond by sounding the siren and flashing the lights for
approximately 30sec. before the system resets itself and continues to protect your car. If violation
still occurs the system, siren and lights will working for 8 cycles then the system reset itself and
continues to protect other zones.
- Arm without siren chirp :
You may temporarily to arm your system without siren chirp , to operate it by simply press button
once then within 3sec. press button once.
The system will armed and without one siren chirp,
Note: this features is only activated under the system is in disarmed and Acc off position,.
If the security system is armed at the same time that an input is active (such as a door opening
or hood / trunk opening ), you will hear one siren chirp to indicate arming and after 8 seconds
a second siren chirp to indicate Bypass Notification. A Bypass Notification chirp means that the
security system ignores the input that was active when the system was armed, until that input
ceases.
Defective zone Siren chirps 2-way beeps 2-way LCD indicator
2-way LCD display: + One beepsound
Note: Youmay press 2-way remote button onceto check again which zone isnot closed.
Door opened 3 chirps 1 long + 3 short
Trunk opened 4 chirps 1 long + 4 short
Hood opened 5 chirps 1 long + 5 short
-13-
STANDARD FEATURES:

- To DISARM the system :
To disarm your system within proper operating range, simply press button once (while
system in arm position). The system will respond two siren chirp, two light flash, doors unlock,
Enable your engine starter, LED off.
- Intrusion Alert:
Upon disarming the system, if the vehicle is attempted or intruded, siren and lights will Indicates
4 chirps and 5 flashes to identify which zone was triggered. LED mode indicates the following
different triggering.
flash 2 times after a pause Sensor 1st-stage triggered
flash 3 times after a pause Sensor 2nd-stage triggered
flash 4 times after a pause Door switch triggered
flash 5 times after a pause Trunk switch triggered
flash 6 times after a pause Hood switch triggered
Flash 7times after a pause Ignition switch triggered
- 2-way LCD Intrusion Alert:
Upon disarming the system, if the vehicle is attempted or intruded, the 2-way remote will respond
2 short beep follow with melody sound, and LCD display will indicates different icons as under:
1st-stage sensor
triggered
2nd-stage sensor
triggered Door switch triggered
Trunk switch triggered Hood switch triggered Ignition switch triggered
Note: Before the ignitionturn on, you may realized againwhich zone beentriggered by press
button (status check)once, the LCD will display triggeredzone again.
-14-
2-way LCD display: + Twobeep sound

- Disarm without siren chirp :
Todisarm your system without siren chirp , simply pressbutton once thenwithin 3sec.
press button once.
Note: this features isonly activated under the system is in armed position,.
- Silent arm mode :
The system providea feature to turn OFF the siren, simply press2-way button of press
1-way button once (while system indisarmed or Acc off position). The systemwill
respond one lightsflash, doors lock, disable engine starter, LED willbegin flashing quickly
until all sensorinputs are active - LED will start blinking slowly(flash once per second) to
indicate the systemis full armed.
Note: Under SilentArm mode, if Sensor, Door, Hood or trunk been triggered, the siren will
not activated, but if Ignition been triggered will activatedthe siren.
- Automatic REARM (programmable):
If the systemis disarmed by remote and adoor is not opened within approximately30
seconds the systemwill automatically rearm itself. This featureguards against disarming
caused by accidentalor unintended operation of the remotetransmitter. Mainunit will
sends signal tothe 2-Way LCD remote andindicates ARMmode with one beep sound.
- Passive arm (programmable):
If set programmemode to "WITH", while turn Ignition OFF, then close the last door ,system
will provide 2siren chirp and 2 light flash and LED flashing fast to indicatedthat the system
is in passivearming mode.After 30sec. Thesystem will arm by itself and LED flashing slowly
to show thesystem is in arming mode. Main unit sends thesignal to the2-Way LCD remote
and indicatesARM mode withone beep sound .
This system alsoprovide under passivearming with door lock or without door lock
feature (please see "programme mode" features. ) During theperiod of 30sec.passive
arming, if adoor is opened, Led will light on and itwill re-passive armingwhen the door
closed again.
2-way LCD display:
2-way LCD display:
2-way LCD display:
+ One beepsound
Two beepsound will provided to
to indicate thatthe system is in
Passive arm mode.
Flashing icon toindicate that the
system is inAuto re-arming mode.
Flashing
Flashing
-15-

- Panic mode:
If you arethreatened in or near your vehicle,you can attract attention by pressbutton
for 2sec. systemwill triggering for 30sec. To stop Panicmode at any time, simply press
any button once.
Note: if Panic modeactivate in disarmed position, the 2-wayremote will respond melody
sound and LCDindicates flashing icons as under:
- Dual stage shock sensor:
This device onlyactivates after 8 seconds of armingstate; this is preventing from the
weak impact causedby the driver while leaving thecar.
The device operates:
-Light impact will activate the 1st stage sensorby giving 5 short warning chirps.2-way
remote will respond5 beeps and flashing icon asunder.
-Heavy impact will activate the 2nd stage sensorand trigger the alarm for 30sec.2-way
remote will respondmelody and flashing icon as under.
NOTE: Adjustmentsare made via the rotary controlabove the shock sensor.
- Remote sensor by pass :
This system offer2stage sensor optional.Within 8sec. after set arming, topress button
once , the system will give2 short chirps and 2 lights flash, thus the1st stage shock
sensor has beenturn off.
Press button onceagain, within 8sec. the system willgive 3 short chirps and 3lights
flash, thus the2nd stage shock sensor has beenturn off.
If press button once (at 3times) again within 8sec. of armingthe shock sensor will
turn ON again.
Note: - if remotesensor bypassed, itwill be detected again by nextarming.
- if armedwith silent mode, to operate sensorbypass will only indicate by lightsflash.
2-way LCD display:
2-way LCD display:
2-way LCD display:
2-way LCD display:
+ 5 beepssound
Under Panic mode,the 2-way remote
will respond melodysound and
flashing icons .
+ Melody sound
1st stage sensorbypass. 2nd stage sensorbypass.
-16-
Note: This paging featureis
can be programmedto
With or Without.
PASS
X
PASS
X

- Car search mode:
The system providea feature to easy find your car position, simplypress button once
when in armedafter 8sec. The system will respond by 5chirps and 5 lights flash.
To entervalet mode: Disarm the systemand turn Ignition switch to ONposition then press
button + for over 2 seconds,or press Valet/over-ride switch for over 5 seconds,until
siren give 1long with 1 short chirp and LED light ONto confirm the system is invalet mode.
When the systemis in the valet mode it can not bearmed. The door lock andunlock will
function as keyless entry system.
To exitvalet mode:
Turn Ignition switch to ON position , thenpress button + for over 2seconds,or press
Valet/over-ride switch for 5seconds. You will hearsiren provide 1 long with 2short chirps
and LED lightOFF to confirm exit this mode and in alarmmode. The 2-Way remote will
respond 1 longand 2 short beeps.
- Ignition controlled door lock/unlock(programmable):
If programmed withthis feature, turnIgnition ON after 10 seconds thedoors will auto
locked , butwithin this 10 seconds the door has been openedthis feature willbypassed,
till next timeof ignition on.
When turn IgnitionOFF,the doors will unlock for takeoff, if programmed with ignition off
door unlock.
Note: Youmay manage lock and unlock doors in ignition onposition by shortpressing
button to lock door or pressing to unlock door.
-Comfort /window close :
This channel "White/blackwire" is a negative (-500mA) outputfeatures, this feature can be
controlled " window closewhen arming". This function willconstant output for30sec.
When arming thesystem. Note: sensor will bebypassed when thischannel is activating.
- Valet mode:
- Channel -4 (-) output (programmable):
This channel Yellow/black wire" isa negative (-500mA) output features, this feature
can be controlled" 2nd stage door unlock /Remote latched ".
2nd stage door unlock:
If programmed withthe feature , to operate itby press button at 2nd time, 2nd stage
door unlock willbe output for passenger side .
Remote latched:
If programmed withthe feature, to operate it whenignition off, press button forover
2 seconds, sirenwill give 1 chirp and theChannel will constant output.
To exitby ignition off and press button over 2seconds, siren will give 2 chirpand
the channel willstop output.
2-way LCD display:
Note:
Under Valetmode, each time
turn Accoff , thesiren will give
2 chirps fornotification.
-17-

- Passive immobilizer (programmable):
If programmed withthis function, when turn off ignitionswitch for 30seconds or you open
and close thedoor, it will disable theengine starter rightway . TheLED will flashtwice
per second.
Exit: Todisarm this functionby (1) simplypress button once.LED off.
Note:
- Arming without Remote control:
- 2 step disarm:
This system offers2 step disarm. It's a featurethat make itpossible to silenceand reset
the system whileit is triggering, without disarming thesystem. If the system is triggered
and the sirenhas been sounding, pressing any buttononce on the remote transmitter will
stop the
Under this mode,if ignition force been turn ON, siren will give 1long + 1 short chirps
warning, 10seconds laterwill activate the alarm, the 2wayremote will indicate Anti
car-jack icon andwarning sound. To disarm itwith programmed "Valet SW orPIN
code " feature.(Please see Emergency disarm.)
This function givesyou a possibility to Armand Disarm thesystem without remotecontrol.
Note: if programmed withPassive arm feature, this feature willnot activated.
- To activated armwithout Remote control:
(1) After drivingand ignition keep ON.
(2) Open a door, and keep it opened.
(3) Turn ignitionOFF and within 10seconds. press Valet switch once.
(4) within 15 seconds,close door, the system willarm immediately.
- Disarm withoutRemote control:
Delay of alarmonly available toactivate while you have successfully enter into ArmW/O
RC mode .,within 20 seconds after opened the door or trunkswitch. It allows you after
opening the door, to seat in to thecar and enter1st digit of PIN code. (10seconds delay
st
time for Ignitionturn on to set 1st PINcode). If within(10) seconds you didn't enter 1 digit
PIN code orinsert wrong PIN code , thesystem will alarming., Tore-set the systemmay
required only 2digit PIN CODE (See "How touse your PIN code" ).
If programmed withoutPIN code, to disarm it byturn ignition on then press andhold the
Valet switchfor over 5seconds.
Note: Toexclude unauthorized entering in to thecar, pager output will activateimmediately
after opening thedoor despite of the switched ondelay of alarm mode.
trigger and returnthe unit to the armed state.
Note: Under system triggering,if press any button of 2-wayremote once , the remote will
stop the beepsound and LCD display will indicatethe intrusion icon for 2sec.
Press any buttonagain to stop alarm triggering.

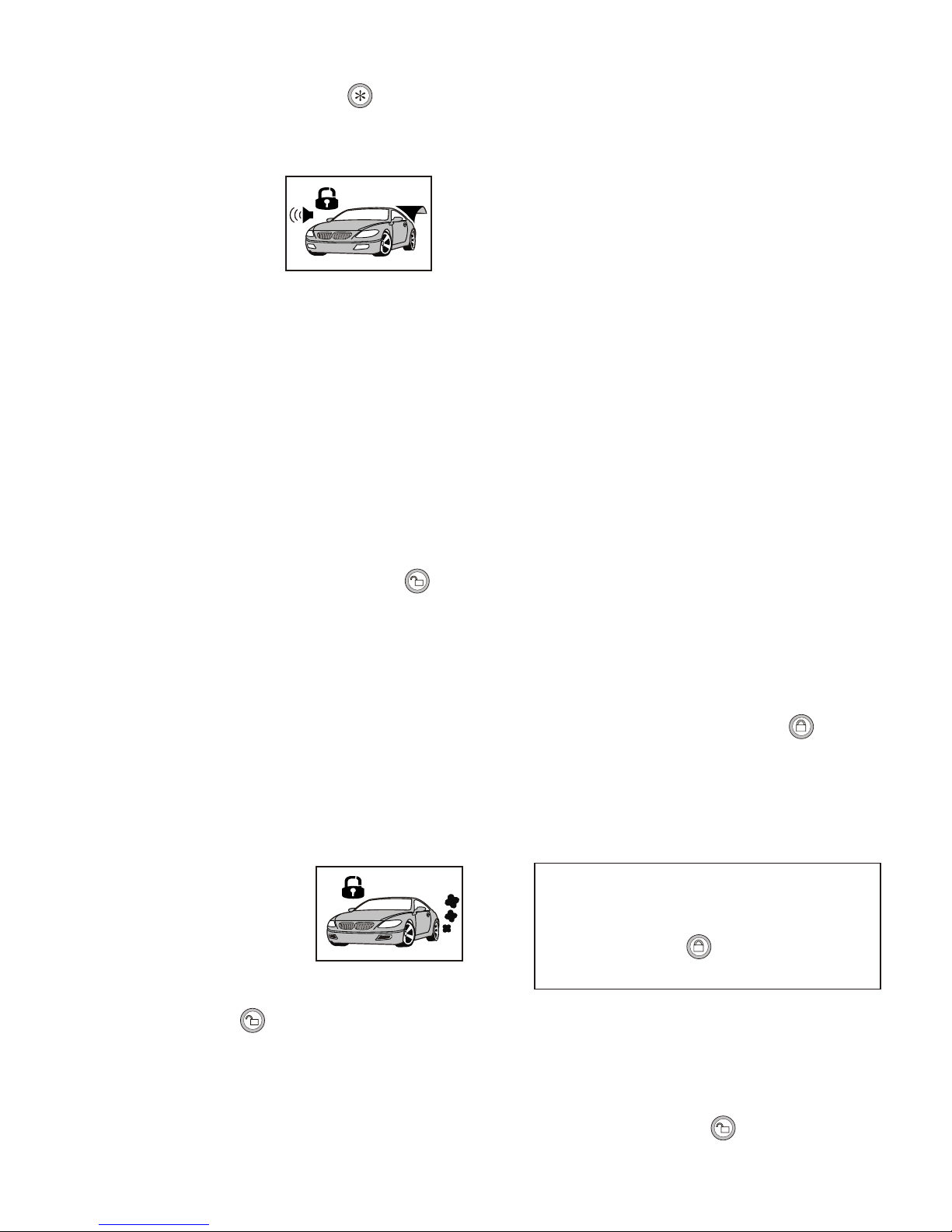

2-way LCD display: + One beepsound
-18-
IMMO
IMMO

- Remote trunk open:

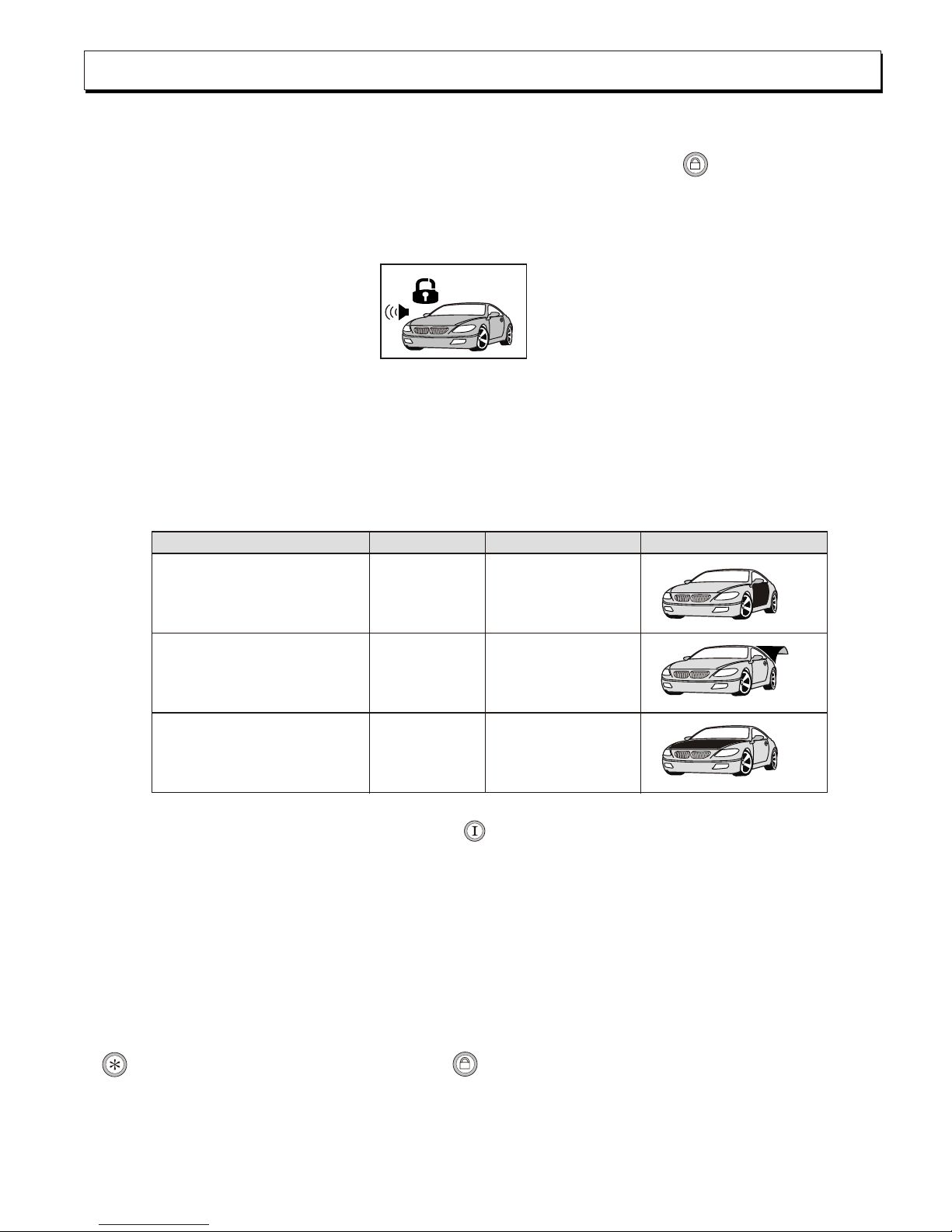

Simply press andhold button over 2 seconds, the channel will outputfor 1 second pulse ,
to open thetrunk. When armed if remote trunk open or close,the system will give one light
flash and the2-way remote will give one beep sound. The 2-wayLCD display iconas under:
Note: If trunk hasbeen remote opened in arming position,trunk switch willdelay sensing for
5 seconds, andthe shock sensor will be bypassed.
- Channel-5 (-) output(programmable):
This channel "Gray/blackwire" is a negative (-500mA) output features, this feature
can be controlled" Dome light output /Arm W/Engine running/ Turbomode) ".
Dome Light:
If programmed withthe feature , the channel willconstant output 30sec. when disarming .
Turn ignition switch ON willstop the channeloutput.
Arm W/Engine running:
If programmed withthe "Arm W/Engine running, this featurefor the car to keep engine
running after arrivingat your destination.
Tooperate this feature by pressing for 2sec. while drivingor ignition ON , the
siren will giveone chirp and the LED willstart flashing Greencolor, atthe time thesystem is
in standby mode,the owner must follow under processto activate the "Arm W/Engine
running " mode.
(1) Within 15sec. Turn Ignition OFF(engine still keeprunning), open and close door to
leave the car.
Note: If within this15sec. press any button once willexit the mode, LED off.
(2) While leaving thecar by open and close thedoor, within 5sec. press button once,
the system willarm immediately,the parking lights will flash onceevery 5 seconds , and
the status LEDwill flashing Green color, howeverthe engine will still keep running.
The 2-Wayremote will respond under icons flashingas long as turbo time finished.
Exit mode :
Pressing button onceof the remote control within enginerunning mode , the system
will delay 15seconds and exit turbo mode, thisdelay time is allow the userusing the key
turn ignition onwithout stop the engine running.
NOTE: 1. In enginerunning mode, the sensor zone triggerwill be bypassed.
2. In enginerunning mode, if door, hoodor trunk has been triggered, enginewill
stop running andalarming the system, simply press button to disarm .
2-way LCD display:
2-way LCD display:
Note: (1) Ignition ONdoes not allow to remote trunk
open, unless one door is opened.
(2) Armed,if trunk opened over 1 minutes,the
2-way remote willgive pre-warn beep sound.
-19-
(1) After leaving the car, within 5sec.
If press wrongbutton will exit mode.
(2) After leaving the car, within 5sec.
If without press button will exit
mode automatically.
Note:
