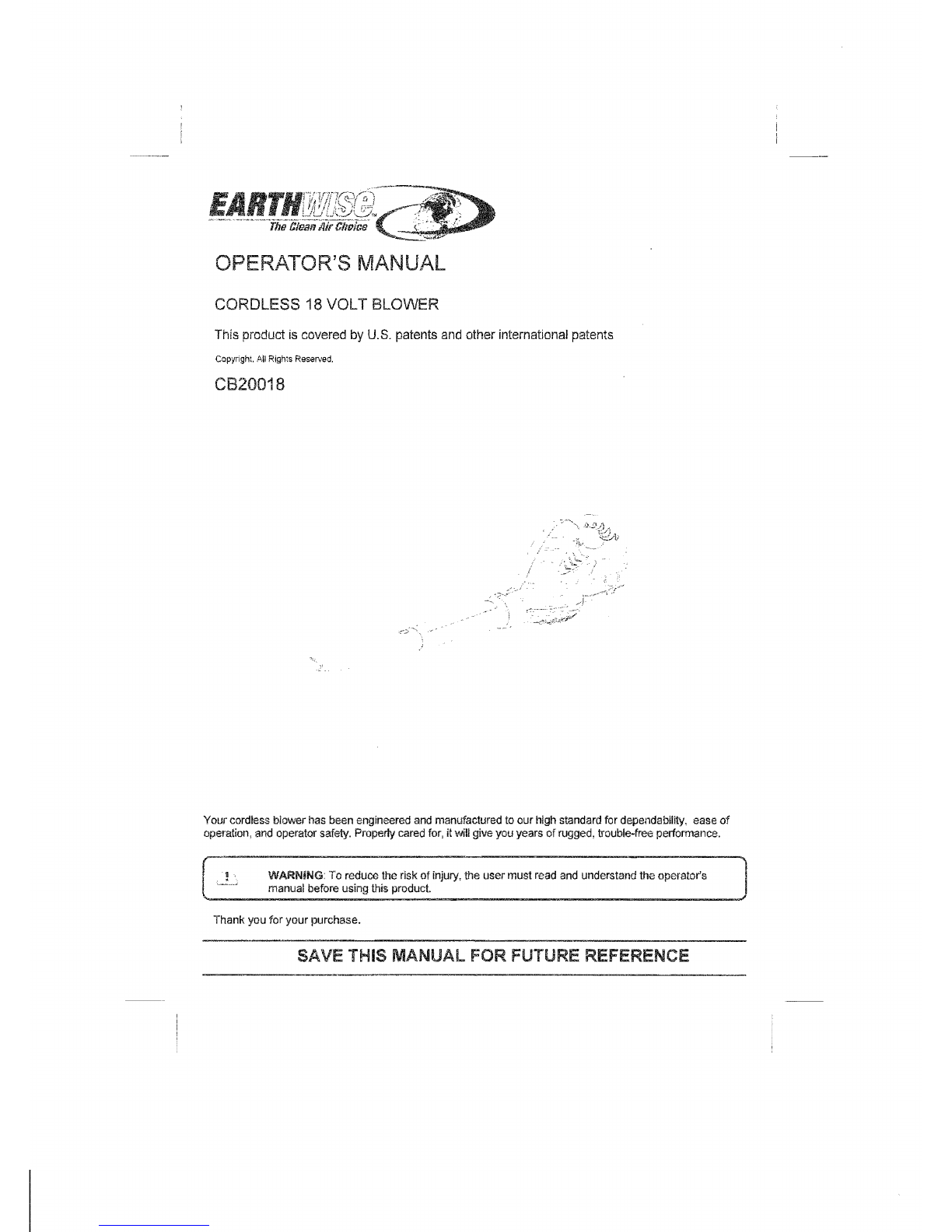

OPERATOR'S MANUAL
CORDLESS 18 VOLT BLOWER
Trlis product is covered by U.S. patents and other international patents
Copyright. Ali Rights Reserved.
C820018
Your cordless blower has been engineered and manufactured to our high standard for dependability, ease of
operation, and operator safety. Properly cared for, il will give you years of rugged, trouble-free performance.
Thank you for your purchase.
THIS MANUAL FOR

TO "<EDUCE RISK OF INJURY
be sure everyone using this teol reads and understands
and other !nfom1ation contained in this manual
C,A,UTION: Wear appropriate personal hearing protec1ion during
use. Under some conditions and duration of use, noise from this
product
may contribute to hearing loss.
Save these instructions and review frequently prior to use and in
instructing olhers,
_~, WARNING: \Nhen using electric gardening'appliances,
precautions should always
be followed to reduce risk affire,
shock,
and personal injury, including the following:
READ ALL INSTRUCTIONS
GENERAL SAFETY
KEEP CHILDREN AWAY -All visitors, children and pets should
slay at a safe distance from the work area,
DRESS PROPERLY -Don't wear loose clothing or jewelry, Wear
protective hair covering to contain long hair. They can be caught in
moving parts, Use of rubber gloves and substantial footwear is
recommended when working outdoors.
US~ SAFETY GLASSES -Wear safety glasses with side shields or
goggles that are marked to comply with ANSI Z87.1 standard when
operating this product Use face or dust mask if operation is dusty,
USE RIGHT APPLIANCE - Do not use appliance for any job except
that forwhich
it ;s intended,
! DOUBLE INSULATION - Double Insulation is a concept in safety in
---' elec1lic power tools, which eliminates the need for the usual three-wire
grounded power
card. All exposed metal parts are isolated from the
intemal metal motor components
with protecting insulatioit Double
insulated tools do not need to be grounded,
NOTE: The double insulated system is intended to proteclthe user
from shock from a break
In the tool's internal insulation,
Observe
all safety precautions to avoid alectncal shock,
DISCDf\NECT CORDLESS BLOWER from
the power supply when
not
in use or when servicing or deaning. Do not leave unattended,
CHECK
DAMAGED PARTS -Before fu~""er use of the Blower, any
part that is damaged should be carefully checked to determine that it
will operate properly and petform itS intended function, Check for
alignment ofmoving
parts, binding of moving parts, breakage of parts
mounting and any other condition that may affect its operation, A
guard or other pari that is damaged should be property
replaced by an authorized service center untess otherwise
elsetJ-.'here in this manual.
LIGHTING -Only operate Cordless Blower in daylight orgood
artin cial light.
DON'T OVERREACH -
Keep properfooting and balance at all times.
WARNING:
Do Not use the Cordless Blower with any type of acces-
_L sory or attachment. Such usage might be hazardQus.
AVOID DANGEROUS ENVIRONMENTS -Don't use Cordless
Blower
in rain, damp orwet locations, Do not operate Cordless
Blower
in gaseous or explosive atmospheres, Motors in these tools
normally spark, and the sparks might ignite fumes,
AVOID UNINTENTIONAL STARTING -Don't carry the Cordless
Blower
With finger on switch.
..'... DANGER: Keep both hands on handles when power is on,
DO NOT ATTEMPT to move rocks orsllarp malenalswhlle operating
8tower
unit, Make sure Blower switch is off when dearing jammed
matelial
from suction tube. Do not use the Cordless Blowerfor any
purpose otherthan that for which IT was designed.
! CAUTION: Keep children and small pels a safe distance away while
-- operating the Cordless Blower. Flying Debris can cause personal :njury.
DeN']' FORCE CORDLESS BLO'vVER -It wiH do the job betler and "'th
less likelihood of a Jisk of Injury atthe rate for which it was designed,
STAY ALERT -Watch what you are doing, Use cOmmon sense, Do
not operate Cordless Blower when you are tired Of under the influ-
ence
Of medications, drugs or alcohol.
STAY ALERT -Watch what
you are doing. Use common sense,
Do not operate Cordless Blower when you are tired or under !he
influence
of medications, drugs or alcohol.
STORE IDLE CORDLESS BLOWER INDOORS -
IAlhen not in use,
your Cordless Blower should be stored indoors in a dry and high or
10<:'"ed-up place, out of reach of mildren.
MAINTAIN CORDLESS SLOWER WITH
CARE
and handles clean for best pe'rforrnance and to
injury,
Keep handles dry and free from oil and grease.
__ POLARIZED PLUGS - To reduce the risk of electric shock, this
equipment has a polarized plug (one blade
is widerthan the other),
This must
be used with a suitable polarized 2 wire or 3
wire cord, Polalized conneclions will fit together only one
way. Make sure thaI the receptacle end of the extension cord has
large
and small blade slot widths. If!he plug does not fit fully into the
extension
cord, reverse the plug. If it still does not fit, obtain a
suitable extension cord, If the extension
cord does not fit fully inlo
the
outlet, contact a qualified electrician to install the proper outlet
Do not change the tool plug or extension cord in anyway.
" WARNING: Some dust created by this product contaIns chemicals
known
to the State of California to cancer, birth defects or
other reproductive r.arm. Some of these chemicals are:
-compounds in fertilizers
~compouf1ds in insecticjdas, herbicides and pesticides
-arsenic
and chromium tram chemically treated lumber
To reduce your exposure to these chemicals, wear approved safely
equipment such
as dust masks that are specially designed to filter
out microscopic particles,

I CHARGING THE BATTERY PACK I
Charge the batlery pack only with the charger provided.
Allow at leaslS-tl hours of charge time before Initial use of the trimmer.
Make sure the power supply is normal household voltage, 120votts,
60Hz,
AC only.
The battery charger should be operated in temperatures between
23 and 104 degrees F.
The battery should be charged in a coot, dry place.
2 to 3 initial charging/discharging cycles may be required to achieve
maximum run time/capacity.
DO NOT attempt to open the charger or the unit. There are no
customer serviceable parts inside. Return
to any authorized
Earthwisem service center.
DO NOT Incinerate battery packs even ifthey are
damaged orcompletely worn out. They can explode in
causing injury.
lise the battery charger indoors only.
Disconnect charger from the power supply when not in use to
prevent damage to the charger during a power surge.
Vvhen fully charged, the can be safely stored in tempera-
tures
down to -40 degrees period of up to two weeks, before
requiring charging. Fully charge battery
pack every 30 days.
if over a period oftime the battery pack quickly runs down after a
full 5-£ hour charging period, a replacement battery peck is needed.
To prevent permanent damage to the battery, neverslore in a
discharged condition.
WINTER STORAGE -Fully recharge for
the 5-6 haurs before
storage afld
then again every 30 days.
Since the battery will not develop a memory, it does not have to be
fully discharged before recharging.
A small leakage
of liquid from the battery cells may occur under
extreme
usage, ctlarging or temperature conditions. This does not
indicate a failure. However, IT the outer seal IS broken and this
leakage gets on your skin.
a. Wash quickly with soap and water,
b. Neutralize with a mild acid such as lemon juice Qf vinegar.
c. If the battery Hquid gels in your eyes, flush them with clean
water for a minimum of 10
mInutes and :Seek immediate
medical attention.
TO CHARGE
Plug the charger into a standard household electrical outlet.
TO INSTALL BATTERY PACK
Place the battery pac~ in your Cordless Blower. (see picture).
Ensure
the latches on each side ofthe battery pack snap in place
Place battery pack in charger. When properiy connected,
the red
and battery pack is securely connected to the Cordless Blower.
charger indicator light (LED) will glow.
NOTE: The charger indicator light will glow red continuously while
charging,
when fully eharged the LED light will glow green.
TO REMOVE BATTERY PACK
Press
both latches on side of battery pack to release battery from
Cordless Blower (see picture).
RECHARGING
Recharge the battery
as soon as the blowing power of your Cordless Blower is no
longer effective.
Avoid running
the battery into full discharge (draining the bettery completely),
Follow the procedure outlined.
Recharging the battery pack according to these instructions should ensure
maximum battery life.
BATTERY DISPOSAL
Remove the battery pack from the Cordless Blower, cover the terminals with heavy duty adhasive tape.
Do not attempt to destroy or disassemble battery pack orremove any components. This product contains
NiCkel-Cadmium battenes which must be recyded or disposed of property. local, state orfederal laws may
prohibit disposal ofthese batteries in the municipal solid waste orrural trash pick up systems.
The RBRC seal on the Nickel-Cadmium battery pack indicates that the cost to recycle the battery pack atthe end of its useful
life has already been paid by The Great States Corporation/American Lawn Mower Company. It is illegal to place spant Ni-Cad
batteries in the local municipal solid waste or in the trash. RBRC in cooparation with The Great Stat"s Corporation/American
Lawn Mower Company has provided an environmentally friendly and easy way to reeyde spent Ni-Cad batteries. Just contact
an authorized Earthwise'" service center, your local recycling center or call1.000.8.BA TTERY for information on where 10 drop
off the spant battery.

ASSEMBLY
PACKINGUST
-Blower
-BlowerTube
-Battery and Charger
-Instruction manua'
Assembling the unit as a blower
Connect two blowe, tubes together.
Fit the larger diameter end of blower tubes onto the air outlet ofthe
motor housing and rotate until engaged.
UNPACKING
This product requires some assembly.
remOVe the product and accessories from the
box sure that all items listed in packing list are induded.
Inspect Ihe product carefully to make sure
no breakage or damage
occurred during shipping.
Do not discard the packing material until you have carefully
inspected and satisfactorily operated the product.
If any parts are damaged or missing ,please call 1.800.313.5111
for assistance.
Avoid collisions with hard objects which could damage your machine.
Keep bystanders and animals at least 5 m away from the working area.
Make
sure that the switch is in poSition "0' (off), the batter} pack is
disconnected and all the rotating parts are at astandstill before dean:ng,
canying out inspections or moiling from
one place to another.
Do not put part of your body such as hands and fingers in the
vacuum opening orexhaust opening.
Do not switch the machine on in enclosed or poorly ventilated
spaces
or in the offlammable andlorexplosivs
substances as liquids, gas and powders.
TUBE ASSEMBLY line up the tube with the blower
housing
as shown. Into the blower housing unlil the
lock button engages the lock hole in the lube.
TO TURN THE TOOL ON
Push the lock button In with your thumb and then squeeze the
yourfingers. (Once the tool is you can release
button). To turn the tool
OFF, release trigger.
WARNING, Do Not use the blowerwith any type of accessory or
attachment Such usage mighl be hazardous.
BLOWlNG
Blow mode can be also used to clean corners, fences, walls,
wooden areas
or beneath cars. Be careful how you point the jet of
air as it CQuid move heavy material and cause injury or damage.
Turn the swilch to on.
o~ you and move
forward slowly 10 of to mOve the leaves
from !naccessible areas.
based products,
parts. They
let brake fluids, gasoiine, pelroleum
or handles broken or if you sse any other oils, etc., come in contact
'l~th plastiC
condition that may blower's operation, contact your local
can damage, weaken or
MAINTENANCE
careflJUy inspect it for damage. If the lube IS
Authorized Service Center for repairs before putting ]t back into use.
Make sure tile is detached from the unit, then use only mild
soap and a damp to clean the tool. Never let any liquid get
inside the tool; never immerse any part of the tool into a liquid.
SAFETY and RELIABILITY,
repairs. adjustment should be performed by an
authorized service cerner or other qualified service organization,
always using identical replacement parts.
destroy plastic.
Fertilizers and other garden chemicals contain agents which
greatly accelerate the corrosion of metals Do not store the tool
on or adjacent to fertilizers or chemicals.
CALL US FIRST !!
Call us firs! with questions about operating or maintaining your cordless blower
at 1.800.313.5111 between 7:30 a.m. -4:30 p.m. Eastern Standard Time,
or send [email protected].

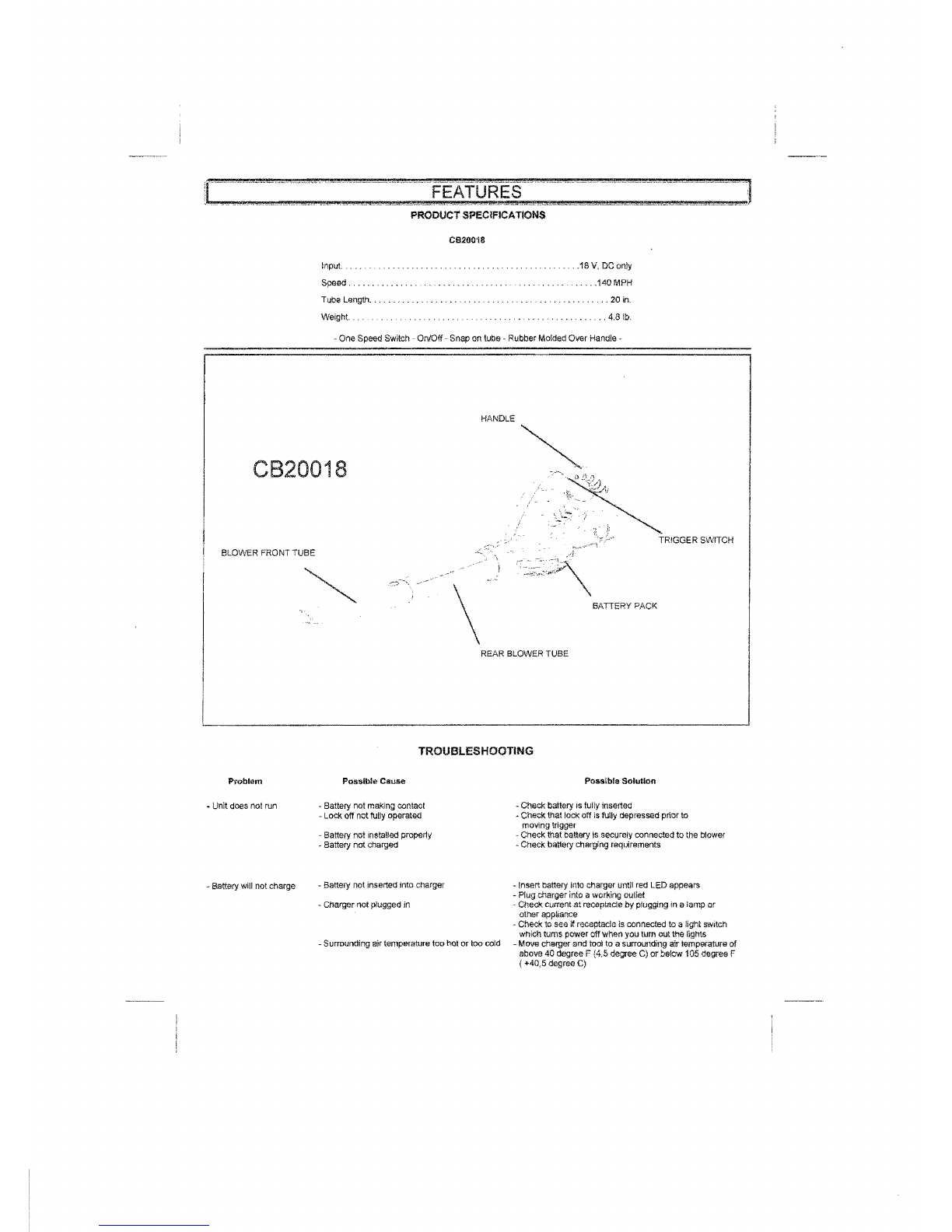

PRODUCT SPECIFICATIONS
CB20018
Input. ... 18V, DC only
Speed
.... 140 MPH
Tube Length.
.. ............. 20 in.
Weight. .,.4,811>.
-One Speed Switch -On/Off-Snap on tube Rubber Molded Over Handle -
HANDLE
CB20018
SWITCH
BLOWER FRONT TUBE \ BATTERY PACK
REAR BLOWER TUBE
Problem
• Unit does not run
• Battery will notcharge
TROUBLESHOOTING
Possl!>l" Cause
• Battery not making contact
-Lock off not
My operated
-Battery not installed properly
-
Batterj not charged
-Battery not inserted mto charger
-Charger not plugged in
-Surrounding air temperature too hot
or too cold
Possible Solution
-Check battery '5 fUlly inserted
• Checkthat lock off is fUlly depressed prtor to
moving trigger
-Check that battery is securely connected
to the blower
-Check battery charging requirements
-Insert battery into charger until red LED appears
-Plug charger into a wcrkjng outlet
Check
CUlTent at receptacle by plugging in a lamp or
otherappliance
Check to sae if receptacle is oonnected to a switch
which tums power off when you tum out the
-Move charger and tool to a surrounding air temperature of
above 40 degree F (4,5 degree C) or below 105 degree F
( +40,5 degree C)

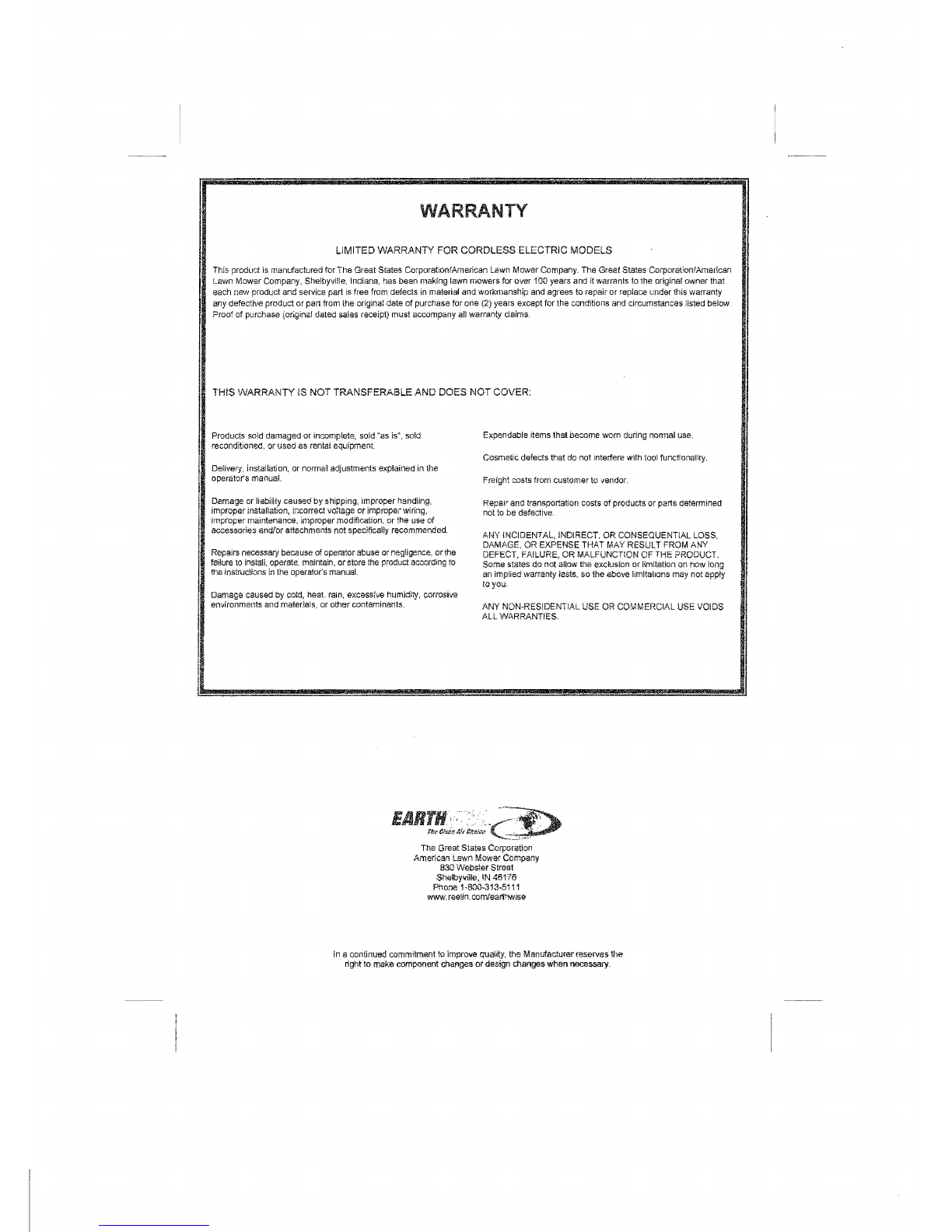

WARRANTY
LIMITED WARRANTY FOR CORDLESS ELECTRIC MODELS
This product is manufactured for The Great States Corporation/American Lawn Mower Company. The Great States Corporation!American
Lawn
Mower Company, Shelbyville, Indiana, has been making lawn mowers for over 100 years and it warrants to the original owner that
each
new product and service part is free from deiects in material and workmanship and agrees to repair or replace underthis warranty
any defective product
or part from the original date of purchase for one (2) except for the conditions and circumstances listed below
Proo! of purchase (or'ginel dated sales receipt) must accompany all claims.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER:
Products sold
or incomplete, sold "as is", sold Expendable items
that become worn during nonnal use.
reconditioned, rental equipment Cosmetic defects that do not interfere with tool functionality.
Delivery, installation, or normal adjustments explained in the
operator's manual. Freight costs from customer to vendor.
Damage or liability caused by shipping, improper handling, Repairand transportation costs
of products or parts determined
improper installation, ir<correct voaage orimproper wiring, not
to be defective.
improper maintenance, improper modification, or the use of
accessories andlor attachments not specifically recommended. ANY INCIDENTAL, INDIRECT,
OR vUIN<:>t:UlJt:N
DAMAGE, OR EXPENSE THAT
DEFECT, FAILURE, OR MALFUNCTION
Some states do not allow the exclusion or limitation on how long
an Implied warranty lasts,. so the above limitatIons may not apply
to you.
Damage caused heat. rain. excess,ve humidity, corrosive
environments
--" _._, ... ,-,- or other contaminants.
ANY NON-RESIDENTIAL USE OR COMMERCIAL USE VOIDS
ALL WARRANTIES.
The Great States Corporation
American Lawn Mower Company
830 Webster Street
Shelbyville, IN 46176
Phone [phone]
WW'/fI,reelin.com/earf.1wlse
In a continued commitment to improve quality, the Manufacturerreserves tie
right to make component change. or design changes when necessary.
