Eastwood 31638 User manual

SWING ARM
TIRE CHANGER
INSTRUCTIONS
Item #31638

2Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
The Eastwood Tire Changer offers the ability to quickly and easily mount and dismount tires on most any steel or alloy wheels without damage. Constructed with
the same pneumatic functions as other professional machines, this Tire Machine is ideal for the avid home hobbyist, race shop or small business.
CONTENTS
(1) Main Tire Machine Base Unit - [A]
(1) Vertical Tower - [B]
(4) M12 Nuts - [C]
(4) M12 Washers - [D]
(1) Slide Shaft Spring - [E]
(1) Plastic Cover - [F]
(20) Mount/Dismount Shoe “Duckhead” Replaceable Plastic Glides – [G]
(20) Mount/Dismount Shoe “Ducktail” Replaceable Plastic Glides – [H]
(1) Coiled Air Hose - [J]
(1) Gauge/Fill Gun - [K]
(1) 1/4” MNPT, Male Coupler – [L]
(1) Tire Iron – [M]
(4) Rim Protectors – [N]
SPECIFICATIONS
Rim Diameter Range:
– External Clamping: 10” to 18”
– Internal Clamping: 12” to 21”
Maximum Rim Width: 16”
Maximum Tire Diameter: 45”
Turntable Rotation Speed: 6 RPM
Power Requirements: 120 VAC, 60hz
Air Supply Operational Range: 115 to 145 PSI [8 to 10 Bar]
TOOLS REQUIRED
• 17mm Wrench
• 16mm Wrench
• 8mm Hex Key
• 3mm Hex Key
• 2mm Hex Key

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
SAFETY INFORMATION
The following explanations are displayed in this manual, on the labeling, and on all other information provided with this product:
GENERAL SAFETY RULES
Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “electrical equipment ” in all
of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate electrical equipment in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Electrical equipment creates
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating electrical equipment. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Electrical equipment plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) electrical
equipment. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose electrical equipment to rain or wet conditions. Water entering electrical equipment will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the electrical equipment. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating electrical equipment outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk
of electric shock.
To order parts and supplies: 800.343.9353 >> eastwood.com 3

4Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating electrical equipment. Do not use electrical equipment while you are tired or
under the influence of drugs, alcohol or medication. A moment of inattention while operating electrical equipment may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position before plugging in. Carrying electrical equipment with your finger on the switch or
plugging in electrical equipment that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the electrical equipment on. A wrench or a key left attached to a rotating part of the electrical
equipment may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the electrical equipment in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the electrical equipment. Use the correct electrical equipment for your application. The correct electrical equipment will do the job better
and safer at the rate for which it was designed.
b) Do not use the electrical equipment if the switch does not turn it on and off. Any electrical equipment that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the electrical equipment before making any adjustments, changing accessories,
or storing electrical equipment. Such preventive safety measures reduce the risk of starting the electrical equipment accidentally.
d) Store idle electrical equipment out of the reach of children and do not allow persons unfamiliar with the electrical equipment or these instructions to
operate the electrical equipment. Electrical equipment is dangerous in the hands of untrained users.
e) Maintain electrical equipment. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the electrical
equipment operation. If damaged, have the electrical equipment repaired before use. Many accidents are caused by poorly maintained electrical equipment.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the electrical equipment, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of
electrical equipment, taking into account the working conditions and the work to be performed. Use of the electrical equipment for operations different
from those intended could result in a hazardous situation.
5) SERVICE
a) Have your electrical equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the electrical
equipment is maintained.
SAFETY INFORMATION

To order parts and supplies: 800.343.9353 >> eastwood.com 5

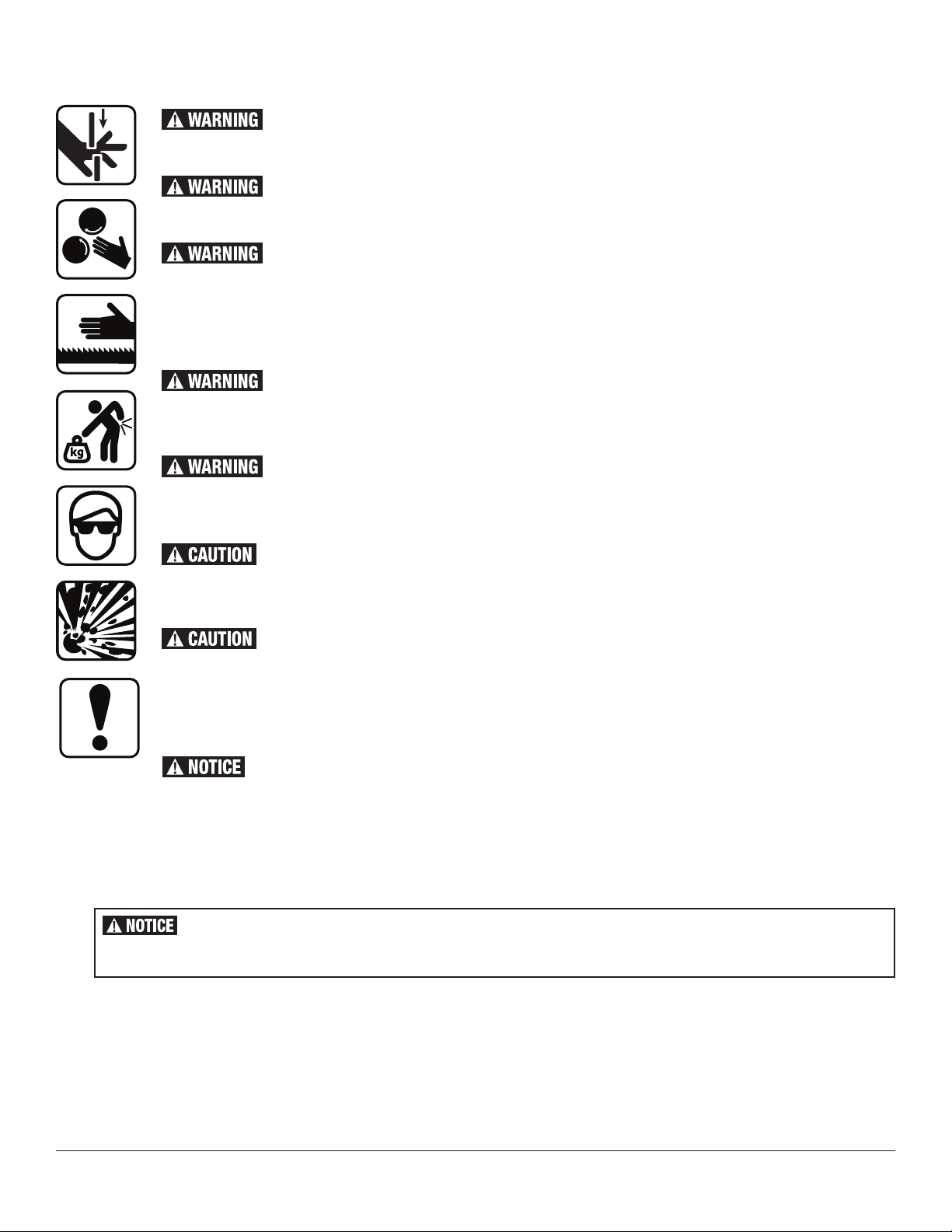

TIRE MACHINE SAFETY FEATURE
INSTALLATION LOCATION
• The Tire Machine MUST be installed on a solid and level concrete or similar surface for proper operation, accuracy and safety.
• There MUST be a minimum of 3 ft. of open space surrounding the Tire Machine.
• This Tire Machine MUST be firmly attached to the floor with suitable concrete anchors or similar hardware (not included).
Should a malfunction occur during the operation of the Tire Machine, releasing foot pressure from controls will stop motion
immediately.
PINCH AND CRUSH HAZARD!
• Keep fingers and hands away from moving parts when operating.
CUT HAZARD!
• Contacting metal edges on wheels can cause serious cuts. Wear thick, well-fitting work gloves to prevent cuts from handling wheels & tires.
INJURY HAZARD!
• This tool can quickly start up while connected to an electrical supply causing serious personal injury. Always disconnect the
Tire Machine from the electrical supply before making adjustments or performing maintenance.
• The Tire Machine involves the mounting/dismounting of large, heavy wheel/tire combinations which can cause serious injuries
if dropped. The use of safety shoes is strongly recommended.
EYE INJURY HAZARD!
• Moving/rubbing components under great pressures can suddenly eject particles at high velocity. Always wear ANSI approved eye
protection when operating this equipment.
BURST HAZARD!
• Excessive air pressure can cause tool to explode resulting in tool damage and personal injury. Do not exceed 145 psi [10 bar]
of tool inlet air pressure.
INJURY HAZARD!
• The Tire Machine consists of large moving components which can present a hand/finger pinch hazard injuries if dropped.
Avoid pinching hands while handling parts during assembly and/or operation.
• The Tire Machine was specifically designed to be operated by one person only. Never have one person operate the pedals while
another handles the wheel mounting/dismounting or serious injury could occur.
• Inspect rim and tire before mounting or dismounting for damaged or bent conditions. Attempting to mount or dismount a damaged
rim and/or tire can result in serious injury and severe Tire Mounting Machine damage.
• Wheels and tires MUST be clean and free of all mud, grit, rust or other debris as this can cause machine malfunction and failure
of tires to seal.
SAFETY INFORMATION
