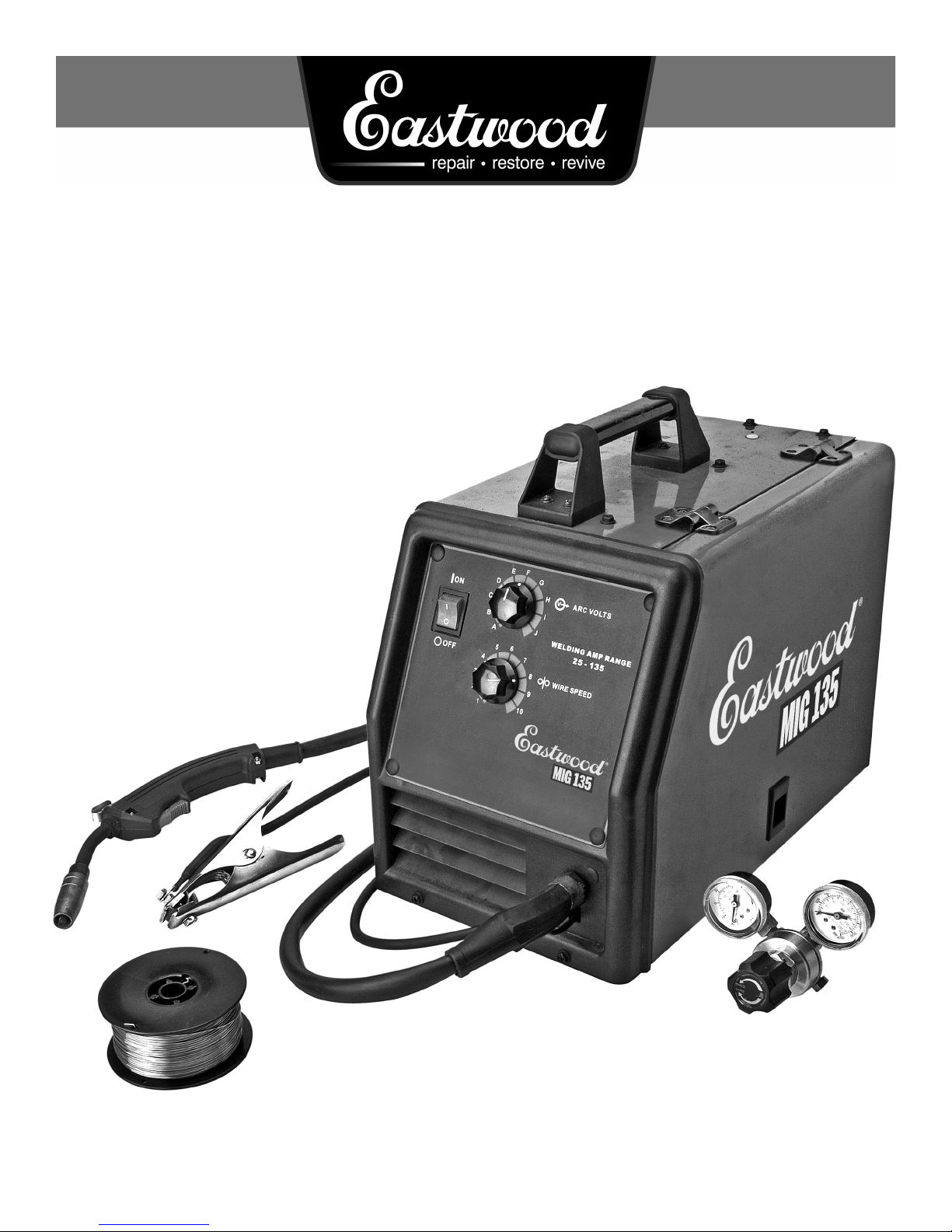

Eastwood MIG 135 User manual

Eastwood Mig135
Assembly and Operating Instructions
Part #12011
Carefully read this operation manual prior to using, installing and maintaining your welder
to prevent damage such as fire and electric shock from occurring.
Please keep this manual for your future reference!

2 © Copyright 2011 Easthill Group, Inc.
SPECIFICATIONS
Rated Electrical Input ............... 110-120 VAC; 60Hz; 15AMP
Max Voltage at No Load ........... 28 V DC
Rated Duty Cycle ...................... 90A@20% duty cycle
Wire Feed Rate .......................... 3.28 Ft/min – 32.8 Ft/min
Wire Sizes .................................. 0.025”(0.6mm) – 0.030”(0.8mm) mig wire
0.030”(0.8mm) flux core wire
Welding Wire Spool .................. 4” and 8” spool
Weight......................................... 80.0Lbs (24.5kg)
Overall Dimensions................... 16.5” (408mm) X 9.6” (244mm) X 14.5” (367mm)
SAVE THIS MANUAL
You will need this manual for its safety warnings and precautions, assembly instructions, operating and
maintenance procedures, parts list and diagram. Keep your invoice with this manual. Keep this manual
and invoice in a safe and dry place for your future reference.

To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com 3
SAFETY INFORMATION
ARC WELDING CAN BE DANGEROUS.
THIS WELDING MACHINE MUST BE CONNECTED TO A POWER SOURCE IN ACCORDANCE WITH
APPLIANCE ELECTRICAL CODES.
DISCONNECT FROM POWER SOURCE BEFORE ASSEMBLING, DISASSEMBLY OR MAINTENANCE
OF THE TORCH OR CONTACT TIP OR CHANGING WIRE SPOOLS.
FOR SAFETY TURN OFF AND UNPLUG MACHINE WHEN INSTALLING NEW WIRE SPOOL,
ADJUSTING WIRE TENSION ROLLER OR REPLACING CONTACT TIP.
THE GAS NOZZLE MUST ALWAYS BE INSTALLED WHEN WELDING-DO NOT WELD WITHOUT THE
GAS NOZZLE IN PLACE. THE CONTACT TIP IS ELECTRICALLY “HOT” AND IF IT CONTACTS THE
GROUNDED WORK PIECE IT WILL CAUSE DAMAGE.
ALL INSTALLATION, MAINTENANCE, REPAIR OPERATION OF THIS EQUIPMENT SHOULD BE PRE-
FORMED BY QUALIFIED INDIVIDUALS IN ACCORDANCE WITH NATIONAL, STATE AND LOCAL CODES.
ELECTRIC SHOCK CAN KILL! Improper use of an electric welder can cause electric shock, injury
and death! Read all precautions described in this manual to reduce the possibility of electric shock.
The MIG135 power switch is to be in the OFF (“0”) position when installing the work cable and gun and
while plugging in the power cord.
Always wear dry, protective clothing and leather welding gloves and insulated footwear.
Always operate the welder in a clean, dry, well ventilated area. Do not operate the welder in humid, wet,
rainy or poorly ventilated areas.
Be sure that the work piece is properly supported and grounded prior to beginning an electric welding
operation.
The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not touch
these “hot” parts with your bare skin or wet clothing.
DO NOT TOUCH THE CONTACT TIP WITH THE UNIT TURNED “ON”. Turn the unit off before changing
tips or cleaning the nozzle.
Always attach the ground clamp to the piece to be welded and as close to the weld area as possible.
This will give the least resistance and best weld.
Continued...

4 © Copyright 2011 Easthill Group, Inc.
SAFETY INFORMATION
FUMES AND WELDING GASES CAN BE DANGEROUS.
Do not breathe fumes that are produced by the welding operation. These fumes are dangerous.
Keep your head and face out of welding fumes. Shielding gases used for welding can displace air
and cause injury or death. Always work in a properly ventilated area, we recommend wearing an
OSHA-approved respirator when mig welding!
WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION.
Do not operate electric arc welder in areas where flammable or explosive vapors are present. Always keep
a fire extinguisher nearby while welding. Use welding blankets to protect painted surfaces, dash boards
engines, etc.
ARC RAYS CAN BURN.
Use a shield with the proper filter ( a minimum of #11) to protect your eyes from sparks and the rays of the
arc when welding or when observing open arc welding. Use suitable clothing made from durable flame-
resistant leather material to protect your skin. Protect nearby individuals with a non-flammable barrier.
HOT METAL WILL BURN.
Electric welding operations cause sparks and heats metal to temperatures that will cause severe burns!
Use protective gloves and clothing when performing any welding operations. Always wear long pants,
long-sleeved shirts and leather welding gloves. Make sure that all persons in the welding area are pro-
tected from heat, sparks and ultraviolet rays. Use additional face shields and flame resistant barriers as
needed. Never touch work piece until it has completely cooled.
ELECTROMAGNETIC FIELDS MAY BE DANGEROUS.
The electromagnetic field that is generated during arc welding may interfere with various electrical and
electronic devices such as cardiac pacemakers. Anyone using such devices should consult with their phy-
sician prior to performing any electric welding operations. Exposure to electromagnetic fields while weld-
ing may have other health effects which are not known.
UNPACKING
When unpacking, check to make sure all the parts listed below are included.
• Mig 135 Unit
• Torch Gun Cable Assembly
• Ground Cable Assembly
• Gas Flow Regulator
• Gas Flow Regulator Hose
• Hand-Held Shield
• Wire Brush
• 2 lb. Spool of 0.023” Mig Wire

To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com 5
COMPONENTS AND CONTROLS
1. Ground cable and torch access hole.
2. Opening for torch electrical cable.
3. Power switch.
4. Voltage control knob.
5. Wire speed, feed rate adjust knob.
6. Latch.
7. Power Cord.
8. Reset overload protective device –
the protector will cut off the circuit if
the welding machine is in excess of
the maximum load, after which the
switch must be manually reset.
9. Shielding gas inlet fitting.
10. Wire feed tension roller.
11. Wire spool mount spindle.
12. Wing screw to fasten the welding torch cable.
13. Positive (+) and negative (-) output terminals.
14. Control cable connection of the welding torch.
FIG. B
FIG. B
7
9
11
14
13
12
10
8
4
3
5
1
2
6

6 © Copyright 2011 Easthill Group, Inc.
WIRE FEEDER INSTALLATION
The wire feed drive roller attached to MIG135 has two wire grooves, one for 0.023” (0.6 mm) welding wire
and another for 0.030 (0.8 mm) welding wire or 0.035” (0.9 mm) flux-cored wire. The factory default is the
0.023” (0.6 mm) wire groove. In the event that 0.030” or 0.035” welding wire is to be used, the wire feed
roller should be switched around.
1. Ensure that the MIG135 welding machine
is powered “OFF” and the power cord is
unplugged.
2. Unlock the tension bar (1) and lift up the
rocker arm (2) of the wire feeder.
3. Unscrew the Allen set screws (3) holding the
wire Feed roller with inner Allen wrench.
NOTE: turn feed roller with pliers to access
allen bolt.
4. Take out wire feed roller (4) and flip the
wire feed roller so that the 0.8mm mark
is towards you.
5. Reinstall by putting back the wire feed roller
and tightening the Allen set screw.
WELDING WIRE INSTALLATION
The MIG135 welding machine can be used with wire spools of either 8” (200 mm ) in diameter or 4”(100
mm) in diameter. The depth of either spool should not exceed 2.2” (56 mm). There is a 50mm plastic bar-
rel attached to the welding machine. The swing screw can adjust the resistance of the welding wire spool
to keep the wire from loosening.
For installing (See Figure D-1) a wire spool 8”(200 mm) in diameter, attach the spool to the plastic barrel (1).
The position-fixing pole of the plastic barrel should be aligned with the locating hole of the welding wire spool.
(NOTE: the wire spool will rotate clockwise when wire is in use.)
To install the welding wire spool 4”(100 mm) in diameter (See Figure D-2). Loosen the wing screw (2) and
remove the rotation-stop block (3). Then remove the plastic barrel (1). Install the welding wire spool onto
the metal shaft.
(NOTE: the wire spool will rotate clockwise when wire is in use). Finally, reinstall the rotation-stop block
and the wing screw.
FIG. C
FIG. C
1
1
2
2
3
3
4
4
FIG. D-1
FIG. D-1
1
2
FIG. D-2
FIG. D-2
3
Figure D-1
Use the welder wire board
with 8” (200 mm) in dia.
Figure D-2
Use the welder wire board
with 4” (100 mm) in dia.

To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com 7

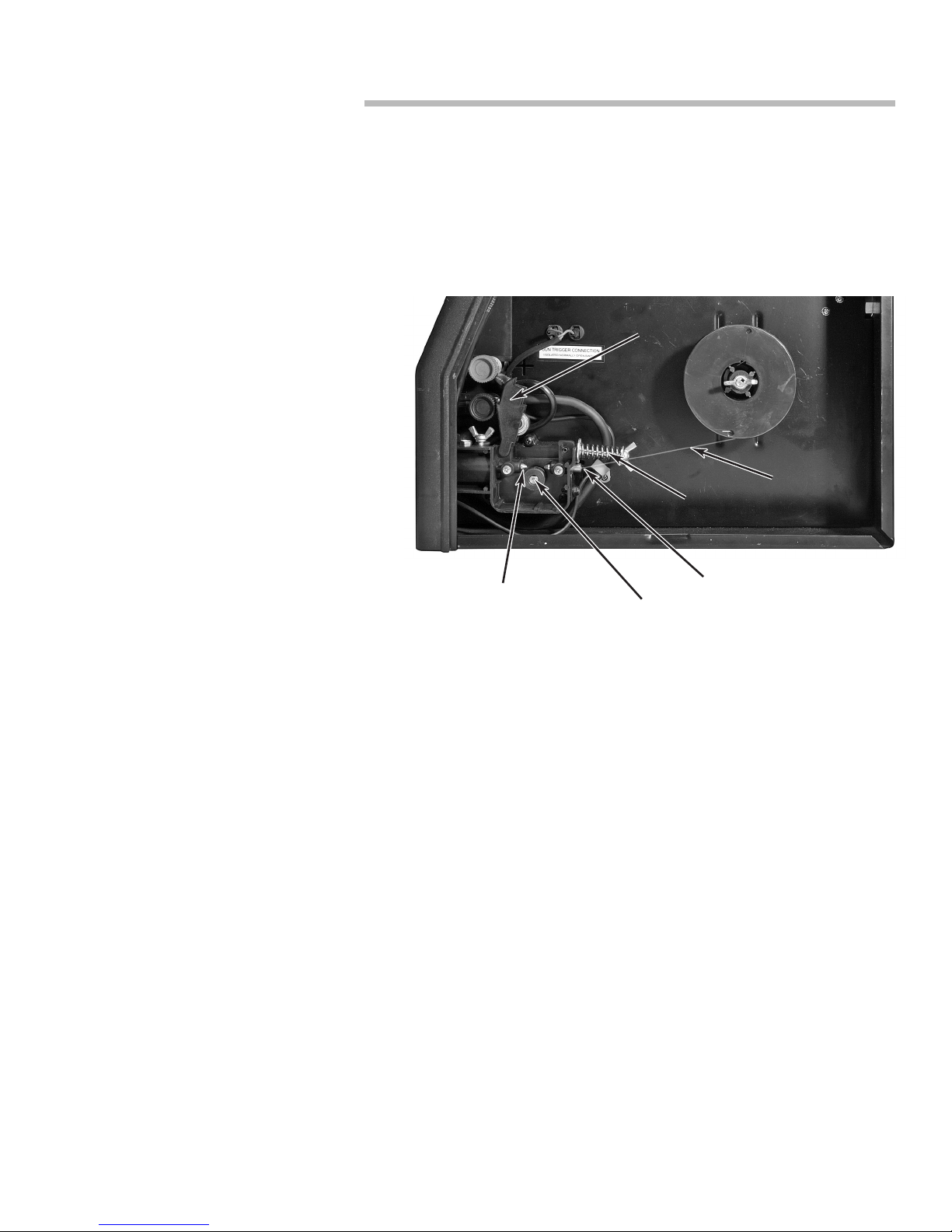

HOW TO THREAD WELDING WIRE THROUGH
THE WIRE FEEDER
1. Unlock the tension bar (1) on the wire tensioner and lift up the rocker arm (2). Ensure that the wire
drive wheel is appropriate to the welding wire size, see previous page describing the installation of
the Drive Roller.
2. Pull out the welding wire (3) from the welding wire spool carefully; NOTE: Do not let go of the wire
prior to step 5 or the entire spool will unravel and be useless.
3. Cut off the small piece of the curved segment at the front of welding wire and straighten the welding
wire approximately 3.0” long.
4. Thread the welding wire through the
guide pipe (4) and over the wire feed
roller (5) and into the torch hole (6).
5. Reattach the rocker arm (2) and reset
the presser bar (1) of the wire feeder
(now the welding wire can be fed
smoothly).
6. Remove the contact tip and nozzle
from the mig gun.
7. Turn on the machine and set the wire
speed to about “5”.
8. With the gun pointed away from you
and others, depress the trigger to
begin feeding wire.
NOTE: Watch the drive roller to see if any slipping is occurring between the roller and the wire- if so
turn the machine off and tighten the tension wing nut 1⁄4 turn and test again.
9. You do not want too much tension on the tension roller as it will tend to deform the wire. Just enough
to feed the wire without slipping
10. Once the wire has emerged from the tip of the gun, turn the machine OFF and replace the tip and
nozzle.
FIG. E
FIG. E
2
2
1
1
3
3
4
5
6

8 © Copyright 2011 Easthill Group, Inc.
SHIELDING GAS INSTALLATION
A compressed gas cylinder containing 75% Argon and 25% CO2 should be used when using the
MIG Welder (GMAW - GAS Metal Arc Welding). The flow regulator and supply hose is included with
your welder. Compressed gas can be obtained from your local welding supplier.
1. Attach the compressed gas cylinder with a chain to
a wall or other secure object, to prevent the cylinder
from falling.
2. After securing the tank, remove the cylinder cap if your
cylinder has one.
3. Install the flow regulator to the supply valve on the cylinder
and tighten it with a wrench.
4. Install one end of the gas supply hose into the outlet of
the flow regulator and tighten. Connect the other
end of the hose to the gas inlet located at the rear of
the MIG135 welding machine (The connector nipple
5/8-18 adapts to CGA-032). Ensure that the hose is
not twisted or knotted.
5. Slowly turn on the gas cylinder valve. Open valve all the way.
6. Depress gun trigger switch and adjust the flow regula-
tor to 25-30 cubic ft per hour (CFH), (12-14 l/min).
7. Shut off the bottle valve when not in use. Power off
your unit when you are done welding.
8. NOTE: Always keep the valve of the gas cylinder
closed when it is not in use.
WELDING OPERATIONS
1. Plug in the MIG135 Welding Machine.
2. Straighten out the welding torch.
3. Turn ON the unit and depress the gun trigger. Feed wire and cut 1⁄4” from the end of the nozzle.
4. Remove any paint corrosion, grease and oils before welding. Place the ground clamp as close to the
welding zone as possible, and on a clean, bare surface.
FIG. F
FIG. F
Valve
Flow
regulator
Hose feeds
to protective
gas input

To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com 9
WELDING PROCESS
1. Please refer to “Suggested Settings” chart in the unit and select proper settings based on the material
and thickness.
2. Adjust output polarity according to the welding wire and to ensure whether or not the protective gases
are needed. This welder comes set to weld with gas. If welding gasless with flux core, polarity must be
changed.
3. Connect the ground clamp to the work pieces that are to be welded. This connection should be good
and secure.
4. Your welding torch should have clear access to the work piece
5. Wearing your welding helmet, gloves and long sleeve shirt and pants, press the trigger of the welding
gun and begin to weld. Keep the nozzle of the welding torch approximately 1/4” away from the work
piece.
6. Use a “Push” technique which means you will be holding the gun in your right hand with the nozzle
and gun tilted back about 10-20 degrees and pushing the gun or moving from right to left.
7. Once you depress the trigger the wire will arc and you will notice a molten puddle from. You want to
“move” this puddle to the left following the seam or areas to be welded.
8. If you “burn through” the material you are moving too slowly or your heat setting is too high.
9. The sound of bacon frying is what you are after. Start with the initial setting on the chart and increase
or decrease wire speed to obtain the best weld
10. Release the trigger of the welding torch to stop welding
11. After welding, close the valve on the bottle (if gas is used) and then press trigger of the welding torch
to release any gasses left in the hose. Finally, power off the welding machine
13. If you’re welding patch panels or quarter panels on use the “stitch” type method. Depress the trigger
momentarily to form a small puddle or single bead. Then depress again to form another bead aside of
the first. Continue until you have 4 or 5 small beads connected about 1⁄2-3/4” in length.
13. Move to the other end of the panel and repeat the process. Now go to the middle and repeat. Con-
tinue this process moving to different areas of the panel to eliminate heat warping the material.
Visit Eastwood.com
to see our welding videos!

10 © Copyright 2011 Easthill Group, Inc.
OVERLOAD PROTECTION FOR POWER SUPPLY
TO WELDING
Your MIG135 is equipped with a temperature controller as well as an overload breaker. These two protec-
tion devices will protect the welding machine whenever the output exceeds the maximum output. If the
output is exceeded, the unit will not supply voltage and the wire feeder will shut down (the fan will continue
to run to cool the unit).
If the shut-down resulted from output overload, the circuit breaker button will extend out if it has been
tripped. The circuit breaker must be reset manually. Before resetting the circuit breaker button, wait several
minutes to allow the welding machine to cool down.
If there is no voltage and circuit breaker was not tripped, the internal thermal protector may have shut off
the machine until it cools to a reasonable operating temperature. This is an automatic function and does
not require the user to manually reset anything. The fan will continue to run while the unit is cooling.
If the unit is still “ON” but neither the output nor fan is working, either an overload fuse or a power supply
circuit fuse has been blown.
OVERLOAD PROTECTION TO WIRE FEEDER
The MIG135 model has two automatic circuits to protect the motor of the wire feeder. If there is fault to the
motor, the circuit will power off the wire feeder as well as the output.
When the trigger is released again, the circuit will be automatically reset.
FIG. G
FIG. G

To order parts and supplies, call 1-800-345-1178 or visit www.eastwood.com 11
STATEMENT OF LIMITED WARRANTY
The Eastwood Company (hereinafter “Eastwood”) warrants to the end user (purchaser) of all new welding and cutting equipment (collectively called the “products”) that it
will be free of defects in workmanship and material. This warranty is void if the equipment has been subjected to improper installation, improper care or abnormal operations.
WARRANTY PERIOD:
All warranty periods begin on the date of purchase from Eastwood. Warranty Periods are listed below, along with the products covered during those warranty periods:
3 Year Warranty on Material, Workmanship, and Defects:
• Eastwood MIG 135 Welder
Items not covered under this warranty: Contact tips, nozzles, wire, and ground clamp and cable.
All other components are covered by the warranty and will be repaired or replaced at the discretion of Eastwood.
2 Years:
• All Welding Helmets.
CONDITIONS OF WARRANTY TO OBTAIN WARRANTY COVERAGE:
Purchaser must first contact Eastwood at 1-800-345-1178 for an RMA# before Eastwood will accept any welder returns.
Final determination of warranty on welding and cutting equipment will be made by Eastwood.
WARRANTY REPAIR:
If Eastwood confirms the existence of a defect covered under this warranty plan, Eastwood will determine whether repair or replacement is the most suitable option
to rectify the defect. At Eastwood’s request, the purchaser must return, to Eastwood, any products claimed defective under Eastwood’s warranty.
FREIGHT COSTS:
The purchaser is responsible for shipment to and from Eastwood.
WARRANTY LIMITATIONS:
EASTWOOD WILL NOT ACCEPT RESPONSIBILITY OR LIABILITY FOR REPAIRS UNLESS MADE BY EASTWOOD. EASTWOOD’S LIABILITY UNDER THIS WARRANTY SHALL
NOT EXCEED THE COST OF CORRECTING THE DEFECT OF THE EASTWOOD PRODUCT. EASTWOOD WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
(SUCH AS LOSS OF BUSINESS, ETC.) CAUSED BY THE DEFECT OR THE TIME INVOLVED TO CORRECT THE DEFECT. THIS WRITTEN WARRANTY IS THE ONLY EXPRESS
WARRANTY PROVIDED BY EASTWOOD WITH RESPECT TO ITS PRODUCTS. WARRANTIES IMPLIED BY LAW SUCH AS THE WARRANTY OF MERCHANTABILITY
ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY FOR THE EQUIPMENT INVOLVED. THIS WARRANTY GIVES THE PURCHASER SPECIFIC LEGAL RIGHTS.
THE PURCHASER MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

If you have any questions about the use of this product, please contact
The Eastwood Technical Assistance Service Department:
1-866-759-2131 email: [email protected]
The Eastwood Company
263 Shoemaker Road, Pottstown, PA 19464, USA
US and Canada: 1-800-345-1178 Outside US: 610-718-8335
fax: [phone] www.eastwood.com
Instruction Manual #12011Q - Rev. 3/11
NOTES
