Temperature Screening Kiosk
User Guide
QUICK START MANUAL
The temperature screening tablets are designed to detect temperature anomalies. It’s
important to understand that there are many factors, including environmental and
physiological, that can impact a person’s surface temperature reading. Skin surface
temperature vs actual core body temperature may dier either way. The temperature
screening tablets must be operated in accordance with the manufacturer’s user
guide. Temperature screening tablets are not intended nor designed to diagnose or
detect medical conditions including, but not limited to, viruses or other illnesses. The
temperature screening tablets should only be used to detect variations in surface
temperature. In the event that an elevated skin temperature is detected, the subject
should be advised to check temperature with an approved medical thermometer
and have the nding conrmed. Absence of an elevated skin temperature does not
preclude a fever.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
Temperature Screening Kiosk
User Guide
CONTENTS
1. Power Connection............................................................................................................3–4
2. Software Setup
2.1 Access Settings Menu...................................................................................................5
2.2 Application Settings......................................................................................................6
2.3 Update Software...........................................................................................................7
2.4 Face Detection Utilities...........................................................................................8–10
2.5 Facial Recognition Settings..................................................................................11–19
2.6 Setting up Wi.......................................................................................................20–21
3. Software Roadmap............................................................................................................23

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
3
Temperature Screening Kiosk
User Guide
1. POWER CONNECTION
1.1 Connect the kiosk’s power plug to an AC power outlet. The unit should power up
automatically. If the unit does not power up, press the power button located on the
back right of the monitor, as you face the screen.
Note: Meets FDA guidelines for non-medical screening.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
4
Temperature Screening Kiosk
User Guide
1.2 To power down the machine when not in use, press and hold the power button for
several seconds until a prompt appears that says “POWER OFF.” Click on this to shut
down the machine.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
5
Temperature Screening Kiosk
User Guide

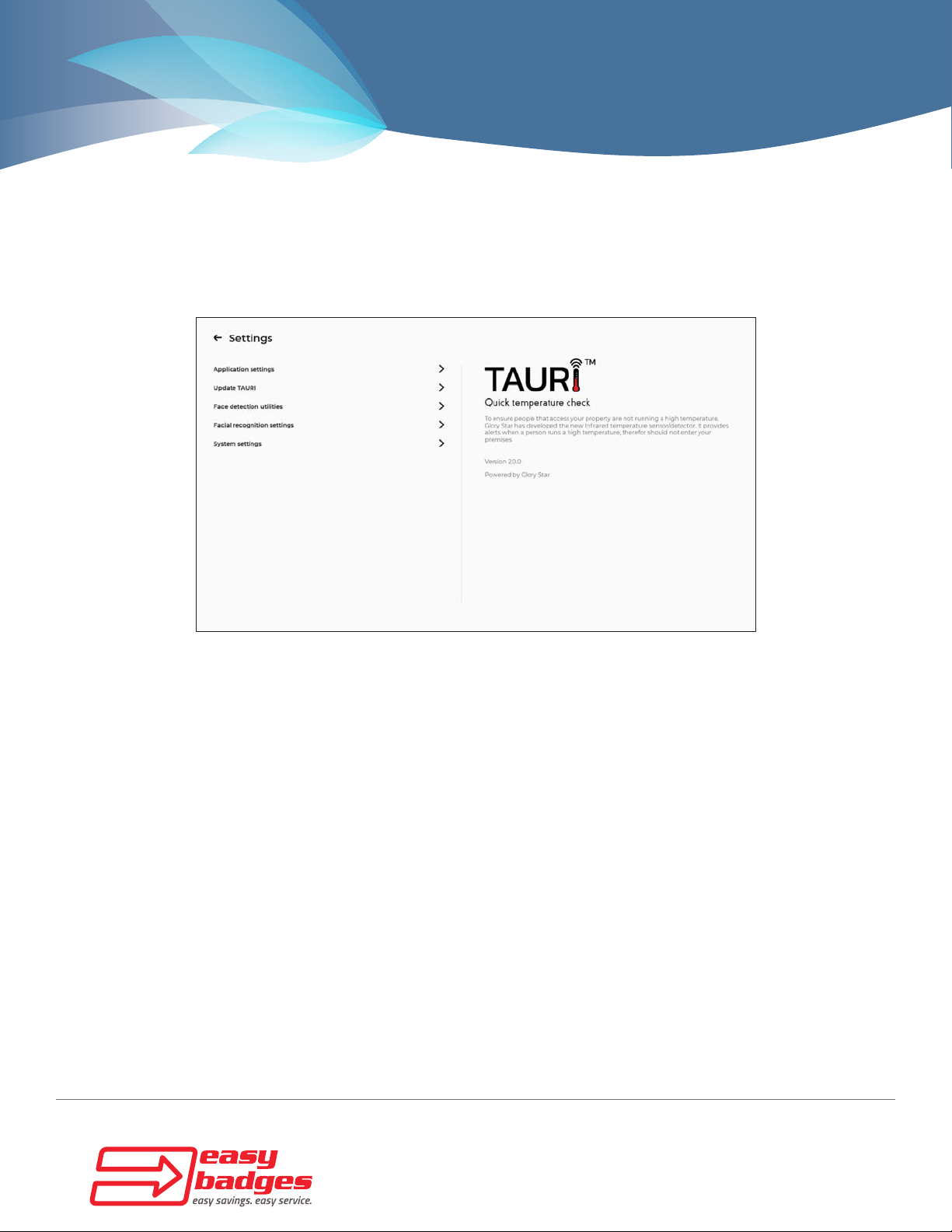

2. SOFTWARE SETUP
2.1 Access Settings Menu
2.1.1 Press and hold anywhere on the screen until a dialog box pops up.
2.1.2 Enter your password, or use the default password “0000” if it was never changed.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
6
Temperature Screening Kiosk
User Guide

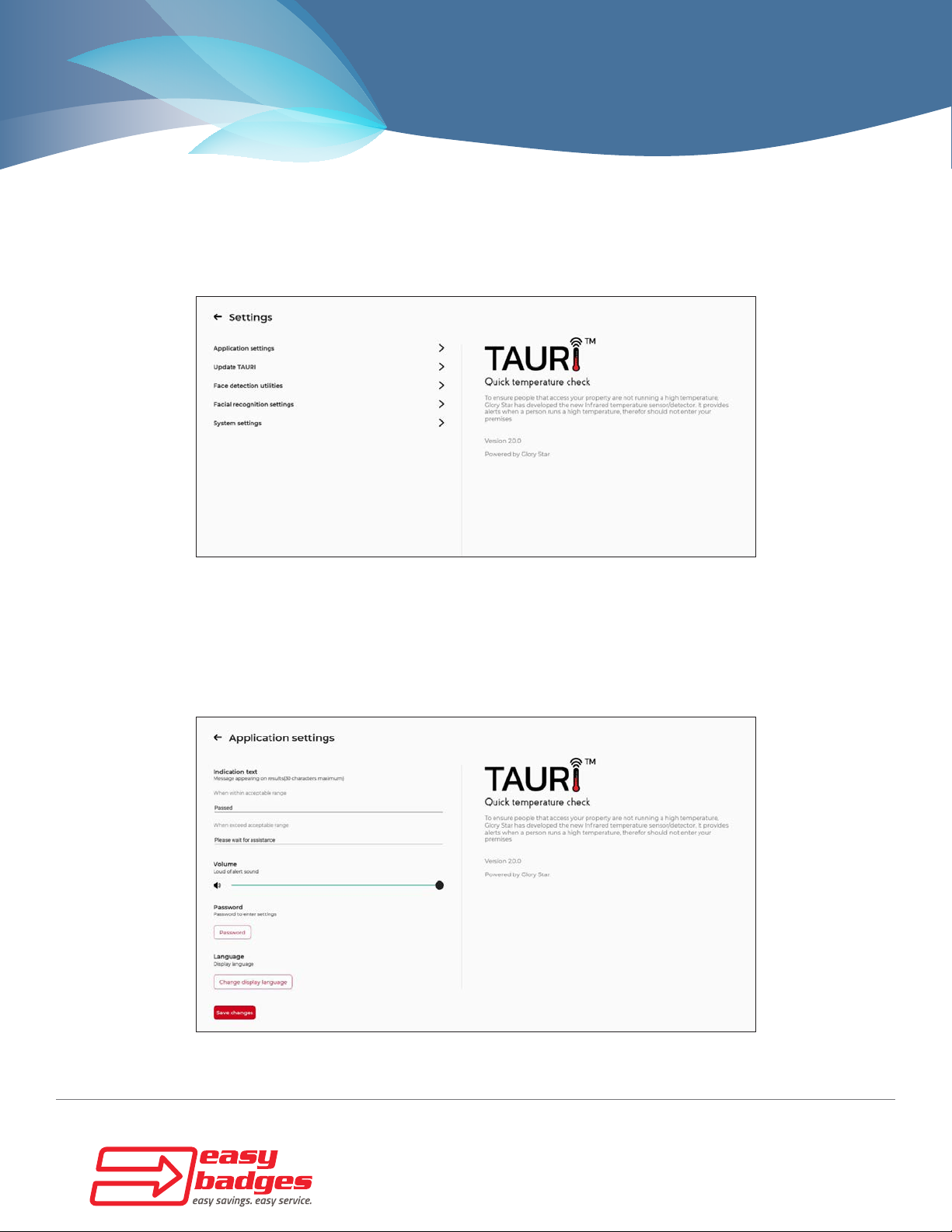

2.2 Application Settings
2.2.1 Press the “>” next to “Application settings.”
2.2.2 Adjust acceptable temperature to desired range. You can use the default message
or change the text that appears for a passing or failing temperature. If you have not
done so already, change the password. *CAUTION* When changing passwords, be
sure to record the new password and store safely. Easy Badges cannot help recover
a password. If necessary, the display language can also be changed. When you are
nished, press the “Save changes” button.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
7
Temperature Screening Kiosk
User Guide
2.3 Update Software
2.3.1 Press the “>” next to “Update TAURI” if you want to check for updates.
*WARNING* Check with Easy Badges before proceeding with any updates.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
8
Temperature Screening Kiosk
User Guide
2.4 Face Detection Utilities
2.4.1 Press the “>” next to “Face detection utilities.”
2.4.2 Enable the “Detection of wearing mask ” feature. The aler t message can be changed
if necessary. If you want someone to be notied of people who set o the alarm for
being outside the temperature range, enable the “Record high temperature people” and
enter the email address of the person to be notied. A screenshot of the person will be
sent to the email on le. **NOTE** At this time, only one email address may be used.
When you are done, press “Save changes” and go back to the menu.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
9
Temperature Screening Kiosk
User Guide

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
10
Temperature Screening Kiosk
User Guide
2.4.3 Click the arrow at the top of the screen to go back to the “Facial recognition
settings” menu.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
11
Temperature Screening Kiosk
User Guide

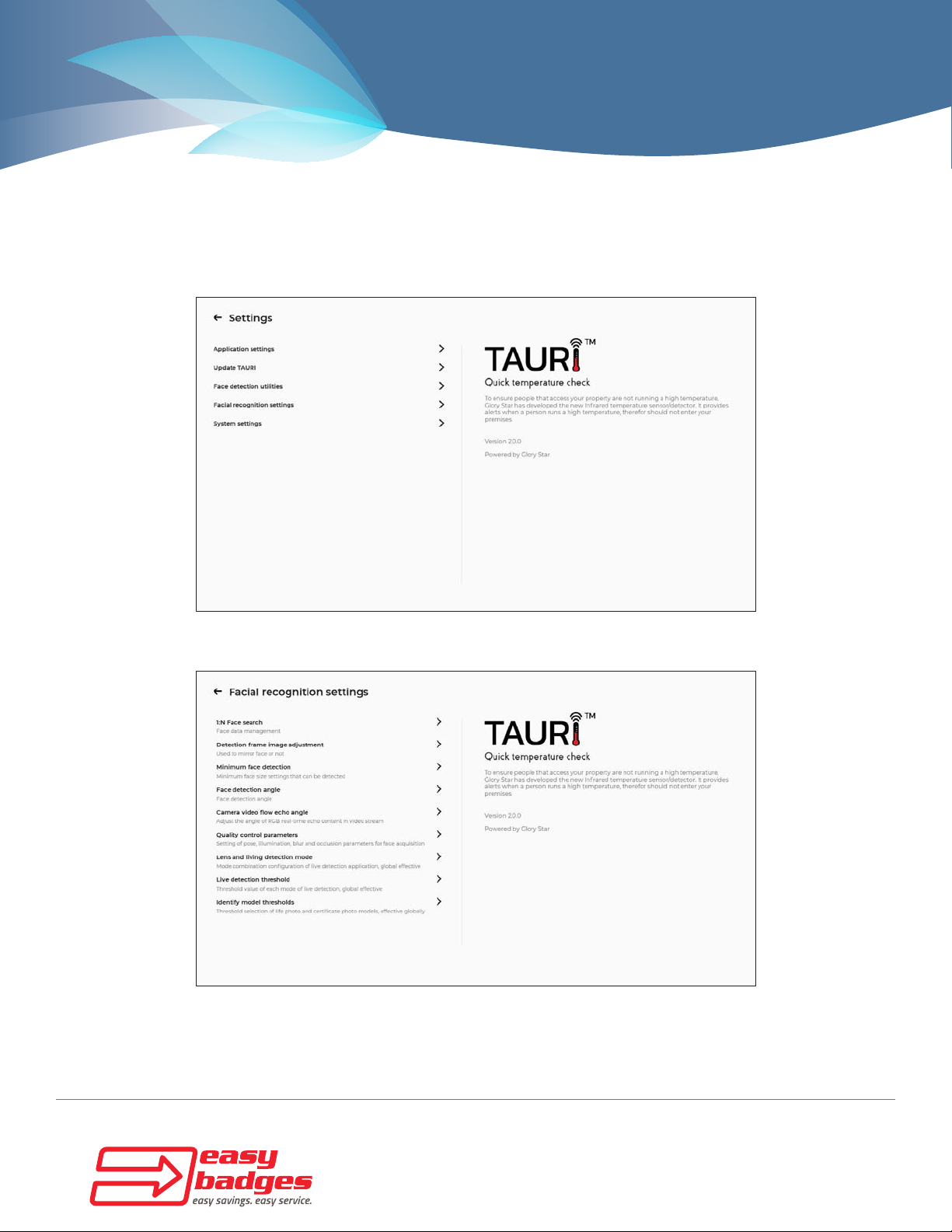

2.5 Facial Recognition Settings
2.5.1 Click the “>” next to “Facial recognition settings.”
2.5.2 Click the “>” next to “1:N Face search.”

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
12
Temperature Screening Kiosk
User Guide
2.5.3 Click the “>” next to “Face registration.”
2.5.4 Fill in the “User name,” “User group,” and “User information” for the person being
added to the database. When the person is ready to be added, press the red “Start
face collection” button. Once registration is complete, you will be taken back to the
“1:N Face search” menu.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
13
Temperature Screening Kiosk
User Guide
2.5.5 Click the “>” next to “Face database management.”
2.5.6 The “Face database management” menu will allow you to search for registered
faces by group. You can update photos and delete users in this menu.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
14
Temperature Screening Kiosk
User Guide
2.5.7 Click the “>” next to “Bulk import.”
2.5.8 “Bulk import” will allow you to register multiple photos/faces at the same time.
Follow the instructions in the menu to accomplish this.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
15
Temperature Screening Kiosk
User Guide
**CAUTION** It is recommended to leave the following settings, sections 2.5.9 thru
2.5.17, at the factory default unless there is a specic need to make adjustments.
Changing the settings may aect the operation of the kiosk.
2.5.9 The rest of the settings (“Detection frame image adjustment,” “Minimum face
detection,” “Face detection angle,” “Camera video ow echo angle,” “Quality control
parameters,” “Lens and living detection mode,” “Live detection threshold,” and “Identity
model thresholds”) are used to adjust how the machine captures and records faces.
2.5.10 “Detection frame image adjustment” = mirror image shown on screen.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
16
Temperature Screening Kiosk
User Guide

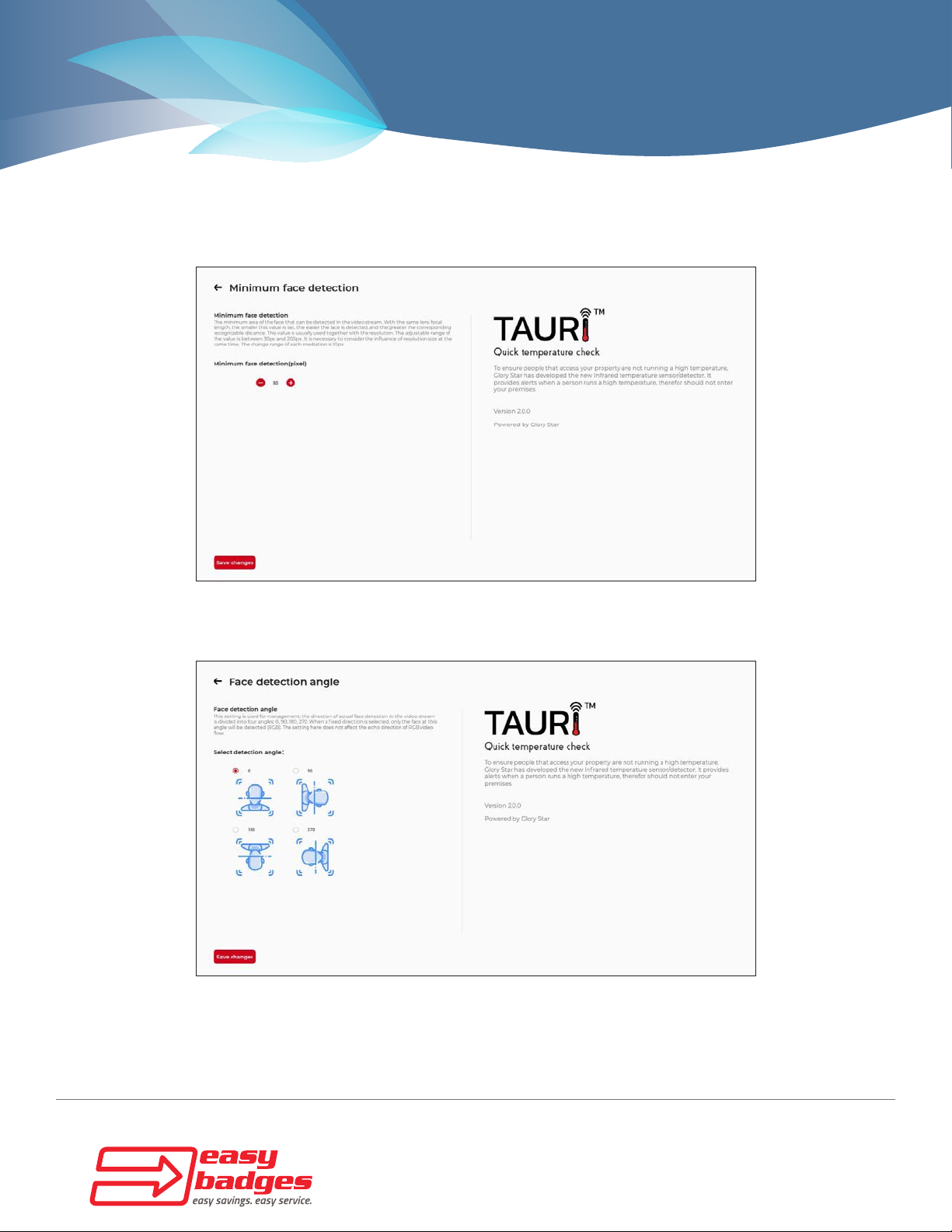

2.5.11 “Minimum face detection” = adjust the detection area on the face.
2.5.12 “Face detection angle” = adjust the angle of face detection to match monitor
orientation.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
17
Temperature Screening Kiosk
User Guide
2.5.13 “Camera video ow echo angle” = adjust the image display to match monitor
orientation.
2.5.14 “Quality control parameters” = controls the quality of the image.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
18
Temperature Screening Kiosk
User Guide
2.5.15 “Lens and living detection mode” = determines if a real person or photo is
being scanned.
2.5.16 “Live detection threshold” = adjust the value to determine if the object being
scanned is a living body or not.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
19
Temperature Screening Kiosk
User Guide
2.5.17 “Identify model thresholds” = adjust the mapping relationship between far
and FRR.

Customer Service & Sales:[phone]
Email: [email protected]
Support: [phone]
Email: [email protected]
20
Temperature Screening Kiosk
User Guide
2.6 Setting up Wi
2.6.1 Click the “>” next to “System settings.”
2.6.2 Click on Wi-Fi.
