Eaton CJAU-01/04 Series Manual

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
© 2022 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation
1
MA_shutter_actuator_CJAU-01/04.indd/01.2023c/IL019287ZU/136211216
All Rights Reserved / Printed in Austria
www.eaton.com/recycling
1.5 mm2
10 mm
0.75 mm²
10 mm²
°
%
Program
Mode
OFF
868.3 MHz
IP20
Slim 18 mm design
Instruction Leaet
Montageanweisung
Notice d’installation
Instrucciones de montaje
Istruzioni per il montaggio
Инструкция по монтажу
Montagehandleiding
Montagevejledning
Οδηγίες εγκατάστασης
Instruções de montagem
Monteringsanvisning
Asennusohje
Návod k montáži
Paigaldusjuhend
Szerelési utasítás
Montāžas instrukcija
Montavimo instrukcija
Instrukcja montażu
Navodila za montažo
Návod na montáž
Монтажни инструкции
Instrucţiuni de montaj
Upute za montažu
Kullanma Talimatı
Инструкција за монтажу
Intruksjonsblad
Монтажна інструкція
Shutters/Blinds Actuator
CJAU-01/04..
Actuator Type
CJAU-01/04
CJAU-01/04-I With local input
230VAC
CJAU-01/04-I
50Hz
3A
L
L
N
N
B A
+55°C*
-5°C
-25°C
+70°C
MRF Version 2.78
RM Version: 41a
SHC-RF Version: 2.00
ECI-RF Version: 2.00
USB-RF Version: 2.00
xComfort Bridge Version: 3.10
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power supply 230 VAC +10% -15%, 50 Hz
Load 3 A, L/R
Power standby < 200 mW (Typical)
Local input 230 VAC (Max. 265 V)
Input contact
resistance In to L
< 10 kΩ reliably ON
> 50 kΩ reliably OFF
Voltage di󰀨erence
IN to L
< 1 V reliably ON
> 3 V reliably OFF
Protection Overload, Over-temperature
Dimensions 49.5 x 45.5 x 18 mm (H x W x D)
RF 868,3MHz (xComfort compatible)
Max RF power 25mW (ERP)
www.eaton.com/xcomfort
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
© 2022 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation
2
MA_shutter_actuator_CJAU-01/04.indd/01.2023c/IL019287ZU/136211216
All Rights Reserved / Printed in Austria
www.eaton.com/recycling
< 0.5s
PROG
MODE
Current Mode
PROG
< 0.5s
MODE
PROG
< 0.5s
MODE
PROG
2x
< 0.5s
PROG
< 0.5s
MODE
PROG
< 0.5s
MODE
PROG
5x
> 5s
Wiring diagrams / Aansluitschemaʹs / Koblingsskjemaer / Anschlussplan / Schéma zapojení
Basic mode
Assign Sensor in Basic Mode / Sensor in Basic Mode toewijzen / Tilknytte i Basic Mode /
Zuweisen im Basic Mode / Přiřadit v základním režimu
Remove Sensor in Basic Mode / / Sensor in Basic Mode verwijderen / Fjerne i Basic Mode /
Löschen im Basic Mode / Odstranit v základním režimu
Congure application mode / Toepassingsmodus congureren / Kongurer applikasjonsmodus /
Anwendungsmodus kongurieren / Kongurace režimu aplikace
CJAU-01/04 CJAU-01/04-I
A: Orange / Oranje / Orange /
Orange / Orange
B: White / Wit / Weiss / Vit /
White
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
© 2022 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation
3
MA_shutter_actuator_CJAU-01/04.indd/01.2023c/IL019287ZU/136211216
All Rights Reserved / Printed in Austria
www.eaton.com/recycling
Identify in MRF /
Identiceren in MRF /
Identiser i MRF /
Identizieren im MRF /
Identikace v MRF
Actuator
䘟
MRF
PROG
> 2s
MODE
PROG
< 0.5s
MODE
PROG
> 5s
MODE
5x
Back to factory default /
Terug naar fabrieksinstellingen /
Tilbake til fabrikkinnstillinger /
Auf Auslieferungszustand zurücksetzen /
Zpět na tovární hodnoty
Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria
© 2022 by Eaton Industries (Austria) GmbH, www.eaton.eu/documentation
4
MA_shutter_actuator_CJAU-01/04.indd/01.2023c/IL019287ZU/136211216
All Rights Reserved / Printed in Austria
www.eaton.com/recycling
Affixing date of CE mark: 2021
Doc.Id.: CJAU_01-04_11112021
Director Operations Director Quality
Friedrich Schröder
Gerhard Dischner
Schrems, 11.11.2021
Declaration of Conformity
We, EATON Industries (Austria) GmbH
3943 Schrems, Eugenia 1
Austria
declare under our sole responsibility as manufacturer that the product (family)
Eaton - Shutters / Blinds Actuator UP
CJAU-01/04..
(the declaration of conformity applies to all
listed types within our actual product catalogue)
provided that it is installed, maintained and used in the
application intended for, with respect to the relevant manufacturer’s
instructions, installation standards and “good engineering practices”
complies with the provisions of Council directive(s):
RED Directive 2014/53/EU
RoHS Directive 2011/65/EU + 2015/863
based on compliance with following standard(s):
EN 300220-2 V3.2.1, EN 301489-3 V2.1.1, EN 301 489-1 V2.2.3, EN
IEC 63044-5-1:2019, EN IEC 63044-5-2:2019, EN IEC 63044-5-
3:2019, EN 60669-2-5:2016, EN 63000:2018

This manual suits for next models

1

Other Eaton Controllers manuals

Eaton xComfort CRCA-00/10 Instruction manual

Eaton

Eaton xComfort CRCA-00/10 Instruction manual

Eaton xComfort CSEZ-01/19 User manual

Eaton

Eaton xComfort CSEZ-01/19 User manual

Eaton Cutler-Hammer ATC-300 User manual

Eaton

Eaton Cutler-Hammer ATC-300 User manual

Eaton Greengate PPS-5 User manual

Eaton

Eaton Greengate PPS-5 User manual

Eaton EMS-SWD Series User manual

Eaton

Eaton EMS-SWD Series User manual

Eaton SC100 User manual

Eaton

Eaton SC100 User manual

Eaton XC-CPU101 Series Manual

Eaton

Eaton XC-CPU101 Series Manual

Eaton ATC-900 User manual

Eaton

Eaton ATC-900 User manual

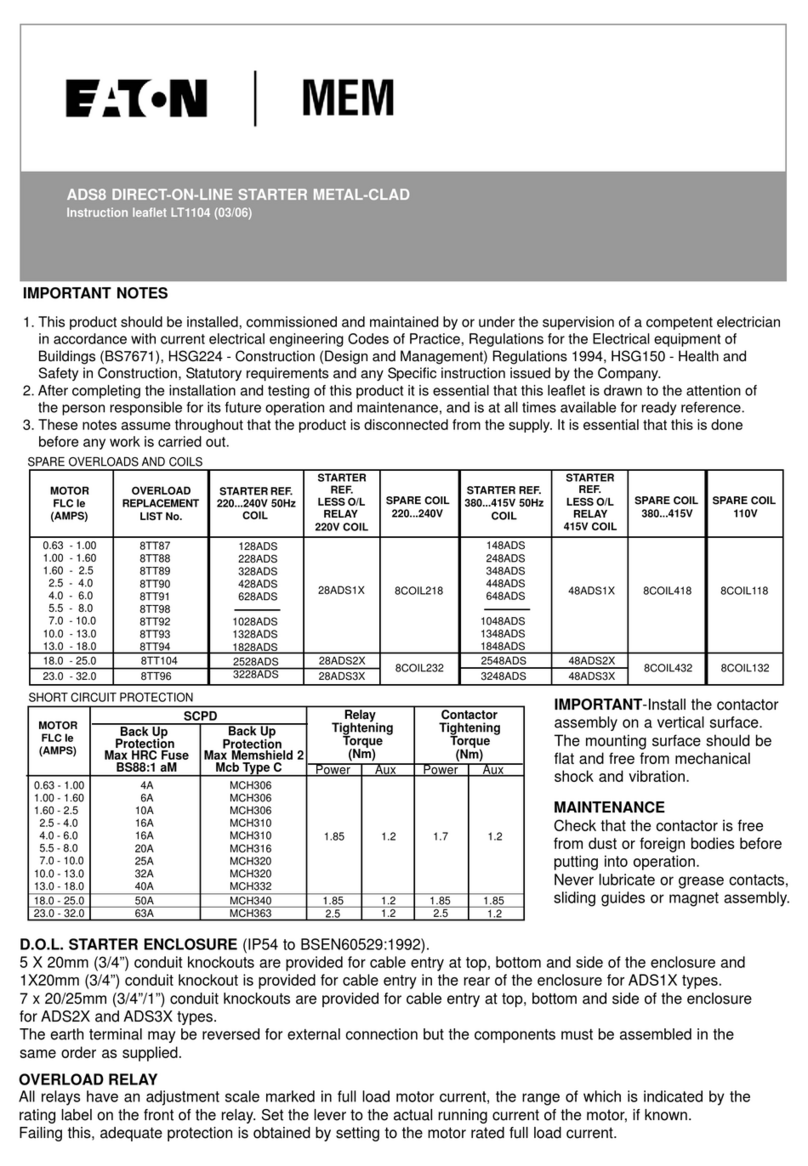

Eaton ADS8 Series Manual

Eaton

Eaton ADS8 Series Manual

Eaton EDS Series Setup guide

Eaton

Eaton EDS Series Setup guide

Eaton AMPGARD RVSS Operating and maintenance manual

Eaton

Eaton AMPGARD RVSS Operating and maintenance manual

Eaton ELC-CODNET User manual

Eaton

Eaton ELC-CODNET User manual

Eaton xComfort CAAE-01/03 Manual

Eaton

Eaton xComfort CAAE-01/03 Manual

Eaton Smart Home Controller 2.0 Operating and maintenance instructions

Eaton

Eaton Smart Home Controller 2.0 Operating and maintenance instructions

Eaton Jockey XTJP User manual

Eaton

Eaton Jockey XTJP User manual

Eaton CSAU-01 Manual

Eaton

Eaton CSAU-01 Manual

Eaton xComfort CRCA-00/04 Manual

Eaton

Eaton xComfort CRCA-00/04 Manual

Eaton Ampgard 400 User manual

Eaton

Eaton Ampgard 400 User manual

Eaton xComfort CSEZ-01/07 User manual

Eaton

Eaton xComfort CSEZ-01/07 User manual

Eaton xComfort Bridge Parts list manual

Eaton

Eaton xComfort Bridge Parts list manual

Eaton S811+N37 series User manual

Eaton

Eaton S811+N37 series User manual

Eaton xComfort CSAU-01/01-10I User manual

Eaton

Eaton xComfort CSAU-01/01-10I User manual

Eaton Cutler-Hammer Jockey User manual

Eaton

Eaton Cutler-Hammer Jockey User manual

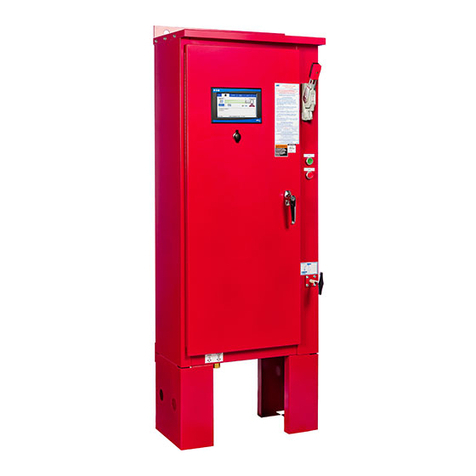

Eaton EPCT Fire Series User manual
