Eaton Flexi-3G Guide

Flexi -3G
Installation & Commissioning
Manual
Document No 4493-CM-EN-10989402
Issue: 02
Issue Date: 05 May 2009
Eaton Corporation
Telecommunications Solutions Division
www.powerware.com
e-mail: - [email protected]

Flexi -3G Installation & Commissioning Manual
Preface
Page 2 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Revision History
Issue Issue Date Amendment Description Author
01 22 Apr 2009 Original Version Clive Twinley
02 05 May 2009 Battery and AC Cables Identified in Graphics Clive Twinley
Eaton Corporation disclaims any liability for direct, indirect, incidental, special or consequential damages arising out of the
application or use of any information contained in this document. The foregoing disclaimer applies to damages or personal
injury, property damage, loss of operation, loss of profits, loss of product or loss of time, whether incurred by the purchaser, the
purchaser’s employees or third party.
Information in this document does not constitute a warranty, representation or guarantee concerning the suitability or
performance of Eaton Powerware products. No such warranty, representation or guarantee is expressed or implied.
Furthermore, information contained in this document, does not guarantee or imply any ownership of site specific design. It is
therefore the total responsibility of the installation designer to ensure compliance with any legal or statutory requirements in the
country of use.
Additionally, information contained in this document is subject to change without further notice.
Eaton, Powerware, Intergy, CellSure, SiteSure, PowerManagerII and DCTools are trade names, trademarks, and/or service
marks of Eaton Power Quality Corporation or its subsidiaries and affiliates. Unless otherwise noted, brands, product names,
trademarks or registered trademarks are the property of their respective holders.
Subject to the right to use its equipment, Eaton Corporation does not convey any right, title or interest in its intellectual property,
including, without limitation, its patents, copyrights and know-how.
No part of this document may be reproduced or transmitted in any form, by any means or for any purpose other than the
Customer’s personal use, without the express written permission of Eaton Corporation.
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved.

Flexi -3G Installation & Commissioning Manual
Preface
Document No: - 4493-CM-EN-10989402 Page 3 of 94
Copyright © 2006 Eaton Corporation. All Rights Reserved
Table of Contents
Page No
Chapter 1. Introduction..........................................................................5
Chapter 2. Flexi - 3G System General Description..............................9
Chapter 3. Installation Procedure .......................................................19
Chapter 4. Battery Installation ............................................................35
Chapter 5. Rectifier Installation ..........................................................47
Chapter 6. Installation of AC Cables ..................................................53
Chapter 7. Installation of DC Cables ..................................................63
Chapter 8. Commissioning..................................................................69
Chapter 9. Appendices ........................................................................73

Flexi -3G Installation & Commissioning Manual
Preface
Page 4 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Page Intentionally Blank

Flexi -3G Installation & Commissioning Manual
Document No: - 4493-CM-EN-10989402 Page 5 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Chapter 1. Introduction
Table of Contents
Topic Page No
1.1. Purpose .........................................................................................................5
1.2. Health and Safety..........................................................................................5
1.3. Related Information ......................................................................................5
1.4. Reporting Problems with this Manual.........................................................5
1.5. Contact Information......................................................................................6
1.5.1. Manufacturers Address..................................................................................... 6
1.5.2. Other Contact Details ........................................................................................ 6
1.6. Document Numbering ..................................................................................6
1.7. Symbols Used in this Document.................................................................6
1.8. Directives & Standards ................................................................................7
1.1. Purpose
This document is the Installation & Commissioning Manual for the Eaton Flexi -3G Access Power
Solution.
1.2. Health and Safety
For details regarding health and safety, refer to document 4493-GD-EN-11037101, entitled Installation
& General Health & Safety Guidelines.
Any health and safety issues directly associated with the task will be found adjacent to the task.
1.3. Related Information
Document No Title
4493-GD-EN-11037101 Health & Safety Guidelines
4493-GN-EN-10974200 Generic Risk Assessment
4493-GN-EN-11016400 Site Specific Risk Assessment
4493-MM-EN11016200 Flexi - 3G Maintenance Manual
4493-AP-EN-11051800 Assembly Instructions for the Battery Cabinet in a Flexi - 3G System
IPN 997-00012-50 SC200 System Controller Operation Handbook www.dc.powerware.com
1.4. Reporting Problems with this Manual
Please use this fax or email address to report any problems you find in this manual:
Eaton DC Product Marketing Communications
FAX: [phone]
EMAIL:
1 [email protected]

Flexi -3G Installation & Commissioning Manual
Chapter 1. Introduction
Page 6 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
1.5. Contact Information
1.5.1. Manufacturers Address
Eaton Power Solutions Ltd
Heath Place
Ash Grove
Bognor Regis
West Sussex
England
PO22 9SJ
1.5.2. Other Contact Details
General: 01243 810500
Main Fax: [phone]
Technical Helpline (Mon-Fri 08:00 to 17:00 GMT/BST): 01243-810618
Service Repair RMA Website: http://epsl.powerware.com
1.6. Document Numbering
For details of document numbering, refer to EQP300-1
1.7. Symbols Used in this Document

Warnings
•Advice on hazardous conditions. Possibility of personnel injury and/or equipment
damage

Cautions etc.
•Advice on seriously hazardous conditions. Possibility of severe/fatal personnel injury
and/or serious equipment damage
I
Electrical Hazard
•Advice on electrically hazardous conditions. Possibility of severe/fatal personnel
injury and/or serious equipment damage

Flow Arrow
•Advises that the procedure continues below.

Note or advice on further information

Recycling information

Flexi -3G Installation & Commissioning Manual
Chapter 1. Introduction
Document No: - 4493-CM-EN-10989402 Page 7 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
1.8. Directives & Standards
Eaton power systems have invoked the following directives and standards.
•LVD and EMC directives 2006/95/EC, 2004/108/EC and 1999/5/EC
respectively, by invoking EN60950-1, EN300-386 and EN301-489-1.
•ROHS Directive 2002/95/EC on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.
This Telecommunications Power Supply System complies with or exceeds the following Standards:
•Electromagnetic Directive.
•EN60950-1: Information Technology Equipment – Safety. Part 1: General
Requirements.
•EN300 386: Electromagnetic Compatibility and Radio Spectrum Matters (ERM);
Telecommunications Network Equipment; Electromagnetic Compatibility (EMC)
requirements.
•EN301-489-1: Electromagnetic Compatibility and Radio Spectrum Matters (ERM),
Electromagnetic Compatibility (EMC) standard for radio equipment and services, Part
1: Common Technical Requirements.
This Telecommunications Power Supply System output is classed as earthed SELV at a hazardous
energy level.

Flexi -3G Installation & Commissioning Manual
Chapter 1. Introduction
Page 8 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Page Intentionally Blank

Flexi -3G Installation & Commissioning Manual
Document No: - 4493-CM-EN-10989402 Page 9 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Chapter 2. Flexi - 3G System General Description
Table of Contents
Topic Page No
2.1. Flexi – 3G Power Box Description ............................................................10
2.2. Flexi – 3G Battery Cabinet Description ....................................................11
2.2.1. Battery Cabinet Dimensions........................................................................... 11
2.2.2. Battery Accommodation ................................................................................. 12
2.3. Rectifiers .....................................................................................................13
2.3.1. Outline Rectifier Technical Specifications.................................................... 13
2.4. SC200 System Controller...........................................................................14
2.4.1. Input/Output Board.......................................................................................... 14
2.4.2. Connections ..................................................................................................... 16
2.5. Compatible Software ..................................................................................16
2.6. Electrical......................................................................................................17
2.6.1. Power ................................................................................................................ 17
2.6.2. AC Input Configurations ................................................................................. 17
2.6.3. Rated AC Voltage............................................................................................. 17
2.6.4. Continuous AC Voltage................................................................................... 17
2.6.5. AC Frequency .................................................................................................. 17
2.6.6. DC Output Voltage........................................................................................... 17
2.6.7. Earthing ............................................................................................................ 17
2.6.8. Transient Protection........................................................................................ 17

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Page 10 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.1. Flexi – 3G Power Box Description
The Eaton Flexi - 3G Power Box is available in three versions: -

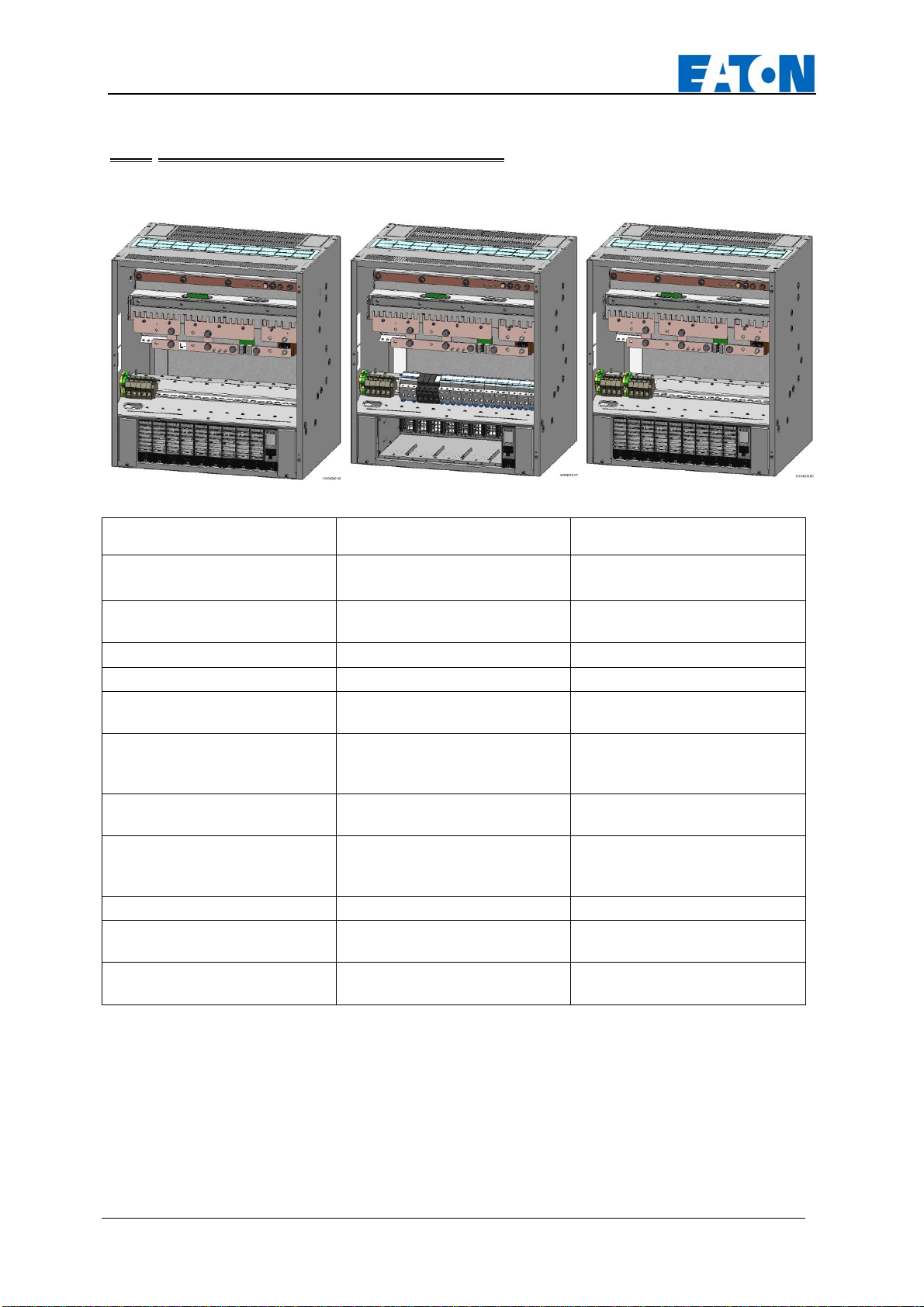

Fig. 2-1 PBA-01 Power Box Fig. 2-2 PBA-02 Power Box Fig. 2-3 PBA-03 Power Box
The PBA-01 Power Box
consists of
The PBA-02 Power Box
consists of
The PBA-03 Power Box
consists of
•16.2kW Capacity Base
Power Box
•16.2kW Capacity Base
Power Box
•16.2kW Capacity Base
Power Box
•650H x 600W x 450D •650H x 600W x 450D •650H x 600W x 450D
•9 x APR48-3G Capability •9 x APR48-3G Capability •9 x APR48-3G Capability
•SC200 Controller + IOBGP-
00
•SC200 Controller •SC200 Controller
•AC Input Terminals only:-
•Optional AC Input Isolator
•AC Input Isolator •Separate A + B Terminals for
AC (4/5 rectifiers on A and 4
on B)
•1PH AC Input (230Vac, 50-
60Hz, 1P + N + PE)
••1PH AC Input (230Vac, 50-
60Hz, 1P + N + PE)
•3PH AC Input (400Vac, 50-
60Hz, 3P + N + PE)
•3PH AC Input (115/230Vac,
50-60Hz, 3P + PE) – 3 Wire
Delta
•3PH AC Input (400Vac, 50-
60Hz, 3P + N + PE)
•Optional Surge Module •Surge Module •
••2-Pole MCBs for each
Rectifier
•
•Plastic Gland Plate for Top
Cable Entry
•Plastic Gland Plate for Top
Cable Entry
•Plastic Gland Plate for Top
Cable Entry

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Document No: - 4493-CM-EN-10989402 Page 11 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.2. Flexi – 3G Battery Cabinet Description

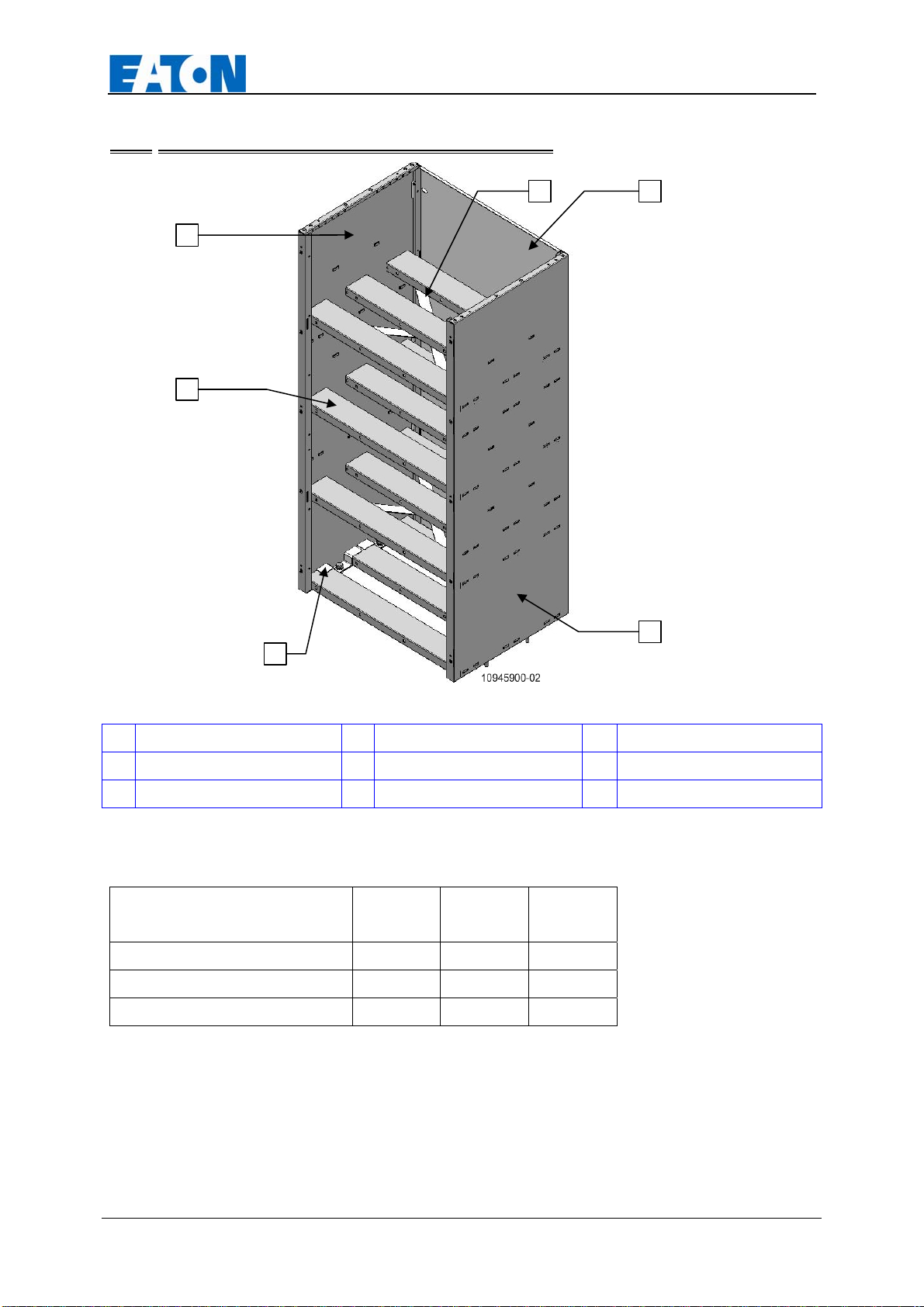

Fig. 2-4 Battery Cabinet
1 Side Panel LH 2 Side Panel RH 3 Rear Panel
4 Battery Support Bar 5 Battery Support Strap Kit 6 Floor Securing Bracket
10 Battery Cabinet Door
Note. Items marked thus are optional, depending on requirements and order.
The Battery Cabinet is delivered as a flat pack unit and is assembled on site.
2.2.1. Battery Cabinet Dimensions
Battery Cabinet Rack Type Width,
(mm)
Depth,
(mm)
Height,
(mm)
Battery Cabinet Rack 1150 600 450* 1150
Battery Cabinet Rack 1350 600 450* 1350
Battery Cabinet Rack 1470 600 600 1470
* Optional rack extension kit available to extend rack by 150mm increasing it to 600mm depth, thus
accommodating deeper batteries.
** As supplied with bottom battery shelf only and excluding optional door. Additional battery shelf
packs are approx. 2Kg each. Mass does not include Batteries.
For details of Cabinet Mass, see Appendix A. Cabinet Dimensions and Mass on page 74
1
4
3
2
5
6

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Page 12 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.2.2. Battery Accommodation
Battery Height Accommodation
Type 1 Shelf 2 Shelves 3 Shelves 4 Shelves 5 Shelves
Rack 1150* 1125mm 352mm 352mm 258mm N/A
Rack 1350* 1325mm 419mm 419mm 308mm N/A
Rack 1470 1445mm 271mm 271mm 271mm 271mm
Maximum battery weight allowed is 240KG per shelf
* If required, a Battery Cabinet Extension Kit can be supplied to accommodate larger capacity
batteries.

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Document No: - 4493-CM-EN-10989402 Page 13 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.3. Rectifiers
Fig. 2-5 APR48-3G Rectifier
Powerware APR48-3G Access Power Rectifiers are designed specifically for network access
applications such as cellular base stations, customer premises equipment and road-side cabinet
installations.
The new generation 3G architecture is reliable, power dense and compact.
The APR48-3G rectifier incorporates a combination of leading-edge high frequency switch mode
technology for a flexible and efficient DC power source, with high reliability fan cooling which further
contributes to its high overall reliability.
The APR48-3G is a high powered rectifier with 1800W output. It is designed for operation at up to
70°C (158°F) and under a wide range of AC power conditions.
These features make the APR48-3G perfectly suited to the wide variety of equipment and demanding
environmental conditions found in network access applications.
The APR48-3G has power factor correction, (up to 92% efficient), with optimum performance available
at typical load currents. Together these give the APR48-3G some of the lowest running costs for any
DC power system of its type available.
Operating with the Powerware SC100 or SC200 system controller, the APR48-3G rectifier modules
will provide years of cost-effective, and trouble free service for your 48V network access equipment.
2.3.1. Outline Rectifier Technical Specifications
AC Supply 220/240V, 50/60Hz (nominal) 175-275V full output power up to 50°C [122°F]
Power Factor >0.99 (50 – 100% Output Current)
Efficiency 92% (50 – 100% Output Current)
DC Output Voltage Range 48V: 43 – 57.5V
DC Output (maximum) 1800W @ 48V
Operating Temperature Range -40°C – +70°C [-40°F – +158°F]
Output current is de-rated above 50°C [122°F] and below -10°C [14°F]

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Page 14 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.4. SC200 System Controller
Fig. 2-6 SC200 Controller
The SC200 system controller is an advanced control and monitoring solution which provides a full
suite of communications options, including built-in Ethernet interface, Web server, and SNMP agent.
Alarm notifications may be by SNMP traps, SMS text messaging, dial-out to PowerManagerII remote
monitoring software, or relay contact closures.
The SC200 is supplied pre-configured with either a default configuration file, or with one factory
customized for a particular application. Some configuration file changes can be made with the keypad,
or all settings can be changed via a PC connected to the USB interface (see details on page 8).
For connector pin-outs see document no IPN 997-00012-50, SC200 System Controller Operation
Handbook.
For Troubleshooting regarding the SC200 alarm LEDs, see document no IPN 997-00012-50, SC200
System Controller Operation Handbook.
2.4.1. Input/Output Board
The input/output (I/O) board provides the system I/O interfaces and connections for the SC200 system
controller.
The I/O board includes a range of sense inputs for dc power system control and monitoring. It also
allows real time data collection from building services and other external devices, and relay outputs for
alarm signals or control of external devices.
The I/O functions are:
Sensors: Current - 3, Bus voltage - 1, Temperature - 2, Battery Mid-point - 4
Input/Output: Digital inputs: 4 pre-defined system functions, 6 user-defined
Relay outputs: 6 (one also used as Monitor OK alarm)
LVD contactor outputs: 2
For input and output specifications see document no IPN 997-00012-50, SC200 System Controller
Operation Handbook.
For connector pin-outs see document no IPN 997-00012-50, SC200 System Controller Operation
Handbook.

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Document No: - 4493-CM-EN-10989402 Page 15 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved

1 Bus voltage sense input - XH9 2 Power/Comms OK LED (green)
3 Digital inputs D1-D6 (6 user defined) -
XH15A, XH15B
4 Digital (relay) outputs RY1-RY6 (6) - XH16-
XH21
5 LVD2 status LED (green) 6 LVD2 control connector - XH5
7 LVD1 status LED (green) 8 LVD1 control connector - XH4
9 LVD power input connector - XH8 10 Power and RXP comms input - XH11
11 Current sense inputs (3) - XH6 12 Temperature sense inputs (2) - XH7
13 Battery Mid-point Monitoring sense inputs -
XH12
14 DC power system digital inputs (4 pre-
defined: Load Fuse Fail, Battery Fuse Fail,
AC Distribution Fan Fail, AC Distribution
MOV Fail) - YH3
Fig. 2-7 SC200 I/O Board
The Alarm Outputs from the IOBGP Board are made in the screwless terminal blocks XH16 and XH21
and are numbered RY1 to RY6.
The wire size for connection to these terminal blocks is in the range between 0.5 - 2.0mm².
For Troubleshooting regarding the I/O board LED signals, see document no IPN 997-00012-50,
SC200 System Controller Operation Handbook.
0V D6 0V D5 0V D4 0V D3 0V D2 0V D1
COM NO NC COM NO NC
COM NO NC COM NO NC COM NO NC COM NO NC
XH15B XH15A RY5
XH20
RY4
XH19
RY6
XH21
RY3
XH18
RY2
XH17
RY1
XH16
XH9
YH3 XH12 XH7 XH6 XH1 XH8
4
1
XH5
XH4
4
1
1 2
1 81 81 8
1 8
1 4
1
2
6 1 6 1 6 1 6 1 6 1
14 13 12 11 910
8
6
4 4433
1
2
5
7

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Page 16 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.4.2. Connections


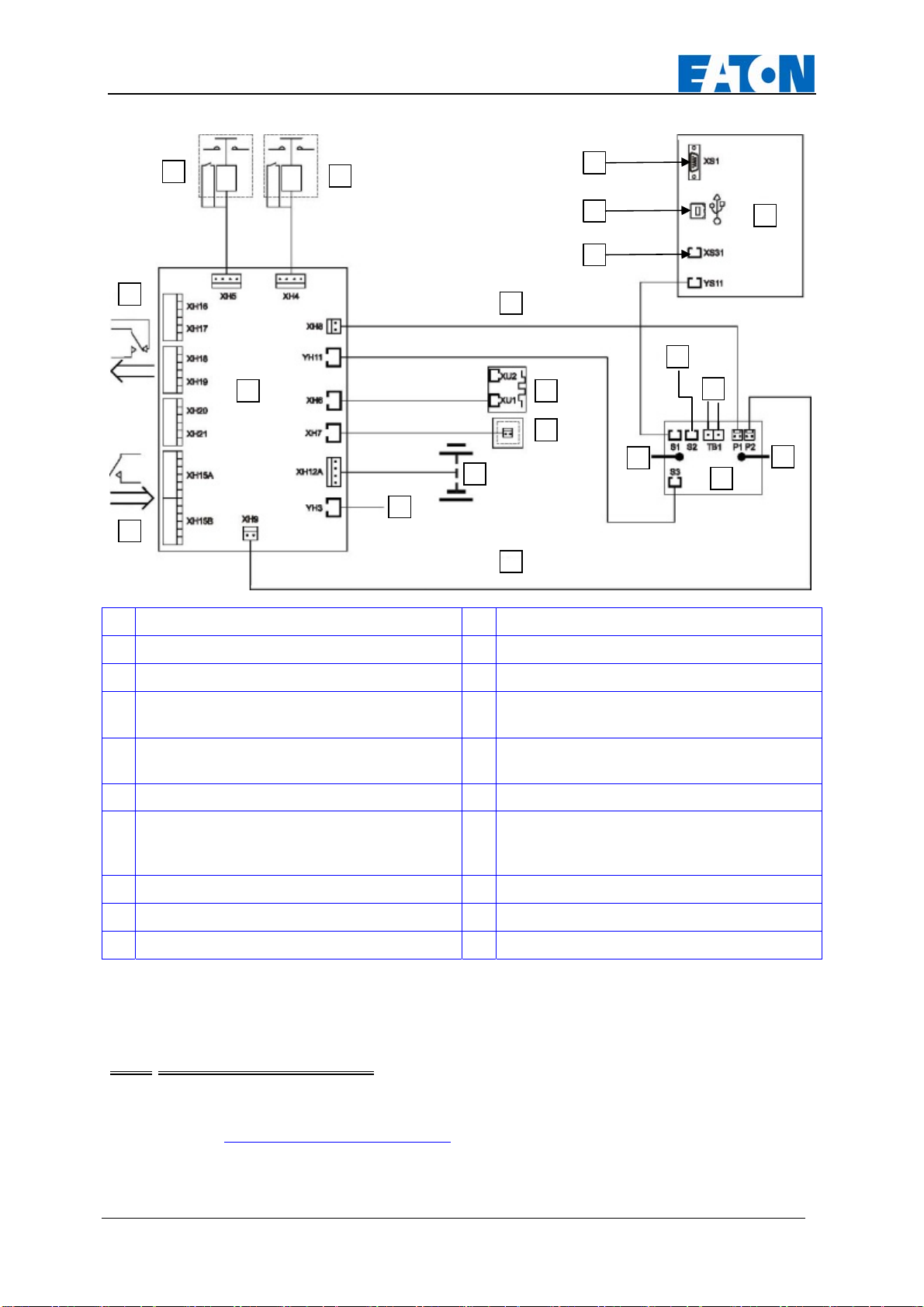

1 SC200 system controller 2 I/O board
3 Voltage feed module 4 USB communications
5 Ethernet communications 6 RS232 communications
7 Digital relay outputs (6) to external devices
and/or alarm indication system
8 Digital inputs (6) from external voltage-free
switches or relay contacts
9 Connection to additional I/O board(s) and/or
SiteSure-3G I/O module(s)
10 Connection to dc common bus
11 Connection to dc live bus 12 Communications to rectifiers
13 DC power system digital inputs (Load Fuse
Fail, Battery Fuse Fail, AC Distribution Fan
Fail, AC Distribution MOV Fail) 
14 Connections to battery mid-points (4)
15 Connection to temperature sensors (2) 16 Connection to current sensors (3)
17 Optional LVD1 contactor and auxiliary switch 18 Optional LVD2 contactor and auxiliary switch
19 Bus voltage sense connection 20 I/O power and RXP comms connection
Fig. 2-8System Connections
For connector pin-outs, see document no IPN 997-00012-50, SC200 System Controller Operation
Handbook.
2.5. Compatible Software
The following software is compatible with the SC200 system controller:
•DCTools Configuration Software. Latest version is available free from
www.powerware.com/downloads .
6
4
5
9
12
11
10
1
18 17
7
8
13
14
16
15
20
19
2
3

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Document No: - 4493-CM-EN-10989402 Page 17 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
2.6. Electrical
2.6.1. Power
Maximum 9 x 1800W rectifiers = 16.2KW
2.6.2. AC Input Configurations
Cabinet Type AC Input Configuration
PBA-01 1Ø + N + PE 220/240V AC (9A per Rectifier)
3Ø + N + PE 380/415V AC (27A / Ø)
(Single or three phase selection is field adaptable)
PBA-02 3Ø AC Input (115/230Vac, 50-60Hz, 3Ø + PE) – 3 Wire Delta (27A / Ø)
PBA-03 1Ø + N + PE 220/240V AC (9A per Rectifier)
3Ø + N + PE 380/415V AC (18A / Ø per A&B Feed)
(Separate A & B AC Inputs)
2.6.3. Rated AC Voltage
1Ø 175* to 275V AC
3Ø 303* to 476V AC2Ø 175* to 275V AC
*Actual low AC rating will be dependent upon rectifiers model fitted.
2.6.4. Continuous AC Voltage
90 to 175* V/Ø AC (with reduced output)
275 to 300** V/Ø AC
* Actual low AC rating will be dependent upon rectifiers model fitted.
** Rectifier shutdown will occur around 320V, but system must withstand input swells up to at least
400V AC without damage
2.6.5. AC Frequency
50/60 Hz (full range 45 to 65Hz)
2.6.6. DC Output Voltage
40V to 60V DC. The systems are suitable for 48V based rectifiers, with a battery discharge end
voltage of 1.65vpc.
2.6.7. Earthing
The Flexi – 3G system is configured to permit the following earthing arrangements
•AC & Cabinet connected to the AC Protective Earth
•DC connected to DC Earth via link from the return busbar to the DC chassis.
This is a positive earthed DC system.
2.6.8. Transient Protection
The power box has two possible rated levels of transient protection:
Tertiary level, provided by the individual rectifier ratings (typically 6kV/3kA 8/20uS).
Optional Secondary level, provided by:-
Four Pole Surge Arrestor
3+1 Circuit with Alarm Contact
IEC Category 2
Arrestor Rated Voltage Vc:275Vac
Nominal voltage Vn:230-415Vac
Nominal Discharge Surge Current In (8/20)µs – 20KA (L-N) (L-PE) (N-PE)

Flexi -3G Installation & Commissioning Manual
Chapter 2. Flexi - 3G System General Description
Page 18 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Maximum Discharge Surge Current Imax (8/20)µs – 40KA.
Environmental: IEC61643-1, DIN EN61643-11/A11

Flexi -3G Installation & Commissioning Manual
Document No: - 4493-CM-EN-10989402 Page 19 of 94
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
Chapter 3. Installation Procedure
Table of Contents
Topic Page No
3.1. Cabinet Position .........................................................................................20
3.1.2. Positioning ....................................................................................................... 20
3.2. Battery Cabinet Parts Lists........................................................................21
3.2.1. Parts List for the Battery Cabinet .................................................................. 21
3.2.2. Parts List for the Optional Extension Kit ...................................................... 22
3.2.3. Parts List for extra Battery Support Kits (per Shelf) .................................... 22
3.2.4. Parts List for the Optional Door Kit ............................................................... 22
3.2.5. Parts List for the Battery Support Strap Kit.................................................. 22
3.2.6. Battery Height Accommodation..................................................................... 23
3.3. Assembling the Battery Cabinet ...............................................................24
3.3.1. Positioning the Side Panels............................................................................ 24
3.3.2. Fitting the Rear Panel...................................................................................... 25
3.3.3. Fitting the Battery Support Bars .................................................................... 26
3.3.4. Fitting the Battery Support Strap Kit ............................................................. 27
3.3.5. Fitting the Optional Battery Cabinet Door..................................................... 28
3.3.6. Fitting the Optional Extension Kit (1150mm & 1350mm Cabinets only).... 29
3.4. Securing the Battery Cabinet ....................................................................30
3.5. Securing the Power Cabinet to the Battery Cabinet................................31
3.6. Securing the Power Cabinet to the Wall (if required)..............................32

Flexi -3G Installation & Commissioning Manual
Chapter 3. Installation Procedure
Page 20 of 94 Document No: - 4493-CM-EN-10989402
Copyright © 2008-2009 Eaton Corporation. All Rights Reserved
The Power Supply Unit is mounted directly on the floor.
3.1. Cabinet Position
1. Clearly identify the area where the equipment is to be installed.
 Refer to the site documentation/job pack to verify cabinet position, as layout can change.
2. Measure up as per supplied floor plan and mark cabinet positions.
3. Ensure that the floor surface where the equipment is to be installed is level.
4. Ensure that the floor surface where the equipment is to be installed, and any areas over which the
equipment must be moved, are sufficiently strong to take the weight of the cabinets and the point
loading of the transport mechanism.
 The mass of the cabinet is given in Cabinet Dimensions and Mass on page 74.
5. Ensure that all areas of floor are protected from damage by the transport of the equipment. Use
hardboard or a similar material. This material must be removed once installation is complete.
6. The installation area is clean and dry.
3.1.2. Positioning
No space is necessary at the sides or rear. In locating the equipment, the following must be
considered:
1. Allow distances from other equipment as required by the installation requirements of that equipment
(although the Power Supply Unit does not require space at the sides or rear, adjacent equipment
may do so).
2. Bear in mind the space required for door opening. The minimum recommended space is 840mm.
the doors are removed by opening to 45º and lifting off the hinges.
 The doors are right opening (hinges on the right hand side).Do not open the door beyond 90˚
otherwise damage to the door/hinge may result.
3. When installing on a raised "Computer floor", locate the first cabinet over one tile. If load spreading
is required due to cabinet weight then this must be installed prior to cabinets being installed.
 The cabinet sizes are given in Cabinet Dimensions and Mass on page 74.
4. The cabinet is suitable for mounting on concrete or other non-combustible surface only and is to be
fixed to the building floor.
5. The cabinet must be positioned in a room with restricted access.
