Eaton XP-504 User manual

Manual 08/2021 MN048028EN
XP-504 manual

Company information
All brand and product names are trademarks or registered trademarks of their respective own-
ers.
Service
For service and support, please contact your local sales team.
Contact info. Eaton.com/contact
Service page: Eaton.com/aftersales
Original Operating Instructions
is the German-language edition of this document
Publication date
09/2021 1st edition
Copyright
© 2021 Eaton Automation GmbH, CH-9008 St. Gallen
Author: Antje Nonnen
Eaton Industries GmbH, Hein-Moeller-Straße 7-11, D-53115 Bonn
All rights, including those of translation, reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, whether electronic, mechanical, photocopying, micro-filming, record-
ing, or otherwise, without the prior written permission of Eaton Industries GmbH, Bonn.
Subject to alteration.

Before starting with the installation
I
lInstallation requires qualified electrician
lDisconnect the power supply of the device.
lSecure against retriggering
lVerify isolation from the supply
lGround and short-circuit
lCover or enclose any
neighboring live parts.
lFollow the engineering instructions (IL) of the
device concerned.
lOnly suitably qualified personnel in accordance
with EN 50110-1/-2 (VDE 0105 part 100) may work on
this device/system.
lBefore installation and before touching the device
ensure that you are free of electrostatic charge.
lThe functional earth (FE) must be connected to the
protective earth (PE) or to the equipotential bond-
ing. The system installer is responsible for imple-
menting this connection.
lConnecting cables and signal lines should be
installed so that inductive or capacitive inter-
ference does not impair the automation functions.
lInstall automation devices and related operating
elements in such a way that they are well protected
against unintentional operation.
lSuitable safety hardware and software measures
should be implemented for the I/O interface so that
a line or wire breakage on the signal side does not
result in undefined states in the automation
devices.
lDeviations of the mains voltage from the nominal
value must not exceed the tolerance limits given in
the specifications, otherwise this may result in mal-
function and hazardous states.
lEmergency-Stop devices complying with IEC/EN
60204-1 must be effective in all operating modes of
the automation devices. Unlatching the emergency
switching off devices must not result in an auto-
matic restart.
lBuilt-in devices for enclosures or cabinets must
only be run and operated in an installed state;
desktop devices and portable devices only when
the housing is closed.
lMeasures should be taken to ensure the proper
restarting of programs interrupted after a voltage
dip or outage. This should not result in dangerous
operating states even for a short time. If necessary,
emergency switching off devices should be imple-
mented.
lWherever faults in the automation system may
cause damage to persons or property, external
measures must be implemented to ensure a safe
operating state in the event of a fault or malfunction
(for example, by means of separate limit switches,
mechanical interlocks, etc.).
DANGER!
Hazardous electrical voltage!

Table of Contents
XP-504 manual 1
Company information 2
Before starting with the installation I
Table of Contents 5
0.1 About this documentation 10
0.1.1 List of revisions 10
0.1.2 Target group 11
0.1.3 Legal disclaimer 12
0.1.4 Device designations and abbreviations 12
0.1.5 Writing conventions 13
0.1.5.1 Warning labels 13
0.1.5.2 Additional user information 14
0.1.5.3 Links 14
1. Description 16
1.1 Use as intended 17
1.2 Device models 17
1.2.1 PC features – features on all XP-504 PCs 17
1.2.2 Terminal features – features on all XP-504 terminals 18
1.2.3 Device variants 18
1.2.3.1 Operating system on XP-504 PCs 18
1.2.3.2 Widescreen terminal sizes 18
1.3 Nameplate 19
1.4 Nameplate 19
1.5 What the different parts of the part number mean 20
1.5.1 Panel PC 20
1.6 Accessory devices 20
1.7 Support 21
1.8 Conditions for Underwriters Laboratories Inc. (UL) listing 22
1.9 Marine approvals 22
2. Safety regulations 23
XP-504 08/2021 MN048028EN Eaton.com 5

2.1 Basics 23
2.2 Mandatory requirements, personnel requirements 23
2.2.1 Occupational safety 23
2.2.2 Personnel qualifications 23
2.2.3 Device documentation 24
2.2.4 Installation, maintenance, and disposal 24
2.2.5 Prerequisites for proper operation 25
2.3 Device-specific hazards 26
3. Installation 31
3.1 Installation position 32
3.1.1 Mounting position 32
3.1.2 Mounting orientation 32
3.1.3 Temperatures 34
3.1.4 Aeration and de-aeration 34
3.2 Technical conditions for acceptance by Underwriters Lab-
oratories Inc. (UL) 36
3.3 Unpacking and checking the equipment supplied 37
3.4 Mounting 38
3.4.1 Preparations 39
3.4.2 Installing the Panel PC 42
3.5 Preparing the device for operation 43
3.5.1 E lectrical connection 44
3.5.1.1 Functional earthing Panel PC 45
3.5.1.2 Power supply 47
4. Using peripheral devices - External connections 49
4.1 Layout of interfaces 50
4.2 SD card 51
4.3 USB interfaces 53
4.4 Ethernet 55
4.5 Display interfaces 56
4.5.1 DisplayPort (DP) 56
4.5.2 High Definition Multimedia Interface (HDMI) 56
4.6 RS-232/RS-422/RS-485 serial ports 57
6XP-504 08/2021 MN048028EN Eaton.com

5. Commissioning 60
5.1 Initial commissioning 61
5.1.1 Connecting peripheral devices 61
5.2 Running the XP-504 62
6. Operation 64
6.1 Safety instructions 64
6.2 Handling terminal 66
6.2.0.1 Notes on gestures 66
7. Operating system 68
7.1 Windows 68
7.2 Windows 10 Enterprise LTSC 70
7.2.1 Updates 70
7.2.2 Common functions 70
7.2.3 Dedicated features 70
7.2.3.1 Protect Mode (Operated with two drives, C:\ and D:\) 70
7.2.3.2 Protect-Mode data organization 71
7.2.4 Managing users and configuring the XP-504 72
7.2.5 Modifying an Account Name or Password 73
7.2.6 Device start without user login dialog box 73
7.2.7 License Eaton Galileo-Open Runtime 73
7.2.8 License Eaton Visual Designer Runtime 73
7.2.9 Enabling / disabling IIS communication for Visual Designer 74
7.2.10 Enabling / disabling the automatic screen lock 74
8. Faults 76
9. Maintenance 78
9.1 Cleaning and maintenance 78
9.1.1 Cleaning multi-touch touch panel 78
9.1.2 Replacing the battery 78
9.2 Repairs 80
9.3 Storage, transport and disposal 81
9.3.1 Storage and transport 81
9.3.2 Disposal 83
XP-504 08/2021 MN048028EN Eaton.com 7

Appendix 84
A.1 Technical data 85
A.1.1 Data sheet 85
A.1.2 Dimension and weight specifications 86
A.1.2.1 XP-504-10-... Front mounting 86
A.1.2.2 XP-504-15-... Front mounting 87
A.1.2.3 XP-504-21-... Front mounting 88
A.1.3 General data 89
A.1.4 Information on the power supply 92
A.1.5 Approvals and declarations 93
A.2 Further usage information 94
Alphabetical index 96
8XP-504 08/2021 MN048028EN Eaton.com

0.1 About this documentation
0.1 About this documentation
This manual contains all the information you will need in order to use the XP-504
safely and effectively.
The manual XP-504 manual is considered an integral part of the device and must
always be readily available in the device's close proximity so that users have access
to it.
This manual describes all of the devices' lifecycle stages: transportation, installation,
commissioning, operation, maintenance, storage, and disposal.
It does not, however, go over the corresponding operating system or application soft-
ware.
It does not, however, go over the corresponding operating system or application soft-
ware.
Make sure to always use the latest documentation for your device.
The latest version of this documentation, as well as additional references, is availa-
ble for download on the Internet. → Abschnitt "Further usage information", page 94
Please send any comments, recommendations, or suggestions regarding this docu-
ment to: [email protected]
0.1.1 List of revisions
The following significant amendments have been introduced since previous issues:
Publication
date Page Keyword New Modification Deleted
09/2021 New edition panel PC, CE, UKCA ✓
XP-504 08/2021 MN048028EN Eaton.com 10

0.1 About this documentation
0.1.2 Target group
This manual XP-504 is intended for engineers, electricians, and automation tech-
nicians. Electrical engineering and physics-related knowledge and skills will be requi-
red in order to be able to commission the corresponding devices.
CAUTION
Installation requires qualified electrician
Follow the safety instructions for the XP-504!
The section on safety instructions must be read and understood by
everyone who will be working with the XP-504 before the actual work
is performed HMI.
WARNING
Incomplete operator manual copies
Working with individual pages taken out from the operator manual
may lead to bodily injury and property damage due to failure to
observe relevant safety information.
Always work with the latest and full document.
11 XP-504 08/2021 MN048028EN Eaton.com

0.1 About this documentation
0.1.3 Legal disclaimer
All the information in this manual has been prepared to the best of our knowledge
and in accordance with the state of the art. However, this does not exclude the pos-
sibility of there being errors or inaccuracies. We assume no liability for the cor-
rectness and completeness of this information. In particular, this information does
not guarantee any particular properties.
Do not use the XP-504 before reading and understanding this manual.
Hazards posed by the XP-504 cannot be eliminated if the safety instructions are not
observed – especially if the XP-504 is installed and commissioned by unqualified per-
sonnel and/or is used improperly. Eaton assumes no liability for any damages resul-
ting from cases such as these.
0.1.4 Device designations and abbreviations
The following general terms are used throughout this manual:
Short designation Explanation
HMI Human Machine Interface
XP-504 all XP-504 devices
Panel PC Industrial PC with integrated terminal from the XP-504 series
For the exact designation for your XP-504, please refer to the → "Name-
plate", page 19.
XP-504 08/2021 MN048028EN Eaton.com 12

0.1 About this documentation
0.1.5 Writing conventions
Award Meaning
Bold text Used for all graphical user interface elements
Text Used for the button labels
Menu/command Used for menus and commands on the device
<name> Angle brackets are used to indicate variable values
that you must replace with your own values
0.1.5.1 Warning labels
Risk of personal injury warning.
DANGER
Warns of hazardous situations that result in serious injury or death.
WARNING
Warns of the possibility of hazardous situations that could result in
serious injury or even death.
DANGER!
Dangerous Electrical Voltage!
CAUTION
Warns of the possibility of hazardous situations that can cause injury.
Property damage warning
CAUTION
Warns about the possibility of material damage.
Prohibited uses, actions, etc.
Explains the prohibition
Bid
Explains the instruction
13 XP-504 08/2021 MN048028EN Eaton.com

0.1 About this documentation
Notes
Indicates useful tips.
Indicates instructions to be followed
Additional information, background information,
information worth knowing, useful additional information
0.1.5.2 Additional user information
Documents (such as manuals) are listed after the icon together with the cor-
responding name and Eaton number.
0.1.5.3 Links
To documents. The corresponding pages will be opened in a separate browser win-
dow if you click on the icon.
Publication title For identifying the Eaton publication code
External Internet addresses. The corresponding pages will be opened in a separate
browser window when you click on the icon.They will be shown after the
icon.
Destination address
XP-504 08/2021 MN048028EN Eaton.com 14

0.1 About this documentation
15 XP-504 08/2021 MN048028EN Eaton.com

1. Description
1. Description
XP-504 devices are used as control and monitoring devices.
XP-504 devices are the answer to the growing demand of machine and system man-
ufacturers for high-precision, cost-effective HMI solutions with industrial-grade
capacitive multi-touch technology. Accordingly, the XP-504 series offers widescreen
terminals with sizes of 10.1", 15.6", and 21.5". Their slim design, featuring a non-reflect-
ive glass front, delivers a modern look. Finally, the robust, scratch-resistant front and
open device concept on XP-504 devices make them suitable for use in virtually all
branches of industry related to mechanical and plant engineering.
The XP-504 series features a modular design that makes it possible to put together
custom solutions out of standard components:
lPanel PC: PC with integrated multi-touch touch panel
lBox-PC: Compact DIN-rail PC
lTerminal: Remote multi-touch touch panel
lExtender TX: Transmitter module for transmitting video and USB data
lTerminal with extender RX: Remote multi-touch touch panel with integrated video
and USB data receiver
XP-504 08/2021 MN048028EN Eaton.com 16

1. Description
1.1 Use as intended
1.1 Use as intended
XP-504 are primarily intended for use in machine and system building applications.
They are suitable for use in industrial environments and are typically used indoors for
automation purposes.
Any other use must be discussed and agreed upon with the manufacturer in
advance.
Bid
The XP-504 must be used only in locations for which this series of
devices is approved. Make sure to read and follow the information
and labels on the nameplate for the XP-504, as well as section
Approvals and declarations in the appendix.
Prohibited uses, actions, etc.
It is strictly prohibited to use the device in order to implement safety-
relevant functions (in the sense of personal and machine protection).
1.2 Device models
1.2.1 PC features – features on all XP-504 PCs
The PCs' computer core is always the same. Every Panel PC and every Box-PC fea-
tures:
1. Powerful CPU, Intel Atom QuadCore E3950 2GHz processor
2. MSATA memory 64 GB mSATA
3. SD memory card slot for 8 GB SD card
4. Operating System Windows 10 Enterprise LTSC, IoT, 64 bit, 8GB DDR3 RAM
5. Integrated interfaces:
lTwo Ethernet ports (1000/100/10 Mbps Ethernet / GbE-Ethernet) for use as a
communication or field bus interface
l4x USB 3.0
l1x standard RS232/RS422/RS485 (COM) port for communicating with PLCs
or devices,
l1x DisplayPort
l1x HDMI
Up to two XP-504 terminals can be connected to each XP-504 PC.
17 XP-504 08/2021 MN048028EN Eaton.com

1. Description
1.2 Device models
1.2.2 Terminal features – features on all XP-504 terminals
Every terminal features a widescreen color display, TFT. In addition, every terminal
can be used with gestures (multi-touch touch panel).
In order for this functionality to work properly, you must press on the Projected
Capacitive Touch (PCT) with a finger or stylus.
1.2.3 Device variants
1.2.3.1 Operating system on XP-504 PCs
The Panel PC and Box-PC configurations differ from each other in terms of the
runtime license for the optional visualization software – Galileo Open or Visual
Designer.
1.2.3.2 Widescreen terminal sizes
Panel PC, terminal, and Terminal with extender RX size configurations.
lXP-504-10-... - Screen diagonal 10.1" (25.65 cm),
Screen mode: 16:10, visible screen area 216.96 mm x 135.26 mm, 1280 x 800 px
lXP-504-15-... - Screen diagonal 15.6" (39.6 cm),
Screen mode: 16:9, visible screen area 344.23 mm x 193.54 mm, 1366 x 768 px
lXP-504-21-... - Screen diagonal 21.5" (54.6 cm),
Screen mode: 16:9, visible screen area 476.06 mm x 276.79 mm, 1920 x 1080 px

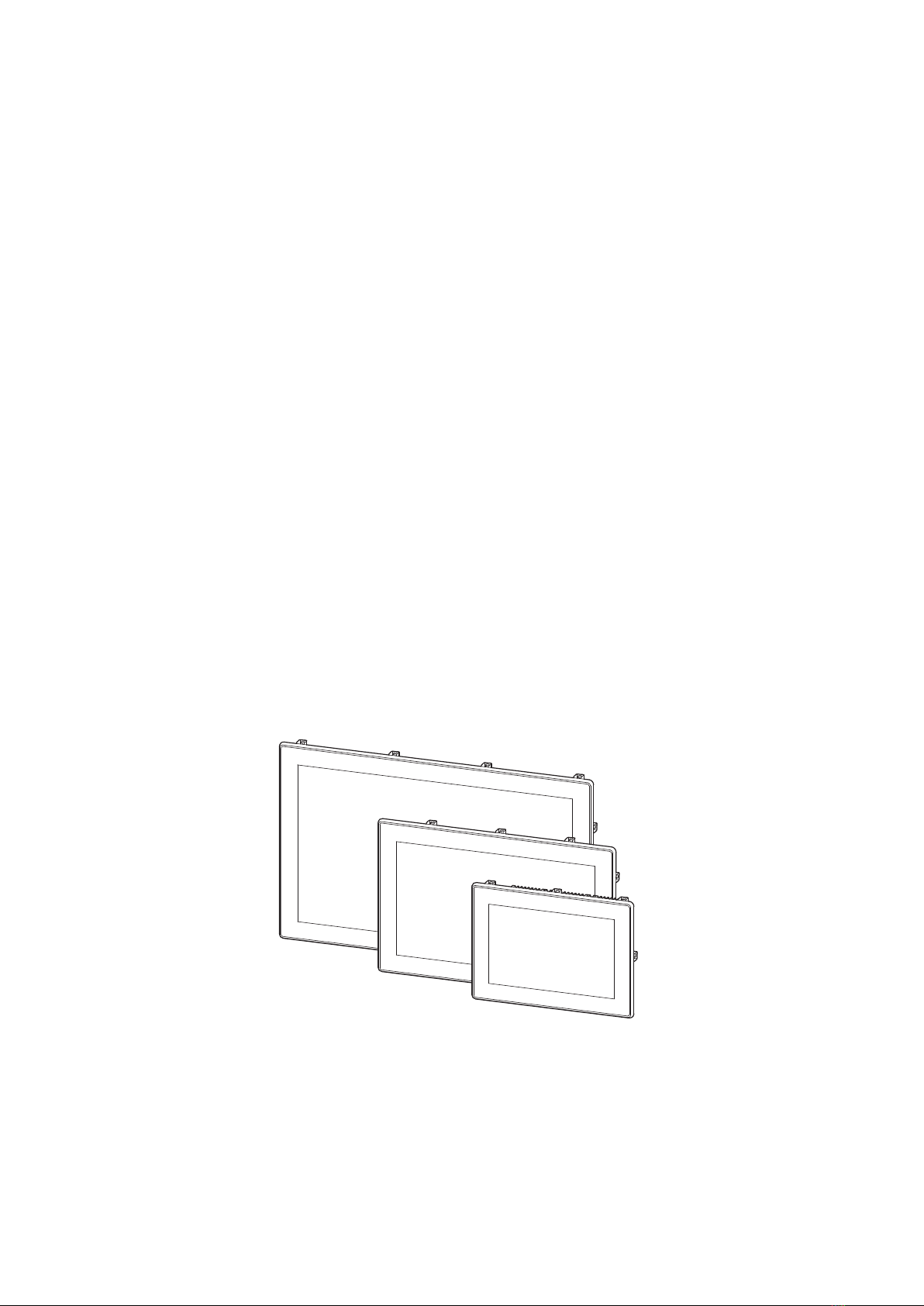

Figure 1: Screen diagonals in comparison
XP-504 08/2021 MN048028EN Eaton.com 18

1. Description
1.3 Nameplate
1.3 Nameplate
1.4 Nameplate
The device has a nameplate on rear.
This nameplate includes the following information:
Figure 2: Nameplate on the Panel PC
lManufacturer
lPart number
lPart-No.
lPower supply requirement
lSerial-No.
lType approval and certification marks and information
lLayout of ports/interfaces and controls
To get fast and effective support, make sure to always provide Customer Service
with the following information from the nameplate:
lArticle No. (part No. or article No.)
lSerial No.
19 XP-504 08/2021 MN048028EN Eaton.com

1. Description
1.5 What the different parts of the part number mean
1.5 What the different parts of the part number mean
The Part number includes information that specifies the version and model of the spe-
cific device being used.
The Part number can be found at the type plate of the XP-504.
1.5.1 Panel PC
XP-504 - .. - ... - ... - ..
Series Display
size
Interfaces Version Visualization
software
Tabel 1: Part number
..
10 10.1" (25.65 cm) Screen diagonal
15 15.6" (39.6 cm) Screen diagonal
21 21.5" (54.6 cm) Screen diagonal
Tabel 2: Display size
..
A10 Basic
Tabel 3: Interfaces
...
A01 ATEX-compliant design
Tabel 4: Version
..
2B Windows 10 Enterprise LTSC, runtime license for GALILEO visualization software
2V Windows 10 Enterprise LTSC, runtime license for Visual Designer visualization software
Tabel 5: Bundles with visualization software
1.6 Accessory devices
A variety of accessories are available for XP-504 devices.
CAUTION
Only use original accessories.
XP-504 08/2021 MN048028EN Eaton.com 20

1. Description
1.7 Support
Order accessories through your supplier or through the Eaton
online catalog
Eaton.com/ecat
1.7 Support
To get fast and effective support, make sure to provide Customer Service with the fol-
lowing information from the nameplate:
lPart-No.
lSerial-No
For service and support, please contact your local sales team.
Contact info. Eaton.com/contact
Service page: Eaton.com/aftersales
