Operating instructions.
PosCon
OXH7
–
Clever he
ight measurement.

en_BA_OXH7_PosCon_OXH7.docx 2/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
Contents
1 General information......................................................................................................................4
1.1 Concerning the contents of this document.....................................................................................4
1.2 Intended use...................................................................................................................................4
1.3 Safety..............................................................................................................................................4
2 Commissioning.............................................................................................................................5
3 Connection....................................................................................................................................9
3.1 Connection cable............................................................................................................................9
3.2 Pin assignment and connection diagram......................................................................................10
4 Installation...................................................................................................................................11
4.1 Mounting.......................................................................................................................................11
4.2 Sensor reference levels................................................................................................................11
4.3 The reference surface...................................................................................................................12
4.4 Measuring field definition..............................................................................................................13
4.5 Mounting:......................................................................................................................................15
4.6 Installation accessories.................................................................................................................17
5 Configuration ..............................................................................................................................19
5.1 Overview of control elements .......................................................................................................19
5.2 Function tree.................................................................................................................................22
5.3 LIVE MONITOR............................................................................................................................23
5.4 MEAS TYPE .................................................................................................................................26
5.5 FLEX MOUNT (Function HEIGHT)...............................................................................................27
5.6 OBJECT........................................................................................................................................32
5.7 PRECISION..................................................................................................................................32
5.8 FIELD OF VIEW ...........................................................................................................................35
5.9 ANALOG OUT ..............................................................................................................................37
5.10 DIGITAL OUT................................................................................................................................39
5.11 SYSTEM.......................................................................................................................................41
5.12 SETTING ......................................................................................................................................43
6 Function and definition..............................................................................................................44
6.1 Sensors data sheet.......................................................................................................................44
6.2 Functional principle.......................................................................................................................48
6.3 Measuring repetition time and response time...............................................................................50
6.4 Hysteresis.....................................................................................................................................51
6.5 Object to be measured .................................................................................................................53
6.6 Interfaces and outputs..................................................................................................................54
6.7 Touch panel...................................................................................................................................62
6.8 Memory.........................................................................................................................................62
6.9 Standard deviation........................................................................................................................63
7 Safety instructions and maintenance.......................................................................................64
7.1 General safety instructions...........................................................................................................64
7.2 Part Identification..........................................................................................................................64
7.3 Influence of ambient light..............................................................................................................66
7.4 Front (optics).................................................................................................................................66
7.5 Cleaning the sensors....................................................................................................................66
7.6 Disposal........................................................................................................................................66

en_BA_OXH7_PosCon_OXH7.docx 3/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
8 Error correction and tips............................................................................................................67
8.1 Examples of sensor setup ............................................................................................................67
8.2 Error correction.............................................................................................................................68
9 Revision history..........................................................................................................................69

en_BA_OXH7_PosCon_OXH7.docx 4/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
1 General information
1.1 Concerning the contents of this document
This manual contains information about the installation and initial setup of Baumer PosCon OXH7 sensors.
It is a supplement to the mounting instructions supplied with each sensor.
1.2 Intended use
The Baumer PosCon OXH7 sensor measures heights of objects. It was especially developed for easy
handling, flexible use, and precise measurement.
1.3 Safety
NOTE
Provides helpful operation instructions or other general recommendations.
ATTENTION!
Indicates a possibly hazardous situation. If it is not avoided, minor or slight injuries
can occur or the device can be damaged.
Read these operating instructions carefully and follow the safety instructions!

en_BA_OXH7_PosCon_OXH7.docx 5/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
2 Commissioning
After the sensor is connected and installed, configure it via the display. The sensor is then ready for operation
and outputs the measuring value in mm to the screen. Optionally, the measuring field can be limited or the
switching output can be configured.
Connection
Installation
Application specific settings
(Optional settings)
Let's get started
Connection
Connect the sensor according to the connection
diagram. A shielded connection cable (8-pole M12)
must be used.
When everything is correctly connected, the sensor
starts up.
Key functions
ESC = Back
ESC 2 sec. = Run mode
UP = Up/increase value
DOWN = Down/decrease value
SET = OK
SET 2 sec. = Save value
Slide over all 4 keys:
----> = Enables the panel if locked
<---- = Jump to run mode
Setting the language
The language is selected and confirmed by pressing
SET for 2 seconds.
English
Deutsch
Italiano
Français
1
1
2
4
LANGUAGE
English
3

en_BA_OXH7_PosCon_OXH7.docx 6/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland


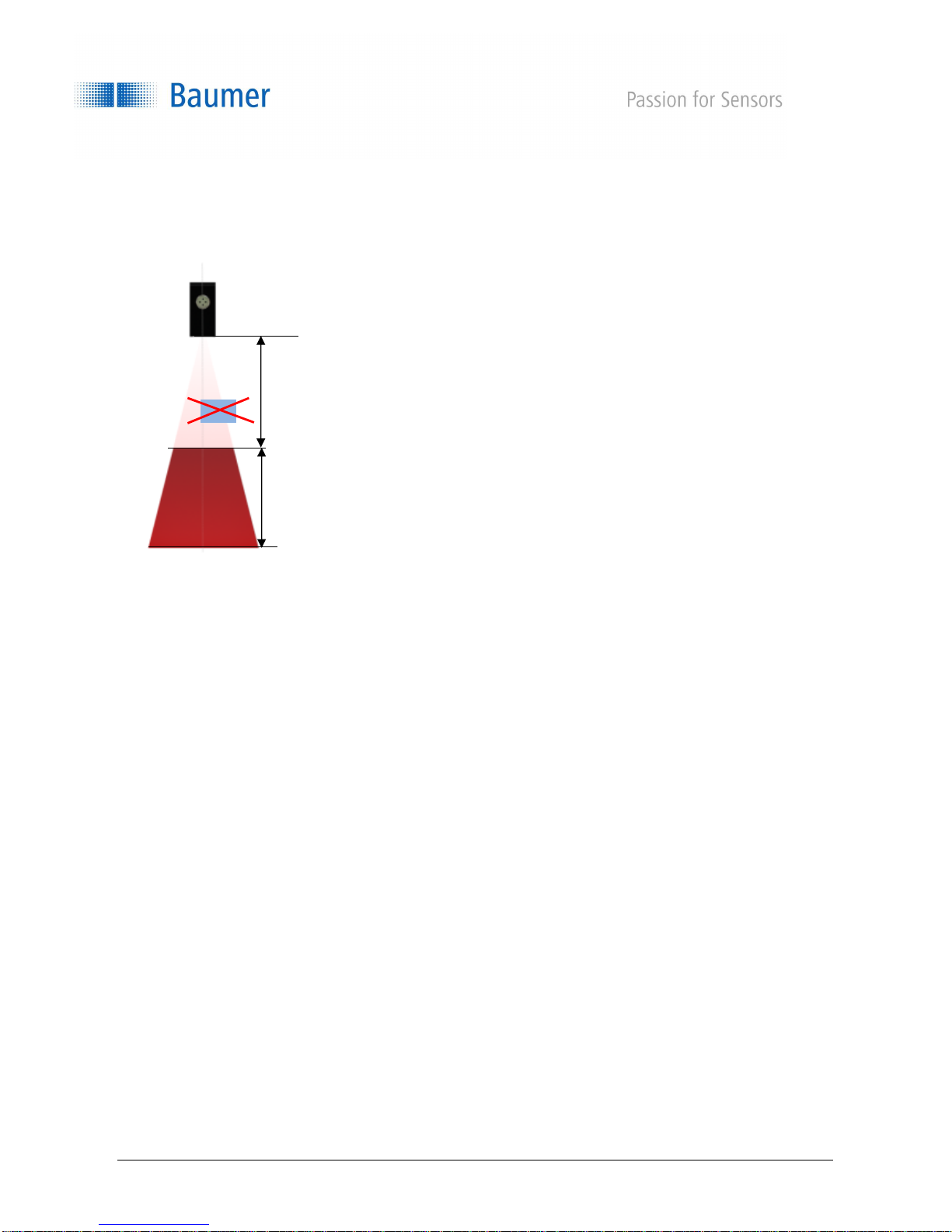

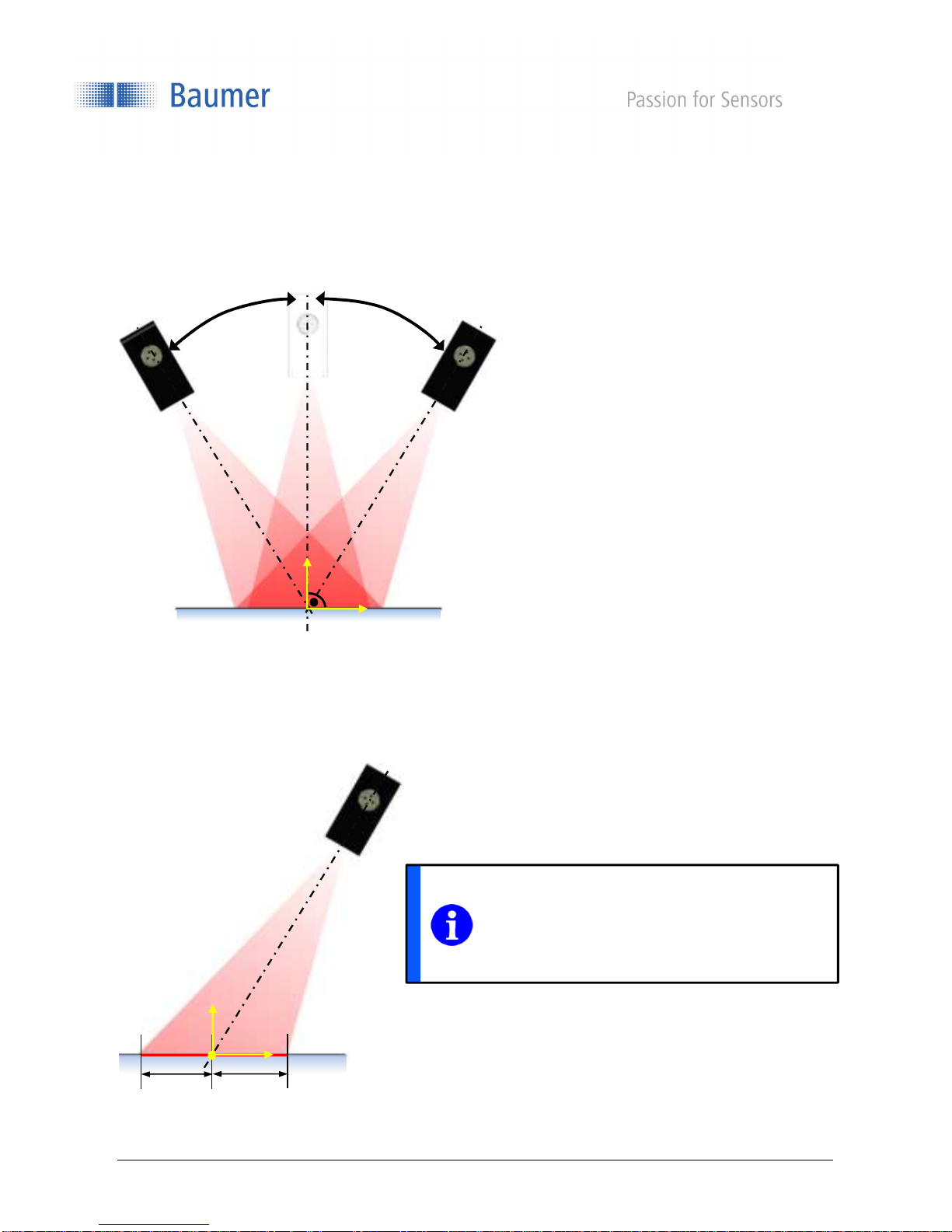

Function HEIGHT
At the function HEIGHT, the reference surface will be
teachted-in with FLEX MOUNT.
The sensor can be mounted angled with up to +/- 30
° to the reference surface.
The sensor may be mounted at an angle inclined
maximally 30° to the left or to the right of the
reference surface (background). Reference surface
(background) and object must lie within the
measuring field.
2
0 mm
Measuring
field width right
Measuring
field width left
Right
Left
0 mm
FIELD OF
VIEW
+/
-
30°
Reference surface
Reference point
HEIGHT function
Blind region

en_BA_OXH7_PosCon_OXH7.docx 7/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland

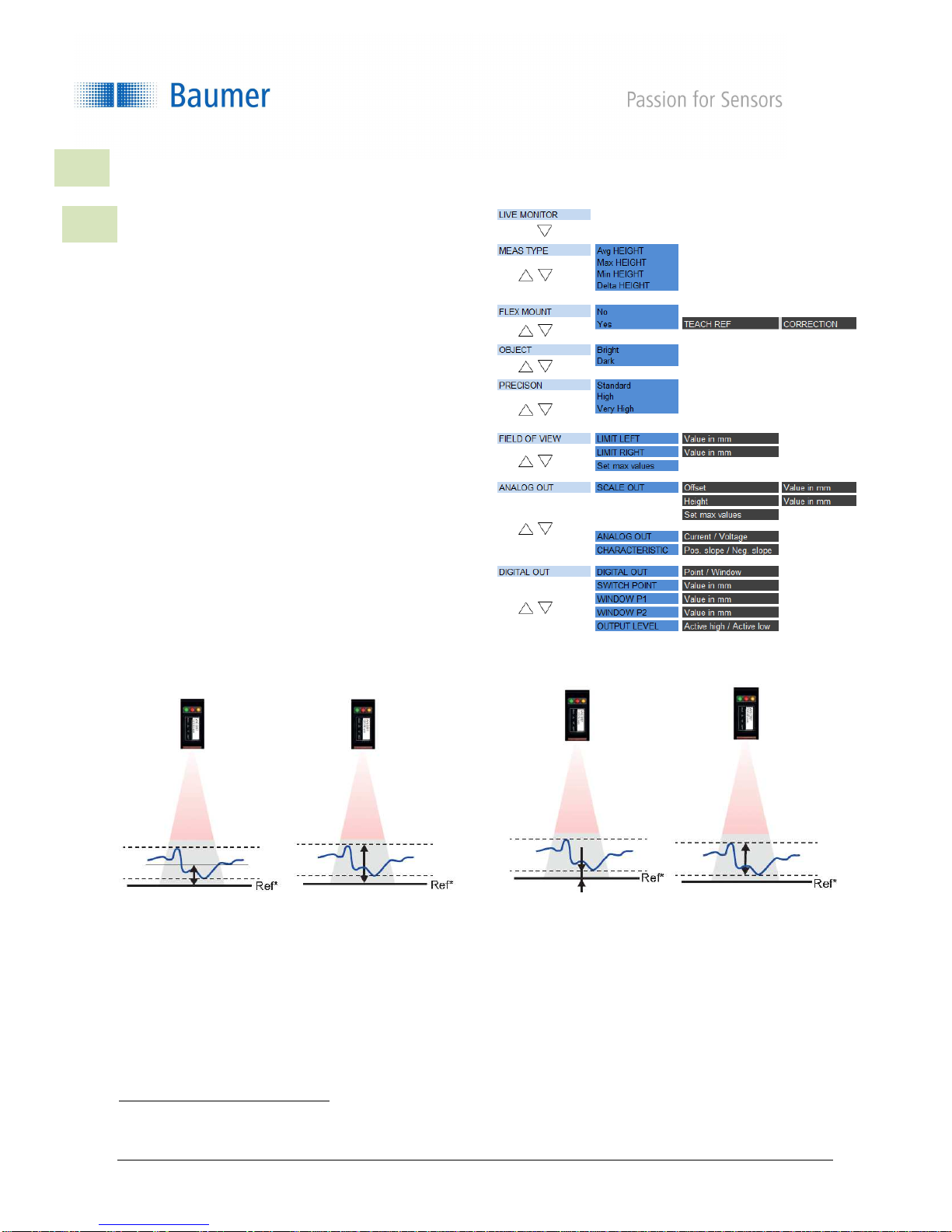

Application specific settings
1
In the factory settings Delta HEIGHT is predefined
HEIGHT
Height of an object
For a height measurement, the required MEAS TYPE
(average value, maximum, minimum or delta). The
reference surface (0) is the maximum measuring range
of the sensor, or if present, the FLEX MOUNT teached
reference surface.
Avg HEIGHT = Distance of the average
value of the object from the
reference surface
Max HEIGHT = Distance of the furthest
measuring point from the
reference surface
Min HEIGHT = distance of the closest
measuring point from the
reference surface
Delta HEIGHT
1
= Difference between the
closest and furthest measuring
point
Avg HEIGHT Max HEIGHT
Min HEIGHT Delta HEIGHT
3b
3

en_BA_OXH7_PosCon_OXH7.docx 8/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
Optional settings
FLEX MOUNT
If the sensor is mounted at an angle or the reference surface is not at the End of the measuring range Sde,
FLEX MOUNT must be activated and the reference surface taught in.
If FLEX MOUNT is activated, the following settings are reset: SCALE OUT, FIELD OF VIEW and DIGITAL
OUT.
OBJECT
Selection of bright or dark objects to optimize the measurement results.
PRECISION
To achieve better precision and resolution, it is possible to alternate between Standard, High and Very High
by filtering the output values.
SCALE OUT
Start of measuring range Sdc and end of measuring range Sde can be changed with SCALE OUT. 0V or 4mA
then apply for the start of measuring range Sdc. 10V or 20 mA apply for the point at the end of measuring
range Sde.
FIELD OF VIEW
The width of the measuring field can be changed with FIELD OF VIEW. Separate configuration of the single
points of the field: LIMIT LEFT, LIMIT RIGHT.
This function is required when there are objects in the measuring field that should not be detected.
ANALOG OUT
Start of measuring range Sdc (Offset) and end of measuring range Sde (Height) can be changed with SCALE
OUT. 0V or 4mA then apply for the start of measuring range Sdc. 10V or 20 mA apply for the point at the end
of measuring range Sde. Voltage and current output is selected under ANALOG OUT. In addition, the output
curve can be inverted under OUTP. SLOPE.
DIGITAL OUT
The sensor is equipped with a switching output that can be configured as a threshold or as a window via the
DIGITAL OUTPUT function.
Threshold: As soon as the measuring value is greater than the entered threshold, the switching output will be
changed.
Window: As soon as the measuring value is outside the entered window, the switching output will be changed.
Let's get started
The sensor continuously outputs the measuring value in mm to the display and transmits it via the analog
output to the control. Alternatively, the measuring value can also be retrieved from the RS485 interface.
4

en_BA_OXH7_PosCon_OXH7.docx 9/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
3 Connection
3.1 Connection cable
An 8-pole, shielded connection cable (connector) is required.
Baumer connection cables with the following order codes are recommended:
•10127844 ESG 34FH0200G (length 2 m, straight plug)
•11053961 ESW 33FH0200G (length 2 m, angled plug)
•10129333 ESG 34FH1000G (Länge 10 m, straight plug)
•10170054 ESW 33FH1000G (Länge 10 m, angled plug)
Other cable lengths are available.
When using the analogue output, the cable length has an influence on the signal noise. The longer the cable,
the greater the signal noise.
Analog output I_OUT
Noise: 5.92 uA (1 Sigma) (10 m cable and 680 ohm)
3:59 uA (1 sigma) (2m cable and 680 ohm)
Analog output U_OUT
Noise: 4.80 mV (1 Sigma) (10m cable and 100 kOhm)
3:03 mV (1 Sigma) (2m cable and 100 kOhm)
For high-precision applications, the use of the RS485 interface is recommended.
ATTENTION!
Laser class 1 laser beam according to EN 60825-1:2007. This product can be
operated safely without any additional safety precautions. Nevertheless direct
contact between the eye and beam should be avoided.
ATTENTION!
The IP protection class is valid only if all connections are connected as
described in the technical documentation.
ATTENTION!
Connection, installation and commissioning may only be performed by qualified
personnel.
ATTENTION!
Incorrect supply voltage will destroy the device!

en_BA_OXH7_PosCon_OXH7.docx 10/70 Baumer Electric AG
21.03.2018 14:28/tof V1.2 ANW_81184815 Frauenfeld, Switzerland
3.2 Pin assignment and connection diagram
Color
Function
Description
Pin 1 WH = white Rx/Tx- RS 485 receive/transmit- (B)
Pin 2 BN = brown + Vs Voltage supply (+15…+28 VDC)
Pin 3 GN = green analog Analog output (4…20 mA or 0…10V)
Pin 4 YE = yellow out Switching output, push-pull
Pin 5 GY = gray alarm Alarm output, push-pull
Pin 6 PK = pink Rx/Tx+ RS485 receive/transmit+ (A)
Pin 7 BU = blue 0V Ground GND
Pin 8 RD = red sync in Input synchronization
NOTE
It is recommended to connect unused inputs to GND (0V).
