Eaton Powerware 5110 User manual

UserÊs Manual 350-1500VA 1
Powerware 5110 UPS
UserÊs manual

UserÊs Manual 350-1500VA
2
©2005 Eaton Corporation
All Rights Reserved
The contents of this manual are the copyright
of the publisher and may not be reproduced (even extracts)
unless permission granted.
Every care has been taken to ensure the accuracy of
the information contained in this manual, but no liability
can be accepted for any errors or omission. The right
to make design modifications is reserved.

UserÊs Manual 350-1500VA 3
Powerware 5110 UPS
UserÊs manual
1023922 Revision A
Contents
Introduction .................................................................................................................. 4
Features .................................................................................................................... 4
Unit inspection .......................................................................................................... 4
Safety Instructions ...................................................................................................... 5
Battery connection required before use! .................................................................... 6
Connecting the Battery: ............................................................................................ 6
Installation and Operation: .......................................................................................... 6
Indicators: .................................................................................................................... 7
Indicator table: ............................................................................................................. 9
Status Indicators ........................................................................................................... 9
LED Indicator Table ................................................................................................... 9
LED Audible Alarm Table............................................................................................ 9
Battery replacement procedure: ................................................................................. 9
Troubleshooting ...................................................................................................... 12
Specification ........................................................................................................... 13
Service and Support .................................................................................................. 14

UserÊs Manual 350-1500VA
4
Introduction
The Powerware 5110 uninterruptible power system (UPS) filters the input line from
line disturbances and protects your sensitive electronic equipment from five common
power problems such as power failures, power sags and power surges.
Features:
 Processor-controlled voltage regulation (AVR)
 Six outlets
- Three with surge and battery backup protection
- Three with surge protection only
 Data Line (Internet faxmodemDSL) or telephone line surge protection
 Cold Start capability
 USB communication port
 User-replaceable batteries
Unit inspection
Once you have received the Powerware 5110 UPS product, you should remove and
inspect the product for shipping damage. If any damage is found, please notify the
carrier and your dealer. Please keep the shipping carton and the packing foam in the
event the product must be returned to the factory for service.
Eaton Power Quality Pty Ltd
10 Kent Road Mascot NSW 2020
Phone: [phone]
Fax: [phone]

UserÊs Manual 350-1500VA 5
Safety Instructions
ATTENTION
Maintenance, other than battery replacement must be performed by a
qualified technician. Failure to do so could result in an electrical shock.
Although the unit may be unplugged from utility power, hazardous
voltage still may be present through the battery.
1. Place the Powerware 5110 UPS indoors in an area that has adequate airflow and
is free of excessive dust. Do NOT allow the UPS to be exposed to moisture, rain,
excessive heat, or direct sunlight.
2. Use of the Powerware 5110 UPS product in life support applications, where failure
of this equipment can reasonably be expected to cause failure of life support
equipment or to significantly affect its safety or effectiveness is NOT recommended.
3. Shut off the UPS and disconnect the input power cord from the wall outlet before
replacing the battery.
4. When replacing the battery, use the same number and type of battery
5. Do NOT dispose of battery in a fire. The battery may explode.
6. Do NOT open or mutilate the battery. They contain an electrolyte that is toxic and
harmful to the skin and eyes.
7. Proper disposal of the battery is required. Please refer to your local laws/regulations
regarding battery disposal.
8. Use tools with insulated handles to replace the battery to avoid personal injury. Due
to energy hazard, please remove wristwatches and jewelry such as rings when
replacing battery.
!

UserÊs Manual 350-1500VA
6

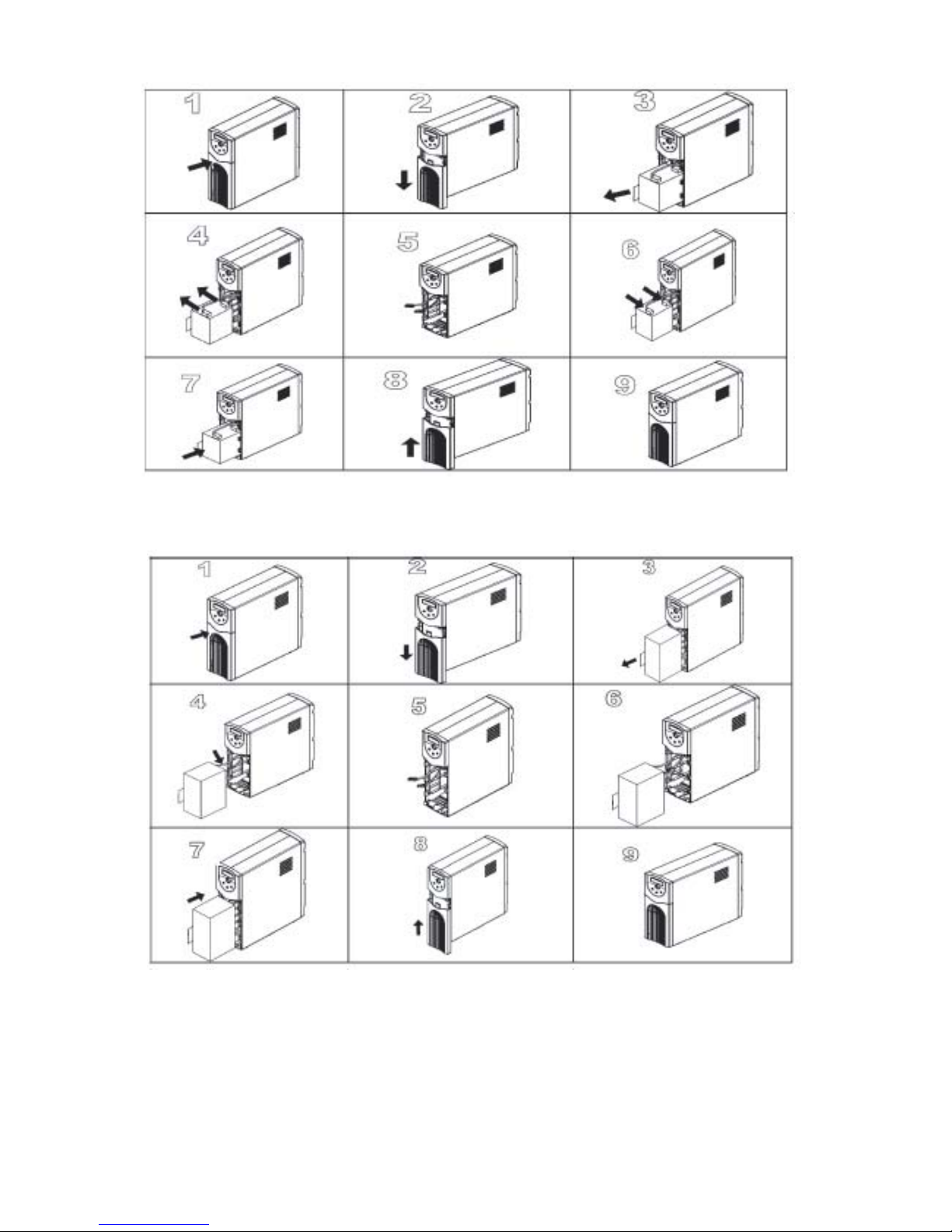

Battery connection required before use!
Connecting the Battery:
Principle shown below. For detailed information how to connect, please refer to battery
replacement section.
Installation and Operation:
The following steps explain how to connect and operate the Powerware 5110 UPS.
1. Connect the UPS to a grounded power outlet.
Note
It is recommended that the battery should be charged for minimum 8 hours
to ensure full charge before placing the UPS in service.
2. Plug your computer, monitor or load to be protected into the „Battery Backup &
Surge Protection‰ outlets. (These outlets will provide emergency battery backup
power during power outages as well as protection from surges and spikes.)
Do NOT plug LASER PRINTERS into the „Battery Backup‰ outlets.
Do NOT plug ACCESSORY SURGE strips into the „Battery Backup‰ outlets.
3. Plug your peripheral equipment or non-critical loads (printer, scanner, fax, speaker,
etc.) into the „Surge Protection‰ outlets. (These outlets provide surge and spike
protection only, they will NOT provide battery backup power during a utility power
failure).
4. Connect your computer to the UPS using USB cable provided.
5. With your equipment turned off, switch on the UPS.
6. When the „On/Off‰ LED light is illuminated, turn on the connected equipment.
7. Install Power management software provided with the UPS

UserÊs Manual 350-1500VA 7
Indicators
1. On/Off Push Button/Test Switch
One switch controls the power to your equipment and performs a self-test to detect
overload or undercharged conditions.
Turn on the UPS
Press and hold the switch for more than one second and release the switch after the
beep. The UPS will start.
Turn off the UPS
Press and hold the switch for more than one second and release the switch. The
UPS will shut down completely.
Perform Self-Test
The UPS will perform self-test for about 4.5 seconds when the UPS is turned on and
the utility power is present.
2. Normal Mode (Green) LED
Indicates the UPS is providing mains power to your
equipment. When the LED is blinking the UPS is
providing power from the battery.
3. Fault (Red) LED
When blinking, LED could indicate an overload
condition or that the battery should be replaced. When
the LED is always on it indicates a short or UPS fault.
For details please see Indicator Table.
4. Battery Mode (Yellow) LED
Indicates the UPS is providing battery power to your
equipment.
2
1
3
4

UserÊs Manual 350-1500VA
8

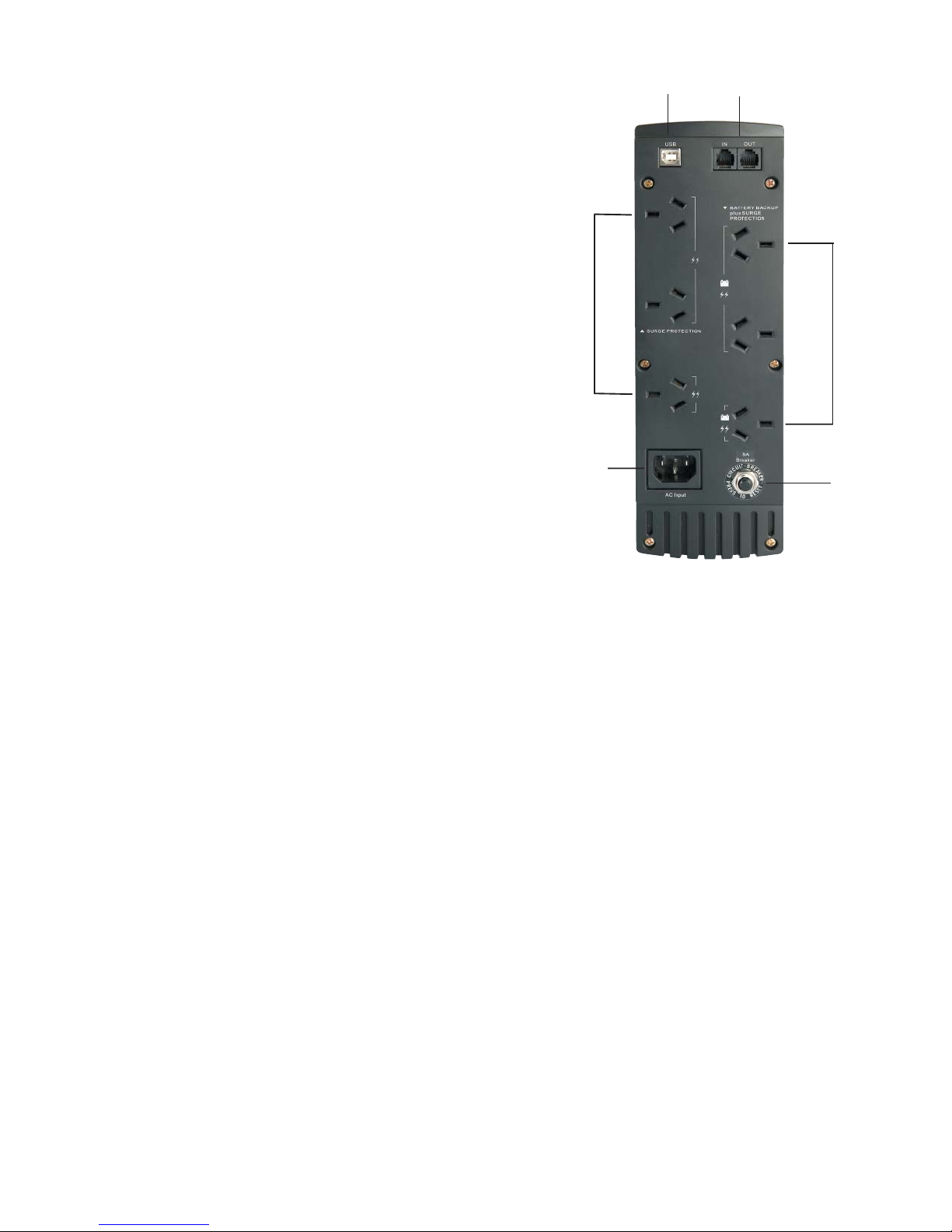

5. 3 Battery Backup and Surge Protection Outlets
These 3 Australian 10 Amp output receptacles
provide full time surge protection, but also
provide emergency battery backup power.
6. 3 Surge Protection Outlets
These 3 Australian 10 Amp output receptacles
provide full time protection from surge and spike.
7. Phone/Modem/ADSL Protection
Built in RJ11 jacks protect the internet, phone
or fax line from surges. Connect the line in from
the wall into the jack named „In‰ and connect
the phone, modem ADSL box to the jack named
„Out‰.
8. USB Communication Port
The provided LanSafe monitoring and shutdown
software can be automatically configured to save
the files and shut down your computer in the
event of a prolonged power outage.
9. Circuit Breaker
The button will protrude when the overload
condition occurs. The UPS will switch off of
utility power. If the button protrudes, disconnect
some non-essential equipment and reset the
circuit breaker by pushing the button inward.
10. Power Connector
10 Amp IEC to 10 Amp Australian input lead provided.
6
7
8
9
5
10

UserÊs Manual 350-1500VA 9
Indicator Table
Status Indicators
The UPS provides both visual and audible status indicators. Visual indicators consist of
three LEDs to represent the following conditions:
 On utility power operation
 On battery power operation
 UPS fault/alarm
LED Indicator Table
On Utility (AC mode) Green Lighting
On Battery (backup mode) Yellow Lighting
Low Battery Yellow Flashing
Fault/Output Short Red Lighting
Overload/Check Battery Red Flashing
LED Audible Alarm Table
On Battery (backup mode) Sounding every 5 seconds
Low Battery Sounding (two beeps) every 5 seconds
Overload Sounding every 0.5 seconds
Replace Battery Sounding (three beeps) every 30 seconds
Fault or output short circuit Continuous sounding
Battery over charge Sounding (three beeps) every 5 seconds
Battery Replacement Procedure:
1. Batteries must be replaced with identical type.
2. Disconnect UPS system from power source
3. Open battery door.
4. Disconnect used battery. Connect new battery. (It is important that connectors be
firmly attached to new batteries.
5. Close battery door.
6. Properly recycle used battery.

UserÊs Manual 350-1500VA
10
5Ah battery (350VA, 500VA models)
7Ah x 1 battery (700VA models)
