Eaton Powerware 9120 User manual

POWERWARE®9120
User’s Guide
6000VA
www.powerware.com

POWERWARE 9120
6000VA
User Guide
Important Notice
The UPS ground (earth) conductor carries leakage current from the loads in addition to
any leakage current generated by the UPS. This UPS generates no more than 1 mA of
current. To limit the total leakage current to 3.5 mA, the load leakage must be limited to
2.5 mA. The UPS must have a good (low-impedance) ground (protective earth) connec-
tion to provide a safe path for leakage current.
OMM91206kRev1.qxd
© Copyright 2004. All rights reserved.

If You Have a Question
Customer Support
If you have a question or problem, Table 10, Troubleshooting, may help. If you need
more help, please have your UPS model number and serial number (on the back
label) nearby, and call the Eaton Power Quality office nearest you (see the Eaton
Power Quality offices section). Eaton Power Quality’s service technicians have in-
depth knowledge of the UPS and power problems.
Eaton Power Quality may tell you the UPS must be returned. If this happens, we will
give you a Return Authorisation (RA) number. When you return a Powerware 9120 to
the factory for any reason, please use the original packing material in which your
unit was shipped to you. You may be responsible for repair charges for damaged
units which are not packed in Eaton Power Quality packing material. If you have
discarded the original packing material, please call the nearest Powerware office so that
we can ship new packing material to you. If you have any questions, please feel free to
call or fax the nearest Eaton Power Quality office. Please do not return your Powerware
9120 without calling Eaton Power Quality first. Eaton Power Quality will advise you
where to ship your Powerware 9120.
Powerware reserves the right to change specifications without prior notice.
Where the brand name “Powerware” is used,
the term refers to Eaton’s Powerware Division, trading in Australia
as Eaton Power Quality Pty Ltd

1
Table of Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.0 UPS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.2 Rear Panel View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.3 Connections to Mains and Load . . . . . . . . . . . . . . . . . . . . . . . . . .6
3.0 Quick Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4.0 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.1 UPS Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.2 Turning the UPS On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.3 Turning the UPS Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.4 Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.5 Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6.0 Additional UPS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6.1 Inverter Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6.2 Communication Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6.3 Comunication Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6.4 SNMP/Web Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6.5 Relay Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7.0 Installing Lansafe Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8.0 Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8.1 How to Replace Internal Batteries . . . . . . . . . . . . . . . . . . . . . . . .19
8.2 Recyling the Used Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
9.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
11.0 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Powerware Australia/New Zealand Offices . . . . . . . . . . . . . . . . . . . .31
Trademarks
Windows is a registered trademark of Microsoft Corporation.
All other brand and product names are trademarks or registered trademarks of their
respective holders.

2
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS!
SAVE THESE INSTRUCTIONS!
This User Guide contains important instructions for your Powerware 9120 that must be followed
during installation and maintenance of the UPS and batteries.
The installation and use of this product must comply with all national, federal, state, municipal, or
local codes that apply. For assistance, call Powerware Service or your local Powerware office.
If the Powerware 9120 has been damaged during shipment, call your vendor immediately.
If the Powerware 9120 is stored, the batteries should be recharged every 6 months. If stored
above 25°Celsius, recharge the batteries more often.
CAUTION!
Whenever the Powerware 9120 is “On,” there may be dangerous voltage present at the unit’s
outlet terminals. This is because the unit’s battery supplies power even if the unit is not con-
nected to supply. The unit contains dangerous voltages.
To reduce the risk of electric shock, install in a temperature-controlled and humidity-
controlled indoor area free of conductive contaminants.
With the exception of the user-replaceable batteries, all servicing of this equipment must be
performed by qualified service personnel.
Before maintenance or repair, all connections must be removed. Before maintenance, repair,
or shipment, the unit must be completely switched off and unplugged or disconnected.

3
1.0 UPS Features
The Powerware 9120 provides protection against power problems, including power outages,
brownouts, and sudden increases in power. It also provides spike suppression and line noise fil-
tering to protect your equipment. Front panel LEDs and an audible alarm keep you aware of the
unit’s status. Use the drawings on this and the following pages to identify features of the unit.

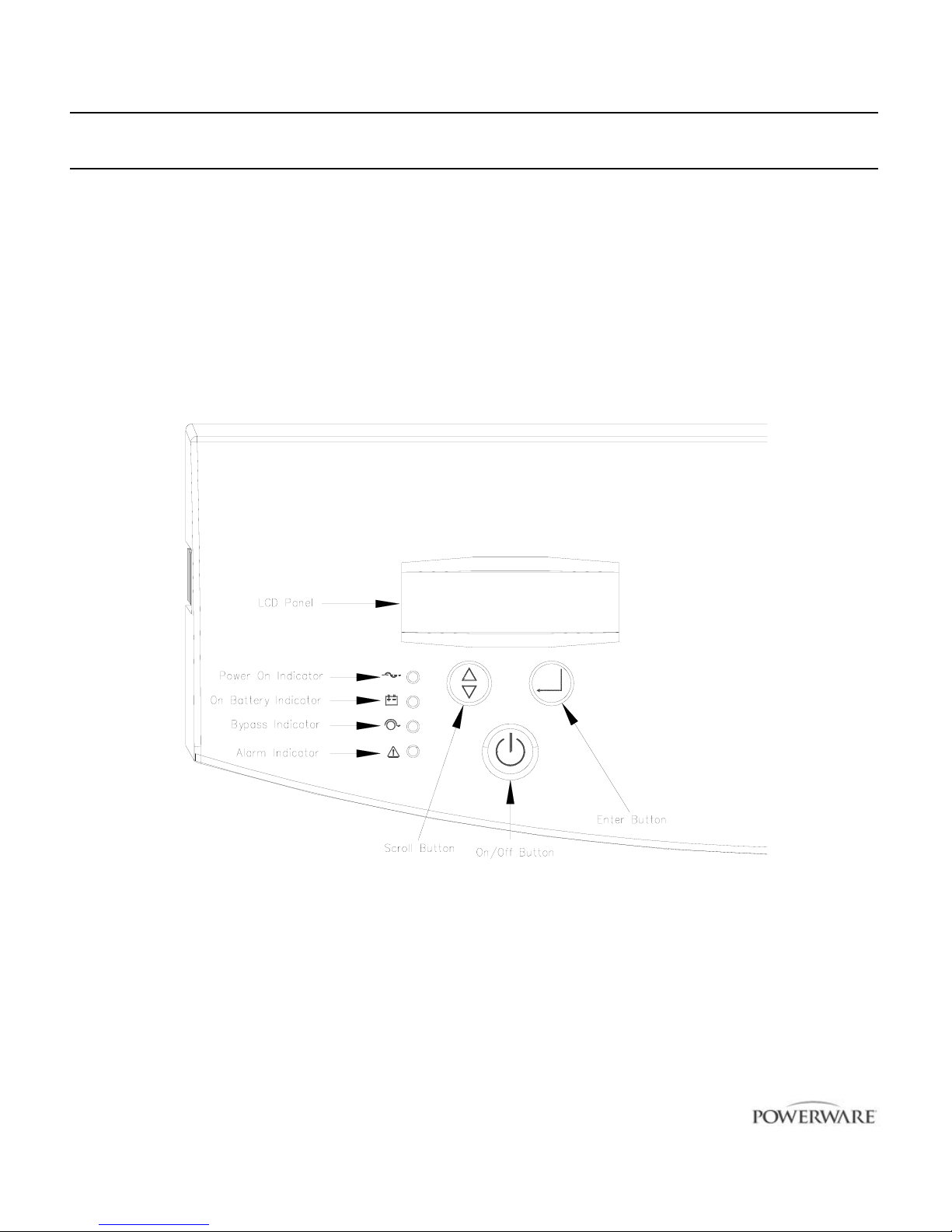

Fig 1. Powerware 9120 6kVA Controls and Indicators

4
2.0 Installation
2.1 Environment
1. The UPS should be installed in a controlled environment. A controlled environment is one
that is indoor, temperature controlled, free from conductive contaminants, dust, fumes and
moisture.
The UPS is intended for indoor use only.
Provide adequate ventilation, 100 mm clearance at the rear of the UPS and 50 mm on the
sides of the UPS.
The unit must have unrestricted airflow.
To maximise the battery life, an ambient temperature of 15oC to 25oC is recommended.
2. Environmental Specifications
Ambient Operating Temperature < 1500m 0oC to 40oC
1500m - 3000m 10oC to 35oC
Recommended Temperature 15oC to 25oC
Storage Temperature -15oC to +50oC
Cooling Type Forced Air
Humidity 0.95% non-
condensing

5
2.2 Rear Panel View

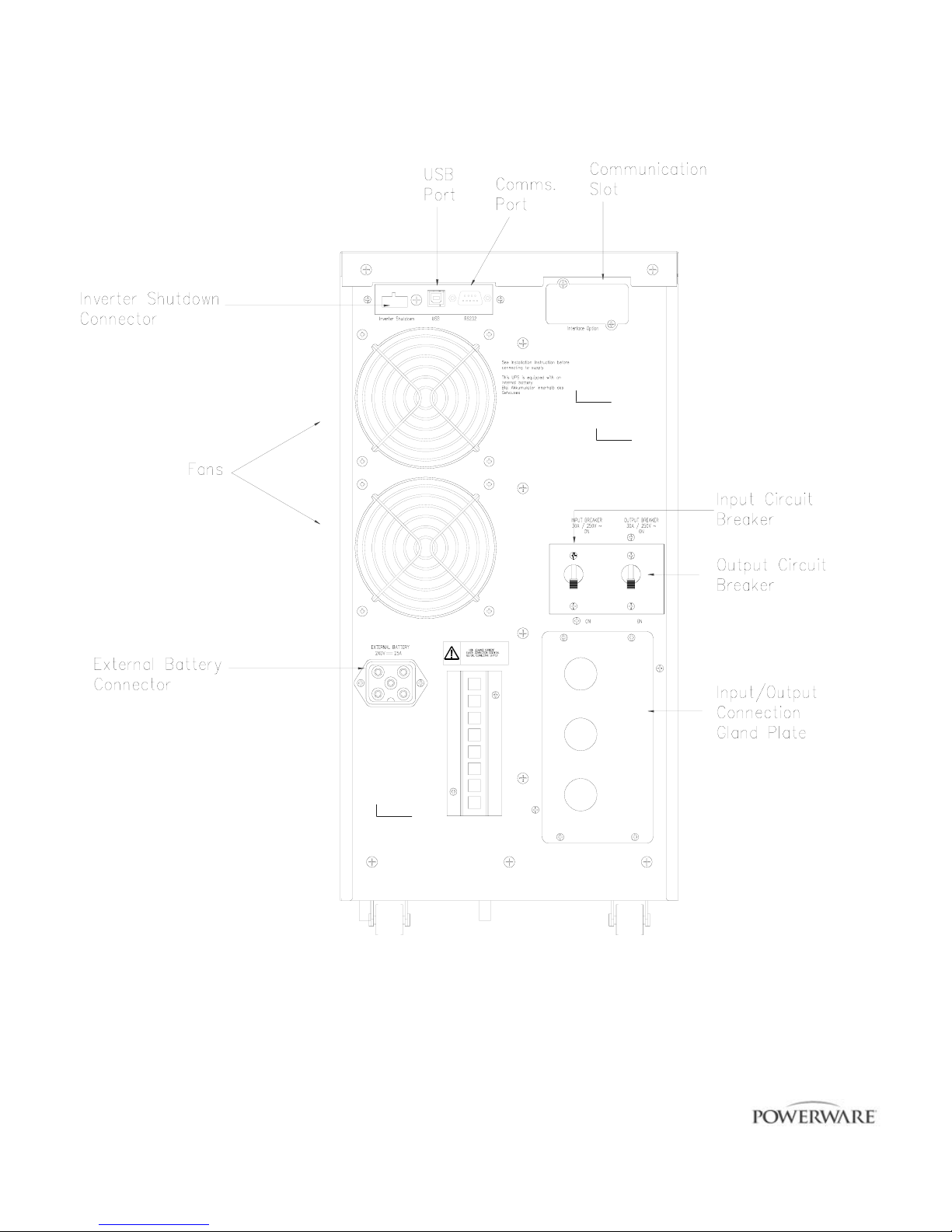

Fig 2. Powerware 9120 6kVA Rear Panel

2.3 Connections to Mains and Load
The installation, wiring and connection must be carried out by qualified personnel only. The
installation must comply with all current Wiring Rules and Regulations, Local, State and Federal
statutes, Legislation and Regulations.
CAUTION !
The UPS contains high voltage and current levels which could injure or kill personnel
and damage equipment.
2.3.1 Installing the UPS
1. Ensure that the UPS protective device and the cabling are sized to accomodate the
ratings as listed in Figs 3 & 4.
2. Install UPS wiring system in accordance with Fig 5, for a Single Supply Input, or
Fig 6 for a Dual Supply Input. A Dual Supply is normally to provide additional system
validating in the event of a feeder failing.
6
Fig 3. Single Supply Wiring
Note: 1. Max Cable Size into Terminals is 10sq. mm. Stranded Cable
2. For Wiring Diagram refer to Fig 5
Fig 5. Single Supply Wiring
Note: For Terminal Connection refer to Fig 3

7

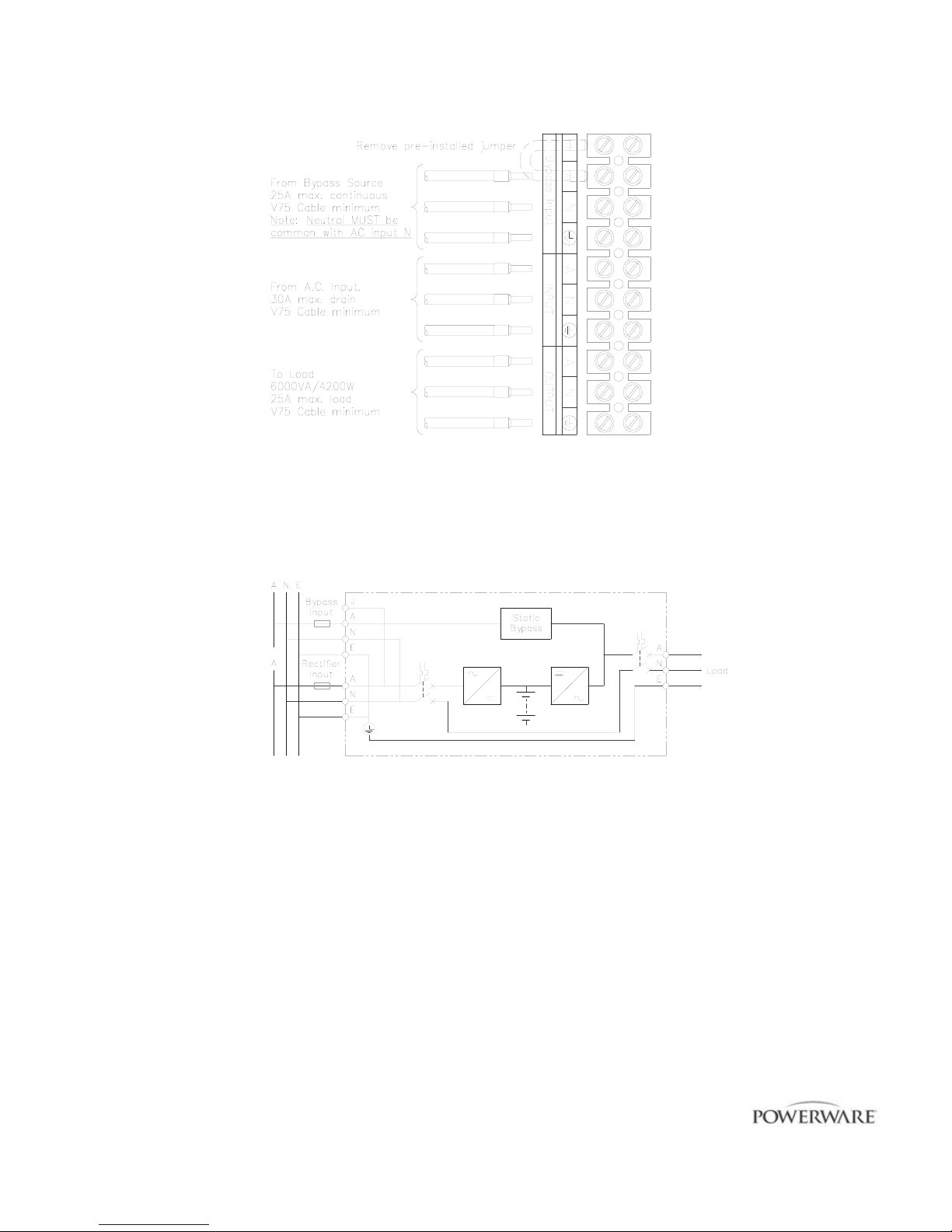

Fig 4. AC Supply with Separate Bypass Supply
Note: 1. Max Cable Size into Terminals is 10sq. mm. Stranded Cable
2. Currents quoted are for 240V AC units
3. For Wiring Diagram refer to Fig 6
Fig 6. AC Supply with Separate Bypass Supply
Note: For Terminal Connection refer to Fig 4

8
2.3.1 Installing the UPS (cont.)

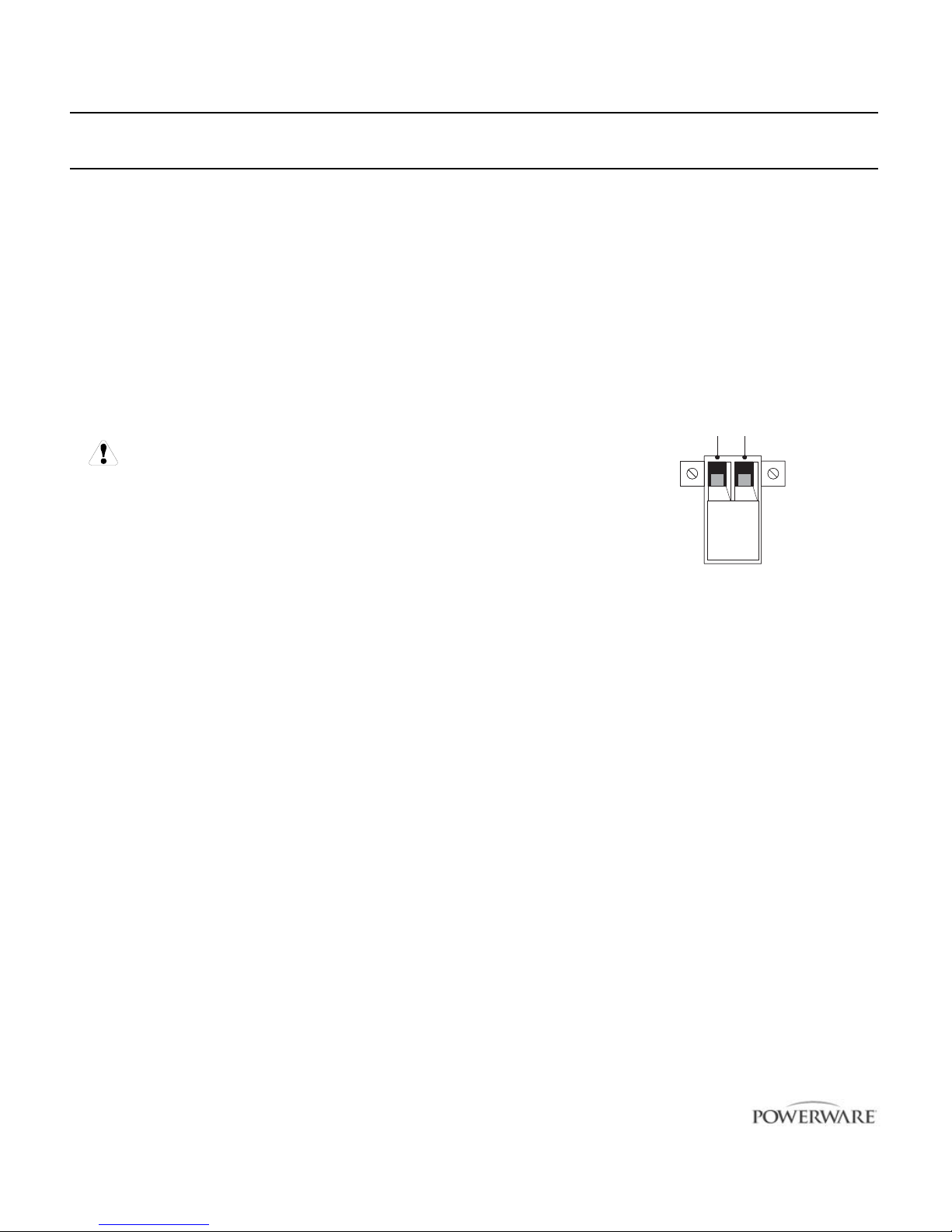

3. Isolate the Supply service and secure against reclosing. The Input and Output
Circuit Breakers located at the rear of the UPS must be in the “OFF” position.
4. Connect to the UPS in accordance with Fig 3 for a Single Supply Input or Fig 4 for a
Dual Supply Input.
NOTE: When connecting a Dual Supply Input (i.e. AC Supply with a Separate
Bypass Supply), the pre-installed Jumper between J and A (on the Bypass
Input Terminals) MUST BE REMOVED.
5. The Inverter Shutdown Input is located at the rear of the UPS. When this connection
is open, the Inverter of the UPS will be shutdown. We strongly recommend the use
of an External Maintenance Bypass Switch (MBS). If an MBS is used, connect the
inverter shutdown cable (refer Fig 2 Page 5) to the input at the rear of the unit,
utilising a 1sq. mm. twisted pair screened cable.
6. If computer or alarm connections are required, they should be connected in
accordance with the relevant portion of Section 6 of this manual or in accordance
with the manual provided with the option. These connections are on the rear panel.
2.3.2 Installing External Battery Cabinets
1. External Battery Cabinets should only be connected when the UPS is isolated from
the mains and the load.
2. Connect the External Battery Cabinet to the UPS with the battery cable provided. If
more than one External Battery Cabinet is installed, connect the second Battery
Cabinet to the first Battery Cabinet with the cable provided.
NOTE: If External Battery Cabinets are used, the Battery Pack Quantity and type in
the UPS Parameters should be changed. Do this once the UPS has been started
(refer to Section 5.0, Configuration and to the manual that came with your External
Battery Pack).

9
3.0 Quick Startup
1Your Powerware 9120 6kVA UPS is designed for direct connection to a mains supply by a
qualified electrican. When input power is connected and switched on the LCD backlight will
illuminate and the fan will run, but no output power is available.
2Let the unit charge the battery for at least 3 hours. You may use the unit while the battery
charges, but the battery backup runtime will be reduced until the battery is fully charged.
3Start the Powerware 9120 by pressing and holding the On/Standby button (large button in the
center of the front panel) in for about one second. Note: To turn the unit on, the On/Standby
button must be pressed for about one second and for about 5 seconds to turn the unit off.
3.a. When it starts, the unit beeps once, then twice, and lights the “Power On” LED. The unit
indicates “On Delay” on the LCD and performs an internal system and battery test. Next,
the Powerware 9120 applies AC output to the output connections and indicates “On Line”
on the LCD.
3.b. After 10 seconds or less, the self test is complete. The green LED will come on and
remain on. If the unit beeps, or if the green LED does not remain on even though input
power is available from the input supply, go to the Troubleshooting section.
4Switch off the equipment you want to protect, and plug each load into outlets connected to
the circuits feeding the Powerware 9120.
5Switch on the protected equipment, one load at a time. If the UPS beeps an alarm when you
start your equipment, the UPS may be overloaded. See the Troubleshooting section.
The LCD on the front of the UPS shows the % of load capacity that your equipment is using.
See Section 3.0 Operation for more information on checking the load %..
6Please fill out the warranty registration card in Section 10 and return it to your local
Powerware office.

10
4.0 Operation
This section describes:
• The UPS front panel • Standby mode
• Turning the UPS on and off • Diagnostic tests
• Starting the UPS on battery
4.1 UPS Front Panel
The UPS front panel indicates the UPS status and also identifies potential power problems. Figure
7 shows the UPS front panel indicators and controls.

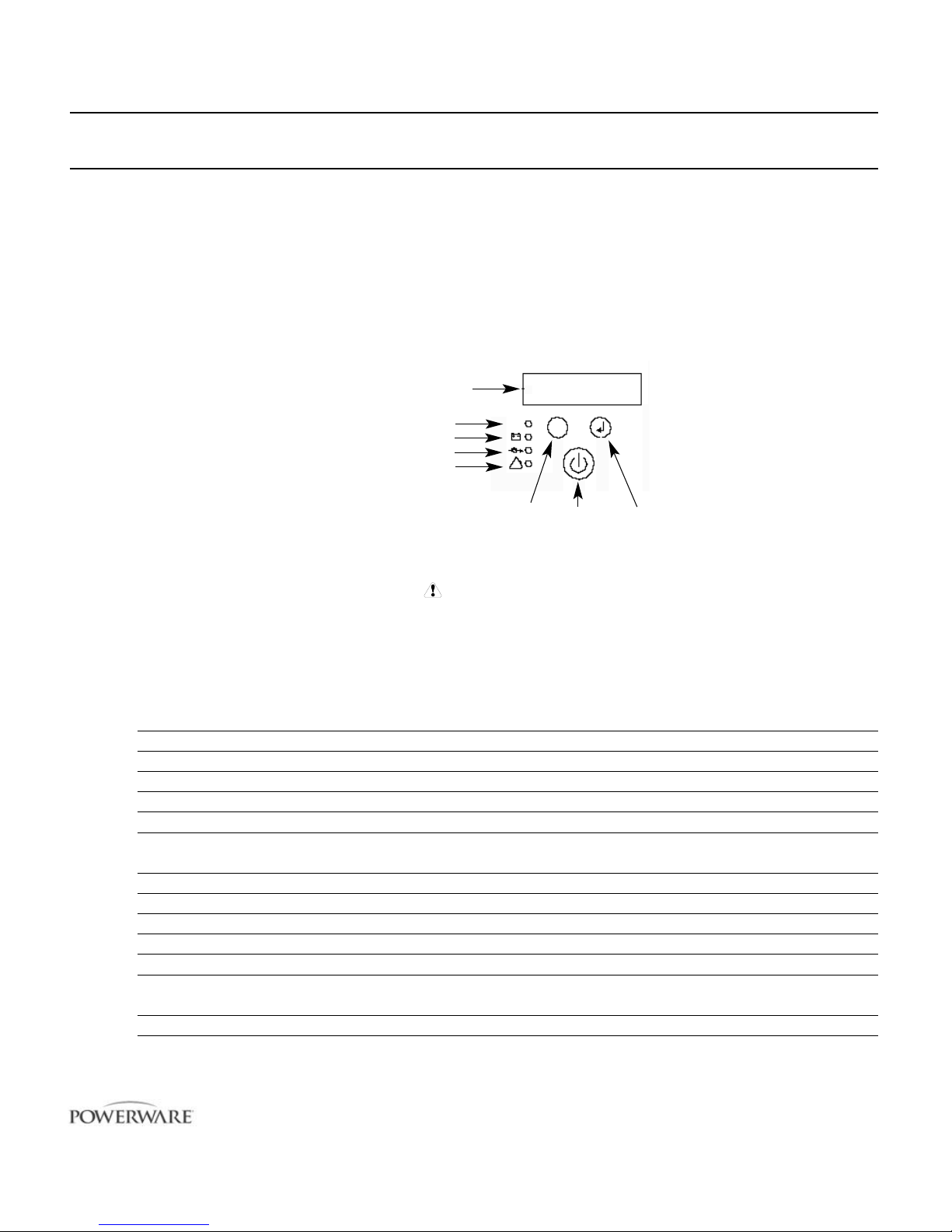

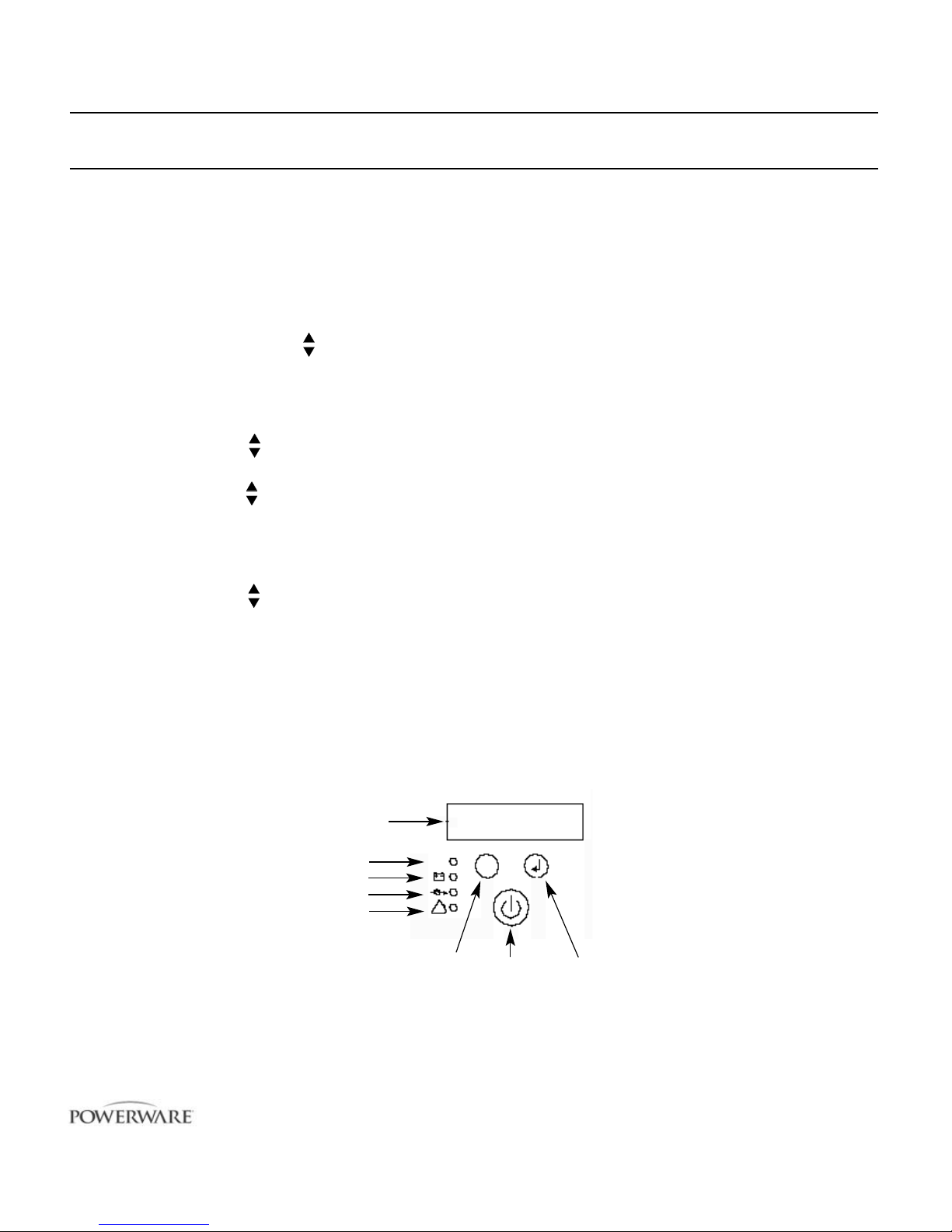

Figure 7. UPS Front Panel
NOTE If the alarm beeps or if the indicator is on, see Table 8 in Section 10.0 to identi-
fy and correct the problem. To configure parameters through the front panel, see Section
5.0 "Configuration".
Display Mode
To view the UPS current settings, press the ↵↵button for one second and release. Use the ↵↵
button to scroll through the list of settings, which appear in the following order:
LCD Message Description
I/P VOLT= xxx.xV Input voltage.
Bypass V= xxx.xV Bypass voltage
Bypass F= xx.xHZ Bypass frequency
O/P VOLT= xxx.xV Output voltage.
O/P FREQ= xx.xHZ Output frequency.
O/P Load = x% Approximate percentage of UPS load capacity being used
by the protected equipment.
O/P Watt= xW Output watts.
O/P VA= xVA Output VA.
O/P Cur= x.xA Output current.
BAT VOLT= xx.xV Battery voltage.
BAT CHARGE= xxx% Approximate percentage of battery capacity remaining.
BackUp Time= xxxM Approximate battery time remaining in minutes. The display
changes to seconds after one minute (Backup Time= xxxS).
CPU Version x.xx Firmware revision level.
NOTE The UPS exits Display mode automatically after five seconds if the ↵↵button is not
pressed. Pressing the ↵↵button for 3 seconds will lock the display at the present
parameter. Pressing again for 3 seconds releases the meter.
LCD Panel
Power On Indicator
Alarm Indicator
On Battery Indicator
Scroll
Button
On/Off
Button
Enter
Button
Bypass Indicator

11
4.2 Turning the UPS On
After the UPS is connected to a power source, the fan turns on and the UPS enters Standby
mode. To turn on the UPS, press and hold the button until you hear the UPS beep (approximately
one second). The LCD briefly displays “On Delay” and the “Power On” indicator illuminates. Then
the UPS conducts a self-test, briefly displaying “On BATTERY”. If an alarm condition occurs, see
Table 8 in Section 10.0 for helpful hints.
When the self-test is complete, the LCD displays “On Line” indicating that power is available from
the UPS output receptacles.
Starting the UPS on Battery
NOTE Before using this feature, the UPS must have been powered by utility power at least
once and the batteries must be completely charged.
To turn on the UPS without using utility power, press and hold the button until you hear the
UPS beep (approximately one second). The UPS supplies power to your equipment and goes into
Battery mode. The LCD briefly displays “On Delay”, then “On Battery” and the and
indicators illuminate. When the UPS starts on battery, it does not conduct a self-test to conserve
battery power.
4.3 Turning the UPS Off
To turn off the UPS, press and hold the button until the long beep ceases (approximately five
seconds).
NOTE When you press and hold the button, the LCD displays Shutdown Pending.
The indicator turns off and the LCD briefly displays UPS OFF before going blank. The fan
continues to run and the UPS remains in Standby mode until you unplug or remove utility power
from the UPS.
4.4 Standby Mode
When the UPS is turned off and connected to a power source, the UPS is in Standby mode. The
fan continues to run and the battery recharges when necessary. The indicator is off and the
LCD panel is blank, indicating that power is not available from the UPS.
4.5 Diagnostic Tests
The UPS automatically performs a self-test when powered on and when the UPS restarts after a
power outage. The self-test monitors the UPS electronics and battery and indicates any problems
on the front panel.
A battery test is automatically performed every 30 days (720 hours) of continuous Normal mode
operation. The test lasts approximately 15 seconds and any failure is displayed on the front panel.
Both the UPS and battery tests can be performed manually (see Section 5.0 "Configuration" for
more information).

12
5.0 Configuration
This section describes how to reconfigure options using the Configuration mode, including: input
and output voltage and frequency, site wiring fault, and silencing the alarm.
NOTE The UPS has been factory-configured with default settings appropriate for most
installations. User configuration is not normally required.
Configuration Mode
The control buttons ( and ↵↵) are used to modify the UPS configuration. Figure 8 shows the
front panel and Table 1 explains the corresponding options.
NOTE The UPS can be configured while in Battery mode. If the UPS switches to battery power
while in Configuration mode, the UPS exits Configuration mode and indicates Battery mode on
the front panel.
1. Press the button for one second to enter Configuration mode.
The LCD displays the first configuration parameter (see Table 1).
2. Press the button to scroll through the parameters.
NOTE The UPS exits Configuration mode automatically after five seconds if a selection
has not been made.
3. Press the ↵↵button to select the parameter.
4. Press the button to scroll through the options for the selected parameter; press the ↵↵
button to select the option.
You may be prompted to save the selection; press the ↵↵button to save. Other options are
saved automatically. See Table 1 for more detail.
5. To exit Configuration mode at any time, do not press any buttons for five seconds.
The UPS returns to Normal mode and displays On Line.
Figure 8. Using the Configuration Mode
Press the Enter button to select a
parameter. Also press the Enter
button to select an option and to
save the setting.
Press the Scroll button to enter
Configuration mode. Also press
to scroll to the next option.
LCD Panel
Power On Indicator
Alarm Indicator
On Battery Indicator
Scroll
Button
On/Off
Button
Enter
Button
Bypass Indicator

13
Table 1. Configuration Mode Parameters
Parameter LCD Message Description Default Settings
Output Voltage Setting O/P V Setting To change the output voltage
• Select 208, 220, 230, or 240V for 240V models. For 240V models:
You are prompted to save this setting. O/P V= 240V
Input Voltage Tolerance Bypass Volt Set Select the input voltage tolerance range before the UPS I/P Tol=+10%/-15%
goes to Battery mode: ±10%, +10%/-15%, or +15%/-20%.
You are prompted to save this setting.
Input Frequency Bypass Freq Set The factory-default is 50 or 60 Hz, ±5%. Select ±2% for Freq Tol.=+/-5%
a narrower frequency range. Select ±7% for a wider
frequency range.
You are prompted to save this setting.
High-Efficiency Mode HE Mode Setting Select whether High-Efficiency mode is On or Off. If HE Mode Off
enabled, you must also select the input voltage range:
±10% or ±15%.
While operating in High-Efficiency mode, the UPS
transfers to inverter when:
1) the input voltage is outside ±10% or ±15% from nominal;
2) the input frequency is greater than ±3%; or 3) the input line
is not available.
You are prompted to save this setting. If the setting is not allowed,
the LCD shows “I/P out limit” which means the input voltage or
frequency is not suitable
Free Run Mode Free Run Mode Select whether Free Run mode is On or Off. If enabled, Free Run On
you must also select Bypass Disable or Bypass Enable. (Bypass Disable)
This selection defines how your UPS runs when the input
frequency (from the utility) is outside the selected frequency
tolerance (set via the I/P F Setting, above), but is inside the
maximum frequency limits the UPS can accept before
switching to Battery mode.
For example: If your 50 Hz UPS is set to the factory default
window of ±5% before the UPS starts regulating the frequency.
• The output frequency tracks the input frequency exactly from
47.5 to 52.5 Hz.
• If input frequency is between 45 and 65 Hz, the output
frequency is regulated by the UPS to exactly 50 Hz (±0.5 Hz).
You are prompted to save this setting.
Alarm Silence Alarm Silence Select whether Silence is On or Off. If enabled, the UPS Silence Off
silences the alarm for an existing fault. If the UPS status
changes, the alarm beeps, overriding the previous alarm
silencing. The alarm does not silence if there is a low
battery condition.

14
Table 1. Configuration Mode Parameters (cont.)
Parameter LCD Message Description Default Settings
Manual Battery Test Manual BAT Test To initiate a manual battery test, press the ↵↵button Battery Test
twice when “Manual Battery Test” is displayed on the
LCD. During the test the LCD displays ON BATTERY.
The UPS resets the automatic timer after a manual
battery test. The LCD displays “Battery not charged”
when UPS test is requested but the battery is not
fully charged.
Manual UPS Test Manual UPS Test To initiate a manual UPS self-test, press the ↵↵button UPS Test
twice. During the test, the LCD displays ON BATTERY.
Site Wiring Fault Alarm Site Fault Set Select Enable or Disable. When enabled, the alarm sounds Detect Enable
when the ground connection is missing or the line and
neutral wires are reversed in the wall outlet.
Modem Support Modem Support? This parameter is reserved for future use, and should not No Modem Support
be modified by the user.
Number of Extended Select EBM Type Select the number of EBMs connected to the UPS: Extern Pack: 0
Battery Modules Select 0 through 5.
You are prompted to save this setting. Refer to the
documentation that came with your battery pack for
more information.
Communications Lock- COM Control For greater levels of security, users may choose to have Enable
out Cmds the UPS disregard shutdown commands that come from
the power management software or other communication
sources.
• When disabled, the UPS does not accept a shut down
command via the communication port, USB port, or
communication slot adapter.
• When enabled, the UPS operates normally in response
to external commands.
You are prompted to save this setting.
Load Segment Control Load Group Set Allows manual control of load segments (see “Load Group 1On 2On
Segments” Section 5.3)
NOTE: Not applicable to 6kVA units By repeatedly pressing the scroll button, the individual
load segments can be turned on and off.
CAUTION To prevent the unintentional shutdown of
specific load segments, confirm your selection before
pressing the ↵↵button.
Manual Bypass Manual Bypass This parameter is used to manually place the UPS in Bypass OFF
GO Bypass mode.
Configuration Mode Config Mode Set This parameter is reserved for future use, and should not EscapeConfigMode
Setting be modified by the user. The setting may be toggled
between EscapeConfigMode and Enter ConfigMode.
It should always be set to EscapeConfigMode.

15
6.0 Additional UPS Features
This section describes:
• Inverter Shutdown
• Network Transient Protector
• Load segments
• Using the communication port or USB port
• Optional Powerware communication cards
6.1 Inverter Shutdown
The Powerware 9120 includes a port that allows the UPS inverter to be switched off.
This feature is designed to be used with Powerware External Maintenance Bypass Switches.
Refer to the instructions provided with the switch for further information.
WARNING
The Inverter Shutdown circuit is an IEC 60950 safety extra low
voltage (SELV) circuit. This circuit must be separated from any
hazardous voltage circuits by reinforced insulation.
Figure 9. Inverter Shutdown Connector
6.2 Communication Port (standard)
To establish communication between the UPS and a computer, connect your computer to the UPS
communication port using the supplied communication cable.
When the communication cable is installed, power management software can exchange data with
the UPS. The software polls the UPS for detailed information on the status of the power environ-
ment. If a power emergency occurs, the software initiates the saving of all data and an orderly
shutdown of the equipment.
The pin functions are described in Table 2.
Pin 1Pin 2Pin 1Pin 2

16
Table 2. Communication Port Pin Assignment
Pin Number Signal Name Function Direction from the
Multi-Port Module
1 Low Batt Low Battery signal Out
2 RxD Transmit to external device Out
3 TxD Receive from external device In
RS-232 low Conditional Power Off: In absence In
level signal of AC power, output is turned off
for>0.4 after 120 seconds until normal
seconds AC power returns
4 DTR Signal from external device In
5 GND Signal Ground -
6 - Tied to Pin 4 -
7 - No Connection -
8 AC Fail AC Fail signal Out
9 Power Source +V (8 to 24 volts DC power) Out
USB Port
The UPS is also equipped with a USB communication port. Either the DB-9 communication port or
the USB port may be used to monitor the UPS; however, they cannot operate simultaneously.
Refer to the power management software instructions for using the USB port.
6.3 Communication Slot
The Powerware 9120 UPS has a communication slot that allows quick installation of the optional
SNMP/Web adapter or future communication interfaces. These interface adapters extend the
capabilities of the Powerware 9120 system to provide compatibility with network and remote moni-
toring/management systems.
6.4 SNMP/Web Adapter
This adapter provides the Powerware 9120 system with its own ethernet network connection,
allowing it to be remotely monitored and controlled via industry-standard internet browsers. The
HTML interface enables UPS monitoring and management from anywhere on the internet or with-
in your intranet. In addition, third-party Simple Network Management Protocol (SNMP) software
packages may also be used to communicate remotely with the Powerware 9120 system.

17
6.5 Relay Card (optional extra)
This interface provides true relay contact output to peripheral devices. Outputs are user-selectable
as normally open or normally closed.
Table 3. Relay Card (AS/400) Pin Assignment
Pin Number Signal Name Definition Direction
1 - Isolated common to pins 2 & 3 -
2 Line OK Relay contact; closed to pin 1 -
3 Line Failure Relay contact; closed to pin 1 -
4 - Isolated common to pins 5 & 6 -
5 Battery Normal Relay contact; closed to pin 4 -
6 Battery Low Relay contact; closed to pin 4 -
7 - Isolated common to pins 8 & 9 -
8 UPS Alarm Relay contact; closed to pin 7 -
9 UPS On/OK Relay contact; closed to pin 7 -
10 - Isolated common to pins 11 & 12 -
11 UPS Online/Inverter Relay contact; closed to pin 10 -
12 UPS on Bypass Relay contact; closed to pin 10 -
13 +12VDC Signal supply +12VDC Out
14 Signal GND Signal ground - Common -
15 UPS Shutdown Minimum 5 seconds high level In
signal (+12VDC) to perform
shutdown according to following
Relay Card Jumper settings:
JP1 (default) JP2 JP3
UPS Normal - No response Go to bypass mode,
back online when
shutdown pins opened
UPS on Battery Output off after Immediate output off Immediate output off
120 sec. Back online UPS shutdown in UPS shutdown in
on resumption of AC 12 seconds 12 seconds
power
7.0 Installing Software Suite
Your UPS is supplied with a CD-ROM and communication cable to install and operate Software Suite. To
install Software Suite on your computer, follow the instructions enclosed with the Software Suite CD-ROM.
