DESCRIPTION
The BH822e bent bass horn subwoofer represents the next
step forward in large format subbass reproduction. Widely
known as the SuperSub™, the system in designed for use in
arrays of four or more which produce extremely high output
sub bass response to the very bottom of the audible
spectrum.
The 13-ft bent horn loads 2x 12-in woofers specially
designed to endure the extreme conditions the SuperSub
imposes. An array of four BH822e’s will produce a maximum
output of 146.0 dB at 28 Hz and features -3 dB and -10 dB
points of 24 Hz and 21 Hz, respectively.
APPLICATIONS
The BH822e subwoofer system is engineered for use in
arrays of four or more modules and are appropriate in any
application requiring extremely high output levels of sub
bass information.
Relatively small SuperSub arrays will fill the largest domed
stadiums, arenas, houses of worship, theaters and perform-
ing arts centers with high impact sub bass information.
The BH822e is optimized for permanent installation only.
Six year warranty.
Applications include:
Stadiums
Large Nightclubs
Large Houses of Worship
Performing Arts Center
Large Theater
DESCRIPTIVE DATA
Configuration Sub Bass
Sub Bass Subsystem 2x 12-in Woofer, Bent Horn
Cabinet Type (shape) Rectangular
Enclosure Materials Baltic Birch Plywood
Finish Black Polyurethane
Connectors 4-Terminal Barrier Strip
Dimensions inches millimeters
Height 32 813
Width 36 914
Depth 51 1295
Weights pounds kilograms
Net Weight 360 163.8
Shipping Weight 400 182.0
Companion Systems
LF MQ1312, MQ2412, KF930
MF KF920
HF KF910, KF911, KF913
Mid/High MQ1364, MQ1366, MQ1394,
MQ2364, MQ2394, KF853D
Full Range KF750, KF850, KF860, KF861
Downfill KF755, KF855

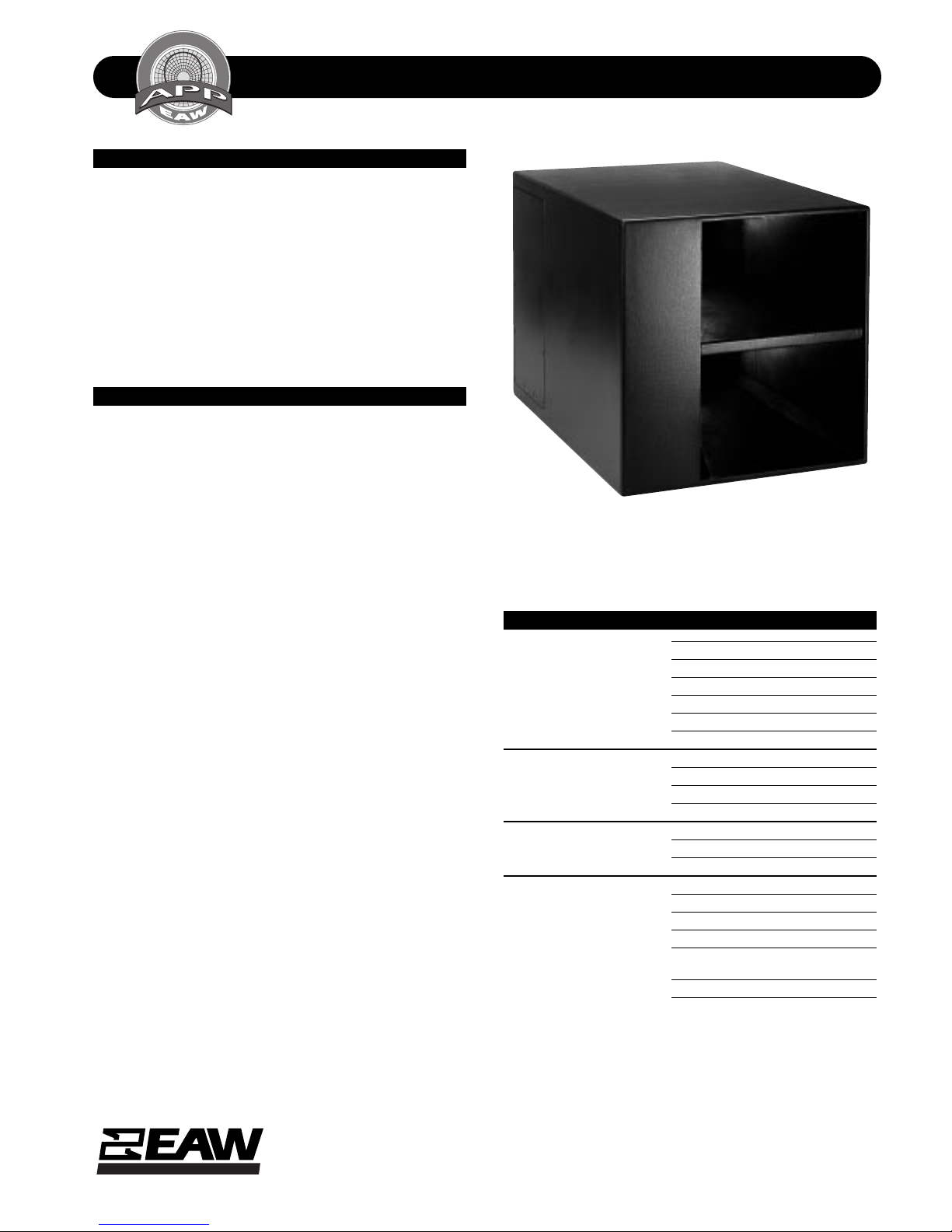

Portable version shown

Acoustic Performance Partnership Eastern Acoustic Works BH822e
One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS BH822e
NOMINAL DATA
Frequency Response (1 W @ 1m)
±3 dB 24 Hz - 300 Hz
-10 dB 21 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Sub Bass 109
Impedance (Ohms)
Sub Bass 2x 8
Power Handling, AES Standard (Watts)
Sub Bass 1000
Calculated Maximum Output (dB SPL)
Sub Bass Peak 145.0
Sub Bass Long Term 139.0
Recommended High-Pass Frequency
24 dB/Octave 22 Hz
DIMENSIONAL DRAWING ARCHITECTURAL SPECIFICATIONS
The sub bass system shall incorporate 2x 12-in woofers. The
drivers shall be mounted on a bent bass horn with a
pathlength of at least 13 feet constructed of hardwood ply-
wood veneer and structural foam.
System frequency response shall vary no more than ±3 dB
from 24 to 300 Hz. The system shall produce a Sound Pres-
sure Level (SPL) of 109 dB SPL on axis with a power input of
1 Watt and shall be capable of producing a peak output of
145 dB SPL on axis at 1 meter. The system shall handle 1000
Watts of amplifier power (AES Standard) and shall have a
nominal impedance of 2x 8 ohms.
The loudspeaker enclosure shall be rectangular in shape. It
shall be constructed of 15mm thickness void-free cross-grain-
laminated Baltic Birch plywood and shall employ extensive
internal bracing. It shall be finished in black polyurethane.
Input connectors shall be a 4-terminal barrier strip.
The sub bass system shall be the EAW model BH822e.
TOP/BOTTOM SIDES
BACK
510708 (0)
exp 4/15/99 dpm
BH882e
CABINET TO BE SYMMETRICA ABOUT CENTER INE DESIGNATIONS.
FRONT
INDICATES CENTER OF BA ANCE.
2.08
2.08
52.00
L
C
33.902.08
L32.00
C
14.00
5.00
3.25
INPUT
4.00
C
L
1.96
36.00
31.00 2.50
1.96
L
LID
1.96
C
36.00
22.00
1.96
NOTES:
INDICATES MOUNTING POINT, 3/8-16 THREADED HO E.

2. SYMBOL INDICATES CENTER OF BALANCE
3. EIGHT APPROX. 293 LBS
4. SHIPPING EIGHT APPROX. 315LBS
