EAW JF50S User manual

Installation Instructions

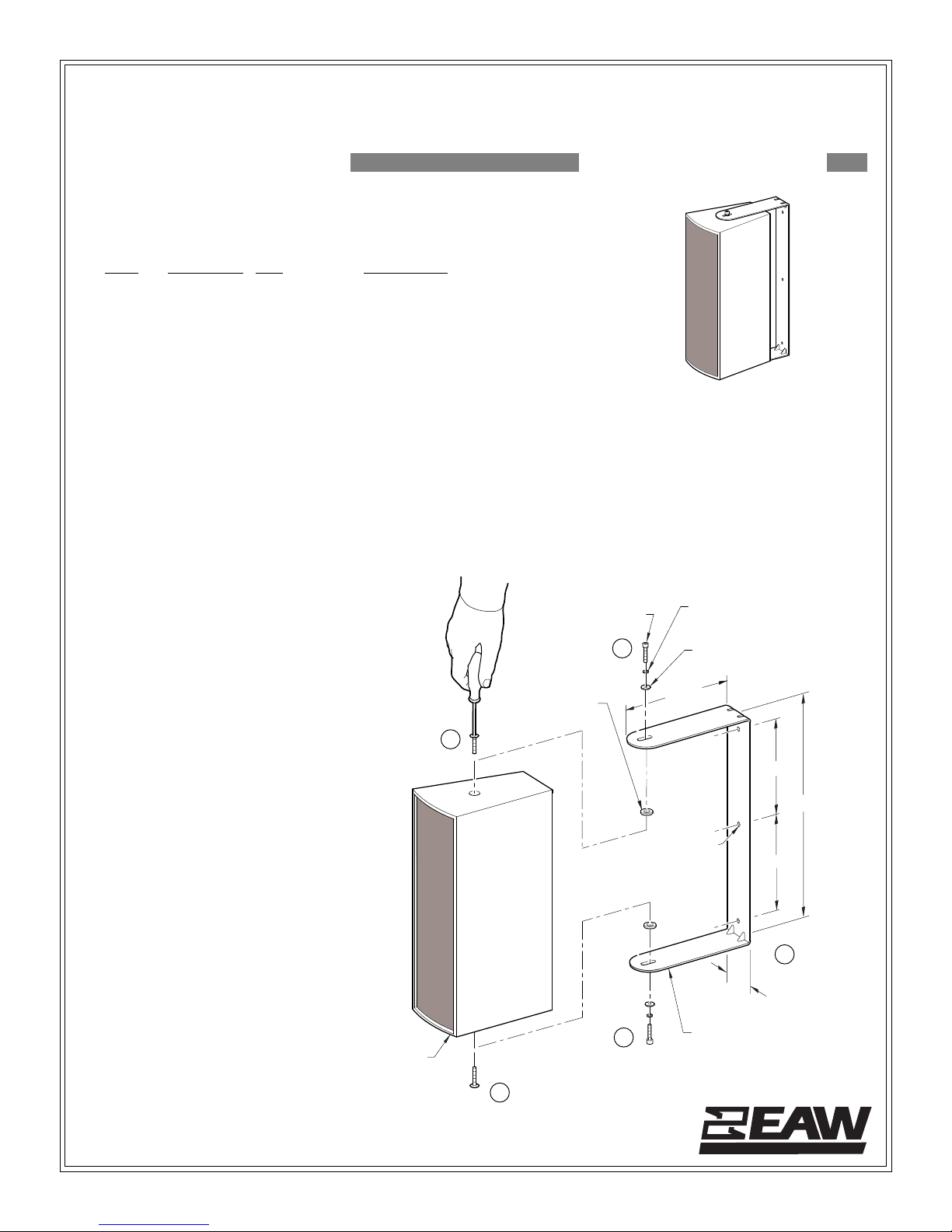

JF50S BRACKET EAW DWG NO 480360 (0)
1. Inventory
Before beginning installation, inventory kit to items listed.
Item EAW P/N Qty Description
1 606073 1 Bracket, HD50WM
2 102246 2 Screw, 3/8-16 x 1-1/2 SHCS, Black
3 105062 2 Washer, Neoprene, 3/8 I.D. X 1 O.D.
4 105010 2 3/8 Washer, Flat, Black
5 105011 2 3/8 Washer, Lock, Black
WARNING: Installation should only be done by an experienced technician. Improper installation may cause
serious injury. The surface where the bracket/cabinet is to be fastened must have enough structural integrity
to support 300 pounds.
2. Mounting the Bracket
Due to various construction methods and materials used today, the hardware for securing the
bracket to the mounting surface is not supplied. It is recommended that you consult a building
professional for the proper mounting hardware before mounting the bracket.
3. Removing the Shipping Hardware
Remove the flat head screws from
the top and bottom of the cabinet
using a 7/32 Allen wrench.
4. Hanging the Cabinet
A. Place a neoprene gasket on
the bracket’s lower arm.
Center it on the slot.
B. Position the cabinet between
the bracket arms.
C. Align the bracket’s top slot to the
cabinet’s 3/8-16 threaded hole.
D. Holding the cabinet in position,
insert the screw with its
lock washer and flat washer
through the bracket’s slot and
into the cabinet’s top threaded
hole and hand tighten.
E. Repeat step D through
the bottom bracket slot.
F. Position cabinet and
tighten the top & bottom
mounting screws with a
5/16 Allen wrench.
EASTERN ACOUSTIC WORKS
1 Main Street • Whitinsville, MA 01588 • Phone [phone] • FAX [phone]
2
3
3
JF50S
MOUNTING BRACKET
HD50SWM
EAW P/N 606073
(2) LOCK WASHER 3/8
EAW P/N 105011
(2) SCREW 3/8-16 X 1-1/2
SHCS 18-8 BLK
EAW P/N 102246
(2) FLAT WASHER 3/8
EAW P/N 105010
11.12
18.29
3.00
(2) NEOPRENE
WASHER
EAW P/N 105062
8.00
8.00
3X Ø.31 THRU
