Eazy RC Arizona User manual

ST+ TH+
ST-
Throttle Trigger
Steering Wheel
Power On
/Off
TH-
规格：297x210mm
When not in use, must be remove the battery of the remote control and vehicle.
Arizona
Thank you for purchasing the EAZYRC 1/18th Arizona.Engineered to be one of the most realistic,capable and
dependable trucks in its class, the WOWRC 1/18th series is ready to tackle any terrain right out of the box.
This manual is written to assist you in properly operating, maintaining and repairing the vehicle.As many of the
components used are unique to this truck,please retain this manual as a future reference.
Composed of precision-made components, the EAZYRC 1/18th Arizona is not a toy, thus it is not suited for
children under 14 years of age.Minors should be accompanied by an adult when operating.
lt is the owner's responsibility to operate this product in a safe manner.EAZYRC and its distributors are not
responsible in any way for any and all bodily harm and or property damage that may result from the use of this
product.
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful
interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions
without restriction.
FCC ID: 2AUBX –TX01Z
INSTRUCTION MANUL
Function Install the Batteries
(1)Remove the battery compartment cover.
(2)Replace the used batteries with new AAx3 size batteries
A.Throttle Trigger
Brake/Speed
down Left
Neutral
Right
Forward
/Speed up
1.Push the trigger forward to slow down or brake.
2.Pull the t-rigger backward to accelerate.
Neutral
B.Steering Wheel
Please replace batteries when the power indicator blink or
the buzzer beeps.
When not in use，remove the
AAx3 batteries to prevent the
transmitter PCB from electrical
damage.
Keep the transmitter and receiver
40cm apart when operating.
Throttle trim: If the vehicle inches forward or backwards without
throttle input, adjust the trim to set the neutral throttle position.
Steering trim: If the vehicle veers left or right without any steering input,
use the steering trim to adjust the steering servo until the vehicle tracks straight.
Operating procedure
Always turn the transmitter on before turning on the vehicle.
Always disconnect the vehicle BEFORE turning off
the transmitter.
CAUTION:
This product is intended for ages 14+ users under 18 years of age require parental supervision.
This product is strictly forbidden to be used in water, please do not drive on water stains.
Warnings
Introduction
●This vehicle is not intended for those under 14 years of age without proper adult supervision. It is not a toy!Failure to
operate or maintain this vehicle in a safe manner can result in bodily harm.
●Replace damaged components with original factory-parts. Pay special attention to the polarity of all vehicle wiring.
●This product is strictly forbidden to be used in water, please do not drive on water stains.
●Only use approved 2 cell lithium polymer batteries. Do not over-charge or over dis-charge the battery as doing so
may cause the battery to become a fire hazard. If the battery should become hot during charging,discontinue
charging immediately and disconnect the battery from the charger. Never leave the battery unattended while
charging. If you are unsure of how to charge this battery, please seek the advice of experienced RC users. Never let
children charge the battery without adult supervision.
●The motor will become hot during use. Allow 10-15 minutes between runs for the vehicle to cool down. Doing so will
prolong the life of your vehicle.
●Use common sense when selecting the environment to operate your vehicle. Do not operate near power cables,
cellular/radio towers, deep water or unstable terrain. The operator is solely responsible for their actions.
●The product is composed of precision electrical components. It is critical to keep the product away from moisture
and other contaminants. If exposed to a humid environment, make sure the electronics are fully dried prior to using
them again.
●Always check the radio range of the vehicle prior to operation in order to prevent radio loss or interference.
●Operate this product within your ability. If the vehicle is dangerous to retrieve, it's never worth the risk.
●Always turn on the transmitter before connecting the battery on the model. When turning off the model, always
disconnect the battery first, and then turn off the model, always disconnect the battery first, and then turn off the
transmitter. If this order is reversed, the model may become uncontrollable and cause serious damage.
●Never allow transmitter batteries to run low as it may cause loss of vehicle control.
●Plastics on the vehicle are susceptible to damage or deformation due to extreme heat and cold climate. Do not store
the model near any source of heat such as oven or heater. Store the model indoors, in a climate-controlled, room
temperature environment.
●Never shorten the receiver antenna; this may affect the transmitting range of the radio system.

E1026
E1011
E1012
E1013
E1014
E1015
E1016
E1017
Arizona Boby Shell
Teraz Tire 19.2 x 13.5 x 56
Patrion Wheels Set
EAZY Transmitter/ESC/RX Combo
EAZY LIPO Battery 2S LIPO 380mAh
EAZY Patrion Light set
EAZY USB Charger
EAZY ESC/RX
E1018
E1019
E1020
E1021
E1023
EAZY Transmitter
EAZY 050 Motor set
EAZY Gear set
EAZY Transmission Shaft full set
EAZY 5 wire 9g SERVO
pull up here
declare under our responsibility that the product:
Declaration of Conformity (DoC)
Type of Equipment: Patriot Driving System & 2.4GHz Control System
Brand Name: EAZYRC
Equipment Model: EZY001RTR
ETSI EN 301 489-1 V2.2.3 (2019)
ETSI EN 301 489-17 V3.2.4 (2020-09)
EN 55032:2015
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
IEC/EN62368-1
EN 62368-1:2014+A11:2017
EN 62479:2010
EN 300 328 V2.2.2:2019-07
to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the
RED Directive 2014/53/EU, EMC Directive 2014/30/EU,FCC Indentifier 2AUBX-TX01Z and EU RoHS Directive 2011/65/EU.
The product is in conformity with following standards and/or other normative documents:

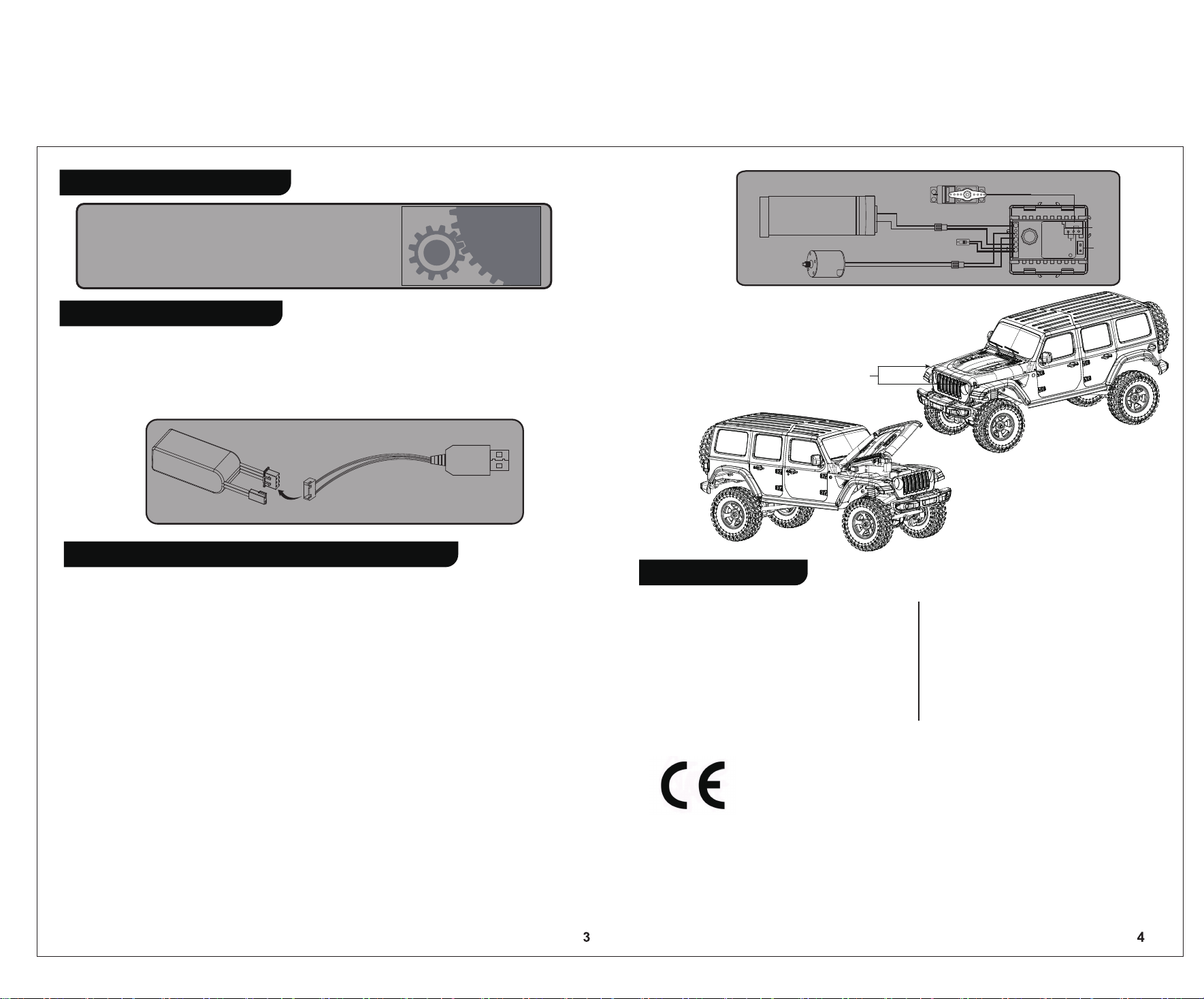

Setting the Gear Mesh
The gear mesh is the clearance between the pinion
and spur gears in your vehicle. If the motor or
gearing components are replaced,check that the
gears are not meshing too tightly as this may cause
premature wear.
Charging the Battery
1.Connect the charger to a USB port then connect the battery to the charger.
2.When charging,the Green LED is flash, when charged, the Green LED is stable.
3.Do not let the battery charge unattended!
4. If the battery or charger is hot,disconnect the battery and charger immediately as this may be
caused by an internal short- circuit
1.Connect the charger's USB port to a power source.
2. Connect the battery to the charger.
Lithium Polymer (LiPo) Battery Warning
·Never charge a lithium polymer battery with a charger designed for Nicd, NIMH, or any other type of battery
chemistry.Use ONLY charger designed for LiPo battery.
·Do not leave LiPo battery unattended during charging.
·Do not overcharge the battery.
·Always charge LiPo batteries on non-flammable， heat-resistant surfaces.
·Always use a LiPo-safe bag or container while charging. Do not allow LiPo cells to overheat at any time.Cells which
reach greater than 140 Fahrenheit (60℃) will usually become damaged and will catch fire.
·Do not charge the LiPo pack while it is still in the model.Never charge or store battery packs in a vehicle.
·Do not discharge LiPo； doing so will damage the battery.
.Do not expose LiPo cell to water or moisture at anytime.
·Do not store battery near open flame or heater.
.Do not assemble LiPo cells or pre-assembled packs together with other LiPo cells or packs.
·Always store LiPo battery in a secure location away from children.
·Always remove the LiPo battery if model is involved in any kind of crash.
·Carefully inspect the battery and connectors for even the smallest damage.
·CAUTION：Cells may become hot after usage.Allow the pack to cool to room temperature prior to recharging.
·Do not allow the electrolyte to get into eyes or on skin.Wash affected areas immediately if they if they come into
contact with electrolyte.Do not alter or modifv connectors or wires of a LiPo battery pack.
·Always inspect the condition of the battery before charging and operating.
·Do not short circuit the LiPo battery.
·Do not have contact with a leaky/damaged battery directly.
·Do not charge battery out of recommended temperature range(0°C-45°C).
SERVO
BATTERY
MOTOR
PCBNIMH
Lipo
BIND
Spare parts list
