EBS EPX PRO Assembly instructions

Copyright © 2021 EBS sp. z o.o.
EPX400-A20CU –Manual
3G/4G/ETH Communicator
EPX PRO
EPX400-A20CU
Installation and
programming manual
Version of the manual:
1.1
Release date:
06.04.2021
Firmware version:
2.10.4
EBS Config 2.0 version:
1.9.4.548

Copyright © 2021 EBS sp. z o.o.
EPX400-A20CU –Manual
IMPORTANT INFORMATION
The content of the document is presented “as is”. The present document shall not be
deemed to be providing any warranties, either express or implicit, including but not
limited to, any implied warranties of merchantability or fitness for a particular
purpose, unless it is required by relevant law. The manufacturer reserves the right to
amend the present document or withdraw it any time, without notice.
The manufacturer of the equipment promotes the sustainable development policy. It
reserves the right to modify and improve any functions of the product described in
the present document without previous notice.
The availability of particular functionalities will depend on the software version of the
equipment. Details can be found at the nearest dealer of the equipment.
In no event, the Manufacturer shall be held liable for any loss of data or loss of
profits or any specific, incidental, consequential or indirect damages caused in any
way.
EBS USA
1825 NW Corporate Blvd Suite 110
Boca Raton, FL 33431
Webpage: www.ebssmart.us
MANUFACTURER
EBS Sp. z o.o.
59 Bronislawa Czecha St.
04-555 Warsaw, POLAND
E-mail: [e-mail]
Technical support: [e-mail]
Webpage: www.ebssmart.com

EPX400-A20CU –Manual
Page 3 / 62
TABLE OF CONTENTS
INTRODUCTION........................................................................................ 61.
FUNCTIONAL AND TECHNICAL PARAMETERS................................................ 72.
ASSEMBLY AND WIRING............................................................................ 83.
3.1. Opening of the CASING......................................................................... 8

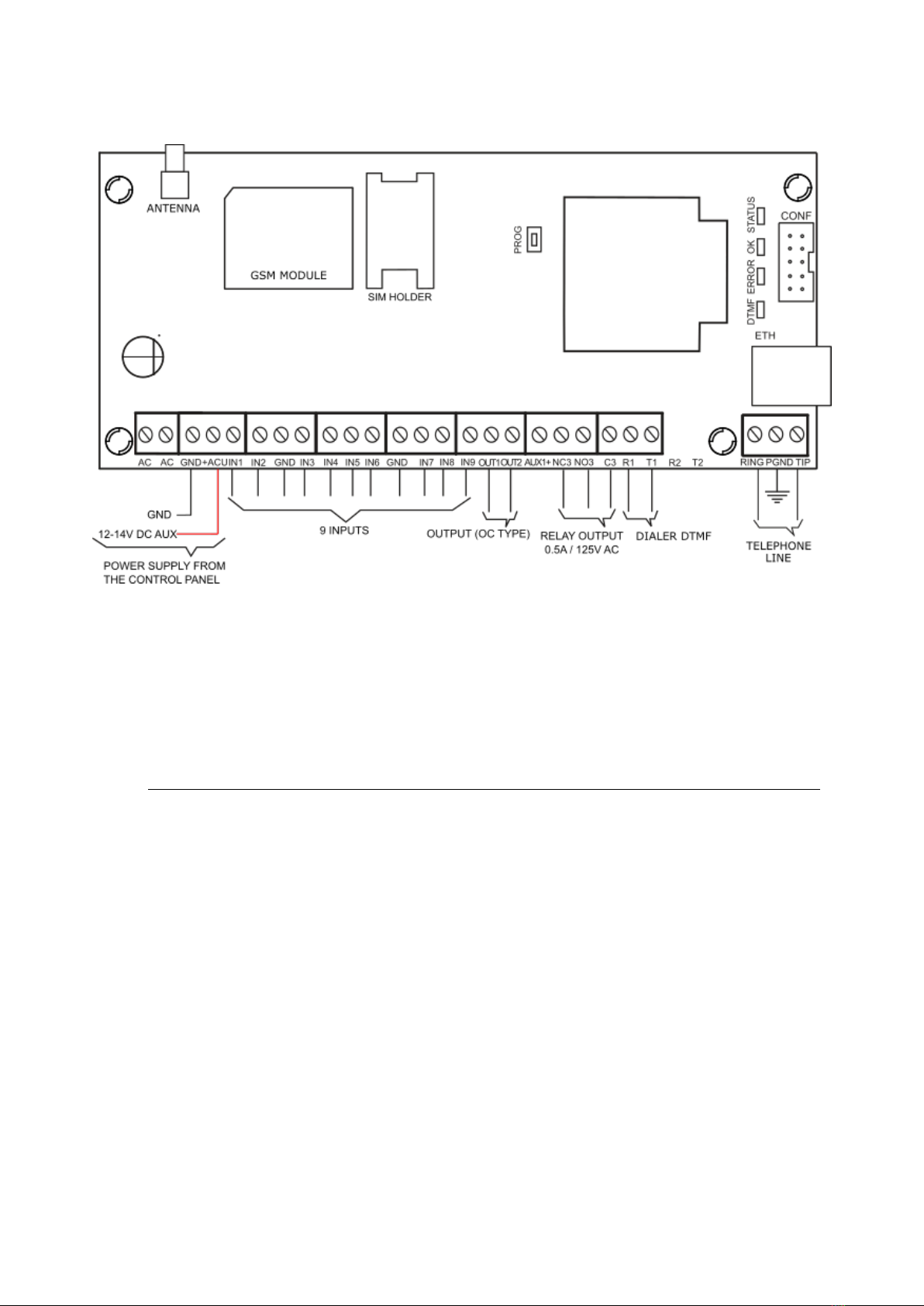

3.2. EPX400-A20CU COMMUNICATOR ........................................................... 9

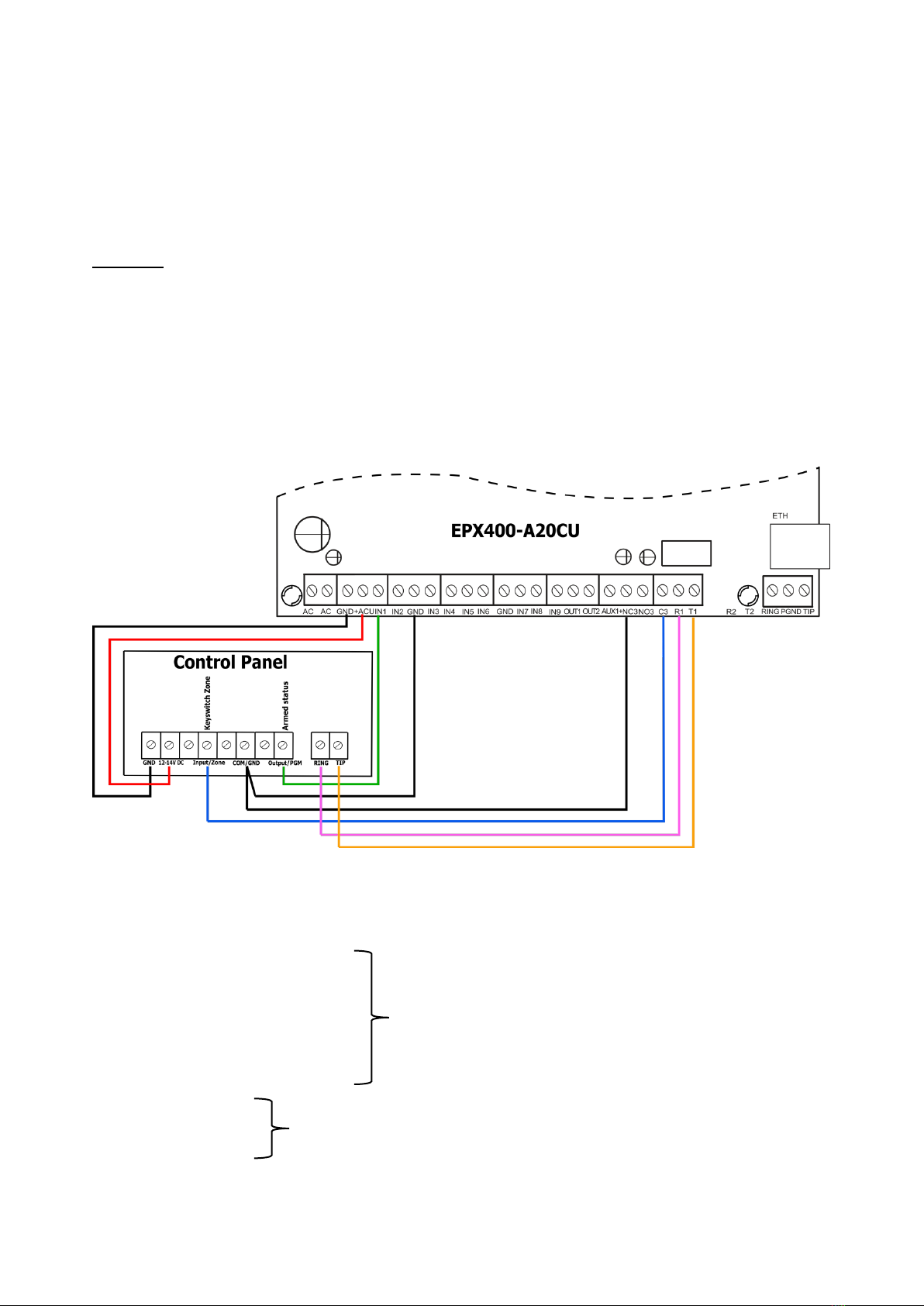

3.3. Wired connections of control panel with communicator EPX400-A20CU ..... 10

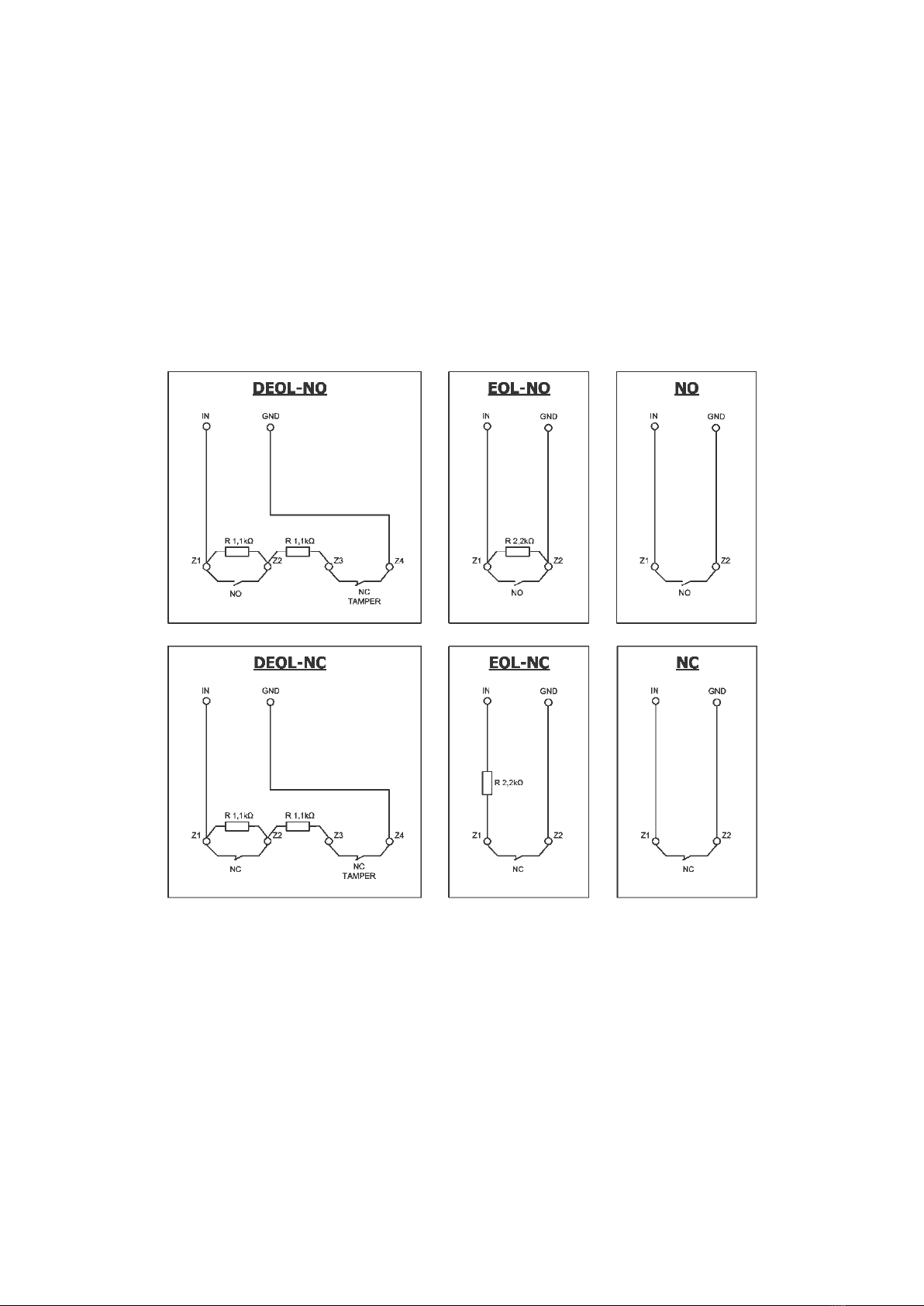

3.4. Input configuration............................................................................. 11
QUICK START PROCEDURE ...................................................................... 124.
OPERATION ........................................................................................... 135.
PRE-CONFIGURATION VIA ETHERNET PORT ............................................... 146.
6.1. Logging in ......................................................................................... 14
6.2. Description........................................................................................ 15
6.3. Configure GSM................................................................................... 15
6.3.1. Server parameters ....................................................................... 15
Server address ...................................................................... 166.3.1.1.
Server port............................................................................ 166.3.1.2.
6.3.2. APN parameters........................................................................... 16
APN...................................................................................... 166.3.2.1.
User ID................................................................................. 166.3.2.2.
User password ....................................................................... 166.3.2.3.
Primary / Secondary DNS........................................................ 166.3.2.4.
6.3.3. Access ........................................................................................ 16
Service code.......................................................................... 166.3.3.1.
SIM card PIN ......................................................................... 166.3.3.2.

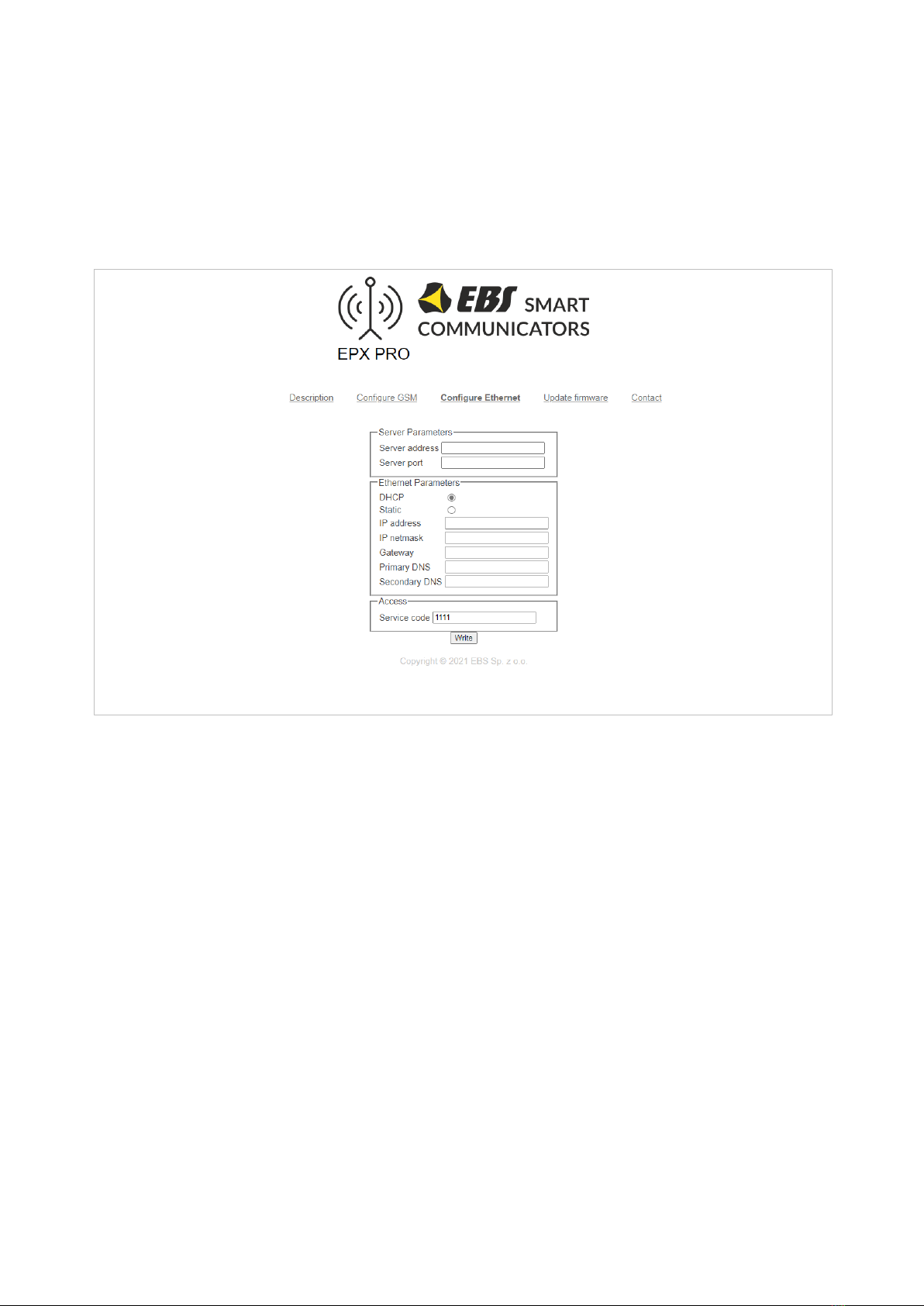

6.4. Configure Ethernet ............................................................................. 17
6.4.1. Server parameters ....................................................................... 17
Server address ...................................................................... 176.4.1.1.
Server port............................................................................ 176.4.1.2.
6.4.2. Ethernet parameters .................................................................... 17
6.4.3. Access Parameters ....................................................................... 18
Service code.......................................................................... 186.4.3.1.
6.5. Update fimware ................................................................................. 18

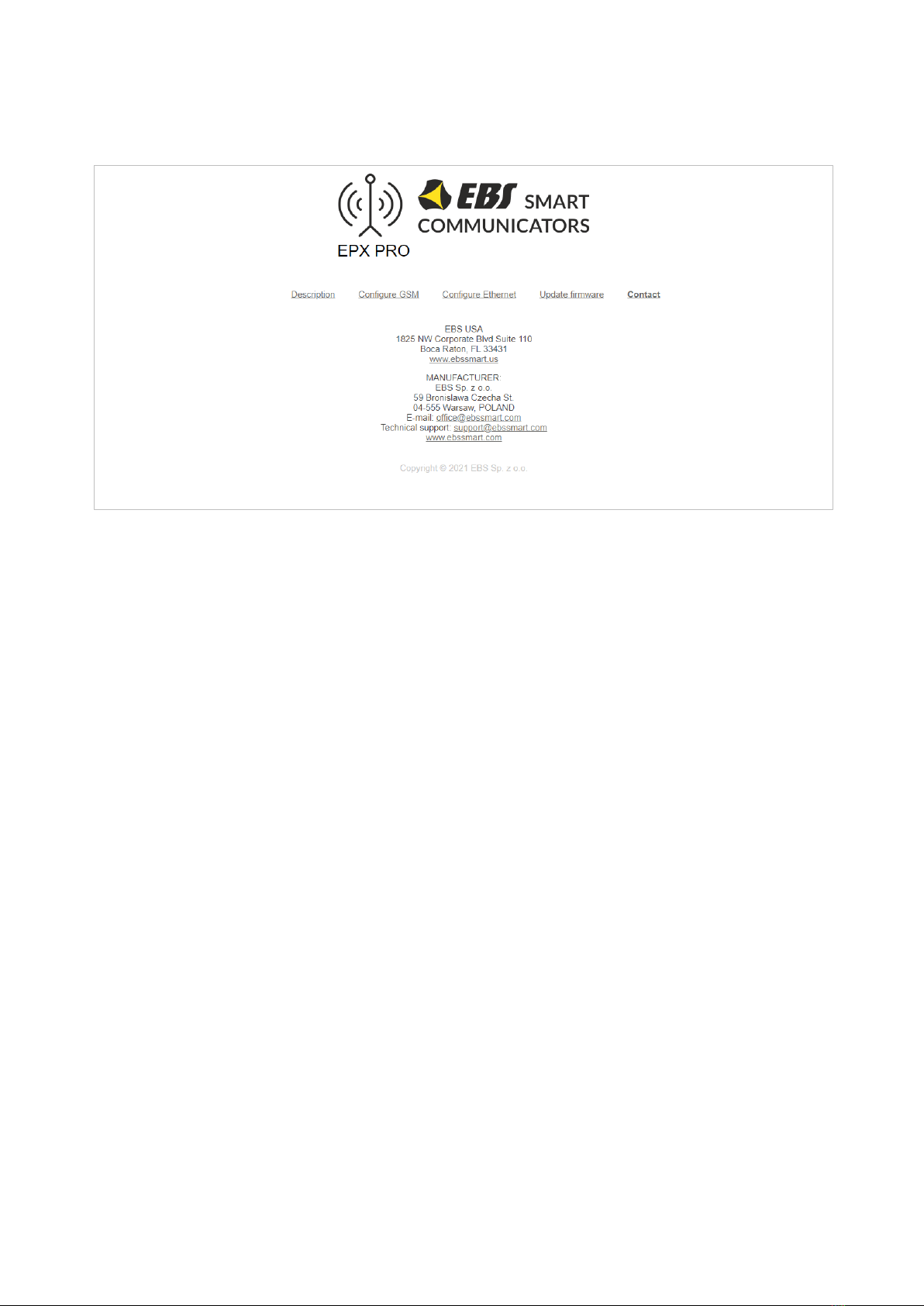

6.6. Contact............................................................................................. 19
CONFIGURATION PROGRAM..................................................................... 207.
7.1. Initial remarks ................................................................................... 20
7.2. PC technical requirements ................................................................... 20
7.3. Smartphone technical requirements ..................................................... 20
7.4. Installation........................................................................................ 20
7.4.1. PC.............................................................................................. 20
7.4.2. Smartphone ................................................................................ 20
7.5. General menu.................................................................................... 21
7.5.1. New configuration .................................................................. 21
7.5.2. Open… ................................................................................ 22
7.5.3. Save as… ............................................................................. 22
7.5.4. Device state ......................................................................... 23
7.5.5. Read configuration ................................................................ 23
7.5.6. Write configuration ............................................................... 24
7.5.7. Events history ...................................................................... 25
7.5.8. Firmware update .................................................................. 26

EPX400-A20CU –Manual
Page 4 / 62
7.5.9. Restoring factory settings ...................................................... 26
7.5.10. Connection settings ............................................................... 26
7.5.11. Application settings .............................................................. 27
7.5.12. EBS Config 2.0 –Info ............................................................ 27
CONFIGURATION MENU —HARDWARE...................................................... 288.
8.1. Summary.......................................................................................... 28
8.2. Communicator settings ....................................................................... 29
8.2.1. Service Code ............................................................................... 29
8.2.2. Installer code .............................................................................. 29
8.2.3. Firmware change code.................................................................. 29
8.2.4. Device state code......................................................................... 29
8.2.5. SIM Card 1 PIN............................................................................ 30
8.2.6. Factory settings restoration lock .................................................... 30
8.2.7. Server communication parameters lock .......................................... 30
8.2.8. WWW server lock......................................................................... 31
8.2.9. Temporarily block access after three failed authorization attempts lock
31
8.2.10. Report power failure longer than.................................................... 31
8.2.11. Mobile network watchdog.............................................................. 31
8.2.12. Enable non-volatile messages FIFO ................................................ 31
8.3. Partitions .......................................................................................... 32
8.3.1. Arming dalay (time for exit) .......................................................... 32
8.3.2. Entry time................................................................................... 33
8.3.3. Arming input ............................................................................... 33
8.3.4. Connected wired inputs ................................................................ 33
8.4. Inputs/Outputs .................................................................................. 33
8.4.1. Wired inputs................................................................................ 33
Response type ....................................................................... 348.4.1.1.
Mode .................................................................................... 348.4.1.2.
Sensitivity ............................................................................. 348.4.1.3.
Interlocking –After number of violations................................... 348.4.1.4.
8.4.2. Wired output ............................................................................... 35
Output reaction time .............................................................. 358.4.2.1.
Additional activation conditions ................................................ 358.4.2.2.
Advanced outputs control........................................................ 368.4.2.3.
8.4.3. SMS Settings............................................................................... 37
Accept SMS commands ........................................................... 378.4.3.1.
Validity period of outgoing SMS messages................................. 378.4.3.2.
Limits ................................................................................... 388.4.3.3.
SMS forwarding 0/5................................................................ 388.4.3.4.
Text message notifications ............................................................ 391.1.1.
Status .................................................................................. 408.4.3.7.
8.5. RS232 .............................................................................................. 40
8.5.1. Serial port settings....................................................................... 41
8.5.2. Buffer flushing ............................................................................. 41
8.5.3. Advanced port options .................................................................. 42
Disable data receiving............................................................. 428.5.3.1.
Disable data sending .............................................................. 428.5.3.2.
Half duplex mode ................................................................... 428.5.3.3.
Check tests send by device connected to the port ...................... 428.5.3.4.
8.6. Phone line ......................................................................................... 42
8.6.1. Use external phone line ................................................................ 43

EPX400-A20CU –Manual
Page 5 / 62
8.6.2. Disconnect external phone when server connected........................... 43
8.6.3. Minimal time of external phone line voltage absence ........................ 43
8.6.4. Report off-hook time longer than ................................................... 43
8.6.5. Report when intervals between dialled digits of phone are longer than 44
8.6.6. General dialtone .......................................................................... 44
8.6.7. Detect off-hook after .................................................................... 44
8.6.8. Enable non-volatile control panel messages FIFO ............................. 44
8.6.1. DTMF phone numbers - First and Second numbers ........................... 44
DTMF phone number .............................................................. 458.6.1.1.
Handshake delay.................................................................... 458.6.1.2.
Protocol ................................................................................ 458.6.1.3.
8.7. MONITORING CENTER –TCP/IP and SMS monitoring.............................. 46
8.7.1. Security –Encryption key ............................................................. 46
8.7.2. Events ........................................................................................ 46
8.8. Initial states ...................................................................................... 47
8.8.1. Skip initial states ......................................................................... 47
8.9. Connection channels........................................................................... 47
8.9.1. Ethernet ..................................................................................... 48
Network parameters............................................................... 488.9.1.1.
Servers................................................................................. 498.9.1.2.
Connection ............................................................................ 498.9.1.3.
Communication stability.......................................................... 508.9.1.4.
8.9.2. Cellular network........................................................................... 50
Servers................................................................................. 518.9.2.1.
Connection ............................................................................ 528.9.2.2.
Connection stability ................................................................ 538.9.2.3.
8.10. SMS Mode......................................................................................... 53
8.10.1. Phone number ............................................................................. 54
8.10.2. Test events period ....................................................................... 54
8.10.3. Fast event mode .......................................................................... 54
RECEIVING OF SMS MESSAGE.................................................................. 559.
9.1. Remote commands description ............................................................ 55
LED DIODES INDICATION........................................................................ 5810.
10.1. Logging to LTE/UMTS network ............................................................. 58
10.2. LTE/UMTS range ................................................................................ 58
10.3. Data transmission .............................................................................. 59
10.4. Receiving of DTMF data ...................................................................... 59
10.5. Programming..................................................................................... 60
10.6. Firmware updating ............................................................................. 60
10.7. SIM card error ................................................................................... 61
10.8. SYSTEM ERROR ................................................................................. 61
CHANGELOG......................................................................................... 6211.

EPX400-A20CU –Manual
Page 6 / 62
INTRODUCTION1.
EPX PRO (EPX400-A20CU) is a communicator in the dedicated casing. The device is
complete communication platform for data transfer from control panels to Monitoring
Station remotely. The communicator can be directly connected to any alarm control
panel which has a PSTN line with DTMF decoding. Thanks to PSTN line all data from
control panel can be transmitted in real time to Monitoring Station through Ethernet
or cellular network LTE/HSPA+.
The communicator of the EPX PRO (EPX400-A20CU) version is offered in the
dedicated casing. The casing is equipped with device status indicators and it has
openings for cable routing to the outside. It could be installed in 2 different ways -
using neodymium magnets for quick installation of the casing on metal surfaces or
using screws and pins.
An advanced encoding methods like a 256 bits encoding key and AES (Advanced
Encryption Standard) provides for security of data transmission. As a result reception
of this transmission is possible with OSM.Server monitoring receiver system.
Programming of receiver is possible:
oLocally: - with computer and EBS Config 2.0 pogram,
- with computer and web browser via Ethernet connection.
oRemotely : - via UMTS/LTE connection,
- via SMS commands.
Additionally, the communicators EPX PRO (EPX400-A20CU) enabling remote
configuration of control panels using ModemEmu application and remote managing of
arming using EBS Security application.
Remote configuration of the control panel by Ethernet or cellular using EPX PRO is
still performed using control’s panel configuration application supplied by control
panel manufacturer. Instead of connecting PSTN modem to it, ModemEMU
application supplied by EBS is used which translates modem communication format
to LTE/HSPA+ transmission with EPX PRO (EPX400-A20CU) communicator. It is
possible to make remote downloading session with any control panel equipped with
Bell103/V.21 modem (to be sure write to our Technical Support Department to
obtain information on which control panels have been tested).

EPX400-A20CU –Manual
Page 7 / 62
FUNCTIONAL AND TECHNICAL PARAMETERS2.
Transmission channels
ETH, LTE / HSPA+, SMS, PSTN*
*transparent, PSTN dialer required in a CP
Backup server
YES
User notifications
SMS (5 phone numbers)
Communication watchdog
YES
Inputs
9 (NO/NC/EOL-NO/EOL-NC/DEOL-NO/DEOL-NC)
Partitions
2
Simulated PSTN Line
YES
Protocols supported on the phone input
SIA, ContactID
Outputs
2 (OC, max. load 100mA)
1 relay output (NO/NC, max. load 1A/30VDC or
0,5A/125VAC)
Output functions
- unavailable LTE / UMTS signal or ETH channel
- from server or through SMS
- incoming CLIP
- in reaction on events and inputs
Power output +12V
YES (max. load 200 mA)
Serial interface
RS232 / RS485 (lines: RxD, TxD, RTS, CTS) transmission
speed up to 115200bps
Quantity of system events stored in history
min. 5000
LTE/HSPA+/SMS transmission security
AES encryption
Status LEDs
(functions)
4 LEDs ( signal level, device state, DTMF communication)
Configuration
Remote: LTE / HSPA+, SMS, ETHERNET cable via Web
Browser
Local: PC through RS232 (required cable: GD-PROG or
SP-PROG)
Remote firmware update
YES
Remote access to the control panels
YES
Modem
model EPX400-A20CU: ELS61-US: Quad-Band LTE:
Bands 2, 4, 5, 12 (700, 850,1700/2100 (AWS) and 1900
MHz), Tri-Band UMTS: Bands 5,4,2 (WCDMA/FDD 850,
1700/2100 (AWS) and 1900 MHz
Ethernet
- 10BaseT/100Base-TX IEEE 802.3 compliant
- speed and duplex auto-negotiation
- auto-detection of correct cable connections
(cross/straight)
Power supply parameters
13.8 VDC acceptable: 12-14 VDC (screw terminals GND,
+ACU)
Dimension
PCB: 159 x 73 x 35mm
Working temperature
-10ºC … +55ºC
Working humidity
5% … 93%
Standards

EPX400-A20CU –Manual
Page 8 / 62
ASSEMBLY AND WIRING3.
Communicator is delivered along with an antenna LTE, dedicated casing and
assembly parts.
3.1. OPENING OF THE CASING
To open the OBDEPX casing, press the locks on the rear cover (picture below, arrows
1) with your fingers and pull out the front cover (arrows 2).
Figure 1. Opening of the casing EPX400-A20CU.
WARNING: The wiring should be done only when the control panel and the
communicator are disconnected from the power supply.
Length of the wires connecting between the communicator and control panel must
not exceed 3m.
2 Pull
1
Push
1
Push
2 Pull

EPX400-A20CU –Manual
Page 9 / 62
3.2. EPX400-A20CU COMMUNICATOR
Figure 2. Connecting the EPX400 communicator.
Connections of wires shall be made with due care to prevent any faults or dead
shorts. Places of connections shall be protected against weather conditions.
According to the figure 2 terminals of communicator shall be connected to:
Terminal
Connection description
AC, AC
This terminals are not used.
GND
Device ground, common for other input and output.
+ACU
Positive terminal of the power supply from the alarm
control panel (12-14 VDC).
IN1 –IN9
Signal inputs. Possible connection of detectors contacts or
alarm control panel outputs. GND terminal is common for
all inputs.
OUT1, OUT2
Type OC outputs. It may control external device. Provides
ground during activation.
NC3, NO3,
C3
Additional output relay. It may control external device.
During activation disconnects C terminal from NC, and
connects C to NO terminal.
AUX1+
Supply voltage output. Provides up to 100mA.
R1, T1
Connection to alarm control panel phone communicator

EPX400-A20CU –Manual
Page 10 / 62
R2, T2
Connection to the phone
RING, TIP
Terminals for a PSTN telephone
PGND
Ground line for protecting an external phone line
Antenna
Connector for external LTE / UMTS antenna
NOTES:
OUT1 and OUT2 outputs can sink up to 100mA. Don’t short this outputs to
power supply because it can cause permanent damage of the output.
Don’t connect power supply when LTE antenna isn’t connected, because it
can cause permanent damage of LTE/3G modem.
3.3. WIRED CONNECTIONS OF CONTROL PANEL WITH
COMMUNICATOR EPX400-A20CU
Figure 3. Wired connections of control panel with communicator EPX400-A20CU.
Legend:
PGM—IN1 (Armed Status)
COM—GND (Ground)
COM—NC3
Zone—C3 (Keyswitch Arm)
RING —R1
TIP —T1
This connection makes it possible to manage (remote arm /
disarm) the control panel using communicator EPX400-A20CU
and a mobile application EBS Security. To do this you need to
create connection between output and input according to the
wiring (in EBS Config 2.0 and EBS Security –see below)
This connection allows receive events from the control panel to the
communicator and send them to the Monitoring Station via Ethernet or
GPRS. It also provide downloading features (remote configuration).

EPX400-A20CU –Manual
Page 11 / 62
WARNING: The wiring should be done only when the control panel and the
communicator are disconnected from the power supply.
The internal antenna used with communicator must be installed to provide separation
distance of at least 7.8 in (20cm) from all persons and must not be co-located or
operating in conjunction with any other antenna or communicator.
3.4. INPUT CONFIGURATION
Inputs IN1 –IN9 might work as normally closed (NC) or normally open (NO).
Additionally inputs might be configured as end of line (EOL-NO or EOL-NC) with
resistors 2.2kΩ or as double end of line (DEOL-NO or DEOL-NC) with resistor 1.1kΩ.
Examples of connecting sensors to the inputs in various configurations are shown in
figure 2.
Figure 4. Configuration of input lines

EPX400-A20CU –Manual
Page 12 / 62
QUICK START PROCEDURE4.
NOTE: Do not insert SIM card before the first programming of
communicator as it may block the card if PIN code is required for the card.
This chapter is purposed for users that possess experience regarding
LTE/HSPA+ data transmission systems and who work with OSM.Server
server. Other users shall skip this chapter and go to chapter 5. of this
Manual.
As many users possess protected facilities spread at vast locations, local
programming of communicator is not always available.
Two phases comprise programming in this option:
a) sending to communicator of main parameters (with SMS) that enable
LTE/HSPA+ connection to communication server (OSM.Server system).
b) full configuration of device with remote programming (EBS Config 2.0 and
OSM.Server).
Quick start procedure:
a) insert into device SIM card with PIN code 1111 or without PIN code.
b) connect power supply for module,
c) send to SIM card number with SMS parameters related to connection of device
to communication server (OSM.Server)
d) waiting for moment, when device indicates connection to server
Note: Connection to server is possible if the device was registered into it.
Registration procedure has been described in OSM.Server Operation Manual.
e) complete, remote programming with EBS Config 2.0.
SMS text message shall provide the following information:
<communicator’s service code>█SERVER=<server address>█PORT=<server port>█
APN=<access point name>█UN=<user ID number>█PW=<user password>
Where:
█: space (every parameter shall be separated with space –blank character)
<communicator’s service code>: factory settings –1111.
<server address>: address of communication server purposed for collection of
communicator signals e.g. 89.123.115.8. In case address is provided as domain e.g.
block.autostrada.com, SMS message shall include DNS1 parameter (address of main
DNS server)
<server port>: Number of port in server that receives messages from a device
<access point name>: defines access point name to GSM network.
If private network is used, SMS message shall provide the following parameters:
UN=<user ID number> and PW=<user password>.
Exemplary SMS to set the parameters of the LTE/UMTS connection is as
follows (if we use public network and provide server address as IP):
1111█SERVER=89.123.115.8█PORT=6780█APN=internet█UN=1█PW=6578
Where:
█:space character

EPX400-A20CU –Manual
Page 13 / 62
OPERATION5.
EPX400-A20CU device is able to transmit data via LTE or UMTS network, via SMS
messages and via Ethernet.
Communication mode is configurable –see chapter 0. for more information. As a
result the communicator may be used only at the territory covered with mobile
phone operator network or with wired Ethernet network.
If status of inputs is the same as programmed one (NO/NC, EOL-NO/NC, DEOL-
NO/NC) the device stays at rest. Change of status on any input results in signal
transmitting of this event by the device.
In case of voice channel communication mode there is the possibility to choose 2
signalling formats: ContactID or SIA.
Note:
Each input (IN1 –IN9) may be individually defined as normally open (NO) or
normally closed (NC). It means that when input was defined as NO, input shorting
will be an active state, and when input was defined as NC, input opening will be an
active state. EOL and DEOL (parametrized and double parametrized) are options
where you use 1 or 2 resistors to distinguish alarm from sabotage.
To avoid an excessive cost of use related in particular to false alarms a device
possesses a programmable analysis of inputs.
All inputs respond only to states change which means that transmitting will follow
only if an active state is on input and maintains during programmed minimum time.
Maintenance of active state longer than a minimum time will result in single
indicating. Another input activation (another transmitting) is possible only after input
reached based state.
Number of messages sent in SMS mode is limited (limit includes also text massages
or answers to orders sent by user). This function provides for cost reduction by
limiting messages e.g. in case of damage of sensor connected to any input. After
passage of programmed time new messages will be sent but only in a number
determined by the user.
Text message on events sent to private phone numbers may be edited.
All programmable parameters are saved in memory and in case of voltage drop that
are not lost. Supply of power starts the communicator with saved settings.

EPX400-A20CU –Manual
Page 14 / 62
PRE-CONFIGURATION VIA ETHERNET PORT6.
To enable the EPX400-A20CU to communicate properly, you need to provide basic
server connection parameters. The simplest way to do this is via the built-in web
server WWW.
To access the server, connect the EPX400-A20CU using an Ethernet cable to a PC
that has an RJ-45 Ethernet port and a web browser.
The device is equipped with Auto MDI-MDIX function –supports straight-through and
crossover cable. Connection does not require network switch.
The default settings of the device is IP=192.168.7.7 , mask = 255.255.255.0 and the
following description applies to such settings.
6.1. LOGGING IN
You must configure the Ethernet interface to which the device is connected, you need
to manually set the appropriate IP address for example. 192.168.7.42 (Control Panel
\ Network and Internet \ Network and Sharing Center -> Connections-> Properties->
Internet Protocol Version 4 (TCP / IPv4) -> Properties - for Windows 10) and the
mask of 255.255.255.0. In the Web browser, enter the device address
http://192.168.7.7
There will appear the home page described below. Service code is the password.
NOTE: The address of the EPX400-A20CU network and the computer to which the
device is connected should be the same, and the IP addresses should be different.

EPX400-A20CU –Manual
Page 15 / 62
6.2. DESCRIPTION
“Description” item.
Displays information about the type of device and its serial number.
6.3. CONFIGURE GSM
Server parameters6.3.1.
In this section we define the server parameters in the monitoring station.

EPX400-A20CU –Manual
Page 16 / 62
Server address6.3.1.1.
This is the IP address of the monitoring system receiver (OSM.Server), e.g.
“89.123.115.8”. The address can be specified as a domain name of the server, e.g.
“module.gprs.com”.
For domain name addresses, a DNS sever address is also required.
Server port6.3.1.2.
Specifies the server port assigned to receive data from the communicator.
APN parameters6.3.2.
In this section we define the APN parameters needed for LTE/HSPA+ connection.
APN6.3.2.1.
In “APN” field you can enter the APN name. This parameter depends on the
LTE/UMTS network provider whose services you are going to use. It specifies the
name of the access point to the LTE/HSPA+ network. It is possible to use a private
access point. In this case, the name of the access point will be provided by your GSM
network provider.
This is usually not required with public APNs.
User ID6.3.2.2.
In this field you can enter the user name required to connect to the LTE/HSPA+
network. This is usually not required with public APNs. If you have a private APN, you
should ask your provider for this parameter.
Note: Using a private APN increases the security of the system.
User password6.3.2.3.
In this field you can enter the user password required to connect to the LTE/HSPA+
network. This is usually not required with public APNs. If you have a private APN, you
should ask your provider for this parameter.
Note: Using a private APN increases the security of the system.
Primary / Secondary DNS6.3.2.4.
Identifies the address of the primary / secondary DNS server (Domain Name
System). If you provided the server's address as a domain, at least one DNS address
must be specified.
Access6.3.3.
In this section we define the parameters of access to the device.
Service code6.3.3.1.
Protects the device against unauthorized access. It is used during the device
programming process and for remote control of the device (in TCP/IP or SMS mode).
The code is factory set to 1111. You should change this code at the first
programming the device. It may contain up to seven alphanumeric characters.
SIM card PIN6.3.3.2.
As the device works in a LTE/UMTS network, you need a SIM card from a mobile
telephone network provider. Before first use, you need to enter the PIN code of the
SIM card that will be used with the particular communicator. This is required for

EPX400-A20CU –Manual
Page 17 / 62
automatic system start-up. If you have a SIM card without PIN code protection, you
can enter any value, e.g. 0000.
If the PIN you enter is incorrect, SIM card may be blocked after you insert the card
and power on the communicator. To unblock the SIM card you will need to enter the
PUK code (using any smartphone) before you can use the card again.
Factory PIN number in EPX400-A20CU is set to 1111.
6.4. CONFIGURE ETHERNET
Server parameters6.4.1.
In this section define the server parameters in the monitoring station.
Server address6.4.1.1.
This is the IP address of the monitoring system receiver (OSM.Server), e.g.
“89.123.115.8”. The address can be specified as a domain name of the server, e.g.
“module.gprs.com”.
For domain name addresses, a DNS sever address is also required.
Server port6.4.1.2.
Specifies the server port assigned to receive data from the communicator.
Ethernet parameters6.4.2.
In this section define the Ethernet parameters needed for wired connection.
Define IP address settings. By default, it is set as DHCP (Dynamic Host Configuration
Protocol). DHCP is a protocol which dynamically assigns an IP address to each
computer, complete with TCP/IP configuration parameters. It is possible to change it
to static IP. After checking Static you should fill up additional fields:

EPX400-A20CU –Manual
Page 18 / 62
IP address
IP address for the LAN you want the device to work with.
IP netmask
IP address mask, default: 255.255.255.0.
Gateway
IP address of the computer in local network which mediates in connection with
communication server.
Primary / Secondary DNS
Identifies DNS addresses (the domain name system) If you provided the main or
secondary server's address as a domain, at least one DNS address must be specified.
Access Parameters6.4.3.
In this section we define the parameters of access to the device.
Service code6.4.3.1.
Protects the device against unauthorized access. It is used during the device
programming process and for remote control of the device (in TCP/IP or SMS mode).
The code is factory set to 1111. You should change this code at the first
programming the device. It may contain up to seven alphanumeric characters.
6.5. UPDATE FIMWARE
The device features a firmware update mechanism.
To flash new firmware, follow these steps:
a) Open the file with the new firmware (click [Choose a file] to locate the
file, which should have the extension “.efi2”, e.g. epx400-2.10.4.efi2).
b) Click [Send]. The firmware update process will start.
c) After the process is complete, you will see the update status
success: “The firmware has been updated successfully.”
error: “This operation has been cancelled.”
To activate the new firmware, power on the device again or restart it.
Note: this procedure should be performed with the utmost care, as any
error, especially due to loss of power supply during the update, can result in
improper operation of the device.

EPX400-A20CU –Manual
Page 19 / 62
6.6. CONTACT
“Contact” item – displays the manufacturer's contact details.

EPX400-A20CU –Manual
Page 20 / 62
CONFIGURATION PROGRAM7.
7.1. INITIAL REMARKS
The EBS Config 2.0 application is provided for programming the control panels and
communicators produced by EBS using programming devices and remotely via
UMTS/LTE. Thanks to a thought-out interface and grouping of tabs, using the app is
simple and configuring the device itself is easy and effortless.
7.2. PC TECHNICAL REQUIREMENTS
Minimum requirements for computer system where configuration software is to be
installed are the following:
Hardware:
CPU 1 GHz or better, 32-bit (x86) or 64-bit (x64),
1 GB RAM (for the 32-bit version) or 2 GB RAM (for the 64-bit version)
4.5 GB HDD space.
Software:
Operating system: Windows 7 or newer,
.NET Framework 4.6.1 or newer.
7.3. SMARTPHONE TECHNICAL REQUIREMENTS
Android version at least 5.1 or newer is required for correct installation and operation
of EBS Config 2.0 mobile application.
7.4. INSTALLATION
If you have a SIM card with a pre-programmed PIN code other than 1111, you
should first configure the device using the EBS Config 2.0 by entering the pre-
programmed PIN code to the card and only then insert the SIM card into the device.
Otherwise, the card may be blocked (incompatibility of PIN codes).
If you have a SIM card with a disabled PIN code or the PIN code is 1111, you can
insert the SIM card into the device at any time.
PC7.4.1.
Download EBS Config 2.0 for the PC from www.ebssmart.com. After downloading
and opening the downloaded file, the installation process will start, during which you
should choose the installation language, enter data, define the location of the
program components (default location is C:\Program Files\EBS\) and create the
shortcuts to the program (on the desktop or on the quick launch bar).
Smartphone7.4.2.
Download EBS Config 2.0 for the smart phone from Google Play. After completing
the installation process, you can open the app and start configuration. EBS Config
2.0 interface for the mobile version is the same as for desktop version.
Note that the Smartphone app is currently only available for Android phones and not
for iOS (Apple) phones. Apple phone users must install using the EBS Config 2.0 for
the PC. Refer to the step immediately above.
