Ebyte E01-ML01IPX User manual

E01-ML01IPX User Manual
nRF24L01P 2.4GHz SMD Wireless Module

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 1
Chengdu Ebyte Electronic Technology Co. , Ltd.
目录
1 . Overview....................................................................................................................................................................................2
1.1 Brief introduction...........................................................................................................................................................2
1.2 Feature............................................................................................................................................................................ 2
1.3 Application..................................................................................................................................................................... 2
2 . Specification and parameter.....................................................................................................................................................3
2.1 Limit parameter..............................................................................................................................................................3
2 .2 Operating parameter.......................................................................................................................................................3
3. Size and pin definition..............................................................................................................................................................4
4 . Basic operation.......................................................................................................................................................................... 5
4.1 Hardware design......................................................................................................................................................5
4.2 Software editing..............................................................................................................................................................5
5 . Basic application...................................................................................................................................................................... 6
5.1 Basic circuit diagram......................................................................................................................................................6
6. FAQ............................................................................................................................................................................................ 6
6.1 Communication range is too short.................................................................................................................................6
6.2 Module is easy to damage............................................................................................................................................. 7
6.3 BER(Bit Error Rate) is high.......................................................................................................................................7
7 . Soldering guidance.................................................................................................................................................................... 7
7 . 1 Reflow soldering temperature....................................................................................................................................... 7

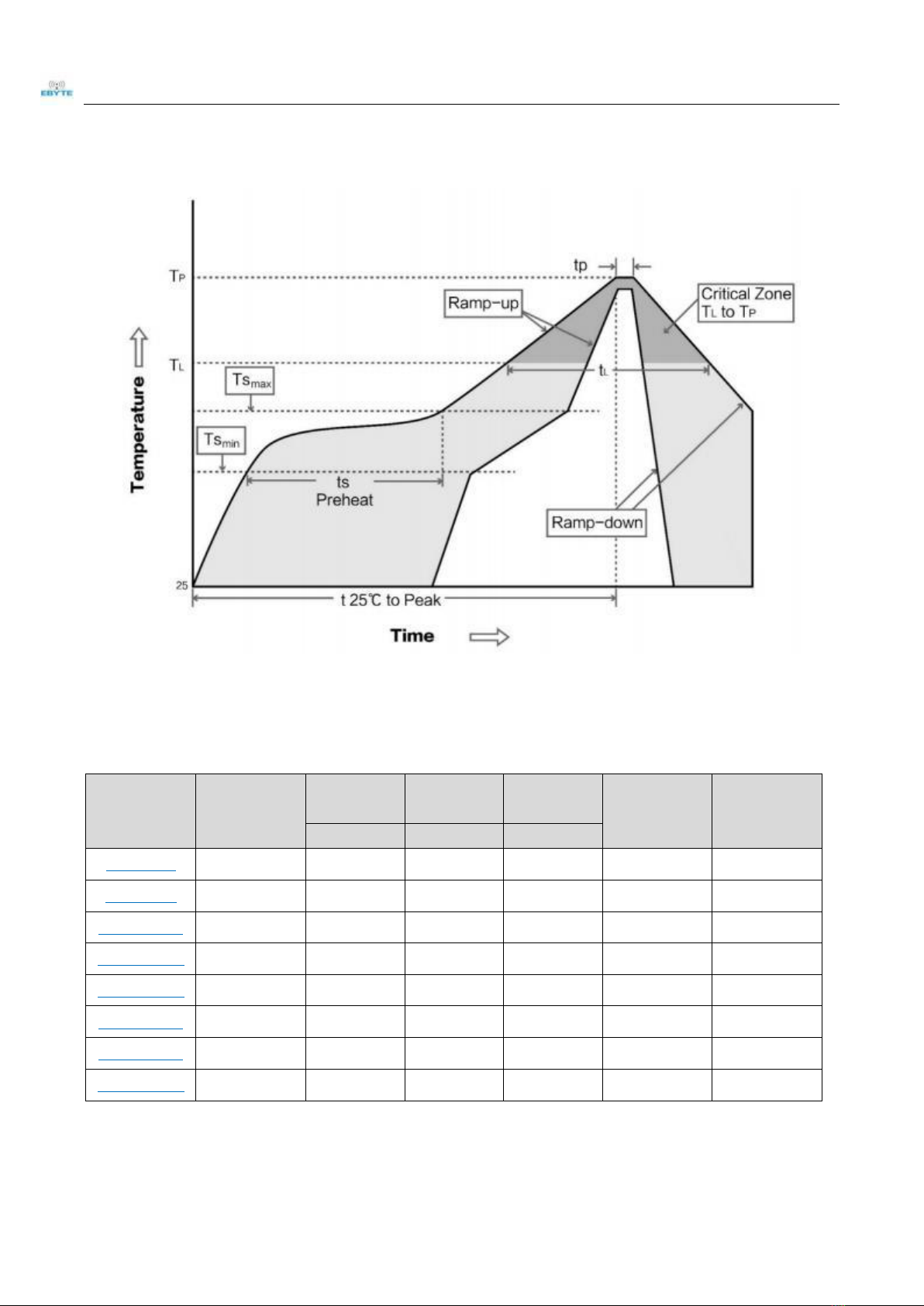

7.2 Reflow soldering curve.................................................................................................................................................. 8
8. E01 Series..................................................................................................................................................................................8
9 . Guidance for choosing antenna................................................................................................................................................ 9
9 .1 Antenna recommendation.............................................................................................................................................. 9

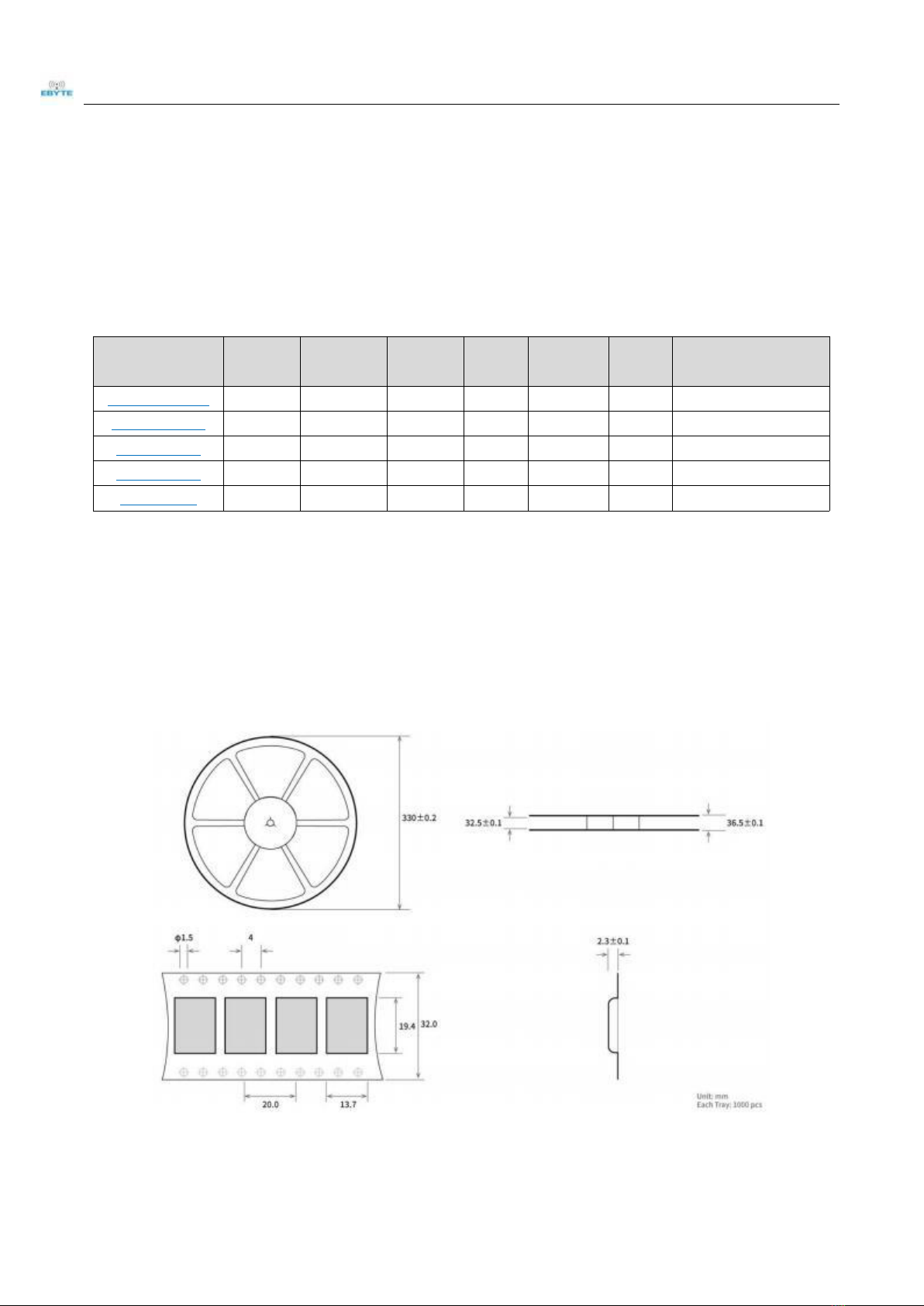

10.Packing.....................................................................................................................................................................................9
10.1 Anti-statistic pallet........................................................................................................................................................9
Revision history.......................................................................................................................................................................... 10
About us......................................................................................................................................................................................1 0
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 2
Chengdu Ebyte Electronic Technology Co. , Ltd.
1.Overview
1. 1 Brief introduction
E0 1- ML01 IPX is a small size SMD module based on original
imported nRF2 4 L0 1 P form Nordic in Norway, operates at 2 . 4 Ghz with
IPEX interface.
The RF performance of E0 1 - ML0 1 IPX and components selection
during R& D are all in accordance with industrial grade standards, using
industrial-grade high-precision 16 MHz crystal oscillator, also it
obtained FCC, CE and RoHS certification.
The user needs to use the MCU driver or use a dedicated SPI
debugging tool to develop E01 -ML01IPX.
1.2 Feature
Communication distance tested is up to 100m;
Maximum transmission power of 1mW, software multi-level adjustable;
Support air date rate of 2Mbps, 1Mbps, 250kbps;
125 communication channels to meet the needs of multi-point communication, grouping, frequency hopping, etc.
Connect to the MCU through the SPI interface at a rate of 0 to 10 Mbps.
Support 2.0V~3.6V power supply, power supply over 3.3V can guarantee the best performance；
Industrial grade standard design, support -40 ~ 85 °C for working over a long time；
IPEX interface, convenient for connection of coaxial cable and external antenna;
Enhanced ShockBurst, fully compatible with NORDIC all nRF24 L, nRF24 E, nRF24 U series.
1.3 Application
Wearable device；
Smart home and industrial sensors；
Security system, positioning system；
Wireless remote control, drone；
Wireless game remote control；
Healthcare products；
Wireless voice, wireless headset；
Automotive industry applications.
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 3
Chengdu Ebyte Electronic Technology Co. , Ltd.
2. Specification and parameter
2. 1 Limit parameter
Main parameter
Performance
Remark
Min.
Max.
Power supply (V)
0
3.6
Voltage over 3. 6 V will cause permanent
damage to module
Blocking power (dBm)
-
10
Chances of burn is slim when modules
are used in short distance
Operating temperature (℃)
-40
85
-
2.2 Operating parameter
Main parameter
Performance
Remark
Min.
Typ.
Max.
Operating voltage (V)
2.0
3.3
3.6
≥3. 3 V ensures output power
Communication level (V)
-
3.3
-
For 5V TTL, it may be at risk of
burning down
Operating temperature (℃)
-40
-
5
Industrial design
Operating frequency (MHz)
2.4
-
2.525
Support ISM band
Power
consumption
TX current (mA)
-
13
-
Instant power consumption
RX current (mA)
-
12
-
-
Sleep current (μA)
-
1.0
-
Software is shut down
Max Tx power (dBm)
-0.2
0
0.3
-
Receiving sensitivity (dBm)
-92
-93
-94
Air data rate is 250 kbps
Air data rate (bps)
250k
-
2M
Controlled via user’ s programming
Main parameter
Description
Remark
Distance for reference
100m
Test condition：clear and open area, antenna gain: 5 dBi ，antenna
height: 2.5m ，air data rate: 250kbps
FIFO
32Byte
Max length transmitted each time
Crystal frequency
16MHz
-
Modulation
GFSK
-
Package
SMD
-
Connector
1.27mm
-
Communication interface
SPI
0- 10Mbps
Size
12 * 19mm
Without SMA
Antenna
IPEX interface
50 ohm impedance
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 4
Chengdu Ebyte Electronic Technology Co. , Ltd.

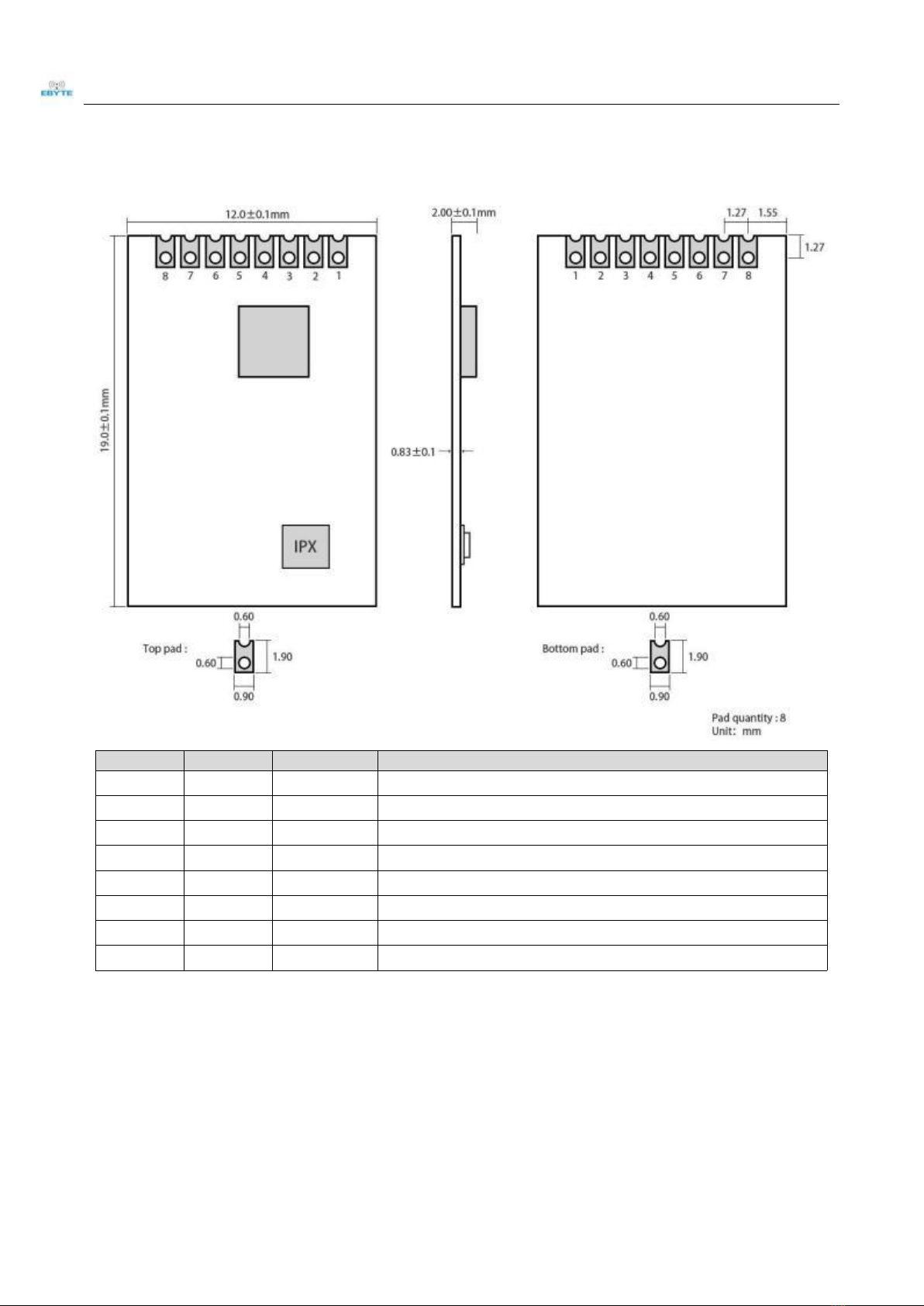

3. Size and pin definition
Pin No.
Pin item
Pin direction
Pin application
1
VCC
-
Power supply must be 20. ~ 3.6V
2
CE
Input
Chip Enable
3
CSN
Input
SPI Chip select
4
SCK
Input
SPI clock
5
MOSI
Input
SPI master output slave input
6
MISO
Output
SPI master input slave output
7
IRQ
Output
Interrupt request.
8
GND
-
Ground
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 5
Chengdu Ebyte Electronic Technology Co. , Ltd.
4. Basic operation
4. 1 Hardware design
It is recommended to use a DC stabilized power supply. The power supply ripple factor is as small as possible, and
the module needs to be reliably grounded；
Please pay attention to the correct connection of the positive and negative poles of the power supply. Reverse
connection may cause permanent damage to the module；
Please check the power supply to ensure it is within the recommended voltage otherwise when it exceeds the
maximum value the module will be permanently damaged;
Please check the stability of the power supply, the voltage can not be fluctuated frequently；
When designing the power supply circuit for the module, it is often recommended to reserve more than 30 % of the
margin, so the whole machine is beneficial for long- term stable operation;
The module should be as far away as possible from the power supply, transformers, high-frequency wiring and other
parts with large electromagnetic interference;
High-frequency digital routing, high-frequency analog routing, and power routing must be avoided under the
module. If it is necessary to pass through the module, assume that the module is soldered to the Top Layer, and the
copper is spread on the Top Layer of the module contact part( well grounded) , it must be close to the digital part of
the module and routed in the Bottom Layer；
Assuming the module is soldered or placed over the Top Layer, it is wrong to randomly route over the Bottom Layer
or other layers, which will affect the module's spurs and receiving sensitivity to varying degrees；
It is assumed that there are devices with large electromagnetic interference around the module that will greatly
affect the performance. It is recommended to keep them away from the module according to the strength of the
interference. If necessary, appropriate isolation and shielding can be done；
Assume that there are traces with large electromagnetic interference ( high- frequency digital, high- frequency analog,
power traces) around the module that will greatly affect the performance of the module. It is recommended to stay
away from the module according to the strength of the interference. If necessary, appropriate isolation and shielding
can be done.
If the communication line uses a 5V level, a 1k-5. 1k resistor must be connected in series (not recommended, there is
still a risk of damage)；
Try to stay away from some physical layers such as TTL protocol at 2.4GHz , for example: USB3.0 ；
The mounting structure of antenna has a great influence on the performance of the module. It is necessary to ensure
that the antenna is exposed, preferably vertically upward. When the module is mounted inside the case, use a good
antenna extension cable to extend the antenna to the outside；
The antenna must not be installed inside the metal case, which will cause the transmission distance to be greatly
weakened.
Conductors or other sources of interference should be avoided around the onboard PCB antenna.
4.2 Software editing
Insert the module into the user circuit board, use the microcontroller to communicate with the module by SPI or
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 6
Chengdu Ebyte Electronic Technology Co. , Ltd.
serial port, and operate the control register and the transceiver buffer through the SPI command to complete the
wireless data transmit and receive function. For the timing operation of the module register read and write
operations, please refer to the latest nRF24L01 P data sheet.
As interrupt pin for IRQ, it can be used to wake-up MCU and achieve fast response; But the user can get the
interrupt status through SPI ( not recommended, it is not conducive to the overall power consumption, and with low
efficiency)；
CE pin can be high level for long-term, but it needs to set as POWER DOWN mode when the module writes
registers, and it is recommended that CE is controlled by MCU pin；
5. Basic application

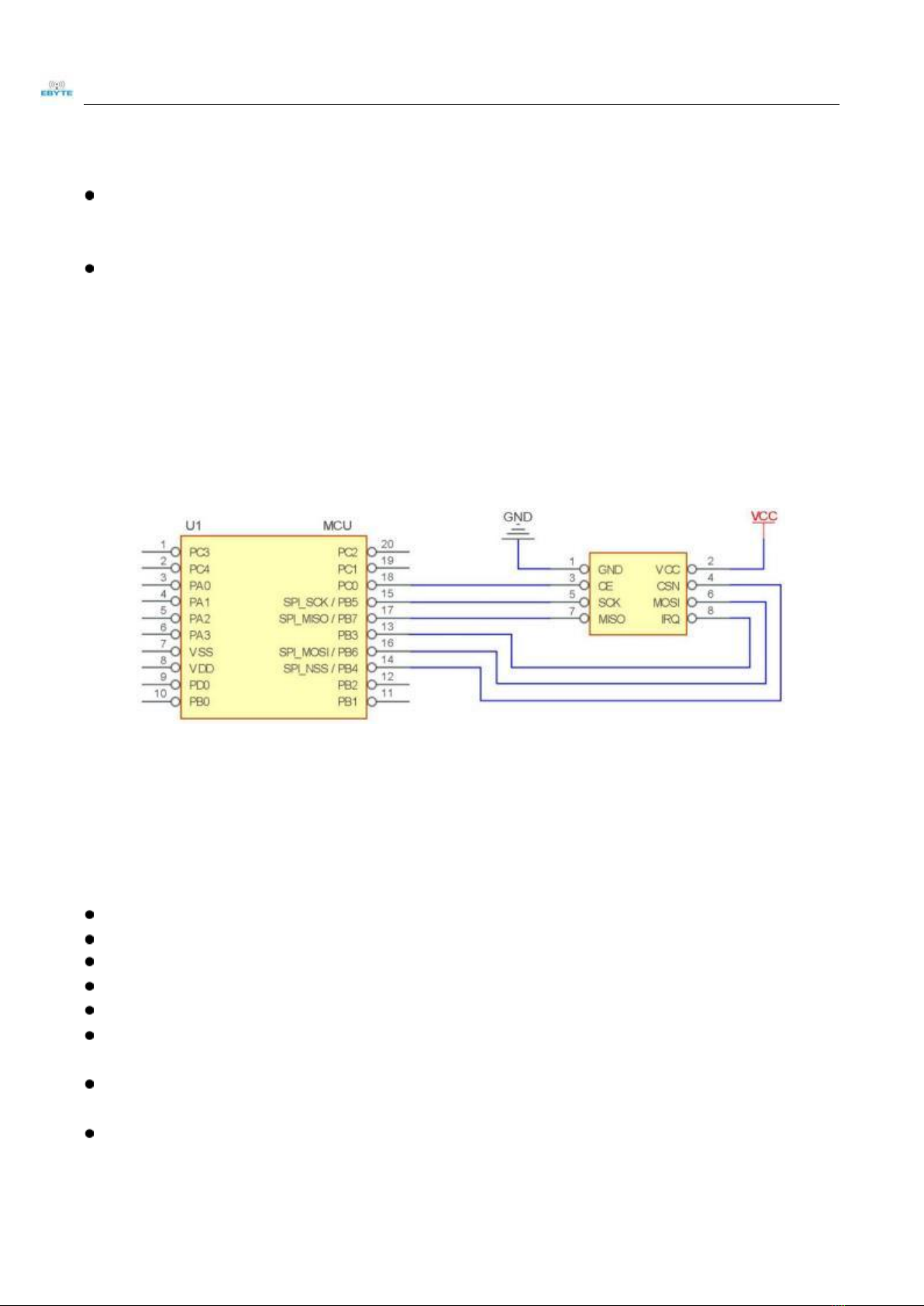

5. 1 Basic circuit diagram
6.FAQ
6. 1 Communication range is too short
The communication distance will be affected when obstacle exists.
Data lose rate will be affected by temperature, humidity and co-channel interference.
The ground will absorb and reflect wireless radio wave, so the performance will be poor when testing near ground.
Sea water has great ability in absorbing wireless radio wave, so performance will be poor when testing near the sea.
The signal will be affected when the antenna is near metal object or put in a metal case.
Power register was set incorrectly, air data rate is set as too high ( the higher the air data rate, the shorter the
distance).
The power supply low voltage under room temperature is lower than 2 . 5 V, the lower the voltage, the lower the
transmitting power.
Due to antenna quality or poor matching between antenna and module.
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 7
Chengdu Ebyte Electronic Technology Co. , Ltd.
6.2 Module is easy to damage
Please check the power supply source, ensure it is 2.0V~3.6 V, voltage higher than 3.6V will damage the module.
Please check the stability of power source, the voltage cannot fluctuate too much.
Please make sure antistatic measure are taken when installing and using, high frequency devices have electrostatic
susceptibility.
Please ensure the humidity is within limited range, some parts are sensitive to humidity.
Please avoid using modules under too high or too low temperature.
6.3 BER(Bit Error Rate) is high
There are co- channel signal interference nearby, please be away from interference sources or modify frequency and
channel to avoid interference;
Poor power supply may cause messy code. Make sure that the power supply is reliable.
The extension line and feeder quality are poor or too long, so the bit error rate is high;
7.Soldering guidance
7. 1 Reflow soldering temperature
Profile Feature
Curve characteristics
Sn- Pb Assembly
Pb- Free Assembly
Solder Paste
Solder paste
Sn63/Pb37
Sn96.5/Ag3/Cu0.5
Preheat Temperature min (Tsmin )
Min preheating temp.
100℃
150℃
Preheat temperature max ( Tsmax)
Mx preheating temp.
150℃
200℃
Preheat Time ( Tsmin to Tsmax)( ts)
Preheating time
60- 120 sec
60- 120 sec
Average ramp- up rate( Tsmax to Tp)
Average ramp- up rate
3℃/second max
3℃/second max
Liquidous Temperature ( TL)
Liquid phase temp.
183℃
217℃
Time (tL)Maintained Above (TL)
Time below liquid phase line
60-90 sec
30-90 sec
Peak temperature (Tp)
Peak temp.
220-235℃
230-250℃
Aveage ramp-down rate (Tp to Tsmax)
Average ramp- down rate
6℃/second max
6℃/second max
Time 2 5 ℃ to peak temperature
Time to peak temperature for 25 ℃
6 minutes max
8 minutes max
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 8
Chengdu Ebyte Electronic Technology Co. , Ltd.
7.2 Reflow soldering curve
8. E01 Series
Model No.
IC
Frequency
Tx power
Test
distance
Package
Antenna
Hz
Bm
m
E01-ML01S
nRF24L01P
2.4G
0
0.1
SMD
PCB
E01-ML01D
nRF24L01P
2.4G
0
0.1
DIP
PCB
E01- ML01IPX
nRF24L01P
2.4G
0
0.2
SMD
IPEX
E01-ML01DP4
nRF24L01P
2.4G
20
1.8
DIP
PCB
E01-ML01DP5
nRF24L01P
2.4G
20
2.5
DIP
SMA- K
E01-ML01SP2
nRF24L01P
2.4G
20
1.8
SMD
PCB/ IPEX
E01-ML01SP4
nRF24L01P
2.4G
20
2
SMD
IPEX
E01-2G4M27D
nRF24L01P
2.4G
27
5
DIP
SMA- K
E01-ML01IPX User Manual
d
k

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 9
Chengdu Ebyte Electronic Technology Co. , Ltd.
9.Guidance for choosing antenna
9. 1 Antenna recommendation
Antenna plays important role in the communication process. Good antenna can largely improve the communication
system. Therefore, we recommend some antennas with excellent performance and reasonable price.
Model
Type
Frequency
Hz
Interface
Gain
dBi
siza
Fender
Feature
TX2400-NP-5010
FPC
2.4G
IPEX
2
50*10mm
-
FPC
TX2400-XP-150
Sucker
2.4G
SMA-J
3.5
15cm
150cm
High gain
TX2400-JK-20
Whip
2.4G
SMA-J
3
200mm
-
Omnidirectional antenna
TX2400-JK-11
Whip
2.4G
SMA-J
2.5
110mm
-
Omnidirectional antenna
TX2400-JZ-3
Whip
2.4G
SMA-J
2
30mm
-
Omnidirectional antenna
10.Packing
10. 1 Anti-statistic pallet
E01-ML01IPX User Manual

Copyright ©2012–2018 ，Chengdu Ebyte Electronic Technology Co.,Ltd. 10
Chengdu Ebyte Electronic Technology Co. , Ltd.
Revision history
Version
Date
Description
Issued by
1.00
2017/ 11/ 15
Original version
uaa
1. 10
2018/5/22
Content updated
uaa
1.20
2018/9/ 13
Model No. split
uaa
1.30
2019/ 12/21
Circuit diagram modification
Linson
About us
Technical support: [e-mail]
Documents and RF Setting download link:：https://www.es-ebyte.com
Thank you for using Ebyte products! Please contact us with any questions or suggestions:
[e-mail]
Official hotline:[phone]
Web: https://www.es-ebyte.com
Address: B5 Mould Park, 199# Xiqu Ave, High-tech District, Sichuan, China
E01-ML01IPX User Manual
h
h
h
