Ecco 21 Series User manual

Page 1 of 20
IMPORTANT! Read all instructions before installing and using. Installer: This manual must be
delivered to the end user. This manual assumes installation by a suitably qualied Automotive Technician.
ECCO 21 Series Lightbars are versatile and powerful warning devices that offer numerous lighting module and length options. The 21
Series is suitable for many vehicle applications and features a durable aluminum chassis, polycarbonate lenses and a sleek, low prole
design. These lightbars can either be mounted permanently to the vehicle or using an optional, semi-permanent roof mounting kit. There
are two types of 21 Series lightbar - IF (independent ashing) and CC (centrally controlled). IF (Independent Flashing) indicates the
lightbars modules have individual electronic circuits that control their operation, each module, a group or a pair of modules can be controlled
independently. CC (Centrally Controlled) indicates the lightbar’s modules are controlled by a centralized electronic driver board which
provides simpler and greater programming exibility of all lightbar functionality.
Unpacking and Pre-Installation:
Carefully remove the lightbar and place it on a at surface. Examine the unit for transit damage and locate all parts. If damage is found or
parts are missing, contact the transit company or ECCO. Do not use damaged or broken parts.
Ensure the lightbar voltage is compatible with the planned installation.
Installation and Operation Instructions
21 Series Multicolor Lightbars

Page 2 of 20
WARNING!
Failure to install or use this product according to manufacturer’s recommendations may result in property
damage, serious bodily/personal injury, and/or death to you and those you are seeking to protect!
!
Do not install and/or operate this safety product unless you have read and understand the safety
information contained in this manual.
1. Proper installation combined with operator training in the use, care and maintenance of emergency warning devices are essential to
ensure the safety of emergency personnel and the public.
2. Emergency warning devices often require high electrical voltages and/or currents. Exercise caution when working with live electrical
connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current
arcing, which can cause personal injury and/or severe vehicle damage, including re.
4. Proper placement and installation is vital to the performance of this warning device. Install this product so that output performance of
the system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system
without losing eye contact with the roadway.
5. It is the responsibility of the vehicle operator to ensure daily that all features of this product work correctly. In use, the vehicle operator
should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors),
people, vehicles or other obstructions.
6. The use of this or any other warning device does not ensure all drivers can or will observe or react to an emergency warning signal.
Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, drive
against trafc, respond at a high rate of speed, or walk on or around trafc lanes.
7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws
regarding emergency warning devices. Therefore, the user should check all applicable city, state, and federal laws and regulations.
The manufacturer assumes no liability for any loss resulting from the use of this warning device.
8. This product may contain high intensity LEDs staring directly into these lights could result in temporary and/or permanent vision
impairment.
Installation & Mounting:
Mounting
Before proceeding with installation, plan all wiring and cable routing. Select the mounting location for the lightbar on a at, smooth surface
and center the unit across the width of the vehicle. The mounting location for the lightbar should be chosen such that the lightbar is level and
visibility to approaching trafc is optimized.
Caution:
When drilling into any vehicle surface, make sure that the area is free from any electrical wires, fuel lines, vehicle upholstery, vehicle
support members, etc. that could be damaged.
!
Specications:
Cross Section: 2.3” x 12.3”
Input Voltage: 10-16 VDC
Nominal Current @ 12.8 VDC:
3-6 LED Module: 0.5 A avg.
9 LED Module: 1.0 A avg.
3 LED SC, AL, WL, TD Pair: 1.0 A avg.
SC: Single Color; MC: Multicolor
5 LED MC AL, WL, TD Pair 1.6 A avg.
18 LED MC Module: 1.6 A avg.
STT Pair: 1.0 A avg.
DOT Strip: 0.2 A avg.
Flash Rate: See Wiring Section
Temp. Range: -22°F to 122°F
-30°C to 50°C

Page 3 of 20
Permanent Mounting with Adjustable Mounting Feet
1. Loosen the 5/16” nuts to allow the mounting feet to slide along the base. Place the lightbar over the center of the vehicle and slide the
mounting feet into position near the curved edges of the roof when possible.
2. Secure the feet in location on the lightbar by tightening the four nuts on each foot.
3. With the feet positioned, remove the adjustable foot cover and mark the location of the mounting hole centers on the roof of the vehicle.
Remove the lightbar and drill the mounting holes as marked. Note: The center distance between the mounting holes in an adjustable
mounting foot is 11.1” or 281.94 mm.
4. Attach the appropriate foot pad for the curvature of the roof surface per FIGURE 2. Secure the lightbar feet to the vehicle using the
supplied 1/4”-20 hardware and reattach the adjustable foot cover as shown in FIGURE 1. See the Wiring section of this manual for
further wiring instructions.
FIGURE 2
FIGURE 1
RUBBER PAD
OVERSIZED FLAT WASHER
1/4” NYLON INSERT NUT
1/4”- 20 HEX BOLT
VEHICLE
ROOF
ADJUSTABLE FOOT
COVER
FLAT ROOF
CURVED ROOF
WEDGE RUBBER PAD FLAT RUBBER PAD

Page 4 of 20

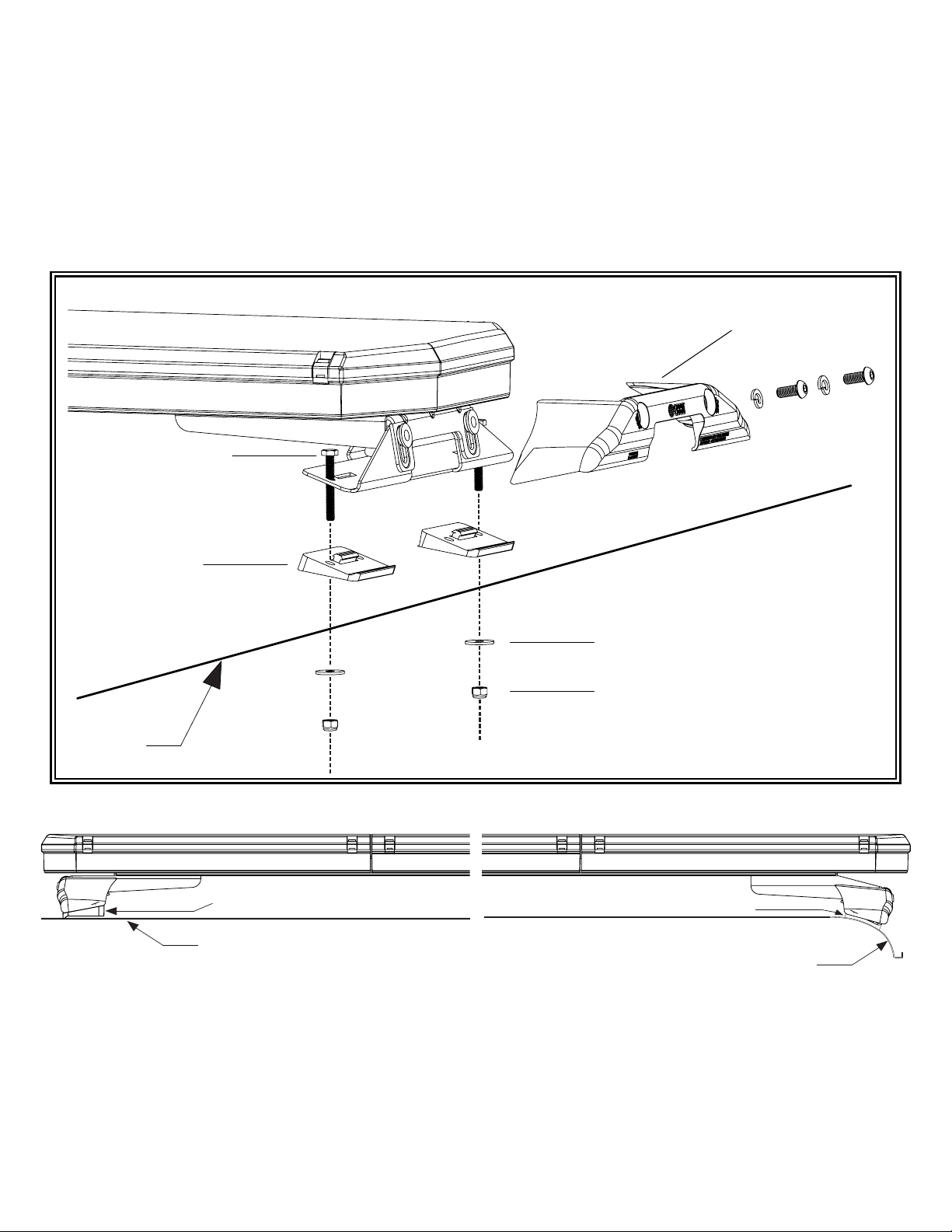

Permanent Mounting without Adjustable Mounting Feet
1. Insert the four 5/16”-18 carriage bolts in the channels on the under side of the lightbar.
2. Place the lightbar over the center of the vehicle and slide the mounting hardware into position near the curved edge when possible as
shown in FIGURE 4.
3. With the mounting hardware positioned, mark the location of the mounting hole centers on the roof of the vehicle. Remove the lightbar
and drill the mounting holes as marked.
4. Mount the lightbar as shown in FIGURE 3 and secure the unit. See the Wiring section of this manual for further wiring instructions.
FIGURE 4
FIGURE 3
CURVED ROOF EDGE
5/16”-18 CARRIAGE BOLT
RUBBER STANDOFF
OVERSIZED FLAT WASHER
5/16” NYLON INSERT NUT
VEHICLE
ROOF

Page 5 of 20
Pylon/Headache Rack Mounting
1. Insert the four (4) 5/16”-18 carriage bolts in the channels on the under side of the lightbar and loosely attach the mounting brackets.
2. Place the lightbar on the vehicle and slide the mounting brackets into position.
3. Secure the brackets to the lightbar with the supplied washers and nuts as shown in FIGURE 5.
4. With the mounting brackets positioned, mark the locations of the mounting hole centers on the roof of the vehicle. Remove the bar and
drill the mounting holes as marked.
5. Secure the mounting brackets to the vehicle with customer supplied hardware. See the Wiring section of this manual for further wiring
instructions.
FIGURE 5
5/16-18 CARRIAGE BOLT
5/16-18 NUT
BRACKET
1/2” BOLT AND MOUNTING
HARDWARE SUPPLIED BY
CUSTOMER
LIGHTBAR
OVERSIZED FLAT WASHER
MOUNTING SURFACE

Page 6 of 20
Notes:
1. Larger wires and tight connections will provide longer service life for components. For high current wires it is highly recommended
that terminal blocks or soldered connections be used with shrink tubing to protect the connections. Do not use insulation displacement
connectors (e.g., 3M Scotchlock type connectors).
2. Route wiring using grommets and sealant when passing through compartment walls. Minimize the number of splices to reduce
voltage drop. High ambient temperatures (e.g., under-hood) will signicantly reduce the current carrying capacity of wires, fuses, and
circuit breakers. All wiring should conform to the minimum wire size and other recommendations of the manufacturer and be protected
from moving parts and hot surfaces. Looms, grommets, cable ties, and similar installation hardware should be used to anchor and
protect all wiring.
3. Fuses or circuit breakers should be located as close to the power takeoff points as possible and properly sized to protect the wiring
and devices.
4. Particular attention should be paid to the location and method of making electrical connections and splices to protect these points from
corrosion and loss of conductivity.
5. Ground termination should only be made to substantial chassis components, preferably directly to the vehicle battery.
6. Circuit breakers are very sensitive to high temperatures and will “false trip” when mounted in hot environments or operated close to
their capacity.
Important!
This unit is a safety device and it must be connected to its own separate, fused power point to assure its continued operation should any
other electrical accessory fail. Do not wire in parallel with any other accessory.
Wiring Instructions:
Caution:
Disconnect the battery before wiring up the lightbar, to prevent accidental shorting, arcing and/or electrical shock.
!
1. Loosen the 5/16” nuts to allow the mounting feet to slide along the base of the lightbar. Loosely attach the mounting strap to each foot
using the supplied pan head phillips screws and lock washers.
2. Center the lightbar across the vehicle and align the strap mount brackets to hook into the gutter of the vehicles door frame as shown in
FIGURE 6.
3. Secure the feet to the lightbar in location by tightening the four nuts on each foot.
4. Slowly tighten the pan head screws to secure the strap mount brackets to the lightbar feet and around the door gutters, keeping the
lightbar centered and level. Ensure the doors close completely and secure each strap mount bracket to the door frame. Mounting
geometry and parts will vary for different vehicles. See the Wiring section of this manual for further wiring instructions.
Strap Kit Mounting
Important!
Mounting brackets are specic to the vehicle model. Please make sure the brackets are suitable for the vehicle before
installation.
FIGURE 6
5/16”-18
PAN HEAD
PHILLIPS
SCREW
STRAP MOUNT
BRACKET NO. 8 SHEET METAL SCREW
VEHICLE ROOF SECTION
5/16” LOCK/SPLIT WASHER
ADJUSTABLE FOOT

Page 7 of 20
Wiring
A multicolor LED CC series lightbar has a 2-wire power cable and a 16-wire control cable. The entire power load of the bar goes through the
power cable. The black ground wire should be connected directly to the battery. The 10 AWG red power wire requires a constant 10 to 16V
power source with a customer supplied in line fuse. To select an appropriately rated ATO (regular) or Maxi Fuse, add the amp ratings, found
in the specications section, of the modules in your conguration specic lightbar and based on that sum, insert a fuse of the next larger size
(to be no larger than a 30 A fuse). The 16 control cable wires carry only low power (30 mA average) input signals to control the lightbar func-
tions and must be routed to the output of a control switch (or directly to multiple switches).
Before attempting to connect the lightbar wiring harness, refer to the conguration specic wiring key included with the lightbar for the con-
guration specic functions of each wire. Use an appropriate high-temperature wiring if it passes through the engine compartment. Use cable
ties and grommets to secure and protect all cables and wires.
Note:
• When the Arrowstik Left and Arrowstik Right wires are both connected to +power, the Center-Out Arrowstik function is activated.
• The Front Cut and Rear Cut functions must be used with the greatest care to ensure that the use of these functions do not diminish
the effectiveness of the Emergency Warning signal.
• When the Pattern Select wire is connected to +power alone, test mode is enabled to exercise all outputs in sequence.
• The Dim Function lowers the brightness of the LEDs in the ArrowStik and Emergency Warning Flash modes.
• The WHT Drivers Side Cut wire may be changed to Arrowstik Flash. Please see the Arrowstik ash pattern section below for details.
TABLE 1
Standard Wire Functions
Function Wire Color Function Description Notes
GRN/BLK L1 Level 1 Emergency Mode
WHT/BLK L2 Level 2 Emergency Mode
RED/BLK L3 Level 3 Emergency Mode
RED Arrowstik Left Left Arrowstik Overrides L1, L2 & L3 for rear of lightbar
ORG Arrowstik Right Right Arrowstik Overrides L1, L2 & L3 for rear of lightbar
WHT Drivers Side Cut Cut Driver Side Directional and Alley Lights Designed to interface with the driver’s door switch
BLK/RED Pattern Select Pattern Select
BLK Take Down Flash Take Down/Work Light Wig/Wag Flash
ORG/BLK Take Down lights Take Down/Work Light Steady Burn Overrides Take Down Flash
BLU/WHT Alley Light Flash Enables Alley Light Wig/Wag Flash
BLK/WHT Left Alley Light Left Alley Steady Burn Overrides Alley Light Flash
RED/WHT Right Alley Light Right Alley Steady Burn Overrides Alley Light Flash
GRN/WHT Front Cut-Off Blacks-Out Front Facing LEDs
BLU/BLK Rear Cut-Off Blacks-Out Rear Facing LEDs
GRN Cruise Lights End LEDs only Overridden by all other functions except Dim
BLU Lightbar DIM Sets LEDs to DIM mode Sets LEDs to DIM mode

Page 8 of 20
Emergency Mode Flash Pattern Selection
There are seven customizable emergency ash pattern modes available based on the wire combinations shown in Table 2. When using
individual switches, make sure to congure all possible switch combinations. The default ash setting is unsynchronized which allows each
module group to be congured separately and the lightbar to ash in an unsynchronized pattern. Steps to synchronize the module groups
together are detailed in later sections.
The module groups in each mode come with the default ash patterns shown in Table 3
TABLE 2
Level Mode Combinations
Function Wire Color Flash Pattern Modes
GRN/BLK L1
WHT/BLK L2
GRN/BLK & WHT/BLK L1 + L2
RED/BLK L3
GRN/BLK & RED/BLK L1 + L3
WHT/BLK & RED/BLK L2 + L3
GRN/BLK, WHT/BLK, & RED/BLK L1 + L2 + L3
TABLE 3
Level Mode Default Flash Patterns by Group - Unsynchronized
Module Group L1 L2 L3
Front Outboard Off Quad 75 FPM Cycle Flash
Front Inboard Off Quad 75 FPM Cycle Flash
Front Corner Off Quad 75 FPM Cycle Flash
Rear Outboard Quad 75 FPM Off Cycle Flash
Rear Inboard Quad 75 FPM Off Cycle Flash
Rear Center Quad 75 FPM Off Cycle Flash
Rear Corner Quad 75 FPM Off Cycle Flash
Rear End Quad 75 FPM Off Cycle Flash
Takedown/Work Lights* Off Quad 75 FPM** Cycle Flash**
Alley Lights Quad 75 FPM** Quad 75 FPM** Cycle Flash**
L1 + L2 L1 + L3 L2 + L3 L1 + L2 + L3
Front Outboard Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Front Inboard Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Front Corner Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Rear Outboard Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Rear Inboard Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Rear Center Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Rear Corner Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Rear End Quad 75 FPM Cycle Flash Cycle Flash Cycle Flash
Takedown/Work Lights* Quad 75 FPM** Cycle Flash** Cycle Flash** Cycle Flash**
Alley Lights Quad 75 FPM** Cycle Flash** Cycle Flash** Cycle Flash**
*Takedown/Work lights and alley lights are included in Level Mode operations only when they are multicolor LED modules.
**Flash patterns will ash primary LED colors only, see Table 4 for details.

Page 9 of 20
**For AMBER/WHITE modules within the Arrowstik, WHITE is primary and AMBER is secondary.
To change a Module group ash pattern selection:
1. Power-up the lightbar and apply +power to a single level mode (see Table 2). The lightbar will ash the default pattern shown in Table 3.
2. Twist together the BLK/RED Pattern select wire in the 16 conductor cable and the wire of the Module group you want to change shown in
Table 5.
3. Momentarily touch the BLK/RED and group wire from step 2 to power to cycle through one pattern as detailed in Table 6. The pattern for
the module group congured will only be set in the level mode selected. Hold the wires to power for more than 4 seconds to return to the
default ash pattern.
TABLE 4
Module Group Wires - Unsynchronized
Function Wire Color Module Group
GRN/WHT Front Outboard
BLU/BLK Front Inboard
GRN Front Corner
BLK/WHT Rear Outboard
RED/WHT Rear Inboard
BLU/WHT Rear Center
BLU Rear Corner
BLK Rear End
ORG/BLK Takedown/Work Lights
WHT Alley
TABLE 5
Multicolor Module LED Color Hierarchy
Color Combination Primary Secondary
RED/BLUE RED BLUE
RED/AMBER RED AMBER
RED/WHITE RED WHITE
BLUE/AMBER BLUE AMBER
BLUE/WHITE BLUE WHITE
AMBER/WHITE** AMBER WHITE

Page 10 of 20
Light Head Group Flash Patterns - Unsynchronized
Order Group Flash Rate LED Module Colors
1 Quad 75 FPM Both - Slow Alternating
2 Single 150 FPM Both - Slow Alternating
3 Double 75 FPM Both - Slow Alternating
4 Triple Pop 75 FPM Both - Slow Alternating
5 Variable Rate - Single Both - Slow Alternating
6 NFPA Quad 77 FPM Both - Slow Alternating
7 Cycle Flash Both - Slow Alternating
8Off Both
9 Quad 75 FPM Both - Fast Alternating
10 Single 150 FPM Both - Fast Alternating
11 Double 75 FPM Both - Fast Alternating
12 Triple Pop 75 FPM Both - Fast Alternating
13 Cycle Flash Both - Fast Alternating
14 Quad 75 FPM Primary Only
15 Quad 75 FPM Primary with Secondary Pop
16 Single 150 FPM Primary Only
17 Single 150 FPM Primary with Secondary Pop
18 Double 75 FPM Primary Only
19 Double 75 FPM Primary with Secondary Pop
20 Triple Pop 75 FPM Primary Only
21 Triple Pop 75 FPM Primary with Secondary Pop
22 Variable Rate - Single Primary Only
23 NFPA Quad 77 FPM Primary Only
24 Cycle Flash Primary Only
25 Cycle Flash Primary with Secondary Pop
26 Quad 75 FPM Secondary Only
27 Single 150 FPM Secondary Only
28 Double 75 FPM Secondary Only
29 Triple Pop 75 FPM Secondary Only
30 Variable Rate - Single Secondary Only
31 NFPA Quad 77 FPM Secondary Only
32 Cycle Flash Secondary Only
TABLE 6
For best results, modules groups with one or more single color modules should be set to primary only ash patterns.
For instructions related to the California Title 13 steady burning red warning lamp requirement during level mode operation, please contact
ECCO directly.

Page 11 of 20
Emergency Mode Flash Pattern Selection – Synchronized
The seven customizable emergency ash pattern modes each have the option to be synchronized. This condenses the module groups
from Table to front and rear. The default ash sequences are shown below in Table 7.
Module Group Wires - Synchronized
Function Wire Color Module Sequence Group
GRN/WHT Front
BLU/BLK Rear
TABLE 8
Level Mode Default Sequence by Group - Synchronized
Module Group L1 L2 L3
Front Off Left/Right Cycle
Rear Left/Right Off Cycle
L1 + L2 L1 + L3 L2 + L3 L1 + L2 + L3
Front Left/Right Left/Right Left/Right Left/Right
Rear Left/Right Left/Right Left/Right Left/Right
TABLE 7
To toggle synchronized groups on or off
1. Power-up the Lightbar and apply +power to a single level mode (see Table 2) in the 16 conductor cable.
2. Momentarily touch the BLK/RED Pattern wire and the RED wire to +power to set the level mode to synchronized. The four corner modules
will turn on each time the lightbar is toggled between unsynchronized and synchronized.
Module Group Flash Sequence - Synchronized
Order Sequence LED Module Colors
1Off Both
2 Left/Right Primary Only Primary Only
3 Even/Odd Primary Only Primary Only
4 Left/Right Secondary Only Secondary Only
5 Even/Odd Secondary Only Secondary Only
6 Left/Right Multi-Color Both
7 Even/Odd Multi-Color Both
8 Left/Right Primary with Secondary Pop
9 Even/Odd Primary with Secondary Pop
10 Left/Right Primary with Secondary Random
11 Even/Odd Primary with Secondary Random
12 Cycle Both
13 All On Multi-Color Both
14 Left/Right Primary Primary with Secondary Random
TABLE 9
To change a Module group ash sequence selection:
1. Power-up the lightbar and apply +power to a single level mode (see Table 2) in the 16 conductor cable.
2. Momentarily touch the BLK/RED pattern select wire and the appropriate Module group wire, shown in Table 8, to +power to cycle through
the sequences shown in shown in Table 9.

Page 12 of 20
After the module groups have a sequence selected, a ash pattern rate can be chosen. The default rates are as follows in TABLE 10.
Level Mode Default Flash Rate by Module Group - Synchronized
Module Group L1 L2 L3
Front Quad 75 FPM Quad 75 FPM Cycle
Rear Quad 75 FPM Quad 75 FPM Cycle
L1 + L2 L1 + L3 L2 + L3 L1 + L2 + L3
Front Quad 75 FPM Cycle Cycle Cycle
Rear Quad 75 FPM Left/Right Cycle Cycle
TABLE 10
To change a Module group’s ash pattern rate selection:
1. Power-up the lightbar and apply +power to a single level mode (see Table 2) in the 16 conductor cable.
2. Momentarily touch the BLK/RED Pattern select wire and the appropriate Module group wire, shown in Table 11, to +power to cycle through
the ash pattern rates shown in shown in Table 12. Hold the wires to +power for more than 4 seconds to return to the factory default
setting.
Module Group Flash Rate Wires - Synchronized
Function Wire Color Module Group
GRN/WHT Front
BLU/BLK Rear
TABLE 11
Module Group Flash Patterns -
Unsynchronized
Order Flash Pattern
1 Double 75 FPM
2 Triple 75 FPM
3 Quad 75 FPM
4 Quint 75 FPM
5 Triple Pop 75 FPM
6 Quad Pop 75 FPM
7 Single 150 FPM
8 Double 150 FPM
9 Triple 150 FPM
10 Quad 150 FPM
11 Quint 150 FPM
12 Triple Pop 150 FPM
13 Quad Pop 150 FPM
14 Single 375 FPM
15 NFPA Quad 77 FPM
16 Cycle Flash
TABLE 12

Page 13 of 20
Arrowstik Flash Pattern Selection
The CC Series Lightbar is designed to offer user selectable trafc directing and trafc warning ash patterns. Each of the ArrowStik® func-
tions (LEFT, CENTER-OUT, RIGHT or FLASH) can be programmed individually for unique sequences and ash rates. This allows the great-
est exibility when controlling the various lightbar congurations available. The lightbar can be congured with 5, 6, 7 or 8 Module modules
and comes from the factory with the Building Fast pattern as the default for LEFT, CENTER-OUT and RIGHT. The default pattern for FLASH
is Driver’s Side Cut – front, corner & alley.
Arrowsik Left, Center-Out &
Right Flash Patterns
Order Flash Pattern
1 Building*
2 Building, 3-Flash*
3 Traveling Ball, 3-Flash*
4 Build/Collapse*
TABLE 13
Arrowstik Flash Patterns
Order Flash Pattern
1 Drivers Side Cut - Front corner & alley
2 Drivers Side Cut - Rear corner & alley
3 Drivers Side Cut - Front outboard, corner alley
4 Standard Flash*
5 Quad Flash Standard
6 Simultaneous Flash*
7 Quad Flash Simultaneous
8 Even/Odd Flash*
9 Quad Flash Even/Odd
10 Left/Right Flash*
11 Quad Flash Left/Right
12 Travelling Ball Flash*
TABLE 14
Arrowstik End Flash Pattern Selection
The lightbar can be ordered with two additional lamps positioned at the outermost ends of the ArrowStik. These two modules may be cong-
ured for the End Flash function during ArrowStik operation. The factory default is the off sequence.
Arrowstik End Flash Patterns
Order Multicolor Modules Single Color Modules
1 Off Off
2 Alternating - Both Alternating
3 Alternating - Primary Only
4 Alternating - Secondary
Only
TABLE 15
To select a ash pattern for one of the four Arrowstik functions,
1. Power-up the lightbar and apply +power to a single Arrowstik mode (see Table 41) in the 16 conductor cable.
2. Momentarily touch the Pattern Select wire (BLK/RED) to +power to cycle through the ash patterns shown in Tables 13 and 14 below. Hold
for more than 4 seconds to return to the factory default.
Flash patterns marked with an asterisk (*) can be selected in Fast, Medium or Slow ash rate.
To congure Arrowstik End Flash:
1. Power-up the lightbar and apply +power to a single ArrowStik function - LEFT (RED), CENTEROUT (RED + ORG), RIGHT (ORG) or
FLASH (WHT).
2. Momentarily hold the BLK/RED and BLK wires to +power to increment to the next end ash sequence shown in Table 15. Hold for more
than 4 seconds to return to the factory default setting.

Page 14 of 20
Arrowstik Emergency Mode Operation
ArrowStik Emergency Mode adds an alternating double ash sequence of the primary LEDS after the Arrowstik sequence cycles four times.
The lightbar will come from the factory, with the ArrowStik Emergency function disabled.
This option is only available for lightbars with multicolor modules in the Arrowstik. Please note that this function does not work with the
FLASH function.
To toggle ArrowStik Emergency on or off:
1. Power-up the lightbar. Apply +power to a single ArrowStik function - LEFT (RED), RIGHT (ORG) or CENTER-OUT (RED + ORG).
2. Touch the BLK/RED and BLU/WHT wires to +power to toggle the ArrowStik Emergency function on and off.
Takedown, Work and Alley Light Flash Pattern Selection
The default ash rate for Takedown and Alley Light Wig/Wag Flash is Medium Single 115 FPM. When selecting a ash rate for the Takedown/
Work Light or Alley Light Modes,
1. Power-up the lightbar and apply +power to the Takedown Flash Mode (BLK) or the Alley Flash Mode (BLU/WHT). Programming will not
work if more than one function is selected.
2. Touch the Pattern Select wire (BLK/RED) to +power to cycle through the ash patterns shown in Table 16. Hold for longer than 4 seconds
to return to the factory default setting.
Takedown, Work & Alley Light Flash Patterns
Flash Patterns Flash Pattern
1 Medium Single 115 FPM
2 Slow Single 60 FPM
3 Fast Double 115 FPM
4 Slow Double 60 FPM
5Fast Six 80 FPM
6Slow Six 60 FPM
7Variable Rate – Single
8 NFPA Quad 75 FPM
9 Cycle Flash
10 Fast Quad 80 FPM
11 Slow Quad 60 FPM
12 Fast Single 375 FPM
TABLE 16
Secondary Cruise, Takedown, Work and Alley Light Flash Pattern Selection
In addition to the standard functions listed in Table 1, the secondary LEDs (see Table 4) in multicolor modules in the front, rear and/or corner
positions can be utilized to function in secondary cruise, takedown, alley and work light modes for increased light output and visibility.
Secondary Takedown, Work & Alley Light Function Options
Function Wire Color Function Option
GRN/WHT or ORG/BLK Secondary Takedown Light Mode
BLU/BLK Secondary Work Light Mode
RED/WHT Secondary Right Alley Light Mode
BLK/WHT Secondary Left Alley Light Mode
GRN Secondary Cruise Mode
TABLE 17

Page 15 of 20
To enable a secondary cruise, takedown, work and alley light ash function:
1. Power-up the lightbar and apply +power to one wire from Table 17 that will be changed to a secondary mode. Programming will not work if
more than one function is selected at a time.
2. Tap the BLK/RED wire to +power to cycle through the module options for that mode. Hold for longer than 4 seconds to return to the factory
default setting. See the tables below for details. The single color columns apply when the lightbar has only single color work/takedown and
alley lights. The multicolor column applies to when the lightbar has any multicolor work/takedown and/or multicolor alley lights.
Secondary Takedown Light Flash Mode Modules
Order Single Color Multicolor
1 Standard Function per Table 1 Standard Function per Table 1
2 Front Outboard Front Outboard
3 Front Inboard Front Inboard
4 Front Center Front Inboard, Outboard
5 Front Inboard, Outboard Front Outboard, Corners
6 Front Center, Outboard Front Inboard, Corners
7 Front Center, Inboard Front Inboard, Outboard, Corners
8 Front Center, Inboard, Outboard
9 Front Outboard, Corners
10 Front Inboard, Corners
11 Front Center, Corners
12 Front Inboard, Outboard, Corners
13 Front Center, Outboard, Corners
14 Front Center, Inboard, Corners
15 Front, Corners
TABLE 18
Secondary Work Light Mode Modules
Order Single Color Multicolor
1 Standard Rear Cut Function Standard Rear Cut Function
2 Right Front Corner Right Front Corner
3 Right Rear Corner Right Rear Corner
4 Right Corners Right Corners
5 Work, Rear Outboard Work, Rear Outboard
6 Work, Rear Inboard Work, Rear Inboard
7 Work, Rear Center Work, Rear Center
8 Work, Rear Outboard, Rear Inboard Work, Rear Inboard, Rear Center
9 Work, Rear Inboard, Rear Center Work, Rear Ends
10 Work, Rear Work, Rear
11 Work, Rear Outboard, Rear Corners Work, Rear Outboard, Rear Corners
12 Work, Rear Inboard, Rear Corners Work, Rear Inboard, Rear Corners
13 Work, Rear Center, Rear Corners Work, Rear Center, Rear Corners
14 Work, Rear Outboard, Rear Inboard, Rear Corners Work, Rear Inboard, Rear Center, Rear Corners
15 Work, Rear Inboard, Rear Center, Rear Corners Work, Rear Ends, Corners
16 Work, All Rear, Rear Corners Work, All Rear, Rear Corners
TABLE 19

Page 16 of 20
Secondary Right or Left Alley Light
Flash Patterns
Order Modules
1 Standard Alley Light Function
2 Alley, Front Corner
3 Alley, Rear Corner
4 Alley, Front and Rear Corners
Secondary Cruise Mode Modules
Order Modules LEDs
1Corners - Dim (Standard Cruise Function) Primary Only
2 Corners - Dim Secondary Only
3 Corners, Front, Rear - Dim, Flicker Primary Only
4 Corners, Front, Rear - Dim, Flicker Secondary Only
5 Corners, Front, Rear - Dim, Flicker Primary Corners, Front and Secondary Rear
6 Left Front Corner Secondary Only
7 Left Rear Corner Secondary Only
8 Left Corners Secondary Only
TABLE 20
TABLE 21
Lightbar Dim Operation
Lightbar LED modules are equipped with a low power “Dimming” mode. Dimming is controlled by applying +power to the blue wire of the
control cable. Dimming can also be controlled by an optional photo cell. Please contact the factory for more information or upgrade options.

Page 17 of 20
FIGURE 9
Options and Maintenance:
Lens Cleaning
Occasional cleaning of the lenses will ensure optimum light output. Take care when cleaning lenses - although tough, polycarbonate
scratches easily. Clean the lens and base with soap and water or a lens polish using a soft cloth. Do not use solvents as they may damage
the polycarbonate.
Lens Removal and Installation
1. Uninstall the lens clips (4 per lens), as shown in FIGURE 9, using a at blade screwdriver.
2. Insert the screwdriver into the gap along the lens edge, and twist the screwdriver to lift the lens.
3. When nished, reinstall making sure the lens gasket is not damaged or folded. Replace the clips by hooking into the bottom lens slot and
pressing the upper portion into the clip pocket.
LED Module Removal and/or Replacement
1. Remove screw(s) securing the light head assembly to the mounting plate. See FIGURE 9.
2. Lift the light head assembly and disconnect wiring at the connectors.
3. During re-assembly, repeat the prior steps in reverse order. Torque screw(s) securing the light head assembly to the mounting plate using
10 in-lbs or 1.13 Nm.
Directional
Module
Corner
Module
LED TD/Alley
Module
FIGURE 10
Twist to
lift lens
Pry up
to remove
lens clip

Page 18 of 20
Description Part No.
Lenses
Lower end EZ2101C
Lower mid/center short (8”/203mm) EZ2108C
Lower mid/center medium (11”’/280mm) EZ2111C
Lower mid/center long (16”406mm) EZ2116C
Upper mid/center medium, (11”/280mm) EZ2127U11X*
Upper mid/center long, amber (11”/280mm) EZ2127U16X*
22”/0.7m (upper) EZ2127U22X*
Upper mid/center short (8”/203mm) EZ2127U8X*
Upper end EZ2127UX*
22”/0.7m, (lower) clear EZ21L22C
Mounting
Universal headache rack A2127HRMK
Ford Super Duty Truck 2010-2016 A212701RMK
Ford E Series Van 1996-2014, GM Van (Express/Savanna) 2003-2014, Universal Gutter
Mount
A212702RMK
Ford Escape/Explorer 2012-2016, Toyota Tacoma 2005-2015 A212703RMK
GM Truck 1/2T 2007-2013 A212704RMK
Ford Super Duty Truck 1999-2009 A212705RMK
Dodge Truck 1/2T 2009-2016 A212706RMK
Dodge Truck 3/4-1T 2003-2009,/GM Truck 1/2T 1998-2006, 1T Tahoe/Yukon 2007-2014 A212707RMK
GM Truck 1/2T 2014-2016, 1T Tahoe/Yukon 2015-2016 A212708RMK
Ford Truck 1/2T 2015-2016 A212709RMK
10 & 14 Series Ford Truck 1/2T 2010-2014 A212710RMK
Standard feet, for use with 21 & 27 Series lightbars A2127FT
Magnet Mount Kit 22” EZ2122MG
Accessories
Controller: integrated Safety Director, for use with centrally controlled modules EZ2127ASCC
Controller: integrated Safety Director, for use with independent ashing modules EZ2127ASIF
Driver Board: for use with centrally controlled modules, software version 1000 EZ2127CC600
Driver Board: for use with centrally controlled modules, software version 1050 EZ2127CC800
Driver Board: for use with centrally controlled modules, software version 1051 EZ2127CC950
Lens Retaining Clip EZ2127LC
Photo Cell: day/night auto dimming EZ2127PC
Switchbox: 3 level progressive slide and 6 rocker switches, 12 VDC EZ2127SB
Solar Panel EZ2127SP
Modules
LED DOT Strip Module: external mount EZ2127DOT
LED Stop Tail Indicator Module (pair) EZ21STT
Front/Rear, TR18 (centrally controlled) EZ21CC18XX*
Front/Rear, TR3 (centrally controlled) EZ21CC3X*
Front/Rear, TR4 (centrally controlled) EZ21CC4X*
Corner, TR6 (centrally controlled) EZ21CC6X*
Corner, TR9 (centrally controlled) EZ21CC9X*
Front/Rear, TR3 (independent ashing) EZ21IF3X*
Front/Rear, TR4 (independent ashing) EZ21IF4X*
Front/Rear, TR9 (independent ashing) EZ21IF9X*
LED Worklamp/Alley Module, TR3 EZ2127WL
Multicolor LED Worklamp/Alley Module TR5 EZ21WL5XX
Replacement Parts/Accessories:
*Where X indicates color options: A=Amber, B=Blue, C=Clear (White), G=Green, R=Red

Page 19 of 20
Troubleshooting:
All lightbars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life of the product, follow the
guide below for troubleshooting and repair information. If the problem cannot be rectied using the solutions given below, additional information may be
obtained from the manufacturer – contact details are at the end of this document.
PROBLEM POSSIBLE CAUSE SOLUTION
Does not function Poor power or ground connection In CC Lightbars, a green light on the central
control board should ash when power is
rst applied to the bar and during ash pat-
tern selection.
Blown fuse Check wiring, replace fuse
Incorrect ash patterns Wrong ash conguration Cycle through ash patterns according to
the supplied wire key and wiring instruc-
tions section of this installation guide.
NOTE: Operating the vehicle without the outer lens installed on the product may result in damage that will NOT be
covered under the warranty.
!

Page 20 of 20
Manufacturer Limited Warranty and Limitation of Liability:
Manufacturer warrants that on the date of purchase this product will conform to Manufacturer’s specications for this product (which are available
from the Manufacturer upon request), and Manufacturer further warrants that this product is free from defects in materials and workmanship. This
Limited Warranty extends for Sixty (60) months from the date of purchase. Other warranties may apply, call Manufacturer for details. Manufacturer
will, at its discretion, repair or replace any product found by the Manufacturer to be defective and subject to this Limited Warranty.
DAMAGE TO PARTS OR PRODUCTS RESULTING FROM TAMPERING, ACCIDENT, ABUSE, MISUSE, NEGLIGENCE, UNAPPROVED MODIFICA-
TIONS, FIRE OR OTHER HAZARD; IMPROPER INSTALLATION OR OPERATION; OR NOT BEING MAINTAINED IN ACCORDANCE WITH THE MAIN-
TENANCE PROCEDURES SET FORTH IN MANUFACTURER’S INSTALLATION AND OPERATING INSTRUCTIONS VOIDS THIS LIMITED WARRANTY.
ORAL STATEMENTS OR REPRESENTATIONS ABOUT THE PRODUCT WHICH MAY HAVE BEEN MADE BY SALESPEOPLE, DEALERS, AGENTS OR
OTHER MANUFACTURER’S REPRESENTATIVES DO NOT CONSTITUTE WARRANTIES. THIS LIMITED WARRANTY MAY NOT BE AMENDED, MODI-
FIED, OR ENLARGED EXCEPT BY A WRITTEN AGREEMENT SIGNED BY AN AUTHORIZED OFFICIAL OF MANUFACTURER WHICH EXPRESSLY
REFERS TO THIS LIMITED WARRANTY.
Exclusion of Other Warranties:
MANUFACTURER MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED. THE IMPLIED WARRANTIES FOR MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED AND SHALL NOT APPLY TO THE PRODUCT. BUYER’S SOLE AND EXCLUSIVE
REMEDY IN CONTRACT, TORT, OR UNDER ANY OTHER THEORY AGAINST MANUFACTURER REGARDING THE PRODUCT AND ITS USE SHALL
BE THE REPLACEMENT OR REPAIR OF THE PRODUCT AS DESCRIBED ABOVE.
Limitation of Liability:
IN THE EVENT OF LIABILITY FOR DAMAGES ARISING OUT OF THIS LIMITED WARRANTY OR ANY OTHER CLAIM RELATED TO THE MANU-
FACTURER’S PRODUCTS, MANUFACTURER’S LIABILITY FOR DAMAGES SHALL BE LIMITED TO THE AMOUNT PAID FOR THE PRODUCT AT
THE TIME OF THE ORIGINAL PURCHASE. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR LOST PROFITS, THE COST OF SUBSTITUTE
EQUIPMENT OR LABOR, PROPERTY DAMAGE, OR OTHER SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES BASED UPON ANY CLAIM
FOR BREACH OF CONTRACT, IMPROPER INSTALLATION, NEGLIGENCE, OR OTHER CLAIM, EVEN IF MANUFACTURER OR A MANUFACTURER’S
REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. MANUFACTURER SHALL HAVE NO FURTHER OBLIGATION
OR LIABILITY WITH RESPECT TO THE PRODUCT OR ITS SALE, OPERATION AND USE, AND MANUFACTURER NEITHER ASSUMES NOR AUTHO-
RIZES THE ASSUMPTION OF ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SUCH PRODUCT.
This Limited Warranty denes specic legal rights. You may have other legal rights which vary from state to state. Some states do not allow the
exclusion or limitation of incidental or consequential damages.
920-9909-00 Rev. A
833 West Diamond St
Boise, Idaho 83705
Customer Service
USA 800-635-5900
UK [phone]
AUS [phone]
www.eccosafetygroup.com
