ECD M.O.L.E. EV20 User manual

QUICK REFERENCE GUIDE

1
CONTENTS
WELCOME.......................................................................................................................2
EQUIPMENT
FEATURES/FUNCTIONS..........................................................................................3
STATUS ACTIVITY LED............................................................................................ 4
HOME SCREEN ........................................................................................................5
MAIN MENU............................................................................................................6
SETUP
CHARGING THE POWER PACK..............................................................................7
SOFTWARE INSTALLATION ...................................................................................8
COMMUNICATIONS .............................................................................................10
OPERATION
INTRODUCTION....................................................................................................12
STEP 1: SETUP INSTRUMENT ..............................................................................13
STEP 2: DATA COLLECTION..................................................................................18
STEP 3: VIEW DATA ..............................................................................................21
STEP 4: DOWNLOAD DATA..................................................................................23

2
WELCOME
This Quick Reference Guide is designed to help the user to familiarize themselves with the
equipment, perform basic hardware setup/communications and operation. For detailed
information on both Hardware & Software components, please refer to the Help system
accessible in the M.O.L.E.™ MAP Software.
To access the help system start the software and use any of the methods listed:
• Select the Help Button on the Toolbar.
• Pressing the shortcut key [F1]
• On the Help menu, click MAP Help.

3
EQUIPMENT FEATURES/FUNCTIONS
Display:
The touch screen interface
of the thermal proler.
Thermocouple/Inputs:
This is where up to 20
thermocouple sensors are
connected.
Data/Charging Port:
Transfers data to/from a
computer & charges the
internal battery.
LED:
Indicates various statuses
of the thermal proler.
ON/OFF Button:
Turns Proler “ON/OFF”.
Wireless Antenna Port:
This is where the Optional
antenna is connected.
Record Button:
Starts/Stops thermal
proler recording data.

LED Color Solid Flashing
Green Indicates thermal proler is
“ON” and idle
Indicates thermal proler is
recording data. (Log Interval:
1 sec., ash each log, < 0.5
sec., ash 4 times per sec., > 1
sec., ash every 2 seconds)
Red -
Flashes 5 times to indicate
when the internal battery
voltage is low or internal
temp is at or above a
threshold or all channels are
OFF or when the memory
is full
Yellow
Power ON. LED illuminated
for 3 seconds during system
check
-
Blue Wireless communication
connection established
Indicates when unit and
transceiver is transferring data
4
EQUIPMENT STATUS ACTIVITY LED

➊
➋
➌ ➎➍
➏ ➐
5
EQUIPMENT HOME SCREEN
➊Channel status indicators:
· Shows current sensor Temp.
· Grayed when disabled
· “N/C” if T/C not connected/open
· Touch opens Channel enable
type selection screen ➏Log interval:
· Displays the congured log interval
➎MOLE Temp:
· Red if >70C
· Yellow if >40C, <=70C
· Green if <=40C
➋Date/Time:
· Displays the current date/time
from the internal clock ➐Menu button:
· Touch to open main menu screen
➌Battery charge:
· Displays charge (0-100%)
· 20% resolution (5 steps)
➍File storage:
· Displays how full (0-100%)
· 10% resolution (10 steps)

6
EQUIPMENT MAIN MENU
Record Congure Screen Select Prole Screen Select KPI Screen
Date/Time Screen Units Screen Bluetooth® Screen
Battery Screen M.O.L.E. History Screen Factory Screen

A completely discharged battery
takes about 4 hours to be fully
charged.
➋
➊
7
SETUP CHARGING THE POWER PACK
1. Insert the USB computer interface
cable into a computer USB port
2. Insert the USB-C end into the data/
charging port.

➋
8
SETUP SOFTWARE INSTALLATION
1. Insert the ash drive in a USB port
and the AutoPlay menu appears.
2. Select Open folder to view les
button on the AutoPlay menu to
launch Windows® Explorer. Closely
follow the instructions for your
operating system. For detailed
information view the Installation
Help le on the ash drive.

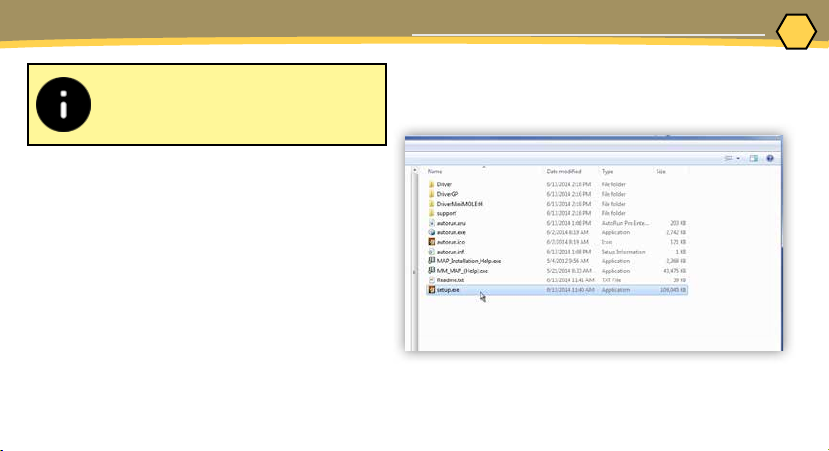

Locate the setup.exe on the
installation drive. Double-click
the le to proceed.
1. Select the Next command button
to follow the installation wizard
process.
9
SETUP SOFTWARE INSTALLATION

➋
10
SETUP COMMUNICATIONS
1. Plug the USB cable into a computer
COM Port and the USB-C end into
the M.O.L.E. thermal proler data
port. The AutoPlay panel appears
in the lower right corner of the
desktop. This panel displays the four
most common MAP commands.
2. Select Start M.O.L.E. MAP

Once a M.O.L.E. thermal proler
has been selected, the software
automatically selects it if used again
on the same COM port.
➌
➍
➎
11
SETUP COMMUNICATIONS

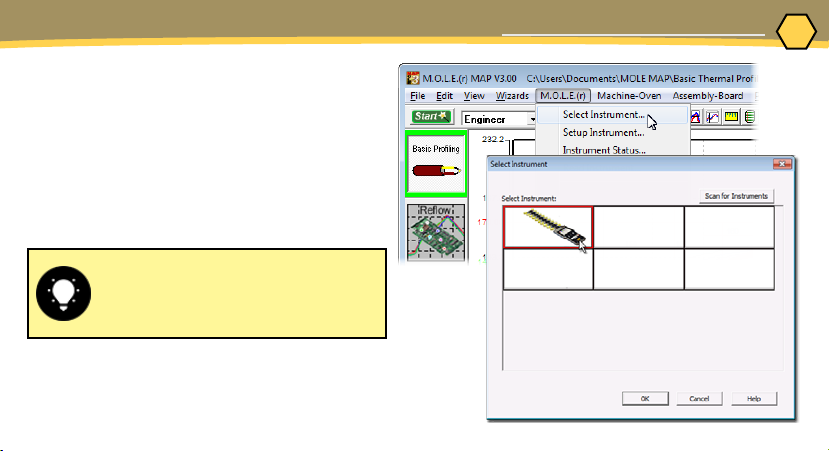

3. On the M.O.L.E. menu, click the
Select Instrument command.
4. Select the desired instrument
from the dialog box. If there are
none displayed, click the Scan for
Instruments command button to
detect all available instruments.
5. Click the OK command button to
accept.

12
OPERATION INTRODUCTION
This operation procedure guides you through a typical process on how to set a M.O.L.E.
thermal proler up for performing a data run. For additional detail, consult the Help
System in the software.
The M.O.L.E. thermal proler depends on the MAP (Machine-Assembly-Process) software
to control how it collects and interprets data. Several kinds of data runs may need to
be performed to achieve desired information, or the same data run may be performed
repeatedly over time to monitor one process. Either way, each data run must be set up
at least once.
The MAP software includes wizards that help you get started quickly, even if you are a
beginner or infrequent user.

➍
➌
13
OPERATION SETUP INSTRUMENT
STEP 1: SETUP INSTRUMENT
1. Open the M.O.L.E. MAP software.
2. Connect the M.O.L.E. thermal proler to the
computer.
3. Make sure the M.O.L.E. battery is fully
charged. When a M.O.L.E. thermal proler is
selected, the software status bar displays the
current battery voltage.
4. Set an Environment. Either open an existing
Environment Folder or create a new one.

When navigating through the
wizard, the step list on the left of
the dialog box uses a color key to
inform the user of the progression
through the wizard.
Current
Completed
Remaining
➏
14
OPERATION SETUP INSTRUMENT
5. On the M.O.L.E. menu, select Setup
Instrument and the workow wizard appears.
6. Set the Instrument Name.

For settings such as Start Parameters
and Stop Parameters, select the
More>> command button.
➐
➑
➒
15
OPERATION SETUP INSTRUMENT
7. Select the Sensor Platform button.
8. Select the desired sensors then the OK
command button to proceed.
9. Conrm the settings and then, select the
Next command button to send the data
listed in the dialog box to the instrument.

⑪
➓
16
OPERATION SETUP INSTRUMENT
10. Conrm the assembly information such as
the test Product Description, size, sensor
locations and a image.
11. Click the Next command button.

If everything is OK, the dialog box
displays a GREEN sign. If there are
any items that may prevent the user
from collecting good data, they
are highlighted and a RED sign is
displayed.
⑬
⑫
17
OPERATION SETUP INSTRUMENT
12. Verify the instrument status. This dialog box
displays the health of the M.O.L.E. thermal
proler such as battery charge, internal
temperature, thermocouple temperatures.
13. Select the Finish command button to
complete the Setup Instrument wizard.

Never permit the M.O.L.E. thermal
proler to exceed the absolute
maximum warranteed internal
temperature, as permanent damage
may result. The warranty will not
cover damage caused by exceeding
the maximum specied internal
temperature.
➊
18
OPERATION DATA COLLECTION
STEP 2: DATA COLLECTION
1. Attach the thermocouple sensors into
the test product. Soldering is the most
common method. This process will vary
depending on the type of data you are
trying to collect.

When retrieving the M.O.L.E.
thermal proler and test product
use caution as it may be warm.
➋
➌➍
19
OPERATION DATA COLLECTION
2. Connect the M.O.L.E. thermal proler to
the sensors.
3. Press the “ON” button.
4. Place the M.O.L.E. thermal proler in the
appropriate thermal barrier and press
the “Record” button.
5. Close the thermal barrier making sure
the sensor wires do not get pinched and
the latch is secure.
6. Pass the thermally protected M.O.L.E.
thermal proler, and test product
through the process.
